00caution̲PDM-4210̲U̲En
2003.11.28 17:43
ページ 1

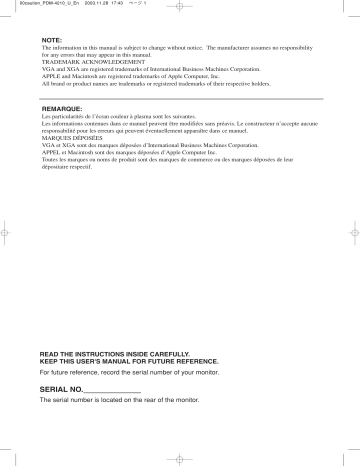

NOTE:
The information in this manual is subject to change without notice. The manufacturer assumes no responsibility
for any errors that may appear in this manual.
TRADEMARK ACKNOWLEDGEMENT
VGA and XGA are registered trademarks of International Business Machines Corporation.
APPLE and Macintosh are registered trademarks of Apple Computer, Inc.
All brand or product names are trademarks or registered trademarks of their respective holders.
REMARQUE:
Les particularités de l’écran couleur à plasma sont les suivantes.
Les informations contenues dans ce manuel peuvent être modifiées sans préavis. Le constructeur n’accepte aucune
responsabilité pour les erreurs qui peuvent éventuellement apparaître dans ce manuel.
MARQUES DÉPOSÉES
VGA et XGA sont des marques déposées d’International Business Machines Corporation.
APPEL et Macintosh sont des marques déposées d’Apple Computer Inc.
Toutes les marques ou noms de produit sont des marques de commerce ou des marques déposées de leur
dépositaire respectif.
READ THE INSTRUCTIONS INSIDE CAREFULLY.
KEEP THIS USER'S MANUAL FOR FUTURE REFERENCE.
For future reference, record the serial number of your monitor.
SERIAL NO.
The serial number is located on the rear of the monitor.
01̲PDM-4210̲U̲En
2003.11.28 17:11
ページ 1
ENGLISH
USER'S MANUAL
Thank you very much for purchasing the Yamaha High Definition
Plasma Monitor.
Before using your monitor, please carefully read the "SAFETY
INSTRUCTIONS" and this "USER'S MANUAL" so you will know how to
operate the monitor properly. Keep this manual in a safe place. You
will find it useful in the future.
Notes on lnstallation Work:
This product is marketed assuming that it is installed by qualifed
personnel with enough skill and competence. Always have an
installation specialist or your dealer install and set up the product.
YAMAHA cannot assume liabilities for damage caused by mistake
in installation or mounting, misuse, modification or a natural
disaster.
Note for Dealers:
After installation, be sure to deliver this manual to the customer
and explain to the customer how to handle the product.
1
01̲PDM-4210̲U̲En
2003.11.28 17:11
ページ 2
Follow all warnings and instructions marked on this monitor.
IMPORTANT SAFETY INSTRUCTIONS
SAFETY POINTS YOU SHOULD KNOW ABOUT
YOUR Yamaha High Definition Plasma Monitor
Our reputation has been built on the quality, performance, and ease of service of Yamaha High Definition Plasma Monitor.
Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates
safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of
your Yamaha High Definition Plasma Monitor.
Follow all warnings and instructions marked on this monitor.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of a
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle, is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS MONITOR TO RAIN OR MOISTURE.
• THE MONITOR SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE MONITOR.
NOTE:
• There are no user serviceable parts inside the monitor.
• Model and serial numbers are indicated on back side of the monitor.
CAUTION:
Adjust only those controls that are covered in the instructions, as improper changes or modifications not
expressly approved by YAMAHA could void the user's authority to operate the monitor.
POWER SOURCE
THIS MONITOR IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE POWER CORD INTO A 120
VOLT 60Hz OUTLET.
TO PREVENT ELECTRIC SHOCK, DO NOT USE THE MONITOR'S (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
NEVER CONNECT THE MONITOR TO DIRECT CURRENT OR ANYTHING OTHER THAN THE SPECIFIED VOLTAGE.
CAUTION:
Never remove the back cover of the monitor as this can expose you to very high voltages and other
hazards. If the monitor does not operate properly, unplug the monitor and call your authorized dealer or
service center.
For Canadian customers:
To prevent electric shock, match wide blade of plug to wide slot and fully insert.
This Class B digital apparatus complies with Canadian ICES-003.
2
01̲PDM-4210̲U̲En
2003.11.28 17:11
ページ 3
IMPORTANT SAFETY INSTRUCTIONS
Do not place any objects on the top of the monitor which
may fall or cause a child to climb to retrieve the objects.
15. Monitors are designed to comply with the recommended
safety standards for tilt and stability.
Do not apply excessive pulling force to the front, or top, of
the cabinet which could cause the product to overturn
resulting in product damage and/or personal injury.
16. Follow instructions for wall, shelf or ceiling mounting as
recommended by the manufacturer.
17. An outdoor antenna should not be located in the vicinity of
overhead power lines or other electrical circuits.
18. If an outside antenna is connected to the receiver be sure the
antenna system is grounded so as to provide some protection
against voltage surges and built up static charges. Section
810 of the National Electric Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding for the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding connectors,
location of antenna-discharge unit, connection to grounding
electrodes and requirements for the grounding electrode.
ENGLISH
Read before operating equipment
Follow all warnings and instructions marked on this monitor.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding- type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use the attachments/accessories specified by the
manufacturer.
12.
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUNDING CONDUCTORS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC NATIONAL ELECTRICAL CODE
Note to the CATV system installer: This reminder is provided to
call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable
entry as practical.
Disposal of this product may require specific instructions
pertaining to your resident state. For disposal or recycling
information, please contact your local authorities or the
Electronic Industries Alliance: www.eiae.org.
PREVENTION OF SCREEN BURN
Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed
(non-moving) patterns can cause permanent damage to the monitor.
PUBLIC VIEWING OF COPYRIGHTED MATERIAL
Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may
require prior authorization from the broadcaster or owner of the video program material.
3
01̲PDM-4210̲U̲En
2003.11.28 17:11
ページ 4
Important
Please read this User's Manual thoroughly, especially the Important
Safety Instructions on Page 2 to 3 and 6 to 10. Mis-use may cause
damage to your plasma monitor, which could shorten its lifespan, or
cause injury to yourself. Should you encounter any difficulty in the
set-up or operation of your monitor, firstly refer to the Troubleshooting
guide at the rear of this manual.
In the unlikely event of a problem occurring with your plasma monitor,
switch off at the mains sockets, pull out the plugs, and contact your
dealer immediately.
CAUTION
Under no circumstances remove the rear cover of your plasma
monitor.
Never guess or take any chances with electrical equipment of any
kind - it is better to be safe than sorry!
Software Notice
It is prohibited for the end user of this product to copy, reverse
engineer or reverse compile the software included therein, save to
the extent permitted by law.
Plasma Monitor
After the plasma monitor has been turned on for any length of time,
you will notice that the screen becomes warm. Please note that this is
normal.
Sometimes the screen might have some tiny bright or dark spots.
Please note that this is normal.
CAUTION
To prevent scratches or damages to the plasma display panel, do
not knock or rub the surface with sharp or hard objects. Clean the
screen with a soft cloth moistened with warm water and dry with a
soft cloth. A mild soap may be used if the screen is extremely dirty.
Do not use harsh or abrasive cleaners!
CAUTION
Use a soft cloth to clean the cabinet and control panel of the monitor.
When excessively soiled dilute a neutral detergent in water, wet and
wring out the soft cloth and afterward wipe with a dry soft cloth.
Never use acid/alkaline detergent, alcoholic detergent, abrasive
cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc.
especially because they will cause discoloration, scratches or
cracks.
4
FEATURES
Large-screen, high-definition plasma display
panel
The 42-inch color plasma display panel, with a resolution of 1024 (H)
x 1024(V) pixels, creates a high-definition, large-screen (aspect ratio
: 16:9) and low-profile flat display. Free from electromagnetic
interferences from geomagnetic sources and ambient power lines,
the panel produces high-quality display images free from color
misconvergence and display distortion.
High Performance Digital Processor
A wide range of personal computer signals can be handled, from 640
x 400, 640 x 480 VGA to 1600 x 1200 UXGA.
Easy-to-use remote control and on screen
display system
The remote control included eases the work of setting display controls.
Further, the on-screen display system, displays the status of signal
reception and display control settings in an easy-to-view fashion.
TruBass
TruBass, SRS and (O) symbol are trademarks of SRS Labs, Inc.
TruBass technology is incorporated under license from SRS Labs, Inc.
About the Optional Video Unit
The following functions can be obtained by connecting the optional video unit.
(1) A Composite/S video terminal and two component terminals have
been added. A composite video output terminal is also provided
as a monitoring output.
(2) A wide range of devices other than personal computers can also
be connected.
(3) It is possible to swich the component terminal to RGB input from
the Menu screen.
(4) A SCART terminal is also provided for the signal of the European
standard. It operates as composite/S/RGB input terminal, or video
output terminal.
Options
Ask your local retail dealer for further details on the following optical
attachments.
• Pedestal
PDS-242
• Wall Mounting Unit
PWK-242
01̲PDM-4210̲U̲En
2003.11.28 17:11
ページ 5
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . 2
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . .
6
COMPONENT NAMES . . . . . . . . . . . . . . . . . . . .
11
OTHER FEATURES . . . . . . . . . . . . . . . . . . . . . .
Main Unit ..........................................
Remote control ....................................
Loading Batteries ................................
Handling the Remote Control ......................
IMAGE RETENTION OF
PLASMA DISPLAY PANEL . . . . 26
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . .
27
Installation ........................................
Anti-tumble measures ..............................
Connecting to a PC ................................
Power Cord Connection ............................
OPERATING INSTRUCTIONS . . . . . . . . . . . .
Turning Power On and Off ..........................
Input Switching ....................................
Volume Adjustment ................................
Audio Mute ........................................
Size Switching ....................................
Input Signal Screen Display ........................
Automatic Adjustment of Screen Position and the Clock
Independent Operation of Multiple Monitors ..........
Using the Menu Screen ............................
PICTURE MENU....................................
AUDIO MENU......................................
TIMER MENU ......................................
FUNCTION MENU ..................................
SETUP MENU ......................................
LANGUAGE MENU ................................
13
13
13
14
15
24
24
25
25
Symptoms That Appear to be Failures ................
Actions to Correct Abnormal Displays ................
27
29
PRODUCT SPECIFICATIONS . . . . . . . . . . . .
30
Signal Input........................................
Recommended Signal List ..........................
30
31
16
SUPPLEMENT . . . . . . . . . . . . . . . . . . . . . . . . . .
33
16
17
17
17
18
18
19
19
19
20
21
21
22
23
24
Optional Video Unit Function ........................
34
ENGLISH
INSTALLATION INSTRUCTIONS.. . . . . . . . . .
11
12
12
12
Automatic Store ....................................
Signal Check ......................................
Power Save Mode ..................................
Notes about This Manual
• The information in this manual is subject to change without notice.
• While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any
comments, views or questions about our product.
• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the
product. We are not held liable for damages caused by improper handling of the product.
• Reproduction of this manual in whole or in part without our prior written permission is prohibited.
• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.
5
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 6
SAFETY INSTRUCTIONS
This Plasma monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must
be taken if you are to obtain the best results and safety is to be assured.
Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.
About the Symbols
Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and
others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions
thoroughly and fully understand the contents.
WARNING
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to
incorrect handling.
CAUTION
This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due
to incorrect handling.
Typical Symbols
This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.
This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left
indicates that disassembly is prohibited).
This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left
indicates that the power plug should be disconnected from the power outlet).
WARNING
Never use the monitor if a problem should occur.
Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables,
penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.
In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure Disconnect the
that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be plug from the
power outlet.
dangerous.
Do not insert liquids or foreign objects.
Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children
are present.
If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the
power outlet and contact your dealer.
• Do not place the monitor in a bathroom.
• Do not expose the monitor to rain or moisture.
• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.
• Do not place metals, combustibles, etc on or around the monitor.
Never disassemble or modify the monitor.
The monitor contains high voltage components. Modification could result in fire or electrical shock.
• Never remove any fixed cover.
Do not give the monitor any shock or impact.
If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.
If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet
and contact your dealer.
Do not place the monitor on an unstable surface.
If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.
• Do not place the monitor on an unstable, slant or vibrant surface such as a wobbly or inclined stand.
Do not obstruct the ventilation of the monitor.
If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage
and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.
• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.
• Do not place anything around ventilation openings of the monitor.
• Never block ventilation openings.
• Do not put the plasma display panel side up.
• Do not cover the monitor with a tablecloth, etc.
• Do not place the monitor on a carpet or bedding, or near a curtain.
Use only the correct power outlet.
Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the
monitor and the safety standard.
• The enclosed power cord must be used depending on the power outlet to be used.
6
Do not
disassemble.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 7
SAFETY INSTRUCTIONS(continued)
WARNING
ENGLISH
Be cautious of the power cord connection.
Incorrect connection of the power cord could result in fire or electrical shock.
• Do not touch the power cord with a wet hand.
• Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.
• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.
• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead,
obtain an appropriate extension lead or consult your dealer.
• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value,
type and approval as the original. Ensure the fuse cover is returned to its original position.
Be sure to keep safety ground connection.
Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed
power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
Surely connect
Be careful in handling the power cord and external connection cables.
the ground wire.
If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat,
pressure or tension to the power cord and cables.
If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.
• Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them
because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.
• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand
holding the plug or connector.
• Do not place the cord near the heater.
• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.
• Do not touch the power plug when lightening is close to you.
• Avoid coiling the power cord and bending it sharply.
• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they
exit from the apparatus.
• Do not modify the power cord.
Be careful in handling the battery of the remote control.
Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.
• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.
• Do not allow the battery to be exposed to fire or water.
• Avoid fire or high-temperature environment.
• Do not hold the battery with metallic tweezers.
• Keep the battery in a dark, cool and dry place.
• Do not short circuit the battery.
• Do not recharge, disassemble or solder the battery.
• Do not physically impact the battery.
• Use only the battery specified in the manual of this monitor.
• Make sure the plus and minus terminals are correctly aligned when loading the battery.
• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or
clothes, rinse well with water.
• Obey the local laws on disposing the battery.
7
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 8
SAFETY INSTRUCTIONS(continued)
CAUTION
Be careful in moving the monitor.
Neglect could result in an injury or damage.
• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.
• You are advised to move the monitor with two persons.
• Avoid any impact or shock to the monitor; particularly take care of glass screen.
Do not put anything on top of the monitor.
Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in
households where children are present.
Avoid a humid or dusty place.
Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.
• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.
Avoid a high temperature environment.
The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.
• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.
• Do not put the monitor in a place where the temperature is widely changing.
Remove the power cord for complete separation.
• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.
• Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock.
Disconnect the
plug from the
power outlet.
PRECAUTIONS
• Installation environment
Do not obstruct a ventilation hole.
Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor.
Do not put the monitor in the following places.
• Hot places such as near heater, place exposed to the direct rays of the sun.
• A place where the temperature is widely changing.
• Places with soot, dust or high humidity.
• Poor air ventilation place.
• Place near fire.
• A wet place such as bathroom, or shower room.
• Place where you can trip over it.
• Always vibrating or strongly vibrating places.
• Distorted or unstable places.
• How to view the monitor
If you use the monitor in too dark a room, your eyes may become tired.
Please use it in a reasonably bright room.
Avoid direct rays of the sun to the screen in order to prevent eye fatigue.
Your eyes will get fatigued after viewing the monitor for long period of time.
Relax your eyes by viewing away from the monitor from time to time.
Please watch the monitor in downward direction.
• Note on image retention
The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the
brightness of the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as grayed-out images.
Tips to prevent such image retention are:
- Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns,
for long.
- Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen
saver function.
- Turn down the contrast and brightness controls.
• How to clean the plasma display panel of the monitor
Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet.
To prevent scratching or damaging the plasma display panel face, do not knock or rub the surface with sharp or hard objects. Clean the
screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use
harsh or abrasive cleaners.
• How to clean the cabinet of the monitor
Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and
wring out the soft cloth and afterward wipe with a dry soft cloth.
Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially
because they would cause discoloration, scratches or cracks.
8
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 9
SAFETY INSTRUCTIONS(continued)
• Prevention of an obstacle to Radio receivers
ENGLISH
This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.
- Keep the monitor away from Radio.
- Adjust Radio antennas in order for the monitor not to receive interference.
- The antenna cable of Radio should be kept away from the monitor.
- Use a coaxial cable for antenna.
You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor.
If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.
• Precautions for the cable connection
- Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are
properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing
connections.
- Confirm the connector is fixed tightly when the signal cable is connected.
Also confirm the screws on the connector are tightened.
- Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc..
- Use a plug with ground terminal and make sure that it connects to the ground.
• Precaution during transportation
Please pay attention when you transport this monitor because it is heavy.
Furthermore, use the original carton box and its packaging materials when the monitor is transported.
Failure to transport the monitor in any carton except the original carton may result in damage to the monitor.
Save the original carton box and all packing material.
Do not physically impact the remote control.
A physical impact could cause damage or malfunction of the remote control.
• Take care not to drop the remote control.
• Do not place heavy objects on the remote control.
Avoid strong rays.
Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.
Avoid radio interference.
Any interfering radiation could cause distorted images or noises.
• Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor.
Set the sound volume at a suitable level.
It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.
• Precautions for the installation
- Do not use makeshift pedestals and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved
pedestal or legs with the fixings provided according to the instructions.
- Use only with the cart, pedestal, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
- This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the
front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.
- Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.
- Only use the attachments/accessories specified by the manufacturer.
- Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.
• Other precautions
- Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a
stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or
handicapped people.
- Disposal of this product may require specific instructions pertaining to your resident region.
- Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!
9
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 10
SAFETY INSTRUCTIONS(continued)
• FCC (Federal Communications Commission) STATEMENT WARNING
COMPLIANCE INFORMATION STATEMENT
(DECLARATION OF CONFORMITY PROCEDURE)
Responsible Party:
Yamaha Electronics Corporation
Address:
6660 Orangethorpe Avenue
Buena Park, CA90620
Telephone:
714-522-9105
Fax:
714-670-0108
Type of Equipment:
High Definition Plasma Monitor
Model Name:
PDM-4210
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may cause undesired operation.
See the user manual instructions if interference to radio reception is suspected.
FCC INFORMATION (for US customers only)
1.
2.
3.
IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements.
Modifications not expressly approved by Yamaha may void your
authority, granted by the FCC, to use the product.
IMPORTANT: When connecting this product to accessories
and/or another product use only high quality shielded cables.
Cable/s supplied with this product MUST be used. Follow all
installation instructions. Failure to follow instructions could void
your FCC authorization to use this product in the USA.
NOTE: This product has been tested and found to comply with
the requirements listed in FCC Regulations, Part 15 for Class
“B” digital devices. Compliance with these requirements
provides a reasonable level of assurance that your use of this
product in a residential environment will not result in harmful
interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed
and used according to the instructions found in the users manual, may
cause interference harmful to the operation of other electronic devices.
Compliance with FCC regulations does not guarantee that interference
will not occur in all installations. If this product is found to be the
source of interference, which can be determined by turning the unit
“OFF” and “ON”, please try to eliminate the problem by using one of
the following measures:
Relocate either this product or the device that is being affected by the
interference.
Utilize power outlets that are on different branch (circuit breaker or
fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If
the antenna lead-in is 300 ohm ribbon lead, change the lead-in to
coaxial type cable.
If these corrective measures do not produce satisfactory results, please
contact the local retailer authorized to distribute this type of product. If
you can not locate the appropriate retailer, please contact Yamaha
Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA
90620.
The above statements apply ONLY to those products distributed by
Yamaha Corporation of America or its subsidiaries.
Cleaning the surface of the cabinet
When stained, soak a soft cloth in a mild detergent diluted with water, wring and wipe, and then finish with a dry cloth.
Do not use chemical dustcloths, cleaners, waxes, or acidic/ alkali detergents as these may cause deformations or cracks in the
cabinet.
10
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 11
COMPONENT NAMES
Front
ENGLISH
Main Unit
Cabinet
(front frame)
Panel
Pedestal (option)
Control panel
• Adjustment buttons are located
on the bottom.
• The back cover is provided with
indications to distinguish the
adjustment buttons.
Remote-control
12
receiver
Indicating lamp 16
MENU button 19
• The main power switch is located at the back, on the
lower surface.
Main power switch 16
▼ ▲
INPUT SELECT button 17
VOLUME
(OK button)
UP/DOWN
RECALL button 18
buttons 17
( SELECT button)
(
ADJUST SIZE button 18
buttons)
( SELECT button)
SUB-POWER button 16
• ( ) indicates the function while the MENU is displayed on the screen.
Caution when moving the main unit
• As this product is heavy, whenever it is moved, two
people are required to transport it safely.
• Whenever the unit is moved it should be lifted forwards
using the two handgrips at the back, and the unit should
then be held at the base on both sides for stability.
Handgrips
Rear
Handgrips
Handgrips
External
speaker
terminals
External
speaker
terminals
14
14
External device connection terminals
RGB input terminals 14
11
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 12
COMPONENT NAMES (continued)
Remote control
POWER OFF button 16
16 POWER ON/OFF button
POWER ON button 16
MUTE button 17
17 VOLUME UP/DOWN buttons
VOL
RGB/VIDEO buttons 17
PinP button 37
AUTO button 19
MENU button 19
RGB 1
RGB 2
MUTE
VOL
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
18 SIZE button
18 RECALL button
MENU
19 RETURN button
OK
OK button 19
ID
19 SELECT/ADJUST buttons
ID SET
19 ID SET button
ID button 19
Loading Batteries
1. Open the battery cover.
• Slide back and remove the battery
cover in the direction of the arrow.
Handling the Remote Control
Use the remote control within 5 m from the front of the unit, and
within a 30 degree are either side of the remote control sensor.
2. Load the batteries.
• Load the two Size AA batteries included matching polarity
markings on the batteries to those on
the case.
With in 30
degrees
With in 30
degrees
About 3m
About 3m
About 5m
VOL
RGB 1
3. Close the battery cover.
RGB 2
MUTE
VOL
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
MENU
• Replace the battery cover in the
direction of the arrow and snap it back
into place.
CAUTION
• Do not use new and old batteries together. The batteries could
explode or leak, resulting in fires, physical injury, or stains.
• When loading batteries, observe their correct polarities as
marked on the product. If loaded in the wrong direction, the
batteries could explode or leak, resulting in fires, physical injury,
or stains.
12
OK
ID
ID SET
ATTENTION
• Do not drop or exert undue force on the remote control.
• To avoid possible failures. Do not splash the remote control with
water or put it on a wet object.
• If you do not intend to use the remote control for an extended
period of time, remove the batteries from it.
• If the remote control begins to lack responsiveness, replace the
batteries.
• Strong light such as direct sunlight impinging on the
photoreceptor of the remote control can cause operational failure.
Position this unit to avoid direct contact with such light.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 13
INSTALLATION INSTRUCTIONS
ENGLISH
Installation
• If you have purchased the model without the pedestal attached:
When installing the monitor, use the optional pedestal.
The pedestal has been used for the illustrations in this manual.
WARNING
Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or
dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries
or property damage caused by use of other mount units or improper installation.
10cm (4 inches) or more*
CAUTION
• Installation of the wall mount unit and ceiling mount unit can be dangerous, so do not attempt this work
yourself. Ask your dealer to provide the name of a qualified installer.
• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches : For a desktop setup) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not
blocked.(✻)
Clamp
Cord
or
chain
Anti-tumble measures
CAUTION
Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury.
Securing to a wall or pillar
Use a commercially available cord or chain, and a clamp to secure the set to a firm wall or
pillar.
Hook
Chain
cord or chain
Wall or Pillar
clamp
Securing desktop
1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the pedestal as shown.
2) Using commercially available wood screws, secure the set firmly in position.
Wood screw
Two places
13
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 14
INSTALLATION INSTRUCTIONS (continued)
Read SAFETY INSTRUCTIONS (
proceeding to these steps:
6
to
10
) carefully to ensure maximum safety before
• Choose an appropriate site and install the product on a level table. Choose a safe, level location to install the product.
• Install the monitor in a location with easy access to a power socket.
• Make sure that the power switch of this device is turned off.
Connecting to a PC
(1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this
device.
• See "Product Specifications" concerning the specifications of this device. 30 〜 32
(2) Make sure that the power switch of the personal computer is turned off.
(3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output
terminal of the personal computer.
• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.
• Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with
the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer, or ask the
personal computer manufacturer or your local retail dealer.
Monitor rear panel
Speaker (R)
Speaker (L)
Power cable
connector
Power
cord
(DVI)
To signal
output
terminal
(D-sub)
3.5mm
Stereo
mini jack
To signal
output
terminal
To audio
output
terminal
PC
14
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 15
INSTALLATION INSTRUCTIONS (continued)
ENGLISH
Power Cord Connection
Connect the power cord after completing all other connections.
①
②
① Connect the power cord to this device.
② Connect the power cord plug to the power outlet.
(The type of plug is different from this drawing for some countries.)
CAUTION
• Use only the power cord provided.
• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock.
15
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 16
OPERATING INSTRUCTIONS
Turning Power On and Off
• To turn the monitor power on, press the main power
Indicating lamp
Main power switch
switch on the monitor main unit to ON, and then press
the SUB POWER button or the ON/OFF or ON button on
the remote control.
• To turn the monitor power off, press the SUB POWER
button or the ON/OFF or OFF button on the remote
control, and then set the main power switch on the
monitor main unit to OFF.
• During normal use, the main power switch is set in the ON
position, and the monitor can then be turned ON/OFF using the
SUB POWER button or the ON/OFF button on the remote control.
Indicating lamp
Indicating
lamp
Power status
Operating
Off
Off
When the main power switch is set
to OFF.
Off
(standby)
When the main power switch is
ON, and the OFF button on the
remote control or the SUB POWER
button on the underside of the
front of the frame is OFF.
On
When the main power switch is
ON, and the ON button on the
remote control or the SUB POWER
button on the underside of the
front of the frame is ON.
Off
(Power Save)
When the main power switch is
ON, and the ON button on the
remote control or the SUB POWER
button on the underside of the
front of the frame is ON.
However, the indicator also light orange
when the unit is in POWER SAVE mode.
Lights red
Lights green
SUB-POWER button
Lights orange
POWER OFF
button
When the indicating lamp lights orange or the message “No Sync.
Signal”, “Power Save” or “Invalid Scan Freq.” appears on the screen,
see “Power Save Mode” or “Symptoms That Appear to be Failures.”
POWER ON/OFF
button
POWER ON
button
RGB 1
RGB 2
MUTE
VOL
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
MENU
OK
16
27
ATTENTION
VOL
ID
25
ID SET
• Avoid repeatedly turning the monitor on and off at short intervals.
Failures might result from such operation.
• Turn off the main power switch if you do not plan to use the
monitor for an extended period of time.
• If a power failure occurs while the main unit is running, it will be
powered on upon recovery from the failure. Turn off the unit main
power switch before you leave the area in which the main unit is
located.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 17
OPERATING INSTRUCTIONS (continued)
Volume Adjustment
ENGLISH
The volume can be adjusted by pressing the VOL+ and
VOL- buttons of the remote control (or the ▲ and ▼
volume buttons of the monitor unit).
Volume setting value
▼ ▲
Volume 15
VOLUME UP/DOWN
buttons
INPUT SELECT button
• When a button is pressed, the volume adjustment
status guide will be displayed.
MUTE button
• The volume will increase when the VOL+ (or ▲) button is
pressed while the guide is being displayed.
• The volume will decrease when the VOL- (or ▼) button is
pressed while the guide is being displayed.
VOL
RGB buttons
Adjustment status guide display
VOLUME
UP/DOWN buttons
RGB 1
RGB 2
MUTE
VOL
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
Audio Mute
The audio volume can be temporarily muted by pressing
the MUTE button of the remote control.
MENU
OK
ID
ID SET
Volume setting value
Volume 15
Adjustment status guide display
(The display color will change to magenta.)
Input Switching
・ Input can be switched by pressing the RGB1, RGB2,
buttons of the remote control.
・ Input can be switched in the sequence of RGB1 →
RGB2 by pressing the INPUT SELECT button of the
monitor.
RGB1
RGB2
• When a button is pressed, the volume adjustment
status guide (magenta) will be displayed.
• The volume setting can be lowered by pressing the VOL- button
while the audio is mute.
• The muting can be cancelled by pressing the VOL+ button or
MUTE button while the audio is mute.
When the MUTE button of the remote control is pressed
again, the audio will be restored and the volume display
(green) will appear.
17
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 18
OPERATING INSTRUCTIONS (continued)
RGB 1
RGB 2
MUTE
VOL
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
RECALL button
MENU
OK
SIZE button
ID
ID SET
RECALL button
SIZE button
Size Switching
Each time the SIZE button of the remote control or the monitor is pressed, the screen display area will change in
sequence and the status will be displayed at the bottom of the screen.
Normal
Real *
Full
Zoom3
Zoom1
Zoom2
* Real mode gives an image of the same shape as it is displayed on a computer monitor.
This mode is only available for VGA (640 X 480) and WVGA (864 X 480).
Display area selection diagram (RGB input)
Resolution
Full display
Display
Full
Circular display
Normal
Real
Zoom1
Zoom2
Zoom3
640 X 480
(VGA)
800 X 600
(SVGA)
1024 X 768
(XGA)
1280 X 1024
(SXGA)
1600 X 1200
(UXGA)
* VGA and W-VGA
only
To display signals as pictured above, the plasma monitor performs such processes as compression (thinning) and expansion. Because of this,
there is a possibility that flicker may become noticeable on Zoom (1 ~ 3) depending on the display contents. If this occurs, turning the Vertical
Filter On can reduce the flicker.
23
Input Signal Screen Display
The input signal status can be displayed on the screen by pressing the RECALL button of the remote control or the monitor.
• The display will go out in approximately 6 seconds.
RGB
RGB2
RGB
H : 48.4kHz
V : 60.1 Hz
Off-timer
On-timer
18
OFF
-- -- Min.
-- -- : -- --
Input mode
Signal mode
Input horizontal frequency
Input vertical frequency
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 19
OPERATING INSTRUCTIONS (continued)
VOL
AUTO button
MENU button
RGB 1
RGB 2
MUTE
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
ENGLISH
Using the Menu Screen
(On-screen display system)
VOL
RETURN buttons
MENU
SELECT/ADJUST
buttons
OK
When the MENU button is pressed, the adjustment menu
screen will be displayed; from there, PC signal adjustment
and setting is possible by using the SELECT button,
ADJUST button and OK button.
• Refer to 20 - 24
settings.
concerning the adjustment items and the
Example: Selecting the Picture screen
ID SET
ID
ID button
OK button
ID SET button
1. Press the MENU button to display the Main Menu
screen.
MENU
Automatic Adjustment of
Screen Position and the Clock
Adjustment of the screen to a position suitable for the PC
signal and the clock adjustment can be performed
automatically by pressing the AUTO button of the remote
control.
2. Press the OK button to display the Picture Menu
screen. (Use the
and
SELECT buttons to select
other items.)
OK
CAUTION
Perform this adjustment for each input (RGB1 or RGB2) and for
each signal.
* Depending on the signal, satisfactory adjustment may not be
possible in some cases. In such cases, adjust by referring to the
Setup Menu item.
Audio
Timer
Function
Setup
Language
Select
OK Set
Contrast
Brightness
Color
Tint
Picture Enhancement
Color Temperature
Color Temp.Adjust
Reset
Select
Return
:
:
:
:
:
:
+ 31
– 31
0
+ 31
Off
Normal
Reset
Exit
3. Use the
and
SELECT buttons to select the item to
be adjusted and then use the
and
ADJUST
buttons to adjust (example: Contrast).
Independent Operation of
Multiple Monitors (ID No)
Setting the ID No. of the remote control allows separate
control of up to a maximum of seven monitors.
Remote control ID No. 2 (initially ID no. 1) can be set by
pressing the ID SET button for 2 sec. or more while
holding down the ID button. The number will be
incremented (2…6→7→1→2) when this button pressed
continuously.
The remote control ID no. can be
checked by pressing the ID SET button
while holding down the ID button.
ID Number
Monitor
[1]
R/C
[1]
Contrast
Next / Prev
+ 31
Adjust
Return
• Press the RETURN button to return to the previous screen.
• If there is no operation for a period of one minute, the
Adjustment Menu screen will be closed automatically.
Monitor ID no.
Remote control ID no.
The ID remote control is operated by pressing the
various buttons while holding down the ID button;
Operation is possible only when the remote control and
monitor ID nos. are the same.
• The remote control can be operated normally by pressing the
various remote control buttons without holding down the ID button.
• Set the monitor using the ID No. of Function MENU. 22
19
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 20
OPERATING INSTRUCTIONS (continued)
PICTURE MENU
MENU
Audio
Timer
Function
Setup
Language
Select
OK Set
Contrast
Brightness
Color
Tint
Picture Enhancement
Color Temperature
Color Temp.Adjust
Reset
Select
OK Set
OK
Contrast
Brightness
Color
Tint
Picture Enhancement
Color Temperature
Color Temp.Adjust
Reset
Select
OK Set
Selected characters
OK
Reset
Return
:
:
:
:
:
:
+ 31
– 31
0
+ 31
Off
Normal
Contrast
Next / Prev
+ 31
– 31
0
+ 31
Off
Normal
Return
OK
Reset
Return
:
:
:
:
:
:
+ 31
Adjust
Color Temperature
Next/Prev
Select
OK
Reset
Return
Color Temp. Adjust
Amplitude
Red
– 63
Green
0
Blue
– 31
Cut Off
Red
+ 31
Green
0
Blue
+ 31
Reset
Select
On/Off
Normal
Return
On
Reset
Return
Setup hint
Adjust for maximum visibility to suit the ambient brightness.
Adjust further till [+40] by pressing and holding
cursor button at
[+31]. The color for [+32] to [+40] numbers will change from white to
magenta. This special mode is better for dark scenes.
For brighter scene some parts of the picture might not be clear. We
recommend to set at [+31].
"Panel Life" in the Function Menu should be set to Normal when
Contrast setting is adjusted.
Contrast
Narrows the gap between
brightness and darkness.
Broadens the gap between
brightness and darkness.
Brightness
Black is subdued for
increased overall darkness.
Black is set off for increased
overall brightness.
Adjust to taste.
Color
Darkens colors.
Lightens colors.
Adjust to taste.
Tint
Enhances red and weakens
green.
This is not available for adjustment when receiving PAL/SECAM signal.
Enhances green and weakens
In this case the character will be grayed out.
red.
Adjust for the most realistic skin color.
Off
Picture Enhancement
Color Temperature
Cool
Low
Normal
Amplitude
Reset
High
Black / White
On
Red
Brighter scenes are
decreased in reddish color.
Brighter scenes are increased
in reddish color.
Green
Brighter scenes are
decreased in greenish color.
Brighter scenes are increased
in greenish color.
Blue
Cut Off
Middle
Warm
Off
Color Temp. Adjustment
20
+ 31
– 31
0
+ 31
Off
Normal
▲
▲
Contrast
Brightness
Color
Tint
Picture Enhancement
Color Temperature
Color Temp.Adjust
Reset
OK Set
Select
:
:
:
:
:
:
Red
Sets the clarity of small details to the desired level.
Normally set to Normal.
Turn On when you wish to change color temperature to suit user
preferences.
Brighter scenes are
decreased in bluish color.
Brighter scenes are increased
in bluish color.
Adjust color temperature to suit your preference. These settings are
Dark scenes are decreased in Dark scenes are increased in independently stored in each of the 4 Color Temperature modes.
reddish color.
reddish color.
Green
Dark scenes are decreased in Dark scenes are increased in
greenish color.
greenish color.
Blue
Dark scenes are decreased in Dark scenes are increased in
bluish color.
bluish color.
(off the function)
(waiting to reset)
The original factory settings for the items of this Menu page can be
restored by pressing the OK button.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 21
OPERATING INSTRUCTIONS (continued)
Audio
Timer
Function
Setup
Language
Select
OK Set
Selected characters
Movie
Audio Mode
▲
▲
MENU
OK
Audio
Audio Mode
Treble
Bass
Balance
SRS TruBass
Matrix Surround
Perfect Volume
Reset
Select
Set
Music
Speech
Favorite
:
:
:
:
:
:
:
Movie
+ 10
– 10
0L
Middle
Off
Off
Reset
Return
ENGLISH
AUDIO MENU
R
Setup hint
Movie: This selects the audio mode suitable for Movie.
Music: This selects the audio mode suitable for Music.
Speech: This selects the audio mode suitable for News, Talk show etc.
Favorite: This mode should be adjusted to suit your preference.
Treble
Suppresses treble.
Enhances treble.
Adjust to taste.
Bass
Suppresses bass.
Enhances bass.
Adjust to taste.
Balance
Suppresses right-side sound.
Suppresses left-side sound.
Adjust to taste.
Middle
SRS TruBass takes advance of the ability of the human ear to
distinguish between two different tones. By using this ability, TruBass
gives enhanced bass sound that otherwise would not be heard.
Adjust it depending on the user’s preference.
Off
SRS TruBass
Low
High
Matrix Surround
Off
On
This features the spacious sound effects of a stadium.
Perfect Volume
Off
On
This will automatically adjust volume so each channel and input has
the same average volume level.
Reset
(off the function)
(waiting to reset)
The original factory settings for the items of this Menu page can be
restored by pressing the OK button.
TIMER MENU
Audio
Timer
Function
Setup
Language
Select
OK Set
Off Timer
On Timer
▲
Selected characters
▲
MENU
OK
--Min.
30Min.
60Min.
120Min.
90Min.
--(:--)
hours
(- - : )- minutes
Timer
Off Timer
On Timer
Select
Adjust
:
30Min.
: --:-Return
Setup hint
This function automatically sets the power to standby status when the
indicated time period has elapsed.
This automatically sets the power from standby to ON when the
indicated time period has elapsed. The settable time is 00:00~11:59.
Input the required time by
SELECT buttons on the remote
control.
21
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 22
OPERATING INSTRUCTIONS (continued)
FUNCTION MENU
Audio
Timer
Function
Setup
Language
Select
OK Set
Screen Saver
Screen Wipe
Off
60Min.
10Min.
20Min.
60Min.
Off
This is used to reduce the panel image retention that can occur with
stationary pictures by displaying a completely white screen. Select
On (continuous operation) or 60 Min. (time limit operation) and press
the OK button. Press the MENU or RETURN button on the remote
control to return to normal viewing.
This turns the gray sidebars On/Off when watching normal mode
screen size area. It is always set to Off when the monitor is powered
On. It is recommended to set, Black Side Panel Off to reduce the
panel image retention.
On
Freeze Mode
Optional (grayed out)
Default Zoom
Optional (grayed out)
(off the function)
(waiting to reset)
Normal
Extend 1
Off
Mode Display
Inverse
Standby White
Gamma
Normal
Off
1
On 60Min.
Off
2.2
Reset
Return
This moves the picture around the screen in small amounts, at set
intervals, to reduce the panel image retention. Image retention
occurs when stationary objects, such as screen logos, leave a slight
image visible after they should have disappeared.
Optional (grayed out)
1
ID Number
Function
Panel Life
Mode Display
ID Number
Inverse
Standby White
Gamma
Reset
Select
Set
Setup hint
Video Power Save
Panel Life
22
5Min.
40Min.
On
Black Side Panel
Reset
Off
On 60Min.
Off
Off
Split
Panoramic
Reset
Return
▲
Selected characters
▲
MENU
OK
Function
Screen Saver
Screen Wipe
Black Side Panel
Video Power Save
Freeze Mode
Default Zoom
Reset
Select
Set
On
Off
3
6
This function suppresses the contrast of the screen regardless of the
Contrast setting in the Picture Menu. By this control, power
consumption can be reduced or degradation of a panel can be
mitigated. The order of power consumption is Extend 2 < Extend 1 <
Normal.
If the Contrast setting is changed when this item is set to Extend 1 or
2, it will be changed to Normal automatically.
This functions displays the Input Signal Screen Display every time the
input mode and signal mode are changed.
Set to OFF if the Input Signal Screen Display is not needed when
switching signals.
On
2
7
Extend 2
The original factory settings for the items of this Menu page can be
restored by pressing the OK button.
4
5
60Min.
Assigns ID nos. to the monitors so that they can be controlled
individually (up to 7 monitors can be controlled).
This function changes each level of RGB signal invert to reduce the
panel image retention. When this function is required, select On
(continuous operation) or 60Min. (time limit operation) and press the
OK button. And press the Menu or Return button to exit.
15Min.
30Min.
120Min.
60Min.
This function is also provided to prevent image retention. If time is set
for this item, the screen changes into a white pattern when the
monitor enters power save mode, and a continues for the period of
setting time.
2.2
Normally set to 2.2.
2.8
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 23
OPERATING INSTRUCTIONS (continued)
Audio
Timer
Function
Setup
Language
Select
OK Set
MENU
Setup
Auto Adjust
Horizontal Position
Vertical Position
Horizontal Clock
Clock Phase
Reset
Select
Return
OK
Adjust
0
+ 31
– 20
10
Reset
Exit
ENGLISH
SETUP MENU
OK
Horizontal Position
Next / Prev
Adjust
Setup
Auto Adjust
Horizontal Position
Vertical Position
Horizontal Clock
Clock Phase
Reset
Select
Return
Adjust
0
+ 31
– 20
10
Reset
Exit
▲
▲
Selected characters
(Menu)
(Adjust)
Press the OK button to start
automatic regulation.
Moves the horizontal position
to right.
Auto Adjust*
Horizontal Position
Vertical Position
Horizontal Clock
Clock Phase
Reset
Input Level
Moves the horizontal position
to left.
Return
OK
Clock Phase
Next / Prev
Setup
Input Level
Frequency Display
WVGA Type
Vertical Filter
Frequency Mode
RGB1
RGB2
Select
Set
0
10
Adjust
0.7V
Off
Off
On
Movie
DVI-PC
RGB
Return
Setup hint
Horizontal Position, Vertical Position, Horizontal Clock and Clock
Phase are adjusted automatically.
Adjust the left-side display position.
(This function is only for RGB2. It is not available (grayed out) for
RGB1.)
Moves down the vertical
position.
Moves up the vertical position.
Reduces the dot clock
frequency (shrinks the right
side).
Increases the dot clock
frequency (expands the right
side).
Slows the dot clock phase
(shifts slightly to left).
Advances the dot clock phase
Adjust for clear character visibility.
(shifts slightly to right).
(This function is only for RGB2. It is not available (grayed out) for
RGB1.)
(off the function)
(waiting to reset)
0.7V
1.0V
Return
Adjust the vertical display position.
(This function is only for RGB2. It is not available (grayed out) for
RGB1.)
Adjust for maximum character clarity.
(This function is only for RGB2. It is not available (grayed out) for
RGB1.)
The original factory settings for the items of this Menu page can be
restored by pressing the OK button. (This is effective only for RGB2.)
Normally set to 0.7 V. If white is found to spread across the screen,
set to 1.0 V. (This is effective only for RGB2.)
Frequency Display
Off
On
Set this to Off if the frequency information of the Input Signal Screen
Display is not required.
WVGA Type
Off
On
This is only available for W-VGA signal.
When it is set to On, the display area mode can be selected Full or
Real.
Vertical Filter
Off
On
Turn On when concerned about screen flicker.
Frequency Mode
Movie
PC
Set to Movie when viewing moving images on a personal computer.
RGB1
Optional (grayed out)
RGB2
Optional (grayed out)
* Depending on the type of signal displayed, displays may not be optimized through automatic adjustment. Adjust manually to optimize them.
23
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 24
OPERATING INSTRUCTIONS (continued)
LANGUAGE MENU
Audio
Timer
Function
Setup
Language
Select
OK Set
MENU
Language
English
Français
Español
OK
Select
Return
Exit
Select a language using the ▼ ▲ SELECT buttons and press the OK button.
OTHER FEATURES
Automatic Store
Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.
Menu
Display
Registration condition
For every input function, 1 setting
is registered.
Contrast
Menu
Function
Registration condition
1 setting is registered.
Screen Wipe
(not registered)
Color
Black Side Panel
Tint
Panel Life
(not registered)
1 setting is registered.
Picture Enhancement
Mode Display
Color temperature
ID Number
Brightness
Inverse
Color Temp. Adjust
R Amplitude For every Color Temperature, 1
setting is registered.
G Amplitude
Standby White
Gamma
Setup
B Amplitude
R Cut Off
Vertical Position
(not registered)
For every signal Mode, 1 setting is
registered. (Only for RGB2)
Horizontal Clock
B Cut Off
Clock Phase
Audio Mode
1 setting is registered.
Treble
Bass
For every Audio Mode, 1 setting is
registered.
Balance
1 setting is registered.
Input Level
For every Audio Mode, 1 setting is
registered.
1 setting is registered.
Frequency Display
WVGA Type
Vertical Filter
SRS TruBass
Matrix Surround
Auto Adjust
Horizontal Position
G Cut Off
Audio
Display
Screen Saver
Frequency Mode
Language
1 setting is registered.
Perfect Volume
• The previously recorded items will be lost.
• The signal mode can be identified by the horizontal/vertical sync
frequency and the sync signal polarity. Different signals for which
all the elements are the same or similar will be handled as the
same signal.
24
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 25
OTHER FEATURES (continued)
ENGLISH
Signal Check
Changes in the signal status are displayed on the screen as they arise.
Status
Display
When Mode Display is set to ON,
the input signal is switched or
when the RECALL button is
pressed.
RGB
Action
A guide is displayed for the input
terminal and the horizontal and
vertical sync frequency.
RGB2
RGB
H : 48.4kHz
V : 60.1 Hz
OFF
When the sync signal is no longer
detected.
When the input signal does not
match the monitor specifications
or is in an unstable state.
• A guide displays No Sync.
Signal, and Power Save (for
approx. 5 sec.)
• When the condition continues
and the sync signal cannot be
detected, the indicator lamp of
the power source changes in
orange and the mode switches
to power save mode.
Recheck the personal computer
power switch status and the
connection status.
"Invalid Scan Freq" appears on
the display panel.
Recheck the input signal
specifications.
-- -- Min.
-- -- : -- --
! No Sync. Signal
30 〜 32
! Invalid Scan Freq.
Power Save Mode
When the RGB1, RGB2 input is selected
• When this unit is connected to a VESA DPMS computer, the Power Save (Off) mode can be set to be activated automatically when the
computer is not being used to reduce power consumption by this unit.
RGB sync signal
Horizontal
Yes
No
Yes
No
Vertical
Yes
Yes
No
No
PC signal
Active (normal display)
Blank (no display)
Operation mode
On
Off
Indicating lamp
Lights green
Lights orange
Power consumption
365W
3W or less (RGB1)
1W or less (RGB2 ; 100V≦AC≦120V)
3W or less (RGB2 ; 120V<AC≦240V)
Returning to operating status
• Operate the personal computer, or press either the INPUT SELECT button of the main unit or the RGB1/RGB2 buttons of the remote control to
return the unit to power on mode.
25
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 26
IMAGE RETENTION OF PLASMA DISPLAY PANEL
There are different characteristics that result in panel image retention depending on how the plasma monitor is used.
Situations and effective usage methods related to ghosting are provided below.
Image retention characteristics of a plasma display panel
The image retention phenomenon of a plasma display panel occurs due to partial phosphor degradation arising from partial character and figure
display.
For example, when the character image as shown in Fig. A at the right is
continuously displayed for a long period of time, the only part of the phosphor
(Red,Green, Blue) that will degrade will be the color of the applicable character
display portion. Consequently, when a white image is displayed on the entire
screen as shown in Fig. a, the character marks displayed up to that time will
become a color difference visible to the eye, but the phosphor will never burn.
【Fig. A】
【Fig. a】
■The degree of image retention is proportional to the brightness of the characters and figures displayed as well as the display time.
• The tendency of the phosphor is to degrade more the brighter the characters
and figures are displayed. When images of figures with different levels of
brightness, as shown in Fig. B, are continuously displayed for a long period of
time, it becomes easier for image marks at locations when the brighter figures
are displayed to be noticeable.
【Fig. B】
【Fig. b】
* The image retention images in this document are exaggerated for the purpose of explanation. The actual manner in which the image retention
is seen differs depending on the operation time and brightness.
Methods to Reduce the Occurrence of Image Retention
• Lower the Contrast and Brightness settings of the plasma display panel as much as possible.
A function is provided in the display that allow you to control the brightness of the screen to reduce degradation of the panel. Using this
function makes it possible to reduce image retention.
(Refer to Panel Life (Extend 1.or Extend 2 shown on 22 )
• Set the plasma monitor to an “Screen Wipe” or “Inverse” display.
The occurrence of image retention when displaying images of identical patterns, such as static images, for long periods of time can be
reduced by displaying a reversed color or completely white screen for about 1 ~ 2 hours after terminating the display.
(Settings can be made using Screen Wipe and Inverse of Function MENU shown on 22 )
• Using in combination with moving images
Since the degradation of the fluorescent material progresses comparatively uniformly for moving images, the occurrence of partial image
retention can be controlled. We recommend using the plasma display monitor in combination with moving images such as those of DVD
playback.
* Please be careful since image retention will occur if display is left in a two screen display state for a long period of time.
* Television broadcasts include images displayed for long periods of time in which the left and right or top and bottom of the image are cut and
broadcast station name or time are displayed for a long period of time at the same portion of the screen. Image retention in these portions can
be expected to occur, so please be aware.
NOTES
About screen defects
• High precision technology is used in the making of plasma display panel but there may be dark spots (points that do not illuminate) and bright
spots (points that are too bright) in some cases. These do not indicate a malfunction.
About residual images
• In some cases, residual images may remain after the short-term display of still images and another image is displayed, but these will
disappear and return to normalcy. This is not a malfunction.
About the panel screen
• Plasma display panels display images by means of electrical discharges inside the panel. Because of this, the temperature of the panel
surface may rise in some cases.Also, plasma display panels are made of finely processed glass. A reinforced glass filter is installed over the
panel surface but avoid strong impact because there is still danger of glass breakage.
26
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 27
TROUBLESHOOTING
ENGLISH
Symptoms That Appear to be Failures
Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.
WARNING
Customer servicing can be hazardous.
Symptom
Point to check
• No picture with the power-indicating lamp
off.
• Check the way the power cable is connected.
• Press the power switch.
See page
15
16
• The message “No Sync. Signal” or “Power
Save” is displayed.
! No Sync. Signal
• No picture, with the power indicating lamp lit
orange.
• The message “Invalid Scan Freq.” is
displayed.
! Invalid Scan Freq.
No sync signal is detected.
• Check the way the signal cable is connected.
• Make sure that the switch of the computer, imaging equipment ,
etc., is turned on.
• Make sure the computer is not in the power-save mode.
• Check to see if the input selection matches the connection
terminal.
An input signal is not received normally.
• Check to see if the input signal matches the monitor
specifications.
• Check the way the signal cable is connected.
14
14
31
32
• The power indicating lamp is lit normally but
no picture displays.
• Check the contrast and brightness settings (adjust them for higher
contrast and brightness).
• Check the way the signal cable is connected.
• The display image appears flowing
slantwise.
• Text displayed across the screen appears
vertically streaked, with the characters in
vertical columns blurred.
• Adjust the dot clock frequency and phase. (Adjust the dot clock
frequency first, the dot clock phase next.)
(RGB input)
• Text displayed across the screen appears
blurred.
• A fine pattern flickers when displayed on the
screen.
• Adjust the dot clock phase for the clearest viewing.
(RGB input)
• The remote control does not work.
• Check to see if the batteries are loaded in the remote control in
opposite direction.
• Check to see if the batteries in the remote control are OK.
14
20
23
29
23
29
12
27
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 28
TROUBLESHOOTING (continued)
Symptoms That Appear to be Failures (continued)
Symptom
• The temperature of the display panel surface is high.
• Plasma display panel is lighting the phosphors in the display
panel by the discharge of internal radiation. In some cases, this
may cause the temperature of the panel surface to increase.
Please note that this is not a malfunction.
• There are points on the screen that differ in color from the
periphery of the screen.
*Points that do not light, points with brightness different
from that of the periphery, points with color different from
that of the periphery, etc.
• High-precision technology is used to manufacture the plasma
display panel, However in some cases, there are minor defects in
some parts of the screen. Please note that this is not a
malfunction.
• Vertical stripes appear, depending on the screen contents.
• The plasma display panel is lighting the phosphors by the
discharge of internal radiation. Depending on the screen
contents, in rare cases this may cause vertical stripes to appear
because of failure to light. Please note that this is not a
malfunction.
• Coarse horizontal stripes appear in FULL display.
28
Point to check
See page
-
-
-
• Adjusting the Clock Phase will reduce the horizontal stripes.
(RGB input)
23
• Flickering in the form of horizontal lines oscillating up and
down.
(PC INPUT MODE only)
• If the direct frequency from the computer is below 85Hz, try a
higher frequency (upper limit 85Hz). There may be a slight
attenuation of the current image.
• Try turning the Vertical Filter On. For this case however, the
vertical resolution will drop.
23
• The fan motor is noisy. (Fan application model only)
• Use the fan that controls the temperature in the main body to
lower the temperature of this unit. If the ambient air temperature
increases, the fan will start, the RPMs will increase and motor
noise will grow louder. This is not a malfunction though.
-
• The top of the monitor heats up.
• When used for long periods of time, the top of the monitor may
heat up. This is not a malfunction.
-
• Text characters are displayed with varying thicknesses.
• The thicknesses of characters and lines may vary if images with a
vertical resolution greater than 512 lines are displayed; however,
this is not a malfunction.
-
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 29
TROUBLESHOOTING (continued)
ENGLISH
Actions to Correct Abnormal Displays
Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the
adjustments suggested below. (only for RGB2)
Symptom 1
Text displayed across the screen appears vertically streaked, with some characters blurred (figure 1).
The display image appears flowing (figure 2) (RGB input).
Vertical
streaks
Figure 1
Before adjustment
Some characters
are blurred.
ABCDEFGHIJ
abcdefgABCDEFGabcd
ABCDEFGHIJ
abcdefgABCDEFGabcd
Example
ABC
B
ABC
After adjustment
All characters appear
crisp now.
ABC
ABC
After adjustment
All characters are
blurred.
1) Press the AUTO button on the remote control.
Adjustment
procedure
When adjustment is not possible with Auto Adjust
2) Press the MENU button. The Main Menu will be displayed.
3) Press the
SELECT button and select Setup.
4) Press the OK button. The Setup Menu will be displayed.
5) Press the
SELECT button and select Horizontal Clock.
(Display fine patterns as characters or a vertical striped pattern over the entire screen during Horizontal Clock adjustment.)
6) Press the
or
ADJUST buttons and search for clear characters over the entire screen.
7) Perform adjustment for symptom 2 below, when the characters are blurred on the entire screen.
• The display image may be momentarily disturbed during clock adjustment but this is not a failure.
Symptom 2
Text displayed across the screen appears blurred in its entirety (figure 2).
A fine pattern flickers when displayed on the screen (figure 3).
Before adjustment
Figure 2
ABCDEFGHIJ
abcdefgABCDEFGabcd
ABCDEFGHIJ
abcdefgABCDEFGabcd
Figure 3
Before adjustment
ABC
ABC
Example
After adjustment
After adjustment
ABC
1) Press the AUTO button on the remote control.
Adjustment
procedure
When adjustment is not possible with Auto Adjust
2) Press the MENU button. The Main Menu will be displayed.
3) Press the
SELECT button and select Setup.
4) Press the OK button. The Setup Menu will be displayed.
5) Press the
SELECT button and select Clock Phase.
(Display fine patterns as characters or a vertical striped pattern over the entire screen during Clock Phase adjustment.)
6) Press
or
ADJUST buttons to make the text appear
clean across the screen.
6) Press
or
ADJUST buttons to make the text appear
without flickering.
29
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 30
PRODUCT SPECIFICATIONS
Product specifications and designs are subject to change without notice.
Panel
Display
dimensions
Approx. 42 inches (922 (H) x 522 (V) mm, diagonal 1059mm)
Resolution
1024 (H) x 1024 (V) pixels
Net dimensions
(excluding pedestal)
1030 (W) x 636 (H) x 91 (D) mm
Net weight
(excluding pedestal)
34.9kg
Ambient
conditions
Temperature
Operating : 5˚C to 35˚C, Storage : 0˚C to 40˚C
Relative humidity
Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)
Power supply
AC100 - 240V, 50/60Hz
Power consumption/at standby
365W / <3W
Audio output
12W + 12W (6Ω)
(RGB input)
Input signals
Input terminals
RGB1 DVI input terminal (DVI-D)
RGB1 audio input terminal (3.5mm Stereo Mini Jack)
RGB2 analog RGB input terminal (D-sub 15-pin)
RGB2 audio input terminal (3.5mm Stereo Mini Jack)
Video signals
0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)
Sync signals
H/V separate, TTL level [2KΩ]
H/V composite, TTL level [2KΩ]
Sync on green, 0.3 Vp-p [75Ω]
43 modes 31
Recommended signal
32
• The monitor takes at least 30 minutes to attain optimal picture quality.
Signal Input
RGB terminal (D-sub 15-pin connector)
Pin
Input signal
1
R
2
G or sync on green
3
B
4
No connection
5
No connection
4
3
2
1
10
9
8
7
15
14 13
12
6
11
• When different kinds of input signals are simultaneously input to
the monitor via a graphics board or the like, the monitor will
automatically select the signals in the following priority order:
6
R.GND
7
G.GND
Sync signal type
Priority
B.GND
H/V separate sync.
1
H/V composite sync.
2
sync.on Green *
3
8
30
5
9
No connection
10
GND
11
No connection
12
[SDA]
13
H. sync or H/V composite sync
14
V.sync. [V.CLK]
15
[SCL]
*Even in the case of the recommended signals shown on the
following page, there may be instances when correct display is
not possible. In this case, use H/V separate sync, H/V composite
sync.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 31
PRODUCT SPECIFICATIONS (continued)
ENGLISH
Signal Input (continued)
DVI terminal (DVI-D)
Pin
Input signal
Pin
1
2
3
4
5
6
7
8
9
10
T.M.D.S. Data2T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4T.M.D.S. Data4+
DDC Clock
DDC Data
No Connect
T.M.D.S. Data1T.M.D.S. Data1+
14
15
16
17
18
19
20
21
22
23
+5V Power
Ground (for+5V)
Hot Plug Detect
T.M.D.S. Data0T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
Input signal
11
T.M.D.S. Data1/3 Shield
24
T.M.D.S. Clock-
12
T.M.D.S. Data3-
13
T.M.D.S. Data3+
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
Frame GND
Recommended Signal List
With Digital RGB signal input (RGB1 input)
Signal mode
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Signal Name
VGA
W-VGA
VESA
Horizontal
frequency (kHz)
Dot clock
frequency (MHz)
70.08
59.94
60.00
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
60.00
70.07
31.47
31.47
31.02
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
48.36
56.48
25.18
25.18
33.75
34.24
31.50
31.50
36.00
36.00
40.00
50.00
49.50
56.25
65.00
75.00
75.03
60.02
78.75
Resolution
Vertical frequency
(Hz)
640 X 400
640 X 480
864 X 480
864 X 480
640 X 480
640 X 480
640 X 480
800 X 600
800 X 600
800 X 600
800 X 600
800 X 600
1024 X 768
1024 X 768
1024 X 768
Remarks
WVGA type : On
• Make sure that the signal of the equipment to be connected is compatible with the specifications on this list.
31
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 32
PRODUCT SPECIFICATIONS (continued)
Recommended Signal List (continued)
With Analog RGB signal input (RGB2 input)
Signal mode
No.
Horizontal
frequency (kHz)
Dot clock frequency
(MHz)
70.08
59.94
31.47
31.47
25.18
25.18
864 X 480
59.94
31.47
34.24
640 X 480
640 X 480
640 X 480
800 X 600
800 X 600
800 X 600
800 X 600
800 X 600
1024 X 768
1024 X 768
1024 X 768
1024 X 768
1152 X 864
1280 X 1024
1280 X 1024
1280 X 1024
1600 X 1200
1600 X 1200
1600 X 1200
640 X 480
832 X 624
1024 X 768
1152 X 870
1280 X 768
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
60.00
70.07
75.03
85.00
75.00
60.02
75.03
85.02
60.00
75.00
85.00
66.67
74.55
74.93
75.06
59.833
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
48.36
56.48
60.02
68.68
67.50
63.98
79.98
91.15
75.00
93.75
106.25
35.00
49.72
60.24
68.68
47.986
31.50
31.50
36.00
36.00
40.00
50.00
49.50
56.25
65.00
75.00
78.75
94.50
108.00
108.00
135.00
157.50
162.00
202.50
229.50
30.24
57.28
80.00
100.00
81.00
1280 X 768
69.997
56.137
94.760
Signal Name
Resolution
Vertical frequency
(Hz)
1
2
VGA
640 X 400
640 X 480
3
W-VGA
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
VESA
Macintosh
W-XGA
Remarks
WVGA type : On
• The type of video board or connecting cable used may not allow for correct display adjustment of Horizontal Position, Vertical Position, Horizontal
Clock and Clock Phase.
• The monitor may fail to display an animation image correctly when a signal having a vertical frequency of 85Hz or higher is input to it.
• The monitor differentiates signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal
polarities. Note that different signals having all these elements alike may be handled as the same signal.
• Displaying images with more than 512 lines of vertical resolution at Full diplay (compressed display) can result in the interpolation of stripes.
32
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 33
ENGLISH
SUPPLEMENT
33
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 34
Optional Video Unit Function
Additional functions when the optional video unit is installed are as follows: ( 34 〜 45 )
INSTALLATION INSTRUCTIONS
Connecting to a Video Imaging Device
(1) Make sure that the power switch of the monitor is turned off.
(2) Make sure that the power switch of the imaging device is turned off.
(3) Use a commercially available cable and connector to connect the signal input terminal on the rear panel of this
device and the signal output terminal of the imaging device.
Speaker (R)
Speaker (L)
Monitor rear panel
Power
cord
To composite
input terminal
To audio input
terminals
20
18
16
14
12
10
21 19
17
15
13
11
9
8
7
6
5
4
3
DVD player
2
Set-Top Box
1
VCR
VCR
DVI-STB and RGB component setup
To audio output
terminals
Use if the
video
equipment
has an
S video
input terminal
To component
output terminals
Video disc player
To component
input terminals
To audio output
terminals
To composite
output terminal
To S video output
terminal
Do not connect both
plugs at the same time.
Use either of them.
To audio output
terminals
S-video/Composite video
To component
output terminals
To component
input terminals
Adaptor
[An example of connecting video imaging devices]
• If video equipment with an S video output terminal is used,
connection with S video cable is recommended to provide finer
video quality. (If the S video input terminal and the video input
terminal of AV3 connect to the monitor at the same time, S video
input would govern.)
• If the OUTPUT (MONITOR) terminal is connected to an external
monitor with a 75 Ohm terminal, it is possible to view the same
image as on the main unit. But it is possible to monitor only the
composite video signal from AV1, AV2, AV3 or AV4 input that is
displayed on the screen at the time.
• If the adaptor is applied to AV4 input as shown in the drawing, it is
impossible to receive RGB signal.
To component video
equipment.
Please use connection
cable suitable for the terminal
form of video equipment.
Applicable video signals for each input terminal (See PRODUCT SPECIFICATIONS for details.
Terminal
RCA/SCART
Signal
CVBS
AV1
○
○
AV2
○
○
AV3
○
○
AV4
○
○
RGB1
RGB2
S-video
Component
DVI
RGB
PC
D-sub
STB
RGB
)
Remarks
Component
○
Refer to Setup Menu. 41
○
Refer to Setup Menu. 41
○
43
Refer to Setup Menu. 42
○
○
○
Refer to Setup Menu. 42
(○ : Available)
34
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 35
OPERATING INSTRUCTIONS
ENGLISH
VOL
RGB 1
RGB 2
MUTE
AV1
AV2
AV3
AV4
AUTO
PinP
SIZE
RECALL
RGB/VIDEO
buttons
VOL
SIZE button
MENU
INPUT SELECT button
OK
SIZE button
Input Switching
・ Input can be switched by pressing the AV1, AV2, AV3,
AV4, RGB1 or RGB2 buttons of the remote control.
・ Input can be switched in the sequence of AV1 → AV2 →
AV3 → AV4 → RGB1 → RGB2 by pressing the INPUT
SELECT button of the monitor.
AV1
RGB2
AV2
RGB1
AV3
AV4
Size Switching
Each time the SIZE button of the remote control or the
monitor is pressed, the screen display size will change in
sequence and the status will be displayed at the bottom
of the screen.
• During VIDEO signal input (AV1, AV2, AV3, AV4, RGB1
(set to [DVI-STB]) and RGB2 (set to [Component]))
4:3
Panoramic
Full
Zoom
Cinema
• The size will be fixed Full mode and not change when receiving
the component signal of 1080i/50, 1080i/60 or 720p/60.
Full
Display size selection diagram
When you want to
Play a 4:3 image in a 16:9 screen.
Play a 4:3 image in a 16:9 screen with the
height and width of the middle of the
screen enlarged on equal scales and with
both sides appearing somewhat enlarged.
Play a 16:9 VISTA size image form a 4:3
image faithfully reproduced on the 16:9
screen.
Set the display size
Input signal
4:3
Panoramic
(4:3 signal)
(Vista)
Cinema
Play a 4:3 image faithfully in a 16:9 screen
in the standard vertical size and
horizontally squeezed.*
Full
Remarks
Blanking occurs on both sides.
Zoom
Play a 21:9 Cinema size image form a 4:3
image expanded vertically on the 16:9
screen.
Display screen
• The 4:3 image is called a letterbox
image.
• In some cases, some slight blanking may
remain at the top and bottom.
In some cases, some slight blanking may
remain at the top and bottom.
(Cinema)
(Squeeze)
* An image with an aspect ratio of 16:9
shrunk horizontally to 4:3 to display in a
4:3 screen
35
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 36
Vertical picture position can be adjusted for [Panoramic], [Zoom] and [Cinema] mode as follows.
1. Press the SIZE button and
SELECT buttons during picture size display.
2. The position display will appear.
3. The adjustment range of each picture size is as shown below.
[Panoramic]
- 12 to + 12
[Zoom] and [Cinema]
- 31 to + 31
4. When 1080i/50 or 1080i/60 component signal is received, vertical position can be adjusted only one step up. (The range: 0 to +1)
Position + 31
Press
Position - 31
Press
ATTENTION
Using a wide-screen monitor
• This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program,
the image will appear different from the original. Take this into consideration when making screen mode choices.
• Use of this monitor in its enlarged display mode with the wide feature enabled in coffee shops, hotels and other establishments for
commercial or pubic viewing purposes could infringe on the copyright holder’s rights protected by Copyright Law.
• When a normal 4:3 image is displayed over the entire screen in the Panoramic mode, parts of the periphery of the image may disappear
and/or appear distorted in some cases. Use the 4:3 mode to view images which were created in 4:3 mode.
This mode allows 4:3 content to be viewed without picture distortion.
36
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 37
OPERATING INSTRUCTIONS (continued)
ENGLISH
Displaying MULTI PICTURE
If the PinP button on the remote control is pressed MULTI
PICTURE will display.
Activating the P-in-P mode from the RGB input screen
Pressing the PinP button once time will display 2 pictures.
RECALL button
VOL
PinP button
RGB 1
RGB 2
MUTE
AV1
AV2
AV3
VOL
RECALL button
AV4
• This mode can be available from RGB1(DVI-PC) and RGB2(RGB)
input.
• The speaker icon can be shifted left and right by pressing the
and
SELECT buttons; the audio of the video will be output from
the side on which the speaker icon is located.
• The sub-screen position can be
RGB2
selected up and down by pressing
AV1
SELECT buttons.
• When the speaker icon appears on
the left of the subscreen, as in the
illustration at right, you can use the
AV1, AV2, AV3, or AV4 buttons to
(Subscreen)
select the subscreen input mode.
• Pressing the PinP button or the
RETURN button will cancel the 2 pictures display.
• "Frequency Mode" in the Setup Menu should be set to Movie when
sub-screen is the component signal of 1080i/50 or 1080i/60.
AV1: Displays the VIDEO input signal of the sub-screen.
AUTO
PinP
SIZE
Activating the Split mode from the video input screen
RECALL
Pressing the PinP button one time will display 2 pictures.
MENU
OK
• The speaker icon can be shifted left
AV1
AV2
and right by pressing the and
SELECT buttons; the audio of the
video will be output from the side on
which the speaker icon is located.
• The same video input mode cannot
be selected for both screens at the
same time.
• Pressing the PinP button or the
RETURN button will cancel the 2
pictures display.
• When the Video input is set to RGB Video, this Split mode is not possible.
• Refer to the table for 2 pictures (Split) mode.
RETURN button
ID SET
ID
2 Pictures (Split)
AV1〜AV4
Input terminal
PAL-N
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
RGB1
PAL-N
NTSC-M , PAL-M
576i, 576p
480i, 480p
1080i/50
1080i/60
720p/60
STB
RGB2
Component
○
○
○
○
○
○
○
Main
AV1
〜AV4
AV1
AV2
576i
576p
AV1, AV2
RGB1
480i
1080i/50 1080i/60 720p/60 STB
480p
NTSC-M
PAL-M
Sub
RGB2
Component
Main
Sub
(○ : Available)
NOTE
• Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the MULTI PICTURE display, the mode will not
change to power save mode.
• Please be careful since image retention will occur if the plasma monitor is left in MULTI PICTURE display state for a long period of time.
Input Signal Screen Display
The input signal status can be displayed on the screen
by pressing the RECALL button of the remote control or
the monitor.
• The display will go out in approximately 6 seconds.
VIDEO
Off-timer
On-timer
AV1
Composite
OFF
Input mode
Signal mode
-- -- Min.
-- -- : -- --
37
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 38
OPERATING INSTRUCTIONS (continued)
PICTURE MENU
MENU
Audio
Timer
Function
Setup
Language
Select
OK Set
OK
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Contrast Mode
Reset
Select OK Set
Day
+31
-31
0
+15
0
Normal
Normal
Reset
Return
OK
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Contrast Mode
Reset
Select OK Set
Day
+31
-31
0
+15
0
Normal
Normal
Reset
Return
OK
YNR
CNR
Film Mode
PAL Comb Filter
LTI
CTI
Black Enhancement
Auto Color
Reset
Select OK Set
Day
Off
Off
On
On
Off
Off
Off
Off
Reset
Return
YNR
CNR
Film Mode
PAL Comb Filter
LTI
CTI
Black Enhancement
Auto Color
Reset
Select OK Set
Day
Off
Off
On
On
Off
Off
Off
Off
Reset
Return
Color Temp. Adjust
Color Management
Color Decoding
Select OK Set
Color Temp. Adjust
Color Management
Color Decoding
Select OK Set
Picture Mode
Next/Prev
Select
Day
Return
Contrast Mode
Next/Prev
Select
Normal
Return
YNR
Next/Prev
Off
Select
Auto Color
Next/Prev
On/Off
OK
OK
Day
OK
Return
Day
OK
Off
Color Temp. Adjust
Amplitude
Red
– 63
Green
0
Blue
– 31
Cut Off
Red
+ 31
Green
0
Blue
+ 31
Reset
Select
On/Off
Magenta
Red
Yellow
Green
Cyan
Blue
On
Reset
Return
Return
On
+ 60
+ 30
0
+ 60
+ 30
0
Reset
Return
On/Off
Color Decoding
Day
OK
Return
RGB
Red
Green
Color
Tint
R
G
Select
B
0
+ 60
0
+ 31
Reset
38
Return
Color Management
Reset
Select
Color Temp. Adjust
Color Management
Color Decoding
Select OK Set
Return
Reset
Return
Exit
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 39
OPERATING INSTRUCTIONS (continued)
▲
▲
Selected characters
Day
Picture Mode
Setup hint
Day: This setting is best for very bright ambient lighting.
Night: This setting is for normal lighting conditions.
Night
Adjust for maximum visibility to suit the ambient brightness.
This can be adjusted further till [+40] by pressing and holding
cursor button at [+31]. The color for [+32] to [+40] numbers will
change from white to magenta. This special mode is better for dark
scenes.
For normal viewing we recommend that the Contrast is set to [+31].
"Panel Life" in the Function Menu should be set to Normal when this
Contrast setting is adjusted.
Contrast
Narrows the gap between
brightness and darkness.
Broadens the gap between
brightness and darkness.
Brightness
Black is subdued for
increased overall darkness.
Black is set off for increased
overall brightness.
Adjust to taste.
Color
Darkens colors.
Lightens colors.
Adjust to taste.
Sharpness
Soft
Sharp
Normally set to Centre position. Shift to the minus (-) side for a softer
effect and plus (+) for a sharper picture.
Tint
Enhances red and weakens
green.
This is adjustable when receiving PAL/SECAM signal.
Enhances green and weakens
Then the character will be grayed out.
red.
Adjust for most realistic skin color.
Color Temperature
Cool
Normal
Warm
Normal
Contrast Mode
Reset
Auto
(off the function)
YNR
Black / White
Dynamic
(waiting to reset)
Off
Low
Normally set to Cool.
Dynamic:Emphasizes the differences between video shadings to
improve the feeling of contrast.
Normal : The gradation of an image is reproduced as faithfully as
possible.
Auto:Detects image brightness and automatically adjusts for natural
brightness.
The original factory settings for the items of this Menu page can be
restored by pressing the OK button.
Performs picture signal noise reduction. Turn up to reduce noise.
High
Performs color signal noise ßreduction. Turn up to reduce noise.
It will be fixed as Off only when selecting DVI-STB mode.
CNR
Film Mode
Off
On
On:Automatically detects the movie film material and faithfully
reproduces the original film image.
Off:Set to OFF when switching between images does not appear
natural.
PAL Comb Filter
Off
On
This is available only when receiving a PAL composite signal. Turn On
to reduce the discolorations in fine picture detail and provide purer
color.
LTI
Adjusts the sharpness of the picture signal.
Off
CTI
Low
Middle
High
Black Enhancement
Adjusts the sharpness of the color signal.
Adjusts the black level compensation.
Auto Color
Off
On
This is available only when receiving an NTSC composite/S.Video
signal. This monitors and adjusts the color to maintain constant color
levels. It also maintains natural flesh tones while preserving fidelity of
background colors.
Color Temp. Adjustment
Off
On
Turn On when you wish to change color temperature depending on
the user's preference.
Amplitude
Red
Brighter scenes are
decreased in reddish color.
Brighter scenes are increased
in reddish color.
Green
Brighter scenes are
decreased in greenish color.
Brighter scenes are increased
in greenish color.
Blue
Red
Cut Off
ENGLISH
PICTURE MENU (continued)
Brighter scenes are
decreased in bluish color.
Brighter scenes are increased
Adjust color temperature depending on the user’s preference. These
in bluish color.
settings are independently stored in each of the 4 Color Temperature
Dark scenes are decreased in Dark scenes are increased in modes.
reddish color.
reddish color.
Green
Dark scenes are decreased in Dark scenes are increased in
greenish color.
greenish color.
Blue
Dark scenes are decreased in Dark scenes are increased in
bluish color.
bluish color.
39
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 40
OPERATING INSTRUCTIONS (continued)
Selected characters
▲
▲
PICTURE MENU (continued)
Off
Color Management
Magenta
Turn On when the original balance of each color is required to adjust
to suit user preferences.
On
Magenta is weakened.
Magenta is strengthened.
Red is weakened.
Red is strengthened.
Yellow
Yellow is weakened.
Yellow is strengthened.
Green
Green is weakened.
Green is strengthened.
Cyan
Cyan is weakened.
Cyan is strengthened.
Blue
Blue is weakened.
Blue is strengthened.
Red
RGB
Color Decoding
Red
R
G
B
Darkens red only.
Lightens red only.
Green
Darkens green only.
Lightens green only.
Color
Darkens colors.
Lightens colors.
Enhances red and weakens
green.
Enhances green and weakens
red.
Tint
Setup hint
This adjusts listed colors individually to make them either deeper or
more pure. These settings are independently stored in each of the 4
Color Temperature modes.
Select the single color screen you need to adjust R/G/B level
individually depending on the user’s preference. And set it back to
RGB mode that indicates all color after adjusting.
Press the OK button every time the setting is changed.
This adjusts R/G/B levels or tints to make the color appear natural.
These settings are independently stored in each of the 4 Color
Temperature modes.
FUNCTION MENU
1 item is added to the Menu shown in the page 22 .
Audio
Timer
Function
Setup
Language
Select
OK Set
Video Power Save
40
▲
Selected characters
▲
MENU
OK
Off
On
Function
Screen Saver
Screen Wipe
Black Side Panel
Video Power Save
Freeze Mode
Default Zoom
Reset
Select
Set
Off
On 60Min.
Off
Off
Split
Panoramic
Reset
Return
Function
Panel Life
Mode Display
ID Number
Inverse
Standby White
Gamma
Reset
Select
Set
Normal
Off
1
On 60Min.
Off
2.2
Reset
Return
Setup hint
This is used to reduce power consumption for video input when there
is no video signal. Setting it to On will place the monitor to the
standby mode when the AV input with no signal is selected.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 41
OPERATING INSTRUCTIONS (continued)
Audio
Timer
Function
Setup
Language
Select
OK Set
MENU
Setup
System
Color System
Video Input
Audio Input
Scart Output
RGB1
RGB2
OK
Select
OK Set
Setup
System
Color System
Video Input
Audio Input
Scart Output
RGB1
RGB2
Select
OK Set
Setup
System
Color System
Video Input
Audio Input
Scart Output
RGB1
RGB2
System1
System
OK Set
System2
Setup
Color System
System 2
OK
AV1
AV2
AV3
AV4
Monitor
DVI-STB
Component
HDTV
Return
Select
Auto
NTSC-M
PAL-M
PAL-N
Return
Exit
Setup
Video Input
System 2
OK
AV1
AV2
AV3
AV4
Monitor
DVI-STB
Component
HDTV
Return
Select
System 2
OK
Monitor
DVI-STB
Component
HDTV
Return
▲
Selected characters
▲
Select
ENGLISH
SETUP MENU
Setup
Audio Input
AV1
AV2
AV3
AV4
Select
Auto
Composite/Component
Auto
S.Video
Return
Exit
Stereo
L/Mono
Stereo
L/Mono
Return
Exit
Setup hint
Do not change the original setting.
(System1 : Europe/Asia, System2 : North America)
Color System
Auto
PAL-N
AV1
NTSC-M
PAL-M
This should correspond to the color system of the signal from the
equipment that is connected to the AV1 video input terminal.
• Normally, set this to Auto. The system of the input signal will be
automatically recognized.
• If the input signal contains a lot of noise or has a low level at Auto and
the operation is erratic, set this to match the input signal.
• When the component signal is received, this setting is not available
(grayed out).
AV2
AV3
(Same to AV1)
AV4
Video Input
AV1
Auto
HDTV
AV2 (1st step)
RGB
Composite/Component
This should correspond to the signal mode of the signal from the
equipment that is connected to AV2 video input terminal.
AV2 (2nd step)
Auto
HDTV
This step should be set only when [Composite/Component] is selected on
the 1st step. The procedure is same as for AV1.
AV4
S.Video
SDTV/DVD
This should correspond to the signal mode of the signal from the
equipment that is connected to AV1 video input terminal.
• Normally, set this to Auto. The signal mode of the input signal will be
automatically recognized.
• If the input signal contains a lot of noise or has a low level at Auto and
operation is erratic, set this to match the input signal.
SDTV/DVD
Composite
• If the signal from the equipment that is connected to the AV4 Scart input
terminal is S.Video or Composite, set this to correspond to that signal.
• If the signal is RGB, it will be automatically recognized and this setting
will have no effect.
41
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 42
OPERATING INSTRUCTIONS (continued)
Selected characters
▲
▲
SETUP MENU (continued)
Setup hint
Audio Input
Stereo
AV1
L/Mono
This should correspond to the audio signal from the equipment that is
connected to the AV1 audio input terminal. If the signal is monaural audio,
set this to L/Mono.
AV2
AV3
(Same to AV1)
AV4
Scart Output
Not Available (grayed out)
RGB1
DVI-PC
RGB2 (1st step)
RGB
Auto
RGB2 (2nd step)
DVI-STB
This should correspond to the signal mode of the signal from the
equipment that is connected to the RGB1 DVI terminal.
Component
This should correspond to the signal mode of the signal from the
equipment that is connected to the RGB2 D-sub terminal.
HDTV
SDTV/DVD
This step should be set only when [Component] is selected on the 1st
step.
This should correspond to the signal mode of the signal from the
equipment that is connected to the RGB2 D-sub terminal.
• Normally, set this to Auto. The signal mode of the input signal will be
automatically recognized.
• If the input signal contains a lot of noise or has a low level at Auto and
the operation is found erratic, set this to match the input signal.
OTHER FEATURES
Automatic Store
Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.
Menu
Display
Registration condition
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Contrast Mode
YNR
CNR
Film Mode
PAL Comb Filter
LTI
CTI
Black Enhancement
Auto Color
Color Temp. Adjust
1 setting is registered.
For every input function and every
Picture Mode, 1 setting is
registered.
Function
Setup
B Amplitude
R Cut Off
G Cut Off
B Cut Off
For every input function and every
Picture Mode, 1 setting is
registered.
Magenta 1 setting is registered.
Red
42
Display
Registration condition
Yellow
Green
Cyan
Blue
Color Decoding
Red
Green
1 setting is registered.
-
For every Color Temperature, 1
setting is registered.
Color For every input function and every
Picture Mode, 1 setting is
Tint registered.
R Amplitude For every Color Temperature, 1
setting is registered.
G Amplitude
Color Management
Menu
Video Power Save
System
Color System
AV1
AV2
AV3
AV4
Video Input
AV1
AV2
AV4
Audio Input
AV1
AV2
AV3
AV4
RGB1
1 setting is registered.
1 setting is registered.
1 setting is registered.
1 setting is registered.
1 setting is registered.
RGB2
• The previously recorded items will be lost.
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 43
TROUBLESHOOTING
ENGLISH
Symptoms That Seemingly Appear to be Failures
Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.
WARNING
Customer servicing can be hazardous.
Symptom
• The screen becomes dark and the images cannot be seen
during VCR special playback (fast forward, rewind).
Point to check
See page
• This sometimes occurs when a component output VCR such as
the 480i is connected.
This is not a malfunction; therefore, please take note that this may
occur. When it does occur, change to composite output, or S.video
output.
–
PRODUCT SPECIFICATIONS
This table shows the specifications when the optional video unit has been inserted.
Panel
Display
dimensions
Approx. 42 inches (922 (H) x 522 (V) mm, diagonal 1059mm)
Resolution
1024 (H) x 1024 (V) pixels
Net dimensions
(excluding pedestal)
Net weight
(excluding pedestal)
Ambient
conditions
1030 (W) x 636 (H) x 91 (D) mm
34.9kg
Temperature
Operating : 5˚C to 35˚C, Storage : 0˚C to 40˚C
Relative humidity
Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)
Power supply
AC100 - 240V, 50/60Hz
Power consumption/at standby
365W / <3W
Audio output
12W + 12W (6Ω)
(RGB input)
Input signals
Input terminals
RGB1 DVI input terminal (DVI-D)
RGB1 audio input terminal (3.5mm Stereo Mini Jack)
RGB2 analog RGB input terminal (D-sub 15-pin)
RGB2 audio input terminal (3.5mm Stereo Mini Jack)
Video signals
0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)
480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
Sync signals
H/V separate, TTL level [2KΩ]
H/V composite, TTL level [2KΩ]
Sync on green, 0.3 Vp-p [75Ω]
Recommended signal
46 modes 32
45
(Video input)
Input terminals
AV1: composite video input terminal (RCA)
AV1: Y PB PR video input terminal (RCA)
AV1: L/R audio input terminal (RCA)
AV2: composite video input terminal (RCA)
AV2: Y/G PB/B PR/R video input terminal (RCA)
AV2: L/R audio input terminal (RCA)
AV3: composite video input terminal (RCA)
AV3: S video input terminal (RCA)
AV3: L/R audio input terminal (RCA)
AV4: composite video / S video / RGB / L/R audio input terminal (Scart)
Video signals
AV1: NTSC-M, PAL-M, PAL-N
AV1: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
AV2: NTSC-M, PAL-M, PAL-N
AV2: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60, RGB
AV3: NTSC-M, PAL-M, PAL-N
AV4: NTSC-M, PAL-M, PAL-N
AV4: RGB
Input signals
Video output Signal
OUTPUT (MONITOR): composite video monitor-output terminal (RCA)
OUTPUT (MONITOR): L/R audio monitor- output terminal (RCA)
AV4: composite video / L/R audio monitor-output terminal (SCART)
Recommended signal
13 modes 45
• The monitor takes at least 30 minutes to attain optimal picture quality.
43
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 44
PRODUCT SPECIFICATIONS (continued)
Signal Input
RGB terminal (D-sub 15-pin connector)
Pin
Input signal
1
R (PR/CR)
2
G or sync on green (Y)
3
B (PB/CB)
4
No connection
5
No connection
6
R.GND (PR/CR, GND)
7
G.GND (Y, GND)
8
B.GND (PB/CB, GND)
9
5
GND
11
No connection
12
[SDA]
13
H. sync or H/V composite sync
14
V.sync. [V.CLK]
15
[SCL]
(
3
2
1
10
9
8
7
15
14 13
12
6
11
• When different kinds of input signals are simultaneously input to
the monitor via a graphics board or the like, the monitor will
automatically select the signals in the following priority order:
No connection
10
4
Sync signal type
Priority
H/V separate sync.
1
H/V composite sync.
2
sync.on Green *
3
*Even in the case of the recommended signals shown on the
following page. There may be instances when correct display is
not possible even when displaying the signals listed on the
following page. In this case, use H/V separate sync, H/V
composite sync.
) : With component input
S-input connector pin specifications
Pin
Input signal
1
2
3
4
Y
Y-GND
C
C-GND
Frame
GND
③
①
④
②
Scart connector pin specifications
Pin
44
Signal
Pin
Signal
1
AUDIO OUT (RIGHT)
12 Not Used
2
AUDIO IN (RIGHT)
13 RGB-R GND
3
AUDIO OUT (LEFT/MONO)
14 GND
4
AUDIO GND
15 RGB-R / S.VHS CHROMINANCE IN
5
RGB-B GND
16 BLANKING SIGNAL
6
AUDIO IN (LEFT/MONO)
17 COMPOSITE VIDEO GND
7
RGB-B IN
18 BLANKING SIGNAL GND
8
AUDIO/RGB SWITCH / 16:9
19 COMPOSITE VIDEO OUT
9
RGB-G GND
20 COMPOSITE VIDEO / S.VHS LUMINANCE IN
10
Not Used
21 GND / SHIELD (CHASSIS)
11
RGB-G IN
20
18
16
14
12
10
21 19
17
15
13
11
9
8
7
6
5
4
3
2
1
01̲PDM-4210̲U̲En
2003.11.28 17:12
ページ 45
PRODUCT SPECIFICATIONS (continued)
ENGLISH
Recommended Signal List
With Digital RGB signal input (RGB1 input)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Signal mode
Horizontal Dot clock Setup Menu Condition
Vertical frequency frequency frequency
Resolution
DVI-PC
DVI-STB
(kHz)
(MHz)
(Hz)
Signal Name
480p
720p/60
640 X 400
640 X 480
864 X 480
864 X 480
