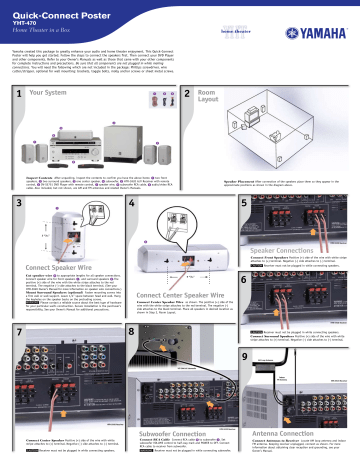

Quick-Connect Poster
YHT-470
Home Theater in a Box
Yamaha created this package to greatly enhance your audio and home theater enjoyment. This Quick-Connect
Poster will help you get started. Follow the steps to connect the speakers first. Then connect your DVD Player
and other components. Refer to your Owner’s Manuals as well as those that came with your other components
for complete instructions and precautions. Be sure that all components are not plugged in while making
connections. You will need the following which are not included in the package: Phillips screwdriver, wire
cutter/stripper, optional for wall mounting: brackets, toggle bolts, molly anchor screws or sheet metal screws.
1
Your System
7
8
9
2
Room
Layout


6


5
Inspect Contents After unpacking, inspect the contents to confirm you have the above items:  two front
speakers,  two surround speakers,  one center speaker,  subwoofer,  HTR-5920 A/V Receiver with remote
control,  DV-S5751 DVD Player with remote control,  speaker wire, 8 subwoofer RCA cable, 9 audio/video RCA
cable. Also included, but not shown, are AM and FM antennas and related Owner’s Manuals.
3
Speaker Placement After connection of the speakers place them so they appear in the
approximate positions as shown in the diagram above.
4

5
3 57/64"

HTR-5920 Receiver
Speaker Connections
Connect Front Speakers Positive (+) side of the wire with white stripe
attaches to (+) terminal. Negative (-) side attaches to (‑) terminal.
Connect Speaker Wire
CAUTION Receiver must not be plugged in while connecting speakers.
Cut speaker wire 6 to appropriate lengths for all speaker connections.
Connect speaker wire for front speakers , and surround speakers .The
positive (+) side of the wire with the white stripe attaches to the red
terminal. The negative (-) side attaches to the black terminal. (See your
HTR-5920 Owner’s Manual for more information on speaker wire connections.)
Mount Surround Speakers (optional) Fasten mounting screws into
a firm wall or wall support. Leave 1/4” space between head and wall. Hang
the keyholes on the speaker backs on the protruding screws.
WARNING Please contact a reliable source about the best type of hardware
for your particular wall’s construction. Secure installation is the purchaser’s
responsibility. See your Owner’s Manual for additional precautions.
6
5 47/64"
Connect Center Speaker Wire
Connect Center Speaker Wire as shown. The positive (+) side of the
wire with the white stripe attaches to the red terminal. The negative (-)
side attaches to the black terminal. Place all speakers in desired location as
shown in Step 2, Room Layout.
HTR-5920 Receiver
8
7
CAUTION Receiver must not be plugged in while connecting speakers.
Connect Surround Speakers Positive (+) side of the wire with white
stripe attaches to (+) terminal. Negative (-) side attaches to (‑) terminal.
9
AM Loop Antenna
YST-SW010 Subwoofer
Indoor
FM Antenna
HTR-5920 Receiver
HTR-5920 Receiver
Subwoofer Connection
HTR-5920 Receiver
Connect Center Speaker Positive (+) side of the wire with white
stripe attaches to (+) terminal. Negative (-) side attaches to (‑) terminal.
Connect RCA Cable Connect RCA cable 8 to subwoofer . Set
subwoofer VOLUME control to half-way mark and POWER to OFF. Connect
RCA cable to receiver from subwoofer.
CAUTION Receiver must not be plugged in while connecting speakers.
WARNING Receiver must not be plugged in while connecting subwoofer.
Antenna Connection
Connect Antennas to Receiver Locate AM loop antenna and indoor
FM antenna. Keeping receiver unplugged, connect as shown. For more
information about obtaining clear reception and grounding, see your
Owner’s Manual.
10
DVD Player
Connection
HTR-5920 Receiver
11
12
Connect DVD
Player
Top: Connect RCA
audio/video cables 9
to receiver: Yellow to
“DVD,” Red to “Digital
Input DVD Coaxial” as
shown, and leave White
unplugged.
Bottom: Connect audio/
video cables to DVD
player from receiver:
Yellow to “Video”, Red
to “Coaxial”, and leave
White unplugged.
HTR-5920 Receiver
HTR-5920 Receiver
AUDIO/VIDEO IN
AUDIO/VIDEO OUT
DV-S5751 DVD Player
VCR
VCR Connection
DV-S5751 DVD Player
Connect VCR (optional) Connect audio/video cables (not included)
as shown.
13
NOTE VCR shown is for illustration purposes only. When using a hi-fistereo VCR, set the Tuner/Line switch on the VCR to “Line” position to
record from another source connected to the HTR-5920 receiver.
DVD Player Optical Connection (optional) Connect optical
cable (not included) to receiver. Connect optical cable to DVD player
from receiver.
WARNING Components must not be plugged in while connecting them.
Wait until all connections are made before plugging in your components.
14
15
HTR-5920 Receiver
HTR-5920 Receiver
HTR-5920 Receiver
AUDIO/VIDEO OUT
VIDEO IN
Video Game Console
Audio/Video
OUT
DSS/Cable/HDTV
Tuner Connection
Video Game
Console Connection
16
17
HTR-5920 Receiver
Connect a Video Monitor (optional) Connect an RCA video cable
(not included) to receiver Monitor OUT from your video monitor as shown.
18
HTR-5920 Receiver
AUDIO OUT
AUDIO IN
CD Player
MD/CD-R Recorder
Connect CD Player (optional) Connect RCA audio cables (not
included) to “CD” terminals on receiver as shown. If your CD Player
has digital output terminal, connect digital cable (not included) to
HTR-5920 Receiver Digital Input terminal. See your HTR-5920 Owner’s
Manual for more information.
MD/CD-R
Player Connection
Connect MD/CD-R Recorder (optional) Connect RCA audio
cables (not included) to “MD/CD-R” terminals on receiver as shown.
Enjoy the Yamaha Home Theater Experience
Be sure to put batteries in your remotes (see Owner’s Manuals for instructions).
Refer to your Owner’s Manuals for each component in your system for more information.
Now, relax and enjoy the unparalleled sound of your Yamaha Home Theater system.
Part No. 470QCP
02/06
Video Monitor Connection
Connect DSS/Cable/HDTV Tuner Box (optional) Connect RCA
audio/video cables (not included) and optional optical cable (not pictured)
to “DTV/CBL” terminals on receiver to A/V OUT connections on Box as shown.
Connect Game Console or Video Camera (optional)
Connect RCA audio/video cables (not included) as shown.
CD Player
Connection
Video Monitor
DSS/Cable/HDTV Tuner Box
Plug In receiver and other components. Power on the
receiver first, and the other components next. Adjust volume on
the receiver. Please see each of your respective Owner’s Manuals for
recommended guidelines and settings.
YAMAHA ELECTRONICS CORPORATION, USA
6660 Orangethorpe Avenue
Buena Park, CA 90620
http://www.yamaha.com
Phone: 1-800-292-2982
©2006 Yamaha Electronics Corporation
Printed in USA
