Electrolux EFDE210TIW Specification

Electrolux EFDE210TIW Specification

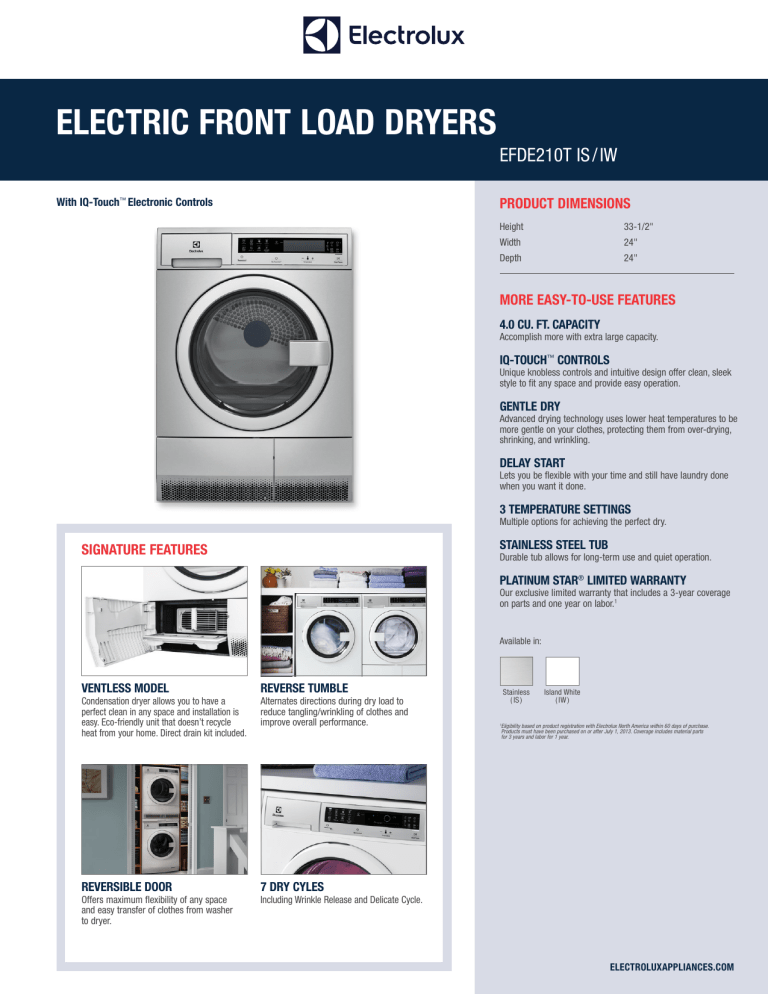

ELECTRIC FRONT LOAD DRYERS
EFDE210T IS / IW
PRODUCT DIMENSIONS
With IQ-Touch™ Electronic Controls
Height
33-1/2"
Width
24"
Depth
24"
MORE EASY-TO-USE FEATURES
4.0 CU. FT. CAPACITY
Accomplish more with extra large capacity.
IQ-TOUCH™ CONTROLS
Unique knobless controls and intuitive design offer clean, sleek
style to fit any space and provide easy operation.
GENTLE DRY
Advanced drying technology uses lower heat temperatures to be
more gentle on your clothes, protecting them from over-drying,
shrinking, and wrinkling.
DELAY START
Lets you be flexible with your time and still have laundry done
when you want it done.
3 TEMPERATURE SETTINGS
Multiple options for achieving the perfect dry.
STAINLESS STEEL TUB
SIGNATURE FEATURES
Durable tub allows for long-term use and quiet operation.
PLATINUM STAR® LIMITED WARRANTY
Our exclusive limited warranty that includes a 3-year coverage
on parts and one year on labor.1
Available in:
VENTLESS MODEL
Condensation dryer allows you to have a
perfect clean in any space and installation is
easy. Eco-friendly unit that doesn’t recycle
heat from your home. Direct drain kit included.
REVERSIBLE DOOR
Offers maximum flexibility of any space
and easy transfer of clothes from washer
to dryer.
REVERSE TUMBLE
Alternates directions during dry load to
reduce tangling/wrinkling of clothes and
improve overall performance.
Stainless
( IS )
1
Island White
( IW )
E ligibility based on product registration with Electrolux North America within 60 days of purchase.
Products must have been purchased on or after July 1, 2013. Coverage includes material parts
for 3 years and labor for 1 year.
7 DRY CYLES
Including Wrinkle Release and Delicate Cycle.
ELECTROLUXAPPLIANCES.COM
ELECTRIC FRONT LOAD DRYERS
EFDE210T IS / IW
24" ELECTRIC FRONT LOAD DRYER
Capacity D.O.E.
4.0 Cu. Ft.
FEATURES
Pull-to-Open Door
IQ-Touch™ Electronic Controls
Dry System
LED Lighting
Tumble System
Moisture Sensor
Dryer Drum
Reversible Door
Adjustable Leveling Legs
Yes
Yes
Condensing
Yes
Reversing
Yes
Stainless Steel
Yes
Yes
CYCLES
Normal, Heavy Duty, Delicates, Casual, Mixed Load,
Touch Up, Towels;
Jeans, Fast Dry, Wool, Timed Dry
7 Dry;
4 Specialty
OPTIONS
Temperature Selections
Electronic Auto Dry System
Manual Timed Dry Selections
Delay Start
End-of-Cycle Chime On / Off
Wrinkle Release
Dryness Levels
3
Yes
11
Yes
Yes
Yes
4
INSTALLATION OPTIONS
Freestanding, Under Counter,
Stacked (Under Dryer), Recessed Alcove
Yes
ACCESSORIES
Dryer Stacking Kit –
Stainless Steel with Drawer– PN # STACKIT24S
White with Drawer– PN # STACKIT24W
No Drawer– PN # STACKIT24C
Direct Drain Kit
Drying Rack – (PN # 902979409)
Optional
Optional
Optional
Included
Optional
SPECIFICATIONS
Color –
Stainless Steel
White
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 208 / 240 Volts
Amps @ 208 / 240 Volts
Heating Element @ 208 / 240 Volts (Watts)
Shipping Weight (Approx.)
IS
IW
Right Top Rear
208 / 240 VAC
2800 W
16
1,200
125 Lbs.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
PRODUCT DIMENSIONS
Height
Width
Depth (to Center of Arc Not Including Hose)
(with Door 90° Open)
33-1/2"
24"
24"
43"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFDE210T 08/17
© 2017 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
IQ-Touch Compact Front Load Dryer (Electric)
EFDE210T
ELECTRIC
FRONT LOAD DRYERS
EFDE210T IS / IW
Left
Front
24"
Rear
43"
24"
Manual condensation drain
Electrical
Supply
33 1/2" min.
(68 1/2" min.
for stacked
units)
Reversible
Door Swing
Built-In Installations
90°
For built-in installations, NO minimum clearance required
around sides, backs and tops of units. Location of plumbing
and utility hookups MUST be considered in built-in
installations. For additional installation details, refer to
Product Installation Guides on web.
90°
90°
Dryer
90°
Countertop
68 1/2" min.
(includes
stacking kit)
Washer
33 /2"
min.
1
48" min.
Washer
26"
24" min.
Dryer
25"
Side-by-Side Units in Under-Counter Installation
Stacked Units in
Recessed Alcove Installation
For detailed stacked installation, refer
to instructions included with Stacking
Kit or on web. Note: Stacking Kit adds
1" to overall depth of stacked units.
Electric Dryer Specifications
• Product Weight
– 119 Lbs.
Dryer requires electrical hookup with no ventilation exhaust
needed. Condensation is removed via manual condensation drain hose to
inner reservoir (to be removed manually), or by draining directly into washer’s
standpipe with use of supplied Direct Condensation Drain Hose Kit. (Refer to
Direct Drain Option Specifications for drainage details.)
• Voltage Rating – 208 / 240 VAC
• Single phase 3- or 4-wire cable, 208 / 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
(Do not use same circuit as washer.)
• Connected Load (kW Rating) @ 208 / 240 Volts = 2.8 kW
• Amps @ 208 / 240 V = 16A
• Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor
NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum,
30 amp power supply cord marked for use with clothes dryers (not supplied).
• Grounding through neutral link prohibited in specific applications and certain
locales, requiring use of 4-wire system. (For detailed electrical requirements,
refer to Product Installation Guide on web.)
• Always consult local and national electric & plumbing codes.
• Can be installed alone or stacked above matching Electrolux Washer,
which requires installation of optional dryer stacking kit. (For installation
details, refer to instructions included with stacking kit or on web.)
• Condensation
• Can
be built in with matching Electrolux Washer in under-counter or recessed
alcove installation with NO minimum clearance required around sides, backs and
tops of units. (Refer to Built-In Installations on this page for cutout dimensions.
For additional installation details, refer to Product Installation Guide on web.)
• Do NOT install in area exposed to dripping water or outdoor weather conditions,
or where gasoline or other flammables are kept or stored.
• For garage installation, dryer MUST be located minimum 18" above floor.
• Floor MUST be solid with 1" maximum slope. To ensure vibration or movement
does not occur, reinforcement of floor may be necessary. Do NOT install on
carpeted surface.
• Leveling legs supplied to level dryer properly and reduce excessive noise and
vibration.
Direct Drain Option Specifications
• When
using Direct Condensation Drain Hose Kit (supplied) to drain condensation
directly into washer’s standpipe, distance from bottom of drain hose sag to top of
highest part of drain hose should be 20" max. with drain height located 40" max.
above bottom of dryer’s leveling legs.
Note: F or planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Dryer
Stacking Kit – Stainless Steel with Drawer (PN # STACKIT24S),
White with Drawer (PN # STACKIT24W), No Drawer (PN # STACKIT24C).
• Drying Rack – (PN # 902979409).
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFDE210T 08/17
© 2017 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
