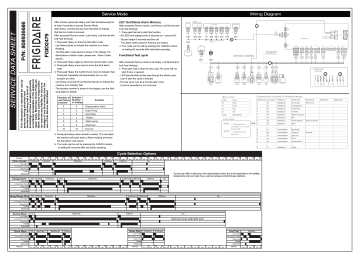

Cycle Selection Options
Cycle Selection Options
FGID2479
P/N: 808936686
SERVICE DATA SHEET
This information is intended for use by
persons having electrical and
mechanical training and a level of
knowledge of these subjects generally
considered acceptable in the appliance
repair trade. Electrolux Home Products
North America cannot be responsible,
nor assume any liability, for injury or
damage of any kind arising from the
use of this Service Data Sheet.
Exploded View of Wash System
Trouble Shooting Tips
Tub Gasket
The door gasket is pressed into the tub channel
for an interference fit. To install the gasket:
1. Press the gasket across the header using
your hands.
2. Press the gasket while stretching around
the corners .
Personal Injury Hazard
Always disconnect the dishwasher from the electrical power source before adjusting or
replacing components.
NOTE: There should be no wrinkles or
puckers in the corners.
3. Place the gasket end at the bottom and
then press the gasket in from the bottom up.
Symptom
Check the Following
Remedy
Dishwasher will not operate when
turned on.
1. Fuse (blown or tripped).
2. 120 VAC supply wiring connection
faulty.
3. Electronic control board defective.
4. No 12 VAC power to control.
5. Motor (inoperative).
6. Door switch (open contacts).
7. Door latch not making contact with
door switch.
8. Touch pad circuit defective.
9. No indicator lamps illuminate when
START or OPTIONS are pressed.
1. Replace fuse or reset breaker.
2. Repair or replace wire fasteners at
dishwasher junction box.
3. Replace control board.
4. Replace control board.
5. Replace motor/impeller assembly.
6. Replace latch assembly.
7. Replace latch assembly.
Motor hums but will not start or run.
1. Motor (bad bearings).
2. Motor stuck due to prolonged
non-use.
1. Replace motor assembly.
2. Rotate motor impeller.
Motor trips out on internal thermal
overload protector.
1. Improper voltage.
2. Motor windings shorted.
3. Glass or foreign items in pump.
1. Check voltage.
2. Replace motor/impeller assembly.
3. Clean and clear blockage.
Dishwasher runs but will not heat.
1.
2.
3.
4.
Heater element (open).
Electronic control board defective.
Wiring or terminal defective.
Hi-Limit thermostat defective.
1.
2.
3.
4.
Replace heater element.
Replace control board.
Repair or replace.
Replace thermostat.
Detergent cover will not latch or
open.
1.
2.
3.
4.
5.
Latch mechanism defective.
Electronic control board defective.
Wiring or terminal defective.
Broken spring(s).
Defective actuator.
1.
2.
3.
4.
5.
Replace dispenser.
Replace control board.
Repair or replace.
Replace dispenser.
Replace dispenser.
Dishwasher will not pump out.
1.
2.
3.
4.
5.
6.
7.
Drain restricted.
Electronic control board defective.
Defective drain pump.
Blocked impeller.
Open windings.
Wiring or terminal defective.
Defective Drain Valve.
1.
2.
3.
4.
5.
6.
7.
Clear restrictions.
Replace control board.
Replace pump.
Check for blockage, clear.
Replace pump assembly.
Repair or replace.
Repair or replace.
Dishwasher will not fill with water.
1. Water supply turned off.
2. Defective water inlet fill valve.
3. Check fill valve screen for
obstructions.
4. Defective float switch.
5. Electronic control board defective.
6. Wiring or terminal defective.
7. Float stuck in “UP” position.
1. Turn water supply on.
2. Replace water inlet fill valve.
3. Disassemble and clean screen.
1. Drain hose (high) loop too low.
1. Repair to proper 32-inch minimum
height.
2. Install air gap at counter top.
Dishwasher water siphons out.
2. Drain line connected to a floor drain
not vented.
3. Drain valve or pump stuck open.
Product Specifications
Electrical
Rating ................................... 120 Volts, 60Hz
Separate Circuit..15 amp min.- 20 amp max.
Motor (Amps) ............................................ 0.8
Heater Wattage ..................................... 850
Total Amps (load rated) ......................... 13.0
Water Temps controlled ......................... ±5°F
To assure success have outer door in place
TempAssure (cycle dependent)
Main Wash: 140°F
Final Wash: 140°F
Hi-TempAssure: 140°F Wash/149°F Final
Rinse
SanitizeAssure: 140°F Wash/156°F Final
Rinse
Hi-Limit Thermostat ................. 200°F (93°C)
Water Supply
Suggested minimum incoming water
temperature ............................. 120°F (49°C)
Pressure (PSI) min./max. ..................... 20/90
Connection (GHT)........................3/4" 11.5NH
Consumption (Normal Cycle) .......................
............. 2.9 - 7.3 U.S. gal., 11.0 - 27.7 liters
Water valve flow rate (U.S. GPM) ........... 0.66
Water recirculation rate (U.S. GPM) ..............
............................... approx. 17 (@2900rpm)
Water fill time ................................... 104 sec.
Detergent left in dispenser.
1. Detergent allowed to stand too long in
dispenser.
2. Dispenser wet when detergent was
added.
3. Detergent cover held closed or blocked
by large dishes.
4. Improper incoming water
temperature to properly dissolve
detergent.
5. Spray arm blocked.
6. Is water getting into unit.
8. Replace console assembly.
9. Replace console assembly.
4.
5.
6.
7.
Repair or replace.
Replace control board.
Repair or replace.
Clean or replace float.
3. Repair or replace.
1. Instruct customer/user.
2. Instruct customer/user.
3. Instruct customer/user on proper
loading of dishes.
4. Incoming water temperature of
120°F is required to properly
dissolve dishwashing detergents.
5. Instruct customer/user.
6. Check fill valve repair or replace.
Note: See "Detergent cover will not latch or open."
808936686 -A 26/2016
