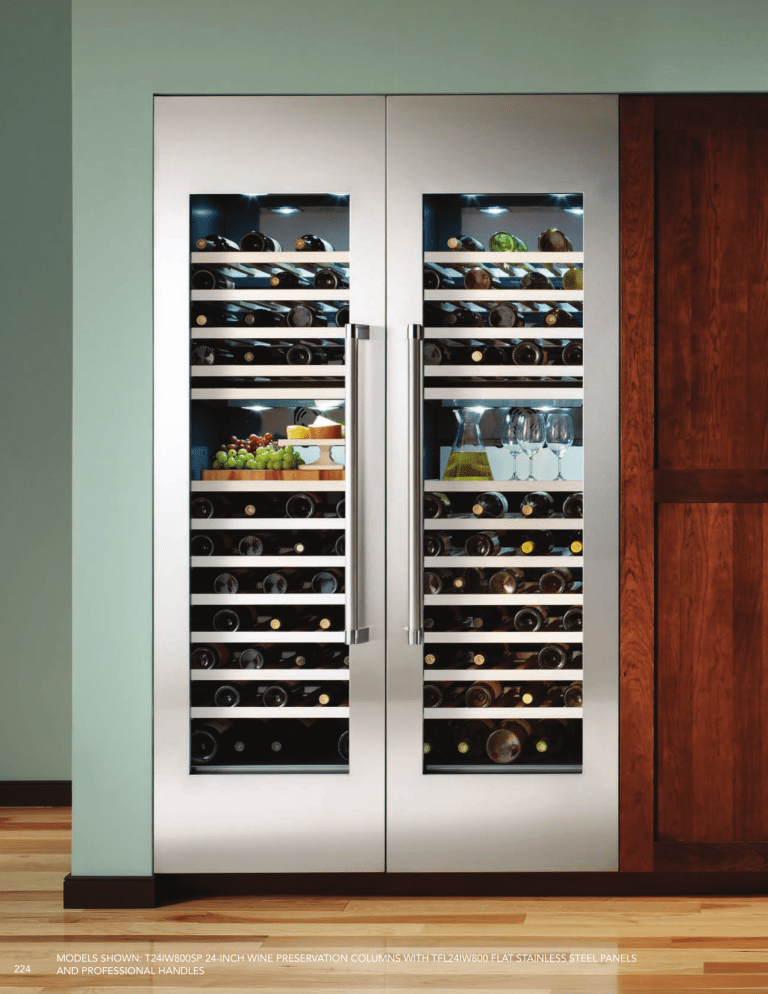

MODELS SHOWN: T24IW800SP 24-INCH WINE PRESERVATION COLUMNS WITH TFL24IW800 FLAT STAINLESS STEEL PANELS
AND PROFESSIONAL HANDLES
FREEDOM® REFRIGERATION
REFRIGERATION
®
FREEDOM
COLLECTION
Freedom to customize. Freedom to go modular. Freedom to integrate your refrigeration with the design of
your kitchen. That’s what makes Thermador Freedom® Refrigeration the leader in true flush, tall door design.
Our refrigeration solutions integrate seamlessly into your kitchen design, with custom fronts and concealed
venting grille.
Our portfolio of custom panel models—available in 18", 24", 30" and 36" widths—offers the most design
choices in the industry, allowing you to configure your own unique combination of bottom freezers, fresh
food, freezer and wine preservation columns. And nothing beats the convenience of our pre-assembled
bottom freezers, ready to install straight from the factory. Equipped with flat stainless steel panels and either
Professional or Masterpiece® Handles set off by a removable stainless steel frame, these units deliver perfect
built-in fit and aesthetics in a 24" or 25" deep cabinet.
True to the Thermador heritage with a range of state-of-the-art functionality and features, the Freedom®
Refrigeration collection gives you full control to design your personal culinary studio.
1.800.735.4328 | THERMADOR.COM
225
FREEDOM® COLLECTION
DESIGN INSPIRATION
The Thermador Freedom® Collection facilitates a complete range of new and unique possibilities for your cutting-edge kitchen design. Choose
models with custom panels for fully flush integration into the surrounding kitchen cabinetry or pre-assembled bottom freezers for popular,
effortless installations.
All models are stand-alone independent units—use your imagination to arrange them into your kitchen as desired—either as single columns or
in a wide array of possible side-by-side combinations. It’s complete freedom of choice—and freedom of kitchen design.
Side-by-Side T18IW800SP 18-Inch Wine Preservation Columns With TCH18IW800 Chiseled Stainless Steel Panels and Masterpiece® Handles. Stand-alone T30IF800SP 30-Inch Freezer Column
and T30IR800SP 30-Inch Refrigerator Column, each with TCH30IR800 Chiseled Stainless Steel Panels and Masterpiece® Handles.
T36IT800NP French Door Bottom Freezer with TCH36IT800 Chiseled Stainless Steel Panels, Professional Handles and FRAMEKIT10 Stainless Steel Frame.
226
FREEDOM® REFRIGERATION
FREEDOM® COLLECTION
DESIGN INSPIRATION
Stand-alone T24IR800SP 24-Inch Refrigerator Column with TFL24IR800 Flat Stainless Steel Panel and Stand-alone T24IW800SP 24-Inch Wine Preservation Column with Custom Panel, each with
Professional Handles.
T24IW800SP 24-Inch Wine Preservation Column and T36IB800SP 36-Inch Bottom Freezer each with Custom Panels and Handles, Separated by a Partition.
1.800.735.4328 | THERMADOR.COM
227
FREEDOM® COLLECTION, FRESH FOOD COLUMN
FEATURES & BENEFITS
THEATER LED LIGHTING
Theater LED lighting illuminates stored
items from both the front and the
sides—so that all food can be seen—
and nothing remains overlooked or
forgotten. Lighting fades in when unit
is opened for a luxurious effect.
DOOR STORAGE
Maximize shelf space with large door
bins, multiple configuration options,
and gallon door storage. Innovative
“cool door” design allows air to
circulate behind door bins, keeping
them as cool as interior shelving.
CLIMATE-CONTROLLED DRAWERS
Ensure the perfect storage and
preservation of meats, fish and
produce with dedicated convertible
temperature drawers.
INTERIOR DESIGN
Our Freedom® Fresh Food Collection is beautifully designed
to offer a clean, spacious interior look, while silver trim adds
a luxurious accent. Controls feature sleek silver buttons, fully
integrated into the interior design.
INTERIOR RACK SYSTEM
FULL-EXTENSION DRAWERS
Full-extension drawers offer
convenient access. Drawers can even
be opened with a 90° door opening,
accommodating many kitchen
designs. Drawer rails are designed
to glide perfectly even when fully
loaded.
The freedom to customize storage like never before with fulllength metal cantilever racking and fully flexible rack positions.
PERFECT INSTALLATION
Our door panel design allows for perfect adjustability. Every
door panel can be adjusted horizontally, vertically, forward and
backward to ensure an ultra-flush installation.
DEDICATED EVAPORATOR & COMPRESSOR SYSTEMS
Each column has its own evaporator and compressor to eliminate
odor transfer, keep food fresher, longer, with better humidity and
air flow.
228
FREEDOM HINGE
Engineered specifically for the
Freedom® Collection, all units feature
a heavy-duty hinge that can open to
115º, allowing full-height, integrated
doors and Truly Flush Mounted™
installation without sacrificing
accessibility. The hinge is able to
support virtually any custom wood
panel. See page 248 for details.
THEATER LED LIGHTING
Theater LED lighting illuminates stored
items from both the front and the
sides—so that all food can be seen—
and nothing remains overlooked or
forgotten. Lighting fades in when unit
is opened for a luxurious effect.
FREEDOM® REFRIGERATION
FREEDOM® COLLECTION, FREEZER COLUMN
FEATURES & BENEFITS
FULL-WIDTH ICE DRAWER
Ultra capacity ice drawer with flexible
ice bin allows you to place the bin
wherever you want it on the left or
right hand side. Entertaining? Simply
remove the ice bin and use the entire
drawer for your ice—stores up to
10 pounds.
HIDDEN ICE MAKER
Hidden compartment houses the ice
maker in an inconspicuous design.
INTERIOR DESIGN
Our Freedom® Freezer Collection is beautifully designed to offer
a clean, spacious interior look, while silver trim adds a luxurious
accent. Controls feature sleek silver buttons, fully integrated into
the interior design.
INTERIOR RACK SYSTEM
The freedom to customize storage like never before with fulllength metal cantilever racking and fully flexible rack positions.
FULL-EXTENSION DRAWERS AND
OVERSIZED FREEZER BASKETS
Full-extension drawers offer
convenient access. Drawers can
even be opened with a 90° door
opening, accommodating many
kitchen designs. Drawer rails are
designed to glide perfectly even
when fully loaded.
PERFECT INSTALLATION
Our door panel design allows for perfect adjustability. Every
door panel can be adjusted horizontally, vertically, forward and
backward to ensure an ultra-flush installation.
DEDICATED EVAPORATOR & COMPRESSOR SYSTEMS
Each column has its own evaporator and compressor to eliminate
odor transfer, keep food fresher, longer, with better humidity and
air flow.
STAINLESS STEEL EXTERIOR ICE
& WATER DISPENSER
An industry first: our freezer units
offer a fully stainless steel exterior
ice and water dispenser, integrating
perfectly with the Thermador stainless
steel door panels, as well as all other
Thermador stainless steel products.
FREEDOM HINGE
Engineered specifically for the Freedom® Collection, all units
feature a heavy-duty hinge that can open to 115º, allowing fullheight, integrated doors and Truly Flush Mounted™ installation
without sacrificing accessibility. The hinge is able to support
virtually any custom wood panel. See page 248 for details.
1.800.735.4328 | THERMADOR.COM
229
FREEDOM® COLLECTION, BOTTOM FREEZER
FEATURES & BENEFITS
FULL-EXTENSION DRAWERS AND FREEZER BASKETS
Full-extension drawers offer convenient access. Drawers can even
be opened with a 90° door opening, accommodating many kitchen
designs. Drawer rails are designed to glide perfectly even when
fully loaded.
THEATER LED LIGHTING
Theater LED lighting illuminates stored items from both the front
and the sides—so that all food can be seen—and nothing remains
overlooked or forgotten. Lighting fades in when unit is opened for
a luxurious effect.
DELI DRAWER
INTERIOR DESIGN
Complement market-fresh meats, fish and dairy products with a
perfectly chilled full-extension deli drawer.
Our Freedom® Bottom Freezer Collection is beautifully designed
to offer a clean, spacious interior look, while silver trim adds
a luxurious accent. Controls feature sleek silver buttons, fully
integrated into the interior design.
FREEDOM HINGE
INTERIOR RACK SYSTEM
The freedom to customize storage like never before with fulllength metal cantilever racking and fully flexible rack positions.
DUAL EVAPORATOR & DUAL COMPRESSOR SYSTEMS
Each cooling compartment—refrigerator and freezer—has its own
evaporator and compressor to eliminate odor transfer, keep food
fresher, longer, with better humidity and air flow.
DOOR STORAGE
Maximize shelf space in bottom freezers with large door bins,
multiple configuration options, and gallon door storage.
THERMADOR EXCLUSIVE
230
Engineered specifically for the Freedom® Collection, all units feature a
heavy-duty hinge that can open to 115º, allowing full-height, integrated
doors and Truly Flush Mounted™ installation without sacrificing
accessibility. The hinge is able to support virtually any custom wood
panel. See page 248 for details.
PERFECT INSTALLATION
Our door panel design allows for perfect adjustability. Every door panel
can be adjusted horizontally, vertically, forward and backward to ensure
an ultra-flush installation.
DUAL INDEPENDENT
TEMPERATURE AND
HUMIDITY CONTROL
Store any wine collection at the
perfect temperature and humidity.
Our electronic control board
allows you to adjust each zone
independently—and keeps wines
perfectly preserved.
FREEDOM® REFRIGERATION
FREEDOM® COLLECTION, WINE PRESERVATION
FEATURES & BENEFITS
5-BOTTLE PRESENTER
Inside the appliance an added
aluminum 5-bottle presenter ensures
the best bottles are center stage.
Remove it to double as a handy bar
or tabletop presentation option.
FREEDOM HINGE
Engineered specifically for the
Freedom® Collection, all units feature
a heavy-duty hinge that can open to
115º, allowing full-height, integrated
doors and Truly Flush Mounted™
installation without sacrificing
accessibility. The hinge is able to
support virtually any custom wood
panel. See page 248 for details.
WINE PRESERVATION COLUMNS
Our Freedom® Wine Preservation Collection redefines the home
wine cellar. Perfect for storing and serving at a dinner party or
aging the choicest bottles to perfection, this appliance is the wine
connoisseur’s newest best friend.
PERFECT INSTALLATION
Our door panel design allows for
perfect adjustability. Every door panel
can be adjusted horizontally, vertically,
forward and backward to ensure an
ultra-flush installation.
THEATER LED LIGHTING
Theater LED lighting illuminates each bottle of a precious wine
collection. Lighting fades in when unit is opened for a luxurious
effect.
FULL-EXTENSION EXOTIC WOOD RACKS
Our exquisitely designed wine storage features convenient rack
spacing and flexible storage options. Luxurious, full-extension
exotic wood racks enhance the experience of pulling out your
favorite vintage.
1.800.735.4328 | THERMADOR.COM
231
