Electrolux EFLS527UIW Specs Sheet

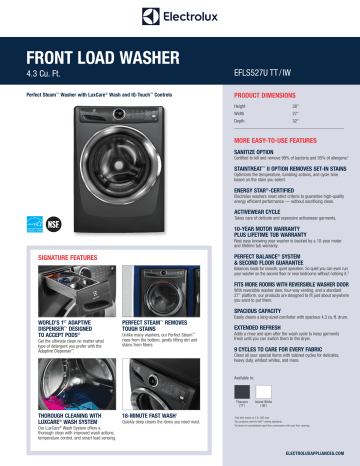

FRONT LOAD WASHER
4.3 Cu. Ft.
EFLS527U TT / IW
Perfect Steam™ Washer with LuxCare® Wash and IQ-Touch™ Controls
PRODUCT DIMENSIONS
Height
38"
Width
27"
Depth
32"
MORE EASY-TO-USE FEATURES
SANITIZE OPTION
Certified to kill and remove 99% of bacteria and 95% of allergens.2
STAINTREAT™ II OPTION REMOVES SET-IN STAINS
Optimizes the temperature, tumbling actions, and cycle time
based on the stain you select.
ENERGY STAR®-CERTIFIED
Electrolux washers meet strict criteria to guarantee high-quality
energy efficient performance — without sacrificing clean.
ACTIVEWEAR CYCLE
Takes care of delicate and expensive activewear garments.
10-YEAR MOTOR WARRANTY
PLUS LIFETIME TUB WARRANTY
Rest easy knowing your washer is backed by a 10-year motor
and lifetime tub warranty.
PERFECT BALANCE® SYSTEM
& SECOND FLOOR GUARANTEE
SIGNATURE FEATURES
Balances loads for smooth, quiet operation. So quiet you can even run
your washer on the second floor or near bedrooms without noticing it.3
FITS MORE ROOMS WITH REVERSIBLE WASHER DOOR
With reversible washer door, four-way venting, and a standard
27" platform, our products are designed to fit just about anywhere
you want to put them.
SPACIOUS CAPACITY
WORLD’S 1ST ADAPTIVE
DISPENSER™ DESIGNED
TO ACCEPT PODS®
Get the ultimate clean no matter what
type of detergent you prefer with the
Adaptive Dispenser™.
PERFECT STEAM™ REMOVES
TOUGH STAINS
Unlike many washers, our Perfect Steam™
rises from the bottom, gently lifting dirt and
stains from fibers.
Easily cleans a king-sized comforter with spacious 4.3 cu. ft. drum.
EXTENDED REFRESH
Adds a rinse and spin after the wash cycle to keep garments
fresh until you can switch them to the dryer.
9 CYCLES TO CARE FOR EVERY FABRIC
Clean all your special items with tailored cycles for delicates,
heavy duty, whitest whites, and more.
Available in:
Titanium
( TT )
THOROUGH CLEANING WITH
LUXCARE® WASH SYSTEM
Our LuxCare® Wash System offers a
thorough clean with improved wash actions,
temperature control, and smart load sensing.
18-MINUTE FAST WASH1
Quickly deep cleans the items you need most.
1
2
3
Island White
( IW )
F ast time based on 3 lb. DOE load.
Our products meet the NSF ® testing standards.
As tested on conventional wood floor construction with vinyl floor covering.
ELECTROLUXAPPLIANCES.COM
FRONT LOAD WASHER
EFLS527U TT / IW
27" FRONT LOAD WASHER
Capacity D.O.E.
4.3 Cu. Ft.
FEATURES
Pull-to-Open Door
IQ-Touch™ Controls
Perfect Steam™ Wash System
Balance System
Sound System
Lighting
Adaptive Dispenser™
Wash System
Integral Water Heater
Wash Drum
Automatic Temperature Control
Automatic Water Level Adjustment
Auto Prewash Detergent Dispenser (Liquid / Powder)
Auto Bleach Dispenser (Liquid Only)
Auto Detergent Dispenser (Liquid / Powder / PODS®)
Auto Fabric Softener Dispenser (Liquid Only)
Tumble Speed (RPM)
Spin Speed (RPM)
Reversible Door
Adjustable Leveling Legs
ENERGY STAR®
NSF® Certified / Sanitize
Yes
Yes
Yes
Perfect Balance®
Luxury-Quiet™
Luxury-Design®
Yes
LuxCare®
Yes
Stainless Steel
Yes
Yes
Yes
Yes
Yes
Yes
Variable
1,300
Yes
Yes
Yes
Yes
CYCLES
Heavy Duty, Whitest Whites, Normal, Activewear, Colors,
18-Min. Fast Wash, Delicates, Rinse & Spin, Clean Washer
9
OPTIONS
Wash / Rinse Temperature Combinations
Temperature Selections
Add Steam
Spin Speed Selections
Soil Level Selections
Delay Start
End-of-Cycle Chime
7
5
Yes
5
5
Yes
On / Off
INSTALLATION OPTIONS
Freestanding, Under Counter *, Stacked (Under Dryer),
Pedestal, Hidden (In Closet), Second Floor
Yes
ACCESSORIES
Luxury-Glide® Pedestal with Spacious Storage Drawer–
Titanium – PN # EPWD257UTT
Island White – PN # EPWD257UIW
Dryer Stacking Kit – PN # STACKIT7X
Drain Hose Extension Kit – PN # 137098000
Optional
Optional
Optional
Optional
SPECIFICATIONS
Color –
Titanium
Island White
Power Supply Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts‡
Watts @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
TT
IW
Top Right Rear
Top Left Rear
120V / 60 Hz
1.2
1,200
12
247 Lbs.
* Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.
‡
An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed
in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed
installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
PRODUCT DIMENSIONS
Height (without 15" Pedestal)
(with 15" Pedestal)
Width
Depth (to Center of Arc Not Including Hose)
(with Door 90° Open)
38"
53-1/4"
27"
32"
50-5/8"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFLS527U 05/18
© 2018 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Electrolux
FRONT LOAD WASHER
EFLS527U TT / IW
Left
Front
Rear
50 5/8"
32"
27"
7 1/2"
7"
3"
2 1/2"
3"
38"
(75 /4" min.
for stacked
units)
3
35"
120V H/C Drain
Power Water hose
cord inlets (approx.
(approx.
59")
60")
351/2"
321/2"
Reversible
Door Swing
15" Pedestal Drawer
Installation
Built-In Installations
0"min.
Elevates washer height to 53 1/4".
For detailed pedestal installation,
refer to instructions included
with pedestal or on web.
Pedestal Installation may require
modified utility hookup locations.
For details, refer to Product
Installation Guide on web.
0" min.
0" min.*
1" min.
Vented door
Front
Side
3"
60"
sq. in.
min.
27"
Front
26 1/2"
Side
Overall depth with drawer
fully extended – 42 1/2"
60"
sq. in.
min.
3"
15"
*Installation with steam dryer requires
additional 3/4" hose clearance.
Closet Installation:
If washer and dryer are installed in same closet, door(s)
15 1/4" MUST be vented with 120 sq. in. minimum louvered
opening, equally divided, located 3" from top and bottom
of door. Louvered door(s) with equivalent air openings for
full-length of door is acceptable. Air openings MUST
remain unobstructed with door(s) installed.
Installation Clearances:
Washer can be built in alone or with dryer
(side by side or stacked) in closet, recess or
under counter installation with 0" minimum
clearance required around sides and back of
unit(s). To achieve 0" minimum rear clearance
when installed with dryer, dryer MUST be vented
straight back or with quick-turn 90° elbow.
Steam dryer requires additional 3/4" steam hose
clearance at back of unit(s). Installation of closet
door(s) requires additional 1" minimum clearance
between front of unit(s) and door(s). Location
of plumbing, exhaust and utility hookups MUST
be considered when planning any built-in
installation. For additional installation details,
refer to Product Installation Guides on web.
Under Counter Installation:
Installation of washer alone or side by side
with dryer under counter, requires custom-built
countertop and/or cabinetry to accommodate
unit(s) height.
Stacking Units:
Stacking dryer above washer requires use of
optional Stacking Kit (PN# STACKIT7X) with
modified utility hookup locations for dryer. For
complete installation details, refer to instructions
included with Stacking Kit or on web.
Front Load Washer Specifications
• Product Weight
– 237 Lbs. / Shipping Weight – 247 Lbs.
electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current edition
of National Electrical Code (ANSI / NFPA 70) and local codes & ordinances.
(Do not use same circuit as dryer.)
• Voltage Rating – 120V / 60Hz
• Connected Load (kW Rating) @ 120 Volts = 1.2 kW
• Amps @ 120V = 12A
• Equipped with 120V 3-wire power supply cord, approx. 60" long.
• Always consult local and national electric & plumbing codes.
• To maximize detergent effectiveness, ambient temperature should never
be below 60°F.
• Can be installed alone, with or without optional 15" pedestal drawer, or
stacked beneath matching Electrolux Dryer, which requires installation of
optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
• Can be built in alone or with matching Electrolux Dryer (side by side or stacked)
in closet, recess or under counter installation with 0" minimum clearance
required around sides and back of unit(s). To achieve 0" minimum rear clearance
when installed with dryer, dryer MUST be vented straight back or with quick-turn
90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back
of unit(s). Installation of closet door(s) requires additional 1" minimum clearance
between front of unit(s) and door(s). Location of plumbing, exhaust and utility
hookups MUST be considered when planning any built-in installation.
• Under-counter installation requires custom-built countertop and/or cabinetry
to accommodate unit(s) height.
• An
• Do
NOT install in area exposed to dripping water or outdoor weather conditions,
or where gasoline or other flammables, including automobiles, are kept or stored.
• For garage installation, washer MUST be located minimum 18" above floor.
• Floor MUST be solid with 1" maximum slope. To ensure vibration or movement
does not occur, reinforcement of floor may be necessary. Do NOT install on
carpeted surface.
• Leveling legs supplied to level washer properly and reduce excessive noise
and vibration.
• H / C water faucets MUST be installed within 42" of washer’s water inlet and
MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.
• Water pressure MUST be between 20 and 120 psi with NOT more than 10 psi
pressure difference between hot and cold.
• Drain required with standpipe diameter of 1-1/4" min. and height of 24" min. /
96" max. above floor, capable of eliminating 17 gallons per minute. Attached
59" drain hose can reach 79"-high standpipe.
Note: F or planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Pedestal
Drawers – Titanium (PN # EPWD257UTT), Island White (PN # EPWD257UIW).
Stacking Kit – (PN # STACKIT7X).
• Drain Hose Extension Kit – (PN # 137098000).
• Dryer
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EFLS527U 05/18
© 2018 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
