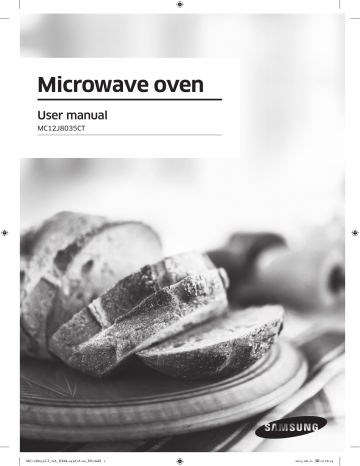

Microwave oven
User manual
MC12J8035CT
MC12J8035CT_AA_DE68-04367A-00_EN.indd 1
2015-06-11
12:16:14
Contents
Important safety instructions
3
Contents
Installation
16
What’s included
Turntable
16
18
Maintenance
19
Cleaning
Replacement (repair)
Care during an extended period of disuse
19
20
20
Before you start
21
Clock
Sound On/Off
About microwave energy
Cookware for microwave mode
21
22
23
24
Operations
26
Control panel
Manual mode
Auto mode
Special functions
26
29
37
40
Cooking Smart
42
Auto cooking
Manual cooking
Quick & Easy
42
49
62
Troubleshooting
63
Checkpoints
Information codes
63
71
Technical specifications
72
Warranty
73
2 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 2
2015-06-11
12:16:14
Important safety instructions
Congratulations on your new Samsung microwave oven. This manual contains important
information on the installation, use and care of your appliance. Please take time to read this
manual to take full advantage of your microwave oven’s many benefits and features.
Important safety instructions
WHAT YOU NEED TO KNOW ABOUT SAFETY
INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your microwave oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
A. Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
B. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on the sealing surface.
C. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
1) Door (bent),
2) Hinges and latches, (broken or loosened),
3) Door seals and sealing surface.
D. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
SAVE THESE INSTRUCTIONS
English 3
MC12J8035CT_AA_DE68-04367A-00_EN.indd 3
2015-06-11
12:16:14
Important safety instructions
Important safety instructions
IMPORTANT SAFETY SYMBOLS AND
PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
microwave oven, follow these basic safety precautions.
Do NOT attempt.
Unplug the power plug from the
wall socket.
Do NOT disassemble.
Make sure the machine is grounded
to prevent electric shock.
Do NOT touch.
Call the service center for help.
Follow directions explicitly.
Note
These warning signs are here to prevent injury to you and others. Please follow them
explicitly. After reading this section, keep it in a safe place for future reference.
SAVE THESE INSTRUCTIONS
4 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 4
2015-06-11
12:16:15
When using any electrical appliance, basic safety precautions should be followed, including
the following:
Important safety instructions
WARNING
To reduce risk of burns, electric shock, fire, personal injury or exposure to excessive
microwave energy:
1. Read all safety instructions before using the appliance.
2. Read and follow the specific “Precautions to avoid possible exposure to excessive
microwave energy” on page 3.
3. This appliance must be grounded. Connect only to properly grounded outlets. See
Important “Grounding instructions” on page 7 of this manual.
4. Install or locate this appliance only in accordance with the provided installation
instructions.
5. Some products such as whole eggs and sealed containers (for example, closed glass jars)
can explode if heated rapidly. Never heat them in a microwave oven.
6. Use this appliance only for its intended use as described in the manual. Do not put
corrosive chemicals or vapors in or on this appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when it is used by children. Keep
children away from the door when opening or closing it as they may bump themselves
on the door or catch their fingers in the door.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
9. This appliance should be repaired or serviced only by qualified service personnel. Contact
the nearest authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not tamper with or make any adjustments or repairs to the door.
12. Do not store this appliance outdoors. Do not use this product near water, for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
13. Do not immerse the cord or plug in water.
14. Keep the cord away from heated surfaces. (including the back of the oven).
15. Do not let the cord hang over edge of table or counter.
SAVE THESE INSTRUCTIONS
English 5
MC12J8035CT_AA_DE68-04367A-00_EN.indd 5
2015-06-11
12:16:15
Important safety instructions
Important safety instructions
16. When cleaning surfaces of the door and oven that come together when the door closes,
use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
Unplug the plug before cleaning.
17. To reduce the risk of fire in the oven cavity:
18. Do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
19. Remove wire twist-ties from paper or plastic bags before placing the bags in the oven.
20. If materials inside the oven ignite, keep the oven door closed, turn the oven off, and
disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. If
the door is opened, the fire may spread.
21. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils,
or food in the cavity when not in use.
22. Liquids, such as water, milk, coffee, or tea can be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A
SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury:
23. Do not overheat liquid.
24. Stir liquid both before and halfway through heating it.
25. Do not use straight-sided containers with narrow necks.
26. After heating, allow the container to stand in the microwave oven for a short time before
removing the container.
27. Use extreme care when inserting a spoon or other utensil into the container.
28. Oversized foods or oversized metal utensils should not inserted in microwave / toaster
oven as they may create a fire of electric shock.
29. Do not clean with metal scouring pads. Piece can burn off the pad and touch electrical
parts involving a risk of electric shock.
30. Do not use paper products when appliance is operated in the toaster mode.
31. Do not store any materials, other than manufacturer’s recommended accessories, in this
oven when not in use.
32. Do not cover racks or any other part of the oven with metal foil. This will cause
overheating of the oven.
SAVE THESE INSTRUCTIONS
6 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 6
2015-06-11
12:16:15
CAUTION
Important safety instructions
1. Over the range model only
• Clean ventilating hoods frequently - Grease should not be allowed to accumulate on
the hood of the filter.
• When flaming foods under the hood, turn the fan on.
• Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lyebased oven cleaner, may damage the filter.
2. Push button type model only
• Pre-caution for safe use to avoid possible exposure to excessive micro oven energy :
Do not attempt to pull any part of the door by hand to open the door. Open the door
only utilizing the push button located at front-right-bottom side.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current. This
appliance is equipped with a cord that includes a grounding wire and a grounding plug. The
plug must be plugged into an outlet that is properly installed and grounded.
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
• Plug into a grounded 3 prong outlet. Do not remove the third (grounding) prong. Do not
use an adaptor or otherwise defeat the grounding plug.
• Consult a qualified electrician or service person if you do not understand the grounding
instructions or if you are not sure if the appliance is properly grounded.
• We do not recommend using an extension cord with this appliance. If the power-supply
cord is too short, have a qualified electrician or serviceman install an outlet near the
appliance. However, if it is necessary to use an extension cord, read and follow the “Use
of Extension Cords” section below.
SAVE THESE INSTRUCTIONS
English 7
MC12J8035CT_AA_DE68-04367A-00_EN.indd 7
2015-06-11
12:16:15
Important safety instructions
USE OF EXTENSION CORDS
Important safety instructions
A short power-supply cord is provided to reduce the risk of your becoming entangled in or
tripping over a longer cord. Longer cord sets or extension cords are available and you can
use them if you exercise care. If you use a long cord or extension cord:
1. The marked electrical rating of the cord set or extension cord should be at least as great
as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord and it must be plugged into a
3-slot outlet.
3. The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over accidentally. If you use an
extension cord, the interior light may flicker and the speed of the blower may vary when
the microwave oven is on. Cooking times may be longer too.
CRITICAL INSTALLATION WARNINGS
The installation of this appliance must be performed by a qualified technician or
service company.
• Failing to have a qualified technician install the oven may result in electric shock,
fire, an explosion, problems with the product, or injury.
Unpack the oven, remove all packaging material and examine the oven for any
damage such as dents on the interior or exterior of the oven, broken door latches,
cracks in the door, or a door that is not lined up correctly. If there is any damage, do
not operate the oven and notify your dealer immediately.
Make sure to install your oven in a location with adequate space.
Remove all foreign substances such as dust or water from the power plug terminals
and contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or fire.
Plug the power cord into a properly grounded 3 pronged outlet. Your oven should be
the only appliance connected to this circuit.
• Sharing a wall socket with other appliances, using a power strip, or extending the
power cord may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or fire.
• Ensure that the voltage, frequency and current provided match the product’s
specifications. Failing to do so may result in electric shock or fire.
Keep all packaging materials out of the reach of children. Children may use them for play.
SAVE THESE INSTRUCTIONS
8 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 8
2015-06-11
12:16:15
Important safety instructions
This appliance must be properly grounded. Read and follow the specific “Grounding
instructions” found in the beginning of this Section. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product.
• Never plug the power cord into a socket that is not grounded correctly and make
sure that it is grounded in accordance with local and national codes.
Do not cut or remove the third (ground) prong from the power cord under any
circumstances.
Connect the oven to a 20A circuit. If you connect the oven to a 15A circuit, make sure
that the circuit breaker is operable.
Do not install this appliance in a humid, oily, or dusty location, or in a location
exposed to direct sunlight or water (rain drops).
• This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
• This may result in electric shock or fire.
Do not mount over a sink.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• This may result in electric shock or fire.
Do not pull the power cord when you unplug the oven.
• Unplug the oven by pulling the plug only.
• Failing to do so may result in electric shock or fire.
When the power plug or power cord is damaged, contact your nearest service center
for a replacement or repair.
SAVE THESE INSTRUCTIONS
English 9
MC12J8035CT_AA_DE68-04367A-00_EN.indd 9
2015-06-11
12:16:15
Important safety instructions
INSTALLATION CAUTIONS
Important safety instructions
Position the oven so that the plug is easily accessible.
• Failing to do so may result in electric shock or fire due to electric leakage.
Unplug the oven when it is not being used for long periods of time or during a
thunder/lightning storm.
• Failing to do so may result in electric shock or fire.
CRITICAL USAGE WARNINGS
If the microwave appliance is flooded, please contact your nearest service center. Failing
to do so may result in electric shock or fire.
Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Mic
rowave Energy”, found in the beginning of this Safety Information Section.
If the microwave generates a strange noise, a burning smell or smoke, unplug it
immediately and contact your nearest service center.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (propane gas, LP gas, etc.), ventilate the room immediately. Do
not touch the microwave, power cord, or plug.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Take care that the door or any of the other parts do not come into contact with your body
while cooking or just after cooking.
• Failing to do so may result in burns.
In the event of a grease fire on the surface units below the oven, smother the flaming pan
on the surface unit by covering the pan completely with a lid, a cookie sheet, or a flat tray.
Never leave surface units beneath your oven unattended at high heat settings. Boil
overs cause smoking and greasy spillovers that may ignite and spread if the vent fan is
operating. To minimize automatic fan operation, use adequate sized cookware and use
high heat on surface units only when necessary.
If materials inside the oven should ignite, keep the oven door closed, turn the oven off
and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If
the door is opened, the fire may spread.
• Always observe Safety Precautions when using your oven. Never try to repair
the oven on your own. There is dangerous voltage inside. If the oven needs to be
repaired, contact an authorized service center near you.
SAVE THESE INSTRUCTIONS
10 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 10
2015-06-11
12:16:16
Important safety instructions
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Because a high voltage current enters the product chassis during operation,
opening the chassis can result in electric shock or fire.
• You may be exposed to electromagnetic waves.
• When the oven requires repair, contact your nearest service center.
If any foreign substance such as water enters the microwave, unplug it and contact
your nearest service center.
• Failing to do so may result in electric shock or fire.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the appliance is in
operation.
• Plugging the power plug into the wall socket again may cause a spark and result
in electric shock or fire.
Keep all packaging materials well out of the reach of children. Packaging materials
can be dangerous to children.
• If a child places a bag over its head, the child can suffocate.
Do not let children or any person with reduced physical, sensory or mental
capabilities use this appliance unsupervised. Make sure that the appliance is out of
the reach of children.
• Failing to do so may result in electric shock, burns or injury.
Do not touch the inside of the appliance immediately after cooking. The inside of the
appliance will be hot.
• The heat on the inside of the oven can cause burns.
Do not put aluminum foil (except as specifically directed in this manual), metal
objects (such as containers, forks, etc.) or containers with golden or silver rims into
the microwave.
• These objects can cause sparks or a fire.
Do not use or place flammable sprays or objects near the oven.
• Heat from the microwave can cause flammable sprays to explode or burn.
• Failing to do so may result in electric shock or injury.
Do not tamper with or make any adjustments or repairs to the door. Under no
circumstances should you remove the outer cabinet.
Do not store or use the oven outdoors.
SAVE THESE INSTRUCTIONS
English 11
MC12J8035CT_AA_DE68-04367A-00_EN.indd 11
2015-06-11
12:16:16
Important safety instructions
USAGE CAUTIONS
Important safety instructions
If the surface of the microwave is cracked, turn it off.
• Failing to do so may result in electric shock.
Dishes and containers can become hot. Handle with care.
Hot foods and steam can cause burns. Carefully remove container coverings, directing
steam away from your hands and face.
Remove lids from baby food before heating. After heating baby food, stir well to
distribute the heat evenly. Always test the temperature by tasting before feeding the
baby. The glass jar or surface of the food may appear to be cooler than the food in
the interior, which can be so hot that it will burn the infant’s mouth.
Make sure all cookware used in the oven is suitable for microwaving.
Use microwavable cookware in strict compliance with such manufacturer’s
recommendations.
Do not stand on top of the microwave or place objects (such as laundry, oven covers,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the
appliance.
• Items, such as a cloth, may get caught in the door.
• This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
• Do not spray volatile material such as insecticide onto the surface of the
appliance.
• As well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
• Do not place the appliance over a fragile object such as a sink or glass object.
This may result in damage to the sink or glass object.
Do not put your face or body close to the appliance while cooking or when opening
the door just after cooking.
• Take care that children do not come too close to the appliance.
• Failing to do so may result in children burning themselves.
Do not place food or heavy objects over the door when opening the door.
• The food or object may fall and this may result in burns or injury.
• Do not abruptly cool the door, the inside of the appliance, or the dish by pouring
water over it during or just after cooking.
• This may result in damage to the appliance. The steam or water spray may result
in burns or injury.
SAVE THESE INSTRUCTIONS
12 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 12
2015-06-11
12:16:16
Important safety instructions
Do not cook without the glass tray in place on the oven floor. Food will not cook
properly without the tray.
Do not defrost frozen beverages in narrow-necked bottles. The containers can break.
Do not scratch the glass of the oven door with a sharp object.
• This may result in the glass being damaged or broken.
Do not store anything directly on top of the appliance when it is in operation.
Do not use sealed containers. Remove seals and lids before use. Sealed containers can
explode due to buildup of pressure even after the oven has been turned off.
CRITICAL CLEANING INSTRUCTIONS
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner, or alcohol to clean the appliance.
This may result in discoloration, deformation, damage, electric shock, or fire.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket
and remove food waste from the door and cooking compartment.
• Failing to do so may result in electric shock or fire.
Take care not to hurt yourself when cleaning the appliance.
(external/internal)
You may hurt yourself on the sharp edges of the appliance.
• Do not clean the appliance with a steam cleaner.
This may result in corrosion.
• Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls
or floor can cause paint damage and reduce the efficiency of the oven.
TATE OF CALIFORNIA PROPOSITION 65
S
WARNINGS:
This product contains chemicals known to the State of California to cause cancer and
reproductive toxicity.
SAVE THESE INSTRUCTIONS
English 13
MC12J8035CT_AA_DE68-04367A-00_EN.indd 13
2015-06-11
12:16:16
Important safety instructions
INSTALLING YOUR MICROWAVE OVEN
Important safety instructions
Place the oven on a flat level surface 33.5 inches (85 cm) above the floor. The surface should
be strong enough to safety bear the weight of the oven.
• NOT FOR BUILT-IN INSTALLATION
1. When you install your oven, make sure there
is adequate ventilation for your oven by
leaving at least 4 inches (10 cm) of space
behind and, on the sides of the oven and
7.875 inches (20 cm) of space above.
2. Remove all packing materials inside the
oven.
3. Install the roller ring and turntable. Check
that the turntable rotates freely. (Turntable
type model only)
01
02
03
04
04
02
03
01
33.5 inches (85 cm) from the floor
4 inches (10 cm) from the rear wall
4 inches (10 cm) from the side
7.875 inches (20 cm) from above
4. This microwave oven has to be positioned so that plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard. For your personal safety, plug
the cable into a proper AC earthed socket.
• Do not install the microwave oven in hot or damp surroundings like next to a traditional
oven or radiator. The power supply specifications of the oven must be respected and any
extension cable used must be of the same standard as the power cable supplied with the
oven. Wipe the interior and the door seal with a damp cloth before using your microwave
oven for the first time.
CLEANING THE TURNTABLE AND ROLLER RINGS
Clean the roller rings periodically and wash the turntable as required. You can wash the
turntable safely in your dishwasher.
SAVE THESE INSTRUCTIONS
14 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 14
2015-06-11
12:16:16
STORING AND REPAIRING YOUR MICROWAVE OVEN
•
•
•
•
Important safety instructions
If you need to store your microwave oven for a short or extended period of time, choose a
dust-free, dry location. Dust and dampness may adversely affect the microwave parts.
Do not repair, replace or service any part of your microwave oven yourself. Allow
only a qualified service technician to perform repairs. If the oven is faulty and
needs servicing, or you are in doubt about its condition, unplug the oven from the
power outlet and contact your nearest service center.
Do not use the oven if it is damaged, in particular, if the door or door seals are
damaged. Door damage includes a broken hinge, a worn out seal, or distorted/bent
casing.
Do not remove the oven from its casing.
This microwave oven is for home use only and is not intended for commercial use.
SAVE THESE INSTRUCTIONS
English 15
MC12J8035CT_AA_DE68-04367A-00_EN.indd 15
2015-06-11
12:16:16
Installation
What’s included
Make sure all parts and accessories listed on this page and the next
page are included in the product package. If you have a problem with
the oven or accessories, contact a local Samsung customer center or the
retailer.
Oven at a glance
Installation
01
02
03
01 Control Panel
04
02 Safety Door Lock
03 Door Handle
04 Door
16 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 16
2015-06-11
12:16:16
Accessories
The oven comes with different accessories that help you prepare
different types of food.
Turntable
Low rack
High rack
Installation
Roller ring
Crusty plate
English 17
MC12J8035CT_AA_DE68-04367A-00_EN.indd 17
2015-06-11
12:16:16
Installation
Put in the center of the base. It supports the turntable.
* Turntable
Put on the roller ring with the center fitting the
coupler. It serves as a cooking base.
* Racks
Use one of these racks as appropriate to cook two
dishes simultaneously. A smaller dish on the turntable,
and the other on the selected rack. You can use these
racks with Grill Convection or Combination Cooking.
Installation
* Roller ring
NOTE
Do not use wire racks with Microwave mode.
* Crusty plate Put on the turntable. Use this to brown food, or to
keep pastries or pizza crisp.
IMPORTANT
DO NOT operate the microwave
oven without the roller ring and
turntable.
NOTE
If you need an accessory marked
with an * (asterisk), please contact
the Samsung Call Center using the
phone number listed on the last
page of this manual or visit our
on-line parts web site at
www.samsungparts.com.
Turntable
Remove all packing materials
inside the oven.Install the roller
ring and turntable. Check that the
turntable rotates freely.
18 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 18
2015-06-11
12:16:17
Maintenance
Cleaning
Clean the oven regularly to prevent impurities from building up on or
inside the oven. Also pay special attention to the door, door seal, and
turntable and roller ring (applicable models only).
If the door won’t open or close smoothly, first check if the door seals
have built up impurities. Use a soft cloth in soapy water to clean both
the inner and outer sides of the oven. Rinse and dry well.
To remove stubborn impurities from inside the oven
3. When the cycle is complete,
wait until the oven cools
down. Then, open the door
and clean the cooking cavity.
Maintenance
1. With an empty oven, put a
cup of diluted lemon juice on
the center of the turntable.
2. Heat the oven for 10 minutes
at max power.
To clean inside swing-heater models
A
To clean the upper area of the
cooking cavity lower the top
heating element by 45° (A) as
shown. This will help clean the
upper area. When done, reposition
the top heating element.
CAUTION
• Keep the door and door seal,
clean and ensure the door
opens and closes smoothly.
Otherwise, the oven’s lifecycle
may be shortened.
• Take caution not to spill water
into the oven vents.
• Do not use any abrasive
or chemical substances for
cleaning.
• After each use of the oven, use
a mild detergent to clean the
cooking cavity after waiting
for the oven to cool down.
English 19
MC12J8035CT_AA_DE68-04367A-00_EN.indd 19
2015-06-11
12:16:17
Maintenance
Replacement (repair)
WARNING
Maintenance
This oven has no user-removable parts inside. Do not try to replace or
repair the oven yourself.
• If you encounter a problem
• If you encounter a problem
with hinges, seal and/or
with the outer housing of the
the door, contact a qualified
oven, first unplug the power
technician or a local Samsung
cord from the power source,
service center for technical
and then contact a local
assistance.
Samsung service center.
• If you want to replace the light
bulb, contact a local Samsung
service center. Do not replace it
yourself.
Care during an extended period of disuse
• If you don’t use the oven for an extended period of time, unplug the
power cord and move the oven to a dry, dust-free location. Dust and
moisture that builds up inside the oven may affect the performance
of the oven.
20 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 20
2015-06-11
12:16:17
Before you start
There are a two microwave components that you should know about before going directly
to a recipe. Before or during any cooking mode, you can set/change the clock or the kitchen
timer to your needs.
Clock
It is important to set the correct clock time to ensure correct automatic operations.
1. Turn on the oven and wait for several
seconds for it to enter the Standby state.
The hour element blinks.
2. Use the arrow buttons to set the hour,
and then press OK. The minute element
blinks.
Before you start
3. Use the arrow buttons to set the minute,
and then press OK.
NOTE
•
•
To change the current time later, hold
down the up arrow ( ) for 3 seconds,
and then follow the above steps.
The clock time cannot be changed
during operations.
English 21
MC12J8035CT_AA_DE68-04367A-00_EN.indd 21
2015-06-11
12:16:17
Before you start
Sound On/Off
You can turn on or off the key tone, beep, or alarm. This setting is available only in the
Standby state (when the current time is displayed).
To mute the sound, hold down for
3 seconds. “OFF” appears on the display.
To unmute the sound, hold down again for
3 seconds. “ON” appears on the display.
Before you start
22 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 22
2015-06-11
12:16:17
About microwave energy
Microwaves are high-frequency electromagnetic waves. The oven uses its built-in magnetron
to generate microwaves which cook or reheat food without deforming or discolouring the
food.
Before you start
1. The microwaves generated by the
magnetron are distributed uniformly by
the whirling distribution system. This is
why the food is cooked evenly.
2. The microwaves are absorbed into the
food up to a depth of approximately
1 inch (2.5 cm). Then, the microwaves
are dissipated inside the food as cooking
continues.
3. The cooking time is affected by the
following conditions of the food:
• Quantity and density
• Moisture content
• Initial temperature (especially, when
frozen)
NOTE
The cooked food keeps heat in its core after
cooking is complete. This is why you must
observe the standing times specified in
this manual, which ensure that the food is
cooked evenly down to the core.
English 23
MC12J8035CT_AA_DE68-04367A-00_EN.indd 23
2015-06-11
12:16:17
Before you start
Cookware for microwave mode
Cookware used for Microwave Mode must allow microwaves to pass through and penetrate
food. Metals such as stainless steel, aluminum, and copper reflect microwaves. Therefore, do
not use cookware made of metallic materials. Cookware marked microwave - safe is always
safe for use. For additional information on appropriate cookware, refer to the following guide.
Requirements:
•
•
•
Flat bottom and straight sides
Tight-fitting lid
Well-balanced pan with handles that weigh less than the main pan
Material
Microwavesafe
Description
Before you start
Aluminium foil
Use for a small serving size to protect
against overcooking. Arcing can occur
if the foil is near the oven wall or if
using an excessive amount of foil.
Crusty plate
Do not use for preheating for more
than 8 minutes.
Bone china or earthenware
Porcelain, pottery, glazed earthenware
and bone china are usually microwavesafe, unless decorated with a metal
trim.
Disposable polyester cardboard
dishes
Some frozen foods are packaged in
these dishes.
Fast-food
packaging
Polystyrene cups
or containers
Overheating may cause these to melt.
Paper bags or
newspaper
These may catch fire.
Recycled paper or
metal trims
These may cause arcing
: Microwave safe
: Use caution
: Microwave unsafe
24 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 24
2015-06-11
12:16:18
Material
Glassware
Microwavesafe
Description
Oven-to-table
ware
Microwave-safe unless decorated with
metal trims.
Fine glassware
Delicate glassware may break or crack
if heated rapidly.
Glass jars
Appropriate for warming only. Remove
the lid before cooking.
Dishes
Metal
Plates, cups,
napkins, and
kitchen paper
Use to cook for a short time. These
absorb excess moisture.
Recycled paper
Causes arcing.
Containers
Use thermoplastic containers only.
Some plastics may warp or discolour
at high temperatures.
Cling film
Use to maintain moisture after
cooking.
Freezer bags
Use boilable or ovenproof bags only.
Plastic
Use to maintain moisture and prevent
spattering.
Wax or grease-proof paper
: Microwave safe
Before you start
Paper
These may cause arcing or fire.
Freezer bag with
twist-ties
: Use caution
: Microwave unsafe
English 25
MC12J8035CT_AA_DE68-04367A-00_EN.indd 25
2015-06-11
12:16:18
Operations
Control panel
The front panel comes in a wide range of materials and colors. For improved quality, the
actual appearance of the oven is subject to change without notice.
01
02
03 04
06
08
10
05
07
09
11
Operations
01 Feature panel
Press to select a desired cooking mode or function.
02 Display
Shows necessary information for selected function or settings.
03 Up/Down
Use to adjust the setting value for your selection.
04 OK
Press to confirm your settings.
05 Back
Press to return to the default setting.
06 Temperature/
Power Level
Use to change the temperature or power level.
07 Turntable
Press to toggle on and off the turntable.
08 +30 sec
Press to add operation time during Microwave mode.
09 Child Lock
Press and hold for 3 seconds to activate or deactivate.
Child Lock is available only in the Standby state.
10 Start
Press to start cooking. This button is also used to fast preheat the
oven at the maximum power level.
11 Stop/Eco
Press to stop operation. This button is also used to cancel the
current mode.
NOTE
•
Standby state: After 5 minutes of
inactivity on the control panel, the oven
enters the Standby state where only the
current time is displayed. After 25 more
minutes of inactivity, the oven enters
the Stop state.
26 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 26
2015-06-11
12:16:18
Feature overview
Feature
Power Convection
Temp./Power
range
Default Temp./
Power
Max. time
300-450 °F
400 °F
60 min.
Power Convection is similar to Convection mode.
However, the heating elements generate stronger
heat and distribute stronger air current inside the
oven. This is designed to cook food faster while
keeping or improving the taste.
100-450 °F
Cb-1,
Grill Combi
Cb-2,
Convection
Combi
10-70 %
60 min.
The heating elements generate heat, which is
reinforced by microwave energy.
100-400 °F
10-70 %
350 °F
70 %
60 min.
The heating elements generate heat and the
convection fan distributes the heat inside the oven,
which is reinforced by microwave energy.
10-100 %
Grill
70 %
Operations
Combi
Microwave
60 min.
The heating elements generate heat, which
is evenly distributed inside the oven by the
convection fan. Use this mode for frozen food or
baking.
Convection
Manual
mode
350 °F
100 %
90 min.
The microwave energy enables food to be cooked
or reheated without changing either the form or
the color.
-
-
60 min.
Use this for grilling food such as meat.
English 27
MC12J8035CT_AA_DE68-04367A-00_EN.indd 27
2015-06-11
12:16:18
Operations
Feature
Auto
mode
Operations
Special
functions
Temp./Power
range
Default Temp./
Power
Max. time
Auto Power Convection
To accommodate first-time users of Power
Convection mode, the oven offers 14 auto
programs.
Auto Cook
For cooking beginners, the oven offers a total of
23 auto cooking programs.
Defrost
The oven offers 4 defrosting programs for your
convenience.
Slim Fry
You don’t need to set either cooking time or power
level. You can adjust the slim fry cook category as
shown in this manual (see page 39). You will use
less oil compared to frying with an oil fryer and
feel much more healthy as you reduce the use of
oil.
125-175 °F
Warm Hold
150 °F
3 hrs.
Use this only for keeping food you have just
cooked warm.
28 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 28
2015-06-11
12:16:18
Manual mode
Step 1. Select mode
On the feature panel, select a Manual
mode., for example, Convection. The default
temperature (or power level) blinks.
If you press Combi mode, one of these
indicators is displayed:
• Cb-1 (Microwave+Grill)
• Cb-2 (Microwave+Convection)
Step 2. Set temperaure or Power level
Use the / buttons to adjust the default
temperature (or power level). When done,
press OK to move to the time elements.
NOTE
Operations
The power level, unless otherwise
mentioned, is adjusted according to the set
temperature.
If the power level or temperature is not
specified within 5 seconds, the oven moves
to the cooking time.
Step 3. Set cooking time
Use the / buttons to set the cooking
time. When done, press START.
NOTE
You can set cooking time after preheating.
Step 4. Preheat
The oven starts preheating until it reaches
the set temperature. When complete, the
oven beeps and the
indicator disappears.
English 29
MC12J8035CT_AA_DE68-04367A-00_EN.indd 29
2015-06-11
12:16:18
Operations
CAUTION
•
Always use oven gloves while taking out
food.
•
The microwave fan may continue to
operate for 5 minutes after cooking if
the temperature in the oven cavity is too
hot.
will be displayed.
To change the cooking time during cooking
Use the / buttons to adjust the cooking
time. Your changes will be applied instantly,
and the oven will resume cooking with the
new settings.
To change the temperature or power level during cooking
1. Press Temp./Power Level. The
temperature (or power level) element
blinks.
Operations
2. Use the / buttons to adjust the
temperature (or power level), and then
press OK or Temp./Power Level to
confirm the changes.
To stop operation
Press STOP/Eco once to stop operation, or
twice to cancel the current mode and enter
the Standby state.
30 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 30
2015-06-11
12:16:19
Power Convection
Power Convection is similar to the Convection mode. However, the heating elements generate
higher temperature heat and the fan generates stronger air currents inside the oven. This
mode is designed to cook faster while keeping or improving the taste. You can use the Low
rack or a combination of the Low rack and Crusty plate on the turntable.
Step 1
>
Power Convection
Step 2
Temperature
>
Step 3
Cooking Time
>
Step 4
Preheating
1. Put the Low rack or the combination of
the Low rack and Crusty plate on the
turntable.
CAUTION
Do not use this mode for baking breads, or
cooking confectionery. The stronger heat
can burn the tops of food.
Operations
2. Put food in suitable cookware, then put
the cookware on the rack and close the
door.
3. Follow steps 1-4 in Manual mode on
page 29.
4. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
NOTE
When you push the START after setting the
temperature, Preheating will start.
English 31
MC12J8035CT_AA_DE68-04367A-00_EN.indd 31
2015-06-11
12:16:19
Operations
Convection
The heating elements generate heat, which is evenly distributed inside the oven by the
convection fan. You can use the Low rack or a combination of the Low rack and Crusty plate
on the turntable. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit
cakes, choux pastries, and soufflés.
Step 1
Convection
>
Step 2
Temperature
>
Step 3
Cooking Time
>
Step 4
Preheating
1. Put the Low rack or the combination of
the Low rack and Crusty plate on the
turntable.
Operations
2. Put food in suitable cookware, then put
the cookware on the rack and close the
door.
3. Follow steps 1-4 in Manual mode on
page 29.
4. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
NOTE
When you push the START after setting the
temperature, Preheating will start.
32 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 32
2015-06-11
12:16:19
Combi - Grill Combi
The heating elements generate heat, which is reinforced by the microwave energy. Use only
microwave-safe cookware, such as glass or ceramic cookware.
Step 1
Combi
>
Step 2
Mode (Cb-1)
>
Step 3
Power Level
>
Step 4
>
Cooking Time
Step 5
-
1. Put the High rack or the combination
of High rack and Crusty plate on the
turntable.
2. Put food in suitable cookware, then put
the cookware on the rack and close the
door.
3. Follow steps 1-3 in Manual mode on
page 29.
4. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
Operations
English 33
MC12J8035CT_AA_DE68-04367A-00_EN.indd 33
2015-06-11
12:16:20
Operations
Combi - Convection Combi
This combination mode combines microwave energy with hot air, resulting in reduced
cooking time and producing a brown, crispy surface on the food. Use this mode for all kinds
of meat and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit
cakes, pies and crumbles, roast vegetables, scones, and breads.
Step 1
Combi
Step 2
>
Mode (Cb-2)
>
Step 3
Temperature
and Power
Level
Step 4
>
Cooking Time
Step 5
>
Preheating
1. Put the Low rack or the combination of
the Low rack and Crusty plate on the
turntable.
Operations
2. Put food in suitable cookware, then put
the cookware on the rack and close the
door.
3. Follow steps 1-4 in Manual mode on
page 29.
4. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
CAUTION
Use only ovenproof cookware, such as
cookware made out of glass, pottery, or
bone china without metal trim.
34 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 34
2015-06-11
12:16:20
Microwave
Microwaves are high-frequency electromagnetic waves. The microwave energy cooks or
reheats food without changing either the form or the color.
• Use only microwave-safe cookware.
Step 1
Microwave
>
Step 2
Power Level
>
Step 3
Cooking Time
>
Step 4
-
1. Put food in a microwave-safe container,
and then place the container in the
center of the turntable. Close the door.
2. Follow steps 1-3 in Manual mode on
page 29.
3. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
Simple start
To simply heat food for a short period of
time at maximum power, select Microwave,
and then press START ( ).
100 %
(High)
50 %
(Medium)
90 %
(Sauté)
40 %
(Medium low)
80 %
(Reheat)
30 %
(Low)
70 %
(Medium high)
20 %
(Defrost)
60 %
(Simmer)
10 %
(Warm)
Operations
Power level
English 35
MC12J8035CT_AA_DE68-04367A-00_EN.indd 35
2015-06-11
12:16:20
Operations
Grill
The heating elements generate heat. Make sure they are in the horizontal position.
Step 1
Grill
>
Step 2
-
>
Step 3
Cooking Time
>
Step 4
-
1. Put the High rack or the combination
of High rack and Crusty plate on the
turntable.
2. Put food in suitable cookware, then put
the cookware on the rack and close the
door.
3. Follow steps 1 and 3 in Manual mode on
page 29.
4. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
Operations
36 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 36
2015-06-11
12:16:20
Auto mode
The oven offers 4 different auto modes for your convenience: Auto Power Convection, Auto
Cook, Slim Fry, and Defrost. Select one that best fits your needs.
Step 1. Select mode
On the feature panel, press an auto mode
button, for example, Auto Power Convection.
The default program number blinks.
Step 2. Select program
Use the / buttons to select a preferred
program, and then press OK. The default
weight for the program blinks.
Operations
Step 3. Set serving size or weight
Use the / buttons to set the serving size
(or weight). When done, press START.
CAUTION
Always use oven gloves when taking out
food.
NOTE
The cooking time is pre-programmed
according to the auto mode and cannot be
changed.
English 37
MC12J8035CT_AA_DE68-04367A-00_EN.indd 37
2015-06-11
12:16:20
Operations
Auto Power Convection
Power Convection is similar to the Convection mode. However, the heating elements generate
higher temperature heat and and the fan generates stronger air currents inside the oven. This
mode is designed to cook faster while keeping or improving flavor.
To accommodate first-time users of the Power Convection mode, the oven offers 14 auto
programmes.
Step 1
Auto Power Convection
>
Step 2
1 to 14
>
Step 3
Serving Size/Weight
1. Put food in suitable cookware, then put
the cookware on the turntable and close
the door.
2. Follow steps 1-3 in Auto mode on page
37.
3. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
CAUTION
Operations
Do not use this mode for baking breads
or cooking confectionery. The higher
temperature heat can burn the tops of food.
Auto Cook
For cooking beginners, the oven offers a total of 23 auto cooking programs. Take advantage
of this feature to save time or shorten your learning curve. The cooking time and
temperature will be adjusted according to the selected recipe.
Step 1
Auto Cook
>
Step 2
1 to 23
>
Step 3
Serving Size/Weight
1. Put food in suitable cookware, then put
the cookware on the turntable and close
the door.
2. Follow steps 1-3 in Auto mode on page
37.
3. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
38 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 38
2015-06-11
12:16:20
Slim Fry
The 8 slim fry cook features include/provide pre-programmed cooking times. You do not
need to set either the cooking time or the power level.
You can adjust the slim fry cook category by press the slim fry cook button.
Step 1
Slim Fry
>
Step 2
1 to 8
>
Step 3
Serving Size/Weight
1. Put food in suitable cookware, then put
the cookware on the turntable and close
the door.
2. Follow steps 1-3 in Auto mode on page
37.
3. When cooking is complete, “0:00” blinks.
Use oven gloves to take out food.
Defrost
The oven offers 4 defrosting programs for your convenience. The time and power levels are
automatically adjusted according to the selected program.
>
Step 2
1 to 4
>
Step 3
Weight
Operations
Step 1
Defrost
1. Put food in suitable cookware, then put
the cookware on the turntable and close
the door.
2. Follow steps 1-3 in Auto mode on page
37.
3. When defrosting is complete, “0:00”
blinks. Use oven gloves to take out food.
English 39
MC12J8035CT_AA_DE68-04367A-00_EN.indd 39
2015-06-11
12:16:21
Operations
Special functions
Warm Hold
With this function, only the convection heating element operates, and it cycles on and off to
keep food warm.
When cooking is complete,
1. On the feature panel, press Warm Hold.
The default temperature (150 °F) blinks.
2. Use the / buttons to adjust the
temperature, and then press OK to move
to the time element.
Operations
3. Use the / buttons to set the time,
and then press START. The oven starts
warming.
CAUTION
•
•
•
•
Always use oven gloves while taking out
food.
Do not use this function to reheat cold
foods. Use this only to keep food that
has been cooked warm.
Do not run this function for more than
3 hour. Otherwise, this may affect food
quality.
To keep food crispy, do not cover the
food.
NOTE
To change the temperature during the cycle,
press Temp./Power Level, and repeat step 2
above.
See the table on the next page for Keep
Warm temperature settings.
40 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 40
2015-06-11
12:16:21
Warm Hold guide
Food
Temperature
(°F)
Standing time
(min.)
Directions
Meals
175
30
For keeping meat, chicken, gratin,
pizza, potatoes, and plated meals
warm.
Drinks
175
30
For keeping water, milk, and coffee
warm.
Breads/Pastries
150
30
For keeping bread, toast, rolls,
muffins, and cake warm.
Dishes/Crockery
150
30
For preheating dishes and
crockery. Arrange the dishes over
the turntable. Do not overload.
(Maximum load: 15 lbs. / 7 kg)
Operations
English 41
MC12J8035CT_AA_DE68-04367A-00_EN.indd 41
2015-06-11
12:16:21
Cooking Smart
Auto cooking
Auto Power Convection guide
Cooking Smart
Cook No.
Food
Amount
Directions
P1
Bone-In
Chicken Pieces
2 servings (18 oz.)
4 servings (36 oz.)
Brush the chicken pieces with oil and
seasonings. Place the pieces skin side
down on the high rack. When the
microwave beeps, turn over BoneIn Chicken Pieces and press start to
continue.
P2
Hamburger
2 each (4 oz./each)
4 each (4 oz./each)
Place the hamburgers on the high
rack. When the microwave beeps,
turn the hamburgers over and press
start to continue.
P3
Salmon Fillets
1 serving
(1 pieces, 4 oz.)
2 servings
(2 pieces, 8 oz.)
(1 serving = 1 pc,
each pieces = 4 oz.)
Place the salmon fillets on the high
rack. As your taste, Brush the Salmon
fillets with oil and seasonings.
P4
Sirloin Steak
(Medium)
1 inch, 1 lbs.
Place the steak on the high rack.
When the microwave beeps, turn
over the steak and press start to
continue. Let the steak rest for 5
minutes before slicing. As your
taste, Brush the Steaks with oil and
seasonings.
P5
Sirloin Steak
(Well Done)
1 inch, 1 lbs.
Place the steak on the high rack. When
the microwave beeps, turn over the
steak and press start to continue. Let
the steak rest for 5 minutes before
slicing. As your taste, Brush the Steaks
with oil and seasonings.
42 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 42
2015-06-11
12:16:21
Cook No.
Food
Amount
2 servings (2 ea.)
4 servings (4 ea.)
(1 serving =
4-5 oz./each)
Directions
Place the pork chops on the high
rack. When the microwave beeps,
turn over the pork chops and press
start to continue. As your taste,
Brush the Pork chops with oil and
seasonings.
P6
Boneless Pork
Chops
P7
Frozen Pizza
(6 inch)
6 inch
Place the pizza on the high rack.
P8
Frozen Pizza
(12 inch)
12 inch
Place the pizza on the high rack.
P9
Pan Pizza
(Deep Dish
Style)
22-25 oz.
Place the pizza on the high rack.
Frozen Cheese
Sticks
1 : 2 servings
2 : 4 servings
(4 sticks per serving)
Place the cheese sticks on the crusty
plate, then place the plate on the
high rack.
P11
Frozen Chicken
Wings
1 serving (6 ea.)
2 servings (12 ea.)
(3 ea. per serving)
Place the chicken wings on the
crusty plate, then place the plate on
the high rack.
P12
Frozen Onion
Rings
2 servings (6 ea.)
4 servings (12 ea.)
(3 rings per serving)
Place the onion rings on the crusty
plate, then place the plate on the
high rack.
P13
Frozen Oven
Chips
2 servings (8 oz.)
4 servings (16 oz.)
Place frozen oven chips on the
crusty plate, then place the plate on
the high rack.
P14
Frozen Gratin
13-15 oz.
Cooking Smart
P10
Put into a suitable sized glass
Pyrex dish or leave in the original
packaging (take care that this is
suitable for microwaves and oven
heat). Put frozen gratin on the low
rack. After cooking stand for 2-3
minutes.
English 43
MC12J8035CT_AA_DE68-04367A-00_EN.indd 43
2015-06-11
12:16:21
Cooking Smart
Auto Cook guide
Cook No.
Food
Amount
Directions
A1
Soup
1 to 4 servings
(8 oz./serving)
Pour the refrigerated soup into a
mircrowave safe bowl. Cover with a
lid or vented plastic wrap. Stir well
before serving.
A2
Pasta
1 to 4 servings
(8 oz./serving)
Place the refrigerated pasta on a
microwave safe plate or bowl. Cover
with a lid or vented plastic wrap. Stir
well before serving.
A3
Casserole
1 to 4 servings
(8 oz./serving)
Place the refrigerated casserole on a
microwave safe plate or bowl. Cover
with a lid or vented plastic wrap. Stir
well before serving.
A4
Dinner Plate
A5
Cooking Smart
1 serving
Place the pre-cooked, refrigerated
food on a microwave safe plate.
Cover the plate with vented plastic
wrap or wax paper.
Beverage
1 serving : 1/2 cup
2 servings : 1 cup
3 servings : 2 cups
Place the beverage in a microwave
safe container.
A6
Pizza Reheat
1 serving : 2 slices
2 servings : 4 slices
(3-4 oz./each)
Place the pizza on a microwave safe
plate. Do not overlap the slices or
cover. Let stand 1-2 minutes before
serving.
A7
Frozen Dinner
8-10 oz.
(227-283 g)
11-14 oz.
(312-397 g)
15-18 oz.
(425-510 g)
Remove the outer wrapping and
follow the package directions for
covering. Let stand 1-3 minutes
before serving.
A8
Frozen
Breakfast
4-6 oz.
(113-170 g)
7-8 oz.
(198-227 g)
Remove the outer wrapping and
follow the package directions for
covering. When microwave beeps,
stir and press start to continue. Let
stand 1-3 minutes before serving.
44 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 44
2015-06-11
12:16:21
Cook No.
Food
Amount
Directions
1 serving : 2 slices
2 servings : 4 slices
3 servings : 6 slices
Layer 2 paper towels on a
microwave safe plate and arrange
the bacon on the towels. Do not
overlap bacon. Cover with an
additional paper towel. Remove
the paper towel immediately after
cooking.
A10
Hot Dogs
1 serving : 2 each
2 servings : 4 each
Pierce the hot dogs 3 times with a
fork and place on a microwave safe
plate. When the microwave beeps,
add the buns and press start to
continue.
A11
Oatmeal
1 pack
2 packs
Follow the package directions
for the recommended amount of
water needed. Stir well before and
afterwards.
A12
Brownie Mix
1 package
Pour the batter into an 8x8 inch
microwave safe pan, then place the
pan on the low rack.
A13
Cookie Dough
8 ea.
Place 8 cookies on the crusty plate,
then place the tray on the low rack.
When the microwave beeps, put the
cookies.
A14
Nachos
1 serving
Arrange the tortilla chips uniformly
on a microwave safe plate, then
place the plate on the high rack.
Sprinkle evenly with cheese.
Contents :
- 2 cups tortilla chips
- ⅓ cup grated cheese
A15
Frozen Soft
Pretzels
1 serving : 2 ea.
2 servings : 4 ea.
Cooking Smart
Bacon
A9
Place the pretzels on the crusty
plate, then place the plate on the
high rack.
English 45
MC12J8035CT_AA_DE68-04367A-00_EN.indd 45
2015-06-11
12:16:21
Cooking Smart
Cook No.
Food
Amount
Directions
Cooking Smart
3.5 oz.
3.0 oz.
1.5 oz.
Heat only one microwave popcorn
bag at a time. Be careful when
removing the heated bag from the
microwave and opening the bag as
the steam can easily burn.
Melt Butter
1 stick (¼ lbs.)
2 sticks (½ lbs.)
Unwrap the butter and cut the
butter stick. Place the butter on a
microwave safe dish and cover with
wax paper. Stir well afterwards.
A18
Soften Butter
1 stick (¼ lbs.)
2 sticks (½ lbs.)
Remove the butter from the
packaging and place on a microwave
safe dish.
A19
Melt Chocolate
1 cup chips
Place the chocolate chips in a
microwave safe dish. When the
microwave beeps, stir well and press
start to continue. Unless stirred, the
chocolate chips will keep their shape
even when the heating time is over.
A20
Soften Ice
Cream
A21
A16
Popcorn
A17
1 serving : 1 pint
2 servings : ½ gallon
Remove the lid of the carton. Place
the carton in the center of the
microwave.
Soften Cream
Cheese
1 package (8 oz.)
Unwrap the cream cheese and place
on a microwave safe dish
A22
Melt Cheese
1 cup
Place the cheese in a microwave safe
bowl and cover with wax paper. Stir
well afterwards.
A23
Melt
Marshmallows
10 oz.
Place the marshmallows in a large
microwave safe dish. Stir well
afterwards.
NOTE
The turntable is not rotating while fermenting yogurt.
46 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 46
2015-06-11
12:16:21
Slim Fry guide
Food
Amount
Directions
F1
Frozen Prawns
2 servings (8 oz.)
4 servings (16 oz.)
Place frozen prawns on the crusty
plate, then place the plate on the high
rack.
F2
Frozen Chicken
Nuggets
2 servings (10 ea.)
4 servings (20 ea.)
(5 ea. per serving)
Place frozen chicken nuggets on the
crusty plate, then place the plate on
the high rack.
F3
Frozen Mini
Spring Rolls
1 serving (8 oz.)
2 servings (16 oz.)
Place frozen mini spring rolls on the
crusty plate, then place the plate on
the high rack.
F4
Homemade
French Fries
2 servings (8 oz.)
4 servings (12 oz.)
Peel potatoes and cut into sticks with
a thickness of 10×10mm. Soak in cold
water for 30-40 minutes (Put some
salt in the cold water for the osmotic
pressure.) Dry them with a towel then
brush with 5 g oil. (Have to remove
the moisture completely. Otherwise,
potatoes may get scorched and stick to
the bottom of the tray.) Place them on
the crusty plate, then place the plate
on the high rack.
F5
Frozen Potato
Wedges
2 servings (8 oz.)
4 servings (16 oz.)
Place frozen potato wedges on the
crusty plate, then place the plate on
the high rack.
F6
Frozen Potato
Croquettes
2 servings (8 oz.)
4 servings (16 oz.)
Place frozen potato croquettes on the
crusty plate, then place the plate on
the high rack.
F7
Drumsticks
1 serving (12 oz.)
2 servings (24 oz.)
(4 pcs per serving)
Rinse drumsticks and place them
on the high rack directly. When
the microwave beeps, turn over
drumsticks and press start to continue.
F8
Roasted
Vegetables
2 servings (8 oz.)
4 servings (16 oz.)
Cut courgettes, carrots, zuccine and
brush them with 5 g oil. Place sliced
vegetables on the crusty plate, then
place the plate on the high rack.
Cooking Smart
Cook No.
English 47
MC12J8035CT_AA_DE68-04367A-00_EN.indd 47
2015-06-11
12:16:21
Cooking Smart
Defrost guide
Cook No.
Food
Amount
Directions
Meat
0.1-3.5 lbs.
Shield the edges with aluminium foil. Turn the
meat over when the oven beeps. This program
is suitable for lamb, pork, steaks, chops, and
ground meat. For ground meat, place the meat
directly on the turntable tray on wax paper. Do
not use an extra tray. Let stand, covered with
foil, for 5–10 minutes.
d2
Poultry
0.1-3.5 lbs.
Shield the leg and wing tips with aluminium
foil. Turn the poultry over when the oven beeps.
This program is suitable for whole chicken as
well as for chicken portions.
d3
Fish
0.1-3.5 lbs.
Shield the tail of a whole fish with aluminium
foil. Turn the fish over when the oven beeps.
This program is suitable for whole fish as well
as for fish fillets.
d4
Bread/Cake
0.1-2.0 lbs.
Put bread on a piece of paper towel. Turn over
as soon as the oven beeps. Place cake on a
ceramic plate and if possible, turn over as soon
as the oven beeps. (The oven keeps operating
and stops only when you open the door.) This
program is suitable for all kinds of bread,
sliced or whole, as well as for bread rolls and
baguettes. Arrange bread rolls in a circle.
Cooking Smart
d1
48 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 48
2015-06-11
12:16:21
Manual cooking
Microwave cooking guide
•
•
•
Do not use metal containers with Microwave mode.
Always put food containers on the turntable.
It is recommended to cover the food for best results.
After cooking is complete, let the food settle in its own steam.
Frozen vegetables
• Use a glass Pyrex container with a lid.
• Stir vegetables twice during cooking, and once after cooking.
• Add seasoning after cooking.
Food
Spinach
Broccoli
Green Beans
Mixed Vegetables
(Carrots, Peas, Corn)
Mixed Vegetables
(Chinese Style)
Power
Cooking time
(min.)
Standing time
(min.)
0.3 lb.
60 %
5-6
2-3
8-9
2-3
7-8
2-3
7½-8½
2-3
7-8
2-3
7½-8½
2-3
Add 15 ml (1 tbsp.) of cold water.
0.7 lb.
60 %
Add 30 ml (2 tbsp.) of cold water.
0.7 lb.
60 %
Cooking Smart
Peas
Amount
Add 15 ml (1 tbsp.) of cold water.
0.7 lb.
60 %
Add 30 ml (2 tbsp.) of cold water.
0.7 lb.
60 %
Add 15 ml (1 tbsp.) of cold water.
0.7 lb.
60 %
Add 15 ml (1 tbsp.) of cold water.
English 49
MC12J8035CT_AA_DE68-04367A-00_EN.indd 49
2015-06-11
12:16:21
Cooking Smart
Fresh vegetables
• Use a glass Pyrex container with a lid.
• Add 30-45 ml of cold water (2-3 tbsp.) for every 0.6 lbs..
• Stir once during cooking, and once after cooking.
• Add seasoning after cooking.
• For faster cooking, it is recommended to cut into smaller, even sizes.
• Cook all fresh vegetables using full microwave power (900 W).
Food
Broccoli
Amount
Power
0.6 lb.
1.0 lbs.
100 %
Cooking time
(min.)
Standing time
(min.)
3-4
5-6
3
Prepare even sized florets. Arrange the stems so they point to the
center.
Brussels Sprouts
1.0 lbs.
100 %
4½-5
3
6-7
3
3½-4
6-7
3
Let stand 60-75 ml (5-6 tbsp.) water.
Carrots
1.0 lbs.
100 %
Cut carrots into even sized slices.
Cauliflower
0.6 lb.
1.0 lbs.
100 %
Cooking Smart
Prepare even sized florets. Cut big florets in half. Arrange stems so
they point to the center.
Zucchini
0.6 lb.
100 %
4-5
3
Cut zucchini into slices. Add 30 ml (2 tbsp.) water or a knob of
butter. Cook until just tender.
Eggplant
0.6 lb.
100 %
2½-3
3
Cut eggplant into small slices and sprinkle with 1 tbsp. lemon juice.
Leeks
0.6 lb.
100 %
3½-4
3
1½-2
2½-3
3
Cut leeks into thick slices.
Mushrooms
0.25 lb.
0.6 lb.
100 %
Prepare small whole or sliced mushrooms. Do not add any water.
Sprinkle with lemon juice. Spice with salt and pepper. Drain before
serving.
50 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 50
2015-06-11
12:16:21
Food
Onions
Amount
Power
Cooking time
(min.)
Standing time
(min.)
0.6 lb.
100 %
5-5½
3
Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water.
Pepper
0.6 lb.
100 %
4½-5
3
5-6
8-9
3
Cut pepper into small slices.
Potatoes
0.6 lb.
1.0 lbs.
100 %
Weigh the peeled potatoes and cut them into similar sized halves or
quarters.
Turnip Cabbage
0.6 lb.
100 %
5½-6
3
Cut turnip into small cubes.
Cooking Smart
English 51
MC12J8035CT_AA_DE68-04367A-00_EN.indd 51
2015-06-11
12:16:21
Cooking Smart
Rice and Pasta
Stir from time to time during and after cooking.
Cook uncovered, and close the lid during settling. Then, drain water thoroughly.
• Rice: Use a large glass Pyrex container with a lid against the rice doubling in volume.
• Pasta: Use a large glass Pyrex container.
Food
White Rice
(Parboiled)
Amount
Power
Cooking time
(min.)
Standing time
(min.)
1 cup
60 %
19-21
5
Add 2 cups of cold water for 1 cup of rice.
1½ cups
60 %
21-23
5
Add 3 cups of cold water for 1½ cups of rice.
Brown Rice
(Parboiled)
1 cup
60 %
22-24
5
Add 2 cups of cold water for 1 cup of rice.
1½ cups
60 %
24-26
5
Add 3 cups of cold water for 1½ cups of rice.
Mixed Rice
(Rice + Wild Rice)
Cooking Smart
Mixed Corn
(Rice + Grain)
Pasta
1 cup
80 %
16-17
5
Add 2 cups of cold water for 1 cup of rice/wild rice mix.
1 cup
80 %
17-18
5
Add 1¾ cups of cold water to 1 cup of mixed rice/grain.
1 cup
80 %
10-11
5
Add 4¼ cups of water.
52 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 52
2015-06-11
12:16:21
Reheating
• Do not reheat large-sized foods such as joints of meat, which easily overcook.
• It is safer to reheat foods at lower power levels.
• Stir well or turn over during and after cooking.
• Use caution for liquids or baby foods. Stir well before, during, and after cooking with a
plastic spoon or glass stirring stick to prevent eruptive boiling and scalding. Keep them
inside the oven during the standing time. Allow a longer reheating time than other food
types.
• Recommended standing time after reheating is 2-4 minutes. See the table below for
reference.
Liquids
Food
Amount
Power
Drinks
(Coffee, Tea, Water)
150 ml (1 cup)
300 ml (2 cups)
450 ml (3 cups)
600 ml (4 cups)
100 %
Cooking time
(min.)
Standing
time (min.)
1-1½
2-2½
3-3½
4-4½
1-2
Pour into cups and reheat uncovered: 1 cup in the center, 2 cups
opposite of each other, 3 cups in a circle. Keep in microwave oven
during standing time and stir well.
0.6 lb.
0.8 lb.
1.0 lbs.
1.2 lbs.
70 %
3½-4
4½-5
6-6½
7-7½
2-3
Cooking Smart
Soup
(Chilled)
Pour into a deep ceramic plate or deep ceramic bowl. Cover with a
plastic lid. Stir well after reheating. Stir again before serving.
Stew
(Chilled)
Pasta With Sauce
(Chilled)
0.8 lb.
70 %
4½-5½
2-3
Put stew in a deep ceramic plate. Cover with a plastic lid. Stir
occasionally during reheating and again before standing and
serving.
0.8 lb.
70 %
3½-4½
3
Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate.
Cover with microwave cling film. Stir before serving.
English 53
MC12J8035CT_AA_DE68-04367A-00_EN.indd 53
2015-06-11
12:16:22
Cooking Smart
Food
Filled Pasta With
Sauce
(Chilled)
Plated Meal
(Chilled)
Amount
Power
Cooking time
(min.)
Standing
time (min.)
0.8 lb.
70 %
4-5
3
Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover
with a plastic lid. Stir occasionally during reheating and again before
standing and serving.
0.8 lb.
1.0 lbs.
1.2 lbs.
60 %
4½-5½
5½-6½
6½-7½
3
Plate a meal of 2-3 chilled components on a ceramic dish. Cover
with microwave cling-film.
Cheese Fondue
Ready-to-Serve
(Chilled)
0.8 lb.
60 %
6-7
1-2
Put the ready-to-serve cheese fondue in a suitable sized glass Pyrex
bowl with lid. Stir occasionally during and after reheating. Stir well
before serving.
Baby foods & Milk
Cooking Smart
Food
Amount
Power
Cooking time
(sec.)
Standing time
(min.)
Baby Food
(Vegetables + Meat)
0.4 lb.
70 %
30
2-3
Baby Porridge
(Grain + Milk +
Fruit)
Baby Milk
Empty into ceramic deep plate. Cook covered. Stir after cooking
time. Before serving, stir well and check the temperature carefully.
0.4 lb.
70 %
20
2-3
Empty into ceramic deep plate. Cook covered. Stir after cooking
time. Before serving, stir well and check the temperature carefully.
100 ml
200 ml
30 %
30-40
60-70
2-3
Stir or shake well and pour into a sterilized glass bottle. Place in
the center of turntable. Cook uncovered. Shake well and let stand
for at least 3 minutes. Before serving, shake well and check the
temperature carefully.
54 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 54
2015-06-11
12:16:22
Defrost
Put frozen food in a microwave-safe container without a cover. Turn over during defrosting,
and drain off liquid and remove giblets after defrosting. For faster defrosting, cut the food
into small pieces, and wrap them with aluminum foil before defrosting. When the outer
surface of frozen foods begins to melt, stop defrosting and let stand as instructed in the table
below. Do not change the default power level (20 %) for defrosting.
Meat
Food
Amount
Minced Beef
0.6 lb.
1.1 lbs.
Pork Steaks
Power
20 %
0.6 lb.
Defrosting time
(min.)
Standing time
(min.)
6-7
8-13
15-30
7-8
Place the meat on the turntable. Shield thinner edges with aluminium foil. Turn
over after half of defrosting time!
Poultry
Chicken Pieces
1.1 lbs. (2 pcs)
Whole Chicken
2.7 lbs.
20 %
14-15
32-34
15-60
First, put chicken pieces first skin-side down, whole chicken first breast-sidedown on a flat ceramic plate. Shield the thinner parts like wings and ends with
aluminium foil. Turn over after half of defrosting time!
Fish
0.4 lb.
Whole Fish
0.9 lb.
20 %
6-7
11-13
10-25
Cooking Smart
Fish Fillets
Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts
under the thicker parts. Shield narrow ends of fillets and tail of whole fish with
aluminium foil. Turn over after half of defrosting time!
Fruit
Berries
0.7 lb.
20 %
6-7
5-10
Spread fruit on a flat, round glass dish (with a large diameter).
Bread
Bread Rolls
(each ca. 50 g)
2 pcs
4 pcs
Toast/Sandwich
0.6 lb.
German Bread
(Wheat + Rye
Flour)
1.1 lbs.
1-1½
2½-3
20 %
4-4½
5-20
7-9
Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of
turntable. Turn over after half of defrosting time!
English 55
MC12J8035CT_AA_DE68-04367A-00_EN.indd 55
2015-06-11
12:16:22
Cooking Smart
Grilling guide
The grill-heating elements are located on the ceiling of the cooking chamber. These elements
operate only when the door is closed and the turntable is rotating.
When grilling food, put the food on the high rack unless otherwise instructed.
Preheat the grill for 3 minutes with Grill mode, and, unless otherwise instructed below, grill
food on the high rack. When grilling is complete, use oven gloves to take out the food.
Cookware
Grill: Use flameproof containers, which may include metal parts. Do not use plastic
cookware of any kind.
Microwave+Grill: Do not use cookware that is made of metal or plastic substances.
Food type
Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions,
sandwiches, and all kinds of toast with toppings.
Grilling
Food
Toast Slices
Amount
Mode
4 pcs (each 25 g)
Grill only
Cooking time
1st side (min.)
2nd side (min.)
5½-6½
-
Put toast slices side by side on the high rack.
Cooking Smart
Grilled Tomatoes
2 pcs (0.9 lb.)
30 % + Grill
7-8
-
Cut tomatoes into halves. Put some cheese on top. Arrange in a circle in
a flat glass Pyrex dish. Place it on the high rack. Stand for 2-3 minutes.
Tomato + Cheese
Toast
Toast Hawaii
4 pcs (0.7 lb.)
20 % + Grill
5-6
-
Toast the bread slices first. Put the toast with topping on the high rack.
Stand for 2-3 minutes
4 pcs (1.1 lbs.)
30 % + Grill
5-6
-
Toast the bread slices first. Put the toast with topping on the high rack.
Stand for 2-3 minutes.
Baked Potatoes
1.1 lbs.
50 % + Grill
15-17
-
Cut potatoes into halves. Brush potatoes with oil and parsley. Put them
in a circle on the high rack with the cut side to the grill.
56 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 56
2015-06-11
12:16:22
Food
Baked Apples
Amount
Mode
2 apples
30 % + Grill
Cooking time
1st side (min.)
2nd side (min.)
6-7
-
Core the apples and fill them with raisins and jam. Put some almond
slices on top. Put apples on a flat glass Pyrex dish. Place the dish
directly on the low rack.
1.1 lbs. (2 pcs)
Chicken Pieces
30 % + Grill
12-14
9-11
Brush chicken pieces with oil and spices. Put them in a circle on the
high rack. After grilling stand for 2-3 minutes.
Beef Steaks
(Medium)
0.9 lb. (2 pcs)
Grill only
8-10
6-8
Brush the beef steaks with oil. Lay them in a circle on the high rack.
After grilling stand for 2-3 minutes.
0.9-1.1 lbs.
Roast Fish
30 % + Grill
9-11
5-7
Brush skin of whole fish with oil and add herbs and spices. Put two
fish side by side (head to tail) on the high rack. After grilling stand for
2-3 minutes.
Cooking Smart
English 57
MC12J8035CT_AA_DE68-04367A-00_EN.indd 57
2015-06-11
12:16:22
Cooking Smart
Crusty plate
We recommend you to preheat the crusty plate while it’s on the turntable for 3-4 minutes.
Preheat
Food
Bacon
Amount
0.2 lb.
(4-6 slices)
Cooking
Mode
Time
(min.)
Mode
Time
(min.)
60 % + Grill
3
60 % + Grill
3-4
Preheat crusty plate. Put slices side by side on crusty plate. Put plate
on high rack.
Potato Wedges
0.6 lb.
60 % + Grill
4
50 % + Grill
9-11
Rinse and clean potatoes. Cut into wedges or cubes. Brush with olive
oil, herbs and spices. Distribute cubes evenly on plate. Put plate on
high rack. Turn over after 5-7 minutes.
Frozen Chicken
Nuggets
0.7 lb.
60 % + Grill
4
60 % + Grill
6-8
Preheat crusty plate. Brush plate with 1 tbsp. oil. Put chicken nuggets
on crusty plate. Put plate on the high rack. Turn over after 4-5 minutes.
Cooking Smart
58 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 58
2015-06-11
12:16:22
Power Convection guide
Cooking with Power Convection is a powerful combination of the inner grill heater and the
convection ring heater with fan at side. The hot air blows from the top of the cavity through
holes into the oven. The heating element at top and side and the fan at the side-wall, keeps
the hot air circulating evenly.
Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux,
and soufflés. Before cooking, preheat with guided temperatures.
All conventional ovenproof cookware, baking tins and sheets – anything you would normally
use in a traditional convection oven – can be used.
Food
Frozen Mini Tartes/
Pizza Snacks
Frozen Oven Chips
Amount
Temperature
Cooking time (min.)
0.6 lb.
400 °F
9-12
Put pizza snacks on the crusty plate. Put plate on low rack.
0.7 lb.
400 °F
14-16
Distribute frozen oven chips on crusty plate. Put plate on high
rack.
Frozen Chicken
Nuggets
Frozen Pizza
0.7 lb.
400 °F
7-9
Put frozen nuggets on crusty plate. Put plate on the high rack.
0.7 lb.
400 °F
11-13
Put frozen Pizza on the low rack.
Roast Vegetables
1.1 lbs.
350 °F
Cooking Smart
Homemade Lasagna/
Pasta Gratin
25-30
Put pasta in ovenproof dish. Put dish on low rack.
0.7 lb.
400 °F
10-12
Rinse and prepare vegetables in slices (e.g. courgette, egg plants,
pepper, pumpkin). Brush with olive oil and add spices. Put on
crusty plate on high rack.
English 59
MC12J8035CT_AA_DE68-04367A-00_EN.indd 59
2015-06-11
12:16:22
Cooking Smart
Convection guide
Convection
In Convection mode, both the heating element and the side-wall fan operate together to
circulate the heat inside the cooking chamber. Use this mode for biscuits, individual scones,
rolls, and cakes as well as fruit cakes, choux, and soufflés. All conventional ovenproof
cookware, baking tins and sheets – anything you would normally use in a traditional
convection oven – can be used.
Microwaves+Convection
This combination mode combines the microwave energy with hot air, resulting in reduced
cooking time and producing a brown, crispy surface of the food. The oven offers 5 different
combination modes for your convenience. Use this for all kinds of meat and poultry as well
as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast
vegetables, scones, and breads. Use only ovenproof cookware, such as glasses, potteries, or
bone china without metal trim.
Before cooking, preheat with guided temperatures, and wait until the cycle is complete. Set
the power level and cooking time as instructed below. Use oven gloves when taking out food.
Power
Food
Cooking Smart
Pizza
Pasta
Frozen Pizza
(Ready
Baked)
Frozen
Lasagne
Amount
0.7-0.9 lb.
Cooking time
1st Step
2nd Step
1st Step
(min.)
2nd Step
(min.)
30 % + 400 °F
Conv. 350 °F
9-11
4-6
Place the pizza on the low rack. After baking, let stand for
2-3 minutes.
0.9 lb.
30 % + 400 °F
Conv. 400 °F
16-18
3-4
Put into a suitable sized glass pyrex dish or leave in the original
packaging (take care that this is suitable for microwaves and oven
heat). Put frozen pasta gratin on the low rack. After cooking, let
stand for 2-3 minutes.
60 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 60
2015-06-11
12:16:22
Power
Food
Meat
Roast Beef/
Lamb
(Medium)
Roast Chicken
Amount
2.7-2.9 lbs.
1st Step
Cooking time
2nd Step
30 % + 350 °F
1st Step
(min.)
2nd Step
(min.)
22-25
14-16
Brush beef/lamb with oil and spice it with pepper, salt and paprika.
Put it on the low rack, first with the fat side down. After cooking,
wrap in aluminium foil and let stand for 10-15 minutes.
2.6-2.8 lbs.
30 % + 400 °F 30 % + 400 °F
24-26
23-25
Brush chicken with oil and spices. For the first step, put the chicken
breast side down on the low rack. For the second step, turn the
chicken breast side up. Let stand for 5 minutes.
Bread
Frozen Bread
Rolls
Garlic Bread
(Chilled,
Prebaked)
Cake
Small Cakes
(Fresh Dough)
Cookies
(Fresh Dough)
30 % + 350 °F
7-9
-
Put bread rolls in a circle on the crusty plate, then on the low rack.
Let stand for 2-3 minutes.
0.45 lb. (1 pc)
30 % + 400 °F
7-9
-
Put the chilled baguette on baking paper on the low rack. After
baking, let stand for 2-3 minutes.
1.1 lbs.
Only 350 °F
38-43
-
Put the fresh dough in a small rectangular black metal baking dish
(length 25 cm). Put the cake on the low rack. After baking, let stand
for 5-10 minutes.
12 x 0.06 lb.
Only 325 °F
25-28
Cooking Smart
Marble Cake
(Fresh Dough)
0.8 lb. (6 pcs)
-
Fill the fresh dough evenly in paper cups and set on crusty plate
on the low rack. After baking, let stand for 5 minutes.
0.45-0.6 lb.
Only 400 °F
13-17
-
Put the chilled croissants on baking paper on the low rack.
English 61
MC12J8035CT_AA_DE68-04367A-00_EN.indd 61
2015-06-11
12:16:22
Cooking Smart
Quick & Easy
Melting butter
Put about 3 tbsp. butter into a small deep
glass dish. Cover with plastic lid.
Heat for 30-40 seconds using 90 %, until
butter is melted.
Melting chocolate
Put about a half cup (¼ lb.) chocolate into a
small deep glass dish. Heat for 3-5 minutes,
using 50 % until chocolate is melted.
Stir once or twice during melting.
Use oven gloves while taking out!
Meltng crystallized honey
Put ¾ oz. (20 g) crystallized honey into a
small deep glass dish.
Heat for 20-30 seconds using 30 %, until
honey is melted.
Cooking Smart
Melting gelatine
Lay dry gelatine sheets ⅓ oz. (10 g) for
5 minutes in cold water. Put drained gelatine
into a small glass Pyrex bowl.
Heat for 1 minute using 30 %.
Stir after melting.
Cooking glaze/icing (for cake and gateaux)
Mix instant glaze (approximately 3 tbsp.)
with 2⅔ tbsp. (40 g) sugar and 1 cup
(250 ml) cold water.
Cook uncovered in a glass Pyrex bowl for
3½ to 4½ minutes using 90 %, until glaze/
icing is transparent.
Stir twice during cooking.
Cooking jam
Put 21 oz. of fruit (600 g or about 2½ cups)
(for example mixed berries) in a suitable
sized glass Pyrex bowl with lid.
Add 1½ cups (300 g) preserving sugar and
stir well.
Cook covered for 10-12 minutes using 90 %.
Stir several times during cooking.
Empty directly into small jam glasses with
twist-off lids. Let stand with the lid on for
5 minutes.
Cooking pudding
Mix the pudding mix with milk following the
manufacturer’s instructions.
Add sugar if instructed. Stir well.
Use a suitable sized glass Pyrex bowl with
lid. Cook covered for 6½ to 7½ minutes
using 90 %.
Stir several times well during cooking.
Browning almond slices
Spread about 1 oz. (30 g) of sliced almonds
evenly on a medium sized ceramic plate.
Stir several times during browning for 3½ to
4½ minutes using 60 %.
Let it stand for 2-3 minutes in the oven.
Use oven gloves when taking out!
62 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 62
2015-06-11
12:16:22
Troubleshooting
If you encounter a problem using your microwave, first check the table below and try the
recommendations. If a problem persists, or if an information code keeps appearing on the
display, contact a local Samsung service center.
Checkpoints
Problem
Cause
Action
General
The buttons cannot
be pressed properly.
The time is not
displayed.
The oven does not
work.
Remove the foreign matter and
try again.
For touch models: Moisture is
on the exterior.
Wipe the moisture from the
exterior.
Child lock is activated.
Deactivate Child lock.
Power is not supplied.
Make sure power is supplied.
Confirm the microwave is
plugged in. Check your fuses or
circuit breakers.
The Eco (power-saving) function
is set.
Turn off the Eco function.
Power is not supplied.
Make sure power is supplied.
Confirm the microwave is
plugged in. Check your fuses or
circuit breakers.
The door is open.
Close the door and try again.
The door open safety
mechanisms are covered by
foreign matter.
Remove the foreign matter and
try again.
The user has opened the door to
turn food over.
After turning over the food,
press the Start button again to
start operation.
Troubleshooting
The oven stops while
in operation.
Foreign matter may be caught
between the buttons.
English 63
MC12J8035CT_AA_DE68-04367A-00_EN.indd 63
2015-06-11
12:16:22
Troubleshooting
Problem
Cause
Action
The oven has been cooking for
an extended period of time.
After the oven has cooked for
an extended period of time, let
the oven cool.
The cooling fan is not working.
Listen for the sound of the
cooling fan.
Trying to operate the oven
without food inside.
Put food in the oven.
There is not enough ventilation
space around the oven.
There are intake/exhaust outlets
on the front and rear of the
oven for ventilation.
Check the installation guide and
make sure that the microwave
is far enough away from
walls and cabinets for proper
ventilation.
Several appliances or devices
are plugged into the same
outlet.
Unplug all other appliances or
devices from the outlet.
There is no power to
the oven.
Power is not supplied.
Make sure power is supplied.
Confirm the microwave is
plugged in. Check your fuses or
circuit breakers.
There is a popping
sound during
operation, and the
oven doesn't work.
Cooking sealed food or using a
container with a lid may causes
popping sounds.
Do not cook food in sealed
containers or in containers with
tight lids. Expanding steam
from the cooking food can
cause the containers to burst or
the lids to pop off.
The power turns off
during operation.
Troubleshooting
64 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 64
2015-06-11
12:16:22
Problem
Cause
Action
There are intake/exhaust outlets
on the front and rear of the
oven for ventilation. Check the
installation guide and make
sure that the microwave is far
enough away from walls and
cabinets for proper ventilation.
Objects are on top of the oven.
Remove all objects on the top of
the oven.
The door cannot be
opened properly.
Food residue is stuck between
the door and oven interior.
Clean the oven and then open
the door.
The oven does not
heat.
The oven may not work if too
much food is being cooked or
improper cookware is being
used.
Put one cup of water in a
microwave-safe container
and run the microwave for
1-2 minutes to check whether
the water is heated.
Reduce the amount of food and
start the function again.
Use a cooking container with a
flat bottom.
Heating is weak or
slow.
The oven may not work if too
much food is being cooked or
improper cookware is being
used.
To test the oven, put one cup
of water in a microwavesafe container and run the
microwave for 1-2 minutes
to check whether the water is
heated.
If the water is heated, reduce
the amount of food and start
the function again.
Use a cooking container with a
flat bottom.
Troubleshooting
There is not sufficient
ventilation space for the oven.
The oven exterior
is too hot during
operation.
English 65
MC12J8035CT_AA_DE68-04367A-00_EN.indd 65
2015-06-11
12:16:22
Troubleshooting
Problem
Cause
Action
Troubleshooting
The warm function
does not work.
The oven may not work if too
much food is being warmed or
improper cookware is being
used.
To test the oven, put one cup
of water in a microwavesafe container and run the
microwave for 1-2 minutes
to check whether the water is
heated.
If the water is heated, reduce
the amount of food and start
the function again.
Use a cooking container with a
flat bottom.
The thaw function
does not work.
The oven may not work if too
much food is being thawed or
improper cookware is being
used.
To test the oven, put one cup
of water in a microwavesafe container and run the
microwave for 1-2 minutes
to check whether the water is
heated.
If the water is heated, reduce
the amount of food and start
the function again.
Use a cooking container with a
flat bottom.
The interior light is
dim or does not turn
on.
The door has been left open for
a long time.
The interior light may
automatically turn off when the
Eco function operates.
Close and reopen the door or
press the Cancel button.
The interior light is covered by
foreign matter.
Clean the inside of the oven and
check again.
A beeping sound
occurs during
cooking.
If the Auto Cook function is
being used, this beeping sound
means it's time to turn over the
food.
After turning over the food,
press the Start button again to
restart operation.
The oven is not level.
The oven is installed on an
uneven surface.
Make sure the oven is installed
on flat, stable surface.
66 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 66
2015-06-11
12:16:22
Problem
Cause
Action
Metal containers are used
during the cooking or thawing.
Do not use metal containers.
When power is
connected, the oven
immediately starts to
work.
The door is not properly closed.
Close the door and check again.
There is electricity
coming from the
oven.
The power source or power
outlet is not properly grounded.
Make sure the power source
or power outlet are properly
grounded.
There is water
dripping.
Water or steam may be
generated by the cooking or
thawing process, depending on
the food.
This is not an oven malfunction.
Let the oven cool and then wipe
with a dry dish towel.
Steam leaks from the
door.
Water or steam may be
generated by the cooking or
thawing process, depending on
the food.
This is not an oven malfunction.
Let the oven cool and then wipe
with a dry dish towel.
There is water left in
the oven.
Water or steam may be
generated by the cooking or
thawing process, depending on
the food.
This is not an oven malfunction.
Let the oven cool and then wipe
with a dry dish towel.
The brightness inside
the oven varies.
Brightness changes depending
on power output changes
according to function.
Power output changes during
cooking are not malfunctions.
This is not an oven malfunction.
Cooking is finished,
but the cooling fan is
still running.
To ventilate the oven, the
cooling fan continues to run for
about 5 minutes after cooking is
complete.
This is not an oven malfunction.
Pressing the +30 sec
button operates the
oven.
This happens when the oven
was not operating.
The microwave oven is
designed to start operating
when you press the +30 button
if it was not operating.
Troubleshooting
There are sparks
during cooking.
English 67
MC12J8035CT_AA_DE68-04367A-00_EN.indd 67
2015-06-11
12:16:22
Troubleshooting
Problem
Cause
Action
Turntable
While turning, the
turntable comes out
of place or stops
turning.
There is no roller ring, or the
roller ring is not properly in
place.
Install the roller ring and then
try again.
The turn table drags
while turning.
The roller ring is not properly
in place, there is too much food,
or the container is too large
and touches the inside of the
microwave.
Adjust the amount of food. Do
not use containers that are too
large.
The turn table rattles
while turning and is
noisy.
Food residue is stuck to the
bottom of the oven.
Remove any food residue stuck
to the bottom of the oven.
Troubleshooting
68 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 68
2015-06-11
12:16:22
Problem
Cause
Action
Grill
During initial operation, smoke
may come from the heating
elements when you first use the
oven.
This is not a malfunction. After
you run the oven 2-3 times, it
should stop.
Food is on the heating elements.
Let the oven cool and then
remove the food from the
heating elements.
Food is too close to the grill.
Put the food a suitable distance
away while cooking.
Food is not properly prepared
and/or arranged.
Make sure food is properly
prepared and arranged.
The oven does not
heat.
The door is open.
Close the door and try again.
Smoke comes out
during preheating.
During initial operation, smoke
may come from the heating
elements when you first use the
oven.
This is not a malfunction, and if
you run the oven 2-3 times, it
should stop.
Food is on the heating elements.
Let the oven cool and then
remove the food from the
heating elements.
There is a burning
smell or a burnt
plastic smell when
using the oven. when
using the oven.
Plastic or non heat-resistant
cookware is used.
Use glass cookware suitable for
high temperatures.
There is a bad smell
coming from inside
the oven.
Food residue or plastic has
melted and stuck to the interior.
Use the steam function and then
wipe with a dry cloth.
You can put a cup of water with
a lemon slice in it inside and run
the oven to remove the odor
more quickly.
Smoke comes out
during operation.
Oven
Troubleshooting
English 69
MC12J8035CT_AA_DE68-04367A-00_EN.indd 69
2015-06-11
12:16:22
Troubleshooting
Problem
The oven does not
cook properly.
Cause
Action
The oven door is frequently
opened during cooking.
Do not open the door unless
you are cooking things that
need to be turned. If you open
the door often, the interior
temperature will be lowered
and this may affect the results
of your cooking.
The oven controls are not
correctly set.
Correctly set the oven controls
and try again.
The grill or other accessories
are not correctly inserted.
Correctly insert the accessories.
The wrong type or size of
cookware is used.
Reset the oven controls or use
suitable cookware with flat
bottoms.
Troubleshooting
70 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 70
2015-06-11
12:16:23
Information codes
If the oven fails to operate, you may see an information code on the display. Check the table
below and try the suggestions.
Code
C-20
Description
The temperature sensor is open.
The temperature sensor is shorted.
C-A1
The oven has failed to sense the
opening or closing of the damper for
1 minute.
C-F0
The microwave has sensed an internal
communications failure.
C-21
Action
Temperature sensor has detected a
temperature that exceeds the allowable
temperature for an operation.
Unplug the power cord of
the oven, and contact a local
Samsung service center.
Turn off the microwave oven,
unplug it, and let it cool, then
try the setting again.
If this code re-appears, call
your local Samsung service
center.
Press Stop to try again.
C-d0
Turn off the microwave oven,
unplug it, and let it cool. Clean
the button and area around
the button.
If this code re-appears, call
your local Samsung service
center.
The touch key malfunction.
Troubleshooting
C-F2
English 71
MC12J8035CT_AA_DE68-04367A-00_EN.indd 71
2015-06-11
12:16:23
Technical specifications
specification
SAMSUNG strives to improve its products at all times. Both the design specifications and the
user instructions are thus subject to change without notice.
120 V ~ 60 Hz
Power Source
Power
Consumption
Maximum Power
1650 W
Microwave
1600 W
Grill
1600 W
Convection
1650 W
Power Convection
1650 W
Output Power
100 W / 900 W (IEC - 705)
Operating Frequency
2450 MHz
Magnetron
OM75P (20)
Cooling Method
Cooling fan motor
Dimensions
(W x H x D)
Main Unit (Include Handle)
20.78 x 16 x 18.5 in
(528 x 404 x 470 mm)
Cooking Chamber
15.75 x 8.62 x 15.61 in
(400 x 219 x 396.5 mm)
9 gallons (35 liters)
Volume
Weight
Net
Approx. 62.83 lb. (28.5 kg)
Technical specification
72 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 72
2015-06-11
12:16:23
Warranty
Samsung microwave oven
Limited warranty to original purchaser
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America,
Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser,
is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a
limited warranty period of:
ONE (1) YEAR PARTS AND LABOR, TEN (10) YEARS PARTS WARRANTY FOR MAGNETRON
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect
if the damage to the unit and/or damage to or loss of the accessory was caused by the
customer. Items this stipulation covers include:
- A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel
- A Broken or missing Tray, Guide Roller, Coupler, Filter, or Wire Rack
User Replaceable Parts may be sent to the customer for unit repair. If necessary, a Service
Engineer can be dispatched to perform service.
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the United States. To receive warranty service, the purchaser must
contact SAMSUNG for problem determination and service procedures. Warranty service can
only be performed by a SAMSUNG authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized
service center.
SAMSUNG will repair this product or replace it if cannot repair it, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and products
become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts
and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
Warranty
English 73
MC12J8035CT_AA_DE68-04367A-00_EN.indd 73
2015-06-11
12:16:23
Warranty
In-home service will be provided during the warranty labor period subject to availability
within the contiguous United States. Inhome service is not available in all areas. To receive
in-home service, the product must be unobstructed and accessible to service personnel. If
during in-home service repair can not be completed, it may be necessary to remove, repair
and return the product. If in-home service is unavailable, SAMSUNG may elect, at our option,
to provide for transportation of our choice to and from a SAMSUNG authorized service
center. Otherwise, transportation to and from the SAMSUNG authorized service center is the
responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following, including, but not limited to: damage which occurs in shipment; delivery and
installation; applications and uses for which this product was not intended; altered product
or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water,
lightning or other acts of nature; use of products, equipment, systems, utilities, services,
parts, supplies, accessories, applications, installations, repairs, external wiring or connectors
not supplied or authorized by SAMSUNG which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments
and failure to follow operating instructions, cleaning, maintenance and environmental
instructions that are covered and prescribed in the instruction book; problems caused by
pest infestations, and overheating or overcooking by user; glass tray or turntable; reduced
magnetron power output related to normal aging. SAMSUNG does not warrant uninterrupted
or error-free operation of the product.
Warranty
74 English
MC12J8035CT_AA_DE68-04367A-00_EN.indd 74
2015-06-11
12:16:23
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE,
AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER
EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY
ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG
BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER
ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE,
MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY
THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE
OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND
STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. To obtain warranty service, please contact
SAMSUNG at:
1-800-SAMSUNG (1-800-726-7864) or www.samsung.com/us/support
Warranty
English 75
MC12J8035CT_AA_DE68-04367A-00_EN.indd 75
2015-06-11
12:16:23
Scan the QR code* or visit
www.samsung.com/spsn
to view our helpful
How-to Videos and Live Shows
*Requires reader to be installed on your
smartphone
Please be advised that the Samsung warranty does NOT cover service calls to explain
product operation, correct improper installation, or perform normal cleaning or maintenance.
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
U.S.A
Consumer Electronics
1-800-SAMSUNG(726-7864)
www.samsung.com/us/support
CANADA
1-800-SAMSUNG(726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DE68-04367A-00
MC12J8035CT_AA_DE68-04367A-00_EN.indd 76
2015-06-11
12:16:23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
