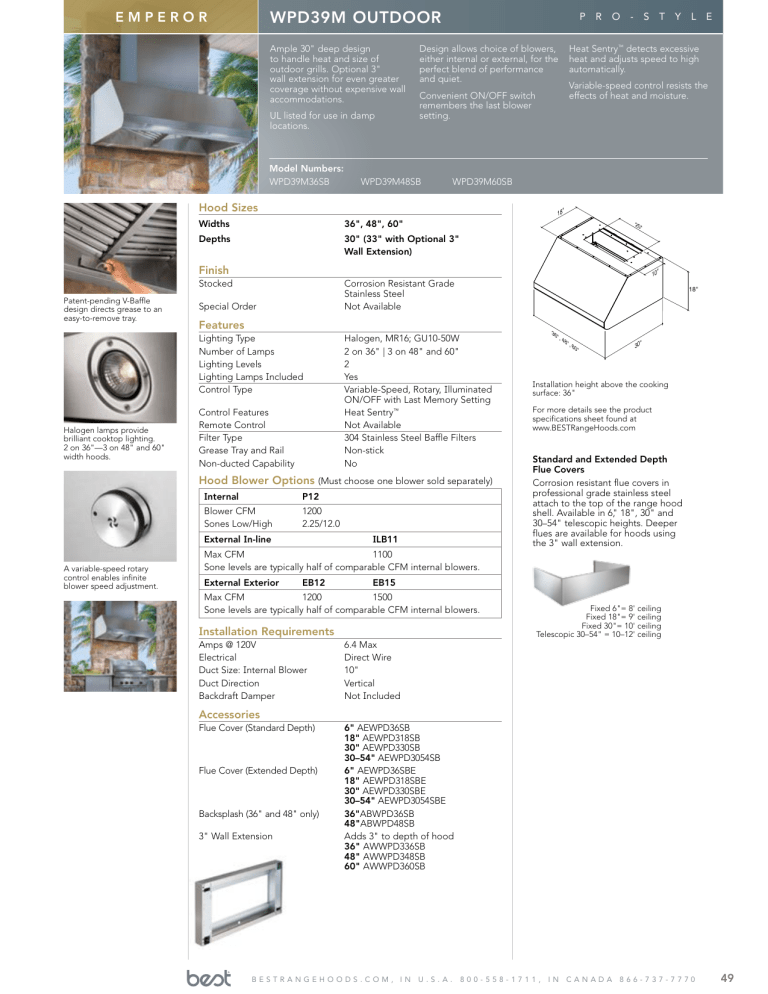

Best WPD39M48SB Specifications Sheet
WPD39M OUTDOOR
EMPEROR
Ample 30" deep design
to handle heat and size of
outdoor grills. Optional 3"
wall extension for even greater
coverage without expensive wall
accommodations.
UL listed for use in damp
locations.
Model Numbers:
WPD39M36SB
P
O
-
S
18"
Widths
36", 48", 60"
Depths
30" (33" with Optional 3"
Wall Extension)
"
Halogen lamps provide
brilliant cooktop lighting.
2 on 36"—3 on 48" and 60"
width hoods.
10"
18"
Features
Lighting Type
Number of Lamps
Lighting Levels
Lighting Lamps Included
Control Type
Control Features
Remote Control
Filter Type
Grease Tray and Rail
Non-ducted Capability
Halogen, MR16; GU10-50W
2 on 36" | 3 on 48" and 60"
2
Yes
Variable-Speed, Rotary, Illuminated
ON/OFF with Last Memory Setting
Heat Sentry™
Not Available
304 Stainless Steel Baffle Filters
Non-stick
No
Hood Blower Options (Must choose one blower sold separately)
Internal
P12
Blower CFM
Sones Low/High
1200
2.25/12.0
External In-line
A variable-speed rotary
control enables infinite
blower speed adjustment.
E
20
Corrosion Resistant Grade
Stainless Steel
Not Available
Special Order
L
WPD39M60SB
Finish
Patent-pending V-Baffle
design directs grease to an
easy-to-remove tray.
Y
Variable-speed control resists the
effects of heat and moisture.
Convenient ON/OFF switch
remembers the last blower
setting.
Hood Sizes
Stocked
T
Heat Sentry™ detects excessive
heat and adjusts speed to high
automatically.
Design allows choice of blowers,
either internal or external, for the
perfect blend of performance
and quiet.
WPD39M48SB
R
ILB11
36
", 4
8",
60
"
30"
Installation height above the cooking
surface: 36"
For more details see the product
specifications sheet found at
www.BESTRangeHoods.com
Standard and Extended Depth
Flue Covers
Corrosion resistant flue covers in
professional grade stainless steel
attach to the top of the range hood
shell. Available in 6," 18", 30" and
30–54" telescopic heights. Deeper
flues are available for hoods using
the 3" wall extension.
Max CFM
1100
Sone levels are typically half of comparable CFM internal blowers.
External Exterior
EB12
EB15
Max CFM
1200
1500
Sone levels are typically half of comparable CFM internal blowers.
Installation Requirements
Amps @ 120V
Electrical
Duct Size: Internal Blower
Duct Direction
Backdraft Damper
6.4 Max
Direct Wire
10"
Vertical
Not Included
Fixed 6"= 8' ceiling
Fixed 18"= 9' ceiling
Fixed 30"= 10' ceiling
Telescopic 30–54" = 10–12' ceiling
Accessories
Flue Cover (Standard Depth)
Flue Cover (Extended Depth)
Backsplash (36" and 48" only)
3" Wall Extension
6" AEWPD36SB
18" AEWPD318SB 30" AEWPD330SB
30–54" AEWPD3054SB
6" AEWPD36SBE
18" AEWPD318SBE
30" AEWPD330SBE
30–54" AEWPD3054SBE
36"ABWPD36SB
48"ABWPD48SB
Adds 3" to depth of hood
36" AWWPD336SB
48" AWWPD348SB
60" AWWPD360SB
BESTRANGEHOODS.COM, IN
U.S.A.
800-558-1711,
IN
CANADA
866-737-7770
49
