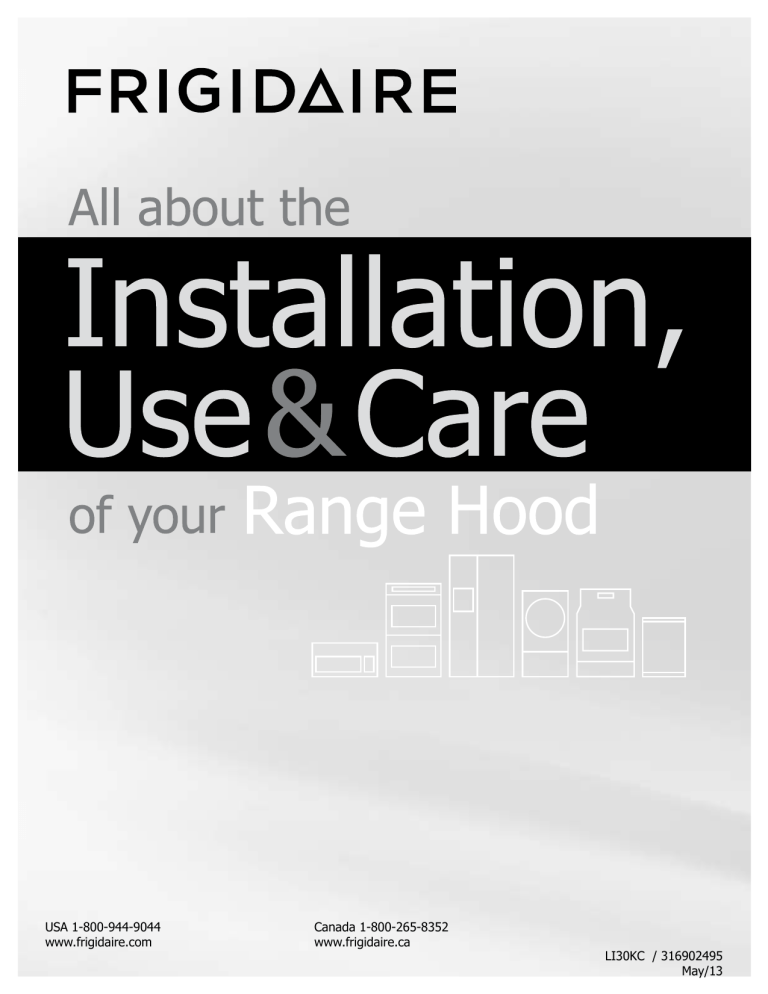

Frigidaire FHWC3025MS User manual

Frigidaire FHWC3025MS User manual
USA 1-800-944-9044
www.frigidaire.com
Canada 1-800-265-8352
www.frigidaire.ca
LI30KC / 316902495
May/13
PRODUCT RECORD AND REGISTRATION
CONTENTS
Important Safety Instructions ............................... 3
List of materials ................................................... 5
Electrical requirements ......................................... 5
Location requirements .......................................... 6
Product dimensions .............................................. 6
Venting Requirements .......................................... 7
Prepare the location ............................................. 8
Install Range Hood (Ducted version) ..................... 10
Make Electrical Connection ....................................12
Installing Range Hood (Recirculating version) ......... 10
Range Hood Use .................................................. 13
Range Hood Care ................................................. 14
Troubleshooting ................................................... 15
Warranty Information ........................................... 16
Be sure to visit us online at
www.frigidaire.com
for a complete line of accessories.
Thank you for choosing Frigidaire.
This Use & Care Guide is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance.We view your purchase
as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record
important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly.
If you received a damaged range Hood...
immediately contact the dealer (or builder) that sold you
the range hood.
Save time and money.
Check the “Troubleshooting” list. This section helps step
you through some common problems that might occur. If
you do need service, help is only a phone call away. Call
Frigidaire Customer Services at 1-800-944-9044.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. You can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
Serial Plate
Location
Serial plate location:
Find it on the left side of the range hood.
Record model & serial numbers here
Purchase date
Model number
Serial number
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future references
Approved for residential appliances
For residential use only
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
WARNING
This symbol alerts you to situations that may
cause serious body harm, death or property
damage.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
B. Before servicing or cleaning the unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
C. Installation Work and Electrical Wiring Must Be Done
By Qualified Person(s) In Accordance With all
Aplicable Codes & Standards, Including Fire-rated
Construction.
D.Sufficient air is needed for proper combustion and ex
hausting of gases through the flue (Chimney) of fuel
burning equipment to prevent back- drafting. Follow
the heating equipment manufacturers guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA), the
American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code
authorities.
E. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
F. Ducted systems must always be vented to the
outdoors.
CAUTION
To reduce risk of fire and to properly exhaust
air, be sure to duct air outside - do not vent exhaust air into spaces within walls, ceilings,
attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK.
Install this hood in accordance with all requirements
specified.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Hood With Any External Solid State
Speed Control Device.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE.
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food (l.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS,
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
a)SMOTHER FLAMES with a close - fitting lid, cookie
sheet, or other metal tray, then turn off the gas
burner or the electric element.
BE CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b)NEVER PICK UP A FLAMING PAN - you may be
burned.
c)DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1)You know you have a class ABC extinguisher,
and you already know how to operate it.
2)The fire is small and contained in the area
where it started.
3)The fire department is being called.
4)You can fight the fire with your back to an exit.
OPERATION
Always leave safety grills and filters in place.Without
these components, operating blowers could catch onto
hair, fingers and loose clothing.
The manufacturer declines all responsibility in the
event of failure to observe the instructions given here
for installation,maintenance and suitable use of the
product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of
the unit automatically expires due to improper maintenance.
LIST OF MATERIALS
LIST OF MATERIALS
ELECTRICAL REQUIREMENTS
Parts included in your hood
• 4 - 0.45 x 1.3 cm mounting screws
• 3¼” x 10” (8.3 x 25.4 cm) rectangular metal vent
system.
NOTE: An optional 7” round duct kit is available. You can
order this kit as part number 5304487139.
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA
70 (latest edition), or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
A copy of the above code standards can be obtained
from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
• A 120 volt, 60 Hz., AC only, 15-amp, fused
electrical circuit is required.
• If the house has aluminum wiring, follow the
procedure below:
1. Connect a section of solid copper wire to the
pigtail leads.
. Connect the aluminum wiring to the added
section of copper wire using special co
nectors and/or tools designed and UL listed
for joining copper to aluminum.
Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must
conform with local codes and industry accepted wiring
practices.
• Wire sizes and connections must conform with
the rating of the appliance as specified on the
model/serial rating plate.
The model/serial plate is located on the left side of
the range hood.
• Wire sizes must conform to the requirements of
the National Electrical Code, ANSI/NFPA 70 (la
est edition), or CSA Standards C22. 1-94, Canad
an Electrical Code, Part 1 and C22.2 No. 0-M91
(latest edition) and all local codes and ordinances.
Parts Needed
• 2 - UL listed wire connectors
• 1 - 75W max, 120V incandescent light bulb
• Wall or roof cap with damper to match vent system
• Vent clamps/duct tape as required
• UL listed or CSA approved ½” strain relief
Tools/Materials required
• Drill
• 1¼” (3.0 cm) drill bit
• ⅛” (0.3 cm) drill bit for pilot holes
• Pencil
• Wire stripper or utility knife
• Tape measure or ruler
• Caulking gun and weatherproof
caulking compound
• Flat-blade screwdriver
• Phillips screwdriver
• Saber or keyhole saw
For cabinets with recessed bottoms:
• Two 2” (5.1 cm) wide filler strips. Length and
thickness determined by recess dimensions.
• Four flat head wood screws or machine screws
with washers and nuts (to attach filler strips).
LOCATION REQUIREMENTS
Cabinet Dimensions
IMPORTANT
Observe all governing codes and ordinances.
• It is the installer’s responsibility to comply with
installation clearances specified on the model/serial
rating plate. The model/serial rating plate is located
inside the range hood on the left side (See page 2
for location). Range hood location should be away
from strong draft areas, such as windows, doors and
strong heating vents.
• Cabinet opening dimensions that are shown must
be used. Given dimensions provide minimum
clearance. Consult the cooktop/range manufacturer
installation instructions before making any cutouts.
• Grounded electrical outlet is required. See
“Electrical Requirements” section.
• All openings in ceiling and wall where canopy hood
will be installed must be sealed.
B
C
A
D
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD, Part
280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI
A225.1/NFPA 501A, or latest edition, or with local codes.
A. 66” (167 cm) suggested min. - top of range hood to floor.
B. 30” (76.2 cm) min. cabinet opening width for 30” (76.2 cm)
models and 36” (91.4 cm) min. cabinet width for 36” (91.4 cm)
models.
C. 13” (33.0 cm) cabinet depth
D. 36” (91.4 cm) base cabinet height
PRODUCT DIMENSIONS
hood model
DIM B
/ 8”
(2.2cm)
7
/16”(1.4cm)
10” (25.4cm)
9
9½” (24cm)
recirculating cover
7” (17.8cm)
69/16” (16.7 cm)
FHWC3625
36” models
36” (91.44 cm)
9½” (24.3 cm)
1” (2.5cm)
recirculating cover
4 /16”
(12.5cm)
15
/8”
(2.2cm)
7
3¼” (8.25cm)
9” (22.9cm)
10” (25.4cm)
DIM A
typical both sides
1½” (3.8cm)
typical both sides
185/8”
(47.3cm)
Dim B
30” (76.2 cm)
typical both sides
1½” (4cm)
Dim A
FHWC3025
30” models
VENTING REQUIREMENTS
• Vent system must terminate to the outdoors.
• Do not terminate the vent system into an attic or other
enclosed area.
• Do not use a 4” (10.2 cm) laundry-type wall cap.
• Use a 3¼” x 10” (8.3 x 25.4 cm) rectangular metal
vent. Rigid metal vent is recommended. Plastic or
metal foil vent is not recommended.
• The length of vent system and number of elbows
should be kept to a minimum to provide efficient
performance.
For the most efficient and quiet operation:
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight vent between the elbows if more than 1 elbow is used.
• Do not install 2 elbows together.
• Use clamps or duct tape to seal all joints in the
vent system.
• The vent system at exit must have a cold air damper.
• Use caulking to seal exterior wall or roof opening
around the cap.
• Best performances are reached with straight piping, without elbows and using smooth pipe.
• Maximum recomended vent system length: 35 ft (10.7m).
Cold Weather Installations
An additional back draft damper should be installed to
minimize backward cold air flow and a thermal break
should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should
be on the cold air side of the thermal break.
The break should be as close as possible to where the
vent system enters the heated portion of the house.
Makeup Air
Local building codes may require the use of makeup air
systems when using ventilation systems greater than
specified CFM of air movement. The specified CFM varies
from locale to locale. Consult your HVAC professional for
specific requirements in your area.
Venting Methods
Vent system can terminate either through the roof or wall.
Use 3¼” x 10” (8.3 x 25.4 cm) rectangular with a maximum
vent length of 35 ft (10.7 m) or 7” (17.8 cm) round vent with
a maximum length of 50 ft (15.2 m) for vent system.
NOTE
Flexible vent is not recommended. Flexible vent
creates both back pressure and air turbulence
that greatly reduce performance.
Roof Venting
Wall Venting
B
A
A
B
C
C
A. 3¼” x 10” (8.3 x 25.4 cm)
rectangular vent through the
roof. (purchased separately)
B. Roof cap with damper
(purchased separately)
C. 24” (61.0 cm) min. to 30”
(76.2cm) above the cooking
surface
A. 3¼” x 10” (8.3 x 25.4 cm)
rectangular vent through the
wall or out the top
(purchased separately)
B. Wall cap with damper
(purchased separately)
C. 24” (61.0 cm) min. to 30”
(76.2cm) above the cooking
surface
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the
system.
7” (17.8 cm) Round Vent System
Vent Piece
90° elbow
5.0 ft
(1.5 m)
7” (17.8 cm) wall cap
0.0 ft
(0.0 m)
Example Vent System
7” (17.8 cm) round
90° elbow
6 ft (1.8 m)
Wall Cap
2 ft (0.6 m)
Maximum Recommended Length
= 50 ft (15.2 m)
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap
= 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m)
Length of 7” (17.8 cm) system
= 13.0 ft (3.9 m)
VENTING REQUIREMENTS
PREPARE THE LOCATION
3¼” x 10” (8.3 cm x 25.4 cm) Vent System
Vent Piece
3¼” x 10” (8.3 cm x 25.4 cm)
90° elbow
5.0 ft
(1.5 m)
3¼” x 10” (8.3 cm x 25.4 cm)
flat elbow
12.0 ft
(3.7 m)
3¼” x 10” (8.3 cm x 25.4 cm)
wall cap
0.0 ft
(0.0 m)
NOTE
Before making cutouts, make sure there is
proper clearance within the ceiling or wall.
1. Disconnect power.
. Select a flat surface for assembling the range hood.
Place covering over that surface.
. Lift the range hood and set it upside down onto covered
surface.
4. If cabinet has recessed bottom, add wood filler strips
on each side. Install screws to attach filler strips in
locations shown.
Example Vent System
3¼” x 10”
(8.3 x 25.4 cm)
elbow
6 ft (1.8 m)
Wall Cap
3” (7.6 cm)
Wood filler strips
(recessed cabinet
bottoms only)
4.5 x 13 mm
mounting screws
2 ft
(0.6 m)
Cabinet
bottom
Wall
3” (7.6 cm)
Maximum Recommended Length
= 35 ft (10.7 m)
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap
= 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m)
Length of 3¼” x 10”
(8.3 cm x 25.4 cm) system
= 13.0 ft (3.9 m)
Determine Wiring Hole Location
1. Determine and clearly mark a vertical centerline on
the wall and cabinet bottom.
A Centerline
A
PREPARE THE LOCATION
To wire through top:
. Mark a line distance (A) from the right of the
centerline on the underside of the cabinet. Mark the
point on this line that is 7⁄8” (2.2 cm) from back wall.
Drill a 1¼” (3.2 cm) diameter hole (B) through the cab
net at this point.
hood
model
30” & 36”
models
Dim
A
8³⁄8”
(21.3 cm)
A
B
⁄8” (2.2 cm)
from wall,
not cabinet frame
7
Style 2 - Cut Openings for 3¼” x 10” (8.3 cm x
25.4 cm) Rectangular Vent System
Roof Venting
To make a 4” x 10½” (10.16 cm x 26.7 cm) rectangular
cutout on the underside of cabinet top and bottom:
1. Mark lines ½” (1.3 cm) and 4¾” (12.1 cm) from the back wall on the centerline of the underside of cabinet.
. Mark lines 5¼” (13.3 cm) to the right and left of the centerline on the underside of cabinet.
. Use saber or keyhole saw to cut a rectangular opening
for vent.
4. Repeat steps 1-3 for the underside of the top of the cabinet.
Centerline
Centerline
To wire through wall:
1. Mark a line distance (A) from the right of the
centerline on the underside of the wall. Mark the point
on this line that is 7⁄8” (2.2 cm) from the underside of
the cabinet. Drill a 1¼” (3.2 cm) diameter hole (B)
through the rear wall at this point.
hood
model
B
30” & 36”
models
Dim
A
8³⁄8”
(21.3 cm)
⁄8”
(2.2 cm)
7
A
A Centerline
VENTING
Choose venting exhaust discharge from the various
options listed - Style 1 - 4 that follows:
Cabinet cutouts
*1/2 (1.3 cm)
*43/4
(12.1 cm)
51/4
(13.3 cm)
51/4
(13.3 cm)
*From wall, not cabinet frame
Wall Venting
To make a 3½” x 10½” (8.9 cm x 26.7 cm) rectangle in
the wall:
1. Make 2 lines by measuring 3⁄8” (0.9 cm) and 37⁄8”
(9.8 cm) down from underside of cabinet and mark on
the centerline on the back wall.
. Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the wall.
. Use saber or keyhole saw to cut a rectangular opening
in the wall for the vent.
Centerline
Cabinet
front
Style 1 - Recirculating Hood version
For this installation, go to “Install Range Hood
(recirculating version)” on page 11.
3
/8”
(0.9 cm)
37/8”
(9.8 cm)
51/4”
51/4”
(13.3 cm) (13.3 cm)
PREPARE THE LOCATION
Style 3 - Cut Openings for 3¼” x 10” (8.3 x 25.4
cm) Rectangular Vent Transition to Round Vent
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
1. Mark a centerline on the underside of the top of cabinet.
. Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
. Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent
opening.
Centerline
Install Vent System
1. Install vent through the vent opening in upper cabinet
or wall. Complete venting system according to the
selected venting method. See “Venting Requirements”
section.
. Use caulking to seal exterior wall or roof opening
around the cap.
INSTALL RANGE HOOD
(Ducted version)
NOTE
Ø 7½”
(19 cm)
Your model will have a 3¼” x 10” (8.3 x 25.4
cm) rectangular vent connector on the inside of
the range hood.
*5”
(12.7 cm)
Cabinet
cutouts
*From wall, not
cabinet frame
1. Unpack the 3¼” x 10” (8.3 x 25.4 cm) rectangular
vent from the inside of your range hood. To detach the
vent connector, remove the 2 installation screws
(.35x .95cm) and keep the screws in a safe place to
reinstall later (see Step 5).
Style 4 - Cut Openings for 7” (17.8 cm) Round Vent
to Round Vent Transition
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
NOTE: The 7” round transition kit, part number
5304487139, is required for this installation.
1. Mark a centerline on the underside of the top of cabinet.
. Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
. Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent opening.
4. Repeat steps 1-3 for the underside of the top of the Centerline
cabinet.
*Ø 7½”
(19 cm)
B
. Lift the range hood up under cabinet and determine
final location by centering beneath cabinet. Mark on
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slot dimensions
on page 6). Set range hood aside on a covered surface.
A
*
A
*5”
(12.7 cm)
*
Cabinet
cutouts
A. Keyhole slot
*From wall, not
cabinet frame
10
A
A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent damper
B. 3.5 x 9.5 mm screws
INSTALLING THE HOOD
Use ¹⁄8” (3 mm) drill bit and drill 4 pilot holes as shown.
NOTE: Make the drill holes on the thin area of the slot.
A. Drill pilot hole
A
. Install the 4 - .45 cm x 1.3 cm mounting screws in
pilot holes. Leave about ¼” (6.4 mm) space between screw heads and cabinet to slide range hood into place.
¹⁄4”
(6.4 mm)
4. For roof installations, remove the top rectangular
vent knockout. For wall installations, remove the rear
rectangular vent knockout.
Power Supply Cable Installation
1. For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
There must be enough wiring from the fused disconnect
(or circuit breaker) box to make the connection in the
hood electrical terminal box.
NOTE
Do not reconnect power until the installation is
complete.
. Remove the screw from the
terminal box cover.
Remove terminal box cover
and set aside.
A
A. Vertical connector
B. 3.5 x 9.5 mm screws
C. Vent knockouts
D. Horizontal connector
B
. Install the 3¼” x 10” (8.3 x 25.4 cm) vent connector.
Attach to range hood with the .35 x .95 cm screws
that you previously removed (step 1) and remove tape
from damper flap.
A
B
A. Terminal box cover
B. Screw
. Remove the power supply knockout from the top
or rear of the vent hood (depending on the incoming
location of your home power supply cable) and
install a UL listed or CSA approved ½” strain relief.
A
NOTE
The 3¼” x 10” (8.3 x 25.4 cm) rectangular vent
connector can be installed up to 1” (2.5 cm) on
either side of the hood center to accommodate
off center ductwork.
• If a vent damper is installed with a wall cap with
damper, check that they do not interfere with each
other. Remove the vent connector damper flap if
they interfere.
A. Power supply
knockout
4. Using 2 or more people, lift the hood into final position.
Feed enough electrical wire through the ½” UL listed
or CSA approved strain relief to make connections in
the terminal box. Tighten the strain relief screws.
. Position the range hood so that the large end of
the keyhole slots are over the mounting screws.
Then push the hood toward the wall so that the screws
are in the neck of the slots. Tighten the mounting screws,
making sure the screws are in the narrow neck of slots.
. Connect ventwork to hood. Seal joints with vent
clamps or duct tape to make secure and airtight.
. Check that back draft dampers work properly.
11
INSTALLING THE HOOD
MAKE ELECTRICAL CONNECTION
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
G
C
D
E
A
B
A.White wires
B. Black wires
C. UL listed wire connector
D. Green (or bare) ground wire
E. Home power supply cable
F. UL listed or CSA approved
½” strain relief
G. Green ground screw
F
2. Use UL listed wire connectors and connect white wires
(A) together.
3. Use UL listed wire connectors and connect black wires
(B) together.
INSTALL RANGE HOOD
(Recirculating version)
1. Lift the range hood up under cabinet and determine
final location by centering beneath cabinet. Mark on
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slots
dimensions on page 6). Set range hood aside on a
covered surface.
A
A
A. Keyhole slot
. Use ¹⁄8” (3 mm) drill bit and drill 4 pilot holes as shown.
NOTE: Make the drill holes on the thin area of the slot.
WARNING
Fire Hazard
Electrically ground the blower. Use copper wire.
Connect ground wire to green ground screw in
terminal box. Failure to do so can result in death,
fire, or electrical shock.
4. Connect green (or bare) ground wire from power supply
to green ground screw in terminal box and securely tighten.
5. Install terminal box cover.
6. Install the 75W (max.) Incandescent light bulb. See
“Replacing the Incandescent Light Bulb” in the “Range
Hood Care” section.
7. Reconnect power.
Complete Installation
1. Replace grease filter if removed. See the “Range Hood
Care” section.
. Check the operation of the range hood fan and light. See “Range Hood Use” section.
If range hood does not operate, check to see whether a
circuit breaker has tripped or a household fuse has blown.
Disconnect power and check wiring connections.
NOTE
To get the most efficient use from your new
range hood, read the “Range Hood Use” section.
12
A. Drill pilot hole
A
. Install the 4 - .45 cm x 1.3 cm mounting screws in
pilot holes. Leave about ¼” (6.4 mm) space between screw heads and cabinet to slide range hood into place.
¹⁄4”
(6.4 mm)
Power Supply Cable Installation
1. For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
There must be enough wiring from the fused disconnect
(or circuit breaker) box to make the connection in the
hood electrical terminal box.
NOTE
Do not reconnect power until the installation is
complete.
. Remove the screw from the
terminal box cover.
Remove terminal box cover
and set aside.
A. Terminal box cover
B. Screw
A
B
RANGE HOOD USE
. Remove the power supply knockout from the top
or rear of the vent hood (depending on the incoming
location of your home power supply cable) and
install a UL listed or CSA approved ½” strain relief.
A
RANGE HOOD USE
The range hood is designed to remove smoke, cooking
vapors and odors from the cooktop area. For best results,
start the hood before cooking and allow it to operate
several minutes after the cooking is complete to clear all
smoke and odors from the kitchen.
The hood controls are located on the top of the range hood.
A
A. Power supply
knockout
4. Using 2 or more people, lift the hood into final position.
Feed enough electrical wire through the ½” UL listed
or CSA approved strain relief to make connections in
the terminal box. Tighten the strain relief screws.
. Position the range hood so that the large end of
the keyhole slots are over the mounting screws.
Then push the hood toward the wall so that the screws
are in the neck of the slots. Tighten the mounting screws,
making sure the screws are in the narrow neck of slots.
Recirculation Vent Cover
For installations which are recirculating the air exhaust,
the recirculation vent cover must be removed.
Remove the recirculating
vent cover by removing
the 2 mounting screws
with a phillips screwdriver.
NOTE: For installations
which are venting out
the roof or wall, the
recirculating vent cover
must remain in place.
Do not remove as unit
will not perform properly.
B
C
A. Incandescent light housing and cover
B. Charcoal filter retainer
C. Grease filter
Range Hood Controls
On
High
L ow
B
A
A. On/Off light switch
B. Fan speed switch
Operating the light
Push the light switch to the right to turn the light On.
Push the light switch to the left to the turn the light Off.
Operating the fan
Push the fan switch to the left for Low speed. Push the
fan switch to the right for High speed. Push the fan
switch to the middle for Off.
Part being removed
To complete the installation, go to “Make Electrical
Connection” section on page 11.
13
RANGE HOOD CARE
Cleaning
A
WARNING
To Reduce The Risk Of Fire Or Electrical shock
disconnect from power supply before cleaning.
IMPORTANT
Clean the hood and grease filters frequently
according to the following instructions. Replace
grease filter before operating hood.
IMPORTANT
Exterior Surfaces
Do not use soap-filled scouring pads, abrasive cleaners,
Cooktop Polishing Creme, steel wool, gritty washcloths
or paper towels.
To avoid damage to the stainless steel, do not use
cleaners that contain chlorine.
Cleaning Method:
• Use warm water with liquid detergent or all purpose
cleaner and soft cloth to clean outside surfaces.
• Rinse with clean water and dry with soft, lint-free cloth.
• Use glass cleaner to remove fingerprints.
• For stainless steel finish rub in direction of grain to
avoid scratching or damaging the surface.
NOTE: On stainless steel finish, clean in direction of
stainless steel brush to avoid scratching or damaging the surface.
To clean or replace grease filter:
1. Remove screw from the plastic filter retainer clip with
phillips screwdriver
. Turn the filter retainer to release filter.
4. Replace screw in the filter
retainer.
. To clean grease filter, soak
the filters in hot water using
a mild detergent. Rinse well
and shake to dry. Or place
in upper rack of dishwasher
A. Filter screw
to clean.
NOTE: Do not use ammonia. The aluminum on the grease filter will corrode and
darken.
NOTE: You can use either dishwasher or hot detergent
solution and rinse in clean water.
NOTE
The grease filter is dishwasher safe.
To avoid grease filter damage while cleaning,
place filter into the dishwasher top rack for
cleaning
Replacing the Incandescent LightBulb
1. Turn off the range hood and allow the light bulb to cool.
. Disconnect power - Turn off house breaker at breaker box.
. Squeeze the plastic lens cover and remove it from the hood.
4. Screw a 75W max, 120V
incandescent light bulb
into socket.
. Replace lens cover by
squeezing cover and
inserting tabs into
slots.
. Reconnect power.
If new light does not operate, make sure the lamp is
inserted correctly before calling service.
A
B
A. Light bulb socket
B. Lens cover
A
A. Filter screw
. Reinstall the filter by placing the back edge in the
channel at rear of hood. Push filter into place, turn
the filter retainer to secure filter to range hood.
14
Charcoal / Grease Filter Accesory Kit
For recirculating vent hood, an optional charcoal filter is
available. You can order this as part number 5304486302.
The charcoal filter is not washable. It should last up to 6
months with normal use.
Replace the old charcoal filter with a new charcoal filter.
TROUBLESHOOTING
Problem
Possible Causes
Solutions
After installation,
the unit doesn’t
work.
1. The power line and the cable locking
connector is not connecting properly.
1. Check the power connection with the unit is
connected properly.
2. The wires from the switches are disconnected
or loose.
2. Make sure the wires on the switches are
connected properly.
Light works,
but motor is not
turning.
1. The motor is defective, possible seized.
1. Change the motor.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
2. The motor will function properly after the
thermally protected system cool down.
4. The motor wire is not connected.
4. Make sure the motor wire is plugged into the
molex connector.
1. The motor is not secure in place.
1. Tighten the motor in place.
2. Damaged blower wheel.
2. Change the blower.
3. The hood is not secured in place.
3. Check the installation of the hood.
The motor is
working, but the
lights are not.
1. Defective bulb.
1. Change the bulb.
2. The light bulb is loose.
2. Tighten the light bulb.
3. The wires on the light switch are loose.
3. Make sure the wires on light switch are
connected properly.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 24” (61 cm) and
32” (76.2 cm) range.
The unit is
vibrating.
2. The wind from the opened windows or opened 2. Close all the windows and doors to eliminate
doors in the surrounding area are affecting the
the outside wind flow.
ventilation of the hood.
Metal filter is
vibrating.
3. Blockage in the duct opening or duct work.
3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the
wind.
4. Adjust the duct opening direction.
5. Using the wrong size of ducting.
5. Change the ducting to correct size.
1. Grease filter is loose.
1. Make sure filter retainer still works.
2. Filter retainer does not freely move
2. Replace grease filter.
15
Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, the glass cooktop or radiant surface
limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement
glass cooktop or radiant surface element for your appliance which has proven to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
handles, or other cosmetic parts.
original date of purchase.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges,
or mileage expense for service calls to remote areas, including the state of Alaska.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
16
USA
1.800.944.9044
Electrolux Home Products, Inc.,
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
printed in Mexico
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
