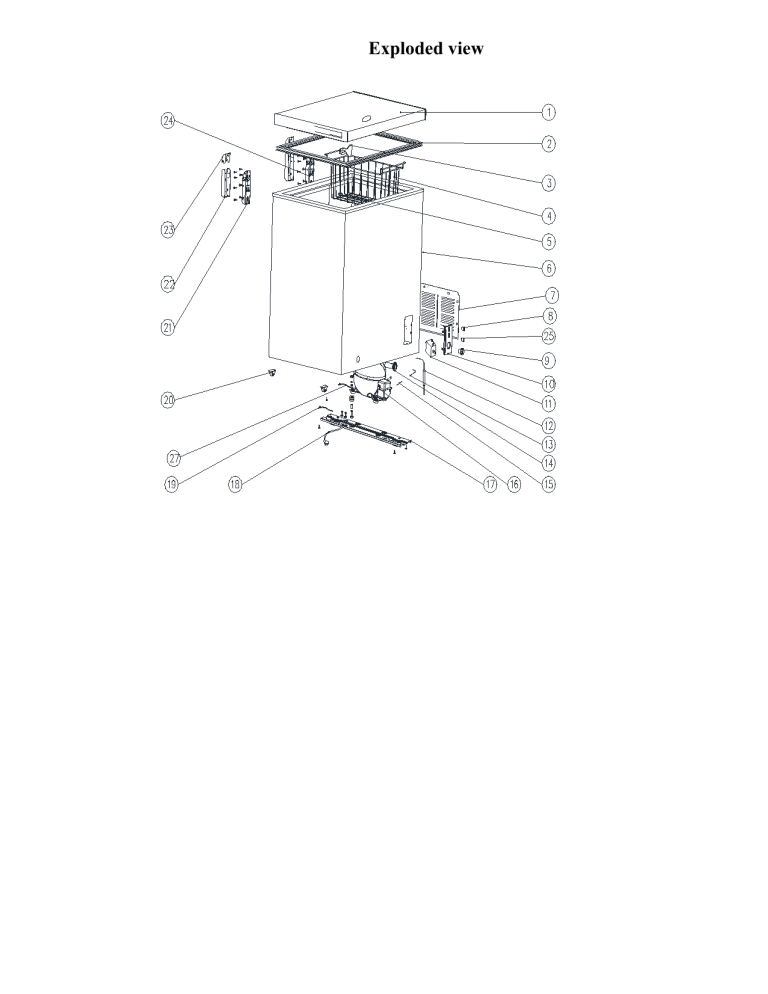

Exploded view
CF35B0W Parts list
No.
Parts code
Description of Spare Part
Quantity
1
20201020001
Door
1
2
3020400248
Door gasket
1
3
20122990706
Ice scoop
1
4
3039900254
Food box
1
5
2207700028
Drain-pipe plug
1
7
20106990030
Cover of compressor
1
8
3050500015
Running indicator light
1
9
20122010167
Thermostat knob
1
10
2208100031
Thermostat display card
1
11
2400200004
Thermostat
1
12
3040500011
Drier filter
1
13 20114070006
Connecting tube
1
14 20122990649
Drain-pipe decorative cover
1
15
3040600005
Process tube
1
16
2400100017
compressor
1
Compressor base support
1
17 20105050013
18
2500100019
Power supply cord plug
1
19
3050200284
Connecting wire of compressor
1
Scroll wheel
2
20 20122990708
21
3031400173
Door hinge assembly
1
22
3039900311
Cover of door hinge
2
23
3039900310
Cover of door hinge
2
24
3031400174
Door hinge assembly
1
25
3050500019
Indicator light
1
27
3050200095
Earthing wire of compressor
1
