Avanti RA31B0W User manual

Avanti RA31B0W User manual

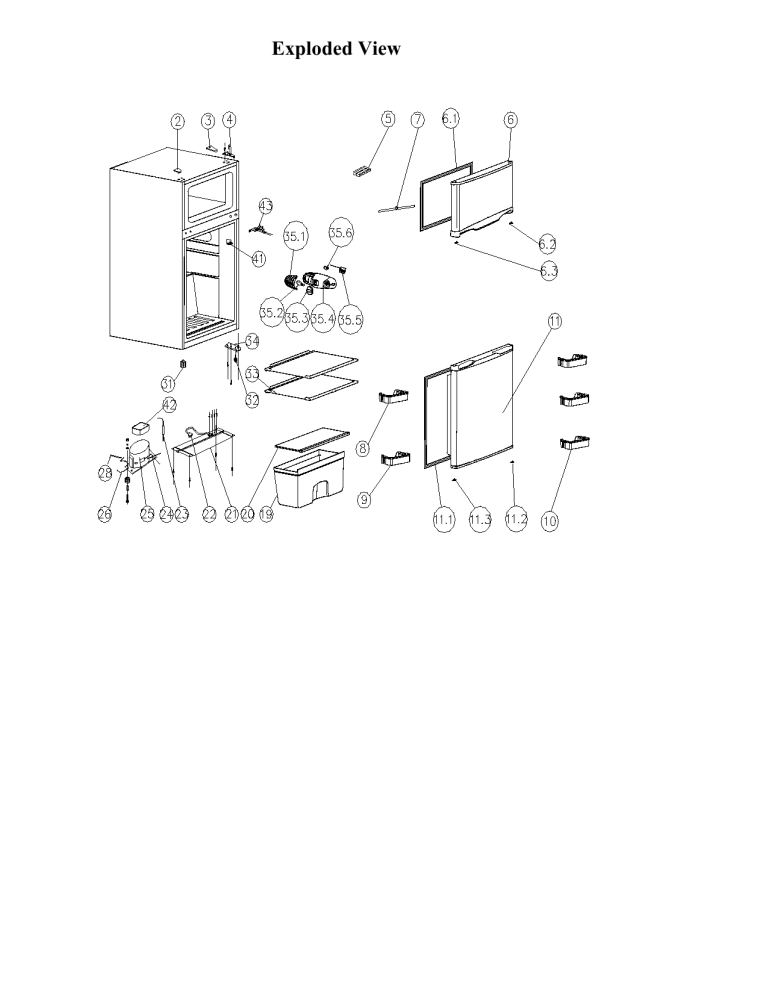

Exploded View
RA31B0W Parts list
No.
2
3
4
5
6
6.1
6.2
6.3
7
8
9
10
11
11.1
11.2
11.3
19
20
21
22
23
24
25
26
28
31
32
33
34
35.1
35.2
35.3
35.4
35.5
35.6
41
42
43
Part Code
20122080033
20122080090
3031400148
20122990103
20101060396
3020400135
20122090004
20122090010
3020500092
2207500509
2207500510
20122050767
2100150732
3020400136
20122090159
20122090176
20122040254
20120030010
3039900264
3050100117
3040500011
20114070006
3040100320
3050200095
3040600005
20122990016
20122990001
20120020042
3031400067
20122010048
2500500002
20122010037
20122010002
2400200005
2500600001
3059900015
20122990039
3031400116
Description of Spare Part
Qty
Door hinge screw hole cover
1
Door hinge cover
1
Upper hinge assembly
1
Ice cube tray
1
Upper door
1
Upper door gasket
1
Right limit block of door
1
Left limit block of door
1
Upper door bar
1
Upper rack,left
1
Lower rack,left
1
Cola rack
3
Lower door
1
Lower door gasket
1
Lower door right aid-closer
1
Lower door left aid-closer
1
Crisper Drawer
1
Crisper box cover
1
Compressor support base
1
Power supply cord
1
Drier filter
1
Connecting tube
1
Compressor
1
Earthing wire of compressor
1
Process tube
1
Long adjustable foot
1
Short adjustable foot
1
Shelf of refrigerator chamber assembly 1
Lower door hinge assembly
1
Lamp cover
1
Lamp bulb
1
Thermostat knob
1
Thermostat cover
1
Thermostat
1
Lamp holder
1
Door switch
1
Drain pan
1
Middle door hinge assembly
1
