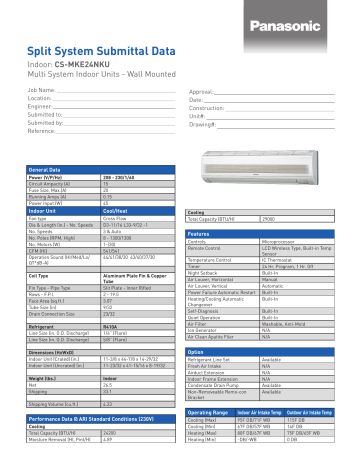

Split System Submittal Data
Indoor: CS-MKE24NKU
Multi System Indoor Units - Wall Mounted
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Running Amps (A)
Power Input (W)
208 - 230/1/60
15
20
0.15
45
Indoor Unit
Cool/Heat
Fan type
Dia & Length (in.) - No. Speeds
No. Speeds
No. Poles (RPM, High)
No. Motors (W)
CFM (HI)
Operation Sound (HI/Med/Lo/
QT*dB-A)
Cross Flow
D3-11/16 L33-9/32 -1
3 & Auto
8 - 1300/1300
1-(30)
541/541
44/41/38/30 43/40/37/30
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Drain Connection Size
Aluminum Plate Fin & Copper
Tube
Slit Plate - Inner Rifled
2 - 19.5
3.07
9/32
23/32
Refrigerant
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Discharge)
R410A
1/4” (Flare)
5/8” (Flare)
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
11-3/8 x 44-7/8 x 14-29/32
11-23/32 x 41-15/16 x 8-19/32
Weight (lbs.)
Net
Shipping
Indoor
26.5
33.1
Shipping Volume (cu.ft.)
4.23
29000
Features
Controls
Remote Control
Temperature Control
Timer
Night Setback
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Automatic Restart
Heating/Cooling Automatic
Changeover
Self-Diagnosis
Quiet Operation
Air Filter
Ion Generator
Air Clean Apatite Filer
Microprocessor
LCD Wireless Type, Built-in Temp
Sensor
IC Thermostat
24 Hr. Program, 1 Hr. Off
Built-In
Manual
Automatic
Built-In
Built-In
Built-In
Built-In
Washable, Anti-Mold
N/A
N/A
Option
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H)
Moisture Removal (HI, Pint/H)
Cooling
Total Capacity (BTU/H)
24200
4.89
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con
Bracket
Available
N/A
N/A
N/A
Available
Available
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
Heating (Max)
Heating (Min)
95F DB/71F WB
67F DB/57F WB
80F DB/67F WB
-DB/-WB
115F DB
14F DB
75F DB/65F WB
0 DB
Indoor Dimensions
CS-MKS18NKU
CS-MKS24NKU
Unit: inch(mm)
