Electrolux EIED200QSW Specification

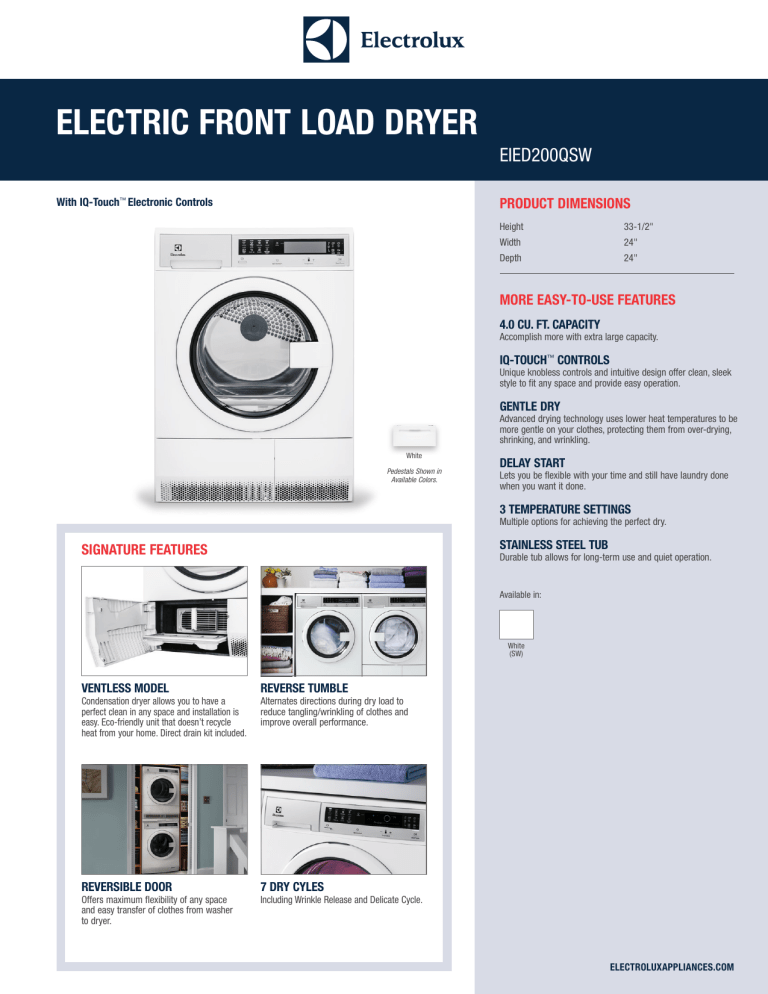

ELECTRIC FRONT LOAD DRYER EIED200QSW PRODUCT DIMENSIONS With IQ-Touch™ Electronic Controls Height 33-1/2" Width 24" Depth 24" MORE EASY-TO-USE FEATURES 4.0 CU. FT. CAPACITY Accomplish more with extra large capacity. IQ-TOUCH™ CONTROLS Unique knobless controls and intuitive design offer clean, sleek style to fit any space and provide easy operation. GENTLE DRY Advanced drying technology uses lower heat temperatures to be more gentle on your clothes, protecting them from over-drying, shrinking, and wrinkling. White Pedestals Shown in Available Colors. DELAY START Lets you be flexible with your time and still have laundry done when you want it done. 3 TEMPERATURE SETTINGS Multiple options for achieving the perfect dry. STAINLESS STEEL TUB SIGNATURE FEATURES Durable tub allows for long-term use and quiet operation. Available in: White (SW) VENTLESS MODEL REVERSE TUMBLE REVERSIBLE DOOR 7 DRY CYLES Condensation dryer allows you to have a perfect clean in any space and installation is easy. Eco-friendly unit that doesn’t recycle heat from your home. Direct drain kit included. Offers maximum flexibility of any space and easy transfer of clothes from washer to dryer. Alternates directions during dry load to reduce tangling/wrinkling of clothes and improve overall performance. Including Wrinkle Release and Delicate Cycle. ELECTROLUXAPPLIANCES.COM ELECTRIC FRONT LOAD DRYER EIED200QSW 24" ELECTRIC FRONT LOAD DRYER Capacity D.O.E. 4.0 Cu. Ft. FEATURES Pull-to-Open Door IQ-Touch™ Electronic Controls Dry System LED Lighting Tumble System Moisture Sensor Dryer Drum Reversible Door Adjustable Leveling Legs Yes Yes Condensing Yes Reversing Yes Stainless Steel Yes Yes CYCLES Normal, Heavy Duty, Delicates, Casual, Mixed Load, Touch Up, Towels; Jeans, Fast Dry, Wool, Timed Dry 7 Dry; 4 Specialty OPTIONS Temperature Selections Electronic Auto Dry System Manual Timed Dry Selections Delay Start End-of-Cycle Chime On / Off Wrinkle Release Dryness Levels 3 Yes 11 Yes Yes Yes 4 INSTALLATION OPTIONS Freestanding, Under Counter , Stacked (Above Washer), Pedestal, Recessed Alcove Yes ACCESSORIES Pedestal – White – PN # EPWD200QSW Dryer Stacking Kit – PN # STACKIT24 Direct Drain Kit Drying Rack – (PN # 916093163) Optional Optional Included Optional SPECIFICATIONS Color – White Power Supply Connection Location Voltage Rating Connected Load (kW Rating) @ 208 / 240 Volts Amps @ 208 / 240 Volts Heating Element @ 208 / 240 Volts (Watts) Shipping Weight (Approx.) SW Right Top Rear 208 / 240 VAC 2800 W 16 1,200 125 Lbs. NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com. Specifications subject to change. PRODUCT DIMENSIONS Height (without 12" Pedestal) (with 12" Pedestal) Width Depth (to Center of Arc Not Including Hose) (with Door 90° Open) 33-1/2" 46" 24" 24" 43" Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EIED200Q 11/14 © 2014 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice. IQ-Touch Urban Front Load Dryer (Electric) EIED200Q ELECTRIC FRONT LOAD DRYER EIED200QSW Left Front 24" Rear 43" 24" Manual condensation drain Electrical Supply 33 1/2" min. (68 1/2" min. for stacked units) Reversible Door Swing 24" Built-In Installations 12" 90° For built-in installations, NO minimum clearance required around sides, backs and tops of units. Location of plumbing and utility hookups MUST be considered in built-in installations. For additional installation details, refer to Product Installation Guides on web. 68 1/2" min. (includes stacking kit) Dryer 21 1/2" 90° Overall depth of pedestal with drawer fully extended – 38" 12 1/2" min. 12" Pedestal Drawer Installation Elevates dryer height to 46". For detailed pedestal installation, refer to instructions included with pedestal or on web. 90° Countertop 90° Washer 33 /2" min. 1 48" min. Washer 26" 24" min. Dryer 25" Side-by-Side Units in Under-Counter Installation Stacked Units in Recessed Alcove Installation For detailed stacked installation, refer to instructions included with Stacking Kit or on web. Note: Stacking Kit adds 1" to overall depth of stacked units. Electric Dryer Specifications • Product Weight – 119 Lbs. Dryer requires electrical hookup with no ventilation exhaust needed. Condensation is removed via manual condensation drain hose to inner reservoir (to be removed manually), or by draining directly into washer’s standpipe with use of supplied Direct Condensation Drain Hose Kit. (Refer to Direct Drain Option Specifications for drainage details.) • Voltage Rating – 208 / 240 VAC • Single phase 3- or 4-wire cable, 208 / 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.) • Connected Load (kW Rating) @ 208 / 240 Volts = 2.8 kW • Amps @ 208 / 240 V = 16A • Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied). • Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.) • Always consult local and national electric & plumbing codes. • Can be installed alone, with or without optional 12" pedestal drawer, or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.) • Condensation • Can be built in with matching Electrolux Washer in under-counter or recessed alcove installation with NO minimum clearance required around sides, backs and tops of units. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.) • Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables are kept or stored. • For garage installation, dryer MUST be located minimum 18" above floor. • Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface. • Leveling legs supplied to level dryer properly and reduce excessive noise and vibration. Direct Drain Option Specifications • When using Direct Condensation Drain Hose Kit (supplied) to drain condensation directly into washer’s standpipe, distance from bottom of drain hose sag to top of highest part of drain hose should be 20" max. with drain height located 40" max. above bottom of dryer’s leveling legs. Note: F or planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions. Optional Accessories • Pedestal Drawer – (PN # EPWD200QSW). Stacking Kit – (PN # STACKIT24). • Drying Rack – (PN # 916093163). • Dryer Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EIED200Q 11/14 © 2014 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice.
