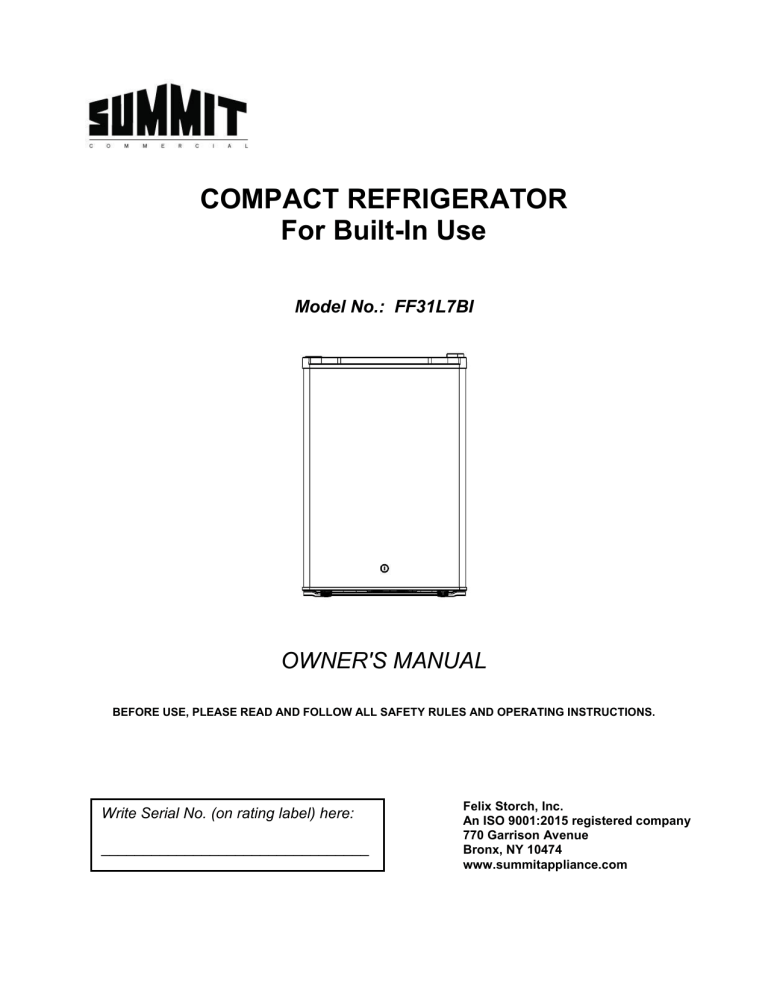

Summit FFAR25L7BI Use and Care Manual
COMPACT REFRIGERATOR
For Built-In Use
Model No.: FF31L7BI
OWNER'S MANUAL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial No. (on rating label) here:
________________________________
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
TABLE OF CONTENTS
Appliance Safety
3
Important Safeguards
3-4
Location of Parts
5
Installation Instructions
5-7
Before Using Your Appliance
5
Installation of Your Appliance
5-6
Electrical Connection
6
Extension Cord
6
Reversing the Door Swing of Your Refrigerator
7
Operating Your Appliance
7-8
Control Panel
7-8
Door Lock
8
Defrosting
8
Shelves
8
Care and Maintenance
9
Cleaning Your Appliance
Power Failure
Vacations
Moving Your Appliance
Energy-Saving Tips
Troubleshooting
10
Limited Warranty
12
2
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:









Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
This appliance is CFC- and HFC-free and contains a small quantity of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.
3
In the event of any damage:
- Avoid open flames and anything that creates a spark,
- Disconnect from the electrical power line,
- Air the room in which the appliance is located for several minutes and
- Contact the Service Department for advice.
 The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in
the appliance is stated on the rating label. It is hazardous for anyone other than an Authorized Service
Person to carry out servicing or repairs to this appliance.
 Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
 Replacing component parts and servicing shall be done by factory authorized service personnel so as
to minimize the risk of possible ignition due to incorrect parts or improper service.














FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit
must be installed in an area protected from the elements, such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 15 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are necessarily
small. Be careful closing doors when children are in the area.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.
Before discarding your old refrigerator:
 Take off the doors
 Leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS 4
LOCATION OF PARTS
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
 Remove the exterior and interior packing.
 CAUTION: After unpacking you MUST allow your appliance to stand upright for at least 2 hours to
allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure to do so may
adversely affect performance and the lifetime of the unit.
 Clean the interior surface with lukewarm water using a soft cloth.
 Reverse the door. (See page 7.)
INSTALLATION OF YOUR APPLIANCE
 This appliance is designed for built-in installation, but may also be installed free-standing.
 WARNING: Do not store or install the appliance outdoors.
 CAUTION: This appliance is designed for storing and cooling foodstuffs. Do not store pharmaceuticals
or other medical products.
 Place your refrigerator on a floor that is strong enough to support it when it is fully loaded. To level the
unit, adjust the front leveling legs.
 For built-in installation, it is a must to keep ¼” (6.35mm) of space on each side and at the top and 2”
(51mm) at the rear. Take care that the air vent at the front of the appliance is never covered or blocked
in any way. .
 NOTE: It is recommended that you do not install the appliance near an oven, radiator or other heating
source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Don’t install in a location where the temperature will fall below 60°F (16°C). For best
performance, do not install the appliance behind a cabinet door or block the base grille.
 Avoid locating the unit in moist areas.
 Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any circumstances
cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or
grounding should be directed toward a certified electrician or an authorized service center.
5
ELECTRICAL CONNECTION
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this appliance. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.
6
REVERSING THE DOOR SWING OF YOUR REFRIGERATOR
This appliance has the capability of the door opening from either the left or right side. The unit is delivered
to you with the door opening from the left side. Should you desire to reverse the opening direction, please
follow the instruction as described below:
1. Remove the upper hinge cover (1) first.
2. Remove the three screws (2) that hold the upper
hinge (3) (right side) to the frame. Take away the
upper hinge (3).
3. Lift the door and place it on a padded surface to
prevent scratching it.
4. Remove the three screws (6) that hold the lower
hinge (5) and remove hinge (5).
5. Remove the cover (4) and move to the right side.
6. Install the lower hinge (5) onto the left side of the
lower frame with three screws (6).
7. Set the door into place, making sure the door
seats on the lower hinge (5).
8. While holding the door in the closed position,
secure the upper hinge (3) in the top frame of left
side with three screws (2). Please remember not
to tighten the screws until the top of the door is
leveled with the counter top.
9. Install the cover (1) on the upper hinge.
OPERATING YOUR APPLIANCE
It is recommended that you install the appliance in a place where the ambient temperature is between 72º
and 78ºF (23º to 26ºC). If the ambient temperature is above or below the recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extremely cold or hot
conditions may cause interior temperatures to fluctuate. The range of 34º to 43ºF (1º to 6ºC) may not be
reached.
CONTROL PANEL
ON/OFF POWER
To turn the appliance ON or OFF, press the
button/mark and hold for 3 seconds.
LIGHT
To turn the inner light ON and OFF.
7
UP
Used to raise (warm) the set temperature by 1°F/°C.
DOWN
Used to lower (cool) the set temperature by 1°F/°C.
ºF/ºC Selector
Choose to display temperature setting in Fahrenheit or Celsius. To change the temperature from
Fahrenheit to Celsius or from Celsius to Fahrenheit, press the
button for at least 5 seconds.
Setting the Temperature Control
 You can set the temperature by pressing the UP and DOWN buttons. When you press either of
the two buttons for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the factory is 38°F, or 3°C.)
 The temperature you are setting will increase by one degree each time you press the UP
button, and will decrease by one degree each time you press the DOWN button.
 The range of the temperature control is from 34°F to 43°F.
 To view the set temperature at any time, press the UP or DOWN button. The set temperature
will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit
will reappear in blue in the display window.
NOTE:
 If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.

When you use the unit for the first time or restart the unit after it has been shut off for a long
time, there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.
DOOR LOCK
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the Owner’s Manual. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation, making sure
the metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping.
DEFROSTING
This appliance requires no manual defrosting. During the operation of the compressor, ice will build up on
the evaporator plate which is at the back of inner cabinet. During the compressor’s off-cycle, the ice will
melt, drip down, and collect in a tray above the compressor, where the compressor’s heat evaporates the
water. If you notice excessive ice build-up on the evaporator, try setting the temperature slightly higher.
Also, be sure that the door gasket is sealing well.
SHELVES
The unit has four removable, chrome-plated wire shelves: three full-size and one half-size. To take out a
shelf, first remove its contents, then raise the back of the shelf slightly and pull the shelf out.
8
CARE AND MAINTENANCE
CLEANING YOUR APPLIANCE


Turn off the power, unplug the appliance, and remove all items, including shelves.
Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area where the controls are located,
or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth.
Do not use steel wool or a steel brush on the stainless steel.




POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
VACATIONS


Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly, blocking it open if necessary.
MOVING YOUR APPLIANCE
1.
2.
3.
4.
5.
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable legs up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar item.
ENERGY-SAVING TIPS



The appliance should be located in the coolest area of the room, away from heat producing
appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated.
Do not keep the door open any longer than necessary.
CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or
other personal injury.
9
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the service technician.
Troubleshooting Guide
PROBLEM
The unit does not operate.
POSSIBLE CAUSE
Not plugged in.
Tripped circuit breaker or blown fuse.
The unit is not cold enough.
Check the temperature control setting. External
environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is warmer than normal.
A large amount of contents has been added to the
refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
Tripped circuit breaker or blown fuse.
The light switch is “OFF”.
Vibrations
Check to assure that the appliance is level.
The unit seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your unit.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The appliance is not level.
The gasket is dirty.
The shelves are out of position.
10
NOTES
11
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and
maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified
parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated
service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic
parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not
covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or
repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metal components.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (844) 478-8799
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
