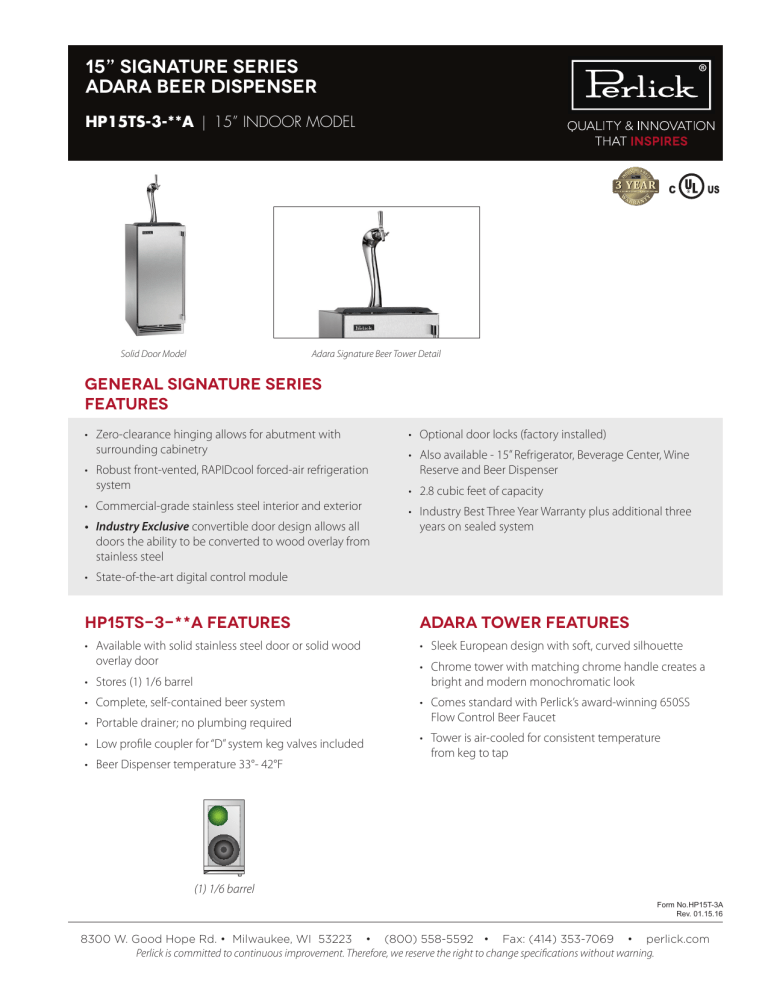

15” signature series
Adara beer dispenser
HP15TS-3-**A
15” INDOOR MODEL
C
Solid Door Model
US
Adara Signature Beer Tower Detail
general signature series
features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Robust front-vented, RAPIDcool forced-air refrigeration
system
• Commercial-grade stainless steel interior and exterior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Optional door locks (factory installed)
• Also available - 15” Refrigerator, Beverage Center, Wine
Reserve and Beer Dispenser
• 2.8 cubic feet of capacity
• Industry Best Three Year Warranty plus additional three
years on sealed system
• State-of-the-art digital control module
HP15TS-3-**A features
Adara tower features
• Available with solid stainless steel door or solid wood
overlay door
• Sleek European design with soft, curved silhouette
• Stores (1) 1/6 barrel
• Complete, self-contained beer system
• Portable drainer; no plumbing required
• Low profile coupler for “D” system keg valves included
• Beer Dispenser temperature 33°- 42°F
• Chrome tower with matching chrome handle creates a
bright and modern monochromatic look
• Comes standard with Perlick’s award-winning 650SS
Flow Control Beer Faucet
• Tower is air-cooled for consistent temperature
from keg to tap
(1) 1/6 barrel
Form No.HP15T-3A
Rev. 01.15.16
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
product specifications
ADARA indoor models
Overall Width
14-7/8” (37.78 cm.)
Overall Height
34-1/4” (86.96 cm.)
HP15TS-3-1LA
Solid stainless steel door, hinge left*
Overall Depth
24” (60.96 cm.)
HP15TS-3-2LA
Solid wood overlay door, hinge left*
Opening Width
15” (38.1 cm.)
Opening Height
34-3/8” (87.31 cm.)
Opening Depth
24” (60.96 cm.)
Refrigerated Volume
2.8 cu. ft.
Door Swing Clearance
16” (40.64 cm.) minimum
Electrical
115V, 60Hz., 1 Phase, 2.3 amps
Plumbing
None Required
Annual Energy Usage
280 kWh/yr
Shipping Weight
144 lbs (100.7 kg.)
Single Faucet models
* Also available hinge right
50" 1270
Area in which
electrical outlet must be located
1
5 16" 129
Signature Series HP15 Models
Tapping
Power cord 6-5/8" [168] off floor.*
7
7
8 16" 214
7 16" 189
* - Leg leveler can add
3/4" [19] to these dimensions
when fully extended.
3
1 8" 35
Value may
change due to a
custom pull.
24" 611
(with 1/16" toleramce)
Value may change
with a wood overlay door.
15
15 16" 405
Min. clearance
for door swing.
3
16 16" 412
7
14 8" 378
11" 279
5
1 8" 42
3
21 8" 543
15
1 16" 49
1
1
9
26 16" 674
5
*34 16" 872
7
24 8" 632 231 " 597
2
23 16" 585
9 2" 241
Typical
sixth
barrel.
1
1
3 2" 89
3 2" 89
*3 7/8" 100
7
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
00\95004.slddrw
11 8" 302
1
6 4" 159
3
18 16" 461
Form No.HP15T-3A
Rev. 01.15.16
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
