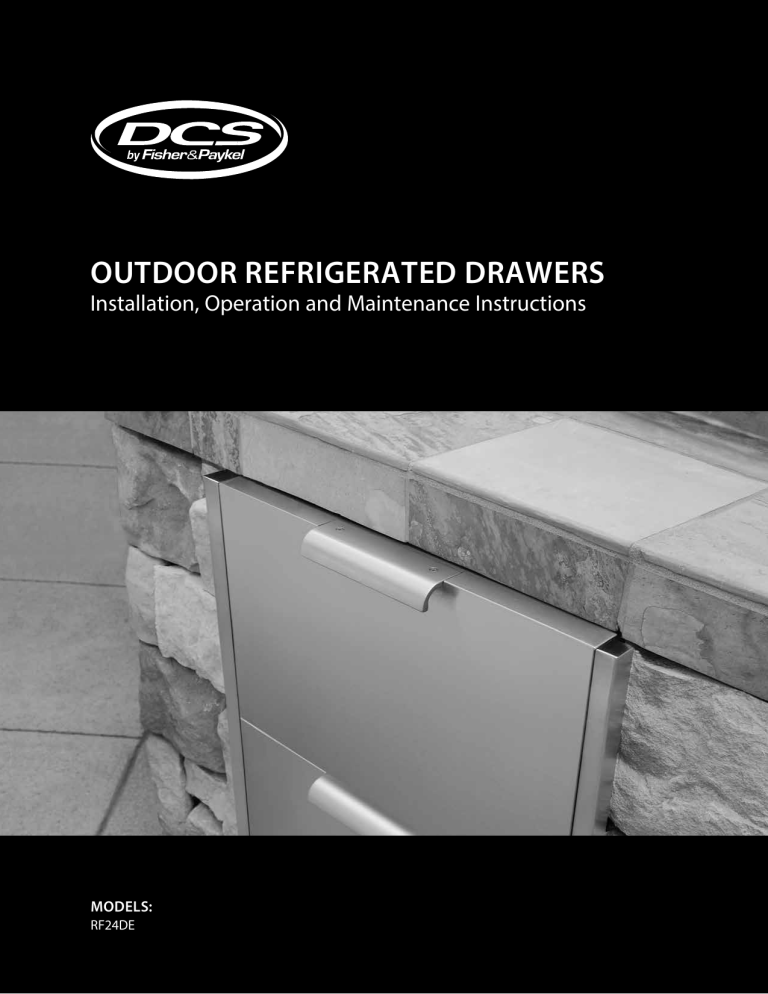

OUTDOOR REFRIGERATED DRAWERS
Installation, Operation and Maintenance Instructions
MODELS:
RF24DE
CONTENTS
Contents:
Important Safety Instructions
Safety information ...............................................................2
Unpacking your appliance ..................................................3
Warranty registration........................................................3
Installing your appliance ......................................................4
Cabinet clearances ...........................................................4
Leveling the appliance ....................................................4
Electrical connection ......................................................5
Installing the anti-tip device .................................................6
Energy saving tips ..............................................................7
Product dimensions ............................................................8
Using your Electronic control ............................................10
Starting your appliance ..................................................10
Turning your appliance "ON" or "OFF" ..........................10
Adjusting the temperature .............................................10
Refrigerator operation ...................................................10
Alarms ...........................................................................10
Door (drawer) ajar.....................................................10
Temperature sensor fault...........................................10
Alarm mute ...................................................................10
Care and cleaning .............................................................11
Long term storage / winterization .................................12
Stainless steel maintenance ............................................13
Obtaining service .............................................................13
Troubleshooting ................................................................14
Warranty ...........................................................................14
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
!
WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!
CAUTION
CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.
NOTE
NOTE-Important information to help assure a problem
free installation and operation.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals
known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals
known to the State of California to cause birth defects or
other reproductive harm..
2
!
A Message To Our Customers
WARNING
Thank you for selecting this DCS Outdoor Refrigerator.
Because of this appliances’ unique features we have developed this Use and Care and Installation Guide. It contains
valuable information on how to properly install, operate and
maintain your new appliance for years of safe and enjoyable operation.
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
For your convenience, product questions can be answered
by a DCS Customer Care Representative at
1-888-936-7872, or email: [email protected]
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
NOTE: Please write the Model, Code, and Serial Number
on this page for references (the serial plate is located on
the upper left side, inner wall).
MODEL NUMBER:
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
!
CODE:
SERIAL NUMBER:
NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. DCS by Fisher & Paykel is not
responsible for shipping damage.
CAUTION
Dispose of the plastic bags which can be a suffocation
hazard.
DO NOT discard any packing material (box, pallet, straps)
until the unit has been inspected.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
NOTE
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
!
!
CAUTION
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous
- even if they sit out for "just a few hours".
CAUTION
If you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
Before you throw away your old refrigerator or freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not easily
climb inside.
3
INSTALLING YOUR APPLIANCE
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
ensure your product performs to specifications, the recommended installation location temperature range is from 55
to 115°F (13 to 46°C).
Front Grille,
keep this area
open.
Cabinet Clearance
Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unobstructed.
!
Front Leveling
Legs
Rear
Leveling
Legs
Figure 1
CAUTION
Leveling Legs
Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the
floor and level from side to side and front to back. The overall height of your DCS appliance may be adjusted between
the minimum, 333⁄4" (85.7 cm), by turning the leveling leg in
(CW ↷) and the maximum, 343⁄4" (88.3 cm) by turning the
leveling leg out (CCW ↶).
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased
energy usage and loss of cooling capacity. For this reason
it is important this area to not be obstructed and the grille
openings kept clean (See Figure 1). The use of a custom
made grille is not recommended as it may restrict air flow.
To adjust the leveling legs, place the appliance on a solid
surface and protect the floor beneath the legs to avoid
scratching the floor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 2).
Front grille
Front grille screw
Figure 2
4
INSTALLING YOUR APPLIANCE
!
Do not remove
ground prong
WARNING
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
Figure 3
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 5). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any circumstances, be cut or removed.
Figure 4
Figure 5
NOTE
Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.
5
INSTALLING THE ANTI TIP DEVICE
FOR FREESTANDING INSTALLATIONS
Anti-Tip
Bracket
WARNING
!
•
ALL APPLIANCES CAN TIP
RESULTING IN INJURY.
•
INSTALL THE ANTI-TIP
BRACKET PACKED WITH
THE APPLIANCE.
•
FOLLOW THE INSTRUCTIONS BELOW
211⁄2"
(54.6 cm)
Leveling Leg
Bottom View of
Refrigerated
Drawer Unit
Front of cabinet
Anti-Tip Device
!
Figure 6
Step by step instructions for locating the position of the bracket:
WARNING
If your refrigerator is not located under a counter
top (free standing), you must use an anti-tip device
installed as per these instructions. If the refrigerator is
removed from its location for any reason, make sure
that the device is properly engaged with the anti-tip
bracket when you push the refrigerator back into the
original location. If the device is not properly engaged,
there is a risk of the refrigerator tipping over, with the
potential for property damage or personal injury.
1) Decide where you want to place the drawer refrigerator.
Slide it into place, being careful not to damage the floor,
leaving 1" (2.5 cm) of clearance from the rear wall to allow
room for the anti-tip bracket.
2) Raise the rear leveling legs approximately 1⁄4" (6 mm) to
allow engagement with the anti-tip bracket. Level the unit
by adjusting all the leveling legs as required. Turning the
leveling leg counterclockwise will raise the unit and clockwise will lower the unit.
3) Make sure the refrigerator is in the desired location, then
mark on the floor the rear and side corner of the cabinet
where the anti-tip bracket will be installed. If the installation
does not allow marking the rear corner of the cabinet, then
make temporary lines on the floor marking the front corner
of the cabinet, excluding the drawer. Slide the refrigerator
out of the way. From the temporary line extend the sidewall
line back 211⁄2" (54.6 cm) as shown in Figure 7.
NOTE
If installing on a concrete floor, concrete fasteners are
required, (not included with the anti-tip kit).
!
4) Align the anti-tip bracket to the marks on the floor so
the side of the bracket lines up with the side of the cabinet
mark, and the "V" notches on the anti-tip bracket line up
with the end of the 211⁄2" (54.6 cm) line (Rear of cabinet
line).
CAUTION
Any finished flooring should be protected with appropriate
material to avoid damage when moving the unit.
5) Fasten the anti-tip bracket to the floor using the supplied
screw. (See Figure 7).
Floor Mount Installation
6) Slide the cabinet back into position, making sure the rear
cabinet leveling leg slides under the anti-tip bracket engaging the slot.
The anti-tip bracket is to be located on the floor in the left
or right rear corner of the refrigerator drawer as shown in
Figure 6.
6
INSTALLING THE ANTI TIP DEVICE FOR FREESTANDING INSTALLATIONS
AND ENERGY SAVING TIPS
NOTE
When the floor mounted anti-tip bracket is used the minimum adjusted height of the cabinet is increased by
3
⁄8" (9 mm).
nt o
Fro
net
bi
f ca
line
Sid
eo
f c Rear Leveling leg
ab
ine
t li
ne
Figure 7a
Screw
"V" notches
in bracket
211⁄2"
(54.6 cm)
Energy saving tips:
Figure 7
et
ar
Re
of
in
cab
line
The following suggestions will minimize the
cost of operating your refrigeration appliance.
"V" notches
in bracket
7
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath drawer are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize drawer
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compartment.
7. Ensure drawer closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize drawer openings and duration of drawer
openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended
periods, set the appliance to warmest acceptable
temperature for the stored contents.
12. Set the control to the “off” position if cleaning the
appliance requires the drawer to be open for an extended period of time.
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS
MODEL
"A"
RF24DE
24 ½" (62 cm)
24" (61 cm)
(with optional DCS
side trim kit)
CABINET DIMENSIONS
"B"
"C"
"D"
"E"
"F"
"G"
"H"
**34" to 35"
(86.4 cm to 88.9 cm)
*
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 cm to 88.3 cm)
2323⁄32"
(60.2 cm)
267⁄32"
(66.6 cm)
395⁄32"
(99.5 cm)
"A"
"B"
Figure 8
"E"
"C"
"D"
Figure 8a
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent
cabinet and the power cord routed through this
hole to a power outlet. Another way to increase
the available opening depth is to recess the power
outlet into the rear wall to gain the thickness of the
power cord plug.
8
PRODUCT DIMENSIONS
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS ***
PRODUCT
WEIGHT
RE24DE
115V/60Hz/15A
130 lbs
(59 kg)
"G"
"D"
"F"
"E"
1"
(2.5 cm)
211⁄2"
(54.6 cm)
Figure 9
"H"
Floor mount anti-tip bracket.
* Depth dimension of rough-in opening may vary depending
on each individual installation. To recess entire drawer "F"
dimension plus 1" (2.5 cm) for thickness of power cord plug
is required.
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
*** A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appliance.
!
WARNING
Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications.
9
USING YOUR ELECTRONIC CONTROL
Alarm
Set
F
Colder
Warmer
Press and Hold
ON/OFF
Press and Hold
Figure 10
close-up of
control
ra
pd
To
Plug the refrigerator power cord into a wall outlet. Your
refrigerator will begin cooling after power is applied.
If your refrigerator does not start, check that the refrigerator
is turned on and the set temperature is cold enough.
Turning your refrigerator ON or OFF
If the refrigerator is on, the refrigerator temperature will be
shown on the display. To turn the refrigerator off, press and
hold the "ON/OFF" button for three seconds. "OFF" will appear on the display.
If the refrigerator is not on, "OFF" will be shown on the
display. To turn the refrigerator on, press and hold the "ON/
OFF" button for three seconds. The refrigerator temperature will be shown on the display.
Set temperature
To set the refrigerator temperature, press and hold the
"SET" button. When the "SET" button is pressed, the
display will show the set temperature. While holding the
"SET" button, press the "WARMER" or "COLDER" buttons
to adjust set temperature.
Refrigerator operation
The available temperature range of the refrigerator is 34° to
42°F (1° to 6°C).
It may take up to 24 hours for your refrigerator to reach
desired temperature. This will depend on amount of content
loaded and number of door openings and closings.
For best results allow refrigerator to "pull down" to desired
set temperature before loading. Once contents are loaded,
allow at least 48 hours for temperature to stabilize before
making any adjustments to the set temperature.
r
we
Starting your refrigerator
Figure 11
Alarms
Your digital display function will monitor refrigerator function
and alert you with a series of audible and visual alarms.
• Door Ajar Alarm: If the door has been left
open for over five minutes, the alarm
will sound in one second intervals. The
display panel will flash "do" and the Alarm LED located at
the top left of the display below the word "Alarm" will be illuminated. This will stop as soon as the door is closed.
Temperature Sensor Fault: If the controller detects that the temperature sensor is
not properly functioning, a temperature
sensor alarm will sound in one second intervals. "E1" will
flash on the display panel and the Alarm LED located at
the top left of the display below the word "Alarm" will be
illuminated.
•
Alarm Mute
Press any key to mute the audible portion of an alarm.
NOTE-This action will only mute the alarm. If the condition that caused the alarm continues, the alarm code will
continue to flash and will sound for 20 seconds every 60
minutes.
10
CARE AND CLEANING
Care of Appliance
1. Avoid leaning on the drawer, you may bend the drawer
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
Front Grille
Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year,
brush or vacuum lint and dirt from the front grille area (see
page 4).
!
CAUTION
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The stainless steel cabinet can be washed with mild soap
and water and thoroughly rinsed with clean water. NEVER
use abrasive scouring cleaners. Dry thoroughly with a terry
towel.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as possible. Minimize the number of drawer openings while the
power is off so as not to adversely affect the appliance's
temperature.
Light assembly replacement
All models use an LED to illuminate the interior of the appliance. This component is very reliable, but should it fail,
contact a qualified service technician for replacement of the
LED.
11
CARE AND CLEANING
Outdoor Product Long-Term Storage /
Winterization:
1. Time to Winterize, when the daily low ambient temperature is at or below 38°F (3.3°C).
!
After completion of the above, you may choose to store the
unit indoors, although this is not required.
CAUTION
Operation of the unit at ambient temperatures below the
recommended Winterization temperature will void your warranty.
2. Turn unit off, (see page 10)
3. Remove all contents.
4. If necessary, move the unit so you can gain access to
the rear of the product.
5. Unplug the unit from the power outlet.
6. It is also recommended that the power to the outlet be
turned-off if the circuit is not required for other items
during the Winter season.
7. When cleaning unit pay particular attention to any
cracks and crevices that may have accumulated dirt
and debris.
8. Remove the front toe-grille, (see Figure 12), and use a
brush and vacuum to clean dirt and debris from beneath the unit.
9. Thoroughly clean the toe-grille and re-install on the
unit. (See Figure 12).
10. Remove the rear access cover, (see Figure 13), and
use a brush and vacuum to clean dirt and debris from
the machine compartment.
•
Spacer
Figure 12
Grille
Remove screw from
each end of grille
If the plastic defrost drain pan located under the
compressor contains water, use a sponge to
remove as much water as possible.
11. Thoroughly clean the rear access cover and re-install
on the unit.
12. Wipe down all interior surfaces with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals which could cause staining. Do
not use any abrasive cleaners or scouring pads.
13. Leave the drawers open and allow to completely dry
out before closing the drawers.
14. Thoroughly clean the drawer gaskets with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals.
15. Thoroughly clean the exterior with a cleaner approved
for stainless steel. Do not use any abrasive cleaners or
scouring pads. See "Stainless Steel Maintenance" on
page 13.
16. Any mounting hardware / fasteners that are showing
signs of corrosion should be replaced.
17. Once the exterior has been thoroughly cleaned, you
may want to apply a coating of car wax to help protect
against spotting from moisture, dirt, and debris that
may accumulate on the surfaces during the Winterization period.
Clean out
behind grille
Soak up
water from
plastic drain
pan if
necessary
Clean out
debris
Figure 13
Remove the power cord
from the grommet in the
access cover.
Remove screws
around perimeter
of access cover.
Start-Up After Long-Term Storage:
1. If stored outside, it is recommended that the unit again
be thoroughly inspected per the storage instructions
above to address any dirt or debris from the weather
and/or animals/insects.
2. Connect the unit to electrical power.
3. Turn unit on and confirm your desired control settings.
4. Allow 24-hrs for the unit to stabilize before loading
contents.
12
STAINLESS STEEL MAINTENANCE AND OBTAINING SERVICE
!
Although some products are called "stainless steel cleaners," some may contain abrasives which could scratch the
surface, (compromising the protective chrome-oxide film),
and some many contain chlorine bleach which will dull,
tarnish or discolor the surface if not completely removed.
WARNING
Electrocution Hazard
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
After the stainless surfaces have been thoroughly cleaned,
a good quality car wax may be applied to help maintain the
finish.
Note: Stainless steel products should never be installed, or
stored in close proximity to chlorine chemicals.
Background
Whichever cleaning product you chose, it should be used
in strict accordance with the instructions of the cleaner
manufacturer.
Stainless steel does not stain, corrode, or rust as easily as
ordinary steel, but it is not stain or corrosion proof. Stainless steels can discolor or corrode if not maintained properly.
How to Obtain Service:
For warranty service, please contact your local service
provider or DCS Customer Care at (888) 936-7872. Before
you call, please have the following information ready:
Stainless steels differ from ordinary carbon steels by the
amount of chromium present. It is this chromium that
provides an invisible protective film on the surface called
chrome-oxide. This protective chrome-oxide film on the
surface can be damaged or contaminated, which may
result in discoloration, staining, or corrosion of the base
metal.
Care & Cleaning
Routine cleaning of the stainless steel surfaces will serve to
greatly extend the life of your product by removing contaminants. This is especially important in coastal areas which
can expose the stainless to severe contaminants such as
halide salts, (sodium chloride).
It is strongly recommended to periodically inspect and thoroughly clean crevices, weld points, under gaskets, rivets,
bolt heads, and any locations where small amounts of liquid
could collect, become stagnant, and concentrate contaminates. Additionally, any mounting hardware that is showing
signs of corrosion should be replaced.
Frequency of cleaning will depend upon the installation
location, environmental, and usage conditions.
• Model Number (the serial plate is located on the upper
left side, inner wall).
• Serial Number (the serial plate is located on the upper left
side, inner wall).
• Code (the serial plate is located on the upper left side,
inner wall).
• Date of installation
• A brief description of the problem
Your satisfaction is of the utmost importance to us. If a
problem cannot be resolved to your satisfaction, please
write or email us at:
Write:
Fisher & Paykel and DCS
Appliances Inc
695 Town Centre Drive, Suite #180 Costa Mesa
CA 92626-1902
USA
Email:
[email protected]
Choosing a Cleaning Product
The choice of a proper cleaning product is ultimately that
of the consumer, and there are many products from which
to choose. Depending upon the type of cleaning and the
degree of contamination, some products are better than
others.
Before You Call for Service:
Check troubleshooting on page 14.
Typically the most effective and efficient means for routine
cleaning of most stainless steel products is to give the surfaces a brisk rubbing with a soft cloth soaked in warm water
and a gentle detergent, or mild mixture of ammonia. Rubbing should, to the extent possible, follow the polish lines of
the steel, and always insure thorough rinsing after cleaning.
13
TROUBLESHOOTING AND WARRANTY
Before You Call for Service
!
If the appliance appears to be malfunctioning, read through
this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and
refer to the cause and its remedy before calling for service.
The problem may be something very simple that can be
solved without a service call. However, it may be required
to contact your dealer or a qualified service technician.
Problem
Appliance not cold enough
Electrocution Hazard
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the units wiring.
• Replace all parts and panels before operating.
Possible Cause
Remedy
•
•
Control set too warm
Content temperature not stabilized.
Excessive usage or prolonged drawer
openings.
Airflow to front grille blocked.
•
Drawer gasket not sealing properly.
•
Appliance too cold
•
(See “Adjusting the Temperature” on page 10)
•
Control set too cold
•
Drawer gasket not sealing properly.
•
No interior light.
•
Failed LED light assembly or light switch. •
Contact a qualified service technician.
Light will not go out when
drawer is closed
•
Drawer not activating light switch.
•
•
Failed light switch
•
Appliance not level, level appliance,
(See page 4, “leveling legs”)
Contact a qualified service technician.
Noise or Vibration
•
Appliance not level
•
•
Fan hitting tube obstruction.
•
•
Appliance turned off
•
•
•
Power cord not plugged in.
No power at outlet.
•
•
(See “Adjusting the temperature" on page 10)
Appliance will not run.
Limited Warranty
•
•
•
WARNING
When you purchase any new DCS Refrigeration Product,
you automatically receive a One Year Limited Warranty
covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington, D.C. and Canada.
In Alaska the Limited Warranty is the same except that you
must pay to ship the Product to the service shop or for the
service technician’s travel to your home. Products for use in
Canada must be purchased through the authorized Canadian distribution channel to ensure regulatory compliance.
You receive an additional Four Year Limited Warranty (for
a total of Five Years) covering parts for the sealed refrigeration system (compressor, evaporator, condenser, filter
dryer, and connecting tubing) within the 48 mainland United
States, Hawaii, Washington, D.C. and Canada. In Alaska
the Limited Warranty for the sealed refrigeration system is
the same except that you must pay to ship the Product to
the service shop or the service technician’s travel to your home.
•
•
Adjust temperature colder. Allow 24
hours for temperature to stabilize.
Allow temperature to stabilize for at
least 24 hours.
Airflow must not be obstructed to front
grille. See “clearances” on page 4.
Adjust or replace drawer gasket.
Adjust temperature warmer.
Allow 24 hours for temperature to stabilize.
Adjust or replace drawer gasket.
Level appliance, see “Leveling Legs” on
page 4.
Contact a qualified service technician.
Turn appliance on. See “Starting your
appliance” on page 10.
Plug in power cord.
Check house circuit.
Fisher & Paykel Undertakes to:
Repair without cost to the owner either for material or labor
any part of the Product, the serial number of which appears
on the Product, which is found to be defective. In Alaska,
you must pay to ship the Product to the service shop or for
the service technician’s travel to your home.
If we are unable to repair a defective part of the Product after a reasonable number of attempts, at our option we may
replace the part or the Product, or we may provide you a
full refund of the purchase price of the Product (not including installation or other charges).
This warranty extends to the original purchaser and any
succeeding owner of the Product for products purchased
for ordinary single-family home use.
All service under this Limited Warranty shall be provided
by Fisher & Paykel Appliances Inc. or its Authorized DCS
Service Agent during normal business hours.
14
WARRANTY
Limited Warranty
How Long Does this Limited Warranty Last?
Our liability under this Limited Warranty expires One Year from
the date of purchase of the Product by the first consumer.
Our liability for repair of defects in any sealed refrigeration
system (compressor, evaporator, condenser, filter dryer,
and connecting tubing) extends an additional Four Years,
for a total of Five Years from the date of purchase of the
Product by the first consumer.
Our liability under any implied warranties, including the
implied warranty of merchantability (an unwritten warranty
that the Product is fit for ordinary use) also expires One
Year (or such longer period as required by applicable law)
from the date of purchase of the Product by the first consumer. Some states do not allow limitations on how long
an implied warranty lasts, so this limit on implied warranties may not apply to you.
This Warranty Does Not Cover
A.
1.
2.
3.
4.
5.
6.
7.
8.
9.
B.
Service calls that are not related to any defect in the Product. The cost of a service call
will be charged if the problem is not found to
be a defect of the Product. For example:
Correct faulty installation of the Product.
Instruct you how to use the Product.
Replace house fuses, reset circuit breakers, correct
house wiring or plumbing, or replace light bulbs.
Correct fault(s) caused by the user.
Change the set-up of the Product.
Unauthorized modifications of the Product.
Noise and vibration that is considered normal e.g.
drain sounds, regeneration noises and user warning
beeps.
Correcting damage caused by pests e.g. rats, cockroaches etc.
Used in commercial applications.
Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s Use and Care
Guide.
C.
Defects to the Product caused by accident,
neglect, misuses, fire, flood or Act of God.
D.
The cost of repairs carried out by non-authorized repairers or the cost of correcting such
unauthorized repairs.
E.
Travel Fees and associated charges incurred
when the product is installed in a location
with limited or restricted access.(i.e. airplane
flights, ferry charges, isolated geographic
areas).
F.
Normal recommended maintenance as set
forth in the Product’s Use and Care Guide.
If you have an installation problem contact
your dealer or installer. You are responsible
for providing adequate electrical, exhausting
and other connection facilities.
We are not responsible for consequential
or incidental damages (the cost of repairing
or replacing other property damaged if the
Product is defective or any of your expenses
caused if the Product is defective). Some
states do not allow the exclusion or limitation
of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
How to get service
Please read this Use and Care Guide. If you then have any
questions about operating the Product, need the name of
your local DCS Authorized Service Agent, or believe the
Product is defective and wish service under this Limited
Warranty, please contact your dealer or call us at:
TOLL FREE 1-888-936-7872 or contact us through our web
site: www.dcsappliances.com
You may be required to provide reasonable proof of the
date of purchase of the Product before the Product will be
serviced under this Limited Warranty.
Commercial use
This warranty applies to appliances used in residential applications; it does not cover their use in commercial situations.
No other warranties
This Limited Warranty is the complete and exclusive agreement between you and Fisher & Paykel Appliances Inc. regarding any defect in the Product. None of our employees
(or our Authorized Service Agents) are authorized to make
any addition or modification to this Limited Warranty.
Warrantor: Fisher & Paykel Appliances, Inc.
If you need further help concerning this Limited Warranty,
please call us at the above number, or write to:
Fisher & Paykel and DCS
Appliances Inc
695 Town Centre Drive, Suite #180 Costa Mesa
CA 92626-1902
USA
This Limited Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Fisher & Paykel Appliances Inc. is a leading manufacturer
of premium quality cooking and specialty appliances under
the Fisher & Paykel and DCS brands.
15
Fisher & Paykel and DCS
Appliances Inc
695 Town Centre Drive, Suite #180 Costa Mesa
CA 92626-1902
USA
Customer Care: 888.936.7872
Fax: 714.372.7003
www.dcsappliances.com
As product improvement is an ongoing process, we reserve
the right to change specifications or design without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
