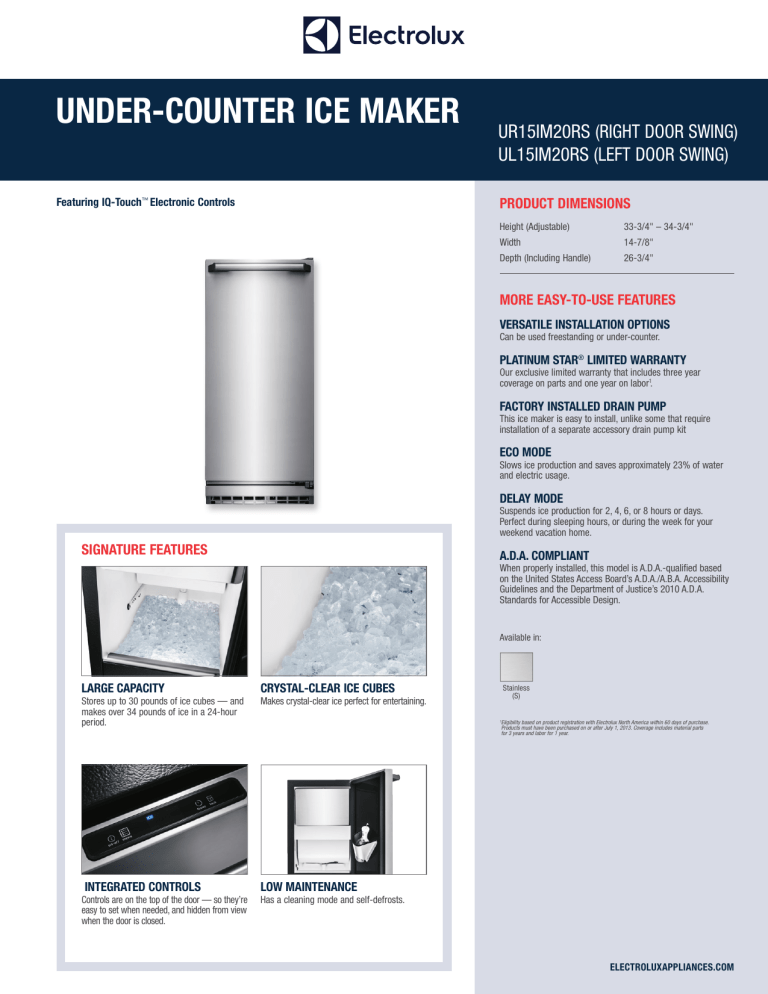

UNDER-COUNTER ICE MAKER
UR15IM20RS (RIGHT DOOR SWING)
UL15IM20RS (LEFT DOOR SWING)
PRODUCT DIMENSIONS
Featuring IQ-Touch™ Electronic Controls
Height (Adjustable)
33-3/4" – 34-3/4"
Width
14-7/8"
Depth (Including Handle)
26-3/4"
MORE EASY-TO-USE FEATURES
VERSATILE INSTALLATION OPTIONS
Can be used freestanding or under-counter.
PLATINUM STAR® LIMITED WARRANTY
Our exclusive limited warranty that includes three year
coverage on parts and one year on labor1.
FACTORY INSTALLED DRAIN PUMP
This ice maker is easy to install, unlike some that require
installation of a separate accessory drain pump kit
ECO MODE
Slows ice production and saves approximately 23% of water
and electric usage.
DELAY MODE
Suspends ice production for 2, 4, 6, or 8 hours or days.
Perfect during sleeping hours, or during the week for your
weekend vacation home.
SIGNATURE FEATURES
A.D.A. COMPLIANT
When properly installed, this model is A.D.A.-qualified based
on the United States Access Board’s A.D.A./A.B.A. Accessibility
Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
Available in:
LARGE CAPACITY
Stores up to 30 pounds of ice cubes — and
makes over 34 pounds of ice in a 24-hour
period.
INTEGRATED CONTROLS
Controls are on the top of the door — so they’re
easy to set when needed, and hidden from view
when the door is closed.
CRYSTAL-CLEAR ICE CUBES
Stainless
(S)
Makes crystal-clear ice perfect for entertaining.
1
E ligibility based on product registration with Electrolux North America within 60 days of purchase.
Products must have been purchased on or after July 1, 2013. Coverage includes material parts
for 3 years and labor for 1 year.
LOW MAINTENANCE
Has a cleaning mode and self-defrosts.
ELECTROLUXAPPLIANCES.COM
UNDER-COUNTER ICE MAKER
UR15IM20RS (RIGHT DOOR SWING)
UL15IM20RS (LEFT DOOR SWING)
15" UNDER-COUNTER ICE MAKER
Capacity
Installation Type
Up to 30 Lbs.
Built-In / Freestanding
FEATURES
IQ-Touch™ Electronic Controls
Daily Ice Production
Clear Ice Cubes
Ice Cube Size
Ice Cubes Produced per Cycle
3-Step Self-Cleaning Process
Self-Cleaning of Mineral Deposits
Factory Installed Drain Pump
Frost-Free Performance
Yes
Over 34 Lbs.
Yes
3/4"
130
Yes
Yes
Yes
Yes
ADDITIONAL FEATURES
Signature Soft-Arc Door and Handle Design
Luxury-Close™ Door
Adjustable Leveling Legs
ECO Mode
Delay Mode
Cleaning Mode
A.D.A. Compliant*
Yes
Yes
4
Yes
Yes
Yes
Yes
ACCESSORIES
Ice Scoop
Electrolux ICON® Handle Kit – PN# 5304503432
Included
Optional
SPECIFICATIONS
Color –
Stainless Steel
Power Supply / Water Inlet Location
Voltage Rating
‡
Connected Load (kW Rating) @ 120 Volts
Minimum Circuit Required (Amps)
Gravity Assisted Drain
Shipping Weight (Approx.)
S
Left Bottom Rear
120V / 60 Hz
0.48
15A
Required
105 Lbs.
* When properly installed, this model is A.D.A.-qualified based on the United States Access
Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
PRODUCT DIMENSIONS
Height (Adjustable)
Width
Depth (Including Rear Extrusion)
(with Door Open 90°)
33-3/4" – 34-3/4"
14-7/8"
24"
37-3/4"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
UR15IM20R 10/15
© 2015 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
UR15IM20RS (Right Swing) & UL15IM20RS (Left Swing)
UNDER-COUNTER ICE MAKER
UR15IM20RS (RIGHT DOOR SWING)
UL15IM20RS (LEFT DOOR SWING)
Top
Front
(Right Door Swing)
14 7/8"
1"
14 7/8"
1"
Water supply
and drain
connections
Left
21 3/4"
23"
26 3/4"
37 3/4"
33 3/4"
Adjustable
to 34 3/4"
Drain outlet
2 /4"
3
Water
outlet
Water
inlet
Water inlet
81/8"
Door in 90°
open position
33/8"
47/8"
13/4"
15/8"
11/4"
6 5/8"
Power cord
6 15/16"
Top
(Left Door Swing)
1"
37 3/4"
90°
90°
14 7/8"
Water supply
and drain
connections
24"
min.
34 1/4"
min.
2 3/4"
Allow 1-1/2"
minimum clearance
behind unit for electrical,
water supply and drain
connections
Door in 90°
open position
15 1/8"
Under-Counter Ice Maker Specifications
• Product Weight
– 100 Lbs.
Rating – 120V / 60Hz / 15 Amps
• Connected Load (kW Rating) @ 115 Volts = 0.48 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
• Amps @ 120V = 1.0A
• Electrical cable supplied.
• Always consult local and national electric and plumbing codes.
• Unit is designed for either freestanding or built-in, under-counter installation
with right or left door swing.
• Built-in, under-counter installation does not require additional airspace
for top, sides or rear of unit.
• Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush against
rear wall.
• To allow for ease of installation and removal, it is recommended that cabinet
rough opening dimensions be increased by at least 1/4" over product’s
dimensions.
• Voltage
• For
proper ventilation, unit can NOT be installed behind closed doors; front grille
MUST remain unobstructed.
• Must be positioned on flat, level surface, capable of supporting entire weight
when fully loaded.
• Leveling legs supplied to adjust height and level unit.
• Do not position unit near any heat source to ensure optimum performance.
• Unit requires zero clearance when installing flush with cabinet or wall.
• When installing against cabinet or wall that extends beyond front edge of
unit, 2-3/4" minimum handle clearance required to allow for 90° door swing,
providing sliding shelves with necessary clearance.
Note: F or planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Electrolux
ICON® Handle Kit – (PN# 5304503432).
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262­­• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
UR15IM20R 10/15
© 2015 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
