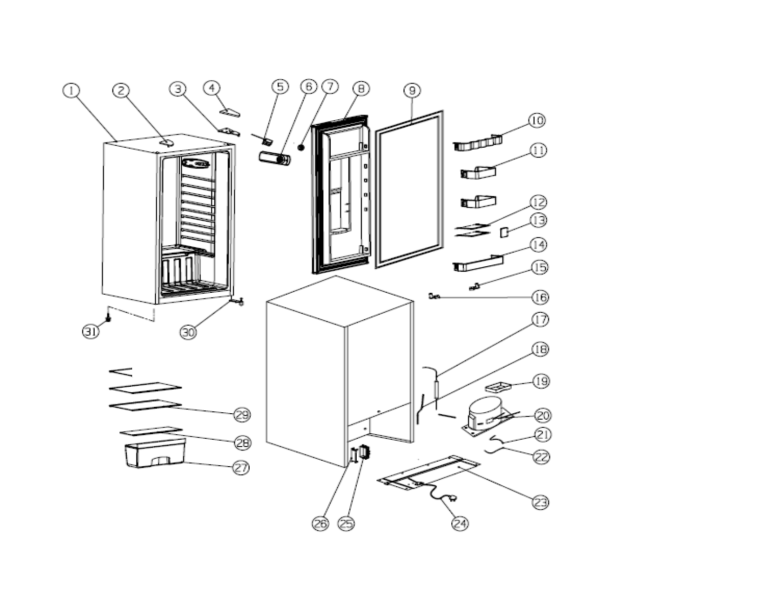

AR321BB Parts list
No
Parts code
2
20122080036
Door hinge cover
3
3031400148
Upper door hinge assembly
4
20122080091
Door hinge cover
5
3040200022
Thermostat
6
20122010164
Thermostat cover
7
20122010107
Thermostat Knob
8
20101050287
Door
9
3020400229
Door gasket
10
20122050499
Upper rack
11
20122050500
Small rack
12
3031500070
Door bar
13
20122990587
Decorative piece
14
20122050501
Lower rack
15
20122090456
Left limit block of door
16
20122090455
Right limit block of door
17
3040500009
Drier filter (for R600a)
18
20120080124
Process tube
19
20122990039
Drain pan
20
3040100259
Compressor
21
3050200103
Connecting wire of compressor
22
3050200095
Earthing wire of compressor
23
3039900124
Compressor support base
24
3050100030
Supply cord plug
25
20122990228
Wire box
26
20122990229
Base of wire box
28
20120030096
Cover of crisper drawer
29
20120020182
Shelf of refrigerator chamber
30
3031400154
Lower door hinge assembly
31
20122990019
Long adjust leg
Description of Spare Part
