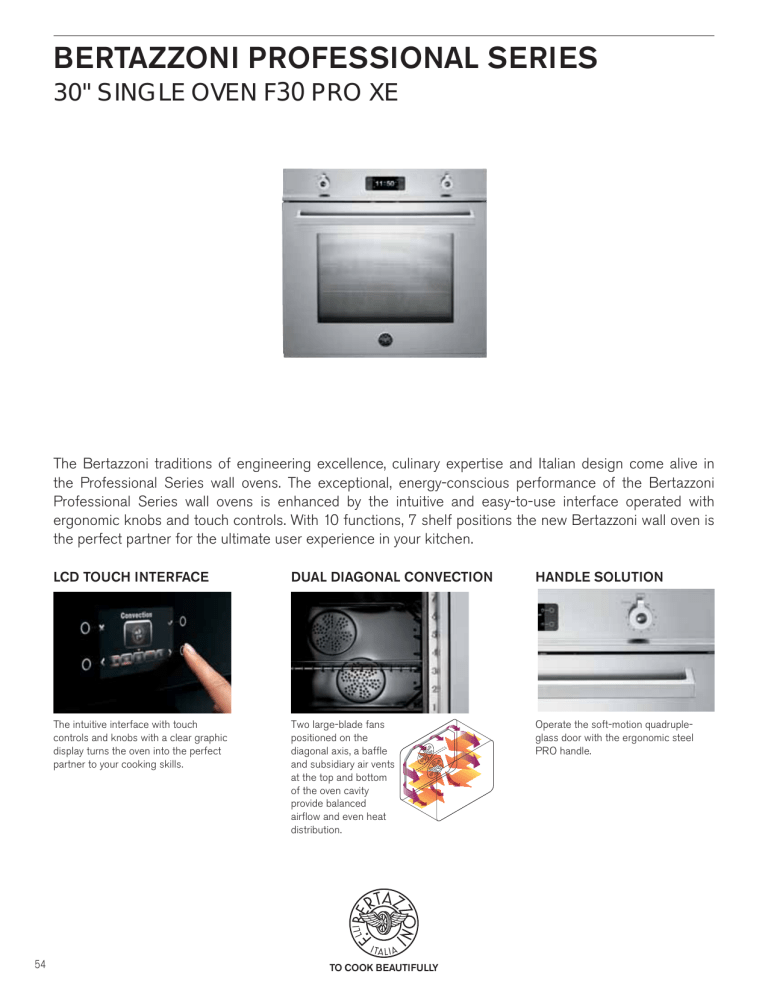

BERTAZZONI PROFESSIONAL SERIES
30" SINGLE OVEN F30 PRO XE
The Bertazzoni traditions of engineering excellence, culinary expertise and Italian design come alive in
the Professional Series wall ovens. The exceptional, energy-conscious performance of the Bertazzoni
Professional Series wall ovens is enhanced by the intuitive and easy-to-use interface operated with
ergonomic knobs and touch controls. With 10 functions, 7 shelf positions the new Bertazzoni wall oven is
the perfect partner for the ultimate user experience in your kitchen.
54
LCD TOUCH INTERFACE
DUAL DIAGONAL CONVECTION
HANDLE SOLUTION
The intuitive interface with touch
controls and knobs with a clear graphic
display turns the oven into the perfect
partner to your cooking skills.
Two large-blade fans
positioned on the
diagonal axis, a baffle
and subsidiary air vents
at the top and bottom
of the oven cavity
provide balanced
airflow and even heat
distribution.
Operate the soft-motion quadrupleglass door with the ergonomic steel
PRO handle.
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
30" SINGLE OVEN F30 PRO XE
FUNCTIONS
CONVECTION
BROILER
CONVECTION BROILER
CONVECTION BAKE
WARMING/
SABBATH MODE
BAKE
TURBO
DEHYDRATION/
DEFROSTING
PROOFING
SELF CLEAN
FEATURES
TECHNICAL SPECIFICATIONS
Interface
high resolution LCD display
Fuel
electric 208-240 V/60Hz
Controls
knobs & touch
Functions
10
Door Hinge
soft motion
Oven volume
4.1ft3
Handle
solid metal
Bake element
2100W
Oven Door
quadruple glass
Broil element
3400W
Food probe
-
Convection element
2x1650W
Assistant
-
Max Amp Usage
30 A
Self-Clean
standard and eco
Oven cavity HxWxD
17" 3/4 x 24" 1/2 x 16" 3/4
Rack level per cavity
7
Power rating
5500W
Convection System
dual diagonal fans
Product weight
205 lbs
Convection
powered cavities
1
Box weight
238 lbs
Certification
CSA
Telescopic slide out shelf
1
Warranty
2 years parts and labor
Steel Racks
2
ACCESSORIES
Telescopic glide shelf - 1 unit
code 901267
55
BERTAZZONI PROFESSIONAL SERIES
30" SINGLE OVEN F30 PRO XE
DIMENSIONS
Ref.
Dimensions
Description
Inches
mm
D
Oven height
28 11/16
728
E2
Door height
1
590
E4
Control panel height
3
4 /4
120
E12
Interior gap for door opening
5/8
15
K2
Chassis height
28 1/16
712
K6
Chassis depth
K8
Max control panel depth
K9
Chassis width
23 /4
5
550
7
37
21 /8
1 /16
28 /8
715
22
556
1
K11 Open door dimension
K12 Frontal panel + handle dimension
3 1/4
83
K15 Min control panel depth
13
20
/16
L2
Cabinet cut out height
28 /4
717
L5
Cabinet depth
23
584
L11
Cabinet cut out width
28 1/2
724
L15
Air intake opening width
16
406
L16
Air intake opening depth
4
S
Oven depth
1
S21 Adjustable vertical exit
Air intake opening opening
W
Cut out for power cord
Z22 Adjustable horizontal exit
Oven width
*
102
23 /8
587
16 1/8
410
13
758
1
29 /16
5
2 /16
58
*Metal conduit length: 47" /
1
4
INSTALLATION INSTRUCTIONS
56
Bertazzoni recommends to operate the appliance after it has been installed in a cabinet.
The kitchen cabinets shall be made of materials capable of withstanding temperatures at least 117°F (65°C) above room temperature in order
to avoid possible damage to the cabinets during oven usage. The appliance must be installed into cabinetry and be supported from underneath.
The air intake opening at the bottom of the door must be left unobstructed.
For a flush mount installation the surrounding cabinets doors should have the same thickness as the oven control panel (13/16" for all PRO models).
For installation of the oven in column please refer to the drawings view of model MO 30 STANE.
For under counter installation refer to the cooktop or range top installation drawing in the specific sections of this document.
