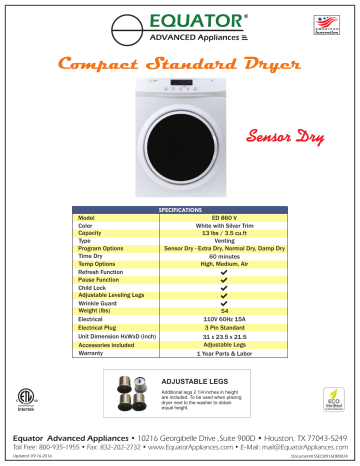

Equator EW824ED860 User manual

Equator EW824ED860 User manual
Compact Standard Dryer
SPECIFICATIONS
Model
Color
Capacity
Type
Program Options
Time Dry
Temp Options
Refresh Function
Pause Function
Child Lock
Adjustable Leveling Legs
Wrinkle Guard
Weight (lbs)
Electrical
Electrical Plug
Unit Dimension HxWxD (inch)
Accessories included
Warranty
ED 860 V
White with Silver Trim
13 lbs / 3.5 cu.ft
Venting
Sensor Dry - Extra Dry, Normal Dry, Damp Dry
60 minutes
High, Medium, Air
54
110V 60Hz 15A
3 Pin Standard
31 x 23.5 x 21.5
Adjustable Legs
1 Year Parts & Labor
ADJUSTABLE LEGS
Additional legs 2 1/4 inches in height
are included. To be used when placing
dryer next to the washer to obtain
equal height.
Equator Advanced Appliances • 10216 Georgibelle Drive ,Suite 900D • Houston, TX 77043-5249
Toll Free: 800-935-1955 • Fax: 832-202-2732 • www.EquatorAppliances.com • E-Mail: [email protected]
Updated: 09-16-2016
Document#:SSEQ0916DR0024
