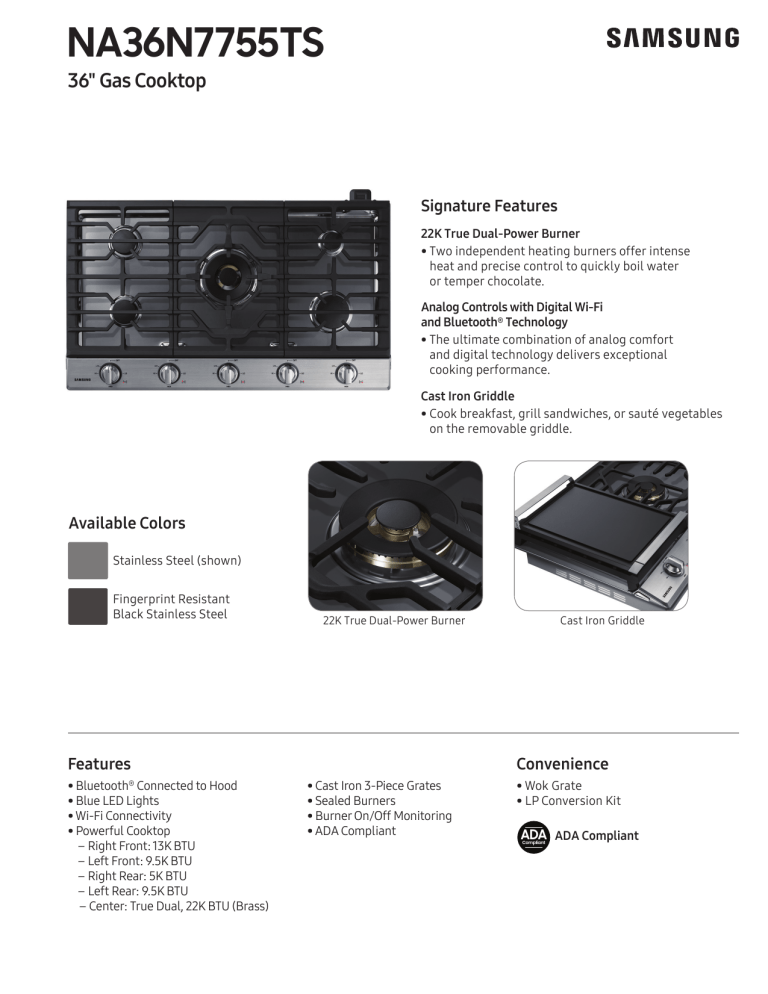

NA36N7755TS
36" Gas Cooktop
Signature Features
22K True Dual-Power Burner
• Two independent heating burners offer intense
heat and precise control to quickly boil water
or temper chocolate.
Analog Controls with Digital Wi-Fi
and Bluetooth® Technology
• The ultimate combination of analog comfort
and digital technology delivers exceptional
cooking performance.
Cast Iron Griddle
• Cook breakfast, grill sandwiches, or sauté vegetables
on the removable griddle.
Available Colors
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
22K True Dual-Power Burner
Features
• Bluetooth Connected to Hood
• Blue LED Lights
• Wi-Fi Connectivity
• Powerful Cooktop
– Right Front: 13K BTU
– Left Front: 9.5K BTU
– Right Rear: 5K BTU
– Left Rear: 9.5K BTU
– Center: True Dual, 22K BTU (Brass)
®
Cast Iron Griddle
Convenience
• Cast Iron 3-Piece Grates
• Sealed Burners
• Burner On/Off Monitoring
• ADA Compliant
• Wok Grate
• LP Conversion Kit
ADA ADA Compliant
Compliant
NA36N7755TS
36" Gas Cooktop
Installation Requirements
Total Power (BTU)
59K
Countertop cut-out and minimum clearance dimensions:
Power Source
13" Max.
18" Min.
Rear wall
Vertical
combustible
surface
All horizontal clearances must
be maintained f or a minimum
of 18" above the cooking surface.
120V / 60 Hz / 1A
Allow 7/16" minimum vertical
clearance f rom the cooktop
inimum depth
bottom (or 3⁹/16") m
from the countertop) t o any
combustible surfaces, including the upper edge of a drawer
installed b
elow the cooktop.
• Right Front: 13K
• Left Front: 9.5K
• Right Rear: 5K Simmer
• Left Rear: 9.5K
• Center: 22K (True Dual)
Gas Cooktop (BTU)
30" Min.
Warranty
One (1) Year All Parts and Labor
12" Min.
3³/"
Min.
33⁷/"
Min.
19¹/"
Min.
Product Dimensions & Weight (WxHxD)
Outside (Max) Cooktop Dimensions:
36" x 5 41/72" x 22 1/3"
12" Min.
Minimum distance to combustible
side wall above countertop (both sides)
Cooktop Cut-Out Dimensions:
33 7/8" x 3 1/8" x 19 1/8"
/16"
7
Weight: 87.7 5"lbs.
(88.4
lbs. Fingerprint Resistant
to Center
of 2" Dia.
Hole from countertop
Black Stainless Steel)
3 9 /16 "
5" to Center of 2" Dia.
Hole from countertop
DRAWER
90° Elbow
Shipping Dimensions & Weight (WxHxD)
Dimensions: 40 2"9/Dia.
x 10 5/8" x 25 5/8"
16"Hole
20 / " from front
Weight: 95.9 lbs.
(97.2tolbs. Fingerprint Resistant
of countertop
hole center
Black
Stainless
Steel)
Cabinet Sides
7
90° Elbow
Electrical outlet 12" minimum
below countertop
mum
Cabinet Sides
2" Dia. Hole
20 7/8" from front
of countertop to
hole center
View from Front of Cooktop
Installing Over a Single Oven
Color
View from Front of Cooktop
Model #
887276281766
887276281759
Cooktop Dimensions
* This cooktop can be installed
above any Samsung single
built-in oven. Refer to
installation manual of oven.
9 1/2" Max.
33/4"
Min.
22" Min.
28 1/2" - 28 5/8"
** Gas and electrical connections
for gas cooktop must be located
in an adjacent accessible location
to the right.
36"
Countertop to
grate surface
2 4/9"
3 1 /8 "
21"
Chassis height
186/7"
33 2/3"
1" 11/4"
UPC Code
Stainless Steel
NA36N7755TS
Fingerprint Resistant
Black Stainless Steel NA36N7755TG
**
*
27 1/4"27 1/3"
8
22 1/3"
24"
4"
Rear Wall
Vertical
combustible
surface
12"
Min.
33 /8"
7
3 3 /8 "
Min.
Min.
19 E1/8"
Min.
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2018 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
