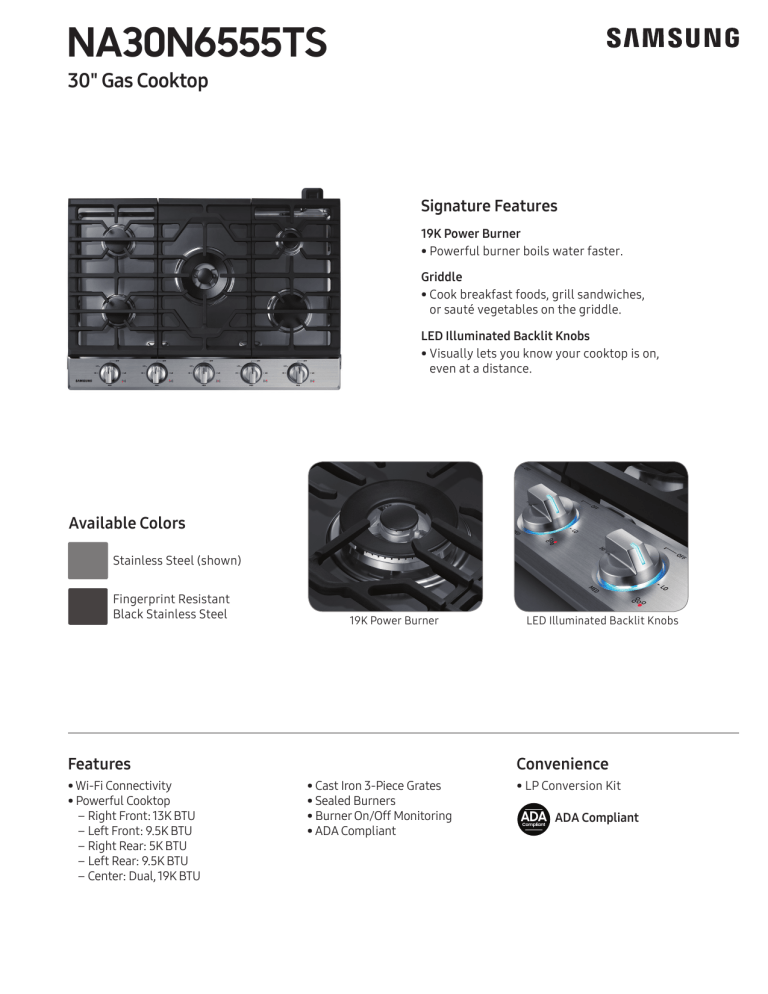

NA30N6555TS
30" Gas Cooktop
Signature Features
19K Power Burner
• Powerful burner boils water faster.
Griddle
• Cook breakfast foods, grill sandwiches,
or sauté vegetables on the griddle.
LED Illuminated Backlit Knobs
• Visually lets you know your cooktop is on,
even at a distance.
Available Colors
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
19K Power Burner
Features
• Wi-Fi Connectivity
• Powerful Cooktop
– Right Front: 13K BTU
– Left Front: 9.5K BTU
– Right Rear: 5K BTU
– Left Rear: 9.5K BTU
– Center: Dual, 19K BTU
LED Illuminated Backlit Knobs
Convenience
• Cast Iron 3-Piece Grates
• Sealed Burners
• Burner On/Off Monitoring
• ADA Compliant
• LP Conversion Kit
ADA ADA Compliant
Compliant
NA30N6555TS
30" Gas Cooktop
Installation Requirements
Total Power (BTU)
56K
Countertop cut-out and minimum clearance dimensions:
Power Source
13" Max.
18" Min.
Rear wall
Vertical
combustible
surface
All horizontal clearances must
be maintained f or a minimum
of 18" above the cooking surface.
120V / 60 Hz / 1A
Allow 7/16" minimum vertical
clearance f rom the cooktop
inimum depth
bottom (or 3⁹/16") m
from the countertop) t o any
combustible surfaces, including the upper edge of a drawer
installed b
elow the cooktop.
• Right Front: 13K
• Left Front: 9.5K
• Right Rear: 5K Simmer
• Left Rear: 9.5K
• Center: 19K (Dual)
Gas Cooktop (BTU)
30" Min.
Warranty
One (1) Year All Parts and Labor
12" Min.
2⁷/"
Min.
28¹/"
Min.
19⁵/"
Min.
Product Dimensions & Weight (WxHxD)
Outside (Max) Cooktop Dimensions:
30" x 5 41/72" x 22 1/3"
12" Min.
Minimum distance to combustible
side wall above countertop (both sides)
Cooktop Cut-Out Dimensions:
28 1/2" x 3 1/8" x 19 5/8"
/16"
7
Weight: 64.8 5"lbs.
(66.4
lbs. Fingerprint Resistant
to Center
of 2" Dia.
Hole from countertop
Black Stainless Steel)
3 9 /16 "
5" to Center of 2" Dia.
Hole from countertop
DRAWER
90° Elbow
Shipping Dimensions & Weight (WxHxD)
Dimensions: 34 112"/Dia.
x 10 5/8" x 25 5/8"
16"Hole
20 7/8" from front
90° Elbow
Electrical outlet 12" minimum
below countertop
mum
Cabinet Sides
2" Dia. Hole
20 7/8" from front
of countertop to
hole center
View from Front of Cooktop
Installing Over a Single Oven
Color
Model #
View from Front of Cooktop
Cooktop Dimensions
* This cooktop can be installed
above any Samsung single
built-in oven. Refer to
installation manual of oven.
9 1/2" Max.
33/4"
Min.
22" Min.
28 1/2" - 28 5/8"
** Gas and electrical connections
for gas cooktop must be located
in an adjacent accessible location
to the right.
30"
Countertop to
grate surface
2 4 /9 "
3 1 /8 "
21"
Chassis height
19 3/8"
28 1/7"
1" 11/4"
UPC Code
Stainless Steel
NA30N6555TS 887276281681
Fingerprint Resistant
Black Stainless Steel NA30N6555TG 887276281674
**
*
27 1/4"27 1/3"
of countertop
Weight: 73.0 lbs.
(74.3tolbs. Fingerprint Resistant
hole center
Cabinet Sides
Black Stainless Steel)
221/3"
24"
4"
Rear Wall
Vertical
combustible
surface
12"
Min.
28 /2"
1
2 /8 "
7
Min.
Min.
19 E5/8"
Min.
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
