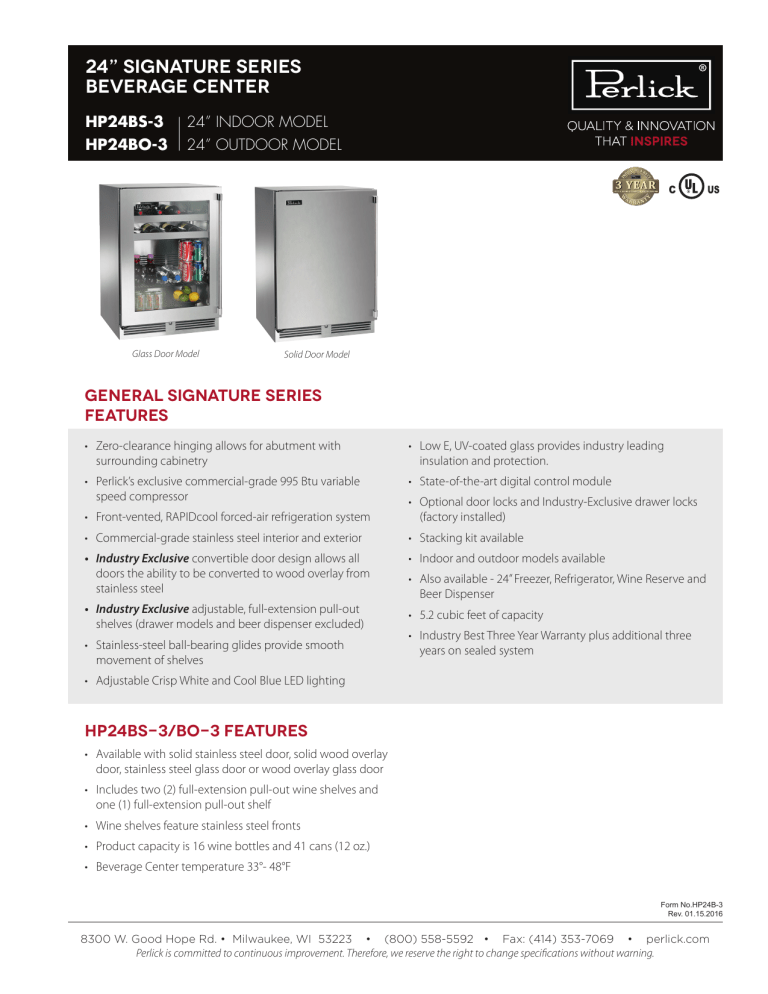

Perlick HP24BS-3-3RC, HP24BS-3-1RC Specification

Perlick HP24BS-3-3RC, HP24BS-3-1RC Specification
24” signature series
BEVERAGE CENTER
HP24BS-3
HP24BO-3
24” INDOOR MODEL
24” OUTDOOR MODEL
C
Glass Door Model
US
Solid Door Model
general signature series
features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Low E, UV-coated glass provides industry leading
insulation and protection.
• Perlick’s exclusive commercial-grade 995 Btu variable
speed compressor
• State-of-the-art digital control module
• Front-vented, RAPIDcool forced-air refrigeration system
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Commercial-grade stainless steel interior and exterior
• Stacking kit available
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Indoor and outdoor models available
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models and beer dispenser excluded)
• 5.2 cubic feet of capacity
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Also available - 24” Freezer, Refrigerator, Wine Reserve and
Beer Dispenser
• Industry Best Three Year Warranty plus additional three
years on sealed system
• Adjustable Crisp White and Cool Blue LED lighting
HP24BS-3/BO-3 features
• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door or wood overlay glass door
• Includes two (2) full-extension pull-out wine shelves and
one (1) full-extension pull-out shelf
• Wine shelves feature stainless steel fronts
• Product capacity is 16 wine bottles and 41 cans (12 oz.)
• Beverage Center temperature 33°- 48°F
Form No.HP24B-3
Rev. 01.15.2016
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
product specifications
indoor models
Overall Width
23-7/8” (60.64 cm.)
HP24BS-3-1L*
Solid stainless steel door, hinge left
Overall Height
34-1/4” (86.96 cm.)
HP24BS-3-2L*
Solid wood overlay door, hinge left
Overall Depth
24” (60.96 cm.)
HP24BS-3-3L*
Stainless steel glass door, hinge left
Opening Width
24” (60.96 cm.)
HP24BS-3-4L*
Wood overlay glass door, hinge left
Opening Height
34-3/8” (87.31 cm.)
Opening Depth
24” (60.96 cm.)
Refrigerated Volume
5.2 cu. ft.
HP24BO-3-1L*
Solid stainless steel door, hinge left
Door Swing Clearance
25” (63.5 cm.) minimum
HP24BO-3-2L*
Solid wood overlay door, hinge left
Electrical
115V, 60Hz., 1 Phase, 2.3 amps
HP24BO-3-3L*
Stainless steel glass door, hinge left
Plumbing
None Required
HP24BO-3-4L*
Wood overlay glass door, hinge left
Annual Energy Usage
275 kWh/yr (solid door)
290 kWh/yr (glass door)
Shipping Weight
203 lbs (92.08 kg.)
outdoor models
* Also available hinge right
Form No.HP24B-3
Rev. 01.15.2016
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
