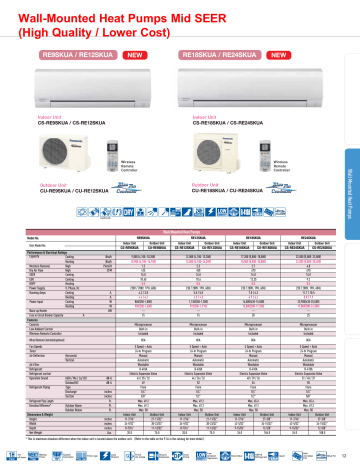

Wall-Mounted Heat Pumps Mid SEER
(High Quality / Lower Cost)
RE9SKUA / RE12SKUA
RE18SKUA / RE24SKUA
NEW
Indoor Unit
CS-RE9SKUA / CS-RE12SKUA
NEW
Indoor Unit
CS-RE18SKUA / CS-RE24SKUA
Wireless
Remote
Controller
Wall Mounted Heat Pumps
Wireless
Remote
Controller
Outdoor Unit
CU-RE18SKUA / CU-RE24SKUA
Outdoor Unit
CU-RE9SKUA / CU-RE12SKUA
(optional)
Wall Mounted Heat Pumps
RE9SKUA
Model No.
Indoor Unit
CS-RE9SKUA
Unit Model No.
Performance & Electrical Ratings
Capacity
Cooling
Heating
Moisture Removal
High
Dry Air Flow
High
SEER
Cooling
EER
Cooling
HSPF
Heating
Power Supply
V, Phase, Hz
Cooling
Running Amps
Heating
Cooling
Power Input
Heating
Back-up Heater
Fuse or Circuit Breaker Capacity
Features
Controls
Low Ambient Control
Wireless Remorte Controller
Btu/h
Btu/h
Pints/H
CFM
A
A
W
W
kW
A
Wired Remote Controller(optional)
Fan Speeds
Timer
Air Deflection
Air Filter
Refrigerant
Refrigerant control
Operation Sound
Refrigerant Piping
Refrigerant Pipe Length
Elevation Difference*
Horizontal
Vertical
In(Hi / Me / Lo/ Qt)
Outdoor(Hi)
Type
Discharge
Suction
Outdoor Above
Outdoor Below
Dimensions & Weight
Height
Width
Depth
Net Weight
dB-A
dB-A
inches
inches
Ft.
Ft.
Ft.
inches
inches
inches
Lbs.
RE12SKUA
Outdoor Unit
CU-RE9SKUA
Indoor Unit
CS-RE12SKUA
RE18SKUA
Outdoor Unit
CU-RE12SKUA
Indoor Unit
CS-RE18SKUA
RE24SKUA
Outdoor Unit
CU-RE18SKUA
Indoor Unit
CS-RE24SKUA
Outdoor Unit
CU-RE24SKUA
9,000 (4,100~10,200)
10,900 (4,100~14,100)
1.3
425
16.0
10.45
8.5
230V / 208V, 1PH, 60Hz
4.2 / 3.8
4.6 / 4.2
860(250-1,000)
950(200-1,500)
--15
12,000 (4,100~13,300)
12,000 (4,100~16,300)
2.3
450
16.0
10.6
8.5
230 / 208V, 1PH, 60Hz
5.5 / 5.0
4.5 / 4.0
1,130(250-1,300)
910(200-1,710)
--15
17,200 (5,800~18,000)
18,000 (5,800~20,800)
2.7
670
16.0
12.25
8.5
230 / 208V, 1PH, 60Hz
7.0 / 6.3
6.9 / 6.2
14,000(430-15,500)
13,800(380-17,500)
--20
22,000 (5,800~23,000)
22,000 (5,800~25,400)
6.8
670
16.0
9.2
8.5
230 / 208V, 1PH, 60Hz
11.7 / 10.5
8.8 / 7.9
23,900(430-25,500)
17,800(380-24,500)
--25
Microprocessor
Built-in
Included
Microprocessor
Built-in
Included
Microprocessor
Built-in
Included
Microprocessor
Built-in
Included
N/A
N/A
N/A
N/A
5 Speed + Auto
24-hr Program
Manual
Automatic
Washable
R-410A
Electric Expansion Valve
43 / 35 / 32
49
Flare
1/4”
3/8”
Max. 49.2
Max. 49.2
Max. 50
Indoor Unit
Outdoor Unit
11-7/16”
21-11/32”
34-9/32”
30-23/32”
8-7/16”
11-13/32”
20.0
75.0
5 Speed + Auto
24-hr Program
Manual
Automatic
Washable
R-410A
Electric Expansion Valve
44 / 36 / 32
52
Flare
1/4”
1/2”
Max. 49.2
Max. 49.2
Max. 50
Indoor Unit
Outdoor Unit
11-7/16”
21-11/32”
34-9/32”
30-23/32”
8-7/16”
11-13/32”
20.0
75.0
5 Speed + Auto
24-hr Program
Manual
Automatic
Washable
R-410A
Electric Expansion Valve
48 / 39 / 36
54
Flare
1/4”
1/2”
Max. 65.6
Max. 49.2
Max. 50
Indoor Unit
Outdoor Unit
11-7/16”
27-3/8”
42-5/32”
34-15/32”
9-15/32”
12-5/8”
26.0
106.0
5 Speed + Auto
24-hr Program
Manual
Automatic
Washable
R-410A
Electric Expansion Valve
51 / 40 / 37
55
Flare
1/4”
5/8”
Max. 65.6
Max. 49.2
Max. 50
Indoor Unit
Outdoor Unit
11-7/16”
27-3/8”
42-5/32”
34-15/32”
9-15/32”
12-5/8”
26.0
108.0
* This is maximum elevation difference when the indoor unit is located above the outdoor unit. (Refer to the table on the P.34 in the catalog for more detail.)
1hr
off timer
Weekly
Timer
System
Controller
Filter sign
Auto
Restart
Fresh
Air intake
Branch
Extension
Drain
Pump
Low
Ambient
Operation
Elect.Valve
ODP=0
Refrigerant
Quiet
Antimicrobial
Filt.
Blue Fin
12
