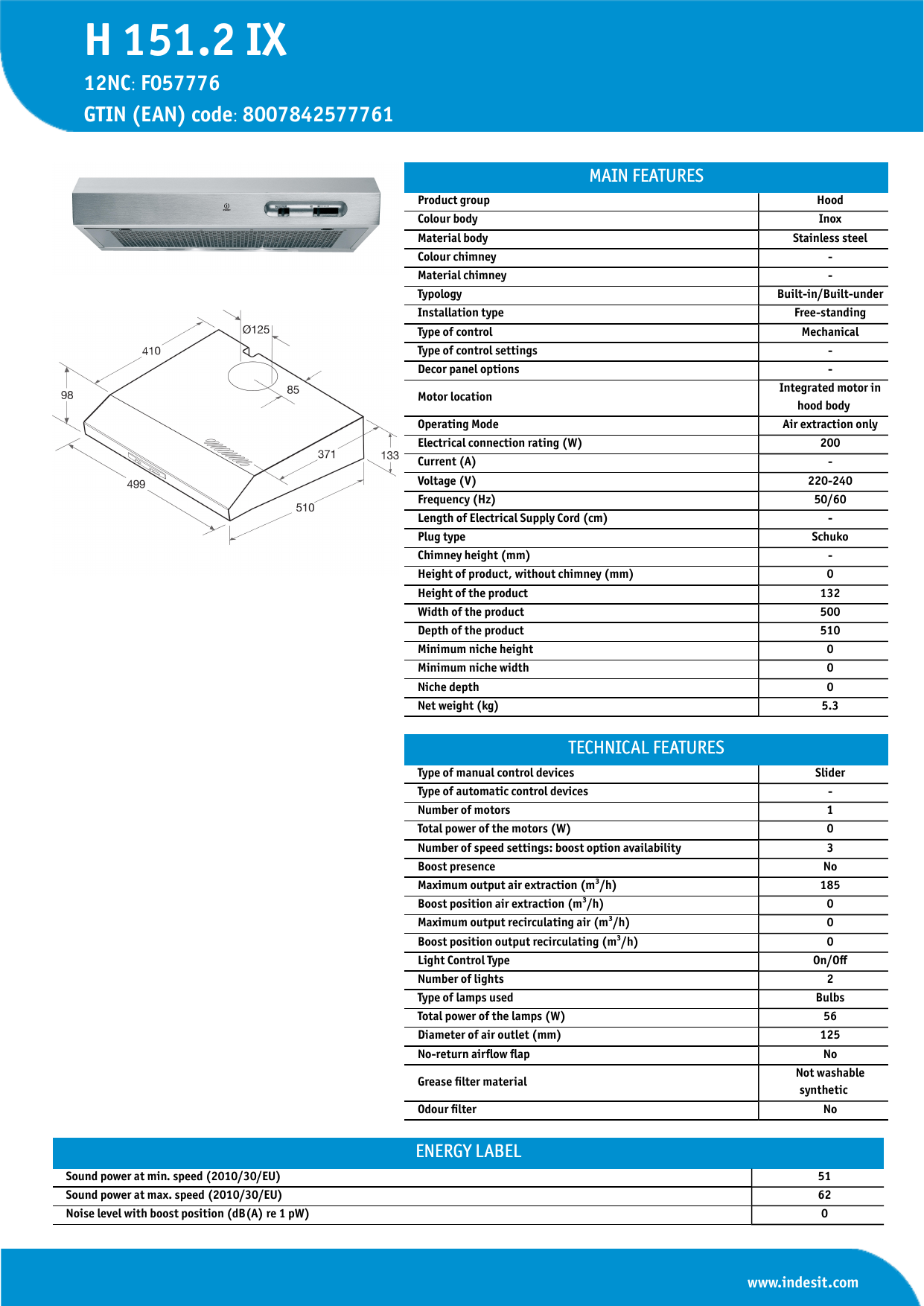

Indesit H 151.2 IX Hood Product Data Sheet

H 151.2 IX
12NC: F057776
GTIN (EAN) code: 8007842577761
MAIN FEA
FEATURES
TURES
Product group
Hood
Colour body
Inox
Material body
Stainless steel
Colour chimney
-
Material chimney
-
Typology
Built-in/Built-under
Installation type
Free-standing
Type of control
Mechanical
Type of control settings
-
Decor panel options
-
Motor location
Integrated motor in
hood body
Operating Mode
Air extraction only
Electrical connection rating (W)
200
Current (A)
-
Voltage (V)
220-240
Frequency (Hz)
50/60
Length of Electrical Supply Cord (cm)
Plug type
Schuko
Chimney height (mm)
-
Height of product, without chimney (mm)
0
Height of the product
132
Width of the product
500
Depth of the product
510
Minimum niche height
0
Minimum niche width
0
Niche depth
0
Net weight (kg)
5.3
TECHNIC
TECHNICAL
AL FEA
FEATURES
TURES
Type of manual control devices
Slider
Type of automatic control devices
-
Number of motors
1
Total power of the motors (W)
0
Number of speed settings: boost option availability
3
Boost presence
No
Maximum output air extraction (m³/h)
185
Boost position air extraction (m³/h)
0
Maximum output recirculating air (m³/h)
0
Boost position output recirculating (m³/h)
Light Control Type
Number of lights
Type of lamps used
0
On/Off
2
Bulbs
Total power of the lamps (W)
56
Diameter of air outlet (mm)
125
No-return airflow flap
No
Grease filter material
Not washable
synthetic
Odour filter
No
ENERG
ENERGYY LLABEL
ABEL
Sound power at min. speed (2010/30/EU)
51
Sound power at max. speed (2010/30/EU)
62
Noise level with boost position (dB(A) re 1 pW)
0
www.indesit.com

×
