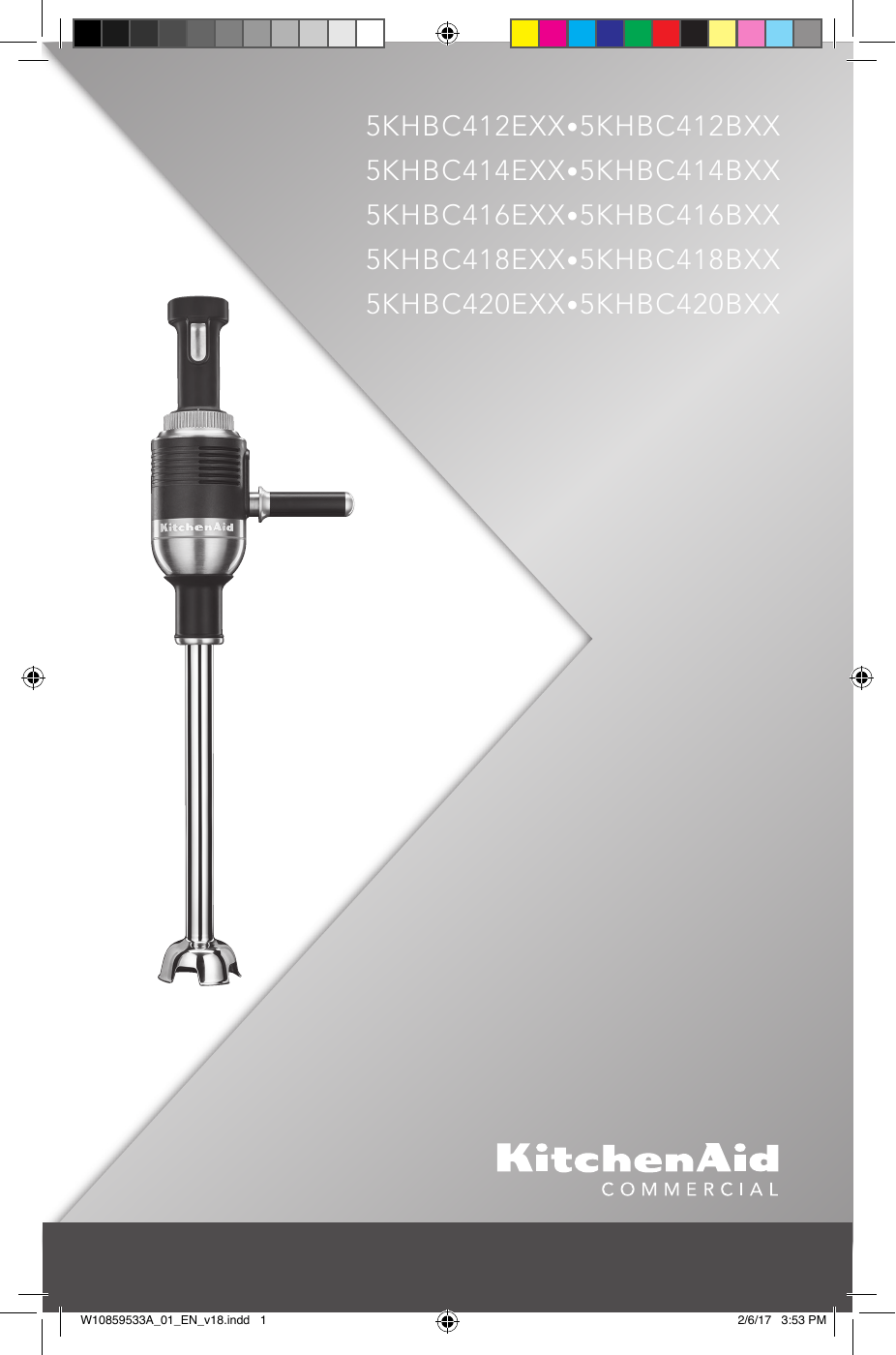

KitchenAid 5KHBC414BOB Use and care guide

5KHBC412EXX • 5KHBC412BXX
5KHBC414EXX • 5KHBC414BXX
5KHBC416EXX • 5KHBC416BXX
5KHBC418EXX • 5KHBC418BXX
5KHBC420EXX • 5KHBC420BXX
W10859533A_01_EN_v18.indd 1
2/6/17 3:53 PM
COMMERCIAL IMMERSION BLENDER INSTRUCTIONS
English
TABLE OF CONTENTS
COMMERCIAL IMMERSION BLENDER SAFETY
Important safeguards�����������������������������������������������������������������������������������6
Electrical requirements�������������������������������������������������������������������������������8
Electrical equipment waste disposal������������������������������������������������������������8
Electrical data for Immersion Blender and attachments������������������������������9
PARTS AND FEATURES GUIDE
Commercial Immersion Blender parts������������������������������������������������������10
Optional accessories����������������������������������������������������������������������������������11
Commercial Immersion Blender features�������������������������������������������������12
OPERATING THE COMMERCIAL IMMERSION BLENDER
Before first use������������������������������������������������������������������������������������������13
Intended use����������������������������������������������������������������������������������������������13
Using the Commercial Immersion Blender
with blade attachments�����������������������������������������������������������������������������14
Using the Commercial Immersion Blender
with the whisk attachment.........................................................................16
Using the bowl clamp and the continuous run feature...............................18
TIPS FOR GREAT RESULTS������������������������������������������������������������������������18
CARE AND CLEANING
Washing the motor body���������������������������������������������������������������������������19
Washing the attachments���������������������������������������������������������������������������19
TROUBLESHOOTING����������������������������������������������������������������������������������20
TECHNICAL SPECIFICATIONS������������������������������������������������������������������21
WARRANTY AND SERVICE������������������������������������������������������������������������23
PROOF OF PURCHASE & PRODUCT REGISTRATION
Always keep a copy of the sales receipt showing the date of purchase of your
Commercial Immersion Blender. Proof of purchase will assure you of in-warranty
service. Before you use your Commercial Immersion Blender, please fill out and mail
your product registration card packed with the unit. This card will enable us to contact
you in the unlikely event of a product safety notification and assist us in complying with
the provisions of the Consumer Product Safety Act. This card does not verify your
warranty. Please complete the following for your personal records:
Model Number�������������������������������������������������������������������
Serial Number�������������������������������������������������������������������
Date Purchased������������������������������������������������������������������
Store Name���������������������������������������������������������������������
5
W10859533A_01_EN_v18.indd 5
2/6/17 3:53 PM
COMMERCIAL
CMD + SHIFT IMMERSION
CLICK TO CHANGE
BLENDER
COPY
SAFETY
C
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance may
result in personal injury.
2. To protect against risk of electrical shock do
not put motor body, cord, or electrical plug
of this Commercial Immersion Blender in
water or other liquid.
3. This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
4. Unplug from outlet when not in use, before
putting on or taking off parts, and before
cleaning or replacing carbon brushes.
5. Avoid contact with moving parts.
6
W10859533A_01_EN_v18.indd 6
2/6/17 3:53 PM
COMMERCIAL IMMERSION BLENDER SAFETY
English
6. Do not operate any appliance with a damaged
cord or plug or after the appliance malfunctions,
or is dropped or damaged in any manner. Return
appliance to the nearest Authorised Service Centre
for examination, repair or electrical or mechanical
adjustment.
7. The use of attachments not recommended or sold
by the manufacturer may cause fire, electric shock,
or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surfaces, including
the stove.
11. When mixing liquids, especially hot liquids, use
a tall container or make small quantities at a time
to reduce spillage and possibility of injury.
12. Keep hands and utensils out of the container while
blending to prevent the possibility of severe injury
to persons or damage to the unit. A scraper may
be used, but must be used only when the unit is
not running.
13. Blades are sharp. Handle carefully.
SAVE THESE INSTRUCTIONS
FOR COMMERCIAL USE ONLY
7
W10859533A_01_EN_v18.indd 7
2/6/17 3:53 PM
CMD + SHIFT CLICK
COMMERCIAL
IMMERSION
TO CHANGE
BLENDER
COPY
SAFETY
C
Electrical Requirements
Voltage: 220-240 V
Frequency: 50-60 Hz
Wattage: 750 W
To reduce the risk of electrical shock, this
plug will fit in an outlet only one way. If it
does not fit, contact a qualified electrician.
Do not modify the plug in any way.
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
If a long extension cord is used:
• The marked electrical rating of the
extension cord should be at least as great
as the electrical rating of the appliance.
• The cord should be arranged so it will
not drape over the countertop or
tabletop where it can be pulled or
tripped over unintentionally.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
Electrical equipment waste disposal
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol
.
The various parts of the packing must
therefore be disposed of responsibly
and in full compliance with local authority
regulations governing waste disposal.
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
- The symbol
on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
Scrapping the product
collection centre for the recycling of
- This appliance is marked in compliance
electrical and electronic equipment.
with European Directive 2012/19/EU, Waste
Electrical and Electronic Equipment (WEEE). For more detailed information about
treatment, recovery, and recycling of this
- By ensuring this product is disposed of
product, please contact your local city office,
correctly, you will help prevent potential
your household waste disposal service, or
negative consequences for the environment
the shop where you purchased the product.
8
W10859533A_01_EN_v18.indd 8
2/6/17 3:53 PM
COMMERCIAL IMMERSION BLENDER SAFETY
Models
Immersion Blender
Whisk
Blending Arm
5KHBC412
5KHBC414
5KHBC418
5KHBC416
5KHBC420
KHBC110
5KHBC112
5KHBC114
5KHBC116
5KHBC118
5KHBC120
Volts/Hertz
English
Electrical Data for Immersion Blender and Attachments
220-240 V / 50-60 Hz
Speed-lowest
9,000 rpm
550 rpm
9,000 rpm
Speed-highest
18,000 rpm
900 rpm
18,000 rpm
Motor horsepower for our Commercial Immersion Blender motors was measured using
a dynamometer, a machine laboratories routinely use to measure the mechanical power
of motors. Our 1.0 horsepower (HP) motor reference reflects the horsepower rating
of the motor itself and not the Commercial Immersion Blender’s horsepower output
to the blending vessel. The output horsepower to the blending vessel will be slightly
less than 1.0 HP.
Unit comes with serviceable motor brushes. Caps are visible on the sides of the unit
allowing for access to these brushes. All service should be completed by a qualified service
technician and follow the KitchenAid Commercial Hand Blender Service / Repair Manual.
9
W10859533A_01_EN_v18.indd 9
2/6/17 3:53 PM
PARTS
CMD +AND
SHIFT
FEATURES
CLICK TOGUIDE
CHANGE COPY
P
Commercial Immersion Blender parts
Lock button
Power/pulse trigger
Speed control dial
Bowl clamp
365 cm power cord
Motor body
Continuous run
button
Mounting knob
Serviceable motor
brushes
Mount for bowl clamp,
hub cap, and secondary handle
Bowl clamp
Stainless steel
blending arm
(5KHBC120 shown)
Secondary handle
Whisk attachment*
*Accessory sold separately.
Hub cap
MODEL COMPARISON
5KHBC412 (305 mm)
5KHBC414 (356 mm)
5KHBC416 (406 mm)
5KHBC418 (457 mm)
10
Storage case
5KHBC420 (508 mm)
W10859533A_01_EN_v18.indd 10
2/6/17 3:53 PM
PARTS AND FEATURES GUIDE
Optional accessories
Model #
Whisk
attachment*
*Accessory sold
separately
5KHBC110WSS
254 mm
Multipurpose
S-blade
5KHBC112MSS
305 mm
5KHBC114MSS
356 mm
5KHBC116MSS
5KHBC118MSS
5KHBC120MSS
or
Recommended
bowl size
5KHBC412OB
5KHBC414OB
5KHBC416OB
5KHBC418OB
5KHBC420OB
Style
Length
(5KHB112SS shown)
English
Accessory
406 mm
457 mm
508 mm
22.7 litres bowl (maximum)
53.0 litres bowl (maximum)
87.1 litres bowl (maximum)
121.1 litres bowl (maximum)
151.4 litres bowl (maximum)
11
W10859533A_01_EN_v18.indd 11
2/6/17 3:53 PM
PARTS
CMD +AND
SHIFT
FEATURES
CLICK TOGUIDE
CHANGE COPY
C
O
Commercial Immersion Blender features
Speed control dial
Provides easy adjustment of speed with
a turn of the dial, located at the base
of the motor body.
Powerful 1HP motor
Provides powerful blending action
designed for long-life operation.
Power/pulse trigger
Located on the handle and activated
by pressing and holding during blending.
To stop blending, simply release the
Power/pulse trigger.
Lock switch
Press to unlock in order for Power/pulse
trigger to function; press to lock when
Commercial Immersion Blender is not in use.
Serviceable motor brushes
Feature allows easy access to motor
brushes, allowing for maintenance when
worn, and a longer product life for the
Commercial Immersion Blender.
Bowl clamp
Mounts conveniently to the motor housing,
allowing for hands-free operation.
Continuous run
When used with the bowl clamp, this
feature allows for continuous operation.
Twist lock stainless steel blending arm
Simply seats onto the motor body and
is rotated to lock together.
Secondary handle
Mounts conveniently to the motor housing,
allowing for better control while blending.
Hub cap
Mounts conveniently to the motor housing
as protection when the bowl clamp and
secondary handle are not in place.
365 cm power cord
Long enough to take the Commercial
Immersion Blender to the cooktop
or work area and rounded with no
grooves for easy cleanup.
Storage case
Durable case for optimal storage of
the Commercial Immersion Blender.
12
W10859533A_01_EN_v18.indd 12
2/6/17 3:53 PM
CMD + SHIFTTHE
OPERATING
CLICK
COMMERCIAL
TO CHANGE
IMMERSION
COPY
BLENDER
Before first use
IMPORTANT: Do not immerse the
motor body in water.
Wash all the attachments and accessories
by hand or in the dishwasher. Mild dish
soap may be used, but do not use abrasive
cleansers. Dry thoroughly with a soft cloth.
English
Before using the KitchenAid Commercial
Immersion Blender for the first time, wipe
the motor body with a clean, damp cloth
to remove any dirt or dust.
IMPORTANT: Always be sure to
unplug the power cord from the wall
socket before attaching or removing
attachments.
Intended use
This KitchenAid Commercial Immersion Blender is intended for use in restaurants,
professional kitchens, and other food service locations. The Commercial Immersion
Blender can be used directly in a pot or bowl to mix a variety of ingredients.
Accessory
Uses
Whisk
attachment*
Pancake batter, Mayonnaise, Egg whites,
Pudding, Whipped cream
*Accessory sold
separately
Multipurpose
S-blade
Soups, Vegetable purées, Mousses, Compotes, Sauces,
Bisques, Cooked meats, Beef gravy, Liquefy fruits, Minces
13
W10859533A_01_EN_v18.indd 13
2/6/17 3:53 PM
OPERATING
CMD + SHIFT
THE
CLICK
COMMERCIAL
TO CHANGE
IMMERSION
COPY
BLENDER
Using the Commercial Immersion Blender with blade attachment
1. Insert blending arm attachment into
the motor body, twist to lock. The
attachment mark on the blending arm
should line up with the bottom of the
motor bell when fully attached.
3. Set Commercial Immersion Blender
to your desired speed on the speed
control dial.
4. Insert the Commercial Immersion
Blender into the mixture.
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
2. Plug the power cord into an earthed
outlet.
NOTE: The Commercial Immersion
Blender should only be immersed in
liquids to the max fill line shown on
blending arm. To avoid damage to the
Commercial Immersion Blender, do
not submerge beyond the seam of the
blending attachment. Do not immerse the
motor body into liquids or other mixtures.
To avoid damaging blades or mixing
container, do not touch the blade to the
bottom of the mixing container or use in a
mixing container that has protruding parts
that can go under the metal guard.
14
W10859533A_01_EN_v18.indd 14
2/6/17 3:53 PM
O
OPERATING THE COMMERCIAL IMMERSION BLENDER
5. Press the LOCK switch to unlock the
Commercial Immersion Blender, then
press and hold the Power/pulse trigger
to activate.
Lock
Using a light circular motion from your
wrist, draw the Commercial Immersion
Blender up slightly and let it fall again
into the ingredients. Allow your wrist
motion and the weight of the Commercial
Immersion Blender to do the work. Use
the removable secondary handle, if
needed, for extra stability while mixing.
English
R
Power/
pulse trigger
For best results, insert Commercial
Immersion Blender with blending arm
attached into the pot or bowl containing
ingredients at an angle. Use the removable
secondary handle for better stability. Stop
the Commercial Immersion Blender before
removing it from the pot or bowl
to avoid splashing.
Blending
Drawing up
Rest the Commercial Immersion Blender on
the bottom of the pot or bowl momentarily,
then hold at an angle and slowly draw it
upwards against the side of the pot or bowl.
As the Commercial Immersion Blender is
drawn up you will notice the ingredients
from the bottom of the pot or bowl being
drawn up. When the ingredients are no
longer being drawn up from the bottom,
return the Commercial Immersion Blender
to the bottom, and repeat the process until
the ingredients are the desired consistency.
6. When blending is complete, release
the Power/pulse trigger before removing
the Commercial Immersion Blender
from the mixture.
7. Unplug immediately after use, before
removing or changing attachments.
IMPORTANT: If a piece of food becomes
lodged in the guard surrounding the blade,
follow these instructions:
1. Release the Power/pulse trigger and
unplug the Commercial Immersion
Blender.
2. Use a spatula to remove the food
lodged in the plastic guard. Do not use
your fingers to remove lodged food.
3. Plug the Commercial Immersion
Blender back into the electrical outlet
and resume operation.
15
W10859533A_01_EN_v18.indd 15
2/6/17 3:53 PM
OPERATING
CMD + SHIFT
THE
CLICK
COMMERCIAL
TO CHANGE
IMMERSION
COPY
BLENDER
Using the Commercial Immersion Blender with the whisk attachment
1. Insert the whisk attachment into the
motor body and twist to lock. The
attachment mark on the whisk should
line up with the bottom of the motor
bell when fully attached.
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
2. Plug the power cord into an earthed
outlet.
3. Set Commercial Immersion Blender to
your desired speed on the speed dial.
16
W10859533A_01_EN_v18.indd 16
2/6/17 3:53 PM
O
OPERATING THE COMMERCIAL IMMERSION BLENDER
4. Insert the whisk into the mixture.
For best results, insert the Commercial
Immersion Blender with the whisk attached
into the pot or bowl containing ingredients
at an angle. Use your free hand to hold
the pot or bowl or hold the Commercial
Immersion Blender near the base of the
motor unit for better stability. Remember
to stop the Commercial Immersion Blender
before removing it from the pot or bowl
to avoid splashing.
Blending
English
R
Wrist
movement
NOTE: The Commercial Immersion
Blender should only be immersed in
liquids the length of the attachment.
To avoid damage to the blender, do
not submerge beyond the seam of the
blending attachment. Do not immerse
the motor body into liquids or
other mixtures.
5. Press the LOCK switch to unlock the
Commercial Immersion Blender, then
press and hold the POWER/PULSE
trigger to activate.
Lock
Power/
Pulse Trigger
Using a light circular motion from your
wrist, draw the whisk up slightly and let
it fall again into the ingredients. Allow your
wrist motion and the weight of the whisk
to do the work. Use the removable
secondary handle, if needed, for extra
stability while mixing.
6. When blending is complete, release
the Power/pulse trigger before removing
the Commercial Immersion Blender
from the mixture.
7. Unplug immediately after use, before
removing or changing attachments.
17
W10859533A_01_EN_v18.indd 17
2/6/17 3:53 PM
OPERATING
CMD + SHIFT
THE
CLICK
COMMERCIAL
TO CHANGE
IMMERSION
COPY
BLENDER
Using the bowl clamp and the continuous run feature
IMPORTANT: Continuous run feature
maximum recommended mixing times:
30 minutes — Low Speed
10 minutes — High Speed
1. Slide the notched latch into the bowl
clamp at the slot in the top of the
clamp; then, use the adjustment wheel
to tighten into place at the correct spot
for the bowl you are using to mix.
2. Slide the bowl clamp over the edge
of the bowl you are using for mixing,
allowing the white notch on the clamp
to snap onto the bowl; then, turn the
knob to tighten in place.
3. Snap the Commercial Immersion
Blender into the slot at the bottom of
the bowl clamp support arm, so that
the Commercial Immersion Blender is
inserted in the mixture you are blending.
4. Press the LOCK switch to unlock the
Commercial Immersion Blender, then
press the POWER/PULSE trigger and the
continuous run button simultaneously,
and then release the Power/Pulse trigger
to activate the continuous run feature.
The Commercial Immersion Blender
will run hands-free at this setting.
TIPS FOR GREAT RESULTS
• Cut solid foods into small pieces for
easier blending or chopping.
• The Commercial Immersion Blender is
equipped with thermal protection from
high operating temperatures. Should
the Commercial Immersion Blender
suddenly stop during use, unplug it and
allow 10 minutes to automatically reset.
• To avoid splashing, insert the Commercial
Immersion Blender into the mixture
before pressing the Power/pulse trigger,
and release the Power/pulse trigger
before pulling the Commercial Immersion
Blender out of the mixture.
• When blending in a stockpot on a
cooktop, remove the stockpot from
the heating element to protect the
Commercial Immersion Blender
from overheating.
• For best blending, hold the Commercial
Immersion Blender at an angle and gently
move up and down within the container.
Do not pound down on the mixture with
the Commercial Immersion Blender.
• To prevent overflow, allow room in the
container for the mixture to rise when
using the Commercial Immersion Blender.
• Be sure the extra-long cord of the
Commercial Immersion Blender is not
extending over a hot heating element.
• Do not let the Commercial Immersion
Blender sit in a hot pan on the cooktop
while not in use.
• Remove hard items, such as fruit pits
or bones, from the mixture before
blending or chopping to help prevent
damage to the blades.
18
W10859533A_01_EN_v18.indd 18
2/6/17 3:53 PM
C
CARE AND CLEANING
Washing the motor body
NOTE: To avoid damage to the
Commercial Immersion Blender, do not
immerse the motor body in washing
solution, rinse water, or sanitizing
solution.
Always clean the Commercial Immersion
Blender prior to initial use, after each use,
and before storing.
1. Unplug the Commercial Immersion
Blender before cleaning.
2. Remove the attachments by twisting
(see "Operating the Commercial
Immersion Blender" section).
3. Wipe the motor body and power cord
with a warm, sudsy cloth; wipe clean
with a damp cloth. Dry with a soft cloth.
Mild dish soap may be used, but do not
use abrasive cleansers.
English
R
Washing the attachments
For food service applications: wash, rinse,
and sanitize the stainless steel attachments
for the Commercial Immersion Blender
prior to initial use, after each use, or
whenever they will not be used again
within a period of 1 hour.
The following washing, rinsing, and
sanitizing solutions (or their equivalents)
may be used.
Solution
Product
Dilution in water
Temperature
Washing
Noble Pan Pro 1
30 millilitres / 11.4 litres
Hot 46ºC
Rinsing
Plain water
Sanitizing
Clorox Institutional
Bleach
®
Warm 35ºC
14.8 cc / 3.8 litres
Cold 10-21ºC
In applications requiring repetitive use, frequent cleaning will prolong life.
1. R
emove attachment from motor body. Rinse any food residue under running water.
2. Scrub the attachment using a soft sponge. Rinse both interior and exterior sections
of the attachment, removing as much stuck-on soil as possible.
3. Using a soft sponge dampened in wash solution, wipe down attachments, getting
into all areas of the attachment. Assemble attachment to motor body; place
in a container with wash solution, immersing ¾ of the attachment. Run unit on high
for 2 minutes.
4. Repeat step 3 using clean rinse water in place of wash solution.
5. Repeat step 3 using sanitizing solution in place of wash solution.
6. Do not rinse after sanitizing. Allow to air dry before using.
19
W10859533A_01_EN_v18.indd 19
2/6/17 3:53 PM
TROUBLESHOOTING
CMD + SHIFT CLICK TO CHANGE COPY
T
If the Commercial Immersion Blender has stopped working, check
for the following:
Unit has been unplugged
• Release the Power/pulse trigger.
• Check the power supply.
• Restart the Commercial Immersion
Blender as instructed in “Operating
the Commercial Immersion Blender”.
Machine has overheated
• Release the Power/pulse trigger.
• Unplug the unit.
• Wait a few minutes for the motor to cool
down and the thermal safety mechanism
to reset.
• Restart the Commercial Immersion
Blender as instructed in “Operating
the Commercial Immersion Blender”.
Unknown cause
• Release the Power/pulse trigger.
• Unplug the unit.
• Check the following:
- electrical plug for damage.
- power cord for cuts or other damage.
- drive shaft for freedom of rotation. (check by removing the attachment arm
and rotating the shaft manually).
- blades for freedom of movement.
(food may be lodged between blades
and plastic guard).
IMPORTANT: If a piece of food becomes
lodged in the guard surrounding the blade,
follow these instructions:
1. Release the Power/pulse trigger and
unplug the Commercial Immersion
Blender.
2. Use a spatula to remove the food
lodged in the plastic guard. Do not use
your fingers to remove lodged food.
3. Plug the Commercial Immersion
Blender back into the electrical outlet
and resume operation.
20
W10859533A_01_EN_v18.indd 20
2/6/17 3:53 PM
F
A
A
(mm)
B
(mm)
C
(mm)
E
(mm)
F
(mm)
G
(kgs)
5KHBC112
73.4
420
723.4 383.9 101.5
115
4.3
5KHBC114
73.4
420
774.2 434.7 101.5
115
4.4
5KHBC116
73.4
420
485.5 101.5
115
4.5
5KHBC118
73.4
420
875.8 536.3 101.5
115
4.6
5KHBC120
73.4
420
926.6 587.1 101.5
115
4.7
825
D
(mm)
English
TECHNICAL SPECIFICATIONS
B
C
D
E
21
W10859533A_01_EN_v18.indd 21
2/6/17 3:53 PM
CMD + SHIFT
TECHNICAL
SPECIFICATIONS
CLICK TO CHANGE COPY
W
EC - Declaration of conformity
We declare under our sole responsibility that the product described under “Technical data”
fulfills all the relevant regulations and the directives 2011/65/EU,2014/30/EU,2006/42/EC,
2009/125/EC and the following harmonized standards have been used:
European Commission Regulation1275/2008
EN12853: 2001+A1:2010
EN55014-1:2006+A1:2009+A2:2011
EN55014-2:2015
EN61000-3-2:2014
EN61000-3-3:2013
11 November 2016
Mark Dahmer / Engineering Director
Authorised to compile technical file
KitchenAid Portable Appliances Division
Saint Joseph, MI USA
Noise/Vibration Data
Measured values determined according to EN12853
Total vibration values (vector sum of three axes) determined according to EN12853
Operating sound
pressure levels
Operating vibration levels
Blending Arm Assembly with
Multipurpose S-Blade
Blending Arm
Assembly with Whisk
<85dB(A)
<85dB(A)
<2.54 cm/sec
<2.54 cm/sec
22
W10859533A_01_EN_v18.indd 22
2/6/17 3:53 PM
WARRANTY AND SERVICE
Kitchenaid Commercial Immersion Blender warranty
KitchenAid Will Pay For:
Europe, Middle East
and Africa:
5KHBC412EXX,
5KHBC412BXX,
5KHBC414EXX,
5KHBC414BXX,
5KHBC416EXX,
5KHBC416BXX,
5KHBC418EXX,
5KHBC418BXX,
5KHBC420EXX,
5KHBC420BXX
Two years full
warranty from
date of purchase.
The replacement parts
A.Repairs when Commercial
and repair labour costs to
Immersion Blender is
correct defects in materials
used for operations other
or workmanship. Service
than normal commercial
must be provided by an
food preparation.
Authorised KitchenAid
B.Damage resulting from
Service Centre.
accident, alterations,
misuse, abuse, or installation/
operation not in accordance
with local electrical codes.
KitchenAid Will Not Pay For:
English
Length of Warranty:
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR
INDIRECT DAMAGES.
Customer Service
In U.K. and Ireland:
For any questions, or to find the nearest KitchenAid Authorised Service Centre, please find
our contact details below.
NOTE: All service should be handled locally by an Authorised KitchenAid
Service Centre.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard network
rate) or call 0194 260 5504
Contact number for Ireland:
Tollfree number +44 (0) 20 8616 5148
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom
of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
General hotline number:
In other countries:
For all product related questions and after sales matters, please contact your dealer to
obtain the name of the nearest Authorised KitchenAid Service/Customer Centre.
For more information, visit our website at:
www.KitchenAid.co.uk
www.KitchenAid.eu
©2017. All rights reserved.
Specifications subject to change without notice.
W10859533A_01_EN_v18.indd 23
23
2/6/17 3:53 PM
©2017. All rights reserved.
Specifications subject to change without notice.
W10859533A
W10859533A_back.indd 1
02/17
2/6/17 10:55 AM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
