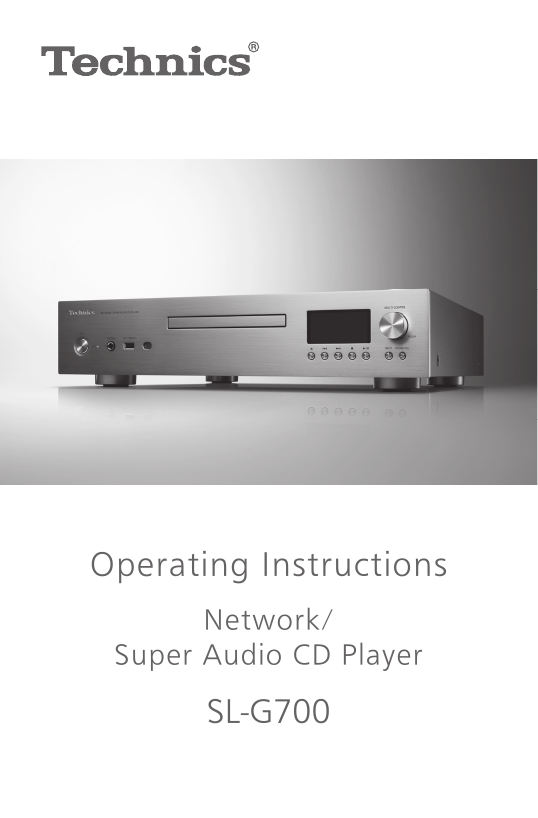

Panasonic SLG700E Operating Instructions

Operating Instructions
Network/
Super Audio CD Player
SL-G700
Music is borderless and timeless, touching
people’s hearts across cultures and
generations.
Each day the discovery of a truly emotive
experience from an unencountered sound
awaits.
Let us take you on your journey to rediscover
music.
Delivering the Ultimate Emotive
Musical Experience to All
At Technics we understand that the listening
experience is not purely about technology but
the magical and emotional relationship between
people and music.
We want people to experience music as it was
originally intended and enable them to feel the
emotional impact that enthuses and delights
them.
Through delivering this experience we want to
support the development and enjoyment of
the world’s many musical cultures. This is our
philosophy.
With a combination of our love of music and the
vast high-end audio experience of the Technics
team, we stand committed to building a brand
that provides the ultimate emotive musical
experience by music lovers, for music lovers.
Director
Michiko Ogawa
02
Thank you for purchasing this product.
Please read these instructions carefully before using
this product, and save this manual for future use.
•• About descriptions in these operating instructions
Pages to be referred to are indicated as “⇒ ○○”.
Unless otherwise indicated, operations are
described using the remote control.
The illustrations shown may differ from your
unit.
•• Illustrations and figures in this manual are of the
silver main body.
Sales and Support Information
Customer Communications Centre
•• For customers within the UK: 0333 222 8777
•• For customers within Ireland: 01 447 5229
•• Monday–Friday 9:00 am – 5:00 pm, (Excluding
public holidays).
•• For further support on your product, please visit
our website: www.technics.com/uk/
Features
Wide compatibility of music
source
Supports Super Audio CD (SACD) drive,
newest network module, MQA decoding
function and lots of streaming services using
Chromecast-enabled app.
High-Quality Audio Technologies
for Technics Digital Players
Employed
Reduces the noise and clock jitter by HighSpeed Silent Hybrid Power Supply and
Battery Driven Clock Generator, and provides
the superior sound by flagship grade DAC
(AK4497), Dual Mono Construction DA
convertor, etc.
Matching elegant look for the
high grade sound
Quartering unit’s segments and separating the
each drive can reduce the noise, High Rigidity
Drive Mechanism are employed.
03
Table of contents
Read first
06
Please carefully read the “Safety precautions” of
this manual before use.
Control reference guide
15
This unit, Remote control
Connections
24
AC mains lead connection, Network settings
Operations
37
Playing back CD/SACD, etc.
Settings
69
Sound adjustment, Other settings
Others
85
Troubleshooting, Specifications, etc.
04
Accessories
AC mains lead (2)
Except for Switzerland
K2CM3YY00041
For Switzerland
K2CS3YY00033
System connection cable (1)
K2KYYYY00233
Analogue audio cable (1)
K2KYYYY00257
Remote control (1)
N2QAYA000143
Batteries for remote control (2)
•• Product numbers provided in these operating
instructions are correct as of April 2019.
•• These may be subject to change.
•• Do not use AC mains lead with other equipment.
05
Read first
Safety precautions................................ 07
Warning..................................................... 07
Caution...................................................... 07
Installation............................................ 13
Installation..................................................13
Unit care.....................................................13
Using “Technics Audio Center”....................13
Firmware updates.......................................13
To dispose of or transfer this unit............... 14
Table of contents ... 04
06
Read first
Safety precautions
Warning
Unit
•• To reduce the risk of fire, electric shock or product
damage,
Do not expose this unit to rain, moisture,
dripping or splashing.
Do not place objects filled with liquids, such as
vases, on this unit.
Use the recommended accessories.
Do not remove covers.
Do not repair this unit by yourself. Refer
servicing to qualified service personnel.
Do not let metal objects fall inside this unit.
Do not place heavy items on this unit.
AC mains lead
•• To reduce the risk of fire, electric shock or product
damage,
Ensure that the power supply voltage
corresponds to the voltage printed on this unit.
Insert the mains plug fully into the socket outlet.
Do not pull, bend, or place heavy items on the
lead.
Do not handle the plug with wet hands.
Hold onto the mains plug body when
disconnecting the plug.
Do not use a damaged mains plug or socket
outlet.
•• The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
•• Ensure the earth pin on the mains plug is securely
connected to prevent electrical shock.
An apparatus with CLASS I construction shall
be connected to a mains socket outlet with a
protective earth connection.
Caution
Unit
•• Do not place sources of naked flames, such as
lighted candles, on this unit.
•• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this
unit and the mobile telephone.
•• This unit is intended for use in moderate and
tropical climates.
•• Do not put any objects on this unit. This unit
becomes hot while it is on.
•• This unit utilizes a laser. Use of controls or
adjustments or performance of procedures
other than those specified herein may result in
hazardous radiation exposure.
07
(Continued)
Placement
•• Place this unit on an even surface.
•• To reduce the risk of fire, electric shock or product
damage,
Do not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
•• Do not lift or carry this unit by holding the knobs
or antenna. Doing so may cause this unit to fall,
resulting in personal injury or malfunction of this
unit.
Battery
•• Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
•• Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
Remove the battery if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
Do not heat or expose to flame.
Do not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
Do not take apart or short circuit.
Do not recharge alkaline or manganese
batteries.
Do not use batteries if the covering has been
peeled off.
Do not mix old and new batteries or different
types at the same time.
•• When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
(Back of product)
08
(Continued)
(Inside of product)
(Produktets innside)
For the United Kingdom and Ireland
customer
Caution for AC Mains Lead
(For the AC mains plug of three pins)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 10-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 10-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on
the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1.Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
09
(Continued)
2.Replace the fuse and close or attach the fuse
cover.
Figure A
Figure B
Fuse
(10 ampere)
Fuse
(10 ampere)
NORSK
ADVARSEL
Produkt
•• For å redusere faren for brann, elektrisk støt eller
skade på apparatet :
Utsett ikke produktet for regn, fukt, drypping
eller sprut.
Ikke plasser objekter som er fylt med væske, som
vaser, på apparatet.
Bruk anbefalt tilbehør.
Fjern ikke deksler.
Reparer ikke denne enheten selv, overlat service
til kvalifisert servicepersonell.
Vekselstrømnett
•• Nettstøpselet er trukket ut fra denne enheten.
Installer denne enheten slik at nettstøpselet
umiddelbart kan trekkes fra stikkontakten.
FORSIKTIG
Produkt
•• Dette produktet anvender en laser. Betjening av
kontroller eller justering eller andre inngrep enn de
beskrevet i denne bruksanvisning kan føre til farlig
bestråling.
•• Plasser ikke åpen ild, slik som levende lys, oppå
apparatet.
•• Denne enheten er beregnet for bruk i moderate og
tropiske klimaer.
Plassering
•• For å redusere faren for brann, elektrisk støt eller
skade på apparatet :
Ikke plasser apparatet i en bokhylle, et
innebygget kabinett eller et annet lukket sted.
Pass på at produktet er godt ventilert.
10
(Continued)
Disposal of Old Equipment and Batteries
Only for European Union and countries
with recycling systems
These symbols on the products,
packaging, and/or accompanying
documents mean that used
electrical and electronic products
and batteries must not be mixed
with general household waste.
For proper treatment, recovery
and recycling of old products and
used batteries, please take them
to applicable collection points in
accordance with your national
legislation.
By disposing of them correctly, you
will help to save valuable resources
and prevent any potential negative
effects on human health and the
environment.
For more information about
collection and recycling, please
contact your local municipality.
Penalties may be applicable for
incorrect disposal of this waste, in
accordance with national legislation.
Note for the battery symbol
(bottom symbol):
This symbol might be used in
combination with a chemical
symbol. In this case it complies with
the requirement set by the Directive
for the chemical involved.
Panasonic Corporation, a company having
its registered office of 1006, Oaza Kadoma,
Kadoma City, Osaka 571-8501, Japan,
automatically collects personal data such as IP
address and/or Device ID from your device as
soon as you connect it to the Internet. We do
this to protect our customers and the integrity
of our Service as well as to protect the rights or
property of Panasonic.
You have a right of access, rectification and
objection to in certain circumstances, a right
of erasure, restriction of processing, data
portability and a right to object to other forms
of processing. If you wish to exercise any of
the above rights and/or wish to know more
about the processing of your personal data in
this context, please refer to the full text of our
privacy policy displayed at the support page of
your device, http://panasonic.jp/support/global/
cs/audio/, http://www.technics.com/support/
or contact our customer communications/
support number or address described in the Pan
European Guarantee included in your device box
to send you the full text of our privacy policy.
11
(Continued)
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that
this product is in compliance with the essential
requirements and other relevant provisions of
Directive 2014/53/EU.
Customers can download a copy of the original
DoC to our RE products from our DoC server:
http://www.ptc.panasonic.eu
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH, Panasonic
Testing Centre, Winsbergring 15, 22525
Hamburg, Germany
Type of
wireless
Frequency
band
Maximum
Power (EIRP)
20 dBm
WLAN
2412 - 2472
MHz
5180 - 5320
MHz
5500 - 5700
MHz
Bluetooth®
2402 - 2480
MHz
20 dBm
20 dBm
10 dBm
5.15 - 5.35 GHz band is restricted to indoor
operations only in the following countries.
12
Read first
Installation
Installation
Turn off all the equipment before connection and
read the appropriate operating instructions. Be sure
to raise this unit when moving, and do not drag this
unit.
Unit care
Pull out the AC mains lead from the socket before
maintenance. Clean this unit with a soft cloth.
•• When dirt is heavy, wring a wet cloth tightly to
wipe the dirt, and then wipe it with a soft cloth.
•• Do not use solvents including benzine, thinner,
alcohol, kitchen detergent, chemical wiper, etc.
Doing so may cause the exterior case to be
deformed or the coating to come off.
Using “Technics Audio Center”
If you install the dedicated app “Technics Audio
Center” (free of charge) on your tablet/smartphone,
you can stream music files from the device on your
network to this unit and configure the settings of
sound quality, etc.
For details, visit:
www.technics.com/support/
Firmware updates
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are available
free of charge.
•• Refer to “Firmware updates” (⇒ 77) for details on
update.
13
(Continued)
To dispose of or transfer this unit
Before disposing of or transferring this unit, be sure
to erase all the recorded information by restoring
the settings to factory default.
Press [NWP] while this unit is turned on.
Press [SETUP].
Press [ ], [ ] repeatedly to select “Initialization”
and then press [OK].
Press [ ], [ ] to select “Yes” and then press
[OK].
•• A confirmation screen appears. Select “Yes” in
the following steps to restore all the settings to
defaults.
Press [ ], [
[OK] again.
] to select “Yes” and then press
•• Before you dispose of or transfer this unit to a third
party, be sure to log out of your music streaming
services accounts to prevent unauthorised use of
your accounts.
14
Control reference
guide
This unit (front)..................................... 16
This unit (rear)....................................... 18
Remote control..................................... 19
Using the remote control........................... 22
Remote control mode................................ 22
Table of contents ... 04
15
Control reference guide
This unit (front)
01
01
02 03
04
05
06
07
08
09
10 11 12
01 [
] Standby/on button
•• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
02 Power indicator
•• Blue: The unit is on.
•• Red: The unit is in standby mode.
•• Off: The unit is off.
03 Headphones jack
•• Excessive sound pressure from earphones and
headphones can cause hearing loss.
•• Listening at full volume for long periods may
damage the user’s ears.
04 USB-A terminal (USB Front)
(DC 5 V
500 mA)
(⇒ 45)
05 Remote control signal sensor
•• Reception distance:
Within approx. 7 m directly in front
•• Reception angle:
Approx. 30° left and right
06 Disc tray
(⇒ 39)
07 Display
•• Input source, playback status, etc. are
displayed.
08 [ ] Open or close the disc tray
09 Playback operation buttons
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
Press and hold [
[
].
]
][
16
]
] or
(Continued)
10 Multi control knob
•• Turn this knob clockwise or anticlockwise to
switch the input source and scroll through
items.
•• To set an item, press the knob; to enter the
setup screen, press and hold it.
11 Input selector button
•• Switch the input source.
12 Headphone volume button
•• Headphone volume is displayed.
Volume can be adjusted with the multi
control knob while displaying. (The volume
buttons of remote control are not available
for adjusting the headphone volume.)
Press and hold the headphone volume
button while displaying to keep the
headphone volume adjusting screen
displaying. Press again to exit.
•• Volume range:
-- dB (min), -99.0 dB to 0 dB (max)
•• Set “PHONES VOL Limitation” to “On” so
that the headphones output is automatically
lowered if the volume is extremely high when
turning this unit or starting playback. (⇒ 73)
•• Press 2 times to display the analogue output
level screen to adjust while “A.Output Level” is
set to “Variable”. (⇒ 72)
Press and hold the headphone volume
button while the analogue output level
screen is displayed to keep the screen
displaying.
17
Control reference guide
This unit (rear)
01
02
03 04
05 06
07
02
08
09
10
11
01 Analogue audio output terminals
(ANALOG OUT)
(⇒ 25)
02 Wireless LAN antenna
(⇒ 30)
03 Optical digital output terminal (OPT)
(⇒ 26)
04 Coaxial digital output terminal (COAX)
(⇒ 26)
05 Optical digital input terminal (OPT)
(⇒ 48)
06 Coaxial digital input terminal (COAX)
(⇒ 48)
07 Product identification marking
•• The model number is indicated.
08 LAN terminal
(⇒ 29)
09 USB-A terminal (USB Rear)
(DC 5 V
1 A)
(⇒ 47)
10 System terminal (CONTROL)
(⇒ 82)
11 AC IN terminal (
(⇒ 27)
)
18
Control reference guide
Remote control
01
01
02
02
03
03
04
05
10
06
11
07
04
08
12
13
09
15
14
01 [NWP
]/[CD
]: Standby/on button
•• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
The input source also switches for each
selector (switches to the last selected input
source when [NWP
]).
02 [NWP]/[CD]: Select the device to be
operated
•• The playing layer switches by pressing [CD]
while the playback stops for Hybrid Super
Audio CD (SACD).
•• Press and hold [CD] to switch to “Pure Disc
Playback” mode. (⇒ 44)
03 [>INPUT<]: Switch the input source
19
(Continued)
04 [DIMMER]: Adjust the brightness of the
power indicator, display, etc.*2
•• When the display is turned off, it will light up
for a few seconds only when you operate this
unit. Before the display turns off, “Display Off”
will be displayed for a few seconds.
•• Press repeatedly to switch the brightness.
05 [INFO]: View content information*1
•• The sound setting information is displayed such
MQA Decoding, RE-MASTER, etc. by pressing
and holding [INFO].
06 [
], [
], [
], [
]/[OK]: Selection/OK*1
07 [RETURN]: Return to the previous display*1
08 [DIRECT]: Turn on/off Direct mode
09 [RE-MASTER]: Turn on/off Re-master
•• Press and hold [RE-MASTER] for approx.
2 seconds so that “MQA Decoding : On” is
displayed and the MQA decoding function
will be set to “On”. (Press and hold for approx.
2 seconds again to set the function to “Off”.)
10 [MENU]: Enter menu*1
11 [SETUP]: Enter setup menu*1
12 Adjust the volume*2, 3
13 Mute the sound*2, 3
14 Playback control buttons
(⇒ 39, 46, 51, 54, 58, 68)
15 Numeric buttons, etc.
•• To enter 2 digits or more
Example:
16: [ 10] > [1] > [6]
124: [ 10] > [ 10] > [1] > [2] > [4]
•• [CLEAR]: Clear the entered value.
*1: Press [NWP]/[CD] first to operate this unit.
(The remote control works only for the devices
supporting system control function when
pressing [AMP].)
*2: For the devices supporting system control
function.
*3: Also works while “A.Output Level” is set to
“Variable”. (⇒ 72)
■■Buttons that work for Technics devices
supporting system control function
The remote control of this unit also works for
Technics devices supporting system control function
(Stereo Integrated Amplifier, etc.). For information
on the operations of the devices, please also refer
to their operating instructions.
] Standby/on button
01
[
02
Select the device to be operated
03
Switch the input source
20
(Continued)
04
Measure the output signal when speakers are
connected, and correct its output
21
(Continued)
Using the remote control
2
1
R03/LR03, AAA
(Alkaline or manganese batteries)
Note
•• Insert the battery so the terminals ( and )
match those in the remote control.
•• Point it at the remote control signal sensor on this
unit. (⇒ 16)
•• Keep the batteries out of reach of children to
prevent swallowing.
Remote control mode
When other equipment responds to the supplied
remote control, change the remote control mode.
•• The factory default is “Mode 1”.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] to select “Remote
Control” and then press [OK].
•• The current remote control mode of this unit is
displayed.
4 When “Set Mode 1/2” is displayed,
change the remote control mode of the
remote control.
To set “Mode 1”:
Press and hold [OK] and [1] for at least
4 seconds.
To set “Mode 2”:
Press and hold [OK] and [2] for at least
4 seconds.
5 Point the remote control at this unit,
and press and hold [OK] for at least
4 seconds.
•• When the remote control mode is changed, the
new mode will appear on the display for a few
seconds.
22
(Continued)
■■When “Remote 1” or “Remote 2” is displayed
When “Remote 1” or “Remote 2” is displayed,
the remote control modes of this unit and remote
control are different. Perform step 4 above.
23
Connections
Connecting to an amplifier.................. 25
Connecting to an amplifier......................... 25
Connecting to an amplifier with
digital input terminal............................ 26
Connecting to an amplifier with
digital input terminal.................................. 26
AC mains lead........................................ 27
AC mains lead connection.......................... 27
Network settings.................................. 28
Wired LAN connection............................... 29
Wireless LAN connection........................... 30
This unit’s name on the network
“Friendly Name”......................................... 35
To check the MAC address of this unit
“MAC Address”.......................................... 35
To make network-related settings.............. 36
Table of contents ... 04
24
Connections
Connecting to an amplifier
You can output analogue audio signals from
this unit and play back music.
Connecting to an amplifier
XLR cable* (not supplied)
Analogue audio
cable (supplied)
Amplifier with
balanced input
terminals
Amplifier with
unbalanced input
terminals
Amplifier
*: We recommend using cables with a length of
3 m or less.
•• For details, refer to the operating instructions of
the connected device.
•• Do not use any other analogue audio cables except
the supplied one.
•• When you connect a power amplifier, etc., set
“A.Output Level” to “Variable” for volume control
with this unit. When you connect a pre-amplifier,
etc., set “A.Output Level” to “Fixed” for volume
control with the connected device. (⇒ 72)
The factory default is “Fixed”.
25
Connections
Connecting to an amplifier
with digital input terminal
You can output digital audio signals from
this unit by connecting to an amplifier with
digital input terminal, etc. and play back
music.
Connecting to an amplifier with
digital input terminal
Coaxial digital
cable
(not supplied)
Optical digital
audio cable
(not supplied)
Amplifier with digital input
terminal, etc.
•• For details, refer to the operating instructions of
the connected device.
Note
•• Audio signal of Super Audio CD and Super Audio
CD layer of Hybrid Super Audio CD cannot be
output from the digital audio output terminal
of this unit. Connect the device to the analogue
audio output terminal.
•• When enjoying video contents with this
function, the video and audio output may not be
synchronised.
26
Connections
AC mains lead
AC mains lead connection
Connect only after all other connections are
completed.
AC mains lead
(supplied)
To a household mains
socket
•• Use only the supplied AC mains lead.
•• Insert the plugs of the cables to be connected all
the way in.
•• Do not bend cables at sharp angles.
•• “Wi-Fi” function switching screen is displayed
following “Wi-Fi Setup” when this unit is turned
on. If you stop the Wi-Fi setting, set to “Off” and
press [OK]. To keep the Wi-Fi setting, start the
“Google Home” app and follow the on-screen
instructions. (⇒ 28, 30)
Note
•• Press [NWP]/[CD] first to operate this unit.
(The remote control works only for the devices
supporting system control function when pressing
[AMP].)
27
Connections
Network settings
You can stream online music services or
music files from your smartphone/tablet to
this unit. To use these features, this system
must join the same internet-connected
network as the compatible device.
This unit can be connected to a router using a LAN
cable or built-in Wi-Fi®.
For a stable connection to the network, a wired
LAN connection is recommended.
■■Preparation
If you install the “Google Home” app on your
smartphone/tablet, you can set up a connection
using the application.
•• When using the Chromecast-enabled apps to play
music on this unit, set up a connection using the
“Google Home” app.
•• Make sure that the Wi-Fi function and Bluetooth®
feature are activated on your smartphone/tablet.
1 Install the “Google Home” app on your
smartphone/tablet.
•• To download the “Google Home” app, visit:
https://www.google.com/cast/setup/
2 Connect your smartphone/tablet to
the same network as this unit before
setting.
•• Make sure that the network is connected to the
Internet.
Note
•• If this unit is used exclusively for the playback of
CD/Super Audio CD by disabling the network
functions, etc., the network setting is not
necessary. (⇒ 44)
28
(Continued)
Wired LAN connection
LAN cable
(not supplied)
Broadband router, etc.
1 Disconnect the AC mains lead.
2 Connect this unit to a broadband router,
etc. using a LAN cable.
3 Connect the AC mains lead to this unit.
(⇒ 27)
4 Press [NWP
] to turn this unit on.
5 Make sure to set up a connection
using “Google Home” app on your
smartphone/tablet.
•• When the connection is established, “
displayed.
” is
Note
•• While the AC mains lead is disconnected, the LAN
cable must be connected or disconnected.
•• Use category 7 or above straight LAN cables (STP)
when connecting to peripheral devices.
•• Inserting any cable other than a LAN cable in the
LAN port can damage the unit.
•• After turning on this unit, it may take some time
until this unit is activated.
•• After the network connection is set up,
“Updating” may be displayed and the firmware for
this unit may be updated.
After the update has finished successfully and
“Success” is displayed, turn this unit off and then
on.
•• Even when the Wi-Fi function is set to “On”, the
wired LAN function is activated while a LAN cable
being connected. (“
” is displayed.)
29
(Continued)
Wireless LAN connection
■■Preparation
Disconnect the AC mains lead.
Disconnect the LAN cable.
Place this unit as close to the wireless router as
possible.
Point up the antenna on the rear of this unit as
shown in the figure.
Connect the AC mains lead to this unit. (⇒ 27)
Note
•• Do not perform the following:
Applying too much force to the antenna
Carrying this unit by holding the antenna
•• After turning on this unit, it may take some time
until this unit is activated.
•• After the network connection is set up,
“Updating” may be displayed and the firmware for
this unit may be updated.
After the update has finished successfully and
“Success” is displayed, turn this unit off and then
on.
•• The setting will be cancelled after the set time
limit. In that case, try the setting again.
•• “
” blinks while the network setting is not
complete, and blinking stops after the Wi-Fi
setting is complete.
•• While “
” is blinking, the network setting
from “Google Home” may be available. Start the
“Google Home” app and follow the on-screen
instructions.
•• To cancel this setting in the middle, press [ ] or
turn the unit to standby mode.
30
(Continued)
Network setting for the first time using
the “Google Home” app
1 Press [NWP
] to turn this unit on.
•• “Wi-Fi Setup” is displayed.
2 Press [NWP].
3 Press [ ], [ ] to select “On” and press
[OK] on the “Wi-Fi” screen.
(It enables the Wi-Fi function)
4 Start the “Google Home” app and
follow the on-screen instructions.
Note
•• This unit will be displayed as “TechnicsSL-G700-****” if the device name is not set.
(“****” stands for characters unique to each set.)
•• You can check your network information (SSID,
MAC address and IP address) from the “Google
Home” app or “Technics Audio Center” app.
•• Some items on the “Google Home” app are
irrelevant to this unit.
•• To cancel this setting in the middle, press [ ] or
turn the unit to standby mode.
•• When this unit is switched to standby mode and
turned on before the Wi-Fi setting is complete,
“Wi-Fi Setup” is displayed. Perform the Wi-Fi
setting or select “Off”.
•• For other connection methods (⇒ 31)
Setting the network from the
setup menu (When not using the
Chromecast-enabled apps with this
unit)
■■Using the WPS button
“WPS”
If your wireless router supports WPS, you can set up
a connection by pressing the WPS button.
•• A compatible wireless router may have the WPS
identifier mark.
•• Complete the settings within 2 minutes while
“WPS” is displayed.
•• When “Wi-Fi Setup” is displayed when turning on
this unit, press [ ] to cancel the network setting
and start the setting again.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
•• When “Wi-Fi” screen is displayed, press [OK].
31
(Continued)
4 Press [ ], [ ] to select “On” and then
press [OK]. (The wireless LAN function
is enabled.)
5 Press [ ], [ ] to select “WPS Push” and
then press [OK].
•• “WPS” blinks. Complete step 6 within
2 minutes.
6 After “WPS” is displayed, press the WPS
button on the wireless router.
Example:
•• “Linking” blinks.
•• When the connection is established, “Success”
is displayed.
“Fail” may be displayed if the connection was
not complete. Try this method again from the
setup menu. If “Fail” is still displayed, try other
methods.
7 Press [OK] to exit the setting.
■■Using the WPS PIN code
“WPS PIN”
If your wireless router supports WPS, you can set up
a connection by entering the WPS PIN code.
•• For details on how to enter the PIN code, refer to
the operating instructions of the wireless router.
•• Complete the settings within 2 minutes while
“WPS PIN” and the PIN code are displayed.
•• When “Wi-Fi Setup” is displayed when turning on
this unit, press [ ] to cancel the network setting
and start the setting again.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
•• When “Wi-Fi” screen is displayed, press [OK].
4 Press [ ], [ ] to select “On” and then
press [OK]. (The wireless LAN function
is enabled.)
32
(Continued)
5 Press [ ], [ ] to select “WPS PIN” and
then press [OK].
•• The PIN code is displayed. Complete step 6
within 2 minutes.
6 Enter the PIN code into the wireless
router from PC, etc.
•• “Linking” blinks.
•• When the connection is established, “Success”
is displayed.
“Fail” may be displayed if the connection was
not complete. Try this method again from the
setup menu. If “Fail” is still displayed, try other
methods.
7 Press [OK] to exit the setting.
Note
•• Depending on a router, other connected devices
may temporarily lose their connection.
•• For details, refer to the operating instructions of
the wireless router.
Setting the network from the setup
menu (When using the Chromecastenabled apps with this unit)
■■Using the “Google Home” app
“Wi-Fi Setup”
When using the Chromecast-enabled apps to play
music on this unit, you need to set up a network
connection using “Google Home” app. When the
network has been set up with another method, try
the setting again with the following procedure.
•• When “Wi-Fi Setup” is displayed when turning on
this unit, press [ ] to cancel the network setting
and start the setting again.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
•• When “Wi-Fi” screen is displayed, press [OK].
4 Press [ ], [ ] to select “On” and then
press [OK]. (The wireless LAN function
is enabled.)
5 Press [ ], [ ] to select “Wi-Fi Setup”
and then press [OK].
•• “Setting” is displayed.
33
(Continued)
6 Start the app and follow the on-screen
instructions.
•• When the connection is established, “Success”
is displayed.
“Fail” may be displayed if the connection was
not complete. Try this method again from the
setup menu. If “Fail” is still displayed, try other
methods.
7 Press [OK] to exit the setting.
Note
•• This unit will be displayed as “TechnicsSL-G700-****” if the device name is not set.
(“****” stands for characters unique to each set.)
•• You can check your network information (SSID,
MAC address and IP address) from the “Google
Home” app or “Technics Audio Center” app.
•• Some items on the “Google Home” app are
irrelevant to this unit.
34
(Continued)
This unit’s name on the network
“Friendly Name”
You can change this unit’s name on the network
(e.g. “Room 1” or “Living Room” etc.).
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
4 Press [ ], [ ] repeatedly to select
“Friendly Name” and then press [OK].
•• The current name of this unit is displayed. Press
[OK] to edit.
5 Press [ ], [ ], [ ], [ ] to input the
friendly name.
•• Only ASCII characters can be used.
•• “A” can be added when you press the [ ] at
the time of the last letter of the Friendly Name
is selected.
•• Press [CLEAR] to delete a letter.
•• Press [ 10] to insert a letter “A”.
•• Default name is “Technics-SL-G700-****”.
“****” stands for a number that is unique to
each set.
6 Press [OK] to apply the settings.
7 Press [RETURN] to exit the settings.
•• When Friendly Name is not displayed properly,
delete and input the friendly name again. If the
problem still persists, restore all the settings to the
factory defaults. (⇒ 87)
To check the MAC address of this
unit
“MAC Address”
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
4 Press [ ], [ ] repeatedly to select “MAC
Address” and then press [OK].
•• The MAC address of this unit is displayed.
5 Press [RETURN] to exit the screen.
35
(Continued)
To make network-related settings
You can set specific IP address, subnet mask,
default gateway, primary DNS, etc. (If your network
requires specific settings, disable DHCP.)
•• Do not play back music while changing these
settings.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
4 Select and input the details.
5 Press [OK] to apply the settings.
6 Press [RETURN] to exit the settings.
7 Press [NWP
] to switch the unit to
standby.
•• Wait until “Please Wait” disappears.
8 Perform the network setting. (⇒ 28)
36
Operations
Playing back CD/SACD.......................... 39
Operations during playback....................... 39
Repeat playback......................................... 40
Random playback....................................... 40
Programme playback..................................41
Playing back Hybrid Super Audio CDs......... 42
MQA decoding.......................................... 42
Pure Disc Playback..................................... 44
Using USB device.................................. 45
Operations during playback....................... 46
Repeat playback......................................... 46
Random playback....................................... 46
Using a USB HDD....................................... 47
Using digital audio output device....... 48
Using Bluetooth®.................................. 50
Pairing a Bluetooth® device........................ 50
Operations during playback........................51
Disconnecting a Bluetooth® device............ 52
Bluetooth® transmission mode................... 52
Playing back music files
on the media server.............................. 53
Playing back content stored on the media
server by controlling it from this unit.......... 54
Operations during playback....................... 54
Repeat playback......................................... 55
Random playback....................................... 55
Operations using the dedicated app
“Technics Audio Center”............................ 55
Playing back content stored on the media
server by controlling it from a DMC............ 56
Playing Internet Radio
and Podcasts......................................... 57
Operations during playback....................... 58
37
Playing audio using
Spotify Connect.................................... 59
Using TIDAL............................................61
Using Deezer......................................... 63
Listening to music using
Chromecast-enabled app..................... 65
Using AirPlay......................................... 67
Operations during playback....................... 68
Table of contents ... 04
38
Operations
Playing back CD/SACD
Insert the CD for music playback.
•• Refer to “Notes on discs” (⇒ 98) for the
discs this unit can play back.
1 Press [NWP
] to turn this unit on.
2 Press [ ] on the unit to open the disc
tray and insert a CD.
•• Place label up in the proper position in the
middle of the disc tray.
12 cm CD
8 cm CD
DO
DO NOT
DO
DO NOT
•• Press [ ] again to close the disc tray.
3 Press [
].
Note
•• Be careful not to get your finger caught in the disc
tray when opening/closing it.
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
[
][
]
•• Searches only in the track.
View available
information
[INFO]
•• Press repeatedly to switch
the information.
]
][
39
]
(Continued)
Repeat playback
1 Press [NWP].
2 Press [
].
“1 ”:
Only plays the selected track.
“ ”:
All tracks are repeated.
•• Setting contents are stored even when the input
source is switched.
Random playback
1 Press [NWP].
2 Press [RND].
•• Press again to cancel.
•• Setting contents are stored even when the input
source is switched.
•• During random playback, you cannot skip to the
previous track.
40
(Continued)
Programme playback
1 Press [NWP].
2 Press [PGM] in the stop mode.
•• “Program Mode” screen is displayed.
3 Press the numeric buttons to select
tracks.
•• Repeat this step to make further selections.
4 Press [
] to start playback.
Stop
Press [ ].
•• Programmed contents are
stored.
Check the
programmed
order
Press [
mode.
Add tracks
Do step 3 in the stop mode.
Clear the last
track
Press [CLEAR] in the stop
mode.
•• You cannot select and clear a
desired programmed track.
] or [
] in the stop
•• Press [PGM] in the stop mode to cancel the
programme mode, and the programme memory
will be stored.
•• To cancel the programme mode (The programme
memory will be cleared.)
Press [
] in the stop mode.
Press [
[OK].
], [
] to select “Yes” and then press
Note
•• The programme memory will be cleared in the
following conditions.
When turning on/off this unit
when replacing the CD
when switching the layer
•• The programme mode is cancelled when the
random playback is set.
•• Programme playback is not available while this unit
is in “Pure Disc Playback” mode.
41
(Continued)
Playing back Hybrid Super Audio
CDs
Hybrid Super Audio CD discs include a conventional
CD layer along with the Super Audio CD layer.
Although Super Audio CD layer is preferentially
played back, you can select the CD layer or Super
Audio CD layer for playback by pressing [CD] while
the playback stops.
Note
•• Audio signal of Super Audio CD and Super Audio
CD layer of Hybrid Super Audio CD cannot be
output from the digital audio output terminal
of this unit. Connect the device to the analogue
audio output terminal.
•• The layer cannot be selected on the disc except
Hybrid Super Audio CD discs.
MQA decoding
This unit includes the MQA (Master Quality
Authenticated) technology, which enables playback
of MQA audio files and streams, delivering the
sound of the original master recording.
To deliver the master quality audio of MQA, MQA
decoding function needs to be set to “On”. Switch
the MQA decoding function to “On” or “Off” in the
following steps.
•• The default setting is “Off”.
1 Press [NWP].
2 Press and hold [RE-MASTER] for approx.
2 seconds or longer.
•• “MQA Decoding : On” is displayed and the
MQA decoding function is set to “On”. (Press
and hold for approx. 2 seconds again to set the
function to “Off”.)
3 Play back the MQA file.
•• You can also set “MQA Decoding” to “On” from
the setup menu.
Press [NWP].
Press [SETUP].
Press [ ], [ ] repeatedly to select “MQA
Decoding” and then press [OK].
Press [
[OK].
], [
] to select “On” and then press
42
(Continued)
Note
•• “MQA” or “MQA Studio” indicates that the unit
is decoding and playing an MQA stream or file,
and denotes provenance to ensure that the sound
is identical to that of the source material. “MQA
Studio” indicates it is playing an MQA Studio file,
which has either been approved in the studio by
the artist/producer or has been verified by the
copyright owner.
•• MQA files or streams may not be decoded to
deliver the master quality audio depending on the
setting of the connected digital audio device. For
details, refer to the operating instructions of the
connected device. For information of Technics
devices, refer to the following website.
www.technics.com/support/
•• Set the MQA decoding function to “Off” when
playing back the files or streams other than those
of MQA.
•• When setting the Direct mode or the Re-master
function to “On”, the MQA decoding function will
be set to “Off”.
•• When setting the MQA decoding function to
“On”, “D.Output fs” will be set to “32kHz-192kHz”.
(Only for models supporting the digital audio
output function)
•• You can also set “MQA Decoding” from the setup
menu. (⇒ 72)
•• Specifications are subject to change without
notice.
43
(Continued)
Pure Disc Playback
By disabling the network functions, etc. this unit
operates exclusively for the playback of CD/SACD
for the higher quality sound.
1 Press [CD] for 5 seconds or longer.
•• A confirmation screen appears.
2 Press [OK].
3 Press [ ], [ ] to select “Yes” and then
press [OK].
•• Playback of the online music streaming services,
music files from network devices, etc. cannot be
available while “Pure Disc Playback” is enabled.
•• You can also set “Pure Disc Playback” to “On”
from the setup menu.
Press [NWP].
Press [SETUP].
Press [ ], [ ] repeatedly to select “Pure Disc
Playback” and then press [OK].
Press [
[OK].
], [
] to select “On” and then press
Note
•• Operating from “Technics Audio Center” app, etc.
are not available after setting.
•• The programme playback cannot be set.
•• Press again for 5 seconds or longer to cancel and
return to the normal mode.
•• The display is turned off by dimmer function
after setting “Pure Disc Playback” to “On”. Press
[DIMMER] repeatedly to switch the brightness.
(⇒ 20)
•• Track number of playback is only displayed while
this unit is in “Pure Disc Playback” mode.
44
Operations
Using USB device
You can connect a USB device to the unit
and play back music stored on the USB
device.
•• Refer to “USB” (⇒ 99) for information
about the USB device this unit can play
back.
USB device
1 Connect a USB device to the USB-A
terminal (USB Front) on the front of this
unit.
2 Press [NWP].
3 Press [>INPUT<] repeatedly to select
“USB Front”.
•• You can also select the input source by turning
the multi control knob after pressing [INPUT] on
the unit.
•• The folder/content selection screen will be
displayed.
4 Press [ ], [ ] to select an item and then
press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
45
(Continued)
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
][
]
Search
[
][
]
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
]
•• This operation may not be available for some
formats.
Repeat playback
1 Press [NWP].
2 Press [
].
“1 ”:
Only plays the selected track.
“ ”:
All tracks are repeated.
•• Setting contents are stored even when the input
source is switched.
Random playback
1 Press [NWP].
2 Press [RND].
•• Press again to cancel.
•• During random playback, you cannot skip to the
previous track.
•• During random playback, tracks may be played
more than once.
•• Setting contents are stored even when the input
source is switched.
46
(Continued)
Using a USB HDD
When using a USB HDD with this unit, connect a
USB HDD to the USB-A terminal (USB Rear) on the
rear of this unit and switch the input source to “USB
Rear”.
Note
•• Do not connect a USB HDD to the USB-A terminal
(USB Front) on the front of this unit.
47
Operations
Using digital audio output
device
You can connect a digital audio output
device with coaxial digital cable (not
supplied) or optical digital audio cable (not
supplied) to this unit and play back music.
Optical digital
audio cable
(not supplied)
Coaxial digital
cable
(not supplied)
Digital audio output device
1 Disconnect the AC mains lead.
2 Connect this unit and a digital audio
output device.
3 Connect the AC mains lead to this unit.
(⇒ 27)
4 Press [NWP
] to turn this unit on.
5 Press [>INPUT<] repeatedly to select
“COAX” or “OPT”.
•• You can also select the input source by turning
the multi control knob after pressing [INPUT] on
the unit.
6 Start playback on the connected device.
48
(Continued)
Note
•• When enjoying video contents with this
function, the video and audio output may not be
synchronised.
•• The digital audio input terminals of this unit can
only detect the following linear PCM signals. For
details, refer to the operating instructions of the
connected device.
Sampling frequency:
Coaxial digital input
32/44.1/48/88.2/96/176.4/192 kHz
Optical digital input
32/44.1/48/88.2/96 kHz
Number of quantisation bits:
16/24 bit
49
Operations
Using Bluetooth®
You can listen to the sound from the
Bluetooth® audio device from this unit
wirelessly.
•• Refer to the operating instructions of the
Bluetooth® device for details.
Bluetooth® device
Pairing a Bluetooth® device
■■Preparation
•• Turn on the Bluetooth® device and place the
device near this unit.
•• Make sure that the Bluetooth® feature is activated
on the device.
■■Registering the Bluetooth® device
1 Press [NWP].
2 Press [>INPUT<] repeatedly to select
“Bluetooth”.
•• You can also select the input source by turning
the multi control knob after pressing [INPUT] on
the unit.
3 Press [MENU].
4 Press [ ], [ ] repeatedly to select
“Pairing” and then press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• “Pairing” is displayed, and this unit waits for
registering.
6 Select “Technics-SL-G700-****”*1, 2 from
the Bluetooth® device’s menu.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
50
(Continued)
■■Connecting the paired Bluetooth® device
1 Press [>INPUT<] repeatedly to select
“Bluetooth”.
•• If another Bluetooth® device is already
connected with this unit, disconnect from the
Bluetooth® device.
2 Open the Bluetooth® connection screen,
etc. on the Bluetooth® device, and select
“Technics-SL-G700-****”*1, 2.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
3 Play music by operating the Bluetooth®
device.
Note
•• If prompted for the passkey, input “0000”.
•• You can register up to 8 devices with this unit. If a
9th device is paired, the device that has not been
used the longest may be replaced.
•• Refer to the operating instructions of the
Bluetooth® device for details.
1:
* “****” stands for a digit that is unique to each
set.
*2:The device name can be changed with the
dedicated application “Technics Audio Center”
(free of charge).
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
]
][
]
Note
•• To use this unit’s remote control/playback
operation buttons with a Bluetooth® device, the
Bluetooth® device must support AVRCP (Audio
Video Remote Control Profile). Depending on the
status of the device, some controls may not work.
•• When enjoying video contents with this
function, the video and audio output may not be
synchronised.
51
(Continued)
Disconnecting a Bluetooth® device
1 Press [NWP].
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select
“Disconnect?” and then press [OK].
4 Press [ ], [ ] to select “Yes” and then
press [OK].
Note
•• The Bluetooth® device will be disconnected if a
different audio source is selected.
Bluetooth® transmission mode
If a Bluetooth® device is already connected,
disconnect it.
1 Press [NWP].
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Link
Mode” and then press [OK].
4 Press [ ], [ ] to select the mode and
then press [OK].
Mode 1:
Emphasis on connectivity
Mode 2:
Emphasis on sound quality (default)
Note
•• Select “Mode 1” if the sound is interrupted.
52
Operations
Playing back music files on the
media server
You can share music files stored in the
media server (PC, Network Attached
Storage, etc.) connected to your home
network, and enjoy the contents with this
unit.
■■Preparation
•• Complete the network settings. (⇒ 28)
•• Connect the device to be used to the network of
this unit.
•• To use Windows Media® Player
Add the contents and folder to the libraries
of the Windows Media® Player 11 or 12, or a
smartphone, etc.
Playlist of Windows Media® Player can play back
only the contents that are stored in the libraries.
To use Windows Media® Player for streaming,
you need to configure it in advance.
53
(Continued)
Playing back content stored on
the media server by controlling it
from this unit
1 Press [NWP].
2 Press [>INPUT<] repeatedly to select
“DMP”.
•• You can also select the input source by turning
the multi control knob after pressing [INPUT] on
the unit.
•• The server selection screen will be displayed.
3 Press [ ], [ ] to select a media server
on the network, and then press [OK].
•• The folder/content selection screen will be
displayed. Repeat this step to make further
selections.
•• Folders/content may be displayed in different
order from the order on the server, depending
on its specifications.
4 Press [ ], [ ] to select an item and then
press [OK].
Note
•• The connected server and its contents may not
be displayed properly depending on its condition.
(e.g. soon after adding the contents to the server,
etc.)
Please try again later. For details, refer to the
operating instructions of the device.
•• The content may not be played back properly
depending on the network condition.
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
][
]
Search
[
][
]
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
]
54
(Continued)
Repeat playback
1 Press [NWP].
2 Press [
].
“1 ”:
Only plays the selected track.
“ ”:
All tracks are repeated.
•• Setting contents are stored even when the input
source is switched.
Random playback
1 Press [NWP].
2 Press [RND].
•• Press again to cancel.
•• During random playback, you cannot skip to the
previous track.
•• During random playback, tracks may be played
more than once.
•• Setting contents are stored even when the input
source is switched.
Operations using the dedicated
app
“Technics Audio Center”
If you install the dedicated app “Technics Audio
Center” (free of charge) on your tablet/smartphone,
you can control this unit using a wide variety of
functions.
For details, visit:
www.technics.com/support/
55
(Continued)
Playing back content stored on
the media server by controlling it
from a DMC
By controlling a DMC (Digital Media Controller)
compatible device, you can play back music stored
on the media server on this unit (DMR—Digital
Media Renderer).
Operate the DMC compatible device and
connect to this unit.
•• The device name of this unit will be displayed as
“Technics-SL-G700-****”*1, 2.
•• For details on how to use DMC compatible
devices, refer to the operating instructions of the
devices or the software.
Note
•• When you operate the media server, playback of
other audio sources will stop and media server
output will have priority.
•• Depending on the contents and the connected
equipment, operations or playback may not be
possible.
•• This unit does not guarantee connection with
all DMC applications. Use the dedicated app
“Technics Audio Center”.
*1:“****” stands for a digit that is unique to each
set.
2:
* The device name can be changed from “This
unit’s name on the network”. (⇒ 35)
56
Operations
Playing Internet Radio and
Podcasts
Using the free app “Technics Audio Center”,
you can play an internet radio by setting this
unit as a speaker for the internet radio. For
details, visit:
www.technics.com/support/
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
•• Connect the device to the network currently used
at home.
1 Start “Technics Audio Center” on your
device (smartphone, tablet, etc.).
2 Select “Internet Radio” / “Podcasts”
from “Technics Audio Center”.
3 Press [ ], [ ] to select a station and
then press [OK].
•• ”Internet Radio” is displayed while playing back
the internet radio station.
•• ”Podcasts” is displayed while playing back
Podcasts.
•• For operation details, refer to the operating
instructions of “Technics Audio Center”. For
details, visit:
www.technics.com/support/
Note
•• The Internet Radio service may be suspended or
be otherwise unavailable without notice.
•• Internet Radio may not be played back properly
depending on the network condition.
57
(Continued)
Operations during playback
Stop
[
Pause
(Podcasts)
[
]
•• Press again to resume.
Skip
[
]
][
58
]
Operations
Playing audio using Spotify
Connect
This unit is compatible with Spotify Connect
for the online music service (Spotify). You
can play music from the music streaming
service of Spotify by operating your
smartphone, tablet, etc.
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
•• Connect the device to be used to the network of
this unit.
Use your phone, tablet or computer as a
remote control for Spotify.
Go to spotify.com/connect to learn how
59
(Continued)
Note
•• The device name of this unit will be displayed as
“Technics-SL-G700-****”*1, 2.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
•• Registration/subscription is required.
•• Services, icons, and specifications are subject to
change.
1:
* “****” stands for a number that is unique to
each set.
*2:The device name can be changed from “This
unit’s name on the network”. (⇒ 35)
60
Operations
Using TIDAL
You can play music from the music
streaming service, TIDAL on this unit
by operating the dedicated application
“Technics Audio Center” (free of charge) on
your smartphone, tablet, etc.
For details of TIDAL, visit the following
website.
www.tidal.com
■■Preparation
•• Install the latest “Technics Audio Center” on your
device (smartphone, tablet, etc.). For details, visit:
www.technics.com/support/
•• Connect this unit and your device on which
“Technics Audio Center” has been installed to the
network connected to the internet. For details,
refer to their operating instructions.
1 Start “Technics Audio Center” on your
device (smartphone, tablet, etc.).
2 Select “Technics Player” > “TIDAL” as
the music source.
61
(Continued)
3 Log into TIDAL and start playback.
(If you do not have an account) Select
“Sign Up”, and register the account.
•• Before using TIDAL, the account registration is
required (paid service).
•• For operation details, refer to the operating
instructions of “Technics Audio Center”. For
details, visit:
www.technics.com/support/
Note
•• If this unit is playing other input sources, the
input is switched, and the playback of TIDAL is
prioritised.
•• Depending on the country or region, playback may
not be available.
62
Operations
Using Deezer
You can play music from the music
streaming service, Deezer on this unit
by operating the dedicated application
“Technics Audio Center” (free of charge) on
your smartphone, tablet, etc.
For details of Deezer, visit the following
website.
www.deezer.com
■■Preparation
•• Install the latest “Technics Audio Center” on your
device (smartphone, tablet, etc.). For details, visit:
www.technics.com/support/
•• Connect this unit and your device on which
“Technics Audio Center” has been installed to the
network connected to the Internet. For details,
refer to their operating instructions.
1 Start “Technics Audio Center” on your
device (smartphone, tablet, etc.).
2 Select “Deezer” from “Technics Audio
Center”.
3 Follow the on-screen instructions and
start playback.
(If you do not have an account, you
need to register the account.)
•• For operation details, refer to the operating
instructions of “Technics Audio Center”. For
details, visit:
www.technics.com/support/
63
(Continued)
Note
•• Depending on the country or region, playback may
not be available.
64
Operations
Listening to music using
Chromecast-enabled app
This unit is compatible with Chromecast-enabled
apps. For detailed information of Chromecastenabled apps, visit:
g.co/cast/apps
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
•• Install a Chromecast-enabled app on your device
(smartphone, tablet, etc.).
•• Connect the device to the network currently used
at home.
1 Start the Chromecast-enabled app on
your device (smartphone, tablet, etc.)
and select this unit as the connecting
device.
•• The input source is automatically switched to
“Casting”.
2 Play back the music.
Not all music streaming services are available in
all countries/regions. Registration/subscription
may be required, or fees may be charged to use
music streaming services. Services are subject to
change or be discontinued. For details, visit an
individual music streaming service’s website.
65
(Continued)
Important notice:
Before you dispose of or transfer this unit
to a third party, be sure to log out of your
music streaming services accounts to prevent
unauthorised use of your accounts.
66
Operations
Using AirPlay
You can play back music stored on iOS
device, etc. using AirPlay.
•• AirPlay works with iPhone, iPad, and iPod
touch with iOS 4.3.3 or later, Mac with
OS X Mountain Lion or later, and PC with
iTunes 10.2.2 or later.
■■Preparation
•• Complete the network settings. (⇒ 28)
•• Connect the iOS device or PC to the same network
as this unit.
1 (iOS device)
Start the “Music” (or iPod) app.
(PC)
Start “iTunes”.
2 Select “Technics-SL-G700-****”*1, 2 from
).
the AirPlay icon (e.g.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
3 Start play.
•• Check the volume settings before starting the
playback.
•• When AirPlay is used for the first time, the volume
may be output at the maximum setting.
•• The playback will start with a slight delay.
*1:“****” stands for a number that is unique to
each set.
2:
* The device name can be changed from “This
unit’s name on the network”. (⇒ 35)
67
(Continued)
Operations during playback
Pause
[ ][
•• Press [
Skip
[
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
][
]
] again to resume.
]
•• You can also operate on the connected iOS
device/PC.
Note
•• Volume changes on the iOS device or iTunes will
apply to this unit. (Refer to the iTunes Help for the
required settings in iTunes.)
•• Playback of other audio sources will stop and
AirPlay output will have priority.
•• With some iOS and iTunes versions, it may not
be possible to restart the AirPlay playback if the
selector is changed or the unit is turned to standby
mode, during the AirPlay playback. In this case,
select a different device from the AirPlay icon of
the Music app or iTunes and then re-select this unit
as the output speakers.
•• AirPlay will not work when playing back videos on
iTunes.
68
Settings
Sound adjustment................................ 71
Adjusting the volume of headphones
“PHONES VOL”.......................................... 71
Using this unit exclusively for
the playback of CDs
“Pure Disc Playback”.................................. 71
MQA decoding
“MQA Decoding”....................................... 72
Disabling audio output
“Digital Output”/“Analog Output”............. 72
Setting the sampling frequency
“D.Output fs”............................................. 72
Setting the analogue audio output
“A.Output Level”........................................ 72
Adjusting the sound quality of
analogue audio output
“Filter”....................................................... 73
Setting the limitation of
headphones output
“PHONES VOL Limitation”.......................... 73
Playing back CD more
natural-sounding audio.............................. 73
Direct mode................................................74
Other settings....................................... 75
Sleep timer
“SLEEP”...................................................... 75
Auto off function
“AUTO OFF”............................................... 76
Network standby
“Network Standby”.................................... 76
Network settings
“Network”................................................. 76
Changing the character encoding
“E Asian Character”................................... 77
Checking the model name
“Model No.”............................................... 77
Checking the firmware version
“F/W Version”............................................ 77
69
Firmware updates
“F/W Update”............................................ 77
Using the favourite function................ 80
Registering your favourite station
or playlist................................................... 80
Calling up the favourite station.................. 80
Deleting the favourite station or playlist..... 81
Operations using the dedicated app
“Technics Audio Center”............................ 81
System control connection................... 82
Using system connection cable and audio
cable.......................................................... 83
Switching this unit and the connected
device to on/standby simultaneously.......... 83
Adjusting BASS/MID/TREBLE
“Tone Control”........................................... 84
Table of contents ... 04
70
Settings
Sound adjustment
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to
select the menu and then press
[OK].
4 Press [ ], [ ], [ ], [ ] to set,
and press [OK].
•• You can also enter a setup screen by
pressing and holding multi control knob
on the unit. (Use the remote control for
setting some items.)
Adjusting the volume of
headphones
“PHONES VOL”
You can adjust the volume of headphones. (⇒ 17)
•• -- dB (min), -99.0 dB to 0 dB (max)
•• The factory default is “-60.0 dB”.
Using this unit exclusively for the
playback of CDs
“Pure Disc Playback”
By disabling the network functions, etc. this unit
operates exclusively for the playback of CD/SACD
for the higher quality sound. (⇒ 44)
•• The factory default is “Off”.
71
(Continued)
MQA decoding
“MQA Decoding”
An MQA file or stream needs to be decoded to
deliver the master quality audio. Switch the MQA
decoding function to “On” or “Off”. (⇒ 42)
•• The factory default is “Off”.
Disabling audio output
“Digital Output”/“Analog Output”
Disabling the audio output of unused terminals
minimises noise and allows playback in higher audio
quality.
•• The factory default is “On”.
•• Set “Digital Output” to “Off” to disable the digital
audio output.
•• Set “Analog Output” to “Off” to disable the
analogue audio output.
Setting the sampling frequency
“D.Output fs”
You can set an upper limit on the output sampling
frequency range. Please note that the range that
can be processed differs depending on the amplifier
with digital input terminal. For details, refer to the
operating instructions of the connected device.
•• The factory default is “32kHz-192kHz”.
•• Set “Digital Output” to “On” to use this function.
•• 96 kHz or 192 kHz can be set as the upper limit on
the output sampling frequency range.
Setting the analogue audio output
“A.Output Level”
You can set the analogue audio output level is fixed
or adjustable when changing the volume with this
unit. (⇒ 25)
•• The factory default is “Fixed”.
•• The factory default of the analogue audio output
level is “-60.0 dB” when setting to “Variable”.
•• -- dB (min), -99.0 dB to 0 dB (max)
•• Set “Analog Output” to “On” to use this function.
72
(Continued)
Adjusting the sound quality of
analogue audio output
“Filter”
You can adjust the sound quality of an analogue
audio output. Set as your favourite with listening to
the actual sound.
•• The factory default is “Mode 1”.
•• Set “Analog Output” to “On” to use this function.
Note
•• Adjustment is not available when “MQA
Decoding” is set to “On”.
Setting the limitation of
headphones output
“PHONES VOL Limitation”
You can set an upper limit on the headphones
output to avoid the extremely high volume when
turning this unit or playing back.
•• The factory default is “On”.
Playing back CD more naturalsounding audio
Re-mastering expands the playback band and
achieves a higher bit depth to reproduce natural and
expansive sounds close to original music sources.
1 Press [NWP].
2 Press [RE-MASTER].
•• The factory default is “Off”.
•• When setting the MQA decoding function to
“On”, the Re-master function will be set to “Off”.
73
(Continued)
Direct mode
This unit can transmit input signals without
performing digital signal processing (DSP). This
enables faithful and high quality reproduction of
original sound.
1 Press [NWP].
2 Press [DIRECT] to select “On”/“Off”.
•• The factory default is “Off”.
•• When setting the MQA decoding function to
“On”, the Direct mode will be set to “Off”.
74
Settings
Other settings
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to
select the menu and then press
[OK].
4 Press [ ], [ ], [ ], [ ] to set,
and press [OK].
•• You can also enter a setup screen by
pressing and holding multi control knob
on the unit. (Use the remote control for
setting some items.)
Sleep timer
“SLEEP”
The sleep timer can turn the unit to standby mode
after a set time. (30 minutes/60 minutes/
90 minutes/120 minutes/Off)
•• “SLEEP” is displayed after setting.
75
(Continued)
Auto off function
“AUTO OFF”
While the setting is set to “On”, this unit
automatically enters standby mode for saving
energy, if no sound output without operation such
as pressing buttons, etc. for approx. 20 minutes.
•• The factory default is “On”. To disable this
function, select “Off”.
Note
•• The setting is stored even if the power is turned
off and on.
•• “AUTO OFF” is displayed 3 minutes before this unit
is turned off.
Network standby
“Network Standby”
This unit can turn on automatically from standby
mode when this unit is selected as the Spotify/
AirPlay/media server.
•• The factory default is “Auto”. To disable this
function, select “Off”.
Auto:
Enables the network standby function when the
network connection is available.
On:
Always enables the network standby function.
Note
•• If this function is set to “On” or “Auto”, the
standby power consumption will increase.
Network settings
“Network”
Wi-Fi setting
“Wi-Fi”
The wireless LAN function can be enabled or
disabled.
•• The factory default is “On”.
76
(Continued)
Wi-Fi signal strength
“Signal Level”
To check the Wi-Fi signal strength where this system
is located.
•• The signal strength is shown as 3 (max) - 2 - 1. If
the indicator shows “2” or “1”, change the position
or angle of your wireless router or this system, and
see if the connection improves.
•• If “0” is displayed, this system cannot establish a
link with the wireless router.
Changing the character encoding
“E Asian Character”
You can change the character encoding of track
names, artist names and other information when
they are not displayed as they should be.
Type 1(日本):
Priority is given to Japanese. (default)
Type 2(简体字):
Priority is given to Chinese (Simplified).
Checking the model name
“Model No.”
The model name is displayed.
Checking the firmware version
“F/W Version”
The version of the installed firmware is displayed.
Firmware updates
“F/W Update”
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are available
free of charge.
•• For the update information, refer to the following
website.
www.technics.com/support/firmware/
Downloading takes approx. 15 minutes.
Do not disconnect the AC mains lead or turn
this unit to standby while updating.
Do not disconnect the USB flash memory
while updating.
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
77
(Continued)
Note
•• During the update process, no other operations
can be performed.
•• If there are no updates, “Firmware is Up To Date”
is displayed. (No need to update it.)
•• Updating the firmware may reset the settings of
this unit.
Update via Internet
■■Preparation
•• Connect this unit to the network. (⇒ 28)
Make sure that the network is connected to the
Internet.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select “F/W
Update” and then press [OK].
4 Press [ ], [ ] to select “Internet” and
then press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• When the update has finished successfully,
“Success” is displayed.
6 Press [
] on the unit to turn this unit
off and on.
Note
•• Downloading may take longer depending on the
internet connection environment, etc.
•• Firmware updating may automatically start after
the network setting is complete (⇒ 28).
Update via USB flash memory
■■Preparation
•• Download the latest firmware on the USB flash
memory. For details, refer to the following
website.
www.technics.com/support/firmware/
1 Connect the USB flash memory with
new firmware to the USB-A terminal
(USB Front) on the front of this unit.
•• The USB-A terminal (USB Rear) on the rear of
this unit is not available for firmware updating
by USB flash memory.
2 Press [NWP].
78
(Continued)
3 Press [SETUP].
4 Press [ ], [ ] repeatedly to select “F/W
Update” and then press [OK].
5 Press [ ], [ ] to select “USB Front” and
then press [OK].
6 Press [ ], [ ] to select “Yes” and then
press [OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• When the update has finished successfully,
“Success” is displayed.
7 Press [
] on the unit to turn this unit
off and on.
Note
•• Downloading may take longer depending on the
USB flash memory.
79
Settings
Using the favourite function
Registering your favourite station
or playlist
You can register your favourite station or playlist
(USB Front / USB Rear / DMP / Internet Radio
/ Spotify / TIDAL / Deezer, etc.) and call up the
station.
1 Press [NWP].
2 Switch the input source (USB Front /
USB Rear / DMP / Internet Radio /
Spotify / TIDAL / Deezer, etc.).
3 Press and hold [PGM] for approx.
3 seconds while the playback screen is
displayed.
•• The favourite registering screen (FAV) is
displayed.
4 Press [ ], [ ] repeatedly to select the
number (FAV1 - 9) to register and then
press and hold [OK].
•• “Memorised” is displayed after registering.
•• You can register up to 9 favourite stations or
playlists.
•• The favourite function (registering/calling up/
deleting) can also be set from the dedicated
application “Technics Audio Center” (free of
charge).
•• Press and hold [PGM] for approx. 3 seconds to exit
the setting.
•• You can also enter a favourite setting screen by
pressing and holding [INPUT] on the unit.
Calling up the favourite station
1 Press [NWP].
2 Press and hold [PGM].
3 Press [ ], [ ] repeatedly to select a
favourite number to play back and then
press [OK].
•• You can also select the number with the numeric
buttons.
•• If no station or playlist is registered to the favourite
list, “Empty” is displayed. Add a station or playlist
to the list.
•• The input source automatically switches to the
registered station.
80
(Continued)
Note
•• If the station or playlist cannot be found after the
input source is switched, playback does not start
or other music may play back.
Deleting the favourite station or
playlist
1 Press [NWP].
2 Press and hold [PGM].
3 Press [ ], [ ] repeatedly to select a
favourite number to delete and then
press [CLEAR].
4 Press [ ], [ ] repeatedly to select “Yes”
and then press [OK].
•• “Cleared” is displayed after deleting.
•• “Empty” is displayed if no station or playlist is
registered to the favourite list.
Operations using the dedicated
app
“Technics Audio Center”
If you install the dedicated app “Technics Audio
Center” (free of charge) on your tablet/smartphone,
you can control this unit and edit the favourite list.
Download and install the app from the website
below.
www.technics.com/support/
81
Settings
System control connection
You can operate this unit and Technics
devices supporting system control
function (Stereo Integrated Amplifier, etc.)
simultaneously with ease on the remote
control.
For details, refer to the operating
instructions of each device.
Analogue audio
cable (supplied) *
System
connection
cable
Amplifier with
unbalanced input
terminals
Stereo Integrated Amplifier, etc.
*: The illustration shows the example when
connecting to an amplifier with unbalanced
input terminals using analogue audio cable.
Connect the device with proper cable/terminal
supporting the device.
Note
•• Be sure to connect the device with analogue audio
cable when playing back Super Audio CD with this
unit.
•• System control function is not available in the
following conditions.
While this unit is in “Pure Disc Playback” mode
When “A.Output Level” is set to “Variable”
82
(Continued)
Using system connection cable
and audio cable
1 Disconnect the AC mains lead.
2 Connect this unit and Technics device
supporting system control function
(Stereo Integrated Amplifier, etc.).
•• Use both of the system connection cable and
the audio cables when connecting this unit and
the device.
•• Use the system connection cable supplied with
the connected device.
3 Connect the AC mains lead to this unit.
(⇒ 27)
4 Press [NWP
] to turn this unit on.
5 Set the system control function on the
connected device.
•• For details, refer to the operating instructions of
the connected device.
Switching this unit and the
connected device to on/standby
simultaneously
When the device supporting system control
function (Stereo Integrated Amplifier, etc.) is turned
on/off, this unit is turned on/off automatically.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Power On Link”/“Power Off Link” and
then press [OK].
4 Press [ ], [ ] to select “On” and then
press [OK].
83
(Continued)
Adjusting BASS/MID/TREBLE
“Tone Control”
You can adjust the tone of the SU-C700 with this
unit. Each tonal range (BASS/MID/TREBLE) can be
adjusted.
1 Press [NWP].
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select “Tone
Control” and then press [OK].
4 Press [ ], [ ] to set, and press [OK].
•• To enable this function, select “On (adjustment)”.
•• Each level can be adjusted between “- 10” and
“+ 10”.
84
Others
Troubleshooting.................................... 86
Heat buildup of this unit............................. 86
Do you have the latest firmware
installed?.................................................. 86
To restore all the settings to the factory
defaults...................................................... 87
General...................................................... 88
Disc............................................................ 90
USB............................................................ 90
Bluetooth®................................................. 91
Network..................................................... 92
Spotify/TIDAL/Deezer/Internet Radio/
Podcasts.................................................... 94
Remote control.......................................... 94
Messages................................................... 95
Playable media...................................... 98
Notes on discs............................................ 98
USB............................................................ 99
About Bluetooth®............................... 100
Licenses................................................ 101
Specifications...................................... 103
Table of contents ... 04
85
Others
Troubleshooting
Before requesting service, make the
following checks. If you are uncertain about
some of the check points, or if the solutions
indicated in the following guide do not
resolve the issue, then consult your dealer
for instructions.
Heat buildup of this unit
This unit becomes warm while in use.
•• Be careful when touching the bottom of this unit
because the bottom of this unit may be hot. For
installation or unit care, disconnect the AC mains
lead, wait for at least 3 minutes.
Do you have the latest firmware
installed?
Panasonic is constantly improving the unit’s
firmware to ensure that our customers are enjoying
the latest technology. (⇒ 77)
86
(Continued)
To restore all the settings to the
factory defaults
When the following situations occur, reset the
memory:
•• There is no response when buttons are pressed.
•• You want to clear and reset the memory contents.
1 Press [NWP] while this unit is turned on.
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Initialization” and then press [OK].
4 Press [ ], [ ] to select “Yes” and then
press [OK].
•• A confirmation screen appears. Select “Yes” in
the following steps to restore all the settings to
defaults.
5 Press [ ], [ ] to select “Yes” and then
press [OK] again.
87
(Continued)
General
The unit does not work.
Operations are not done properly.
•• One of the unit’s safety devices, etc. may have
been activated.
Press [
] on the unit to switch the unit to
standby.
•• If the unit does not switch to standby, press
[
] on the unit for at least 5 seconds. The
unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead,
wait for at least 3 minutes, then reconnect it.
Press [
] on the unit to switch on. (It may take
some time for this unit to be turned on.)
•• If the unit still cannot be operated, consult the
dealer.
•• The remote control may not work properly. (⇒ 94)
A “humming” sound can be heard during
playback.
•• An AC mains lead of another device or fluorescent
light is near the cables. Turn off other appliances,
or keep them away from the cables of this unit.
•• A strong magnetic field near a TV or other device
may adversely affect the audio quality. Keep this
unit away from such a location.
•• The speakers may output noise when a device
nearby is emitting powerful radio waves, such as
when a mobile phone is on a call.
No sound.
•• Check the volume of the connected device. Check
the volume of this unit if “A.Output Level” is set to
“Variable”.
•• Check to see if the cable connections to the input
and output terminals are incorrect. If this is the
case, turn this unit to standby and reconnect the
cables correctly.
•• Check to see if the correct input source is selected.
•• Insert the plugs of the cables to be connected all
the way in.
•• Playback of multi-channel content is not
supported.
•• The digital audio input terminal of this unit can
only detect linear PCM signals. For details, refer to
the operating instructions of the device.
•• Audio signal of Super Audio CD and Super Audio
CD layer of Hybrid Super Audio CD cannot be
output from the digital audio output terminal
of this unit. Connect the device to the analogue
audio output terminal.
•• Check if “Digital Output” or “Analog Output” is set
to “On”. (⇒ 72)
88
(Continued)
Playback does not start.
•• Depending on your environment or connected
devices, it may take some time.
•• Check to see if the format of the file is supported.
For supported formats, refer to “File format”.
(⇒ 107)
The unit turns to standby mode automatically.
•• Is the auto off function turned on? (⇒ 76)
•• This unit may turn to standby mode simultaneously
with the connected device with the system control
function. (⇒ 83)
The settings are reset to the factory defaults.
•• Updating the firmware may reset the settings.
The system control function is not working.
•• Use the system connection cable supplied with the
connected device.
•• Connect the system connection cable to the
system terminals (CONTROL). (⇒ 82)
•• Connect Technics device supporting system
control function (Stereo Integrated Amplifier,
etc.) to this unit. For details, refer to the following
website.
www.technics.com/support/
89
(Continued)
Disc
Incorrect display or play does not start.
•• Make sure that the disc is compatible with this
unit. (⇒ 98)
•• There is moisture on the lens. Wait for about an
hour and then try again.
•• Unfinalised CD-R and CD-RW cannot be played
back.
•• WMA/MP3 is not supported. Refer to “Notes on
discs” (⇒ 98) for information about the discs this
unit can play back.
Playback takes time to start.
•• It may take some time for the disc to load if there
are a lot of tracks on it.
USB
The USB drive or its contents cannot be read.
•• The USB drive format or its contents is/are not
compatible with the unit. (⇒ 99)
•• The USB drive may not be read which has the files/
folders with the long names, even if the number of
the files/folders of the USB device doesn’t reach a
maximum number (⇒ 105).
No response when [
] is pressed.
•• Disconnect the USB device and then reconnect
it. Alternatively, turn the unit to standby and on
again.
Slow operation of the USB flash drive.
•• Large file size or high memory USB flash drive
takes longer time to read.
•• It may take some time if there are a lot of files or
folders on it.
Cannot display the information properly.
•• Track names, etc. may not be displayed properly.
90
(Continued)
Bluetooth®
Pairing cannot be completed.
•• Check the Bluetooth® device condition.
The device cannot be connected.
•• The pairing of the device was unsuccessful or the
registration has been replaced. Try re-pairing the
device. (⇒ 50)
•• This unit might be connected to a different device.
Disconnect the other device and try re-pairing the
device.
The device is connected, but audio cannot be
heard through this unit.
•• For some built-in Bluetooth® devices, you have
to set the audio output to this unit manually.
Read the operating instructions for the device for
details.
The sound is interrupted.
•• The device is out of the 10 m communication
range. Bring the Bluetooth® device closer to this
system.
•• Remove any obstacle between this system and the
device.
•• Other devices that use the 2.4 GHz frequency
band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the Bluetooth®
device closer to this system and distance it from
the other devices.
•• Select “Mode 1” for stable communication. (⇒ 52)
91
(Continued)
Network
Cannot connect to the network.
•• Confirm the network connection and settings.
(⇒ 28)
•• If the network is set to be invisible, make the
network visible while you set up the network for
this unit or make a wired LAN connection.
•• This system’s Wi-Fi security supports WPA2™.
Your wireless router must therefore be WPA2™
compatible. For details on the security supported
by your router and how to change the settings,
please refer to the operating instructions or
contact your internet service provider.
•• Make sure that the multicast function on the
wireless router is enabled.
•• Depending on the router, WPS button may not
work. Try another connection method. (⇒ 31)
•• The wireless LAN environment or radio
interference in your area may cause connection
problem. In this case, try another connection
method. If the problem persists, make a wired
LAN connection. (⇒ 29)
•• While the AC mains lead is disconnected, the LAN
cable must be connected or disconnected.
Cannot select this system as the output
speakers.
•• Make sure that the devices are connected to the
same network as this unit.
•• Reconnect the devices to the network.
•• Turn the wireless router off and then on.
•• Turn this unit to standby and on, and then select
this system as the output speakers again.
Cannot select this unit from the Chromecastenabled apps.
•• When using the Chromecast-enabled apps to play
music on this unit, you need to set up a network
connection using “Google Home” app. (⇒ 33)
•• You may not select this unit from the video apps,
etc.
92
(Continued)
Playback does not start.
The sound is interrupted.
•• The content may not be played back properly
depending on the network condition.
•• If using the 2.4 GHz band on the wireless router,
simultaneous use with other 2.4 GHz devices, such
as microwaves, cordless telephones, etc., may
result in connection interruptions. Increase the
distance between this unit and these devices.
If your wireless router supports 5 GHz band, try
using the 5 GHz band.
•• Do not place this system inside a metal cabinet, for
it might block the Wi-Fi signal.
•• If the playback stops, check the playback status on
the device.
•• Place this system closer to the wireless router.
•• Check the Wi-Fi signal strength using “Signal
Level” and adjust location of this unit and the
wireless router. (⇒ 77)
•• If several wireless devices are simultaneously using
the same wireless network as this unit, try turning
off the other devices or reducing their wireless
network usage.
•• Reconnect the devices to the network.
•• Turn the wireless router off and then on.
•• With some iOS and iTunes versions, it may not
be possible to restart the AirPlay playback if the
selector is changed (e.g. “CD”) or this unit is in
standby mode, during the AirPlay playback. In this
case, select a different device from the AirPlay icon
of the Music App or iTunes and then re-select this
system as the output speakers. (⇒ 67)
•• If the above solutions do not solve the problem,
make a wired LAN connection for all connected
devices which have LAN terminal (this unit,
Network Attached Storage, media server, etc.).
(⇒ 29)
The media server and its contents are not
displayed.
•• The connected media server and its contents
may not be displayed properly depending on its
condition (e.g. soon after adding the contents to
the server, etc.). Try again later. For details, refer to
the operating instructions of the media server.
Cannot find music files stored on the PC.
•• When you play back music files over a network,
those that are not registered to its network
server are not displayed. For details, refer to the
operating instructions for your server.
Cannot display the information properly.
•• Track names, etc. may not be displayed properly.
93
(Continued)
Spotify/TIDAL/Deezer/
Internet Radio/Podcasts
Playback does not start.
The sound is interrupted.
•• The station that does not broadcast cannot be
played back (or it will be skipped).
•• The internet radio station may not be played back
depending on the broadcasting method or the
network condition.
•• The content may not be played back properly
depending on the network condition.
•• Depending on the internet connection
environment, the sound may be interrupted or it
may take some time to play back.
•• Service may not be available depending on the
country or area.
•• The services through Network Service are
operated by their respective service providers, and
service may be discontinued either temporarily or
permanently without notice.
•• Change TIDAL sound quality setting for “Settings”
of “Technics Audio Center”. The performance may
be improved.
Cannot display the information properly.
•• Station names, countries, regions, genres, track
names, album names, etc. which are managed by
the service provider, may not be displayed properly
depending on the broadcasting information.
Remote control
The remote control does not work properly.
•• Press [NWP]/[CD] first to operate this unit.
(The remote control works only for the devices
supporting system control function when pressing
[AMP].)
•• The batteries are depleted or inserted incorrectly.
(⇒ 22)
•• To avoid interference, please do not put any
objects in front of signal sensor. (⇒ 16)
•• If the remote control mode of the remote control
differs from that of this unit, match the mode of
the remote control to the mode of this unit. (⇒ 22)
94
(Continued)
Messages
AUTO OFF
The unit has been left unused for about 20 minutes
and will shut down within a minute. (⇒ 76) Press
any button to cancel it.
Checking Device
The unit is checking the connected USB device.
•• After this display has disappeared, start operating.
Download Fail
The firmware download has failed.
The network is not connected to the internet.
•• Press any button to exit. Please try again later.
•• The server cannot be found. Press any button to
exit. Make sure that the network is connected to
the internet.
Empty
The selected folder is empty.
•• Move tracks into the folder and retry the
operation.
The server is not found on the network.
•• Check to see if the server is connected to the same
network as this unit, and retry the connection to
this unit. (⇒ 28)
No station or playlist is registered to the favourite
list.
•• Add a station or playlist to the list. (⇒ 80)
Error
Incorrect operation is performed.
•• Read the instructions and try again.
Fail
Network connection is not complete.
•• Try the setting again. (⇒ 28)
Firmware update is available
The firmware (free of charge) for this unit is
available.
Press [NWP].
Press [OK].
Press [ ], [ ] to select “Yes” and then press
[OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• Do not disconnect the AC mains lead or turn
this unit to standby while updating. (⇒ 77)
•• When the update has finished successfully,
“Success” is displayed.
Press [
on.
] on the unit to turn this unit off and
•• For the update information, refer to the following
website.
www.technics.com/support/firmware/
95
(Continued)
“F
” (“ ” stands for a number.)
An abnormality has occurred. (If this unit detects an
abnormality, the protection circuit is activated, and
the power may be turned off automatically.)
•• Is this unit placed in an extremely hot place?
•• Wait a few seconds and then turn the unit on
again. (The protection circuit will be deactivated.)
If the problem persists, write down the displayed
number, disconnect the AC mains lead and consult
your dealer.
Load Fail
The firmware cannot be found on the USB flash
memory.
•• Download the latest firmware on the USB flash
memory and try again. (⇒ 78)
No Device
No USB device is connected.
•• Connect the USB device to be played. (⇒ 45)
USB device is not playable.
•• Check to see if the file system of USB device is
playable. (⇒ 105)
No Disc
No CD is inserted. Inserted CD-R, etc. have no audio
track.
•• Insert the disc to be played (⇒ 39).
No Layer
No available layer to be played back.
•• Insert Hybrid Super Audio CD disc which has a CD
layer and Super Audio CD layer.
No Network Available
This unit is not connected to the network.
•• Check the network connection. (⇒ 28)
No Play
The disc cannot be played back.
•• Insert the disc to be played (⇒ 98).
Not Valid
The function you have tried to use is not available
with the current settings.
•• Check the steps and settings.
•• Registration/subscription may be required for
some functions.
•• Another input source than “CD” cannot be
selected while this unit is in “Pure Disc Playback”
mode. (⇒ 44)
Operate via App
Remote control is not available.
•• Use the connected device or application for
operating.
PGM Full
The number of programmed tracks is more than 20.
•• No more track cannot be programmed.
96
(Continued)
Please Wait
This is displayed, for example, when this unit is
turned to standby/on. (For up to approx. 1 minute
and 30 seconds)
•• Wait for the display disappears.
Reading
The unit is checking the CD information.
•• After this display has disappeared, start operating.
“Remote ” (“ ” stands for a number.)
The remote control and this unit are using different
modes.
•• Change the mode on the remote control. (⇒ 22)
Searching
The unit is checking the media server on the
network.
•• Check to see if there is a server in same network.
Unlocked
“COAX” or “OPT” is selected, but no device is
connected.
The sampling frequency components, etc. of the
audio signals are not input correctly.
•• Check the connection with the device. (⇒ 48)
•• For supported formats, refer to “File format”.
(⇒ 107)
USB Over Current Error
USB device is drawing too much power.
•• Disconnect the USB device and turn the unit to
standby and on again. (⇒ 45)
•• Turn this unit off and on.
Wi-Fi Setup
Select “On” and press [OK] to enter the network
setting. (⇒ 30)
•• To exit the network setting, select “Off” and press
[OK].
97
Others
Playable media
Notes on discs
■■Disc formats supported by this unit
Support
(2-channel only)
Super Audio CD (SACD)
Commercially available CDs
(CD-DA)
Support
CD-R/CD-RW (CD-DA)
Support
■■Compatible CD
•• A disc with the CD Logo.
•• This unit can play back discs that conform to the
CD-DA format.
•• The unit may not be able to play some discs due to
the condition of the recording.
•• Before playback, finalise the disc on the device it
was recorded on.
■■CDs that cannot be used
•• CDs with irregular shapes, such as heart shapes
(Use of such CDs may cause malfunction.)
■■CDs that are not guaranteed to operate with
this unit
•• Discs with illegally copied data and those that do
not conform to industry standards
•• DualDiscs (Discs that record data such as music
and images on both sides)
■■This unit’s lens
Use the lens cleaner (not supplied) to clean the
unit’s lens.
■■Clean discs
DO
DO NOT
Wipe with a damp cloth and then wipe dry with a
dry cloth.
■■Disc handling precautions
•• Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
•• Do not use disc cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other
solvent.
•• Do not attach labels or stickers to discs.
•• Do not use the following discs:
Discs with exposed adhesive from removed
stickers or labels (rented discs, etc.).
Discs that are badly warped or cracked.
Irregularly shaped discs, such as heart shapes.
98
(Continued)
USB
•• This unit does not guarantee connection with all
USB devices.
•• FAT16, FAT32 and NTFS file systems are
supported.
•• This unit supports USB 2.0 high speed.
•• USB devices may not be recognised by this unit
when connected using the following:
a USB hub
a USB extension cable
•• It is not possible to use USB card reader/writers.
•• This unit cannot record music to a USB device.
•• Not all files on the USB device may be read if there
are some files not supported.
•• About supported format, refer to “File format”
(⇒ 107)
■■Folder and file structure
The unit plays back only the music files in the
selected folder. Select the folder containing the
tracks that you want to play back.
•• Nothing is played back if you select a folder
without music files, such as the folder
in the
diagram below. (“Empty” is displayed.)
Example:
Folder
Music file
Music 1
Music 2
Music 3
Music 4
Music 5
99
Others
About Bluetooth®
Panasonic bears no responsibility for data and/
or information that is compromised during a
wireless transmission.
Frequency band used
•• This system uses the 2.4 GHz frequency band.
Certification of this device
•• This system conforms to frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
•• The actions below are punishable by law in some
countries:
Taking apart or modifying the system.
Removing specification indications.
Restrictions of use
•• Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
•• All devices must conform to standards set by
Bluetooth SIG, Inc.
•• Depending on the specifications and settings of a
device, it can fail to connect or some operations
can be different.
•• This system supports Bluetooth® security features.
But depending on the operating environment and/
or settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with
caution.
•• This system cannot transmit data to a Bluetooth®
device.
Range of use
•• Use this device at a maximum range of 10 m.
The range can decrease depending on the
environment, obstacles or interference.
Interference from other devices
•• This system may not function properly and
troubles such as noise and sound jumps may arise
due to radio wave interference if this system is
located too close to other Bluetooth® devices or
the devices that use the 2.4 GHz band.
•• This system may not function properly if radio
waves from a nearby broadcasting station, etc. is
too strong.
Intended usage
•• This system is for normal, general use only.
•• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).
100
Others
Licenses
The Wi-Fi CERTIFIED™ Logo is a certification
mark of Wi-Fi Alliance ®.
The Wi-Fi Protected Setup™ Logo is a
certification mark of Wi-Fi Alliance ®.
Use of the Works with Apple badge means
that an accessory has been designed to work
specifically with the technology identified in the
badge and has been certified by the developer to
meet Apple performance standards.
Apple, and AirPlay are trademarks of Apple Inc.,
registered in the U.S. and other countries.
This product is compatible with AirPlay 2. iOS
11.4 or later is required.
Google, Google Home, Chromecast built-in and
other related marks and logos are trademarks of
Google LLC.
Windows is a trademark or a registered
trademark of Microsoft Corporation in the United
States and other countries.
Windows Media and the Windows logo
are trademarks or registered trademarks of
Microsoft Corporation in the United States and/
or other countries. This product is protected by
certain intellectual property rights of Microsoft
Corporation and third parties. Use or distribution
of such technology outside of this product is
prohibited without a license from Microsoft or an
authorized Microsoft subsidiary and third parties.
Mac and OS X are trademarks of Apple Inc.,
registered in the U.S. and other countries.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks
and trade names are those of their respective
owners.
Super Audio CD is a registered trademark.
SBM Direct is a registered trademark.
101
(Continued)
DSD is a trademark of Sony Corporation.
FLAC Decoder
Copyright (C) 2000, 2001, 2002, 2003, 2004,
2005, 2006, 2007, 2008, 2009 Josh Coalson
Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following conditions
are met:
Redistributions of source code must retain the
above copyright notice, this list of conditions
and the following disclaimer.
Redistributions in binary form must reproduce
the above copyright notice, this list of
conditions and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used
to endorse or promote products derived from
this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
“AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE FOUNDATION OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
The Spotify Software is subject to third party
licenses found here: https://www.spotify.com/
connect/third-party-licenses.
The MQA logo is a trademark of MQA Limited.
© MQA Limited 2017
102
Others
Specifications
■■GENERAL
Power supply
AC 220 V to 240 V,
50/60 Hz
Power consumption
38 W
Power consumption
in standby mode
(Network Standby
Off)
Approx. 0.3 W
Power consumption
in standby mode
(Network Standby
On with Wired LAN)
Approx. 1.9 W
Power consumption
in standby mode
(Network Standby
On with Wireless
LAN)
Approx. 1.7 W
Dimensions
(W×H×D)
430 mm × 98 mm ×
407 mm
Mass
Approx. 12.2 kg
Operating
temperature range
5 °C to 35 °C
Operating humidity
range
35% to 80% RH
(no condensation)
■■ANALOG OUTPUT SECTION
Channel
2 ch
Output level
BALANCED
2.0 Vrms (Super Audio
CD) / 2.3 Vrms (CD)
UNBALANCED
2.0 Vrms (Super Audio
CD) / 2.3 Vrms (CD)
Frequency response
Super Audio CD
2 Hz to 50 kHz (-3 dB)
CD
2 Hz to 20 kHz (-3 dB)
THD+N
Super Audio CD
0.0006% (1 kHz, 0 dB)
CD
0.0015% (1 kHz, 0 dB)
S/N (IHF-A)
Super Audio CD
BALANCED: 121 dB
UNBALANCED: 118 dB
CD
BALANCED: 121 dB
UNBALANCED: 118 dB
Dynamic range
(IHF-A)
Super Audio CD
BALANCED: 118 dB
UNBALANCED: 115 dB
CD
BALANCED: 98 dB
UNBALANCED: 98 dB
103
(Continued)
■■DISC SECTION
Disc played
(8 cm or 12 cm)
Super Audio CD (2ch area
only), CD, CD-R, CD-RW
Pick up
Wavelength
650 nm (Super Audio CD),
790 nm (CD)
Laser power
CLASS 1
Audio Output (Disc)
2ch (FL, FR)
Format
Super Audio CD, CD-DA
NORSK
Bølgelengde
650 nm (Super Audio CD),
790 nm (CD)
Laserstyrke
Ingen farlig stråling sendes
ut
■■Bluetooth® SECTION
Bluetooth® system
specification
Bluetooth® Ver.4.2
Wireless equipment
classification
Class 2 (2.5 mW)
Supported profiles
A2DP, AVRCP
Supported codec
AAC, SBC
Frequency band
2.4 GHz band FH-SS
Operating distance
Approx. 10 m Line of
sight*1
*1: Prospective communication distance
Measurement environment:
Temperature 25 °C/Height 1.0 m
Measure in “Mode 1”
104
(Continued)
■■TERMINALS SECTION
Headphones Jack
Stereo, φ6.3 mm
110 mW, 32 Ω (VOL MAX)
USB (Front/Rear)
Type A Connecter
USB 2.0 High Speed
DC 5 V 500 mA (Front)
DC 5 V 1 A (Rear)
USB Mass Storage Class
Support Memory
Capacity
2 TB (max)
Maximum number
of folders (albums)
800
Maximum number
of files (songs)
8000
File system
FAT16, FAT32, NTFS
Ethernet interface
LAN
(100BASE-TX/10BASE-T)
Digital Input
Optical digital
input
Optical terminal
Coaxial digital
input
Pin jack
Format support
LPCM
Analog output
BALANCED
3 pin XLR
UNBALANCED
Pin jack
Digital output
Optical digital
output
Optical terminal
Coaxial digital
output
Pin jack
Format support
LPCM
System port
System control
φ3.5 mm, Jack
105
(Continued)
■■FORMAT SECTION
USB-A
USB Standard
USB 2.0 high-speed
USB Mass Storage class
■■Wi-Fi SECTION
Standard
IEEE802.11a/b/g/n/ac
Frequency band
2.4 GHz band
5 GHz band
Security
WPA2™, Mixed mode
WPA2™/WPA™
WPS version
Version 2.0
•• The WLAN feature of this product shall exclusively
be used inside buildings.
106
(Continued)
■■File format
This unit supports the following file formats.
•• This unit does not support the playback of copyprotected music files.
•• Playback of all files in formats supported by this
unit is not guaranteed.
•• Playback of a file in a format not supported by
this unit may cause choppy audio or noise. In such
cases, check to see if this unit supports the file
format.
•• This unit does not support VBR (Variable Bit Rate)
playback.
•• Some of the connected devices or servers may
be capable of converting files in formats not
supported by this unit and output them. For
details, refer to the operating instructions for your
devices or servers.
•• File information (sampling frequency, etc.) shown
by this unit and playback software may differ from
each other.
Extension
MP3
.mp3
32/44.1/
48 kHz
16 to
320 kbps
AAC
.m4a
.aac
32/44.1/48/
88.2/96 kHz
16 to
320 kbps
.wav
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
.flac
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
.aiff
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
ALAC
.m4a
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
DSD
.dff
.dsf
2.8/5.6/
11.2 MHz
WAV
FLAC
AIFF
Sampling
frequency
File format
Bit rate/
Number of
quantisation bits
USB-A
107
(Continued)
Extension
MP3
.mp3
32/44.1/
48 kHz
16 to
320 kbps
AAC
.m4a
.aac
32/44.1/48/
88.2/96 kHz
16 to
320 kbps
.wav
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
.flac
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
.aiff
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
ALAC
.m4a
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
DSD
.dff
.dsf
2.8/5.6/
11.2 MHz
WAV
FLAC
AIFF
Sampling
frequency
File format
Bit rate/
Number of
quantisation bits
LAN (DMP/DMR)*
*: Whether or not each music file can be played
back over your network is determined by the
network server even if the format of the file
is listed above. For example, if you are using
Windows Media Player 11, not all music files on
the PC are playable. You can play back only those
added to the library of Windows Media Player 11.
Note
•• Specifications are subject to change without
notice.
•• Mass and dimensions are approximate.
108
EU
Headquarter Address:
Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
En
TQBM0225-1
© Panasonic Corporation 2019
M0519TK169

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
