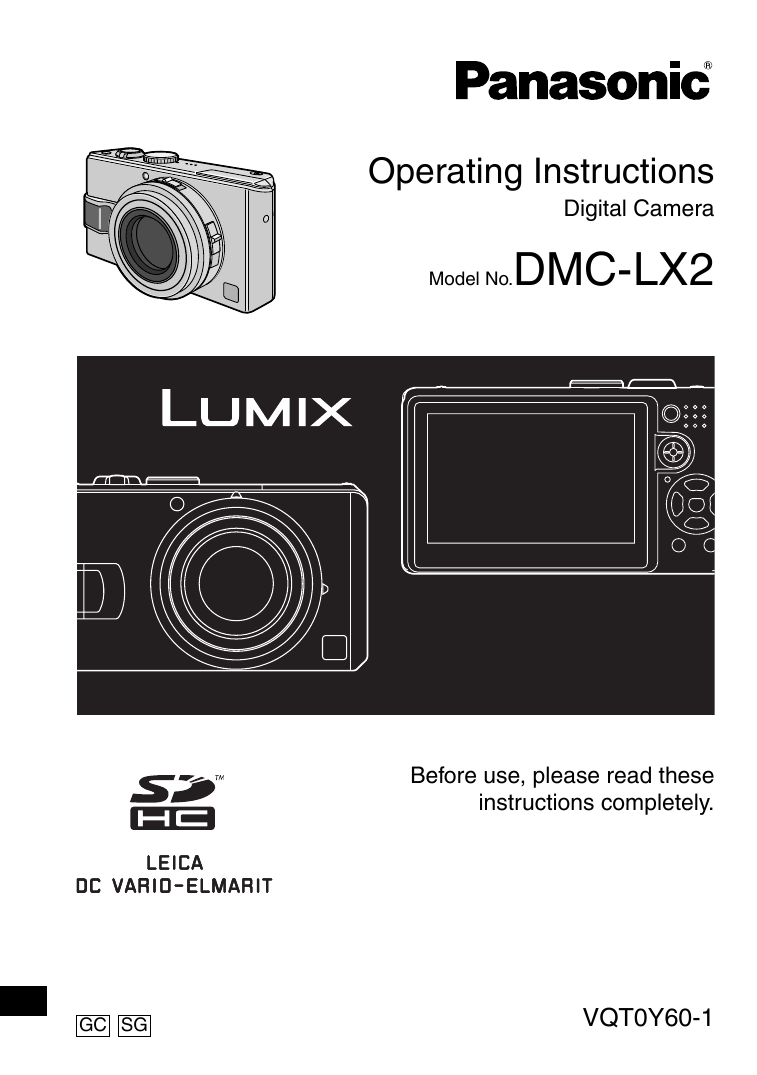

Panasonic DMCLX2 Operating Instructions

Operating Instructions

Digital Camera

Model No.

DMC-LX2

GC SG

Before use, please read these instructions completely.

VQT0Y60-1

Before Use

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic

Digital Camera. Please read these

Operating Instructions carefully and keep them handy for future reference.

Information for Your

Safety

WARNING

TO REDUCE THE RISK OF FIRE OR

SHOCK HAZARD AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES

AND DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

DO NOT REMOVE THE COVER (OR

BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THE SOCKET OUTLET SHALL BE

INSTALLED NEAR THE EQUIPMENT

AND SHALL BE EASILY ACCESSIBLE.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

How to replace the Fuse

The location of the fuse differ according to the type of AC cable (figures A and B).

Confirm the AC cable fitted and follow the instructions below.

Illustrations may differ from actual AC cable.

1 Open the fuse cover with a screwdriver.

Figure A

Figure B

Carefully observe copyright laws.

Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

Fuse cover

2 Replace the fuse and close or attach the fuse cover.

• Please note that the actual controls and components, menu items, etc. of your

Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

• SDHC Logo is a trademark.

• Leica is a registered trademark of Leica

Microsystems IR GmbH.

• Elmarit is a registered trademark of Leica

Camera AG.

• Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned.

VQT0Y60

Figure A

Fuse

(5 ampere)

Figure B

Fuse

(5 ampere)

Before Use n

Care for the camera

•

Do not strongly shake or bump the camera.

The camera may not be operated normally, recording of pictures may be disabled or the lens and the LCD monitor may be damaged.

• Retract the lens before carrying the camera.

• Retract the lens before playing back pictures.

• Sand or dust may cause the camera to malfunction. Make sure that sand or dust does not get into the lens, the flash or the terminals when using the camera on a beach etc.

• Make sure that water does not get into the camera when using it on a rainy day or on a beach.

• This camera is not waterproof.

In case the camera comes into contact with water, wipe it off with a dry cloth.

When the camera does not operate normally, contact your dealer or your nearest servicentre.

About the LCD monitor

• Do not press the LCD monitor with excessive force. Uneven colours may appear on the

LCD monitor and it may malfunction.

• Condensation may form on the LCD monitor in places with large temperature differences. Wipe the condensation with a soft, dry cloth.

• If the camera is cold when you turn it on, the picture on the LCD monitor will be slightly darker than usual at first.

However, the picture will return to normal brightness when the internal temperature of the camera increases.

About the Lens

• Do not press the lens or the lens barrel with excessive force.

• Do not leave the camera with the lens facing the sun as it may cause the camera to malfunction. Also, be careful when you leave the camera outside or near a window.

• When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the picture may be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after taking pictures.

About Condensation (When the lens is fogged up)

• Condensation occurs when the ambient temperature or humidity changes as described below. Be careful of condensation since it causes lens stains, fungus and camera malfunction.

–When the camera is taken from the cold outdoors to the warm indoors

–When the camera is taken from outside to inside an air-conditioned car

–When cool wind from an air conditioner etc. blows directly on the camera

–In humid places

• To prevent condensation, put the camera in a plastic bag until the temperature of the camera is close to the ambient temperature. If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature.

Extremely high precision technology is employed to produce the LCD monitor screen. However there may be some dark or bright spots (red, blue or green) on the screen. This is not a malfunction. The

LCD monitor screen has more than

99.99% effective pixels with a mere 0.01% of the pixels inactive or always lit.

The spots will not be recorded in pictures stored in the built-in memory or a card.

VQT0Y60

Before Use n

When not using the camera for a long period of time

• Store the battery in a cool and dry place with a relatively stable temperature.

[Recommended temperature: 15°C to

25°C, Recommended humidity: 40% to

60%]

• Always remove the battery and the card from the camera.

• If the battery is left inserted in the camera it will discharge even if the camera is turned off. If the battery continues to be left in the camera, it will discharge excessively and may become unusable even if charged.

• When storing the battery for a long period of time, we recommend charging it once a year. Remove the battery from the camera and store it again after it has completely discharged.

• We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a cabinet.

About cards that can be used in this unit

You can use an SD Memory Card, an SDHC Memory Card and a

MultiMediaCard.

•

When the term

card

is used in these operating instructions this refers to the following types of Memory Cards.

–

SD Memory Card (8 MB to 2 GB)

–

SDHC Memory Card (4 GB)

–

MultiMediaCard

More specific information about memory cards that can be used with this unit.

•

You can only use an SDHC Memory Card if using cards with 4 GB or more capacity.

•

A 4 GB Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product.

-If you see this symbol-

Information on Disposal in other

Countries outside the European

Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

VQT0Y60

Before Use

About The Mode dial

Adjust part

to the desired mode.

The mode dial can be rotated 360°. Rotate it slowly and surely to adjust to each mode. (Do not adjust it to parts where there is no mode.) n

About indications in these operating instructions

Modes indicated here allow you to use the functions or settings described on this page. Set the Mode dial to any of the modes to use the functions or settings.

: Programme AE mode (P25)

The exposure is automatically adjusted by the camera.

: Aperture-priority AE (P52)

The shutter speed is automatically determined by the aperture value you set.

: Shutter-priority AE (P52)

The aperture value is automatically determined by the shutter speed you set.

: Manual exposure (P53)

The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted.

: Motion picture mode (P74)

This mode allows you to record motion pictures with audio.

: Print mode (P109)

This mode allows you to print pictures from a PictBridge-compliant printer connected directly to the camera.

: Scene mode (P61)

This mode allows you to take pictures depending on the recording scenes.

: Auto mode (P29)

This is the recommended mode for beginners.

: Playback mode (P35)

This mode allows you to play back recorded pictures.

Convenient or useful information about this camera is described.

About illustrations in these operating instructions

Please note that the appearance of the product, the illustration or the menu screen are a little different from those in actual use.

About illustrations of the cursor button and the joystick

In those operating instructions, the operations on the cursor button and the joystick are described as illustrated below.

SET

REV

For example: Pressing the cursor button

For example: Moving the joystick to the right

For example: Pressing the joystick r

VQT0Y60

Before Use

Information for Your Safety . . . . . . . . . . . 2

About The Mode dial . . . . . . . . . . . . . . . . 5

Preparation

Standard accessories . . . . . . . . . . . . . . . 8

Names of the Components . . . . . . . . . . . 9

Quick Guide . . . . . . . . . . . . . . . . . . . . . . 11

Charging the Battery with the Charger . . . 12

About the Battery (charging/number of recordable pictures) . . . . . . . . . . . . . . 13

Inserting/Removing the Battery . . . . . . . 14

Inserting/Removing the Card (Optional) . . 15

About the Built-in Memory/the Card . . . 16

Attaching the Lens Cap/Strap . . . . . . . . 18

Setting Date/Time (Clock Set) . . . . . . . . 19

• Changing the clock setting . . . . . . . 19

Setup Menu . . . . . . . . . . . . . . . . . . . . . . 20

Basic

Taking Pictures . . . . . . . . . . . . . . . . . . . 25

Taking Pictures in Auto Mode . . . . . . . . 29

Taking Pictures with the Zoom . . . . . . . 31

• Using the Optical Zoom . . . . . . . . . . 31

• Using the Extra Optical Zoom (EZ) . . 32

• Using the Digital Zoom

Further extending the zoom . . . . . . 33

Checking the Recorded Picture (Review) . . 34

Playing Back Pictures . . . . . . . . . . . . . . 35

Deleting Pictures . . . . . . . . . . . . . . . . . . 36

Advanced

About the LCD Monitor . . . . . . . . . . . . . 38

• Changing the information displayed . . 38

• Brightening the LCD Monitor

(Power LCD/High angle mode) . . . . 40

Taking Pictures using the Built-in Flash . . . . 42

Taking Pictures with the Self-timer . . . . 46

Compensating the Exposure . . . . . . . . . 47

Taking Pictures using Auto Bracket . . . . 48

Optical Image Stabilizer [STABILIZER] . . . . 49

Taking Pictures using Burst Mode . . . . . 50

Taking pictures by setting the aperture/ shutter speed manually . . . . . . . . . . .52

• Aperture-priority AE . . . . . . . . . . . . .52

• Shutter-priority AE . . . . . . . . . . . . . .52

Taking pictures by setting the exposure manually . . . . . . . . . . . . . . . . . . . . . . .53

• Manual exposure . . . . . . . . . . . . . . .53

Taking Pictures with Manual Focus . . . .55

Taking Close-up pictures . . . . . . . . . . . .58

Setting the aspect ratio . . . . . . . . . . . . . .59

AF/AE Lock (AF: Auto focus/AE: Auto exposure) . . . . . . . . . . . . . . . . . . . . . .60

Scene mode . . . . . . . . . . . . . . . . . . . . . .61

– Portrait mode . . . . . . . . . . . . . . . .62

– Soft skin mode . . . . . . . . . . . . . . .62

– Scenery mode . . . . . . . . . . . . . . .62

– Sports mode . . . . . . . . . . . . . . . .62

– Night portrait mode . . . . . . . . . . .63

– Night scenery mode . . . . . . . . . . .63

– Self portrait mode . . . . . . . . . . . .63

– Food mode . . . . . . . . . . . . . . . . .64

– Party mode . . . . . . . . . . . . . . . . .64

– Candle light mode . . . . . . . . . . . .65

– Fireworks mode . . . . . . . . . . . . . .65

– Starry sky mode . . . . . . . . . . . . . .66

– Beach mode . . . . . . . . . . . . . . . .66

– Aerial photo mode . . . . . . . . . . . .67

– Snow mode . . . . . . . . . . . . . . . . .67

– High Sensitivity mode . . . . . . . . .67

– Baby mode 1 . . . . . . . . . . . . . . . .68

– Baby mode 2 . . . . . . . . . . . . . . . .68

Recording which day of the vacation you take the picture . . . . . . . . . . . . . . . . . .69

Displaying the time at the travel destination . . . . . . . . . . . . . . . . . . . . .71

• Location candidates for World Time settings . . . . . . . . . . . . . . . . . . . . . . .73

Motion picture mode . . . . . . . . . . . . . . . .74

Displaying Multiple Screens

(Multi Playback) . . . . . . . . . . . . . . . . .76

Displaying pictures by recording date

(Calendar playback) . . . . . . . . . . . . . .77

Using the Playback Zoom . . . . . . . . . . .78

Playing Back Pictures with Audio/Motion pictures . . . . . . . . . . . . . . . . . . . . . . . .79

VQT0Y60

Menu Settings

Using the [REC] mode menu . . . . . . . . .80

• [W.BALANCE]

Adjusting the hue for a more natural picture . . . . . . . . . . . . . . . . . . . . . . .81

• [WB ADJUST.]

Finely Adjusting the White Balance . .83

• [SENSITIVITY]

Setting the light sensitivity . . . . . . . .83

• [PICT.SIZE]/[QUALITY]

Setting a picture size and quality that matches your use of the pictures . . .85

• [AUDIO REC.]

Recording still pictures with audio . .86

• [METERING MODE]

Deciding the method to measure brightness . . . . . . . . . . . . . . . . . . . . .87

• [AF MODE]

Setting the focus method . . . . . . . . .87

• [CONT.AF]

Continuously focusing on a subject . .89

• [AF ASSIST LAMP]

Focusing in low light conditions becomes easier . . . . . . . . . . . . . . . .89

• [COL.EFFECT]

Setting colour effects for the recorded pictures . . . . . . . . . . . . . . . . . . . . . . .90

• [PICT.ADJ.]

Adjusting the picture quality for the recorded pictures . . . . . . . . . . . . . . .90

• [FLIP ANIM.]

Connecting images to create a motion picture file . . . . . . . . . . . . . . . . . . . . .91

• [CLOCK SET]

Setting the date, time and display . .92

Using the [PLAY] mode menu . . . . . . . .93

• [SLIDE SHOW]

Playing back pictures in order for a fixed duration . . . . . . . . . . . . . . . . . . . . . .94

• [FAVORITE]

Setting your favourite pictures . . . . .95

• [ROTATE DISP.]/[ROTATE]

To display the picture rotated . . . . . .96

• [DPOF PRINT]

Setting the Picture to be Printed and the

Number of Prints . . . . . . . . . . . . . . .98

• [PROTECT]

Preventing Accidental Erasure of the

Picture . . . . . . . . . . . . . . . . . . . . . . . 99

• [AUDIO DUB.]

Adding Audio to Recorded Pictures . . 100

• [RESIZE]

Making the picture smaller . . . . . . 101

• [TRIMMING]

Enlarging a picture and trimming it . . . 102

• [ASPECT CONV.]

Changing the aspect ratio of a 16:9 picture . . . . . . . . . . . . . . . . . . . . . . 103

• [COPY]

Copying the picture data . . . . . . . . 104

• [FORMAT]

Initializing the built-in memory or a card . . . . . . . . . . . . . . . . . . . . 105

Connecting to other equipment

Connecting to a PC . . . . . . . . . . . . . . . 106

Connecting to a PictBridge-compliant

Printer . . . . . . . . . . . . . . . . . . . . . . . 109

Playing Back Pictures with a TV Screen . . 113

Others

Screen Display. . . . . . . . . . . . . . . . . . . 114

Cautions for Use . . . . . . . . . . . . . . . . . 117

Message Display . . . . . . . . . . . . . . . . . 119

Troubleshooting . . . . . . . . . . . . . . . . . . 121

Number of recordable pictures and available recording time . . . . . . . . . . 127

Specifications. . . . . . . . . . . . . . . . . . . . 131

VQT0Y60

Standard accessories

Preparation

Before using your camera, check the contents.

Battery Pack

CGA-S005E

(In the text, it is indicated as “Battery”) n

USB Connection Cable

K1HA08CD0007 n

Battery Charger

DE-A12B

(In the text, it is indicated as “Charger”) n

CD-ROM

Strap

VFC4082 n

AC Cable

K2CT3CA00004

(Hong Kong Special Administrative

Region of China and Saudi Arabia) n

Battery Carrying Case

VYQ3509 n

K2CQ2CA00006

(Areas Other than Hong Kong Special

Administrative Region of China and

Saudi Arabia) n

Lens Cap

VYF3109 (Silver)

VYF3110 (Black) n

Lens Cap String

VFC4137

AV Cable

K1HA08CD0008

• Card is optional.

You can record or play back pictures on the built-in memory when you are not using a card. (P16)

• Consult the dealer or your nearest servicentre if you lose the supplied accessories. (You can purchase the accessories separately.)

VQT0Y60

Preparation

Names of the Components

1 2 3

1 Lens part (P3)

2 Self-timer Indicator (P46)

AF Assist Lamp (P89)

3 Flash (P42)

4 5 6

7 8 9 10 11

4 Joystick (P26, 52, 53, 55, 81)

5 AF/AE Lock Button (P60)

6 Cursor buttons w

/Self-timer Button (P46) r

/[REV] Button (P34) q

/Flash Mode Button (P42) e

/Backlight Compensation in Auto

Mode (P30)/Exposure Compensation

(P47)/Auto Bracket (P48)/Flash Output

Adjustment (P45) Button

7 LCD Monitor (P38, 114)

8 Status Indicator (P22)

9 [MENU/SET] Button (P19)

10 [DISPLAY/LCD MODE] Button (P38, 40)

11 Single/Burst Mode (P50)/Delete Button

(P36)

12 13

12 Lens barrel

13 Focus switch (P25, 55, 58)

VQT0Y60

18 19 20

15 16

21 22

Preparation

14 Aspect ratio switch (P59)

15 Zoom Lever (P31)

16 Optical Image Stabilizer Button (P49)

17 Flash Open Switch (P42)

18 Speaker (P79)

19 Microphone (P74, 86)

20 Mode Dial (P5)

21 Shutter Button (P25, 74)

22 Camera Switch (P19)

23 Lens Cap/Strap Eyelet (P18)

24 [DIGITAL/AV OUT] Socket (P106, 109,

113)

25 [DC IN] Socket (P106, 109)

• Always use a genuine Panasonic AC adaptor (DMW-AC5; optional).

• This camera cannot charge the battery even though the AC adaptor

(DMW-AC5; optional) is connected to it.

26 Terminal Cover

27 Card/Battery Door (P14, 15)

28 Tripod Receptacle

• When you use a tripod, make sure the tripod is stable with the camera attached to it.

VQT0Y60

Preparation

Quick Guide

This is the overview of the procedure to record pictures with this camera. For each operation, be sure to refer to the corresponding pages.

Charge the battery. (P12)

• The battery is not charged when the camera is shipped. Charge the battery before use.

Turn the camera on to take pictures.

• Set the clock. (P19)

Insert the battery and the card.

(P14, 15)

• When you do not use the card

(optional), you can record or play back pictures on the built-in memory

(P16). Refer to P17 when you use a card.

Set the mode dial to [

Open the flash. (When using the flash) (P42)

Press the shutter button to take pictures. (P25)

Play back the pictures.

Set the mode dial to [ Q ].

Select the picture you want to view.

(P35)

VQT0Y60

Preparation

Charging the Battery with the Charger

The battery is not charged when the camera is shipped. Charge the battery before use.

Attach the battery with attention to the direction of the battery.

Detach the battery after charging is complete.

Connect the AC cable.

• The AC cable does not fit entirely into the AC input terminal. A gap will remain as shown below.

• After charging is completed, be sure to disconnect the AC cable from the electrical outlet.

• The battery becomes warm after use/ charge or during charge. The camera also becomes warm during use. However, this is not a malfunction with the camera.

• The battery will discharge if left for a long time after charging. Recharge it.

• You can recharge the consumed portion before exhausting the remaining charge.

• Use the dedicated charger and battery.

• Charge the battery with the charger indoors.

• Do not disassemble or modify the charger.

• When the [CHARGE] indicator

lights in green, charging starts.

• When the [CHARGE] indicator

turns off (in about 130 minutes), charging is completed.

• Refer to P13 when the [CHARGE] indicator blinks.

VQT0Y60

Preparation

About the Battery

(charging/number of recordable pictures)

Battery indication

The remaining battery power appears on the screen.

[It does not appear when you use the camera along with the AC adaptor (DMW-AC5; optional).]

• The battery indication turns red and blinks.

(The status indicator blinks when the LCD monitor turns off.) Recharge the battery or replace it with fully charged battery.

The lifetime of the battery

The number of recordable pictures by

CIPA standards (In Programme AE mode)

• CIPA is an abbreviation of [Camera &

Imaging Products Association].

Number of recordable pictures

Approx. 300 pictures

(Approx. 150 min.)

(Recording conditions by CIPA standards)

• Temperature: 23°C/

Humidity: 50% when LCD monitor is on.

• Using a Panasonic SD Memory Card (Not supplied: 16 MB).

• Using the supplied battery.

• Recording starts 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [MODE1])

•

Record once every 30 seconds,

with full flash every other recording.

• Rotating the zoom lever towards Tele to

Wide and vice versa in every recording.

• Turn the camera off every 10 recordings./Leaving the camera until the battery is cooled down.

Note:When the Power LCD function or high angle function (P40) is used, the number of recordable pictures decreases.

The actual number of pictures you can take depends on the interval you leave between shooting. The number of shots reduces proportionately to the interval you leave.

[e.g. When recording once every 2 minutes, the number of recordable pictures decreases to about 75.] n

Playback time

The number of recordable pictures and playback time

will vary depending on the operating conditions and storing condition of the battery.

Charging

Approx. 300 min.

Charging time Approx. 130 min.

Charging time and

the number of recordable pictures

with the optional battery pack (CGA-S005E) are the same as the above.

• When charging starts, the [CHARGE] indicator lights.

When the [CHARGE] indicator flashes

• The battery is over discharged

(discharged excessively). In a while,

[CHARGE] indicator will light up and normal charging will start.

• When the battery temperature is excessively high or low, [CHARGE] indicator flashes and the charging time will be longer than normal.

• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.

• When the operating time of the camera becomes extremely short even after properly charging the battery, the life of the battery may have expired. Buy a new battery.

Charging conditions

• Charge the battery under temperature of

10°C to 35°C. (Battery temperature should be the same.)

• The performance of the battery may be temporarily deteriorated and the operating time may become shorter in low temperature conditions (e.g. skiing/ snowboarding).

VQT0Y60

Preparation

Inserting/Removing the Battery

• Check that the camera is turned off and that the lens is retracted.

• Close the flash.

Slide the card/battery door to open it.

Close the card/battery door.

Slide the card/battery door to the end and then close it firmly.

• Always use genuine Panasonic batteries (CGA-S005E).

Insert:

Insert the charged battery paying attention to the direction of the battery.

Remove:

Slide the lock

to remove the battery.

• Remove the battery after use. Store the removed battery in the battery carrying case (supplied). (P8)

• When fully charged battery has been inserted for more than 24 hours, the clock setting is stored (in the camera) for at least 3 months even if the battery is removed. (The storing may be shorter if the battery is not charged sufficiently.) If more than 3 months have passed, the clock setting will be lost. In this case, set the clock again. (P19)

• Do not remove the card or the battery while the camera accesses the built-in memory or a card. The data may be damaged. (P16)

• Remove the battery after turning the camera off and making sure the LCD monitor and the status indicator

(green) are off. Otherwise, the settings on the camera may not be stored properly.

• The supplied battery is designed only for use with this camera. Do not use it with any other equipment.

VQT0Y60

Preparation

Inserting/Removing the Card

(Optional)

• Check that the camera is turned off and that the lens is retracted.

• Prepare an SD Memory Card (optional), an SDHC Memory Card (optional) or a

MultiMediaCard (optional).

• Close the flash.

• You can record or play back pictures on the built-in memory when you are not using a card. (P16)

Slide the card/battery door to open it.

Close the card/battery door.

Slide the card/battery door to the end and then close it firmly.

• If the card/battery door cannot be completely closed, remove the card, check its direction and insert it again.

Insert:

Insert the card with the label side facing the back of the camera until it clicks and locks.

Remove:

Push the card until it clicks, then pull the card out upright.

• The card and the data may be damaged if it is inserted or removed while the camera is on.

• We recommend using Panasonic’s SD

Memory Card/SDHC Memory Card.

• Check the direction of the card.

• Do not touch the connection terminals on the back side of the card.

• The card may be damaged if it is not fully inserted.

VQT0Y60

Preparation

About the Built-in Memory/the Card

Built-in Memory [ ]

You can record or play back pictures on the built-in memory when you are not using a card.

• The built-in memory capacity is about

13 MB.

• Picture size is fixed to QVGA (320×240 pixels) when recording motion pictures to the built-in memory. (P74)

Card [ ]

You can record or play back pictures on a card.

(The built-in memory cannot be used when a card is inserted.)

Icons displayed on the screen:

: When using the built-in memory

: When accessing the built-in memory

: When using the card

: When accessing the card

• Picture data recorded on the built-in memory or a card can be copied from the built-in memory to the card or vice versa. (P104)

Access to the built-in memory or the card

• The access indication (

) lights red when pictures are being recorded on the built-in memory (or the card).

• Do not do the following when the access indication lights, pictures are being read or deleted or the built-in memory (or the card) is being formatted (P105).

–Turn the camera off.

–Remove the battery or the card (if used).

–Shake or impact the camera.

–Disconnect the AC adaptor (DMW-AC5; optional). (when using the AC adaptor)

The card or the data may be damaged and the camera may not operate normally.

• The built-in memory (about 13 MB) can be used as a temporary storage device when the card being used becomes full.

• The access time for the built-in memory may be longer than the access time for a card. (Max. about 7 sec.)

VQT0Y60

About SD Memory Card (optional),

SDHC Memory Card (optional) and

MultiMediaCard (optional)

• The SD Memory Card, the SDHC

Memory Card and the MultiMediaCard are small, lightweight, removable external memory cards.

• The SDHC Memory Card is a memory card standard decided by the SD

Association in 2006 for high capacity memory cards more than 2 GB.

• The reading/writing speed of the SD

Memory Card and the SDHC Memory

Card is fast. The SD Memory Card and the SDHC Memory Card are equipped with a Write-Protect switch

that can inhibit writing and formatting. (When the switch is slid to the [LOCK] side, it is not possible to write or delete data on the card and format it. When the switch is unlocked, these functions become available.)

SD Memory Card

Preparation

• This unit (SDHC compliant equipment) supports both SD Memory Cards and

SDHC Memory Cards. You can use

SDHC Memory Cards on equipment that supports them. You cannot use SDHC

Memory Cards on equipment that supports SD Memory Cards only. (When you use SDHC Memory Cards on other equipment, make sure to read the equipment’s operating instructions.)

• This unit does not support recording motion pictures on MultiMediaCards. We recommend using High Speed SD

Memory Cards/SDHC Memory Cards when recording motion pictures (P74).

About handling a card

Save important data in such places as your

PC (P106) as well. Electromagnetic waves, static electricity, unit malfunctions, card damages and other factors may destroy or erase data.

• If the card was formatted on a PC or other equipment, format it again on the camera.

(P105)

Please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/global/cs

(This site is in English only.)

• Refer to page 127 for the number of recordable pictures and available recording time on a card.

• This unit supports SD Memory Cards formatted in the FAT12 and FAT16 systems that comply with SD Memory

Card Specifications. It also supports

SDHC Memory Cards formatted in the

FAT32 system.

• The reading/writing speed of a

MultiMediaCard is slower than an SD

Memory Card. When a MultiMediaCard is used, the performance of certain features may be slightly slower than advertised.

• Keep the Memory Card out of reach of children to prevent swallowing.

VQT0Y60

Preparation

Attaching the Lens Cap/Strap

Lens Cap (supplied)

Remove the lens cap.

Strap (supplied)

Pass the strap through the hole at the Strap Eyelet.

Pass the string through the hole on the lens cap.

Pass the string through the hole on the camera.

Attach the lens cap.

• Check that the strap is firmly attached to the camera.

• When you turn the camera off, carry the camera or play back the pictures, attach the lens cap to protect the surface of the lens.

• Detach the lens cap before turning on the camera in the recording mode.

• When the mode dial is set to one of the recording modes and the camera is turned on with the lens cap attached, the message [REMOVE LENS CAP AND

PRESS q

BUTTON] appears. After removing the lens cap, press the q

cursor button.

• Be careful not to lose the lens cap.

• When detaching the strap, use a pointed object to loosen the knot and then detach it.

• When using the lens cap and the strap at the same time, attach the strap before the lens cap. If you attach the lens cap first, it may become difficult to attach the strap.

VQT0Y60

Preparation

Setting Date/Time (Clock Set)

Initial setting

The clock is not set when the camera is shipped. When you turn the camera on, the following screen appears.

Press [MENU/SET] several times to close the menu.

• You can also press the joystick to close the menu.

• Turn the camera off after finishing setting the clock. Then turn it on and check that the clock setting is correct.

Changing the clock setting

Press [MENU/SET].

Press e

/ r

to select [CLOCK SET] (P92).

Press q

and perform the above steps

and

for setting.

REC

CLOCK SET

4/4

: [MENU/SET] button

: Cursor buttons

Press [MENU/SET].

Press

/

to select the date and time.

CLOCK SET

1 .

JAN .

2006

D M Y or

SELECT SET

CANCEL

EXIT

: Time at the home area

MENU

: Time at the travel destination (P71)

• w

/ q

: Select the desired item.

• e

/ r

: Set date and time.

• Refer to [WORLD TIME] (P71) for information about setting the local time at the travel destination area.

• You can press [

] to cancel the operation without setting the clock.

SELECT

EXIT

MENU

• You can set the clock from the setup menu (P20) while in playback mode [ Q ].

• You can use both the cursor buttons and joystick for this operation.

• When a fully charged battery has been inserted for more than 24 hours, the clock setting is stored (in the camera) for at least 3 months even if the battery is removed.

• You can set the year from 2000 to 2099.

The 24-hour system is used.

• If you do not set the date, the date cannot be printed when you go to a photo studio for digital printing. (P99)

VQT0Y60

Preparation

Setup Menu

• Change the settings if necessary. (See pages 21 to 24 for details about the settings.)

• Menu items differ depending on the mode selected with the mode dial (P5).

The following example shows how to set

[BEEP] when programme AE mode [ L ] is selected.

• Select [RESET] to return the settings to the initial settings at the time of purchase. (P23)

Press [MENU/SET] and then press

.

REC

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

SELECT

QUALITY

1/4

AUTO

EXIT

MENU

SET

Press

to select the [SETUP] menu icon [ ] and then press

.

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

SELECT

TRAVEL DATE OFF

EXIT

MENU

Press

/ r

to select the menu item.

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

SELECT

TRAVEL DATE

1/5

OFF

EXIT

MENU

• Press r

to switch to the next menu screen. Continue to press r

to select

[BEEP].

VQT0Y60

Press

, press

/ r

to select the setting and then press [MENU/SET].

SETUP

AUTO REVIEW

POWER SAVE

ECONOMY

SELECT

MF ASSIST

BEEP

SET

MENU

2/5

1SEC.

5 MIN.

OFF

SET

Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

About menu operations using the joystick

You can also use the joystick for menu settings.

Press [MENU/SET].

Move the joystick e

/ r

/ w

/ q

to select the item for setting and press the joystick.

Press the joystick to close the menu.

SETUP

AUTO REVIEW

POWER SAVE

ECONOMY

SELECT

MF ASSIST

BEEP

SET

MENU

2/5

1SEC.

5 MIN.

OFF n

About the menu screen items

• There are 5 menu screens (1/5, 2/5, 3/5, 4/5 and 5/5).

• You can switch menu screens from any menu item by rotating the zoom lever.

SETUP

CLOCK SET

SETUP

SELECT

MONITOR

GUIDE LINE

TRAVEL DATE

1/5

BEEP

SELECT

MF ASSIST

SETUP

AF BEEP

SHUTTER

2/5

1SEC.

SELECT

NO.RESET

RESET

SETUP

3/5

HIGHLIGHT

VIDEO OUT

SETUP

SELECT

MF m/ft

SCENE MENU

4/5

OFF

EXIT

MENU

SELECT

5/5

ENG

EXIT

MENU

Preparation

Press [

SET

] to display menu, enter [SETUP] and select the item. (P20)

Menu

3 CLOCK SET Change date and time. (P19)

Functions

WORLD TIME

[ ]:

The time at your home area is set.

[ ]:

The local time at the travel destination area is set.

• Refer to P71 for information about setting [WORLD TIME].

x MONITOR Adjust the brightness of the LCD monitor in 7 steps.

GUIDE LINE

You can set guide line patterns displayed at the recording mode.

You can set whether to display recording data and histograms with guide lines or not (P39).

[REC.INFO.]: [OFF]/[ON]

[HISTGRAM]: [OFF]/[ON]

[PATTERN]: [ ]/[ ]

TRAVEL DATE

[SET]:

When taking a picture, the date on which it was taken is recorded.

[OFF]:

When taking a picture, the date on which it was taken is not recorded.

• Refer to P69 for information about setting [TRAVEL DATE].

P AUTO REVIEW

[1 SEC.]

:The recorded picture automatically appears on the screen for about 1 second.

[3 SEC.]

:The recorded picture automatically appears on the screen for about 3 seconds.

[ZOOM]

: The recorded picture automatically appears on the screen for about 1 second. Then it is enlarged 4 times and appears for about 1 second. This mode is useful for confirming focus. Pictures in burst mode, auto bracket, pictures with audio are not enlarged even if [ZOOM] is selected.

[OFF]

: The recorded picture does not automatically appear.

• In motion picture mode [ i ], auto review function is not activated.

• Auto review activates if you shoot with auto bracket [ B ] (P48) or burst modes [ D ], [ E ], and [ F ] (P50), irrespective of the auto review setting. (But the picture is not enlarged.)

• When taking pictures with audio, the auto review function works while recording regardless of the setting on the auto review function. (The picture is not enlarged.)

• When the quality is set to [RAW], the auto review function works until the end of recording onto the card. (The picture is not enlarged.)

• You cannot change the auto review setting when using auto bracket, using burst modes, shooting motion pictures, using [SELF PORTRAIT] in scene mode, recording sound and setting quality to [RAW].

• When [HIGHLIGHT] (P23) is set to [ON], white saturated areas blink in black during auto review.

VQT0Y60

Preparation

Press [

SET

] to display menu, enter [SETUP] and select the item. (P20)

Menu Functions

5 POWER SAVE

[1 MIN.]/[2 MIN.]/[5 MIN.]/[10 MIN.]:

If you perform no operations, the camera turns off automatically after the interval you set to save the battery.

[OFF]:

The camera is not automatically turned off.

• Press the shutter button halfway or turn the camera off and on to recover from the power save mode.

• In economy mode, power save mode is fixed to [2 MIN.].

• When using the AC adaptor (DMW-AC5; optional)/connecting to a

PC or a printer/recording motion pictures/playing back motion pictures/during Slide Show, the power save mode is not activated.

(However, the setting for power save mode is fixed to [10 MIN.] while pausing a slide show or playing back a manual slide show.)

ECONOMY

MF ASSIST

(Recording mode only)

Battery life is saved by reducing the brightness of the LCD monitor and turning it off automatically when the camera is not being used in recording mode.

[LEVEL 1]:

The LCD monitor turns off if the camera is not operated for about 15 seconds in recording mode.

[LEVEL 2]:

The LCD monitor turns off if the camera is not operated for about 15 seconds in recording mode or for about 5 seconds after taking a picture.

[OFF]:

Economy mode cannot be activated.

• In economy mode, the LCD monitor is turned off while the flash is being charged.

• The status indicator lights while the LCD monitor is turned off.

Press any button to turn on the LCD monitor again.

• Power save mode is fixed to [2 MIN.] in economy mode.

[However, power save mode is not activated when using the AC adaptor (DMW-AC5; optional).]

• Economy mode will not work when using the AC adaptor (DMW-

AC5; optional), recording in motion picture mode, the menu screen is displayed or the self-timer is set.

• The brightness of the LCD monitor is not reduced in Power LCD mode and high angle mode.

In manual focus, assistance screen appears on the centre of the screen to facilitate focusing on the subject. (P55)

[MF1]:

The centre of the screen is enlarged. You can adjust the focus while determining the composition of the whole of the screen.

[MF2]:

The whole of the screen is enlarged. This is convenient for adjusting the focus in Wide angle shots.

[OFF]:

The screen is not enlarged.

VQT0Y60

Preparation

Press [

SET

] to display menu, enter [SETUP] and select the item. (P20)

Menu

6 BEEP

AF BEEP

SHUTTER

VOLUME

NO.RESET

RESET

HIGHLIGHT

VIDEO OUT

(Playback mode only)

Functions

Set to select the volume of operational sound.

[

No operational sound

[

Soft operational sound

[

Loud operational sound

[

No focus beep

[

Soft focus beep

[

Loud focus beep

Set to select the volume of shutter sound.

[

No shutter sound

[

Soft shutter sound

[

Loud shutter sound

The volume of speakers can be adjusted in 7 steps. (LEVEL6 to 0)

• When you connect the camera to a TV, the volume of the speakers of the TV is not changed.

Set this when you want to start the file number of the picture from

0001 on the next recording. (The folder number is updated, and the file number starts from 0001.)

• The folder number can be assigned from 100 to 999.

When the folder number reaches 999, it cannot be reset. We recommend formatting the card after saving the data on a PC or elsewhere.

• To reset the folder number to 100, you must first reformat the builtin memory or the card (P105). After this perform [NO.RESET] to reset the file number, after which a screen appears asking whether you want to reset the folder number. Select [YES].

• For details about file and folder numbers, see page 107.

The settings on the recording or the [SETUP] menu are reset to the initial settings.

• The birthday setting for [BABY1]/[BABY2] (P68) in scene mode and the number of days that have passed since the departure date for [TRAVEL DATE] (P69) and the [WORLD TIME] setting (P71) are also reset when the [SETUP] menu settings are reset. Also,

[FAVORITE] (P95) is fixed to [OFF] and [ROTATE DISP.] (P96) is fixed to [ON].

• The folder number and the clock setting are not changed.

[ON]:

When the auto review or review function is activated, a white saturated area appears blinking in black and white. (P39)

[OFF]:

No highlight display

[NTSC]

: Video output is set to NTSC system. (P113)

[PAL]

: Video output is set to PAL system.

VQT0Y60

Preparation

Press [

SET

] to display menu, enter [SETUP] and select the item. (P20)

Menu Functions

TV ASPECT

(Playback mode only)

MF m/ft

[

]

: Select if your television has a 16:9 aspect ratio.

• This mode is best for showing [ j ] aspect ratio images on a 16:9 aspect ratio television. Pictures shot in the [ h ] or [ ] aspect ratio have black bands added to either side.

[

]

: Select if your television has a 4:3 aspect ratio.

• When the aspect ratio is set to [ h ], pictures taken in the aspect ratios of [ j ] and [ ] appear with black bands above and below on a 4:3 ratio television.

(The LCD monitor shows pictures taken in the [ ] and [ h ] aspect ratios with black bands on their left and right.)

[m]

: The focal distance is indicated in meters in manual focusing.

[ft]

: The focal distance is indicated by feet in manual focusing.

• Refer to P55 for information about manual focusing.

g SCENE MENU

[AUTO]:

[SCENE MODE] menu appears automatically when setting the mode dial to scene mode. Select the desired scene mode. (P61)

[OFF]:

[SCENE MODE] menu does not appear when setting the mode dial to scene mode and the camera is operated in scene mode currently selected. If you change the scene mode, press [MENU/SET] to display the [SCENE MODE] menu and then select the desired scene mode.

{ LANGUAGE Set to the language on the menu screen from the following 8 languages.

Set to the desired language with e

/ r

and determine it with [MENU/

SET].

[ENGLISH]

: English

[DEUTSCH]

: German

[FRANÇAIS]

: French

[ITALIANO]

: Italian

[ESPAÑOL]

: Spanish

[ РУССКИЙ ]

: Russian

[ ]

: Chinese (Traditional)

[ ]

: Thai

• When you set to other language by mistake, select [ { ] from the menu icons to set the desired language.

VQT0Y60

Taking Pictures

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject.

• Remove the lens cap.

Turn the camera on.

Set the mode dial to programme AE mode [

].

Slide the focus switch to [AF].

2 1

Basic

Aim the AF area

to the point you want to focus and then press the shutter button halfway.

1 2

• The focus indication

is lit and then the aperture value

and the shutter speed

are displayed.

• The shutter speed is not displayed when the ISO sensitivity is set to [

ISO

] (P83).

• You can select the AF area when the

AF mode is set to 1-area-focusing or 1area-focusing (high speed). (P88)

• If 9-area-focusing or 3-area-focusing (High speed) is used in AF mode, the AF area does not appear until the subject is brought into focus. (P87)

• The AF area displayed is bigger than usual when using the digital zoom or when taking pictures in dark places. (P88)

• Refer to P47 for compensating the exposure

• Refer to P26 for Programme shift.

Focus range

In normal picture mode

Wide Tele

50 cm to

1.0 m to

When the subject is not focused

When the subject is focused

Blink (green) On (green) Focus indication

AF area

Sound

Turns from white to red or no AF area

Turns from white to green

Beeps 4 times Beeps 2 times

Take a picture.

5 3 4

•

: Press the shutter button halfway to focus.

•

: Press the shutter button fully to take the picture.

VQT0Y60

Basic

• We recommend checking that the clock is set properly before taking pictures. (P19)

• When you press the shutter button, the screen may become bright or dark for a moment. This function allows easy adjustment of focus and the recorded picture will not be affected.

• When the time for power save is set

(P22), the camera is automatically turned off if you do not operate it within the set time. When operating the camera again, press the shutter button halfway or turn the camera off and on.

• To avoid picture noise, we recommend decreasing the ISO sensitivity, setting

[NOISE REDUCTION] in [PICT.ADJ.] to

[HIGH] or setting every item except

[NOISE REDUCTION] to [LOW]. (P90)

(ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures indoors etc. the ISO sensitivity increases.) n

Programme shift

In Programme AE mode, you can change the preset aperture value and the shutter speed under the same exposure. This is called Programme shift.

By this function, you can make the background more blurred (by decreasing the aperture value) or record the moving subject more dynamically (by setting to slow shutter speed) in Programme AE mode.

• Press the shutter button halfway and perform the programme shift with the joystick while the aperture value and the shutter speed are displayed (about 10 seconds).

• When the Programme shift is activated, the Programme shift indication

appears on the screen.

• Programme shift is cancelled if the camera is turned off or the joystick is moved up and down until the programme shift indication disappears.

Example of Programme shift

2 3 4 5 6 7 8 9 10 11 12 13 14 (Ev)

2.8

(A)

5.6

1 1/2 1/4 1/8 1/15 1/30 1/60 1/125 1/250 1/500 1/1000 1/2000

(B)

(A): Aperture value

(B): Shutter speed

Programme shift amount

Programme shift line chart

Programme shift limit

VQT0Y60

• If the exposure is not adequate when the shutter button is pressed halfway, the aperture value and shutter speed turns red.

• When 10 or more seconds have passed after the Programme shift becomes effective, the status to activate the

Programme shift is cancelled and returned to the Programme AE mode.

However, the setting on the Programme shift is memorised.

• The Programme shift may not be activated depending on the brightness of the subject.

• The Programme shift does not activate when the ISO sensitivity is set to [

ISO

Basic n

Tips for taking good pictures

• Hold the camera gently with both hands, keep arms stationary at your side and stand with your feet slightly apart.

• Be careful not to move the camera when you press the shutter button.

• Do not cover the microphone or the AF assist lamp with your finger or other objects.

• Do not cover the photo flash with your finger or other objects.

• Do not touch the lens part.

• If the LCD monitor screen is difficult to see because of light from the sun etc. shining on it, we recommend using your hand or another object to block the light when using the camera.

: When holding the camera sideways

: When holding the camera vertically

: Photo flash

: AF assist lamp n

Direction detection function

• If you take pictures by holding the camera vertically, the information of the rotation on the pictures are automatically added and recorded to the pictures.

When [ROTATE DISP.] (P96) is set to

[ON], you can rotate and display pictures on the screen or the TV according to the information of the rotation on the pictures.

• This function may not work properly on pictures recorded by aiming the camera up or down.

• In motion picture mode [ i

] or [FLIP

ANIM.], you cannot use the direction detection function.

VQT0Y60

Basic n

Focusing

• The focus range is 50 cm to Z (Wide),

1.0 m to Z (Tele). Use macro mode when recording close-up pictures. (P58)

• If the distance between the camera and the subject is beyond the focus range of the camera, the picture may not be properly focused even if the focus indication lights.

• In the following cases, the camera cannot focus on subjects properly.

–When including both near and distant subjects in a scene.

–When there is dirt or dust on the glass between the lens and the subject.

–When there are illuminated or glittering objects around the subject.

–When taking a picture in a dark place.

–When the subject is moving fast.

–When the scene has low contrast.

–When jitter occurs.

–When recording a very bright subject.

We recommend taking pictures using prefocus (P57) and AF/AE lock (P60). In dark places, the AF assist lamp (P89) may turn on to focus on the subject.

• Even if the focus indication appears and the subject is focused, it is cancelled when you release the shutter button.

Press the shutter button halfway again.

Preventing jitter (camera shake)

• Be careful of jittering when pressing the shutter button.

• The jitter alert

appears when the shutter speed is slow and the chances of blurring are greater.

• When the jitter alert appears, take special care with the shooting methods described on P27, or use a tripod for best results. By combining the use of a tripod with the self-timer (P46), you can avoid blurring caused when you press the shutter button.

• Shutter speed will be slower particularly in the following cases. Keep the camera still from the moment the shutter button is pressed until the picture appears on the screen. We recommend using a tripod.

–Slow sync./Red-eye reduction [ u ]

(P42)

–[NIGHT PORTRAIT] (P63), [NIGHT

SCENERY] (P63), [PARTY] (P64),

[CANDLE LIGHT] (P65), [FIREWORKS]

(P65), [STARRY SKY] (P66) in scene mode

–When you have reduced shutter speed

(P52, 53) n

Exposure

• If you press the shutter button halfway when the exposure is not adequate, the indication of the aperture value and the shutter speed turns red. (However, the aperture value and the shutter speed do not turn red when the flash is activated.)

• The brightness of the screen may differ from the brightness of the recorded pictures especially when recording in low light conditions.

• When most of the subjects in the screen are bright (e.g. blue sky on a clear day, snowy field, etc.), the recorded pictures may become dark. In this case, compensate the exposure value on the camera. (P47)

VQT0Y60

Basic

Taking Pictures in Auto Mode

Auto mode makes it easy for inexperienced users. It displays only simple menu settings and allows you to take pictures without error.

Settings in Auto mode

• For details, refer to the pages corresponding to each item.

[PICT.SIZE]

: P85

[QUALITY]

: P85

[CLOCK SET]

: P92 n

Basic menu settings

Press [MENU/SET].

Press

/ r

to select the desired menu item and then press

.

REC

PICT.SIZE

QUALITY

CLOCK SET

5.5

SELECT SET

MENU

Press

SET].

/ r

to select the desired setting and then press [MENU/

Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

• You can also use the joystick to perform steps

To select To set and to close n

Other Settings in Auto mode

In Auto mode, other settings are fixed as follows. For details, refer to the pages corresponding to each item.

Focus range

([AF]/[AF w

[MF])

5 cm to

White balance [AUTO]

30 cm to

(Wide)

(Tele)

ISO sensitivity [

ISO

]


Adjustment

Audio

Recording

[STD.]

[OFF]

Metering Mode [

R ] (Multiple)

AF mode

[ W ]

(1-area-focusing)

Continuous AF [OFF]

P81

P83

P90

P86

P87

AF assist lamp [ON]

P89

• You cannot use the following functions in the Auto mode.

–[WB ADJUST.]

–Exposure compensation

–Auto bracket

–[COL.EFFECT]

–Flash Output Adjustment

–AF area selection

–AF/AE Lock

–[D.ZOOM]

–Flip animation

VQT0Y60

The Backlight Compensation

Backlight is a situation where light comes from behind the subject. Subjects such as people become dark when pictures are recorded in the backlight. If you press e

[ ] (compensating backlight ON indication) appears and the backlight compensation function is activated. This function compensates the backlight by brightening the whole of the picture.

Basic

• You cannot set the following items in the

Auto mode.

– [VIDEO OUT]

– [TV ASPECT]

• The settings [PICT.SIZE], [QUALITY] and

[CLOCK SET] on the Auto mode are applied to other recording modes.

ISO

BACKLIGHT

ISO

BACKLIGHT

• If you press e

while [ ] is displayed,

[ ] disappears and the backlight compensation function is cancelled.

• When you use the backlight compensation function, we recommend using the flash. (When you use the flash, the flash setting is fixed to Forced ON

[ t

].)

• When you use the flash with the backlight compensation off, the flash setting is fixed to AUTO/Red-eye reduction [ s

VQT0Y60

Basic

Taking Pictures with the Zoom

Using the Optical Zoom

You can make people and subjects appear closer with the 4 times optical zoom, and landscapes can be recorded in wide angle.

(35 mm film camera equivalent: 28 mm to

112 mm when the aspect ratio is set to

[ j

]) n

To make subjects appear closer use

(Tele)

Rotate the zoom lever towards Tele.

When the setting for picture size is [

(10M)

]

1 19

4X n

To make subjects appear further away use (Wide)

Rotate the zoom lever towards Wide.

When the setting for picture size is [

(10M).

]

• The optical zoom is set to Wide (1×) when the camera is turned on.

• Depending on the zoom magnification, the picture may have some distortion.

Distortion will be more visible when using a wider area of the zoom lens as you move closer to the subject.

• Depending on the zoom magnification, the picture may have some coloured fringes around the subject. This is called chromatic aberration.

• If you use the zoom function after focusing on the subject, focus on the subject again.

• The indicated zoom magnification is an approximation.

• The lens barrel (P9) extends or retracts according to the zoom position. Take care not to interrupt the motion of the lens barrel while the zoom lever is rotated.

• In motion picture mode [ i

], the zoom magnification is fixed to the value set at the start of recording.

• When you rotate the zoom lever, you may hear some sound from the camera or the camera may be shaken. This is not a malfunction.

1 19

VQT0Y60

Using the Extra Optical Zoom (EZ)

This camera has a 4× optical zoom.

However, if the picture size is not set to the highest setting for each aspect ratio [ j /

/ h

], a maximum of 6.2× optical zoom can be achieved with no picture quality deterioration.

1×

Picture size with the extra optical zoom not

[ activated [example:

] (10M)]

4×

Picture size with the extra optical zoom

[ activated [example:

] (2M EZ)]

5.5×

5.5X

19 n

How the extra optical zoom works

• The extra optical zoom works by extracting the centre of the picture and expanding it for a higher telephoto effect.

So, for example, if you choose [

] (2M

EZ), 2 million pixels (out of the total [10M],

10.2 million possible with the CCD) are taken in your shot.

Basic n

Resolution and maximum zoom

Aspect ratio

j h

10 M

5.5

8.5

4.5

7.5

Pixels

Maximum zoom

4×

4.4×

5.5×

4×

4.4×

5.6×

4×

4.4×

5.5×

6.2×

• Refer to P59 for aspect ratio settings, P85 for picture size.

• “EZ” is an abbreviation of [Extra optical

Zoom].

• You can further enhance the zoom magnification with the extra optical zoom without worrying about further picture distortion.

• If you set a picture size that activates the extra optical zoom, the extra optical zoom icon [

] is displayed on the screen when you use the zoom function.

• The zoom movement becomes quicker near the [W] (1×) when using the extra optical zoom.

• The indicated zoom magnification is an approximation.

• The on-screen zoom indication may not change consecutively if you rotate the zoom lever near the Tele position when the extra optical zoom is used. This is not a malfunction.

• In motion picture mode [ i

] and [HIGH

SENS.] in scene mode, the extra optical zoom does not work.

VQT0Y60

A maximum of 16× zoom can be achieved with the 4× optical zoom and the 4× digital zoom when [D.ZOOM] is set to [ON] in the

[REC] menu. However, if a picture size that can use extra optical zoom is selected, a maximum of 24.8× zoom can be achieved with the 6.2× extra optical zoom and the 4× digital zoom.

Menu operation

Using the Digital Zoom

Further extending the zoom

Press [MENU/SET].

• When a scene mode is selected, press w in the [SCENE MODE] menu (P61), press r

to select the [REC] menu icon [ ] and then press q

Basic n

Entering the digital zoom range

When you rotate the zoom lever to the extreme Tele position, the on-screen zoom indication may momentarily pause.

You can enter the digital zoom range to continuously rotate the zoom lever to Tele or to release the zoom lever once and then rotate it to Tele again.

• [OFF]:

• [ON]:

1 2

1 4 16

Optical zoom

Digital zoom

Extra optical zoom

6.2

24.8

Press and then press

Press

/

to select [D.ZOOM]

.

to select [ON] and then press [MENU/SET].

REC

AF-L

AE-L

AF/AE LOCK

D.ZOOM

COL.EFFECT

PICT.ADJ.

SELECT

FLIP ANIM.

MENU

SET

3/4

AF/AE

OFF

SET

Press [MENU/SET] to close the menu.

•

You can also press the shutter button halfway to close the menu.

• You can also use the joystick to perform steps

• The AF area is displayed with a size wider than usual and set only to a point on the centre of the screen in the digital zoom range. (P88)

• When using the digital zoom, the picture quality becomes deteriorated.

• In the digital zoom range, the stabilizer function may not be effective.

• When using the digital zoom, use a tripod and the self-timer (P46) for best results.

• The indicated zoom magnification is an approximation.

• The digital zoom does not operate in the following cases.

– In Auto mode [ 0 ]

– In [SPORTS] (P62), [HIGH SENS.]

(P67) and [BABY1]/[BABY2] (P68) in scene mode

– When quality is set to [RAW]

– When ISO sensitivity is set to [

ISO

]

To select To set and to close

VQT0Y60

Basic

Checking the Recorded Picture (Review)

You can check the recorded pictures while still in [REC] mode.

Press

[REV].

REVIEW

Press

/ r

/ w

/ q

to move the position.

REVIEW

1 X 8X

DELETE

• When you change the magnification or the position to be displayed, the zoom position indication

appears for about 1 second to check where is enlarged.

EXIT 4X DELETE

• The last recorded picture appears for about 10 seconds.

• Review is cancelled when the shutter button is pressed halfway or the r

[REV] is pressed again.

• You can check the previous or following picture with w

/ q

• When the recorded pictures are too bright or dim, compensate the exposure. (P47)

Rotate the zoom lever towards

[

] [T] to enlarge the picture.

• Rotate the zoom lever to [

] [T] for a 4× magnification and then rotate it even more for a 8× magnification. When you rotate the zoom lever towards [ ] [W] after enlarging the picture, the magnification becomes lower.

Recorded pictures can be deleted during the review (Quick Deletion)

Press [ A ].

Press e

to select [YES].

Press [MENU/SET].

DELETE SINGLE

DELETE THIS PICTURE?

YES

SELECT

MENU

SET MULTI/ALL

• You can also use the joystick for these operations.

• Once deleted, pictures cannot be recovered. Please double-check before deleting pictures.

• Multi pictures or all pictures can be deleted. Read P36 to operate them.

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically

(rotated) (P96).

VQT0Y60

Playing Back Pictures

Basic

The picture data on the built-in memory appears when a card is not inserted. The picture data on the card appears when a card is inserted. (P16)

Press

/ q

to select the picture.

• If you press and hold w

/ q

, the number of files forwarded/rewound at one time increases. The actual number of files forwarded/rewound at one time depends on the number of files recorded.

• In review playback in the recording mode or multi playback (P76), the picture can only be forwarded or rewound one by one.

100-0001

1/19

10:00 1.DEC.2006

: Play back the previous picture.

: Play back the next picture.

• The picture following the last one is the first picture.

• When [ROTATE DISP.] (P96) is set to

[ON], pictures recorded by holding the camera vertically are played back vertically.

Fast forwarding/Fast rewinding

Press and hold w

/ q

during playback.

B A

100-0001

1/19

• This camera is based on the DCF standards

(Design rule for Camera File system) which was established by the Japan Electronics and Information Technology Industries

Association (JEITA).

• The file format that can be played back with this camera is JPEG. (There are also pictures that on some occasions cannot be played back in JPEG format.)

• The LCD monitor may not be able to display the details of the recorded pictures. You can use the playback zoom

(P78) to check the details of the pictures.

• If you play back pictures that have been recorded with other equipment, the picture quality may deteriorate. (The pictures are displayed as [THUMBNAIL IS

DISPLAYED] on the screen.)

• When changing the folder name or file name on a PC, the pictures will not be played back.

• When playing back a file out of standard, the folder/file number is indicated by [—] and the screen may turn black.

• An interference fringe may appear on the screen depending on the subject. This is called moire. This is not a malfunction.

10:00 1.DEC.2006

: Fast forward w

: Fast rewind

• The file number

and the picture number

only change one by one. Release w

/ q when the number of the desired picture appears to play back the picture.

VQT0Y60

Deleting Pictures

The picture data on the built-in memory is deleted when a card is not inserted. The picture data on the card is deleted when a card is inserted. (P16) n

To delete a single picture

Select the picture with

/

.

Basic

100-0001

1/19 n

To delete [MULTI DELETE]/[ALL

DELETE]

Press [

] twice.

Press

/

to select [MULTI

DELETE] or [ALL DELETE] and then press [MENU/SET].

MULTI/ALL DELETE

MULTI DELETE

ALL DELETE

10:00 1.DEC.2006

: Play back the previous picture.

: Play back the next picture.

Press [

].

Press

to select [YES] and then press [MENU/SET].

DELETE SINGLE

YES

SELECT

SET

MENU

MULTI/ALL

SET

• While deleting the picture, [ A ] appears on the screen.

SELECT SET

MENU

CANCEL

SET

• If you select [MULTI DELETE], perform steps

onwards.

• If you select [ALL DELETE], perform steps

onwards.

• When [FAVORITE] (P95) is set to [ON],

[ALL DELETE EXCEPT ] appears. If you select [ALL DELETE EXCEPT ], perform steps

onwards. (However, if none of the pictures have [ ] displayed, you cannot select [ALL DELETE EXCEPT

] even if [FAVORITE] is set to [ON].)

VQT0Y60

Press

/

to select the picture and then press

to set.

(Only when selecting [MULTI DELETE])

MULTI DELETE

7 8 9

10 11

SELECT

MARK/UNMARK

EXIT

• Repeat the above procedure.

• The selected pictures appear with [

When r

is pressed again, the setting is cancelled.

• The icon [ c

] blinks red if the selected picture cannot be deleted. Cancel the protect setting. (P99)

Press [

].

Press

to select [YES] and then press [MENU/SET] to set.

(Screen when selecting [MULTI DELETE])

MULTI DELETE

DELETE THE PICTURES

YOU MARKED?

YES

SELECT SET

MENU

SET

• [DELETE ALL PICTURES IN THE

INTERNAL MEMORY ?] or [DELETE ALL

PICTURES IN THE MEMORY CARD ?] is displayed when using [ALL DELETE], and

[DELETE ALL EXCEPT ?] is displayed when using [ALL DELETE EXCEPT ].

• When you delete all pictures, only pictures in either of the built-in memory or the card can be deleted. (You cannot delete pictures in both the built-in memory and the card at the same time.)

• If you press [MENU/SET] while deleting pictures using [ALL DELETE] or [ALL DELETE

EXCEPT ], the deleting will stop halfway.

Basic

• Once deleted, pictures cannot be recovered. Please double-check before deleting pictures.

• Do not turn off the camera while deleting.

• When you delete pictures, use a battery with sufficient battery power (P13) or use with the AC adaptor (DMW-AC5; optional).

• It is possible to delete up to 50 pictures at one time using [MULTI DELETE].

• The more pictures there are to delete, the more time it takes.

• In the following cases, pictures are not deleted even if [ALL DELETE] or [ALL

DELETE EXCEPT ] is selected.

– When the Write-protect switch of the SD

Memory Card or SDHC Memory Card is set to the [LOCK] side (P17)

– When files do not conform to the DCF

(P35)

– When pictures are protected [ c ]

(P99)

• You can also use the joystick for these operations.

To select To set and to close

VQT0Y60

Advanced

About the LCD Monitor

Changing the information displayed

Selecting the screen to be used

*2 You can set guide line patterns for display in the guide line display (P21) in the setup menu. You can also set whether to display recording data or histograms with guide lines or not.

In playback mode (P35)

100-0001

1/19

P F2.8 1/100

10:00

ISO 200

1.DEC.2006

AUTO

DISPLAY/LCD MODE

LCD monitor (LCD)

Press the [DISPLAY/LCD MODE] button to switch to the screen to be used.

• When the menu screen appears, the

[DISPLAY] button is not activated. During playback zoom (P78), while playing back motion pictures (P79) and during a slide show (P94), you can only select “Display” or “Non-display”.

In recording mode (P25)

1 1

F H

100-0001

1/19

1ST DAY

1 month 10days

10:00 1DEC..2006

Display

Display with recording information and histogram

Non-display

*3 The number of days that have passed since the travel date is displayed when a picture was taken with [TRAVEL DATE]

(P69) setting.

*4 Displayed when you set birthday setting for [BABY1]/[BABY2] in scene mode

(P68), and [WITH AGE] is selected at taking pictures.

* 1

Display

Display with histogram

Guide line display *2

Non-display

*1 Histogram

VQT0Y60

About guide line display

When you align the subject on the guide lines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject.

When [ ] is selected

Used to divide the screen into three equalsized sections for recording a balanced picture.

Advanced

• If you compensate the exposure to minus, refer to the histogram and then take a picture again, it may result in a good picture.

• When taking a picture with the flash on and the subject too close, white saturation may occur. When highlight display is set to [ON], white saturation emerges in places illuminated with the flash as shown below.

The saturated areas appear blinking in black and white.

When [ ] is selected

Used to position the subject in the centre of the screen.

Highlight display

When setting [HIGHLIGHT] to [ON] on the

[SETUP] menu (P23) while the auto review or review function is activated, any white saturated area (extremely bright or glistening part) on the picture appears blinking in black and white.

No highlight display

REVIEW1X n

Histogram

• A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis.

• It allows the camera user to easily check the way a picture is being exposed.

• When the values are concentrated to the left

, the picture is under exposed.

Pictures that are mostly black, such as night scenery, forms this type of histogram.

• When the values in the histogram are distributed evenly

, the exposure is adequate and the brightness is wellbalanced.

• When the values are concentrated to the right

, the picture is over exposed.

Pictures that are mostly white, form this type of histogram.

EXIT

DELETE

With highlight display

REVIEW1X

EXIT 4X DELETE

VQT0Y60

Example of histogram

F2.8 1/200

ISO

200

10:00 1.DEC.2006

Advanced

100-0001

1/19

AUTO

100-0001

1/19

• Check white saturated areas with the highlight display in the auto review function or the review function. (P39)

• No histogram appears in the following cases.

–In the motion picture mode.

–While multi playback is in progress.

–While playback zoom is in use.

–While calendar playback is in progress.

F2.8 1/100

ISO 200

10:00 1.DEC.2006

AUTO

100-0001

1/19

Brightening the LCD Monitor

(Power LCD/High angle mode)

F2.8 1/50

ISO

200

10:00 1.DEC.2006

AUTO

Press [DISPLAY/LCD MODE] for one second.

Under Exposed

Properly Exposed

Over Exposed

*Histogram

• When the recorded picture and the histogram do not match each other under the following conditions, the histogram is displayed in orange.

–When the exposure is compensated or the manual exposure assistance level in the manual exposure mode is other than

[0]

–When using the fireworks mode (P65) or starry sky mode (P66) in scene mode

–When the flash is activated

–When the flash is closed

When the brightness of the screen is not correct in dark places

When the exposure is not adequately adjusted

• The histogram in the recording mode is an approximation.

• The histogram in recording and playback may not match each other.

• The histogram in this camera does not match the one displayed in image editing software used with a PC, etc.

VQT0Y60

Press

/

to select a mode.

LCD

LCD MODE

OFF

POWER LCD

HIGH ANGLE

SELECT SET

MENU

[ ]:

POWER LCD

[ ]:

HIGH ANGLE

[OFF]

Press [MENU/SET].

• The [POWER LCD] or [HIGH ANGLE] icon appears.

The LCD monitor becomes brighter and easier to see even when taking pictures outdoors.

The LCD monitor is easier to see when taking pictures with the camera held high above your head. This is useful when you cannot get close to the subject because there is a person in the way.

(However it becomes more difficult to see when looked at straight on.)

The LCD monitor returns to the normal brightness.

: POWER LCD

: HIGH ANGLE

• You can also use the joystick to perform steps

and

Advanced n

Cancelling High angle mode or Power

LCD mode

• If you press and hold [DISPLAY/LCD

MODE] again for 1 second the screen shown in step

is displayed. Select [OFF] to cancel Power LCD mode or High angle mode.

• High angle mode is also cancelled if you turn the camera off or power save mode is activated.

• The brightness of the pictures displayed on the LCD monitor is adjusted when

Power LCD mode or High angle mode is activated. Therefore, some subjects may look different on the LCD monitor.

However, this does not affect the recorded pictures.

• The LCD monitor automatically returns to normal brightness after 30 seconds when recording in Power LCD mode. Press any button to make the LCD monitor bright again.

• You may not notice the High angle mode effect if the LCD monitor is difficult to see because of light from the sun etc. shining on it. In this case, we recommend using your hand or another object to block the light when using the camera.

• High angle mode is not activated in the following cases.

–In playback mode

–While the menu screen is displayed

–While the review screen is displayed

To select To set

VQT0Y60

Advanced

Taking Pictures using the Built-in Flash

To open the flash

Slide the [ < OPEN] switch

A n

Switching to the appropriate flash setting

Set the flash setting of the built-in flash according to the scene to be recorded.

Press

[

].

FLASH

AUTO

AUTO/RED-EYE

FORCED FLASH ON

SLOW SYNC./RED-EYE

: Photo flash

• Do not cover the photo flash with your fingers or any other items.

SELECT SET

MENU

Press

/

or

[

] to switch the flash setting.

FLASH

AUTO

AUTO/RED-EYE

FORCED FLASH ON

SLOW SYNC./RED-EYE

To close the flash

Press the flash until it clicks.

• To close the flash securely, press the centre of the flash until it clicks. When you press on the edge, locking the flash may become difficult.

• Be sure to close the flash when not in use.

• The flash setting is fixed to Forced OFF

[ v ] while the flash closes.

SET

MENU

SELECT

• When 5 seconds pass without any operation, the setting selected at the time is automatically adopted.

• For the flash setting contents, refer to

“Flash setting” (P43). For the selectable flash setting, refer to “Available flash settings by recording mode” (P43).

Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• You can also use the joystick for performing steps

and

To select To set

VQT0Y60

Flash setting

: AUTO

The flash is automatically activated according to the recording condition.

: AUTO/Red-eye reduction*

The flash is automatically activated according to the recording condition. It reduces the red-eye phenomenon (eyes of the subject appear red in photo flash) by triggering the flash before actually recording the picture.

After that, the flash is activated for actual recording again.

• Use this when you take pictures of people in low lighting conditions.

Advanced n

Available flash settings by recording mode

The available flash settings depend on the recording mode.

( e : Available, —: Not available)

* 1 * 2 t

: Forced ON

The flash is activated every time regardless of the recording condition.

• Use this when your subject is back-lit or under fluorescent light.

: Forced ON/Red-eye reduction*

• In [PARTY] (P64) or [CANDLE LIGHT]

(P65) in scene mode, the flash mode is set to Forced ON/Red-eye reduction.

: Slow sync./Red-eye reduction*

When you take a picture with a dark background landscape, this feature makes the shutter speed slow when the flash is activated, so that the dark background landscape will become bright. Simultaneously it reduces the red-eye phenomenon.

• Use this when taking pictures of people in front of a dark background.

: Forced OFF

The flash is not activated in any recording condition.

• Use this when taking pictures in places where the use of the flash is not permitted.

*1 When the backlight compensation is off

*2 When the backlight compensation is on

• The flash setting may change when you change the recording mode. Make flash settings in various recording modes according to your preference and available settings shown in the above table.

The flash is activated twice. The subject should not move until the second flash is activated.

VQT0Y60

The available flash range to take pictures

The available flash range to take pictures depends on the ISO sensitivity selected

(P83).

ISO sensitivity

AUTO

Available flash range

Advanced n

Shutter speed for each flash mode

ISO

ISO100

ISO200

ISO400

ISO800

ISO1600

60 cm to 4.9 m (Wide)

30 cm to 2.8 m (Tele)

60 cm to 4.9 m (Wide)

30 cm to 2.8 m (Tele)

60 cm to 1.9 m (Wide)

30 cm to 1.1 m (Tele)

60 cm to 2.7 m (Wide)

30 cm to 1.5 m (Tele)

60 cm to 3.9 m (Wide)

40 cm to 2.2 m (Tele)

80 cm to 5.5 m (Wide)

60 cm to 3.1 m (Tele)

115 cm to 5.7 m (Wide)

90 cm to 3.2 m (Tele)

• The available flash range is an approximation.

• Refer to P28 for the focus range.

• Refer to P83 for the ISO sensitivity.

• If ISO sensitivity is set to [AUTO] or [

ISO when using the flash, it will be automatically increased to a maximum of

]

[ISO640].

• To avoid picture noises, we recommend reducing the ISO sensitivity, setting

[NOISE REDUCTION] in [PICT.ADJ.] to

[HIGH] or setting the items except [NOISE

REDUCTION] to [LOW] to take pictures.

(P90)

• In motion picture mode [ i ] (P74),

[SCENERY] (P62), [NIGHT SCENERY]

(P63), [FIREWORKS] (P65), [STARRY

SKY] (P66), [AERIAL PHOTO] (P67) or

[HIGH SENS.] (P67) in scene mode, the flash mode is fixed to Forced OFF [ v

] even if the flash is open.

Flash mode

: AUTO s

: AUTO/Redeye reduction t q

: Forced ON

: Forced ON/

Red-eye reduction

Shutter speed

(sec.)

1/30 to 1/2000

1/30 to 1/2000 u

: Slow sync./

Red-eye reduction

1 to 1/2000 v

: Forced OFF 1 to 1/2000

(In Programme AE mode)

• Refer to P54 for the Aperture-priority AE,

Shutter-priority AE or Manual exposure mode.

• The settings may be different from those shown here if you are using scene modes.

– [NIGHT SCENERY] (P63):

8 seconds to 1/2000th of a second

– [FIREWORKS] (P65):

1/4th of a second, 2 seconds

– [STARRY SKY] (P66):

15 seconds, 30 seconds, 60 seconds

VQT0Y60

Advanced n

Adjusting flash output

Adjust the flash output when the subject is small or reflection ratio is extremely high or low.

Press

2 e

[

] several times until

[ FLASH] appears and then press

/

to set the flash output.

FLASH

SELECT EXIT

MENU

• You can adjust from [-2 EV] to [+2 EV] in steps of [1/3 EV].

• Select [0 EV] to return to the original flash output.

Press [MENU/SET] to finish.

•

You can also press the shutter button halfway to finish.

• When the flash output is adjusted, the flash output value appears on the upper left of the screen.

• The flash output setting is memorised even if the camera is turned off.

• In Auto mode [ 0 ], motion picture mode [ i ], and [SCENERY] (P62),

[NIGHT SCENERY] (P63),

[FIREWORKS] (P65), [STARRY SKY]

(P66), [AERIAL PHOTO] (P67) or

[HIGH SENS.] (P67) in scene mode, you cannot adjust the flash output.

• Do not look directly at the flash at close range when it is activated.

• Do not bring the flash too close to objects or close the flash while it is activated. The objects may be discoloured by its heat or lighting.

• Do not cover the photo flash with your fingers or any other items.

• In economy mode, the LCD monitor turns off and the status indicator blinks while the flash is charged. [This does not happen when using the AC adaptor

(DMW-AC5; optional).]

If the remaining battery power is low, the length of time that the LCD monitor turns off to charge may become longer.

• The flash icon turns red when activating the flash and pressing the shutter button halfway.

• When the jitter alert appears, we recommend using a tripod.

• When you take a picture beyond the available flash range, the exposure may not be adjusted properly and the picture may become bright or dark.

• When taking a picture with the flash, the white balance will be automatically adjusted [except for [ x ] (Daylight), [ ] (Flash)], but the white balance may not be properly adjusted if the photo flash is insufficient. (P81)

• When the shutter speed is fast, the flash effect may not be sufficient.

• When you repeat taking a picture, recording may be disabled even if the flash is activated. Take a picture after the access indication disappears.

• When the flash is being charged, the flash icon blinks red, and you cannot take a picture even when you press the shutter button fully.

• Do not close the flash immediately after using a secondary light source, for example

AUTO/Red-eye reduction [ s ]. Doing so can damage the camera.

• The red-eye reduction effect differs between people. Also, if the subject was far away from the camera or was not looking at the first flash, the effect may not be evident.

• When you set burst mode or auto bracket, only 1 picture is recorded for every flash activated.

• You can extend the shutter speed by up to

1/8 by using exposure compensation.

• Sand or seawater may cause the camera to malfunction. Make sure that sand or seawater does not come in touch with the flash.

VQT0Y60

Advanced

Taking Pictures with the Self-timer

Press

[ ].

SELFTIMER

OFF

10SEC.

2SEC.

SET

MENU

SELECT

OFF : No display (cancelled)

: Self-timer set to 10 seconds

5 : Self-timer set to 2 seconds

Press

/

or

[ ] to switch the self-timer mode.

SELFTIMER

OFF

10SEC.

2SEC.

CANCEL

MENU

• The self-timer indicator

blinks and the

C shutter is activated after

10 seconds (or 2 seconds).

• If you press [MENU/

SET] when the self-timer is set, the selftimer setting is cancelled.

MENU

SELECT SET

• When 5 seconds pass without any operation, the setting selected at the time is automatically adopted.

Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• You can also use the joystick for performing steps

and

To select To set

Press the shutter button halfway

to focus and then press it fully

to take a picture.

• When using a tripod or in other cases, setting the self-timer to 2 seconds is a convenient way to stabilize the jitter caused by pressing the shutter button.

• When you press the button fully with one stroke, the subject is automatically focused just before the recording. In dark places, the self-timer indicator blinks and then it may turn on brightly to work as the

AF assist lamp (P89) for focusing on the subject.

• When you set the self-timer in burst mode, the camera starts taking a picture 2 or 10 seconds after the shutter button is pressed. The number of pictures taken at one time is fixed to 3.

• We recommend using a tripod when setting the self-timer. (When using a tripod, be sure to confirm that the tripod is stable when this unit is attached.)

• The self-timer is fixed at 2 seconds when you are using [SELF PORTRAIT] in scene mode (P63).

VQT0Y60

Advanced

Compensating the Exposure

Use this function when you cannot achieve appropriate exposure due to the difference of brightness between the subject and the background.

Over exposed

• You can compensate from –2 EV to +2 EV in steps of 1/3 EV.

• Select only [ ] (0 EV) when you do not compensate the exposure.

Cursor button operations

Press

[

] to display [

EXPOSURE] and press

/

to compensate the exposure.

EXPOSURE

Compensate the exposure toward negative.

Properly Exposed

Under exposed

Compensate the exposure toward positive.

EXIT

MENU

SELECT

• You can compensate from –2 EV to +2 EV in steps of 1/3 EV.

• Select [0 EV] to return to the original exposure.

Press [MENU/SET] to finish.

•

You can also press the shutter button halfway to finish.

Joystick operations

Move the joystick the exposure.

to select [ ] and move it

/

to compensate

• EV is an abbreviation of “Exposure

Value”, and it is the amount of light given to the CCD by the aperture value and the shutter speed.

• The exposure compensation value appears on the lower left of the screen.

• The exposure value is memorised even if the camera is turned off.

• The compensation range of the exposure will be limited depending on the brightness of the subject.

• You cannot compensate the exposure with [STARRY SKY] in scene mode (P66).

: The exposure compensation value

VQT0Y60

Advanced

Taking Pictures using Auto Bracket

In this mode, 3 pictures are automatically recorded by each press of the shutter button according to the compensation range of the exposure.

You can select the desired exposure among the 3 types of pictures.

Press

[

] several times until

[

AUTO BRACKET] appears, set the compensation range of the exposure with

/

.

AUTO BRACKET

MENU

SELECT EXIT

• You can select [OFF] (0), [±1/3 EV],

[±2/3 EV] or [±1 EV].

• When you do not use auto bracket, select

[OFF] (0).

Press [MENU/SET] to finish.

•

You can also press the shutter button halfway to finish.

• When setting auto bracket, the auto bracket icon [ B ] appears on the screen.

• When taking pictures using auto bracket after the exposure compensation, the pictures are based on the compensated exposure. When the exposure is compensated, the exposure compensation value appears at bottom left of the screen.

• When setting auto bracket and the burst mode simultaneously, auto bracket will be performed.

• Auto review works if you activate auto bracket, irrespective of the auto review setting. (But the picture is not enlarged.)

You cannot change the auto review setting in the setup menu.

• When setting auto bracket, you cannot use the audio recording function.

• The exposure may not be compensated with auto bracket depending on the brightness of the subject.

• You cannot use auto bracket if you have set quality to [RAW].

• In shutter-priority AE and manual exposure, if the shutter speed is set to more than 1 second auto bracket is disabled.

• When the flash is activated, you can take only 1 picture.

• You cannot use auto bracket when there are only one or two pictures remaining.

• You cannot use auto bracket in [SPORTS]

(P62), [STARRY SKY] (P66) and

[BABY1]/[BABY2] (P68) in scene mode.

• You cannot take pictures using auto

[ bracket when the ISO sensitivity is set to

ISO

VQT0Y60

Advanced

Optical Image Stabilizer [STABILIZER]

This mode recognises and compensates for jitter.

Press and hold the optical image stabilizer button

until [

STABILIZER] appears.

A n

Demonstration of the optical image stabilizer (Demonstration Mode)

When you press q

, the demonstration appears. After the demonstration ends, the screen returns to the stabilizer function mode selection menu. If you want to exit the demonstration halfway through, press q

again.

While the demonstration is displayed, the optical zoom is fixed to Wide (1×) and the zoom function cannot be activated.

Moreover, you cannot take pictures.

Press

/

to select the stabilizer function mode and then press

[MENU/SET].

STABILIZER

OFF

MODE1

MODE2

SELECT SET

MENU

DEMO.

SET

• You can also use the joystick to perform step

• The stabilizer function may not work in the following cases so take special care not to move the camera when pressing the shutter button.

–When too much jitter occurs.

–When the zoom magnification is high.

–In digital zoom range.

–When taking pictures while following subjects in motion.

–When the shutter speed is extremely slow due to dark conditions or other reasons.

• In [SELF PORTRAIT] (P63) in scene mode, the stabilizer function is set to

[MODE2]. In starry sky mode (P66), the function is set to [OFF]. In these modes, the camera does not display the menu for selecting the optical image stabilizer.

• In motion picture mode [ i ], [MODE2] cannot be set.

To select To set

(

MODE1

( 7 )

MODE2

( 8 )

OFF

)

The stabilizer operates continuously and can assist during photo composition.

The jitter is compensated for when the shutter button is pressed. There is a greater stabilizing effect.

When image stabilization is not desired.

VQT0Y60

Advanced

Taking Pictures using Burst Mode

Press and hold the burst mode button until the burst menu is displayed.

BURST SHOOTING

OFF

HIGH SPEED

LOW SPEED

UNLIMITED

SELECT SET

MENU

OFF: No display (cancelled)

: High speed

E : Low speed

: Unlimited

Press

/

or the burst mode button to switch burst mode settings.

• When 5 seconds pass without any operation, the setting selected at the time is automatically adopted.

Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• You can also use the joystick to perform steps

and

Take a picture.

• Hold down the shutter button fully to activate the burst mode.

Number of pictures recorded in burst mode

Burst speed

(pictures/ second)

Number of recordable pictures (pictures)

G H

2* max. 3 max. 5

E 1* max. 3 max. 5

F approx. 1

Depends on the remaining capacity of the built-in memory/card.

*The transfer speed of the card has no effect on the burst speed.

• The number of pictures indicated is when the shutter speed is faster than 1/60 and the flash is not activated.

• The burst speed (pictures/second) may become slower depending on brightness and other recording conditions.

To select To set

VQT0Y60

Advanced

• When the burst mode setting is set to

Unlimited:

– You can take pictures until the capacity of the built-in memory or the card is full.

– The burst speed will become slower halfway. When the built-in memory is used, the burst speed becomes a maximum of 1 picture approximately every 6 seconds. However, the exact timing of this depends on the number of recordable pictures and the card.

• The focus is fixed in the first picture.

• The ways to control the exposure and the white balance vary depending on the burst mode setting. When the burst mode is set to [ D ], they are fixed to the values set for the first picture. When the burst speed is set to [ E ] or [ F ], they are adjusted each time you take a picture.

• When the self-timer is used, the number of recordable pictures in burst mode is fixed to 3.

• Burst mode is not cancelled when the camera is switched off.

• When the burst mode is activated, the audio recording function cannot be used.

• If the flash is activated, you can record only 1 picture.

• When setting auto bracket and the burst mode simultaneously, auto bracket will be performed.

• In Burst mode, auto review is activated even the setting is off. (The picture is not enlarged.) You cannot change the auto review setting in the setup menu.

• You cannot use burst mode if you have set quality to [RAW].

• You cannot use burst mode with [STARRY

SKY] in scene mode.

VQT0Y60

Advanced

Taking pictures by setting the aperture/shutter speed manually

Aperture-priority AE

When you want the background to be in sharp focus, set the aperture value to a higher number. The higher the aperture value is the smaller the aperture opening will be. For a soft focus background, set the aperture value to a lower number which corresponds to a larger aperture opening.

Move the joystick towards

to set the aperture value.

ISO

100

Shutter-priority AE

When you want to take a sharp picture of a fast moving subject, set to a faster shutter speed. When you want to create a trail effect, set to a slower shutter speed.

Move the joystick towards

to set the shutter speed.

ISO

100

Aperture value e

: Increase

Take a picture.

: Decrease

Shutter speed e

: Faster

Take a picture.

A r

: Slower

• Refer to P54 for the available range of the aperture value and the shutter speed.

• The brightness of the screen may differ from that of the actual pictures. Check it using review function or setting to the playback mode.

• The ISO sensitivity cannot be set to [AUTO] or [

ISO

]. (When the recording mode is switched to Aperture-priority AE or Shutterpriority AE, the ISO sensitivity is automatically set to [ISO100] even though it was set to [AUTO] or [

ISO

] beforehand.)

• You cannot set to Slow sync./Red-eye reduction [ u ] in Shutter-priority AE.

• When the exposure is not adequate, the aperture value and the shutter speed on the screen turn red.

• Set the aperture value to a higher number when the subject is too bright. Set the aperture value to a lower number when the subject is too dim.

• When the shutter speed is slow, we recommend using a tripod.

VQT0Y60

Advanced

Taking pictures by setting the exposure manually

Manual exposure

Decide the exposure by setting the aperture value and the shutter speed manually.

Move the joystick towards the shutter speed.

to set the aperture value and

ISO

100

A B

• e

/ r

: Set the aperture value

and the shutter speed

• w

/ q

: Select the aperture value and the shutter speed.

Press the shutter button halfway.

Take the picture.

Manual Exposure Assistance

The exposure is adequate.

Set to faster shutter speed or larger aperture value.

Set to slower shutter speed or smaller aperture value.

• The manual exposure assistance is an approximation. We recommend taking pictures and then checking them using the review function.

• Indication for the condition of exposure

(manual exposure assistance) appears for about 10 seconds.

• When the exposure is not adequate, set the aperture value and the shutter speed again.

• Refer to P54 for the available range of the aperture value and the shutter speed.

• You cannot set the following items in manual exposure.

–Slow sync./Red-eye reduction [ u ]

(P42)

–[AUTO] or [

ISO

] in ISO sensitivity (P83)

(When the recording mode is switched to

Manual exposure, the ISO sensitivity is automatically set to [ISO100] even though it was set to [AUTO] or [ beforehand.)

ISO

]

–Compensating the Exposure (P47)

• The brightness of the LCD may differ from the brightness of pictures you take. Check the picture with review or play mode.

• If the exposure is not adequate, the aperture value and the shutter speed turn red when pressing the shutter button halfway.

• When the shutter speed is slow, we recommend using a tripod.

VQT0Y60

Aperture Value and Shutter Speed

Shutter-priority AE

Available Shutter Speed (Sec.)

(Per 1/3 EV)

3.2

2.5

1.6

1.3

1/2

1/5

1/13

1/30

1/80

1/200

1/500

1/2.5

1/6

1/15

1/40

1/100

1/250

1/640

1/1.3

1/3.2

1/8

1/20

1/50

1/125

1/320

1/800

1/1300

1/1600

1/2000

1/1.6

1/4

1/10

1/25

1/60

1/160

1/400

1/1000

Aperture-priority AE

Available Aperture Value

(Per 1/3 EV)

F7.1

F8.0

F6.3

F5.6

F4.9

F3.6

F4.5

F3.2

F4.0

F2.8

Manual exposure

Available Aperture Value

(Per 1/3 EV)

F2.8 to F3.6

F4.0 to F4.9

F5.6 to F7.1

F8.0

Advanced

Aperture Value

F2.8 to F8.0

F4.0 to F8.0

F5.6 to F8.0

F8.0

Shutter Speed (Sec.)

8 to 1/2000

8 to 1/1600

8 to 1/1300

8 to 1/1000

Available Shutter Speed (Sec.)

(Per 1/3 EV)

60 to 1/1000

60 to 1/1300

60 to 1/1600

60 to 1/2000

• The aperture values in the table above are the values when the zoom lever is rotated to

Wide at maximum.

• Some of the aperture values cannot be selected depending on the zoom magnification.

VQT0Y60

Advanced

Taking Pictures with Manual Focus

Use this function when you want to fix the focus or when the distance between the lens and the subject is determined and you do not want to activate auto focus.

Slide the focus switch to [MF].

Take the picture.

• AF: Auto focus

• AF w : AF Macro mode

• MF: Manual focus

Move the joystick

to focus.

A m

0.5

• e

: Further

• r

: Closer

•

: Focal distance

• The manual focusing assistant

appears.

• The MF assistant disappears 2 seconds after you stop operating the joystick.

• The moving focus indication

C disappears 5 seconds after you stop operating the joystick.

MF assistance

Move the joystick e

/ r

while [MF ASSIST] is set to [MF1] or [MF2] to enlarge the picture to help focusing.

This allows you to focus on the subject more easily.

Press [MENU/SET].

Press

REC

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

SELECT

QUALITY

1/4

AUTO

EXIT

MENU

Press

to select the [SETUP] menu icon [ ] and then press

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

TRAVEL DATE

SELECT

OFF

EXIT

MENU

VQT0Y60

Press

to select [MF ASSIST] and then press

Advanced n

Shifting the enlarged section

You can shift the enlarged section while enlarging the picture with MF assistance.

The function is convenient for changing the point on which you want to focus.

SETUP

AUTO REVIEW

POWER SAVE

ECONOMY

MF ASSIST

SELECT

BEEP

2/5

1SEC.

5 MIN.

OFF

MF1

EXIT

MENU

Press

SET].

to select [MF1] or

[MF2] and then press [MENU/

Move the joystick e

/ r

to display MF assistance.

0.5

Press cursor buttons e

/ r

/ w

/ q

to shift the enlarged section.

SETUP

AUTO REVIEW

POWER SAVE

ECONOMY

SELECT

MF ASSIST

BEEP

SET

MENU

2/5

1SEC.

5 MIN.

OFF

SET

MENU

SET

• [MF1]: The centre area of the picture is enlarged. You can focus while considering the overall composition of the picture.

• [MF2]: The whole picture is enlarged. You can easily focus when you are not sure of the focus at Wide.

• [OFF]: The screen is not enlarged.

Press [MENU/SET] to close the menu.

• You can also close the menu by pressing the shutter button halfway.

• You can also use the joystick to perform steps

• The picture enlargement is cancelled about 2 seconds later.

• The displayed picture returns to the original MF assist area when:

–The Focus switch is set to [AF] or

[AF w ].

–The number of recording pixels or the aspect is changed.

–The camera is turned off.

To select To set and to close

VQT0Y60

Technique for Manual focus

Advanced

Move the joystick e

/ r

Even if the subject is focused, move it a little more.

Return to the centre to make fine adjustments.

Prefocus

This is a technique to focus on the point to take pictures in advance when it is difficult to focus on the subject with auto focus due to its quick motion.

This function is suitable when the distance between the camera and the subject is established.

• You can also record with manual focus in motion picture mode [ i

]. When starting the recording, the focus is fixed.

• When you focus on the subject in Wide, the focus may not be adequate in Tele. In this case, focus on the subject again.

• The MF assistance does not appear in digital zoom range.

• The distance shown shows roughly how far away the point of focus is.

• Use the MF assistance to make final adjustments to the focus.

• After cancelling power save mode, focus on the subject again.

• When setting the manual focus, you cannot set the continuous AF (P89).

• The AF lock is released when you select manual focus.

VQT0Y60

Advanced

Taking Close-up pictures

This mode allows you to take close-up pictures of the subject, e.g. When taking pictures of flowers.

You can take pictures approaching the subject at a distance up to 5 cm from the lens by rotating the zoom lever upmost to

Wide (1×).

Select [AF

] with the focus switch.

• AF: Auto focus

• AF w : AF Macro mode

• MF: Manual focus n

Focus range

• Normal

50 cm

1.0 m

• Use a tripod and the self-timer (P46) for best results.

• When the subject is close to the camera, the effective focus range (depth of field) is significantly narrowed. Therefore, you will have difficulty in focusing on the subject if the distance between the camera and the subject is changed after focusing on the subject.

• When the camera lens is at a distance beyond the available range from the subject, the subject may not be focused even if the focus indication lights.

• AF Macro mode gives priority to a subject close to the camera. Therefore it takes longer for the camera to focus in macro mode than in standard AF mode [AF] when the subject is 50 cm or more away.

• The available flash range is about 60 cm to 4.9 m (Wide). (This is applied when you set the ISO sensitivity to [AUTO].) We recommend setting the flash to Forced

OFF [ v ] when you take pictures at close range.

• It is normal for the resolution of the edges of pictures taken with [AF w ] at short distances to be lower.

• [AF w ]

30 cm

5 cm

VQT0Y60

Setting the aspect ratio

Advanced

Aspect ratio is the ratio of the width and the height of the picture. By changing the aspect ratio, you can select an angle of view that matches the subject.

Slide the aspect ratio switch to change the setting.

• You cannot select [ ] when recording motion pictures [ i

] with a card. You cannot select [ j

] or [ ] when recording motion pictures [ i

] with the built-in memory.

• The ends of the recorded pictures may be cut at printing. (P125) j

This is suitable for landscapes etc. where a wide view is preferable.

This is also suitable for playing back pictures on a wide-screen

TV, high-definition TV etc.

Select to take pictures with the same 3:2 aspect ratio as 35 mm film.

Select to take pictures with the same aspect ratio as a 4:3 TV or a computer monitor.

VQT0Y60

Advanced

AF/AE Lock (AF: Auto focus/AE: Auto exposure)

Recording pictures

Aim the AF area at the subject.

Press and hold [AF/AE LOCK].

Locking the focus with [AF/AE LOCK] button is useful when the subject is outside the AF area or when the subject in extremely high contrast prevents the camera from obtaining the appropriate exposure.

AF: Through this function, the camera automatically focuses on the subject.

AE: Through this function, the camera judges brightness of the subject and automatically selects the exposure.

AF-L

AE-L

AF-L : only the focus is locked (AF)

AE-L : only the exposure is locked (AE)

AF-L

AE-L

: both the focus and the exposure are locked (AF/AE)

• Press and hold [AF/AE LOCK] again to unlock.

Move the camera back to the shot you want to take and press the shutter button fully.

Setting the items to lock

Press [MENU/SET].

Press

to select [AF/AE

LOCK] and press

3/4

REC

AF-L

AE-L

AF/AE LOCK

D.ZOOM

COL.EFFECT

PICT.ADJ.

SELECT

FLIP ANIM.

SET

MENU

Press

to select the item and press [MENU/SET].

• AF : Auto focus locked

• AE : Auto exposure locked

• AF/AE : Both locked

Press [MENU/SET] to close the menu.

• You can also close the menu by pressing the shutter button halfway.

• You can also use the joystick to perform steps

AF-L

AE-L

• The exposure remains the same even if brightness of the subject changes.

• While using AE Lock, you can still refocus by pressing the shutter button halfway.

• While using AE Lock, you can still set the

Programme shift (P26).

• You can not use AE Lock in manual exposure mode, scene mode or motion picture mode.

• Only the AE lock is effective when you are using manual focus.

VQT0Y60

To select To set and to close

Advanced

Scene mode

When you select a scene mode to match the subject and recording situation, the camera sets the optimal exposure and hue to obtain the desired picture.

• Refer to P62 to 68 for each scene menu.

Press

to select the scene mode.

1/5

SCN

SCENE MODE

PORTRAIT

SOFT SKIN

SCENERY

SPORTS

SELECT

SET

MENU

• Press r

to switch to the next menu screen.

• If [SCENE MODE] menu does not appear, press [MENU/SET] to display the [SCENE MODE] menu.

• When you press q

, explanations about each scene mode are displayed. (When you press w

, the screen returns to the

[SCENE MODE] menu.)

Press [MENU/SET].

About the menu screen items

• There are 5 menu screens (1/5, 2/5, 3/5,

4/5 and 5/5).

• You can switch menu screens from any menu item by rotating the zoom lever.

SCN

SCENE MODE

PORTRAIT

1/5

2/5

NIGHT PORTRAIT

SELECT

SPORTS

SELECT

FOOD

STARRY SKY

SELECT

3/5

BEACH

HIGH SENS.

SELECT

BABY1

4/5

MENU

SELECT

5/5

SET

MENU

About menu operations using the joystick

You can also use the joystick for menu operations.

Move the joystick e

/ r

to select the scene mode.

• When you move the joystick q

, explanations about each scene mode are displayed. (When you move the joystick w

, the screen returns to the

[SCENE MODE] menu.)

Press the joystick to set the mode.

1/5

SCN

SCENE MODE

PORTRAIT

SOFT SKIN

SCENERY

SPORTS

SELECT

SET

MENU

• The colour of the picture may seem strange if you use a scene mode that is unsuitable for the shot.

• Use exposure compensation to adjust the brightness of pictures you take. (P47)

(However, the exposure cannot be compensated in [STARRY SKY].)

• Press w

and then press e

/ r

in the

[SCENE MODE] menu to select either the

[REC] menu icon [ ] (P80) or the

[SETUP] menu icon [ ] (P20) and set the desired items.

• The following cannot be set in scene mode because the camera automatically adjusts them to the optimal setting.

–[W.BALANCE] (P81)

–[SENSITIVITY] (P83)

–[METERING MODE] (P87)

–[COL.EFFECT] (P90)

–[PICT.ADJ.] (P90)

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Portrait mode

The background is blurred and the person stands out with a healthier complexion.

Scenery mode

This mode allows you to take a picture of a wide landscape. The camera focuses on a distant subject preferentially.

19 n

Technique for Portrait mode

To make this mode more effective:

Rotate the zoom lever to Tele as far as possible.

Move close to the subject to make this mode more effective.

• This mode is suitable for outdoors in the daytime.

• The ISO sensitivity is fixed to [ISO100].

Soft skin mode

The camera detects the face or skin area to achieve a smoother appearance of the skin than portrait mode. Use this mode when taking portraits from the chest up.

• Slide the focus switch to [AF].

• The focus range is 5 m to

• The Flash setting is fixed to Forced OFF [ v

• The setting on the AF assist lamp is disabled.

Sports mode

This mode allows you to take pictures of a fast moving subject. (e.g. When taking pictures of outdoor sports.)

19 n

Technique for Soft skin mode

To make this mode more effective:

Rotate the zoom lever to Tele as far as possible.

Move close to the subject to make this mode more effective.

• This mode is suitable for outdoors in the daytime.

• If there are other flesh-coloured elements in the shot, they will also be softened.

• The effect may not be as obvious if there isn’t enough light.

• The ISO sensitivity is fixed to [ISO100].

Technique for Sports mode

This mode is more effective when taking pictures in the daytime on a clear day.

• Slide the focus switch to [AF].

• This mode is suitable for outdoors in the daytime, keeping 5 m or more away from the subject.

• The [

ISO

] function allows you to automatically increase the ISO sensitivity for preventing jitter when taking pictures of a fast moving subject indoors.

• The ISO sensitivity is fixed to [

ISO

• The digital zoom is fixed to [OFF].

• The auto bracket setting is disabled.

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Night portrait mode

The subject can be recorded with brightness in real life by using the flash and the slow shutter speed.

Night scenery mode

This mode allows you to take a picture of a nightscape. The landscape can be recorded vividly by using the slow shutter speed.

19 n

Technique for Night portrait mode

• Open the flash. (P42)

• Due to the slow shutter speed, use a tripod and the self-timer (P46) for best results.

• Keep the subject still for about 1 second after taking a picture.

• We recommend taking pictures by rotating the zoom lever to Wide (1×), and being at a distance about 1.5 m from the subject.

Technique for Night scenery mode

• Slide the focus switch to [AF].

• Use a tripod as the shutter may be open for as long as 8 seconds. Use the selftimer for best results. (P46)

• The focus range is 1.2 m to 5 m. (See page 44 for details about available flash range to take pictures.)

• Be sure to close the flash when not in use.

• The shutter may be kept closed (max. about 1 sec.) after taking a picture because of signal processing. This is not a malfunction.

• When you take pictures in dark places, noises may become visible.

• When using the flash, Slow sync./Red-eye reduction [ u

] is selected and the flash is activated every time.

• You cannot use [CONT.AF] while in this mode.

• The focus range is 5 m to

• The shutter may be kept closed (max. about 8 seconds) after taking a picture because of signal processing. This is not a malfunction.

• When you take pictures in dark places, noise may become visible.

• The Flash setting is fixed to Forced OFF

[ v

• The ISO sensitivity is fixed to [ISO100].

• The settings on the AF assist lamp is disabled.

• You cannot use [CONT.AF] while in this mode.

Self portrait mode

This mode allows you to take a picture of yourself.

Technique for Self-portrait mode

When you are focused by pressing the shutter button halfway, the self-timer indicator lights up. Fix the camera firmly and then press the shutter button fully.

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Food mode

Use this mode to take pictures of food in restaurants, irrespective of the lighting, so that the natural colours of the subject come out.

• A blinking self-timer lamp indicates that the camera has not focused. Press the shutter button halfway again to focus.

• The captured picture automatically appears for about 10 seconds on the LCD monitor for reviewing. Refer to P34 for operations on the review function.

• When the picture may be blurred by slow shutter speed, we recommend using the 2 seconds self-timer. (P46)

• The available focus range is 30 cm to 70 cm.

• You can take a picture of yourself with audio (P86). In this time, the self-timer indicator lights up while recording the audio.

• When you select self-portrait mode [ c ], the zoom lever is automatically moved to

Wide (1×). If you rotate the zoom lever, it will become difficult to focus.

• The self-timer can be set to [OFF] or

[2SEC.]. (P46) When you set to [2SEC.], it is kept until the camera is turned off or the mode dial is rotated.

• The stabilizer function is fixed to

[MODE2]. (P49)

• The AF mode is fixed to 9-area-focusing.

(P87)

• The setting on the AF assist lamp is disabled.

• The focus range is 5 cm (Wide)/30 cm

(Tele) to

Party mode

Select this mode when you want to take pictures at wedding receptions, indoor parties, etc. Both the people and the background can be recorded with brightness in real life by using the flash and slowing down the shutter speed.

19 n

Technique for Party mode

• Open the flash. (P42)

• Due to the slow shutter speed, use a tripod and the self-timer (P46) for best results.

• We recommend taking pictures by rotating the zoom lever to Wide (1×), and being at a distance about 1.5 m from the subject.

• The flash setting can be set to Forced ON/

Red-eye reduction [ q

] or Slow sync./

Red-eye reduction [ u

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Candle light mode

Use this mode to get the most from the mood created by candlelight.

Fireworks mode

This mode allows you to take beautiful pictures of fireworks exploding in the night sky.

19 n

Technique for Candle light mode

• This is most effective if you don’t use the flash.

• Use a tripod and the self-timer (P46) for best results.

• The focus range is 5 cm (Wide)/30 cm

(Tele) to

• The flash setting can be set to Forced ON/

Red-eye reduction [ q

] or Slow sync./

Red-eye reduction [ u

Technique for Fireworks mode

• Since the shutter speed becomes slower, we recommend using a tripod.

• This mode is most effective on subjects that are 10 m or more from the camera.

• The shutter speed becomes the following.

–When [OFF] is set on the optical image stabilizer function: Fixed to 2 second

–When [MODE1] or [MODE2] is set on the optical image stabilizer function:

1/4th or 2 second (The shutter speed becomes 2 second only when the camera has determined that there is little jitter such as when using a tripod etc.)

• Histograms are always displayed in orange. (P39)

• The Flash setting is fixed to Forced OFF

[ v

• The settings on the AF assist lamp is disabled.

• You cannot use [CONT.AF] while in this mode.

• The ISO sensitivity is fixed to [ISO100].

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Starry sky mode

Choose this setting to take clear pictures of the night sky or other dark subjects. The slow shutter speed makes the stars sparkle.

Technique for Starry sky mode

• The shutter opens for 15, 30 or 60 seconds. Due to the slow shutter speed, use a tripod and the self-timer (P46) for best results.

OFF

19 n

Setting the shutter speed

You can choose a shutter speed of 15, 30, or 60 seconds.

Press e

/ r

to select the shutter speed, then press [MENU/SET].

• The histogram is always orange. (P39)

• The Flash setting is fixed to Forced OFF

[ v

• The stabilizer function is fixed to [OFF].

(P49)

• The ISO sensitivity is fixed to [ISO100].

• You cannot use [CONT.AF] while in this mode.

• You cannot use exposure compensation, auto bracket mode, burst mode, or recording audio.

STARRY SKY

15 SEC.

30 SEC.

Beach mode

This mode allows you to take pictures on a beach. It prevents under exposure of the subject under strong sunlight.

60 SEC.

CANCEL SELECT

Take a picture.

SET

MENU

OFF

CANCEL

MENU

• The countdown screen appears when you press the shutter button. Do not move the camera. After the countdown is finished,

[PLEASE WAIT···] is displayed for the same amount of time as the shutter speed you used. This is to process the signals.

• Press [MENU/SET] to stop taking the picture while the countdown screen is displayed.

Technique for Beach mode

• Use the flash.

• Do not touch the camera with wet hands.

• Sand or seawater may cause the camera to malfunction. Make sure that sand or seawater does not come in touch with the camera, particularly its lens, flash or terminals.

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Aerial photo mode

This mode allows you to take pictures through an airplane window.

High Sensitivity mode

This mode allows you to take pictures at

[ISO3200] level with high sensitivity processing.

19 n

Technique for Aerial photo mode

We recommend using this technique if it is difficult to focus when taking pictures of clouds etc. Aim the camera at something with high contrast, press the shutter button halfway to fix the focus and then aim the camera at the subject and press the shutter button fully to take the picture.

• Turn the camera off when taking off or landing.

• When using the camera, follow all instructions from the cabin crew.

• Be careful about the reflection from the window.

• The flash setting is fixed to Forced OFF [ v

• The setting on the AF assist lamp is disabled.

Snow mode

The exposure and the white balance are adjusted to make the white colour of the snow stand out.

• The focus range is 5 cm (Wide)/30 cm

(Tele) to Z .

• The resolution of the recorded picture decreases significantly because of high sensitivity processing. This is not a malfunction.

• You can take pictures suitable for 4

″

×6

″

10×15 cm printing.

• The flash setting is fixed to Forced OFF [ v ].

• The extra optical zoom and digital zoom cannot be used.

• You cannot set quality to [RAW] in high sensitivity mode.

VQT0Y60

Advanced

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P61)

Baby mode 1

Baby mode 2

This mode adjusts the exposure and tone to bring out the healthy colour of your baby’s skin. The flash will be weaker than normal if you choose to use it.

You can set the birthdays of two babies by using [BABY1] and [BABY2].

19 n

Birthday setting

Select [BIRTHDAY SET.] and press

[MENU/SET].

[PLEASE SET THE BIRTHDAY OF THE

BABY] appears on the display. Select year/month/day with w

/ q

, then change the date with e

/ r

Press [MENU/SET] to exit.

• If you select [WITH AGE] but you haven’t set the birthday, a message appears.

Press [MENU/SET] and follow steps

and

to enter the birthday.

1 month 10days

10:00 1.DEC.2006

• The baby’s age appears when you are showing the picture later.

• You can also use the [LUMIX Simple

Viewer] or [PHOTOfunSTUDIO-viewer-] software on the included CD-ROM to print your baby’s age. (For details, refer to the separate operating instructions for PC connection.) n

Age display setting

• To show age, first enter the birthday, select [WITH AGE], and press [MENU/

SET].

• To not show age, select [WITHOUT AGE], and press [MENU/SET].

BABY1

WITH AGE

WITHOUT AGE

BIRTHDAY SET.

CANCEL SELECT SET

MENU

• The focus range is 5 cm (Wide)/30 cm

(Tele) to

• The ISO sensitivity is fixed to [

ISO

• The auto bracket setting is disabled.

• The digital zoom is fixed to [OFF].

• After turning on the camera in [BABY1]/

[BABY2] in scene mode or switching to

[BABY1]/[BABY2] from other scene modes, the age and current date and time are displayed for about 5 seconds at the bottom of the screen.

• Actual age displays depend on the

[LANGUAGE] setting.

• The display style when printing may differ slightly from the display style on the screen.

• The display on the actual day of your baby’s birth will be 0 month 0 day.

• Check the clock and birthday settings if the age shown is incorrect.

• Note that if you have selected [WITHOUT

AGE], age information will not be recorded for any pictures you take. The information will not appear even if you select [WITH AGE] after taking pictures.

• For resetting the birthday setting, use

[RESET] in the [SETUP] menu. (P23)

VQT0Y60

Advanced

Recording which day of the vacation you take the picture

If you set the departure date in advance, you can record which day of the vacation you take the picture.

• When you play back a picture, the date on which it was taken is displayed.

100-0001

1/19

1ST DAY

10:00 2.DEC.2006

• The number of days that have passed since the departure date can be printed on each picture by using the software [LUMIX Simple Viewer] or

[PHOTOfunSTUDIO-viewer-] in the CD-ROM (supplied).

(For information about printing, refer to the separate operating instructions for PC connection.) n

Setting the travel date

(Screen shows an example for the

Programme AE mode [

])

Press [MENU/SET].

Press

REC

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

QUALITY

SELECT

1/4

AUTO

EXIT

MENU

Press

to select the [SETUP] menu icon [ ] and then press

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

TRAVEL DATE

SELECT

OFF

MENU

EXIT

Press

to select [TRAVEL

DATE] and then press

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

TRAVEL DATE

SELECT SET

MENU

OFF

SET

Press

to select [SET] and then press [MENU/SET].

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

SELECT

TRAVEL DATE

MENU

SET

OFF

SET

Press

to select the date.

TRAVEL DATE

PLEASE SET THE

DEPARTURE DATE

1 .

JAN .

2006

EXIT

MENU

SELECT SET w

/ q

: Select the desired item.

/ r

: Set the year, month and date.

VQT0Y60

Press [MENU/SET] twice to close the menu.

• You can also use the joystick to perform steps

Advanced

To select

Take a picture.

To set and to close

1ST DAY

10:00 2.DEC.2006

• The current date and time and which day of the vacation it is are displayed for about

5 seconds at the bottom of the screen if the camera is turned on when the travel date is set, after setting the clock, departure date or travel date, after changing the world time setting and after switching from playback mode to another mode.

• When [TRAVEL DATE] is set, [ ] appears on the lower right of the screen.

Cancelling the travel date

If you leave [TRAVEL DATE] set to [SET], the number of days that have passed since the departure date will continue to be recorded.

When the vacation is finished, set [TRAVEL

DATE] to [OFF] on the screen shown in step

and then press [MENU/SET] twice.

• The travel date is calculated using the date in the clock setting (P19) and the departure date you set. If you set

[WORLD TIME] (P71) to the travel destination, the travel date is calculated using the date in the clock setting and the travel destination setting.

• The travel date setting is memorised even if the camera is turned off.

• If you set a departure date and then take a picture on a date before this departure date, [-] (minus) is displayed in orange and the day of the vacation that you took the picture is not recorded.

• If you set a departure date and then change the clock setting to the date and time at the travel destination, [-] (minus) is displayed in white and the day of the vacation that you took the picture on is recorded when the travel destination date is, for example, one day before the departure date.

• If [TRAVEL DATE] is set to [OFF], the number of days that have passed since the departure date will not be recorded even if you set the travel date or the clock.

Even if [TRAVEL DATE] is set to [SET] after taking the pictures, the day of the vacation you took them on is not displayed.

• If you set a departure date when the clock is not set, the message [PLEASE SET

THE CLOCK] appears. In this case, set the clock (P19).

VQT0Y60

Advanced

Displaying the time at the travel destination

If you set your home area and the travel destination area when traveling abroad etc., the local time at the travel destination area can be displayed on the screen and recorded on the pictures taken.

• Select [CLOCK SET] to set the current date and time in advance. (P19)

Press [MENU/SET].

Press

REC

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

QUALITY

SELECT

1/4

AUTO

EXIT

MENU

Press

to select the [SETUP] menu icon [ ] and then press

1/5

SETUP

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

TRAVEL DATE

SELECT

OFF

MENU

EXIT

Press

to select [WORLD

TIME] and then press

SETUP

1/5

CLOCK SET

WORLD TIME

MONITOR

GUIDE LINE

TRAVEL DATE

SELECT

OFF

EXIT

MENU

• You can also use the joystick to perform steps

To select To close

• If you are setting the world time for the first time, the message [PLEASE SET

THE HOME AREA] appears. If this message appears, press [MENU/SET] and then set home area from the screen shown in step

in “Setting the home area [HOME]”.

Setting the home area [HOME]

(Perform steps

and

Press r

to select [HOME] and then press [MENU/SET].

WORLD TIME

DESTINATION

HOME

10:00 1.DEC. 2006

CANCEL SELECT SET

MENU

SET

Press w

/ q

to select your home area and then press [MENU/SET].

10:00

Beijing

Hong Kong

Kuala Lumpur

Singapore MENU

GMT+8:00

SELECT

CANCEL

MENU

SET

• You can also use the joystick to perform steps

and

• The current time is displayed on the top left of the screen and the time difference from GMT (Greenwich Mean

Time) is displayed on the bottom left of the screen.

• If daylight saving time [ ] is used at the home area, press e

. Press e

again to return to the original time.

• The daylight saving time setting for the home area does not advance the current time. Advance the clock setting by one hour. (P19)

VQT0Y60

Finishing setting the home area

• If you are setting the home area for the first time, the screen returns to the screen shown in step

of “Setting the home area [HOME]” after you press [MENU/

SET] to set your home area. Press w

to return to the screen shown in step

and then press [MENU/SET] to close the menu.

• If you are setting the home area for the second time etc., the screen returns to the screen shown in step

after you press [MENU/SET] to set your home area. Press [MENU/SET] again to close the menu.

Advanced

• The current time at the selected travel destination area is displayed on the top right of the screen and the time difference from the home area is displayed at the bottom left of the screen.

• If daylight saving time [ ] is used in your travel destination, press e

. (The time advances by one hour.) Press e

again to return to the original time.

• The names of major cities in the selected area are displayed. Also, the time difference between the selected area and the home area is displayed on the bottom left of the screen. (Refer to P73 for information about the names of the major cities that are displayed.)

Press [MENU/SET] to close the menu.

Setting the travel destination area

(Perform steps

and

on P71.)

Press e

to select [DESTINATION] and then press [MENU/SET] to set.

WORLD TIME

DESTINATION

HOME

SETUP

1/5

CLOCK SET

WORLD TIME

MONITOR 0

GUIDE LINE

TRAVEL DATE

OFF

SET

MENU

SELECT EXIT

• You can also use the joystick to perform steps

• The icon changes from [ ] to [ ] after setting the travel destination.

--:-- --.--.----

CANCEL

SELECT

SET

MENU

SET

:Depending on the setting, the time at the travel destination area or the home area is displayed.

• If you are setting the travel destination area for the first time, the date and time are displayed as shown in the screen above.

Press w

/ q

to select the area the travel destination is in and then press [MENU/

SET] to set.

• Return the setting to [HOME] when the vacation is finished by performing steps

and then steps

and

of “Setting the home area [HOME]” (P71).

• If you cannot find the travel destination in the areas displayed on the screen, set by the time difference from the home area.

10:00 11:30

Adelaide

+ 1:30

SELECT

VQT0Y60

CANCEL

MENU

SET

Advanced

Location candidates for World Time settings

Offset from

GMT

-11

-10

-9

-8

-7

-6

-5

-4

-3:30

-3

-2

Listed location name

Midway Islands Samoa

Hawaii Honolulu

Alaska

Vancouver

Anchorage

Seattle

Denver

Chicago

Toronto

Caracas

Newfoundland

Rio de Janeiro

Fernando de

Noronha

Azores

Phoenix

Houston

New York

Manaus

Sao Paulo

Tahiti

Los Angeles

Mexico City

Miami

La Paz

Buenos Aires

-1

+3:30

+4:30

+5:30

+5:45

+6:30

+9:30

+10

+11

+12

London

Berlin

Helsinki

Moscow

Tehran

Dubai

Kabul

Islamabad

Delhi

Kathmandu

Dacca

Yangon

Bangkok

Beijing

Seoul

Adelaide

Casablanca

Paris

Kuwait

Abu Dhabi

Karachi

Kolkata

Colombo

Jakarta

Hong Kong

Tokyo

Guam Sydney

Solomon Islands New Caledonia

Fiji Auckland

+12:45 Chatham Islands

* “GMT” is an abbreviation of [Greenwich Mean Time].

Rome

Athens Cairo

Riyadh

Male

Mumbai

Kuala Lumpur

Wellington

Lima

Madrid

Johannesburg

Nairobi

Chennai

Singapore

VQT0Y60

Motion picture mode

Press the shutter button halfway to focus and then press it fully to start recording.

Advanced

30fps

16:9L

R19

• When the subject is focused, the focus indication lights.

• The focus, zoom and aperture value are fixed to those set at the beginning of recording (for the first frame).

• The available recording time

is displayed on the top right and the elapsed recording time

B is displayed on the bottom right of the screen.

For example, 1 hour 20 minutes and 30 seconds is displayed as [1h20m30s].

• The available recording time and the elapsed recording time are approximations.

• The audio recording starts simultaneously from the built-in microphone of the camera.

• Select the aspect ratio from either [ j

] or [ h

] when you record a motion picture on a card (P59).

You cannot shoot motion pictures when the aspect ratio is set to [ ].

• Select the [ h

] aspect ratio when you record a motion picture in the built-in memory

(P59). You can not shoot motion pictures when the aspect ratio is set to [ j

] or [ ].

Press the shutter button fully to stop recording.

• If the built-in memory or the card becomes full in the middle of recording, the camera stops recording automatically.

VQT0Y60 n

Changing the picture quality setting

Press [MENU/SET].

Press

to select [PICT.MODE] and then press

1/3

AUTO

REC

W.BALANCE

WB ADJUST.

PICT.MODE

METERING MODE

SELECT

AF MODE

SET

MENU

30fps

16:9L

10fps

16:9L

15fps

16:9H

Press

to select the item and then press [MENU/SET].

When the aspect ratio setting is [

]

Item

30fps16:9L

Picture size fps

848×480pixels 30fps

10fps16:9L

848×480pixels 10fps

15fps16:9H

1280×720pixels 15fps n

When the aspect ratio setting is [

]

Item

30fpsVGA

10fpsVGA

Picture size fps

640×480pixels 30fps

640×480pixels 10fps

30fpsQVGA

320×240pixels 30fps

10fpsQVGA

320×240pixels 10fps

• fps (frame per second); This refers to the number of frames used in 1 second.

• You can record smoother motion pictures with 30 fps.

• You can record longer motion pictures with 10 fps although the picture quality is lower.

• [15fps16:9H] offers a large number of recording pixels, but you cannot record motion pictures as smooth as

[30fps16:9L].

• [10fpsQVGA]:

The file size is smaller, so the files are suitable to be attached to e-mails.

* You can only record to the built-in

memory if the picture size is set to

QVGA (320×240 pixels).

( : Available, —: Not available)

Item

30fpsVGA

10fpsVGA

30fpsQVGA

10fpsQVGA

30fps16:9L

10fps16:9L

15fps16:9H

SD Memory

Card/SDHC

Memory Card

Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

• You can also use the joystick to perform steps

To select

Built-in

Memory

—

To set and to close

• The focus range is 50 cm (5 cm when using AF Macro/MF) to

(Wide), 100 cm (30 cm when using AF Macro/MF) to

(Tele).

• Refer to P130 for information about the available recording time.

• The remaining recordable time shown on the LCD may not reduce regularly.

• The motion pictures cannot be recorded without audio.

• This camera cannot take motion pictures if you are using a MultiMediaCard.

Advanced

• When [PICT.MODE] is set to [30fpsVGA],

[30fps16:9L] or [15fps16:9H], we recommend you to use cards offering

“10 MB/s” or higher speeds (printed on their packages and elsewhere) for best results.

• Depending on the type of SD Memory

Card or SDHC Memory Card, recording may stop in the middle.

• We recommend using Panasonic’s SD

Memory Card/SDHC Memory Card.

• Depending on the type of card you are using, the card access indication may appear for a while after shooting motion pictures. This is normal.

• When motion pictures recorded with this camera are played back on other equipment, the quality of pictures and sounds may be deteriorated or it may not be possible to play them back. Also the recording information may not be displayed correctly.

• In motion picture mode [ i ], you cannot use the direction detection function and the review function.

• You cannot set [MODE2] on the Optical

Image Stabilizer function.

• The bundled software includes QuickTime to play back motion picture files recorded with the camera on the PC.

VQT0Y60

Advanced

Displaying Multiple Screens

(Multi Playback)

Rotate the zoom lever towards [ ]

[W] to display multiple screens.

For example: When you have chosen to show 9 pictures

1.DEC. 2006 1/34

• Depending on the recorded picture and the setting, the following icons will appear.

– [ ] (Favourites)

– [ ] (Motion picture)

– [

] ([BABY1]/[BABY2] in scene

– [ mode)

] (Travel date)

– [

] (Flip animation) n

Examples of 25 screens

1.DEC.2006

6/34

MENU

CANCEL

• : 1

→

9 screens

→

25 screens

→

Calendar screen display (P77)

• After the multiple screens are displayed, rotate the zoom lever further towards

[ ] [W] to display 25 screens and the calendar screen (P77). Rotate the zoom lever towards [ 3 ] [T] to return to the previous screen.

• When you select multi playback, the scroll bar

appears so you can check the position of the selected picture in the total pictures.

Press

/ picture.

to select a

1.DEC.2006

5/34

CANCEL

MENU

To return to the normal playback

Rotate the zoom lever towards [

] [T], or press [MENU/SET] or joystick.

• The picture framed in an orange box appears.

To delete a picture during a multi playback

Press e

/ r

/ w

/ q

to select a picture and then press [

Press e

to select [YES].

Press [MENU/SET] or joystick.

• Even if the indications on the screen are turned off in normal playback mode (P38), the recording information etc. appears on the screen in multi playback. If you return to the previous screen, the indications on the screen are displayed as in normal playback mode.

• Pictures will not be displayed in the rotated direction even if [ROTATE DISP.] is set to [ON] (P96).

CANCEL

MENU

:Number of the selected picture and the total number of recorded pictures

• The recording date and number of the selected picture and the total number of recorded pictures are displayed.

VQT0Y60

Advanced

Displaying pictures by recording date

(Calendar playback)

You can display pictures by recording date using the calendar playback function.

Rotate the zoom lever towards [ ]

[W] to display the calendar screen.

SUN MON TUE WED THU

3 4 5 6 7

FRI

SAT

25 26 27 28 29

2006

SET

MENU

DAY MONTH

• The recording date of the picture selected in the playback screen becomes the date selected when the calendar screen is first displayed.

• If there are multiple pictures with the same recording date, the first picture recorded on that day is displayed.

• The calendar is displayed monthly.

Press

to select the date to be played back.

/ q

: Select the date e

/ r

: Select the month

• If there were no pictures recorded during a month, the month is not displayed.

Press [MENU/SET] to display the pictures that were recorded on the selected date.

1.DEC. 2006

1/16

SET

CANCEL

MENU

• The pictures that were recorded on the selected date are displayed on the 9 screens playback screen.

• Rotate the zoom lever towards [ ] [W] to return to the calendar screen.

Press

to select a picture and then press [MENU/SET].

• The selected picture is displayed on the 1 screen playback screen.

• You can also use the joystick to perform steps

To select To set n

To return to the 1 screen playback screen

After the calendar screen is displayed, rotate the zoom lever towards [ 3 ] [T] to display 25 screens, 9 screens and 1 screen. (P76)

• The pictures are displayed without being rotated even if you set [ROTATE DISP.] to

[ON]. (P96)

• You can display the calendar between

January 2000 and December 2099.

• If the recording date of the picture selected in 25 screens multi playback is not between January 2000 and December

2099, the camera automatically displays it in the oldest calendar date.

• Pictures edited on a PC or processed on other equipment may be displayed with dates different from the actual recording dates.

• If the date is not set in the camera (P19), the recording date is set as the 1st

January, 2006.

• If you take pictures after setting the travel destination in [WORLD TIME] (P71), the pictures are displayed by the dates at the travel destination in calendar playback.

VQT0Y60

Advanced

Using the Playback Zoom

To stop using the playback zoom

Rotate the zoom lever towards [ ] [W] or press [MENU/SET] or joystick.

Rotate the zoom lever towards

[

] [T] to enlarge the picture.

2X n

To delete a picture during the playback zoom

Press [ A ].

Press e

to select [YES].

Press [MENU/SET] or joystick.

CANCEL DELETE

•

: 1× → 2× → 4× → 8× → 16×

• When you rotate the zoom lever towards

[ ] [W] after enlarging the picture, the magnification becomes lower. When you rotate the zoom lever towards [

] [T], the magnification becomes higher.

• When you change the magnification, the zoom position indication

appears for about 1 second to check the position of the section enlarged.

Press

to move the position.

• Even if the indication on the LCD monitor are turned off in normal playback mode

(P38), the magnification and enabled operations appear on the LCD monitor when the playback zoom is activated. You can switch the display on or off by pressing the [DISPLAY] button.

When you set the magnification to 1×, the indication on the LCD monitor are displayed as in normal playback mode.

• The more the picture is enlarged, the more its quality deteriorates.

• If you want to save the enlarged picture, use the trimming function. (P102)

• The playback zoom may not operate if pictures have been recorded with other equipment.

CANCEL

DELETE

• When you move the position to be displayed, the zoom position indication is displayed for about 1 second.

VQT0Y60

Advanced

Playing Back Pictures with Audio/Motion pictures

Pictures with audio

Press

to select a picture with the audio icon [

] and then press

to play back.

Motion pictures

[

Press

to select a picture with a motion picture icon [

10fps

QVGA

]/[

30fps

VGA

30fps

16:9L

]/[

10fps

16:9L

press

to play back.

10fps

VGA

]/[

30fps

QVGA

15fps

16:9H

] and then

PLAY MOTION


30fps

16:9L

100-0001

1/19

15s

PLAY AUDIO

100-0001

1/19

10:00 1.DEC.2006

• You can also use the joystick for these operations.

• Refer to [AUDIO REC.] (P86) and [AUDIO

DUB.] (P100) for information about how to create still pictures with audio.

10:00 1.DEC.2006

• You can also use the joystick for these operations.

• The motion picture recording time

is displayed on the LCD monitor. After playback starts, the motion picture recording time disappears and the elapsed playback time is displayed on the bottom right of the LCD monitor.

For example, 1 hour 20 minutes and 30 seconds is displayed as [1h20m30s].

• The cursor displayed during playback corresponds to e

/ r

/ w

/ q

• Motion picture playback stops and the normal playback is restored by pressing r

Fast forwarding/Fast rewinding

During motion picture playback, keep pressing w

/ q

: Fast forward w

: Fast rewind

• When releasing the button, it turns to normal motion picture playback.

To pause

Press e

during motion picture playback.

• Press e

again to cancel pause.

• Sound can be heard through the speaker.

Refer to [VOLUME] (P23) for information about how to adjust the volume in the

[SETUP] menu.

• The file format that can be played back with this camera is QuickTime Motion JPEG.

• Please note that the bundled software includes

QuickTime to play back motion picture files created with the camera on the PC.

• Some QuickTime Motion JPEG files recorded by a PC or other equipment may not be played back with this camera.

• When playing back motion pictures that have been recorded with other equipment, the quality of pictures may be deteriorated or it may not be possible to play them back.

• When using a high capacity card, it is possible that fast rewinding may be slower than usual.

• You cannot use the following functions with motion pictures and pictures with audio.

– Playback zoom (While playing back or pausing motion pictures and while playing audio)

– [ROTATE DISP.]/[ROTATE]/[AUDIO

DUB.] (Motion pictures only)

– [RESIZE]/[TRIMMING]/[ASPECT CONV.]

VQT0Y60

Menu Settings

Using the [REC] mode menu

Setting the hue, picture quality adjustment, etc. allows you to create wide variations on taking pictures.

• Set the mode dial to the desired recording mode.

• Menu items differ depending on the mode selected with the mode dial (P5). This page describes how to set [AUDIO REC.] in programme AE mode [ L ]. (Refer to

P81 to 92 for each menu item.)

• Select [RESET] in the [SETUP] menu to return the menu settings to the initial settings at the time of purchase. (P23)

Press [MENU/SET].

Press

to select the menu item.

REC

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

QUALITY

SELECT

1/4

AUTO

EXIT

MENU

• Press r

at screen.

to switch to the next menu

Press

, press

to select the setting and then press [MENU/SET].

REC

AUDIO REC.

METERING MODE

AF MODE

CONT.AF

SELECT

AF ASSIST LAMP

MENU

SET

2/4

OFF

Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

About menu operations using the joystick

You can also use the joystick for menu operations.

Press [MENU/SET].

Move the joystick e

/ r

/ w

/ q

to select setting contents and press the joystick.

Press the joystick to close the menu.

REC

AUDIO REC.

METERING MODE

AF MODE

CONT.AF

SELECT

AF ASSIST LAMP

SET

MENU

2/4

OFF

ON n

About the menu screen items

• There are 4 menu screens (1/4, 2/4, 3/4 and 4/4).

• You can switch menu screens from any menu item by rotating the zoom lever.

REC 1/4

W.BALANCE

WB ADJUST.

SENSITIVITY

PICT.SIZE

QUALITY

SELECT

AUTO

2/4

AUTO

METERING MODE

AF MODE

AF-L

AE-L

SET

MENU

AF/AE LOCK

D.ZOOM

OFF

AF ASSIST LAMP

SELECT

O N

EXIT

MENU

FLIP ANIM.

REC

SELECT

3/4

AF/AE

OFF

EXIT

MENU

SELECT

4/4

EXIT

MENU

SET

VQT0Y60

Using the Quick setting

You can change the following with the joystick when recording.

• [AF MODE] (P87)

• [METERING MODE] (P87)

• [W.BALANCE] (right)

• [SENSITIVITY] (P83)

• [PICT.SIZE] (P85)

• [QUALITY] (P85)

Keep pressing the joystick when recording.

AUTO AUTO

AUTO

SELECT EXIT

• The Quick setting menu appears.

Move the joystick towards

to select an item and then press the centre of the joystick to finish.

AUTO AUTO

SELECT

EXIT

• You can also use the cursor button and

[MENU/SET] to select menu items and finish.

• The menu items depend on the selected recording mode.

• [ | ] (white set) does not appear for white balance when using the Quick setting.

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[W.BALANCE]

Adjusting the hue for a more natural picture

This function allows you to reproduce a white colour closer to the tone in real life on the pictures recorded under sunlight, halogen lighting, etc. in which the white colour may appear reddish or bluish. Select a setting that matches the recording conditions.

AUTO k l m n

;

(Daylight)

(Cloudy)

(Shade)

(Halogen)

(Flash)

(White set 1)

(White set 2) for auto setting (auto white balance) for recording outdoors on a bright day for recording outdoors on a cloudy day for recording in shaded areas outdoors on a bright day for recording under halogen lighting for recording with the flash only for using the preset white balance for using the preset white balance p (White set) for using set mode 1 or 2 with a different white balance setting

(P82)

VQT0Y60

Menu Settings n

Auto White Balance

Use of auto white balance adjustment in inappropriate lighting conditions may result in reddish or bluish pictures. Where the subject is surrounded by many light sources, auto white balance adjustment may not operate properly.

In this case, set the white balance to a mode except [AUTO] manually.

Setting the white balance manually

(White set

)

Use this to set the white balance manually.

Select [ | ] (White set) and then press [MENU/SET].

Select [ } WHITE SET 1] or [ ~

WHITE SET 2] and then press [MENU/

SET].

WHITE SET

1 The range that is controlled by the auto white balance adjustment mode of this camera

2 Blue sky

3 Cloudy sky (Rain)

4 Shade

5 TV screen

6 Sunlight

7 White fluorescent light

8 Incandescent light bulb

9 Sunrise and sunset

10 Candlelight

WHITE SET 1

WHITE SET 2

SELECT SET

MENU

Aim the camera at a sheet of white paper or a similar white object so that the frame on the centre of the screen turns white and then press [MENU/SET].

WHITE SET

CANCEL

MENU

SET

Press [MENU/SET] twice to close the menu.

• You can also press the shutter button halfway to finish.

10)

K=Kelvin Colour Temperature

• When taking a picture with the flash, the white balance will be automatically adjusted [except for [ k ] (Daylight)/[ n properly adjusted if the photo flash is insufficient.

• The white balance cannot be set in Auto mode [ 0 ] and scene mode.

• You can also use the joystick for these operations.

]

(Flash)], but the white balance may not be

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

When you cannot acquire the desired hue by setting the white balance, you can finely adjust the white balance.

white balance finely.

AUTO

[WB ADJUST.]

Finely Adjusting the White

Balance

Press

to adjust the

WB ADJUST.

ADJUST.

SET

MENU

: A (amber: orange tint) q

: B (blue: bluish) e

: G+ (green: greenish) r

: M- (magenta: reddish)

• When white balance is finely adjusted in A (amber) or B (blue) direction, the white balance icon displayed on the

LCD Monitor turns to the finely adjusted colour.

• When white balance is finely adjusted in G+ (green) or M- (magenta) direction, [+] (e.g.: ) or [-] (e.g.: ) is added to the white balance icon displayed on the LCD Monitor.

• When you do not adjust white balance finely, select the central point.

Press [MENU/SET] twice to close the menu.

• You can also press the shutter button halfway to finish.

• You can set the value independently for each of the modes in white balance.

• The setting on the fine adjustment of the white balance is reflected to the picture when taking a picture with the flash.

• The white balance fine adjustment setting is memorised even if the camera is turned off.

• When you change white balance setting in set mode [ | ], fine adjustment levels for [ } ] and [ ~ ] return to the standard (central point).

• When the colour effect is set to any of

[COOL], [WARM], [B/W] or [SEPIA] (P90), you cannot finely adjust the white balance.

• You can also use the joystick for these operations.

[SENSITIVITY]

Setting the light sensitivity

ISO sensitivity represents the sensitivity of the image sensor to light. If you set the ISO sensitivity higher, the camera becomes more suitable for recording in dark places.

ISO sensitivity

100

Use in bright places

(e.g. outdoors)

Use in dark places

Shutter speed

Noise

Suitable

Not suitable

Slow

Less

Not suitable

Suitable

Fast

Increased

VQT0Y60

ISO sensitivity Setting contents

AUTO

ISO

(intelligent)

ISO sensitivity is automatically adjusted according to brightness.

ISO sensitivity is adjusted according to subject movements and brightness.

ISO100

ISO200

ISO400

ISO800

ISO1600

ISO sensitivity is fixed at respective levels.

• When setting to [AUTO], the ISO sensitivity is automatically adjusted from [ISO100] to

[ISO200] according to the brightness.

(When using the flash, the adjustment range becomes [ISO100] to [ISO640].) n

About

ISO

(intelligent ISO sensitivity control)

The camera detects movements of the subject near the centre of the frame and sets the optimum ISO sensitivity and shutter speed according to the movements and brightness.

• When shooting a moving subject indoors, you can reduce blur by raising ISO sensitivity and increasing the shutter speed.

ISO

1/125 ISO800

• When taking pictures of a motionless subject, you can reduce noise by setting

ISO sensitivity at a low level.

ISO

1/30 ISO200

Menu Settings

• When you set ISO sensitivity to [

ISO

], ISO sensitivity is automatically raised up to [ISO800]

(up to [ISO640] when the flash is used).

• When you press the shutter button halfway, [

ISO

] appears. When you press the shutter button fully, the shutter speed is displayed for a while.

ISO

• You cannot use the digital zoom (P33) and auto bracket (P48) when [

ISO

] is selected.

• Even when [

ISO

] is selected, brightness or the subject’s moving speed may cause pictures to blur.

• Movement detection may not be possible in the following cases.

–When the moving subject is too small

–When the moving subject is on the edge of the frame

–In case the subject began to move the moment you pressed the shutter button fully

• The ISO sensitivity is fixed to [

ISO

] in

Auto Mode [ 0 ], [SPORTS] (P62) and

[BABY1]/[BABY2] (P68) in scene mode.

• The ISO sensitivity cannot be set in motion picture mode [ i ].

• You cannot use programme shift (P26) when [

ISO

] is selected.

• The ISO sensitivity is fixed to [ISO3200] in

[HIGH SENS.] in Scene mode (P67).

• The ISO sensitivity cannot be set to

[AUTO] or [

ISO

] in Aperture-priority AE,

Shutter-priority AE or Manual exposure.

• To avoid picture noises, we recommend reducing the ISO sensitivity, setting [NOISE

REDUCTION] in [PICT.ADJ.] to [HIGH] or setting the items except [NOISE REDUCTION] to [LOW] to take pictures. (P90)

• Refer to P54 for information about Shutter speed.

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[PICT.SIZE]/[QUALITY]

Setting a picture size and quality that matches your use of the pictures

When the aspect ratio setting is [

]

7.5

(7.5M) 3168×2376 pixels

(6M EZ)

(4M EZ)

2880×2160 pixels

2304×1728 pixels

(3M EZ) 2048×1536 pixels

A digital picture is made of numerous dots called pixels. Although you cannot see the difference on the camera’s screen, the more the pixels the finer the picture will be when it is printed on a large piece of paper or displayed on a computer monitor. Picture quality refers to the compression rate when saving digital pictures.

(2M EZ)

(1M EZ)

1600×1200 pixels

1280×960 pixels n

Quality

You can increase the number of recordable pictures without changing the picture size if quality is set to [

Many pixels (Fine)

Few pixels (Rough)

* These pictures are examples to show the effect.

Number of pixels

Select a higher number of pixels for clearer pictures when printing.

Select a lower number of pixels to store more pictures. Fewer pixels also means it is easier to send pictures by e-mail or use them on a homepage. n

When the aspect ratio setting is [

]

(10M) 4224×2376 pixels

(8M EZ) 3840×2160 pixels

5.5

(5.5M EZ) 3072×1728 pixels

(2M EZ) 1920×1080 pixels n

When the aspect ratio setting is [ ]

Fine (Low compression):

This type gives priority to picture quality. Picture quality will be high.

Standard (High compression):

This type gives priority to the number of recordable pictures and records standard quality pictures.

RAW

RAW (Uncompressed):

This type is suitable when editing and processing pictures with a computer.

• The number of pixels that can be selected differs depending on the aspect ratio. If you change the aspect ratio, set the picture size.

• [EZ] is an abbreviation of [Extra optical

Zoom]. This is a function which further extends the optical zoom ratio. If you select a picture size with EZ displayed, the zoom ratio is extended to a maximum of 6.2× when the digital zoom is set to

[OFF]. (P32)

8.5

4.5

2.5

(8.5M) 3568×2376 pixels

(7M EZ) 3248×2160 pixels

(4.5M EZ) 2560×1712 pixels

(2.5M EZ) 2048×1360 pixels

VQT0Y60

Menu Settings

• The extra optical zoom does not work in

[HIGH SENS.] (P67) in scene mode so the picture size for [EZ] is not displayed.

• In motion picture mode [ i ], the picture size is fixed to VGA (640×480 pixels),

QVGA (320×240 pixels) or 16:9

(1280×720 pixels or 848×480 pixels).

• Pictures may have a mosaic-like appearance depending on the subject or the recording condition.

• Refer to P127 for the number of recordable pictures.

• The number of recordable pictures depends on the subject.

• The number of remaining pictures may not correspond with recorded frames.

• When the quality is set to [RAW], a JPEG picture with the quality equal to the

Standard [ H ] is created at the same time. The JPEG file is also erased if you erase the associated RAW file.

• The maximum resolution (P85) for each aspect ratio is fixed if you select [RAW].

• You cannot set quality to [RAW] in high sensitivity mode in scene mode.

• The following functions cannot be used for pictures recorded in [RAW].

–Burst mode

–Digital zoom

–[AUDIO REC.]

–Auto bracket

• The following functions are not available for pictures taken by setting quality to

[RAW].

–[AUDIO DUB.]

–[RESIZE]

–[TRIMMING]

• Picture editing at higher levels becomes possible when you use RAW format files.

Using Ichikawa Soft Laboratory’s

[SILKYPIX Developer Studio] in the supplied CD-ROM, you can develop and edit pictures in RAW format files and save them in other formats that allow display on

PCs (such as JPEG and TIFF).

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[AUDIO REC.]

Recording still pictures with audio

You can record audio with the still picture if this is set to [ON]. This means you can record the conversation that took place when you were recording or an explanation of the picture.

• When you set [AUDIO REC.] to [ON], [ I ] appears on the screen.

• When you start recording by focusing on the subject and pressing the shutter button, the audio recording will be automatically stopped in 5 seconds.

There is no need to keep pressing the shutter button.

• Audio is recorded from the built-in microphone of the camera.

• If you press [MENU/SET] during the audio recording, the audio recording will be cancelled. The audio cannot be recorded.

• You cannot record pictures with audio in auto bracket, burst mode, when the quality is set to [RAW], or [STARRY SKY] in scene mode.

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[METERING MODE]

Deciding the method to measure brightness

[AF MODE]

Setting the focus method

You can switch to the following metering modes.

Select the mode that matches the recording conditions and the composition.

9-area-focusing:

The camera focuses on any of 9 focus areas. This is effective when the subject is not in the centre of the screen.

Multiple:

This is the method in which the camera measures the most suitable exposure by judging the allocation of brightness on the whole screen automatically.

Usually, we recommend using this method.

Centre weighted:

This is the method used to focus on the subject on the centre of the screen and measure the whole screen evenly.

Spot:

This is the method to measure the subject in the spot metering target

3-area-focusing (high speed):

The camera quickly focuses on any of 3 focus areas - left, right or centre. This is effective when the subject is not in the centre of the screen.

1-area-focusing (high speed):

The camera quickly focuses on the subject in the AF area on the centre of the screen.

• This is fixed to Multiple [

] in Auto mode [

1-area-focusing:

The camera focuses on the subject in AF area on the centre of the screen.

VQT0Y60

Spot-focusing:

The camera focuses on the limited and narrow area in the screen.

About 1-area-focusing (High speed) and 3-area-focusing (High speed)

• You can focus on the subject more quickly than other AF modes.

• Pictures may become still in the condition they were in before the subject was focused when you press the shutter button halfway.

However, it is not a malfunction.

Menu Settings n

About AF area selection

When the AF mode (P87) is one-area focusing or one-area focusing (high speed), you can select the AF area as follows. In the spot metering mode, the metering target shifts according to the AF area.

Set the Focus switch to [AF] or [AF w ].

Move the joystick q

to select [ ].

Press the joystick.

Press cursor buttons or move the joystick e

/ r

/ w

/ q

to change the AF area.

• When using the digital zoom or when you take pictures in dark places, the AF area is displayed on the centre of the screen with a size wider than usual.

• When multiple AF areas (max. 9 areas) light at the same time, the camera is focusing on all the AF areas.

The focus position is not predetermined because it is set to the position the camera automatically determines at the time of focusing. If you want to determine the focus position to take pictures, switch the AF mode to 1-area-focusing, 1-area-focusing

(high speed) or Spot-focusing mode.

• Switch the AF mode to 1-area-focusing mode

(High speed) or 1-area-focusing mode if it is difficult to focus using Spot-focusing mode.

• You cannot change the AF mode setting when using [SELF PORTRAIT] and

[FIREWORKS] in scene mode (P61).

• This is fixed to 1-area-focusing in Auto mode [

SET

Press [MENU/SET] or the joystick.

• The AF area returns to the original in the following cases.

–When the mode dial is set to Auto mode

[

–When the camera is turned off.

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[CONT.AF]

Continuously focusing on a subject

[AF ASSIST LAMP]

Focusing in low light conditions becomes easier

This mode allows you to compose a picture more easily by always focusing on the subject.

When the AF mode is set to 1-areafocusing, 1-area-focusing (high speed) or spot-focusing, the time required for focusing when pressing the shutter button halfway will be reduced.

• When it is set to [ON], the [ ] indication appears.

• The battery may be consumed faster than usual.

• It may take time to focus on the subject after rotating the zoom lever from Wide to

Tele or suddenly changing the subject from a distant one to a nearby one.

• Press the shutter button halfway again when it is difficult to focus on the subject.

• The [CONT.AF] setting is fixed to [OFF] in

Auto mode [ 0 ], [NIGHT PORTRAIT]

(P63), [NIGHT SCENERY] (P63),

[FIREWORKS] (P65) and [STARRY SKY]

(P66) in scene mode, and when manual focus is set.

• If the focus switch is set to [AF w ], the time to focus will not be shorter.

Illuminating the subject with the AF assist lamp allows the camera to focus on the subject in low light conditions.

If the AF assist lamp is set to [ON], an AF area with a size wider than usual is displayed and the AF assist lamp

turns on when you press the shutter button halfway in dark places etc.

ON The AF assist lamp turns on under low light conditions. In this time, the AF assist lamp icon [

] appears on the screen. The effective range of the AF assist lamp is 1.5 m.

OFF The AF assist lamp does not turn on.

• Be sure of the following points when the

AF assist lamp is in use.

–Do not look into the AF assist lamp closely.

–Do not cover the AF assist lamp with your fingers or other objects.

• When the AF assist lamp is turned on, the

AF area on the centre of the screen is displayed and it is bigger than usual.

(P88)

• When you do not want to use the AF assist lamp (e.g. when you take a picture of a subject in a dark place), set the [AF

ASSIST LAMP] to [OFF]. In this case, it becomes difficult to focus on the subject.

• The AF assist lamp is fixed to [ON] while the camera is in Auto mode [

• You cannot use the AF assist lamp in

[SCENERY], [NIGHT SCENERY], [SELF

PORTRAIT], [FIREWORKS] and [AERIAL

PHOTO] in scene mode. (P61)

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[COL.EFFECT]

Setting colour effects for the recorded pictures

[PICT.ADJ.]

Adjusting the picture quality for the recorded pictures

You can use 4 types of colour effects depending on the image of the picture.

COOL The picture becomes bluish.

WARM The picture becomes reddish.

B/W The picture becomes black and white.

SEPIA The picture becomes sepia.

Use this function according to the recording situation and the atmosphere of the picture.

CONTRAST HIGH Increases the difference between the brightness and the darkness in the picture.

LOW Decreases the difference between the brightness and the darkness in the picture.

SHARPNESS HIGH The picture is sharply defined.

LOW The picture is softly focused.

SATURATION HIGH The colours in the picture become vivid.

NOISE

REDUCTION

LOW The colours in the picture become natural.

HIGH The noise reduction effect is enhanced.

The resolution of the picture may be slightly deteriorated.

LOW The noise reduction effect is reduced.

You can obtain pictures with higher resolution.

• When you take pictures in dark places, noise may become visible. To avoid picture noise, we recommend setting

[NOISE REDUCTION] in [PICT.ADJ.] to

[HIGH] or setting the items except [NOISE

REDUCTION] to [LOW] to take pictures.

• In Auto mode [

], you cannot use

[PICT.ADJ.].

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

[FLIP ANIM.]

Connecting images to create a motion picture file

Select [PICTURE CAPTURE] and then press

FLIP ANIM.

PICTURE CAPTURE

This camera allows you to create motion picture files up to 20 seconds long by connecting pictures recorded in flip animation mode.

Example:

When capturing pictures of the subject in sequence moving the camera little by little and aligning the pictures, the subject looks as if it is moving.

EXIT

MENU

SELECT

• The picture size is 320×240 pixels.

CREATE MOTION PICTURE

DELETE STILL PICTURES

Press the shutter button and capture the images one frame at a time.

REMAIN

EXIT

MENU

• You can play back created flip animations with the same method used to play back motion pictures. (P79)

Press

to select [FLIP ANIM.] and then press

REC

AF-L

AE-L

AF/AE LOCK

D.ZOOM

COL.EFFECT

PICT.ADJ.

FLIP ANIM.

SELECT

3/4

AF/AE

OFF

EXIT

MENU

• You can check the recorded picture with r

and the previous or following picture with w

/ q

• Delete unnecessary pictures with [

] button.

• You can record up to 100 pictures. The number of recordable pictures displayed is an approximation.

Press [MENU/SET], press

to select [CREATE MOTION

PICTURE] and then press

SET

FLIP ANIM.

PICTURE CAPTURE

CREATE MOTION PICTURE

DELETE STILL PICTURES

SELECT EXIT

MENU

VQT0Y60

Menu Settings

Press [

SET

] to display the [REC] mode menu and select the item to set. (P80)

Select [FRAME RATE] and then press

CREATE MOTION PICTURE

FRAME RATE

5fps n

Deleting all still pictures used to create flip animation

When selecting [DELETE STILL

PICTURES] in [FLIP ANIM.] menu, a confirmation screen appears. Select [YES] with e

and then press [MENU/SET].

CREATE MOTION PICTURE

SELECT

Press

SET

MENU

EXIT

MENU

[10fps] and then press [MENU/

SET].

CREATE MOTION PICTURE

FRAME RATE

SELECT

5fps 5 frames/sec.

10fps 10 frames/sec. (The motion pictures become smoother.)

Press

to select [5fps] or

5fps

SET r

to select [CREATE

MOTION PICTURE], press

and then create a flip animation.

• You cannot use pictures with audio, burst mode and auto bracket and the direction detection function.

• The pictures in each frame do not appear in normal review. (P34)

• If you execute [CREATE MOTION

PICTURE], flip animation is made from all pictures recorded for flip animation.

Delete unnecessary pictures.

• Audio cannot be recorded.

• You cannot record audio using the audio dubbing. (P100)

• Flip animations may not be played back by other equipment. The audio is not recorded on flip animations, however, you may hear varying levels of noises when you play back flip animations with other equipment which does not have a mute function.

• You can also use the joystick for these operations.

CREATE MOTION PICTURE

FRAME RATE 5fps

CREATE MOTION PICTURE

[CLOCK SET]

Setting the date, time and display

Set the clock when you change the date or time (P19).

EXIT

MENU

SELECT

• The file number appears after creating a flip animation.

• Press [MENU/SET] three times to close the menu after creating the flip animation.

VQT0Y60

Menu Settings

Using the [PLAY] mode menu

You can use various functions in playback mode to rotate pictures, set protection for them etc.

• Refer to P94 to 105 for each menu item.

Press [MENU/SET].

Press

to select the menu item.

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SELECT

DPOF PRINT

1/3

OFF

EXIT

MENU

• Press r

at screen.

to switch to the next menu

Press

PLAY

PROTECT

AUDIO DUB.

RESIZE

2/3

SINGLE

MULTI

CANCEL

SELECT

TRIMMING

ASPECT CONV.

SET

MENU

• After selecting a menu item in step 3, refer to the description of the menu item in the operating instructions and then set it.

About the menu screen items

• There are 3 menu screens (1/3, 2/3 and

3/3).

• You can switch menu screens from any menu item by rotating the zoom lever.

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT

1/3

PLAY

PROTECT

AUDIO DUB.

RESIZE

MENU

EXIT TRIMMING

ASPECT CONV.

SELECT

2/3

PLAY

COPY

FORMAT

EXIT

MENU

SELECT

3/3

EXIT

MENU

About menu operations using the joystick

You can also use the joystick for menu operations.

Press [MENU/SET].

Move the joystick e

/ r

/ w

/ q

to select setting contents and press the joystick.

Press the joystick to close the menu.

PLAY

PROTECT

AUDIO DUB.

RESIZE

SELECT

TRIMMING

ASPECT CONV.

SET

MENU

2/3

SINGLE

MULTI

CANCEL

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

A B a

[SLIDE SHOW]

Playing back pictures in order for a fixed duration

This is recommended when playing back pictures on a TV screen. You can skip unwanted pictures if [FAVORITE] (P95) has been set.

Press

to select [START] and then press [MENU/SET].

(Screen when [ALL] is selected)

CANCEL e

to select [ALL] or [ ] and then press [MENU/SET].

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SELECT

DPOF PRINT

SET

MENU

ALL SLIDE SHOW

START

DURATION

EFFECT

AUDIO

SELECT

1/3

ALL

2SEC.

OFF

SET

MENU

SET

ALL For playing back all pictures

For showing pictures in your favourites list (P95)

• The screen shown in step

appears when [FAVORITE] is set to [ON]. When

[FAVORITE] is set to [OFF], perform step

onwards.

• If none of the pictures have [ ] displayed, you cannot select [ ] even if [FAVORITE] is set to [ON].

SET

• The cursor displayed during a slide show

or while a slide show is paused

or during [MANUAL] slide show

is the same as e

/ r

/ w

/ q

• Press e

to pause the slide show. Press e again to cancel pause.

• Press w

/ q

while paused to display the previous or next picture.

By pressing the stops.

C r

, the Slide Show

About playback duration, effect and audio settings

Select [DURATION], [EFFECT] or [AUDIO] for setting on the screen displayed in step

DURATION

EFFECT

AUDIO

Select intervals of 1, 2, 3,

5 seconds or MANUAL.

You can select slide show effects.

OFF: No effect is set

:Pictures slide sideways and switch

:Pictures switch after turning translucent and creating overlaps

:New pictures spread from the centre and replace

:Pictures switch in random ways

• When you select

[MANUAL] (manual setting), the set effect is cancelled.

By setting it to [ON], the audio from pictures recorded with audio can be played back during Slide Show.

VQT0Y60

Menu Settings

• Playback intervals are estimates. Actual playback intervals vary according to pictures you play back.

• You can select [MANUAL] if you have selected [ ] in step

• Press w

/ q

to display the previous or next picture when [MANUAL] is selected.

• When you set [AUDIO] to [ON] and then play back a picture with audio, the picture changes when the audio finishes.

• You cannot play back motion pictures and use power save in a slide show. (However, the setting for power save mode is fixed to

[10MIN.] while pausing a slide show or playing back a manual slide show.)

• You can also use the joystick for these operations.

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

[FAVORITE]

Setting your favourite pictures

You can do the following if a mark has been added to pictures and they have been set as favourites.

• Delete all the pictures not set as favourites. ([ALL DELETE EXCEPT ])

(P36)

• Play back the pictures set as favourites only as a slide show. (P94)

• Print only the pictures set as favourites.

(P110)

Press

to select [ON] and then press [MENU/SET].

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SELECT

DPOF PRINT

SET

MENU

1/3

OFF

CANCEL

SET

• You cannot set pictures as favourites if

[FAVORITE] is set to [OFF]. Also the favourites icon [ ] will not appear when

[FAVORITE] is set to [OFF] even if it was previously set to [ON].

• You cannot select [CANCEL] if none of the pictures have [ ] displayed.

Press [MENU/SET] to close the menu.

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

Press

to select the picture then press

j b

[ROTATE DISP.]/[ROTATE]

To display the picture rotated

100-0001

1/19

This mode allows you to automatically display pictures vertically if they were recorded holding the camera vertically or rotate pictures manually in 90° steps.

10:00 1.DEC.2006

• Repeat the above procedure.

• If e

is pressed while the [ ] favourites icon

is displayed, [ ] is cleared, and the favourites setting is cancelled.

• You can place up to 999 pictures in your favourites list.

Cancelling all favourites

Select [CANCEL] on the screen shown in step

and then press [MENU/SET].

Press e

to select [YES] and then press

[MENU/SET].

Press [MENU/SET] to close the menu.

• When printing pictures at a photo printing store, [ALL DELETE EXCEPT ] (P36) is useful so only the pictures you want to be printed remain on the card.

• Use [LUMIX Simple Viewer] or

[PHOTOfunSTUDIO-viewer-] (on the included CD-ROM) to change settings, check, or erase your pictures in your favourites list. (For details, refer to the separate operating instructions for PC connection.)

• You may not be able to put pictures you have shot on other equipment into your favourites list.

• You can also use the joystick for these operations.

Rotate display

(The picture is automatically rotated and displayed.)

Press

to select [ON] and then press [MENU/SET].

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SELECT

DPOF PRINT

SET

MENU

1/3

OFF

SET

• When you select [OFF], the pictures are displayed without being rotated.

• Refer to P35 for how to play back pictures.

Press [MENU/SET] to close the menu.

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93) n

Rotate

(The picture is rotated manually.)

Example

When rotating clockwise (

)

Press

to select the picture and then press

Original picture

ROTATE

100-0001

1/19

SELECT SET EXIT

MENU

• When [ROTATE DISP.] is set to [OFF],

[ROTATE] function is disabled.

• Motion pictures and protected pictures cannot be rotated.

Press

to select the direction to rotate the picture and then press [MENU/SET].

ROTATE

CANCEL

SELECT SET

MENU

SET a b

The picture rotates clockwise in steps of 90°.

The picture rotates counterclockwise in steps of 90°.

Press [MENU/SET] twice to close the menu.

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically

(rotated).

• If you take pictures when aiming the camera up or down, it may not be possible to display the pictures vertically. (P27)

• The picture may be slightly blurred when the camera is connected to the TV with the AV cable (supplied) and played back vertically.

• When you play the picture on a PC, you cannot play rotated pictures without an

OS or a software compatible with Exif.

Exif is the file format for still pictures, to which recording information and other can be added, established by JEITA [Japan

Electronics and Information Technology

Industries Association].

• When playing back rotated pictures in multi playback, pictures appear in original orientation.

• You may not be able to rotate images shot on other equipment.

• You can also use the joystick for these operations.

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

[DPOF PRINT]

Single setting

Setting the Picture to be Printed and the Number of Prints

DPOF (Digital Print Order Format) is a system that allows the user to select which pictures to print, how many copies of each picture to print and whether or not to print

Press

to select the picture to print and then press the number of prints.

to set

DPOF SET THIS

1 100-0001

1/19 the recording date on the pictures when using a DPOF compatible photo printer or photo printing store. For details, ask at your photo printing store.

When you want to use a photo printing store to print pictures recorded on the builtin memory, copy them to a card (P104) and then set the DPOF setting.

COUNT

SELECT

DATE

DISPLAY

EXIT

MENU

• The number of prints icon [ d ] appears.

• The number of prints can be set from 0 to

999. When the number of prints is set to

“0”, DPOF print setting is cancelled.

Press

to select [SINGLE],

[MULTI] or [CANCEL] and then press [MENU/SET].

Press [MENU/SET] twice to close the menu.

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

SELECT

DPOF PRINT

SET

MENU

1/3

OFF

SINGLE

MULTI

CANCEL

SET

• You cannot select [CANCEL] if there are no prints that have been set in the DPOF print settings.

Multi setting

Press

7 w

to select the picture to print and then press

to set the number of prints.

DPOF SET MULTI

COUNT

SELECT

11 1

DATE

DISPLAY

EXIT

MENU

• Repeat the above procedure. (You cannot set all the pictures at one time.)

• The number of prints icon [ d ] appears.

• The number of prints can be set from 0 to

999. When the number of prints is set to

“0”, DPOF print setting is cancelled.

Press [MENU/SET] twice to close the menu.

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93) n

To cancel all settings

Press

SELECT

Press [MENU/SET] to close the

menu.

• DPOF print settings on the built-in memory are cancelled when a card is not inserted. DPOF print settings on the card are cancelled when a card is inserted.

DATE

to select [YES] and then press [MENU/SET].

CANCEL ALL DPOF

PRINT SETTINGS?

YES

To print the date

DPOF SET THIS

SET

MENU

SET

You can set/cancel the printing with the recorded date each press of the [DISPLAY] button when setting the number of prints.

100-0001

1/19

COUNT

SELECT

1 DATE

DISPLAY

EXIT

MENU

• The date print icon [ L ] appears.

• When you go to a photo studio for digital printing, be sure to order the printing of the date additionally if required.

• The date may not be printed depending on photo studios or printers even if you set the date print. For further information, ask the photo studio for details or refer to the operating instructions of the printer.

• DPOF is an abbreviation of [Digital Print

Order Format]. This feature allows you to write print information to media and then use the information on a DPOF-compliant system.

• DPOF print setting is a convenient function when you print pictures with printers supporting PictBridge. (P109)

The date printing setting on the printer may take priority over the date printing setting on the camera. Check the date printing setting on the printer also. (P109)

• When setting the DPOF print, delete any previous DPOF print settings made by other equipment.

• If the file is not based on the DCF standard, the DPOF print setting cannot be set. DCF is an abbreviation of [Design rule for Camera File system], stipulated by JEITA [Japan Electronics and

Information Technology Industries

Association].

• You can also use the joystick for these operations.

[PROTECT]

Preventing Accidental Erasure of the Picture

You can set protection for the pictures you do not want to delete to prevent them from accidental erasure.

Press

to select [SINGLE],

[MULTI] or [CANCEL] and then press [MENU/SET].

PLAY

PROTECT

AUDIO DUB.

RESIZE

SELECT

TRIMMING

ASPECT CONV.

SET

MENU

2/3

SINGLE

MULTI

CANCEL

SET

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93) n

Single setting

Press

/ q

to select the picture and then press

to set/cancel.

[AUDIO DUB.]

Adding Audio to Recorded Pictures

You can record the audio after taking a picture.

PROTECT THIS

100-0001

1/19

Press

to select the picture and then press

to start audio recording.

SELECT

SET/CANCEL

EXIT

MENU

AUDIO

DUB.

100-0001

1/19

SET The protect icon [ c

] appears.

CANCEL The protect icon [ c ] disappears.

Press [MENU/SET] twice to close the menu.

Multi setting/To cancel all settings

Perform the same operation as in [[DPOF

PRINT] Setting the Picture to be Printed and the Number of Prints]. (P98 and 99)

SELECT

START

EXIT

MENU

• The message [OVERWRITE AUDIO DATA?] screen appears when audio has already been recorded. Press e

to select [YES], and then press [MENU/SET] to start audio recording. (The original audio is overwritten.)

• Audio dubbing cannot be used with the following pictures.

–Motion pictures

–Protected pictures

–Pictures recorded after setting the quality to [RAW]

• The protect setting may not be effective in other equipment.

• If you want to delete protected pictures, cancel the protect setting first.

• While this feature protects the pictures from accidental erasure, formatting the card will permanently delete all data. (P105)

• Sliding the Write-Protect switch

of the

SD Memory Card or the SDHC Memory

Card to [LOCK] prevents pictures from deletion even if protection is not set.

Press

to stop recording.

100-0001

1/19

STOP

• Even if you do not press r

, after about 10 seconds the audio recording stops automatically.

Press [MENU/SET] twice to close the menu.

• The following functions cannot be used with protected pictures.

–[ROTATE]

–[AUDIO DUB.]

• You can also use the joystick for these operations.

100

VQT0Y60

• You may not be able to record audio on images shot on other equipment.

• You can also use the joystick for these operations.

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

This function is useful if you want to reduce the file size of the picture in cases when it needs to be attached to an e-mail or uploaded to a website.

1 e

[RESIZE]

Making the picture smaller

Press

to select the picture and then press

• Sizes smaller than the recorded picture are displayed.

• When the aspect ratio setting is [ j

]

–[

]/[

5.5

]/[

]

• When the aspect ratio setting is [ ]

–[

]/[

4.5

]/[

2.5

• When the aspect ratio setting is [ h

]

]/[

]

]/[

0.3

• The message [DELETE ORIGINAL

]

PICTURE?] appears.

RESIZE

100-0001

1/19

Press

/ r

to select [YES] or [NO] and then press [MENU/SET].

EXIT

MENU

• The following pictures cannot be resized.

–When the aspect ratio setting is [ j

]

Pictures whose [PICT.SIZE] is [

]

(2M EZ)

–When the aspect ratio setting is [

Pictures whose [PICT.SIZE] is [

(2.5M EZ)

2.5

]

–When the aspect ratio setting is [ h

]

Pictures whose [PICT.SIZE] is [

]

–Pictures recorded as [RAW]

–Motion pictures

–Flip animation

–Pictures with audio

Press

to select the size and then press

RESIZE

100-0001

1/19

SELECT

RESIZE EXIT

MENU

RESIZE

DELETE ORIGINAL

PICTURE?

YES

CANCEL SELECT SET

MENU

SET

• When you select [YES], the picture is overwritten. When resized pictures are overwritten, they cannot be restored.

• When you select [NO], a resized picture is newly created.

• When the original picture is protected, you cannot overwrite the resized picture.

Select [NO] and newly create a resized picture.

Press [MENU/SET] twice to close the menu.

• You may not be able to resize pictures you have shot on other equipment.

• You can also use the joystick for these operations.

101

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93) f

[TRIMMING]

Enlarging a picture and trimming it

Use this function when you trim unnecessary parts of the recorded picture.

Press the shutter button.

• The message [DELETE ORIGINAL

PICTURE?] appears.

Press

to select the picture and then press

Press

to select [YES] or [NO] and then press [MENU/SET].

TRIMMING

100-0001

1/19

YES

CANCEL SELECT SET

MENU

SET

SELECT

SET EXIT

MENU

• The following pictures cannot be trimmed.

–Images recorded as [RAW]

–Motion pictures

–Flip animation

–Pictures with audio

Enlarge or decrease the parts to be trimmed with the zoom lever.

• When you select [YES], the picture is overwritten. When trimmed pictures are overwritten, they cannot be restored.

• When you select [NO], a trimmed picture is newly created.

• When the original picture is protected, you cannot overwrite the trimmed picture.

Select [NO] and newly create a trimmed picture.

TRIMMING

100-0001

1/19

Press [MENU/SET] twice to close the menu.

ZOOM EXIT

MENU

Press

to move the position of the part to be trimmed.

TRIMMING

100-0001

1/19

• If you trim a picture, the number of pixels may be fewer in the trimmed picture than in the original.

• The picture quality of the trimmed picture may be deteriorated.

• It may not be possible to trim pictures recorded with other equipment.

• You can also use the joystick for these operations.

ZOOM

TRIM:SHUTTER EXIT

MENU

102

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93) i

[ASPECT CONV.]

Changing the aspect ratio of a

16:9 picture

Press

to determine the horizontal position and press the shutter button to set.

Resize pictures taken in j

aspect ratio for printing to or h .

Press

to select [ ] or

[

] and then press [MENU/

SET].

PLAY

PROTECT

AUDIO DUB.

RESIZE

SELECT

TRIMMING

ASPECT CONV.

SET

MENU

2/3

SET

• Only pictures taken with a [ j ] aspect ratio can be converted.

Press

to select a picture and then press

ASPECT

CONV.

100-0001

1/19

SELECT SET EXIT

MENU

• If you select and set a picture with an aspect ratio other than [ j ], the message [CANNOT BE SET ON THIS

PICTURE] is displayed on the screen.

ADJUST.

SET:SHUTTER EXIT

MENU

• Use e

/ r

to set the frame position for pictures rotated vertically.

• The message [DELETE ORIGINAL

PICTURE?] appears.

Press

to select [YES] or [NO] and then press [MENU/SET].

ASPECT CONV.

DELETE ORIGINAL

PICTURE?

YES

CANCEL

SELECT SET

MENU

SET

• The picture is overwritten when you select

[YES]. If you convert the aspect ratio of a picture and then overwrite it, you cannot restore it.

• A picture with the converted aspect ratio is newly created when you select [NO].

• When the original picture is protected, you cannot overwrite it. Select [NO] and newly create a picture with the converted aspect ratio.

Press [MENU/SET] twice to close the menu.

103

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

• You may end up with a higher-resolution picture after changing to a different aspect ratio.

• You cannot change the aspect ratio of pictures taken as [RAW], motion pictures, or still pictures with audio.

• Files that do not conform to the DCF standard cannot be converted. DCF is an abbreviation of [Design rule for Camera

File system], stipulated by JEITA [Japan

Electronics and Information Technology

Industries Association].

• You may not be able to convert pictures taken on other equipment.

• You can also use the joystick for these operations.

Press

to select the picture and then press

COPY

100-0001

1/19

EXIT

MENU

• When you copy picture data from the built-in memory to the card, all the pictures are selected at one time so this screen does not appear.

Press

to select [YES] and then press [MENU/SET].

(The illustration shows the screen when pictures are copied from the built-in memory to a card.)

COPY

[COPY]

Copying the picture data

You can copy recorded picture data from the built-in memory to a card or vice versa.

Press

to select the copy destination and then press

[MENU/SET].

PLAY

COPY

FORMAT

3/3

SELECT SET

MENU

SET

All the picture data in the built-in memory are copied onto the card at one time.

(Perform step

)

BUILT-IN MEMORY TO

MEMORY CARD?

YES

SELECT SET

MENU

SET

• The message [COPY THIS PICTURE TO

BUILT-IN MEMORY?] appears when you copy pictures from the card to the built-in memory.

• If you press [MENU/SET] while copying pictures from the built-in memory to the card, the copying will stop halfway.

• Do not turn the camera off or do any other operations before copying is finished. The data on the built-in memory or the card may be damaged or lost.

One picture at a time is copied from the card to the built-in memory.

(Perform step

)

104

VQT0Y60

Menu Settings

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P93)

Press [MENU/SET] several times to close the menu.

• If you copy picture data from the built-in memory to a card, the screen automatically returns to the playback screen when all the pictures are copied.

• If you copy picture data from the built-in memory to a card, we recommend using a card which has more free space than the built-in memory (about 13 MB).

• It may take time to copy the picture data.

• Only pictures recorded with a Panasonic digital camera (LUMIX) will be copied. (Even if the pictures were recorded with a Panasonic digital camera, you may not be able to copy them if they were edited with a PC.)

• DPOF settings on the original picture data will not be copied. Set the DPOF settings again after copying is finished. (P98)

• If a picture with the same name as the picture to be copied exists in the copy destination, the picture will not be copied.

• If you copy picture data from the built-in memory to a card which does not have sufficient free space, the picture data will only be copied halfway.

• You can also use the joystick for these operations.

[FORMAT]

Initializing the built-in memory or a card

Usually, it is not necessary to format the builtin memory and the card. Format them when the message [BUILT-IN MEMORY ERROR] or [MEMORY CARD ERROR] appears.

Press

to select [YES] and then press [MENU/SET].

(The illustration shows the screen when the built-in memory is formatted.)

FORMAT

DELETE ALL DATA

ON THE BUILT-IN MEMORY?

YES

NO MENU

SELECT SET

MENU

SET

• When a card is not inserted, you can format the built-in memory. When a card is inserted, you can format the card.

• If you press [MENU/SET] while formatting the built-in memory, the formatting will stop halfway. (However, all the pictures will be deleted.)

• Once the card is formatted, all data including protected images are irretrievably erased. Please confirm that all data is transferred to your PC before proceeding with format function.

• If the card has been formatted on a PC or other equipment, format it on the camera again.

• When you format the card, use a battery with sufficient battery power (P13) or AC adaptor (DMW-AC5; optional).

• During formatting, do not turn the camera off.

• It may take longer to format the built-in memory than the card. (Max. about 15 sec.)

• Sliding the Write-Protect switch of the SD

Memory Card or the SDHC Memory Card to [LOCK] prevents formatting. (P17)

• If the built-in memory or the card cannot be formatted, consult your nearest servicentre.

• You can also use the joystick for these operations.

105

VQT0Y60

Connecting to other equipment

Connecting to a PC

Set the camera’s mode dial to a mode other than Print mode [ ].

• By connecting the camera to a computer, you can upload your pictures, then use the software on the included CD-ROM ([LUMIX

Simple Viewer] and [PHOTOfunSTUDIOviewer-] for Windows

) to print or send your images by e-mail.

• If you use Windows 98/98SE, install the

USB driver and then connect the camera to the computer.

• For details about installing [LUMIX Simple

Viewer] or [PHOTOfunSTUDIO-viewer-] etc., refer to the separate operating instructions for PC connection.

ACCESS

: AC adaptor (DMW-AC5; optional)

• Use a battery with sufficient battery power

(P13) or the AC adaptor (DMW-AC5; optional).

• Make sure this unit is off before connecting or disconnecting the AC adaptor (DMW-AC5; optional).

: USB connection cable (supplied)

: This message appears during data transfer.

106

VQT0Y60

: Check the facing of the connector and push straight in.

Turn on the camera and the PC.

Connect the camera to a PC via the USB connection cable

(supplied).

• Connect the USB connection cable with the [ f

] mark facing the [ w

] mark on the [DIGITAL] socket.

• Hold

and then insert or pull the USB connection cable straight.

Do not try to force the connector in backwards or sideways. This can damage this unit and the equipment you are connecting.

[Windows]

The drive appears on the [My Computer] folder.

• If it is the first time you are connecting the camera to a PC, the required driver is installed automatically so that the camera can be recognised by the Windows Plug and Play, then it appears on the [My Computer] folder.

[Macintosh]

The drive is displayed on the screen.

• The drive is displayed as [LUMIX] when you connect the camera with no card inserted.

• The drive is displayed as [NO_NAME] or

[Untitled] when you connect the camera with a card inserted.

Motion picture playback on a PC

Use “QuickTime” (for Windows 2000/XP) in the supplied CD-ROM when you play back motion pictures recorded on this camera on your PC.

• Download [QuickTime6.5.2 for PC] from the following website and install it on your

PC when you use Windows98/98SE/Me.

http://www.apple.com/support/quicktime/

• The software is a standard Macintosh feature.

Folder Composition

Folders appear as follows.

• Built-in memory

• Card

D C I M

100_PANA

PRIVATE1

Folder number

File number

JPG : Pictures

MOV : Motion pictures

RAW : RAW format files

100_PANA


2 3



101_PANA

999_PANA

M I S C

The contents of each folder are:

DCIM 100_PANA to 999_PANA

100_PANA to

999_PANA

Pictures/Motion pictures/

Pictures in RAW files

MISC File with DPOF setting

PRIVATE1 Flip animation files

• This unit stores up to 999 picture files in each folder. A new folder is created after this maximum is reached.

• To reset file and folder numbers, use

[NO.RESET] in the setup menu. (P23)

Connecting to other equipment n

Conditions under which a different folder number is used

In the following cases, the picture is not recorded in the same folder as the previously recorded picture. It is recorded in a folder with a new number.

• The folder containing the picture you just shot had a file numbered 999 in it

(example: P1000999.JPG).

• When the card just recorded to contains, for example, a folder with the number 100

(100_PANA) in it and that card is removed and replaced with a card that has a folder with the number 100 in it recorded by a camera from a different maker

(100XXXXX, with XXXXX being the name of the maker) and then a picture is recorded.

• You start shooting again after using

[NO.RESET] in the setup menu (P23). (It is recorded to a new folder that has a number following on from the one previous. You can also reset the folder number to 100 by using [NO.RESET] immediately after formatting the card when there are no folders or pictures on the card.) n

Connection in the PTP mode

Windows XP/Mac OS X users can establish connection in the PTP mode by setting the camera in print mode [ ] and connecting it to their PC.

• You can only load pictures from the camera and cannot write them on the card or delete them.

• When there are 1000 or more pictures on a card, the pictures may not be imported.

• When you set the camera in print mode

[ ] and connect it to a PC, [PLEASE

CONNECT TO THE PRINTER] appears on the camera’s LCD monitor. This is not a malfunction.

107

VQT0Y60

• Do not use any other USB connection cables except the supplied one.

• While [ACCESS] is being displayed, do not disconnect the USB connection cable.

• Data transmission takes time when a card contains a large number of pictures.

• If the remaining battery power is exhausted during communication, the recorded data may be damaged. When you connect the camera to the PC, use a battery with sufficient battery power (P13) or the AC adaptor (DMW-AC5; optional).

• If the remaining battery power becomes low while the camera and the PC are communicating, the status indicator blinks and the alarm beeps. In this case, stop the communication at once on the PC.

• When connecting the camera to a

Windows 2000 OS PC with the USB connection cable, do not replace the card while the camera and the PC are connected. The information on the card may be damaged. Disconnect the

USB connection cable before replacing the card.

• Pictures edited or rotated with a PC may be displayed in black in playback mode

(P35), multi playback (P76) and calendar playback (P77).

• For information about this, refer to the separate operating instructions for PC connection.

• Refer to the operating instructions of the

PC, too.

• If a card is not inserted when the camera is connected to the PC, you can edit or access the picture data on the built-in memory. If a card is inserted, you can edit or access the picture data on it.

Connecting to other equipment

• You cannot switch between the built-in memory and the card while the camera is connected to the PC. When you want to switch between the built-in memory and the card, disconnect the USB connection cable, insert (or remove) the card and then connect the USB connection cable to the PC again.

• When you change the mode dial to print mode [ ] with the camera connected to the PC, [PLEASE RE-CONNECT THE

PRINTER.] appears on the camera’s LCD monitor. Before reconnecting the camera to a printer, change the mode from [ ] to another one and make sure that data transmission is not in progress.

([ACCESS] appears on the camera’s LCD monitor while data transmission is in progress.)

108

VQT0Y60

Connecting to other equipment

Connecting to a PictBridge-compliant Printer

By connecting the camera directly to a printer supporting PictBridge via the USB connection cable (supplied), you can select the pictures to be printed or start printing on the LCD monitor.

Make the necessary settings on your printer beforehand. (Read your printer’s operating instructions.)

Turn on the camera and the printer.

Set the mode dial to [ ].

• [PLEASE CONNECT TO THE PRINTER] appears.

Connect the camera to a printer via the USB connection cable

(supplied).

• Connect the USB connection cable with the [ f

] mark facing the [ w

] mark on the [DIGITAL] socket.

• Hold

and then insert or pull the USB connection cable straight.

• To print the age in [BABY1]/[BABY2] (P68) in scene mode or the departure date for [TRAVEL

DATE] (P69), use the software [LUMIX Simple

Viewer] or [PHOTOfunSTUDIO-viewer-] in the

CD-ROM (supplied) and print from the PC. For information about this, refer to the separate operating instructions for PC connection.

• To find out more about PictBridge compliant printers, contact your local dealer.

To connect

• Do not use any other USB connection cables except the supplied one.

• When you connect the camera to a printer without setting the mode dial to [ ], remove the cable, set the mode dial to [ ], turn the camera and the printer off and on, and connect again.

• If a card is not inserted when the camera is connected to the printer, you can print the picture data on the built-in memory. If a card is inserted, you can print the picture data on it.

• You cannot switch between the built-in memory and the card while the camera is connected to the printer. When you want to switch between the built-in memory and the card, disconnect the USB connection cable, insert (or remove) the card and then connect the USB connection cable to the printer again.

: USB connection cable (supplied)

: AC adaptor (DMW-AC5; optional)

• It may take time to print some pictures.

Therefore, we recommend using a battery with sufficient power (P13) or the AC adaptor (DMW-

AC5; optional) when you connect to a printer.

• Make sure this unit is off before connecting or disconnecting the AC adaptor (DMW-AC5; optional).

109

VQT0Y60

Connecting to other equipment n

Printing the selected picture (making a single print)

Selecting multiple pictures for printing

Press

/

to select the picture and then press [MENU/SET].

PictBridge

100-0001

1/19

PLEASE SELECT

THE PICTURE TO PRINT

SELECT

MULTIPRINT

MENU

SET

• A message displays for about 2 seconds.

Press

.

Press [ A ] to return to the original screen.

Press

/

to select an item and then press [MENU/SET].

PictBridge

MULTI SELECT

SELECT ALL

DPOF PICTURE

FAVORITE

Press

to select [PRINT START] and then press [MENU/SET].

SELECT CANCEL SET

MENU

SET

SINGLE SELECT

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

CANCEL

SELECT

SET

MENU

SET

• Press [MENU/SET] to cancel printing.

Disconnect the USB connection cable after printing.

Item Setting contents

MULTI

SELECT

Multiple pictures are selected at once for printing.

[Operation]

On the plural pictures screen, press w

/ q

to select pictures. When you press r

, [ ] is displayed with the picture you selected for printing.

(When you press r

once more, the print setting is cancelled.)

Press [MENU/SET] when you finish selection.

SELECT ALL All pictures in the built-in memory or the card are printed.

DPOF


FAVORITE

Pictures in the [DPOF PRINT] setting (P98) are printed.

Pictures set as favourites

(P95) are printed.

• This item appears only when favourite setting

(P95) is [ON].

• You can not select any picture when [FAVORITE] is set to [ON], but no picture is marked with [ ].

110

VQT0Y60

Press

Connecting to other equipment

to select [PRINT START] and then press [MENU/SET].

screen for step

in “Selecting multiple pictures for printing” (P110 and 111).

MULTI SELECT

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

CANCEL SELECT SET

MENU

SET

• In DPOF setting, [PRINT WITH DATE] and

[NUM. OF PRINTS] are not displayed.

• When you select [DPOF PICTURE], [DPOF

SET] is selectable. When you select [DPOF

SET], refer to P98 and make DPOF setting.

• Press [MENU/SET] when you wish to cancel printing halfway.

• When you select [MULTI SELECT],

[SELECT ALL] or [FAVORITE], the print confirmation screen appears. Select

[YES] and perform printing.

• When the number of prints exceeds

1,000, [PRINTING --- PICTURES DO

YOU WANT TO PROCEED?] appears on the print confirmation screen.

Disconnect the USB connection cable after printing.

SINGLE SELECT

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

SET

MENU

CANCEL SELECT

• The items which are not supported by the printer are displayed in gray and cannot be selected.

• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] and [PAGE

LAYOUT] to [ F ] and then set the paper size or the layout on the printer. (For details, refer to the operating instructions of the printer.)

• [PRINT WITH DATE]

F Settings on the printer are prioritized.

OFF Date is not printed.

ON Date is printed.

• If the printer does not support date printing, the date cannot be printed on the picture.

Setting the date printing with the DPOF print in advance

When the printer supports the date printing by DPOF setting, we recommend setting the date printing with the DPOF print in advance. (P99)

The recording date can be printed by selecting [DPOF PICTURE] to start printing.

• [NUM. OF PRINTS]

Set the number of prints.

• You can set up to 999 prints.

Setting date printing, the number of prints, the paper size and the page layout

• Select an item to set on the screen for step

in “Printing the selected picture

(making a single print)” (P110) or on the

• [PAPER SIZE]

(Possible paper sizes on the camera)

The items are listed on 1/2 and 2/2.

Press r

to select the desired item.

1/2

Settings on the printer are prioritized.

L/3.5

″ ×5 ″

2L/5

″

×7

″

89 mm×127 mm

127 mm×178 mm

POSTCARD 100 mm×148 mm

A4 210 mm×297 mm

111

VQT0Y60

Connecting to other equipment

2/2*

CARD SIZE 54 mm×85.6 mm

100 mm×150 mm 10×15cm

″

×6

″

×10

″

LETTER

101.6 mm×152.4 mm

203.2 mm×254 mm

216 mm×279.4 mm

*These items cannot be displayed when the printer does not support the paper sizes.

• [PAGE LAYOUT]

(Possible layouts on the camera)

Settings on the printer are prioritized.

G 1 page with no frame print

1 page with frame print

2 pages print

4 pages print

• An item cannot be selected if the printer does not support the page layout.

Layout printing

•

When printing a picture several times on 1 sheet of paper

For example, if you want to print a picture

4 times on 1 sheet of paper, set [PAGE

LAYOUT] to [

] and then set the number of prints to 4 for the picture on

[NUM. OF PRINTS].

•

When printing different pictures on 1 sheet of paper

For example, if you want to print 4 different pictures on 1 sheet of paper, set

[PAGE LAYOUT] to 4-picture printing

[

] and then set [NUM. OF PRINTS] for the pictures to 1 in [MULTI SELECT]

(P110).

• Do not disconnect the USB connection cable when the cable disconnection warning icon [ K ] is indicated.

(Depending on the printer, the icon may not be displayed.)

• If the remaining battery power becomes low while the camera and the printer are connected, the status indicator blinks and the alarm beeps. If this happens during printing, press [MENU/SET] and stop printing at once. If not printing, disconnect the USB connection cable.

• The camera is receiving an error message from the printer when the [

] indication lights orange during printing.

After finishing printing, make sure there are no problems with the printer.

• If the total number of ordered prints or the number of pictures set for print is large, printing is performed at intervals. In such cases, the number of remaining prints shown on the display will differ from the number of prints you set. The discrepancy, however, does not indicate an error.

• Date print, paper size and page layout settings on the printer may have priority over the same settings on the camera.

Check these settings on the printer as well.

• When printing RAW format files, JPEG pictures associated with RAW format files will be printed.

When no associated JPEG picture exists, printing may not be possible.

• When printing did not go normally, turn the camera and the printer off and on.

• When the mode dial is set to a choice other than print mode [ ], [USB MODE

CHANGED. PLEASE REMOVE THE USB

CABLE.] appears on the camera’s LCD monitor. Set the mode dial back to [ before disconnecting the USB cable.

]

Disconnect the cable after cancelling printing.

112

VQT0Y60

Connecting to other equipment

Playing Back Pictures with a TV Screen

Playing back pictures with the supplied cable

• Set the [TV ASPECT]. (P24)

• Turn the camera and the TV off.

Connect the AV cable

(supplied) to the [AV OUT] socket of the camera.

• Connect the AV cable with the [ f

] mark facing the [ w

] mark on the [AV OUT] socket.

• Hold

and then insert or pull the AV cable straight.

Connect the AV cable to the video input and the audio input sockets of the TV.

•

Yellow: to the video input socket

•

White: to the audio input socket

Turn the TV on and select external input.

Turn the camera on.

• Do not use any other AV cables except the supplied one.

• You can display pictures on a TV only when the mode dial is set to playback mode [ Q ].

• The top and bottom or left and right of the picture may be cut off slightly when it is displayed due to the characteristics of the TV.

• Depending on the screen mode setting of the TV when you connect the camera to a wide-screen TV or a high-definition TV, the picture may be stretched horizontally or vertically and the top and bottom and or left and right of the picture may be cut off when it is displayed. In this case, change the screen mode setting.

• Read the TV operating instructions too.

• Audio playback is in monaural.

• Pictures might be slightly blurred if you show them vertically on a television.

• You can view pictures on TVs in other countries (regions) which use the NTSC or

PAL system when you set [VIDEO OUT] in the [SETUP] menu.

Playback pictures on TV with SD

Memory Card slot

You can put your SD Memory Card in a television with an SD Memory Card slot to show still images.

• You can not play back pictures stored in the SDHC Memory Card on a TV that does not support the card.

• Depending on the television, some pictures may not take up the whole screen.

• You cannot play motion pictures. To play back motion pictures, connect the camera to the TV with the AV cable (supplied).

• You may be unable to play MultiMedia

Cards.

113

VQT0Y60

Others

Screen Display

In recording

1 2

22 21

1 Recording mode

2 Flash (P42)

3 Metering mode (P87)

4 White balance (P81)

White balance fine adjustment (P83)

5 Focus indication (P25)

6 ISO sensitivity (P83)

7 Picture size (P85)

Jitter alert indication (P28) : 6

8 Quality (P85)

In Motion picture mode (P74) :

[

30fps

VGA

30fps

16:9L

]/[

10fps

VGA

10fps

16:9L

]/[

30fps

QVGA

15fps

16:9H

]

]/[

10fps

QVGA

9 Battery indication (P13)

10 Number of recordable pictures/

Available recording time in Motion picture mode (P74) e.g. :

R 1h 20m 30s

11 Built-in memory/Card (P16)

: Built-in memory

: Card

12 Recording indication

13 Histogram (P39)

14 Travel date (P69)

114

VQT0Y60

3 4 5 6

ISO

200

7 8 9

19 18

15 Elapsed recording time (P74)

16 AF area selection (P88)

17 Self-timer (P46)

18 Current date and time

• It is displayed for about 5 seconds when turning the camera on, setting the clock and after switching from the playback mode to the recording mode.

Zoom (P31)/Extra optical zoom (P32)/

Digital zoom (P33) :

19 Shutter speed indication (P25)

ISO

: Intelligent ISO (P84)

20 Aperture value indication (P25)

21 Programme shift indication (P26)

22 Exposure compensation (P47)

23 High angle mode (P40)

: Power LCD (P40)

24 Spot AF area (P88)

25 AF area (P25)

26 Spot metering target (P87)

27 Optical image stabilizer (P49)

Others

28 29 30 31 32 33

-AF

COOL

39 38

28 MF indication (P55)/AF w (P58)

29 Burst (P50)

I : Audio recording (P74, 86)

30 Continuous AF (P89)

31 Colour effect (P90)

32 Flip animation (P91)

33 Auto bracket (P48)

34 Moving focus (P55)

35 MF operation (P55)

36 Joystick operations

(P26, 52, 53, 55, 81)

37 Number of days that have passed since the travel date (P69)

• This is displayed for about 5 seconds if the camera is turned on when the travel date is set, after setting the clock, departure date or travel date, after changing the world time setting and after switching from playback mode to another mode.

37 36

38 Age display (P68)

• Whenever you turn the camera on in

Baby mode, switch to Baby mode from any other mode, or after setting the birthday or clock, your baby’s age and the current date and time appear on the display for about 5 seconds.

39 AF/AE Lock indication (P60)

40 Backlight compensation (P30)

41 AF assist lamp (P89)

42 Flash Output Adjustment (P45)

115

VQT0Y60

Others n

In Playback

1 2 3 4 5 6 7 8

PLAY AUDIO

100-0001

F2.8 1/100

10:00 1.DEC.2006

ISO

200

1 Playback mode (P35)

2 Number of DPOF [ d

] prints (P98)

3 Favourites indicator (P95)

4 Protected picture (P99)

5 Still or motion pictures with audio (P79)

6 Picture size (P85)

7 Quality (P85)

In Motion picture mode (P79) :

[

30fps

VGA

]/[

10fps

VGA

]/[

30fps

QVGA

]/[

10fps

QVGA

[

30fps

16:9L

]/[

10fps

16:9L

]/[

15fps

16:9H

]

8 Battery indication (P13)

9 Folder/File number (P107)

Built-in memory/Card (P16)

: Built-in memory

: Card

10 Picture number/Total pictures

11 Cable disconnection warning icon

(P112)

• This is displayed when printing using a printer supporting PictBridge.

(Depending on the printer, the icon may not be displayed.)

Motion picture recording time (P79) :

1h 20m 30s

1/19

AUTO

12 Histogram (P39)

13 Recording information

14 Favourites setting (P95)/

Elapsed playback time (P79) :

1h 20m 30s

15 Recorded date and time

16 Power LCD indication (P40)

17 Number of days that have passed since the travel date (P69)

18 Age display (P68)

19 Audio playback (P79)

PLAY MOTION


: In Motion picture mode (P79)

20 Flip animation (P91)

116

VQT0Y60

Cautions for Use

Optimal Use of the Camera

Take care not to drop or knock the unit or put a lot of pressure on it.

• Do not leave the unit in your pants pocket when you sit down or forcefully insert it into a full bag etc.

• Take care not to drop or knock the bag that you inserted the unit in as it may strongly shock the unit.

• A strong shock may break the lens, screen or outer case and cause the camera to malfunction.

Keep the camera as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

• If you use the camera on top of or near a

TV, the pictures and sound on the camera may be disrupted by electromagnetic wave radiation.

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely affect the camera, disturbing the pictures and sound.

• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery or disconnect AC adaptor (DMW-AC5; optional). Then reinsert the battery or reconnect AC adaptor and turn the camera on.

Others

Do not use the camera near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may be adversely affected.

Make sure to use the supplied cords and cables. If you use optional accessories, use the cords and the cables supplied with them. Do not extend the cords and the cables.

Do not spray insecticides or volatile chemicals onto the camera.

• If the camera is sprayed with such chemicals, the camera body may be damaged and the surface finish may peel off.

• Do not keep rubber or plastic products in contact with the camera for a long period of time.

Do not use benzine, thinner or alcohol for cleaning the camera.

• Before cleaning the camera, remove the battery or disconnect the AC adaptor

(DMW-AC5; optional) from the electrical outlet.

• The camera body may be deformed and the surface finish may peel off.

• Wipe the dust or fingerprints with a soft, dry cloth. To remove stubborn stains, soak a dry cloth in water and then use it to wipe the dirt. Then wipe again with a dry cloth.

• Do not use a kitchen detergent or a chemically treated cloth.

• In case rain or other sources of water splash onto the camera, wet a soft cloth with tap water, wring it well, and use it to wipe the camera body carefully. Then wipe it again with a dry cloth.

117

VQT0Y60

Others n

Card

Do not leave the card in places where there is high temperature or direct sunlight, or where electromagnetic waves or static electricity are easily generated.

Do not bend or drop the card.

• The card may be damaged or the recorded content may be damaged or erased.

• Store the card in the card case or the storage bag after use and when you store or carry the card.

• Do not allow dirt, dust or water to enter the terminals on the back of the card and do not touch the terminals with your fingers.

We recommend you to take a spare battery with you when you leave home.

• Be aware that the operating time of the battery will become shorter in low temperatures such as outdoors at a ski resort.

• When you travel, be sure to prepare the supplied charger to charge the battery on the spot.

Dispose of an unusable battery.

• The battery has a limited life.

• Do not throw the battery into fire because it may cause an explosion.

Do not allow the battery terminals to come in contact with metal objects

(such as necklaces, hairpins, etc.).

• This can result in a short circuit or heat generation and, if you touch the battery in this condition, you may be badly burned.

Battery

The battery is a rechargeable lithium ion battery. Its ability to generate power is based upon the chemical reaction that takes place inside it. This reaction is susceptible to the surrounding temperature and humidity, and, if the temperature is too high or too low, the operating time of the battery will be shorter.

After use, be sure to remove the battery.

Store the removed battery in the battery carrying case (supplied).

Charger

• If you use the charger near a radio, radio reception may be disturbed. Keep the charger 1 m or more away from radio.

• When the charger is in use, it may generate whirring sounds. However, this is not a malfunction.

• After use, be sure to disconnect the AC cable from the electrical outlet. (If it is left connected, a minute amount of current is consumed.)

• Keep the terminals of the charger and battery clean.

If you drop the battery accidentally, check to see if the battery body and terminals are damaged.

• Inserting a damaged battery in the camera will damage the camera.

118

VQT0Y60

Others

Message Display

Confirmation messages or error messages will be displayed on the screen in some cases.

The major messages are described below as examples.

[THIS MEMORY CARD IS PROTECTED]

Cancel the card lock. (P17, 100)

[NO VALID PICTURE TO PLAY]

Play back after recording or after inserting a card with a recorded picture.

[THIS PICTURE IS PROTECTED]

After cancelling the protect setting (P100), you can delete or overwrite the picture.

[SOME PICTURES CANNOT BE

COPIED]/[COPY COULD NOT BE

COMPLETED]

The following pictures cannot be copied.

• When a picture with the same name as the picture to be copied exists in the copy destination.

• Files not based on the DCF standard.

Moreover, pictures recorded or edited by other equipment may not be copied.

[THIS PICTURE CANNOT BE DELETED]/

[SOME PICTURES CANNOT BE

DELETED]

The pictures not based on the DCF standard cannot be deleted.

• To delete this kind of picture, first save your data to your computer, then use this unit to reformat the card. (P105)

[BUILT-IN MEMORY ERROR

FORMAT BUILT-IN MEMORY?]

This message will be displayed when you format the built-in memory on the PC or remove the battery without turning the camera off. Format the built-in memory of the camera again. (P105) The data on the built-in memory will be deleted.

[NO ADDITIONAL DELETE SELECTIONS

CAN BE MADE]

• You have exceeded the number of pictures that can be set at once with multi-delete setting.

• You have placed more than 999 pictures in your favourites list.

[CANNOT BE SET ON THIS PICTURE]/

[CANNOT BE SET ON SOME PICTURES]

If the pictures are not based on the DCF standard, the DPOF print cannot be set.

[NOT ENOUGH SPACE ON BUILT-IN

MEMORY]/[NOT ENOUGH MEMORY IN

THE CARD]

There is no space left on the built-in memory or the card.

• When you copy pictures from the built-in memory to the card (batch copy), the pictures are copied until the capacity of the card becomes full.

[MEMORY CARD ERROR

FORMAT THIS CARD?]

The format of the card cannot be recognised by this camera. Format the card again with this camera.

Save your data to your computer, then use this unit to reformat the card. (P105)

[REMOVE LENS CAP AND PRESS

BUTTON]

This message appears when the lens cap is left on the activated camera or when you exert pressure on the lens with your hand etc. and the camera does not operate properly.

• Remove the lens cap and press q

when the lens cap is on.

• Turn the camera off and on when the lens cap is removed.

If the message persists, contact the dealer or your nearest servicentre.

119

VQT0Y60

[MEMORY CARD ERROR

PLEASE CHECK THE CARD]

• Failed access to the card.

Insert the card again.

[READ ERROR

PLEASE CHECK THE CARD]

Data reading error.

Insert the card again. Make sure the card is inserted properly and then play back again.

Others

[MOTION MODE IS NOT AVAILABLE IN

3:2 ASPECT. SET THE ASPECT SWITCH

IN 4:3 OR 16:9.]

You cannot record a motion picture on a card when the aspect ratio is set to [ ]. Set the aspect ratio to either [ j

] or [ h

]. (P59)

[SELECT 4:3 TO STORE MOTION PIC.

TO INT. MEMORY.]

You cannot record a motion picture on the built-in memory when the aspect ratio is set to [ j

] or [

[ h

].(P59)

]. Set the aspect ratio to

[WRITE ERROR

PLEASE CHECK THE CARD]

Data writing error.

Turn the camera off and remove the card.

Then insert the card and turn the camera on again. Be sure that the camera is turned off before removing or inserting the card to avoid damage. This error may also indicate that the card is damaged.

[MOTION RECORDING WAS CANCELLED

DUE TO THE LIMITATION OF THE

WRITING SPEED OF THE CARD]

• When you set the [PICT.MODE] to [30fpsVGA],

[30fps16:9L] or [15fps16:9H], we recommend using cards that offer 10 MB/second or higher speeds (shown on their packages and elsewhere) for best results.

• Depending on the type of Card, recording may stop in the middle.

[A FOLDER CANNOT BE CREATED]

A folder cannot be created because there are no remaining folder numbers that can be used. (P107)

Save your data to your computer, then use this unit to reformat the card. (P105)

If you execute [NO.RESET] in the [SETUP] menu after formatting, the folder number is reset to 100. (P23)

[PICTURE IS DISPLAYED FOR 16:9 TV]/

[PICTURE IS DISPLAYED FOR 4:3 TV]

• The AV cable is connected to the camera.

Press [MENU/SET] if you want to delete this message at once.

• Select [TV ASPECT] in the [SETUP] menu to change the TV aspect. (P24)

• This message also appears when the USB connection cable is connected to the camera only.

In this case, connect the other end of the USB connection cable to a PC or a printer. (P106, 109)

[PLEASE RE-CONNECT THE PRINTER.]

• This message appears when you change the mode dial to print mode [ ] with the camera connected to a PC. Reconnect the printer after changing the mode from [ ] to another one and making sure that data transmission is not in progress. ([ACCESS] appears on the camera’s LCD monitor while data transmission is in progress.)

[USB MODE CHANGED. PLEASE

REMOVE THE USB CABLE.]

• This message appears when you set the mode dial to a choice other than print mode

[ ] with the camera connected to the printer. Set the mode dial back to [ ] before disconnecting the USB cable.

Disconnect the cable after cancelling printing.

120

VQT0Y60

Others

Troubleshooting

If you put the menu back to the settings at the time of purchase, the conditions may be improved.

Carry out the [RESET] in the setup menu. (P23)

Battery and power supply

Conditions

The camera will not turn on.

The picture is not displayed on the LCD monitor.

The camera turns off soon after turning it on.

Causes

Is the battery inserted correctly? Check the direction of the battery.

Is the battery sufficiently charged?

Use a battery that has been sufficiently charged.

Is the power save mode (P22) or economy mode (P22) activated?

Press the shutter button halfway to deactivate these modes.

Is the battery charge insufficient to operate the camera? Use a battery that has been sufficiently charged.

• Is the battery charge insufficient to operate the camera? Use a battery that has been sufficiently charged.

• If you leave the camera on, the battery will be exhausted.

Turn the camera off frequently by using power save mode

(P22) or economy mode (P22) etc.

Shooting

Conditions

The picture cannot be recorded.

Causes

Is the mode dial correctly set?

Is there any memory capacity left on the built-in memory or the card?

Before recording, delete some pictures. (P36)

Stains, such as fingerprints, may be on the lens. If the surface of the lens is dirty, clean it with a soft cloth.

The recorded pictures are pale.

There is dirt on the lens.

The recorded picture is too bright or dark.

The subject is not focused properly.

Check that the exposure is correctly compensated. (P47)

The focus range varies depending on the recording mode.

To set the proper mode for the distance to the subject, change the focus switch position or rotate the mode dial.

Is the subject out of the focus range? (P28)

Have you taken a picture with jitter?

Is the camera set in auto bracket (P48) or burst mode (P50)?

Sometimes two or three pictures are taken with a single press on the shutter button.

The recorded picture is blurred. The optical image stabilizer is not effective.

When taking a picture in shaded areas or indoors, the shutter speed becomes slow and the Optical Image Stabilizer function may not work properly. In this case, we recommend holding the camera with both hands firmly to take pictures (P27).

121

VQT0Y60

Others

Conditions

Images are grainy or noisy.

Shooting of motion pictures stops unexpectedly.

The picture freezes momentarily when the shutter button is pressed halfway.

Causes

Is the ISO sensitivity high or the shutter speed slow?

(When set to [AUTO], ISO sensitivity increases for indoor and other shooting occasions. When set to [

ISO

], ISO sensitivity may increase depending on movements and brightness of the subject.)

• Reduce ISO sensitivity. (P83)

• Set [NOISE REDUCTION] in [PICT.ADJ.] to [HIGH] or set every item except [NOISE REDUCTION] to [LOW]. (P90)

• Improve the ambient light.

In [HIGH SENS.] (P67) in scene mode, the resolution of the recorded picture decreases slightly because of high sensitivity processing.

This is not a malfunction.

This camera is not compatible with motion picture recording on MultiMediaCards.

• When you set the [PICT.MODE] to [30fpsVGA], [30fps16:9L] or [15fps16:9H], we recommend using cards that offer 10

MB/second or higher speeds (shown on their packages and elsewhere) for best results.

• Depending on the type of SD Memory Card, recording may stop in the middle.

• Is the AF mode 3-area-focusing (high speed) or 1-areafocusing (high speed)? (P87) n

LCD

Black, red, blue and green dots appear on the

LCD monitor.

122

VQT0Y60

Conditions

The LCD monitor sometimes turns off although the camera is turned on.

The brightness of the LCD monitor becomes dark or bright for a moment.

The LCD monitor flickers indoors.

The LCD monitor is too bright or dark.

Causes

Have you set economy mode? (P22)

–In economy mode, the LCD monitor turns off while the flash is charged.

After recording, the LCD monitor is turned off until the camera is ready for the next picture to be taken. The LCD monitor is turned off for a maximum of 6 seconds particularly when using the built-in memory.

This phenomenon appears when pressing the shutter button halfway to set the aperture value and does not affect the recorded pictures.

The LCD monitor may flicker for a few seconds after turning the camera on indoors under fluorescent light.

This is not a malfunction.

Adjust the brightness of the LCD monitor. (P21)

Is the Power LCD function or high angle mode activated? (P40)

This is not a malfunction.

These pixels do not affect the recorded pictures.

Conditions

Noise appears on the

LCD monitor.

A vertical line appears on the LCD monitor.

Distortion in the LCD monitor.

Others

Causes

In dark places, noise may appear to maintain the brightness of the

LCD monitor. This does not affect the pictures you are recording.

This is a phenomenon called smear. It is a characteristic of

CCD and appears when the subject has a bright part.

Uneven colours may also appear around the smear. This is not a malfunction. It is recorded in motion pictures but is not recorded on still pictures.

When holding the edge of the LCD monitor, there may be some distortion, however this is not a malfunction. Moreover, this has no effect on the pictures taken or playback.

Flash

Conditions

Flash is not activated.

The flash is activated 2 times.

Causes

Make sure the flash is open.

Slide the [

OPEN] switch. (P42)

The flash is not activated when motion picture mode [ i ],

[SCENERY], [NIGHT SCENERY], [FIREWORKS], [STARRY

SKY], [AERIAL PHOTO] or [HIGH SENS.] in scene mode

(P61) is selected.

When you select red-eye reduction (P42), the flash is activated once before the actual recording to reduce the red-eye phenomenon (eyes of the subject appearing red in the picture) and then activated again for the actual recording.

Playback

Conditions

Pictures rotate unexpectedly.

The picture is not played back.

Causes

One of the features of this unit can automatically detect when you have turned the camera side on to take a picture, then rotate that picture for you when you play it back.

In some cases, the unit may detect that you have turned the camera side on, when in fact you are facing it up or down.

• Set [ROTATE DISP.] (P96) to [OFF] so that the camera does not rotate these kinds of pictures for you.

• You can use [ROTATE] (P96) to rotate the pictures when necessary.

Is the mode dial set to playback [

Is there a picture on the built-in memory or the card?

• The pictures on the built-in memory appear when a card is not inserted. The picture data on the card appears when a card is inserted. (P16)

123

VQT0Y60

Others

Conditions

Folder or file number appears as [–] and the display goes black.

The picture is displayed with a date different from the actual recording date in calendar playback.

Causes

The picture may have been changed on a computer or taken on a different manufacturer’s camera.

This problem can also occur if you remove the battery immediately after taking a picture or if the battery had very little charge left.

• You will need to reformat the card to delete this type of picture. (P105) (Remember that all data will be irretrievably erased when you format the card, so save your data and check the card before proceeding.)

• Pictures edited or rotated with a PC may be displayed in black in playback mode (P35), multi playback (P76) and calendar playback (P77).

Was the picture edited with a PC or recorded with a digital camera from another manufacturer?

This kind of picture may be displayed with a date different from the actual recording date in calendar playback. (P77)

Is the clock in the camera set properly? (P19)

For example, if the clock setting on the camera is different from the date and time set on the PC and you acquire pictures recorded with the camera to the PC and then write them back to the card, the pictures may be displayed with dates different from the actual recording dates in calendar playback etc.

Connecting to a TV, computer or printer

Conditions

The picture does not appear on the television.

The TV screen is disturbed or displayed in monochrome.

The display areas on the

TV screen and the camera’s LCD monitor are different.

Cannot play motion pictures on a television.

Cannot upload pictures to your computer.

Causes

Is the camera connected to the TV correctly?

Check it.

Set the TV to video input mode.

Depending on the TV model, the area display may be smaller so the picture may be stretched horizontally or vertically and the top and bottom or left and right of the picture may be cut off when it is displayed. This is due to the TV specifications and is not a malfunction.

You cannot play motion pictures if you have inserted the card into a card slot on a television.

Connect the camera to the television with the included AV cable and play the pictures on this unit. (P113)

Check the connections.

Check that the computer has correctly recognised the camera.

Set the camera’s mode dial to a mode other than Print mode

(P106).

124

VQT0Y60

Others

Conditions

The computer does not recognise the card.

(The built-in memory is recognised.)

The pictures cannot be printed with printers.

Disconnect the USB connection cable, then insert the card and reconnect the cable.

Causes

The sides of printed images are cut off.

The picture size does not fit the TV screen.

Does the printer support PictBridge? You cannot print pictures with printers which do not support PictBridge. (P109)

Set the camera’s mode dial to Print mode (P109).

• If your printer has trimming and border settings, change the settings so that there is no trimming and no border. (Read your printer’s operating instructions.)

• Some photography shops can handle pictures shot in the

[ j

] aspect ratio (P59). Enquire before sending them for printing.

Check the [TV ASPECT] setting on this unit. (P24) n

Others

Conditions

Unreadable language was selected by mistake.

The camera will make sounds caused by internal mechanical movement when it is shaken.

Cannot change the auto review setting.

Causes

Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ { ] icon to set the desired language. (P24)

The sound arises when the lens moves. This is not a malfunction.

A certain part of the picture blinks.

When the shutter button is pressed halfway, a red lamp turns on sometimes.

The AF assist lamp does not turn on.

You cannot change the auto review setting when using auto bracket, using burst modes, shooting motion pictures, using

[SELF PORTRAIT] in scene mode, recording sound and setting quality to [RAW].

• Is [HIGHLIGHT] set to [ON]? (P23)

–This appears due to the highlight display function which shows white saturated areas. (P39)

In dark places, the AF assist lamp (P89) lights red to make it easier to focus on a subject.

Is [AF ASSIST LAMP] on the [REC] mode menu set to [ON]?

(P89)

Are you taking pictures in dark places? The AF assist lamp does not turn on in bright places.

The AF assist lamp does not turn on when [SCENERY],

[NIGHT SCENERY], [SELF PORTRAIT], [FIREWORKS] or

[AERIAL PHOTO] in scene mode (P61) is selected.

125

VQT0Y60

Conditions

The camera gets hot.

The lens clicks.

The clock setting is reset.

Strange colours appear around the edge of the image.

File numbers are not created in order.

The file numbers are recorded in ascending order.

Others

Causes

The camera may get a little warm while you are using it, but this is normal.

When brightness has changed due to the zoom or the movement of the camera or other, the lens may click and the picture on the screen may be drastically changed, however, the pictures are not affected.

The sound is caused by automatic adjustment of the aperture. It is not a malfunction.

If you do not use the camera for a long time, the clock setting may be reset. When the message [PLEASE SET THE

CLOCK] appears, set the clock again. (P19)

When you take a picture before setting the clock, [0:00 0. 0.

0] is recorded.

Depending on the zoom magnification, the picture may have some coloured fringes around the subject. This is called chromatic aberration and may be more visible when recording distant subjects. However this is not a malfunction.

Certain operations cause pictures to be saved in folders with different numbers. (P107)

If the battery is inserted or removed when the camera is not turned off, the recorded folder numbers are lost.

However if you turn the camera on again and record pictures, the recorded folder numbers are different from the prior recorded folder numbers.

126

VQT0Y60

Others

Number of recordable pictures and available recording time

• The number of recordable pictures and the available recording time are an approximation.

(These vary depending on the recording conditions and the type of card.)

• The number of recordable pictures varies depending on the subjects.

Number of recordable pictures

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

16 MB

32 MB

Card

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

190

390

770

5.5

: 10M (4224×2376 pixels)

190

380

770

1520

RAW

1420

2800

165 j

M j

: 5.5M EZ (3072×1728 pixels)

180

360

730

1450

180

350

710

: 8M EZ (3840×2160 pixels)

G H

115

230

470

930

115

230

460

930

1820

: 2M EZ (1920×1080 pixels)

115

230

450

910

1800

3540

105

220

430

860

1720

3410

6700

127

VQT0Y60

Others

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

8.5

: 8.5M (3568×2376 pixels)

110

230

460

910

110

220

450

910

1800

RAW

4.5

: 4.5M EZ (2560×1712 pixels)

G H

5 11

110

210

440

890

1740

110

210

430

860

1700

3350

165

: 7M EZ (3248×2160 pixels)

G H

135

270

560

1100

135

270

540

1090

2150

2.5

: 2.5M EZ (2048×1360 pixels)

G H

8 17

170

340

680

1360

2680

165

330

650

1310

2560

5020

128

VQT0Y60

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx.13 MB)

16 MB

32 MB

64 MB

Card

128 MB

256 MB

512 MB

1 GB

2 GB

4 GB

Others

125

240

480

970

1920

3770

7.5

: 7.5M (3168×2376 pixels)

G H RAW h

: 6M EZ (2880×2160 pixels)

G H

125

250

520

1030

125

250

510

1020

2010

170

155

310

630

1240

150

300

610

1220

2410

M h

: 4M EZ (2304×1728 pixels)

G H

: 3M EZ (2048×1536 pixels)

G H

5 12 7 15

120

240

480

970

1910

120

230

470

940

1860

3650

150

300

600

1220

2410

150

290

590

1180

2360

4640

M h

: 2M EZ (1600×1200 pixels)

G H

: 1M EZ (1280×960 pixels)

G H

120

240

470

940

1880

3610

7090

190

370

730

1470

2920

5740

175

350

690

1370

2740

5120

10050

129

VQT0Y60

Others n

Available recording time (In Motion picture mode)

Picture quality setting

Built-in Memory

(Approx.13 MB)

16 MB

32 MB

30fps

VGA

—

6 s

17 s

10fps

VGA

—

26 s

59 s

30fps

QVGA

24 s

26 s

59 s

10fps

QVGA

1 min

15 s

1 min

23 s

2 min

55 s

6 min

30fps

16:9L

—

5 s

14 s

64 MB 39 s 2 min 2 min 33 s

Card

128 MB

256 MB

512 MB

1 GB

2 GB

*4 GB

1 min

23 s

2 min

45 s

5 min

30 s

11 min

22 min

30 s

44 min

20 s

4 min

10 s

8 min

10 s

16 min

20 s

32 min

50 s

1 h

7 min

2 h

11 min

50 s

4 min

10 s

8 min

10 s

16 min

20 s

32 min

50 s

1 h

7 min

2 h

11 min

50 s

12 min

20 s

24 min

47 min

50 s

1 h

35 min

50 s

3 h

15 min

6 h

22 min

50 s

1 min

11 s

2 min

20 s

4 min

40 s

9 min

20 s

19 min

20 s

38 min

* The volume of motion picture is limited to 2GB per recording session.

10fps

16:9L

—

22 s

14 min

28 min

10 s

57 min

30 s

1 h

53 min

10 s

50 s

1 min

46 s

3 min

35 s

7 min

15fps

16:9H

—

4 s

12 s

29 s

1 min

1 s

2 min

4 min

8 min

10 s

16 min

50 s

33 min

20 s

• When you select [RAW], the recording pixel size is fixed to the maximum number of recording pixels for each aspect ratio.

• The number of recordable pictures and the available recording time displayed on the LCD monitor may not decrease in order.

• This unit does not support recording motion pictures on MultiMediaCards.

• The extra optical zoom does not work in [HIGH SENS.] (P67) in scene mode so the picture size for [EZ] is not displayed.

130

VQT0Y60

Others

Specifications

Digital Camera:

Information for your safety

Power Source:

DC 5.1 V

Power Consumption:

1.6 W (When recording)

0.9 W (When playing back)

Camera Effective pixels:

10,200,000 pixels

Image sensor:

1/1.65

″

CCD, total pixel number 10,410,000 pixels

Lens:

Primary colour filter

Optical 4× zoom, f=6.3 to 25.2 mm [35 mm film camera

Digital zoom:

Extra optical zoom:

equivalent: 28 to 112 mm (aspect ratio [ j

])]/F2.8 to F4.9

Max. 4×

(Except for the maximum picture size for each aspect ratio)

When aspect ratio is set to [ j

]: max 5.5x

Focus:

Focus range:

When aspect ratio is set to [ ]: max 5.6x

When aspect ratio is set to [ h

]: max 6.2x

Normal/AF Macro/Manual

9-area-focusing/3-area-focusing (high speed)/1-area-focusing

(high speed)/1-area-focusing/Spot-focusing

Normal AF : 50 cm (Wide)/100 cm (Tele) to Z

AF Macro/MF : 5 cm (Wide)/ 30 cm (Tele) to Z

Shutter system:

Burst recording

Burst speed:

[In Auto Mode [ 0 ]: 5 cm (Wide)/ 30 cm (Tele) to Z ]

Electronic shutter+Mechanical shutter

2 frames/second (high speed), 1 frame/second (low speed),

Approx. 1 frame/second (unlimited)

Number of recordable pictures:

Max. 5 frames (standard), max. 3 frames (fine),

Depends on the remaining capacity of the Built-in memory or the card. (unlimited)

(Performance in burst recording is only with SD Memory Card/

SDHC Memory Card. MultiMediaCard performance will be less.)

Motion picture recording:

Aspect ratio [ j

1280×720 pixels (15 frames/second with audio. When a card is used.)/

848×480 pixels (30 or 10 frames/second with audio. When a card is used.)

Aspect ratio [ h

640×480 pixels (30 or 10 frames/second with audio. When a card is used.)/320×240 pixels (30 or 10 frames/second with audio.)

The maximum recording time depends on the capacity of the

ISO sensitivity:

Shutter speed:

built-in memory or the card.

AUTO/ ISO /100/200/400/800/1600

[HIGH SENS.] mode: 3200

60 to 1/2,000th

[STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds

Motion picture mode: 1/30th to 1/6,400th

131

VQT0Y60

Others

White balance:

Exposure (AE):

Metering mode:

LCD monitor:

Flash:

Microphone:

Speaker:

Recording media:

AUTO/Daylight/Cloudy/Shade/Halogen/Flash/White set 1/

White set 2

Programme AE (P)/Aperture-priority AE (A)/

Shutter-priority AE (S)/Manual exposure (M)

Exposure compensation (1/3 EV Step, –2 to +2 EV)

Multiple/Centre weighted/Spot

Low-temperature polycrystalline TFT LCD

2.8

″

(Approx. 207,000 pixels) (field of view ratio about 100%)

Flash range: (ISO AUTO)

Approx. 60 cm to 4.9 m (Wide)

AUTO, AUTO/Red-eye reduction, Forced ON (Forced ON/Redeye reduction), Slow sync./Red-eye reduction, Forced OFF

Monaural

Built-in Memory (Approx. 13 MB)/SD Memory Card/SDHC

Memory Card/MultiMediaCard (Still pictures only)

Picture size:

Still picture:

Aspect ratio [ j

4224×2376 pixels, 3840×2160 pixels, 3072×1728 pixels,

1920×1080 pixels

Motion picture:

Aspect ratio [ ]:

3568×2376 pixels, 3248×2160 pixels, 2560×1712 pixels,

2048×1360 pixels

Aspect ratio [ h

3168×2376 pixels, 2880×2160 pixels, 2304×1728 pixels,

2048×1536 pixels, 1600×1200 pixels, 1280×960 pixels

Aspect ratio [ j

1280×720 pixels(Only when using an SD Memory card/SDHC

Memory Card), 848×480 pixels(Only when using an SD

Memory card/SDHC Memory Card)

Aspect ratio [ h

640×480 pixels(Only when using an SD Memory card/SDHC

Quality:

Recording file format

Still Picture:

Picture with audio:

Memory Card), 320×240 pixels

Fine/Standard/RAW

JPEG (Design rule for Camera File system, based on Exif 2.21

standard)/RAW, DPOF corresponding

JPEG (Design rule for Camera File system, based on Exif 2.21

Motion pictures:

Interface

DC IN:

standard)+QuickTime (picture with audio)

Digital:

USB 2.0 (Full Speed)

Analogue video/audio:

NTSC/PAL Composite (Switched by menu), Audio line output

Terminal

AV OUT/DIGITAL:

QuickTime Motion JPEG (motion pictures with audio)

(monaural)

AV/USB Dedicated jack (8 pin)

Dedicated jack (2 pin)

132

VQT0Y60

Others

Dimensions:

Weight:

105.7 mm (W)×55.8 mm (H)×26.3 mm (D)

(excluding the projection part)

Approx.187 g

(excluding Memory Card and battery)

Approx.217 g

(with Memory Card and battery)

Operating Temperature:

0 °C to 40 °C

Operating Humidity:

Battery Charger

10 % to 80 %

(Panasonic DE-A12B):

Information for your safety

Input:

Output:

110 to 240 V ~ 50/60 Hz, 0.2 A

CHARGE 4.2 V 0.8 A

Battery Pack (lithium-ion)

(Panasonic CGA-S005E):

Information for your safety

Voltage/capacity:

3.7 V, 1150 mAh

133

VQT0Y60

MEMO

Others

134

VQT0Y60

MEMO

Others

135

VQT0Y60

VQT0Y60-1

H0706ZZ1086

QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used under license.

Matsushita Electric Industrial Co., Ltd.

Web Site: http://panasonic.net

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Panasonic DMCLX2 Operating Instructions

Panasonic DMCLX3 Operating instructions

Panasonic DMC LX 3 Digital Camera Operating Guide

Panasonic DMCFX100 Operating Instructions

Panasonic DMCFX100 操作说明

Panasonic DMCFX07 Operating instructions

Panasonic DMCLX2 Operating instructions

Panasonic DMCFX10 Operating instructions

Panasonic DMCFX50 Operating Instructions

Panasonic DMC-FX9GN Digital Camera User manual

Panasonic DMCFX100 Operating Instructions

Panasonic DMC-FX180 Camcorder User manual

Panasonic DMC-LX3 Operating instructions

Panasonic DMCFX150 Operating Instructions

Panasonic DMCLX1EB Operating Instructions

George Foreman GR30CB Kitchen Grill User Manual

Panasonic DMC-FX50 Instructions

Panasonic DMCFX50 Operating Instructions

Panasonic DMCFX30 Operating Instructions

Panasonic DMCF7 Operating Instructions

Panasonic DMCFX12 Operating Instructions

Panasonic DMCFX33 Operating Instructions

Download PDF

Panasonic DMCLX2 Operating Instructions

Operating Instructions

Digital Camera

Model No.

GC SG

Before use, please read these instructions completely.

Information for Your

Safety

How to replace the Fuse

When the term

is used in these operating instructions this refers to the following types of Memory Cards.

SD Memory Card (8 MB to 2 GB)

SDHC Memory Card (4 GB)

MultiMediaCard

You can only use an SDHC Memory Card if using cards with 4 GB or more capacity.

A 4 GB Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product.

Information on Disposal in other

Countries outside the European

Union

About The Mode dial

Contents

Before Use

Preparation

Basic

Advanced

Menu Settings

Connecting to other equipment

Others

Standard accessories

Names of the Components

Quick Guide

Charge the battery. (P12)

Turn the camera on to take pictures.

Insert the battery and the card.

(P14, 15)

Play back the pictures.

Charging the Battery with the Charger

Attach the battery with attention to the direction of the battery.

Detach the battery after charging is complete.

Connect the AC cable.

About the Battery

(charging/number of recordable pictures)

Inserting/Removing the Battery

Slide the card/battery door to open it.

Close the card/battery door.

Slide the card/battery door to the end and then close it firmly.

Insert:

Remove:

Inserting/Removing the Card

(Optional)

Slide the card/battery door to open it.

Close the card/battery door.

Slide the card/battery door to the end and then close it firmly.

Insert:

Remove:

About the Built-in Memory/the Card

Attaching the Lens Cap/Strap

Remove the lens cap.

Pass the strap through the hole at the Strap Eyelet.

Pass the string through the hole on the lens cap.

Pass the string through the hole on the camera.

Attach the lens cap.

Setting Date/Time (Clock Set)

Press [MENU/SET] several times to close the menu.

Changing the clock setting

Press [MENU/SET].

Press

/

/

/

to select the date and time.

Setup Menu

Press [MENU/SET] and then press

.

Press

to select the [SETUP] menu icon [ ] and then press

.

Press

to select the menu item.

Press
