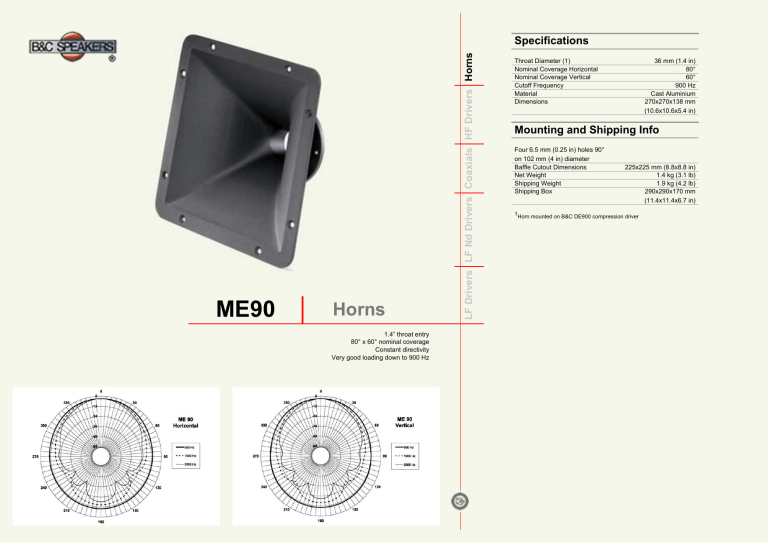

ME90
Horns
1.4” throat entry
80° x 60° nominal coverage
Constant directivity
Very good loading down to 900 Hz
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Specifications
Throat Diameter (1)
Nominal Coverage Horizontal
Nominal Coverage Vertical
Cutoff Frequency
Material
Dimensions
36 mm (1.4 in)
80°
60°
900 Hz
Cast Aluminium
270x270x138 mm
(10.6x10.6x5.4 in)
Mounting and Shipping Info
Four 6.5 mm (0.25 in) holes 90°
on 102 mm (4 in) diameter
Baffle Cutout Dimensions
Net Weight
Shipping Weight
Shipping Box
225x225 mm (8.8x8.8 in)
1.4 kg (3.1 lb)
1.9 kg (4.2 lb)
290x290x170 mm
(11.4x11.4x6.7 in)
1Horn mounted on B&C DE900 compression driver
