Dimension One Spas

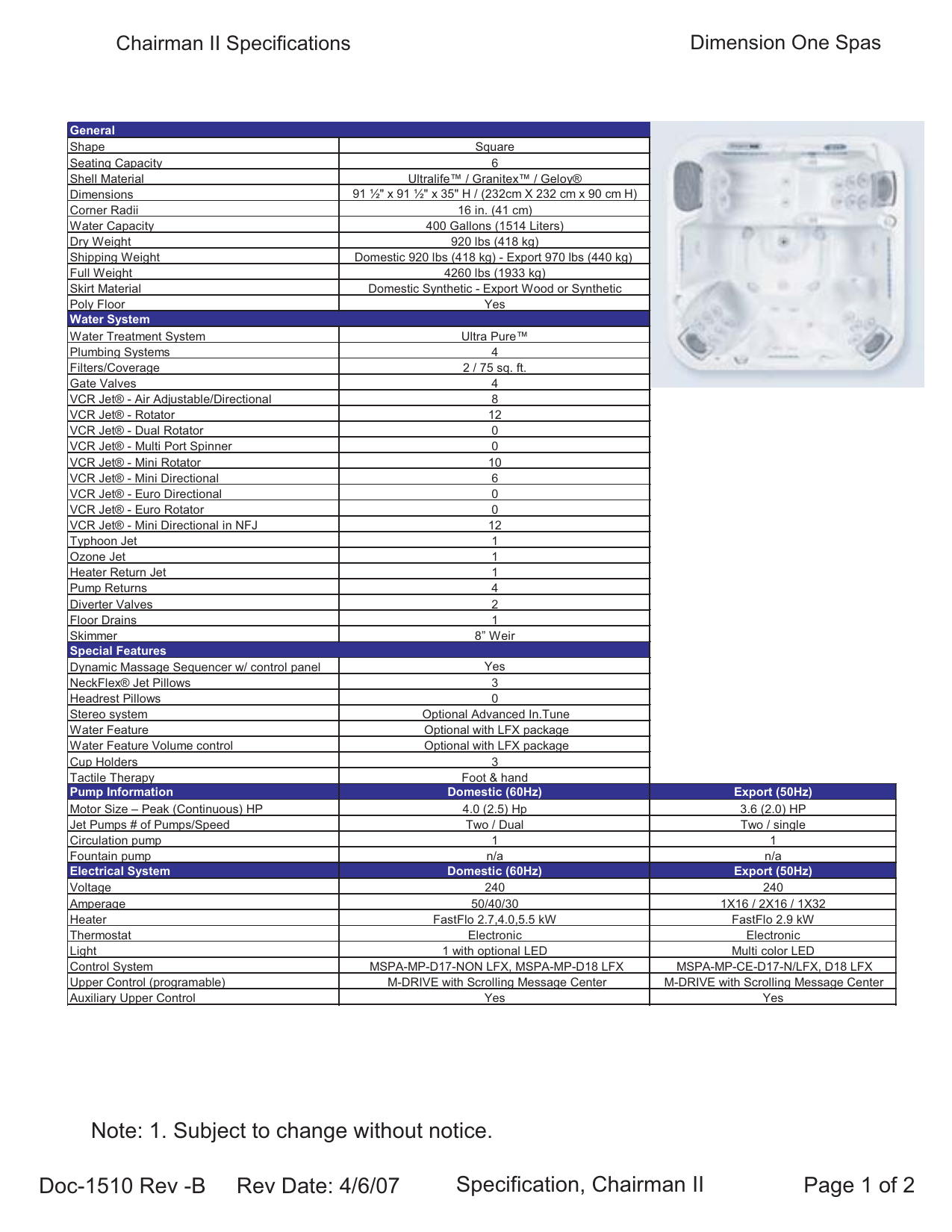

Chairman II Specifications
General
Shape
Seating Capacity
Shell Material
Dimensions
Corner Radii
Water Capacity
Dry Weight
Shipping Weight
Full Weight
Skirt Material
Poly Floor
Water System
Water Treatment System
Plumbing Systems
Filters/Coverage
Gate Valves
VCR Jet® - Air Adjustable/Directional
VCR Jet® - Rotator
VCR Jet® - Dual Rotator
VCR Jet® - Multi Port Spinner
VCR Jet® - Mini Rotator
VCR Jet® - Mini Directional
VCR Jet® - Euro Directional
VCR Jet® - Euro Rotator
VCR Jet® - Mini Directional in NFJ
Typhoon Jet
Ozone Jet
Heater Return Jet
Pump Returns
Diverter Valves
Floor Drains
Skimmer
Special Features
Dynamic Massage Sequencer w/ control panel
NeckFlex® Jet Pillows
Headrest Pillows
Stereo system
Water Feature
Water Feature Volume control
Cup Holders
Tactile Therapy
Pump Information
Motor Size – Peak (Continuous) HP
Jet Pumps # of Pumps/Speed
Circulation pump
Fountain pump
Electrical System
Voltage
Amperage
Heater
Thermostat
Light
Control System
Upper Control (programable)
Auxiliary Upper Control
Square
6
Ultralife™ / Granitex™ / Geloy®
91 ½" x 91 ½" x 35" H / (232cm X 232 cm x 90 cm H)
16 in. (41 cm)
400 Gallons (1514 Liters)
920 lbs (418 kg)
Domestic 920 lbs (418 kg) - Export 970 lbs (440 kg)
4260 lbs (1933 kg)
Domestic Synthetic - Export Wood or Synthetic
Yes
Ultra Pure™
4
2 / 75 sq. ft.
4
8
12
0
0
10
6
0
0
12
1
1
1
4
2
1
8” Weir
Yes
3
0
Optional Advanced In.Tune
Optional with LFX package
Optional with LFX package
3
Foot & hand
Domestic (60Hz)
4.0 (2.5) Hp
Two / Dual
1
n/a
Domestic (60Hz)
240
50/40/30
FastFlo 2.7,4.0,5.5 kW
Electronic
1 with optional LED
MSPA-MP-D17-NON LFX, MSPA-MP-D18 LFX
M-DRIVE with Scrolling Message Center
Yes
Export (50Hz)
3.6 (2.0) HP
Two / single
1
n/a
Export (50Hz)
240
1X16 / 2X16 / 1X32
FastFlo 2.9 kW
Electronic
Multi color LED
MSPA-MP-CE-D17-N/LFX, D18 LFX
M-DRIVE with Scrolling Message Center
Yes
Note: 1. Subject to change without notice.
Doc-1510 Rev -B
Rev Date: 4/6/07
Specification, Chairman II
Page 1 of 2
Dimension One Spas
Chairman II Specifications
Chairman II
Architectural Specification
R16" 41 Shell
stereo speaker location
(optional)
Optional stereo
Sub-woofer location
Top View of Spa
91 1/2" 232
Shell
See Caution
THIS 3 FOOT SQUARE AREA
ON BOTTOM OF SPA, TO BE
SUPPORTED CONSISTENT WITH
THE EDGES OF SPA BASE
91" 231
Skirt
89"[225]
Pedastal Base
Sequencer valve
compartment
Equipment
Compartment
See Note 5
27" 69
Recomended location
for Electrical Inlet
23 1/2" 60
11" 28
Hose Bib/
Water Drain
Vent
34 1/2" 88
Vent
56 1/2" 144
67 1/2" 171
Sequencer Control
Panel
91 1/2" 232
stereo speaker location
(optional)
Control Panel
Spa Lip
32" 81
35 1/2" 90
Hose
Bib/
Pedestal Base
Door Extends
Under Spa Lip
15 1/2" 40
75 1/2" [191]
89"[225]
91" 231
Front View of Spa
Note: 1. Subject to change without notice.
2.
3.
4.
5.
Engineering specs may differ slightly from brochure.
For E-Z lifter installation allow 18” clearances on the backside of the spa.
Alternative cabinets may add significant weight. Ask your dealer for exact details
This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).
Dimensions shown as inches and [centimeters] - XX" [ cm]
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
Doc-1510 Rev - B Rev Date: 4/6/07
Specification, Chairman II
Page 2 of 2
