FREE 24-hour Tech Support: 724-746-5500
blackbox.com
© 2007. All rights reserved. Black Box Corporation.

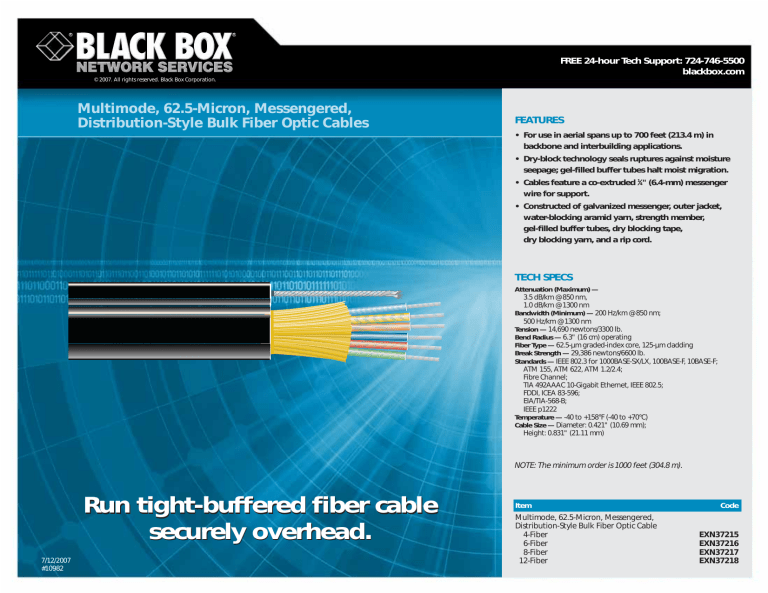

Multimode, 62.5-Micron, Messengered,
Distribution-Style Bulk Fiber Optic Cables
FEATURES
• For use in aerial spans up to 700 feet (213.4 m) in
backbone and interbuilding applications.
• Dry-block technology seals ruptures against moisture
seepage; gel-filled buffer tubes halt moist migration.
• Cables feature a co-extruded 1⁄4" (6.4-mm) messenger
wire for support.
• Constructed of galvanized messenger, outer jacket,
water-blocking aramid yarn, strength member,
gel-filled buffer tubes, dry blocking tape,
dry blocking yarn, and a rip cord.
TECH SPECS
Attenuation (Maximum) —
3.5 dB/km @ 850 nm,
1.0 dB/km @ 1300 nm
Bandwidth (Minimum) — 200 Hz/km @ 850 nm;
500 Hz/km @ 1300 nm
Tension — 14,690 newtons/3300 lb.
Bend Radius — 6.3" (16 cm) operating
Fiber Type — 62.5-µm graded-index core, 125-µm cladding
Break Strength — 29,386 newtons/6600 lb.
Standards — IEEE 802.3 for 1000BASE-SX/LX, 100BASE-F, 10BASE-F;
ATM 155, ATM 622, ATM 1.2/2.4;
Fibre Channel;
TIA 492AAAC 10-Gigabit Ethernet, IEEE 802.5;
FDDI, ICEA 83-596;
EIA/TIA-568-B;
IEEE p1222
Temperature — -40 to +158°F (-40 to +70°C)
Cable Size — Diameter: 0.421" (10.69 mm);
Height: 0.831" (21.11 mm)
NOTE: The minimum order is 1000 feet (304.8 m).
Run tight-buffered fiber cable
securely overhead.
7/12/2007
#10982
Item
Multimode, 62.5-Micron, Messengered,
Distribution-Style Bulk Fiber Optic Cable
4-Fiber
6-Fiber
8-Fiber
12-Fiber
Code
EXN37215
EXN37216
EXN37217
EXN37218
