Electrolux Blower BVM200 User manual

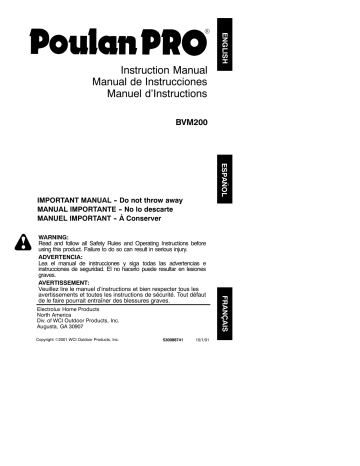

Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
ENGLISH
R
BVM200
ESPAÑOL
IMPORTANT MANUAL -- Do not throw away
MANUAL IMPORTANTE -- No lo descarte
MANUEL IMPORTANT -- À Conserver
Electrolux Home Products
North America
Div. of WCI Outdoor Products, Inc.
Augusta, GA 30907
Copyright E2001 WCI Outdoor Products, Inc.
530088741
10/1/01
FRANÇAIS
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Veuillez lire le manuel d’instructions et bien respecter tous les
avertissements et toutes les instructions de sécurité. Tout défaut
de le faire pourrait entraîner des blessures graves.
D
SAFETY RULES
WARNING: Failure to follow all
D
Safety Rules and Precautions can result in
serious injury.
D
KNOW YOUR UNIT
D
S Read your instruction manual carefully until
you completely understand and can follow
all warnings and safety rules before operating the unit.
D Restrict unit to users who understand and
will follow all warnings and safety rules in
this manual.
WARNING: Inspect area before start-
ing unit. Remove all debris and hard objects
such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or
damage during operation.
Use your unit as a blower for:
D Sweeping debris or grass clippings from
driveways, sidewalks, patios, etc.
D Blowing grass clippings, straw, or leaves
into piles, around joints, or between bricks.
Use your unit as a vacuum for:
D Picking up dry material such as leaves,
grass, small twigs, and bits of paper.
D For best results during vacuum use, operate your unit at high speed.
D Move slowly back and forth over the material as you vacuum. Avoid forcing the unit
into a pile of debris as this can clog the unit.
D Keep the vacuum tube about an inch above
the ground for best results.
PLAN AHEAD
D
D
D
D
D
D
Always wear eye protection when operating, servicing, or performing maintenance
on unit. Wearing eye protection will help to
prevent rocks or debris from being blown or
ricocheting into eyes and face which can
result in blindness and/or serious injury.
Eye protection should be marked Z87.
Always wear foot protection. Do not go
barefoot or wear sandals.
Always wear respirator or face mask when
working with unit in dusty environments.
Secure hair above shoulder length. Secure or
remove jewelry, loose clothing, or clothing
with loosely hanging straps, ties, tassels, etc.
They can be caught in moving parts.
Do not operate unit when you are tired, ill, upset, or if you are under the influence of alcohol, drugs, or medication.
Keep children, bystanders, and animals
away from work area a minimum of 30 feet
(10 meters) when starting or operating unit.
Do not point the blower nozzle in the direction of people or pets.
HANDLE FUEL WITH CAUTION, IT IS
HIGHLY FLAMMABLE
D
Eliminate all sources of sparks or flame (including smoking, open flames, or work that
can cause sparks) in the areas where fuel is
mixed, poured, or stored.
D
D
D
Mix and pour fuel in an outdoor area; store
fuel in a cool, dry, well ventilated place; use
an approved, marked container for all fuel
purposes.
Do not smoke while handling fuel or while
operating the unit.
Make sure the unit is properly assembled
and in good operating condition.
Do not fill fuel tank while engine is hot or
running.
Avoid spilling fuel or oil. Wipe up fuel spills
before starting engine.
Move at least 10 feet (3 meters) away from
fuel and fueling site before starting engine.
Always store gasoline in a container approved for flammable liquids.
OPERATE YOUR UNIT SAFELY
WARNING: Stop the engine before
opening the vacuum inlet door. The engine
must be stopped and the impeller blades no
longer turning to avoid serious injury from the
rotating blades.
D Inspect unit before each use for worn,
loose, missing, or damaged parts. Do not
use until unit is in proper working order.
D Keep outside surfaces free of oil and fuel.
D Never start or run engine inside a closed
room, building or other unventilated area.
Breathing exhaust fumes can kill.
D To avoid static electricity shock, do not
wear rubber gloves or any other insulated
gloves while operating unit.
D Do not set unit on any surface except a
clean, hard area while engine is running.
Debris such as gravel, sand, dust, grass,
etc. could be picked up by the air intake and
thrown out through discharge opening,
damaging unit, property, or causing serious
injury to bystanders or operator.
D Avoid dangerous environments. Do not use
in unventilated areas or where explosive
vapors or carbon monoxide build up could
be present.
D Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes,
rooftops, etc. Keep firm footing and balance
at all times.
D Never place objects inside the blower
tubes; always direct the blowing debris
away from people, animals, glass, and solid
objects such as trees, automobiles, walls,
etc. The force of air can cause rocks, dirt, or
sticks to be thrown or to ricochet which can
hurt people or animals, break glass, or
cause other damage.
D Never run unit without the proper equipment attached. When using your unit as a
blower, always install blower tubes. When
using your unit as a vacuum, always install
vacuum tubes and vacuum bag assembly.
Make sure vacuum bag assembly is completely zipped.
D Check air intake opening, blower tubes,
vacuum tubes, and elbow tube frequently,
always with engine stopped and spark plug
disconnected. Keep vents and discharge
tubes free of debris which can accumulate
and restrict proper air flow.
-- 2 --
D
D
D
D
Never place any object in the air intake opening as this could restrict proper air flow and
cause damage to the unit.
Never use for spreading chemicals, fertilizers, or other substances which may contain
toxic materials.
To avoid spreading fire, do not use near leaf
or brush fires, fireplaces, barbecue pits,
ashtrays, etc.
Use only for jobs explained in this manual.
MAINTAIN YOUR UNIT PROPERLY
D
D
D
D
D
D
D
Have all maintenance other than the recommended procedures described in the
instruction manual performed by an authorized service dealer.
Disconnect spark plug before performing
maintenance except for carburetor adjustments.
Use only recommended Poulan or Poulan
PROŽ replacement parts; use of any other
parts may void your warranty and cause
damage to your unit.
Empty fuel tank before storing the unit. Use
up fuel left in carburetor by starting engine and
letting it run until it stops.
Do not use any accessory or attachment
other than those recommended by manufacturer for use with your unit.
Do not store the unit or fuel in a closed area
where fuel vapors can reach sparks or an
open flame from hot water heaters, electric
motors or switches, furnaces, etc.
Store in a dry area out of reach of children.
SPECIAL NOTICE: For users on U.S. Forest Land and in some states, including California(Public Resources Codes 4442 and 4443),
Idaho, Maine, Minnesota, New Jersey, Oregon,
and Washington: Certain internal combustion
engines operated on forest, brush, and/or grass
covered land in the above areas are required to
be equipped with a spark arrestor, maintained in
effective working order, or the engine must be
constructed, equipped, and maintained for the
prevention of fire. Check with your state or local
authorities for regulations pertaining to these requirements. Failure to follow these requirements
is a violation of the law. This unit is not factory
equipped with a spark arrestor; however, a
spark arrestor is available as an optional part. If
a spark arrestor is required in your area, contact
your authorized service dealer for the correct kit.
The spark arrestor, blower tubes, and nozzles
must be assembled to unit to be in full compliance with regulations.
SPECIAL NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swelling. Prolonged use in cold
weather has been linked to blood vessel damage in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek
medical attention. An antivibration system
does not guarantee the avoidance of these
problems. Users who operate power tools on
a continual and regular basis must monitor
closely their physical condition and the condition of this tool.
ASSEMBLY
WARNING: Stop engine and be sure
the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or
blower tubes. The rotating blades can cause
serious injury. Always disconnect the spark
plug before performing maintenance or accessing movable parts.
WARNING: If you receive your unit
assembled, check each step to insure your
unit is properly assembled and all fasteners
are secure. Follow all safety information in
the manual and on the unit.
D A standard screwdriver is required for assembly.
BLOWER TUBE ASSEMBLY
Align the rib on the blower tube with the
groove in the blower outlet; slide the tube
into place.
NOTE: Tube clamp must be loose enough to
allow blower tube to be inserted in blower outlet. Loosen tube clamp by turning knob counterclockwise.
Blower
Blower
Outlet
Tube
D
Groove
D
D
Rib
Tighten the tube clamp by turning the knob
clockwise.
To remove the tube, turn the knob counterclockwise to loosen clamp; remove tube.
VACUUM BAG ASSEMBLY
Open the zipper on the vacuum bag and insert the elbow tube.
D Push the small end of the elbow tube
through the small opening in the bag.
Elbow
Tube
Small
Opening
D
Zipper
Opening
Rib
NOTE: Make sure edge of the small opening
is flush against the flared area of the elbow
tube, and the rib on the elbow tube is on the
bottom.
D Close the zipper on the bag. Make sure the
zipper is closed completely.
D Remove blower tube from engine.
-- 3 --
Vacuum Inlet
Rib
Retaining Post
Vacuum
Inlet
Cover
Groove
D
Place the hooks on the vacuum tube on the
retaining posts; pivot tube into position. Secure vacuum tube by turning the knob
clockwise until tight.
Knob
D
D
D
Insert the elbow tube into the blower outlet.
Make sure elbow tube rib is aligned with the
blower outlet groove.
Turn clamp knob clockwise to tighten.
Secure the ends of the shoulder strap by
routing the strap through the buckle as
shown.
Hooks
D
When converting back to the blower feature, make sure latch on the vacuum inlet
cover is securely fastened.
USING YOUR UNIT
VACUUM TUBE ASSEMBLY
WARNING: Stop engine and be sure
the impeller blades have stopped turning before opening the vacuum inlet door or attempting to insert or remove the vacuum or
blower tubes. The rotating blades can cause
serious injury.
D Align the lower vacuum tube as shown.
Push lower vacuum tube into upper vacuum tube.
WARNING: You MUST make sure
the tubes are secure before using the unit.
OPERATING POSITION
Eye
Protection
Upper Vacuum
Tube
Blower
Lower Vacuum Tube
D
Insert a screwdriver into the latch area on
the vacuum inlet cover.
Latch
Area
D
D
Blower
Outlet
Latch Area
Vacuum
Inlet Cover
Gently tilt the handle of the screwdriver toward the back of the unit while pulling up on
the vacuum inlet cover with your other
hand.
Hold the vacuum inlet cover open until upper vacuum tube is installed.
OPERATING TIPS
Vacuum
S While vacuuming or blowing debris, hold
the unit with the muffler side facing away
from your body and clothes (see illustration
above).
S To reduce the risk of hearing loss
associated with sound level(s), hearing
protection is required.
S To reduce the risk of injury associated with
contacting rotating parts, stop the engine before installing or removing attachments. Do
not operate without guard(s) in place.
S Operate power equipment only at reasonable
hours--not early in the morning or late at night
when people might be disturbed. Comply with
times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m.,
Monday though Saturday.
-- 4 --
S To reduce noise levels, limit the number of
pieces of equipment used at any one time.
S To reduce noise levels, operate power
blowers at the lowest possible throttle
speed to do the job.
S Use rakes and brooms to loosen debris before blowing.
S In dusty conditions, slightly dampen surfaces or use a mister attachment when water is available.
S Conserve water by using power blowers
instead of hoses for many lawn and garden
applications, including areas such as gutters,
screens, patios, grills, porches, and gardens.
S Watch out for children, pets, open windows,
or freshly washed cars. Blow debris away
safely.
S Use the full blower nozzle extension so the
air stream can work close to the ground.
S After using blowers and other equipment,
CLEAN UP! Dispose of debris in trash receptacles.
FUELING
WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on
unleaded gasoline. Before operation,
gasoline must be mixed with a good quality
2-cycle air-cooled engine oil. We recommend
Poulan or Poulan Pro brand oil. Mix gasoline
and oil at a ratio of 40:1 (A 40:1 ratio is
obtained by mixing 3.2 ounces of oil with 1
gallon of unleaded gasoline). Do not use
automotive oil or boat oil. These oils will
cause engine damage. When mixing fuel,
follow the instructions printed on the
container. Always read and follow safety
rules under HANDLE FUEL WITH CAUTION
in the safety rules section.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during
storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid
engine problems, empty the fuel system
before storage for 30 days or longer. Drain the
gas tank, start the engine and let it run until the
fuel lines and carburetor are empty. Use fresh
fuel next season.
STARTING
TO STOP THE ENGINE
D
To stop the engine, press and hold the ON/
STOP switch in the STOP position until engine comes to a complete stop.
BEFORE STARTING THE ENGINE
You MUST make sure the tubes are secure
before using the unit.
D Fuel engine. Move at least 10 feet (3 meters) away from the fueling site.
D
Hold the unit in the starting position as
shown. Make sure the blower end is directed away from people, animals, glass,
and solid objects.
STARTING POSITION
Blower
Vacuum
WARNING: When starting engine,
hold the unit as illustrated. Do not set unit on any
surface except a clean, hard area when starting
engine or while engine is running. Debris such
as gravel, sand, dust, grass, etc. could be
picked up by the air intake and thrown out
through the discharge opening, damaging the
unit or property, or causing serious injury to bystanders or the operator.
STARTING A COLD ENGINE (or warm
engine that has run out of fuel)
position.
S Move throttle lever to the
S Move choke lever to FULL CHOKE.
S Slowly press the primer bulb 12 times.
Throttle
Lever
Switch
Primer
Button
Choke
Lever
S Pull starter rope sharply until engine attempts to run, but no more than 5 pulls (below 30_ F, 8 pulls).
NOTE: If engine attempts to start before the
5th pull, go to next step immediately.
S Move the choke lever to HALF CHOKE.
S Pull the starter rope sharply until the engine
runs, but no more than 5 pulls (below 30_ F,
10 pulls). Run engine for 5 seconds, then
move choke lever to OFF CHOKE.
S Allow the unit to run for 30 more seconds at
OFF CHOKE before moving the throttle leposition.
ver to
If engine has not started after 5 pulls (at HALF
CHOKE), repeat STARTING A COLD ENGINE
procedure. If engine still does not start, proceed
to STARTING A FLOODED ENGINE.
STARTING A WARM ENGINE
position.
S Move throttle lever to the
S Pull starter rope sharply until engine runs,
but no more than 5 pulls.
NOTE: If engine has not started, pull starter
rope 5 more pulls. If engine still does not run,
it is probably flooded.
-- 5 --
DIFFICULT STARTING (or starting a
flooded engine)
S Move the choke lever to OFF CHOKE.
position.
S Move throttle lever to the
S Pull rope to clear engine of excess fuel.
This could require pulling the starter rope
many times. If unit still doesn’t start, call
1-800-554-6723.
SERVICE
We recommend all service and adjustments
not listed in this manual be performed by an
authorized service dealer.
CARBURETOR ADJUSTMENTS
Your carburetor is equipped with limiter caps.
Carburetor adjustment is a complicated task.
We recommend that you take your unit to an
authorized service dealer. Damage may occur if
you turn the needles beyond the limiter stops.
IGNITION TIMING
Ignition timing is fixed, non-adjustable.
SPARK PLUG
Replace the spark plug yearly using a Champion RCJ--6Y plug. Spark plug gap is 0.025”.
CHECK MUFFLER BOLTS
WARNING: Avoid touching muffler
unless engine is cold. A hot muffler can cause
serious burns.
Once each year, ensure muffler bolts are secure and tightened properly to prevent damage. Remove muffler cover and tighten the
two muffler bolts (100 in/lbs).
Replace muffler cover when finished.
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect spark plug before performing any of the
recommended remedies below other than remedies that require operation of the unit.
TROUBLE
Engine will not S
S
start.
S
S
CAUSE
REMEDY
Engine flooded.
Fuel tank empty.
Spark plug not firing.
Fuel not reaching carburetor.
S
S
S
S
S Compression low.
S
Engine will not S Carburetor requires adjustment. S
S Crankshaft seals worn.
S
idle properly.
S Compression low.
S
Engine will not S Air filter dirty.
S
S Spark plug fouled.
S
accelerate,
lacks power, or S Carburetor requires adjustment. S
S
S Carbon build up.
dies under a
S
S Compression low.
load.
Engine
S Choke partially on.
S
S Fuel mixture incorrect.
S
smokes
excessively.
S Air filter dirty.
S
S Carburetor requires adjustment. S
S Fuel mixture incorrect.
S
Engine
S Spark plug incorrect.
S
runs hot.
S Carburetor requires adjustment. S
S Carbon build up.
S
-- 6 --
See “Starting Instructions.”
Fill tank with correct fuel mixture.
Install new spark plug.
Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
Contact authorized service dealer.
See “Carburetor Adjustments.”
Contact authorized service dealer.
Contact authorized service dealer.
Clean or replace air filter.
Clean or replace spark plug; re-gap.
See “Carburetor Adjustments.”
Contact authorized service dealer.
Contact authorized service dealer.
Adjust choke.
Empty fuel tank and refill with
correct fuel mixture.
Clean or replace air filter.
See “Carburetor Adjustments.”
See “Fueling Your Unit.”
Replace with correct spark plug.
See “Carburetor Adjustments.”
Contact authorized service dealer.
U.S. EPA
EMISSION CONTROL
WARRANTY STATEMENT
NEED ASSISTANCE?
NEED ASSISTANCE?
Call: 1-800-554-6723.
NEED A SERVICE PART?
Contact your dealer.
LIMITED WARRANTY
ELECTROLUX HOME PRODUCTS NORTH
AMERICA, Division of WCI Outdoor Products, Inc., warrants to the original purchaser
that each new Poulan PRO brand gasoline tool
or attachment is free from defects in material
and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the
original date of purchase.
2 YEARS-- Parts and Labor, when used for
household purposes.
90 DAYS -- Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use of
accessories and/or attachments not specifically
recommended by ELECTROLUX HOME
PRODUCTS NORTH AMERICA for this tool.
Additionally, this warranty does not cover tuneups, spark plugs, filters, starter ropes, starter
springs, cutting line, or rotating head parts that
will wear and require replacement with reasonable use during the warranty period. This warranty does not cover predelivery setup or normal adjustments explained in the instruction
manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
ELECTROLUX HOME PRODUCTS NORTH
AMERICA’S policy is to continuously improve
its products. Therefore, ELECTROLUX HOME
PRODUCTS NORTH AMERICA reserves the
right to change, modify, or discontinue models,
designs, specifications, and accessories of all
products at any time without notice or obligation
to any purchaser.
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U. S. Environmental Protection
Agency and POULAN/WEED EATER, DIVISION OF WCI OUTDOOR PRODUCTS are
pleased to explain the emissions control system
warranty on your lawn and garden equipment
engine. All new utility and lawn and garden
equipment engines must be designed, built, and
equipped to meet the stringent anti--smog standards. POULAN/WEED EATER must warrant
the emission control system on your lawn and
garden equipment engine for the periods of time
listed below provided there has been no abuse,
neglect, or improper maintenance of your lawn
and garden equipment engine. Your emission
control system includes parts such as the carburetor and the ignition system. Where a warrantable condition exits, POULAN/WEED EATER will repair your lawn and garden equipment
engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE: If any emissions related part on your engine (as listed under Emissions Control Warranty Parts List) is defective or a defect in the materials or workmanship of the engine causes the
failure of such an emission related part, the part
will be repaired or replaced by POULAN/WEED
EATER. OWNER’S WARRANTY RESPONSIBILITIES: As the lawn and garden equipment
engine owner, you are responsible for the performance of the required maintenance listed in
your instruction manual. POULAN/WEED EATER recommends that you retain all receipts covering maintenance on your lawn and garden
equipment engine, but POULAN/WEED EATER cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled maintenance. As the
lawn and garden equipment engine owner, you
should be aware that POULAN/WEED EATER
may deny you warranty coverage if your lawn
and garden equipment engine or a part of it has
failed due to abuse, neglect, improper maintenance, unapproved modifications, or the use of
parts not made or approved by the original
equipment manufacturer. You are responsible
for presenting your lawn and garden equipment
engine to a POULAN/WEED EATER authorized repair center as soon as a problem exists.
Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center or
call
POULAN/WEED
EATER
at
WARRANTY COM1--800--554--6723.
MENCEMENT DATE: The warranty period begins on the date the lawn and garden equipment
engine is purchased. LENGTH OF COVERAGE: This warranty shall be for a period of two
years from the initial date of purchase. WHAT
IS COVERED: REPAIR OR REPLACEMENT
OF PARTS. Repair or replacement of any war-
-- 7 --
ranted part will be performed at no charge to the
owner at an approved POULAN/WEED EATER servicing center. If you have any questions
regarding your warranty rights and responsibilities, you should contact your nearest authorized
service center or call POULAN/WEED EATER
at 1--800--554--6723 WARRANTY PERIOD:
Any warranted part which is not scheduled for
replacement as required maintenance, or which
is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be
warranted for 2 years. Any warranted part which
is scheduled for replacement as required maintenance shall be warranted for the period of time
up to the first scheduled replacement point for
that part. DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to the
determination that a warranted part is defective
if the diagnostic work is performed at an approved POULAN/WEED EATER servicing center. CONSEQUENTIAL DAMAGES: POULAN/WEED EATER may be liable for damages
to other engine components caused by the failure of a warranted part still under warranty.
WHAT IS NOT COVERED: All failures caused
by abuse, neglect, or improper maintenance are
not covered. ADD--ON OR MODIFIED
PARTS: The use of add--on or modified parts
can be grounds for disallowing a warranty claim.
POULAN/WEED EATER is not liable to cover
failures of warranted parts caused by the use of
add--on or modified parts. HOW TO FILE A
CLAIM: If you have any questions regarding
your warranty rights and responsibilities, you
should contact your nearest authorized service
center or call POULAN/WEED EATER at
1--800--554--6723. WHERE TO GET WARRANTY SERVICE: Warranty services or repairs shall be provided at all POULAN/WEED
EATER service centers. call: 1--800--554--6723
MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION RELATED PARTS: Any
POULAN/WEED EATER approved replacement part used in the performance of any warranty maintenance or repair on emission related
parts will be provided without charge to the owner if the part is under warranty. EMISSION
CONTROL WARRANTY PARTS LIST: Carburetor, Ignition System: Spark Plug (covered
up to maintenance schedule), Ignition Module.
MAINTENANCE STATEMENT: The owner is
responsible for the performance of all required
maintenance as defined in the instruction manual.
-- 8 --
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
