Electrolux Kitchen Utensil 601575 User manual
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________

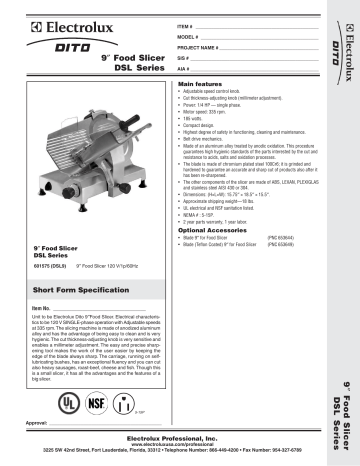

9″ Food Slicer
DSL Series
SIS # _________________________________________________
AIA # _________________________________________________
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Adjustable speed control knob.
Cut thickness-adjusting knob (millimeter adjustment).
Power: 1/4 HP — single phase.
Motor speed: 335 rpm.
185 watts.
Compact design.
Highest degree of safety in functioning, cleaning and maintenance.
Belt drive mechanics.
Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.
The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.
Dimensions: (H×L×W): 15.75″ × 18.5″ × 15.5″.
Approximate shipping weight—18 lbs.
UL electrical and NSF sanitation listed.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Optional Accessories
• Blade 9″ for Food Slicer
• Blade (Teflon Coated) 9″ for Food Slicer
9″ Food Slicer
DSL Series
601575 (DSL9)
(PNC 653644)
(PNC 653649)
9″ Food Slicer 120 V/1p/60Hz
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux Dito 9″Food Slicer. Electrical characteristics to be 120 V SINGLE-phase operation with Adjustable speeds
at 335 rpm. The slicing machine is made of anodized aluminum
alloy and has the advantage of being easy to clean and is very
hygienic. The cut thickness-adjusting knob is very sensitive and
enables a millimeter adjustment. The easy and precise sharpening tool makes the work of the user easier by keeping the
edge of the blade always sharp. The carriage, running on selflubricating bushes, has an exceptional fluency and you can cut
also heavy sausages, roast-beef, cheese and fish. Though this
is a small slicer, it has all the advantages and the features of a
big slicer.
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
9″ Food Slicer
DSL Series
5-15P
9″ Food Slicer
DSL Series
Front View
Electric
Supply voltage:
601575 (DSL9)
120 V/1p/60Hz – 1.6A
Key Information
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
Top View
The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the
slicer in case the tie rod for blade guard is removed; the microswitch prevents from restarting the slicer if the guard has not
been set in the switch-off position.
Side View
9″″ Food Slicer
DSL Series
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-30-09
