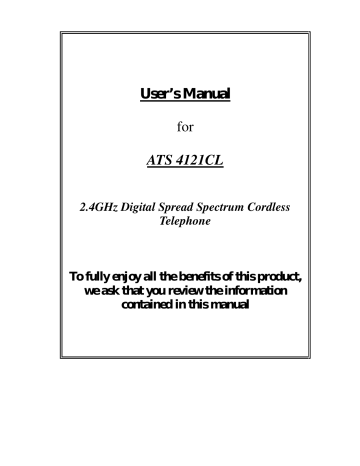

User’s Manual
for
ATS 4121CL
2.4GHz Digital Spread Spectrum Cordless
Telephone
To fully enjoy all the benefits of this product,
we ask that you review the information
contained in this manual
TABLE OF CONTENTS
Important Safety Instructions ...........................................................................................3
Safety Instructions for Handset Battery Pack....................................................................4
Handset and Base Layouts................................................................................................5
LCD Display....................................................................................................................6
Getting Started .................................................................................................................7
Basic Operation................................................................................................................8
Answering Calls .......................................................................................................8
Making Calls ..........................................................................................................10
Call Waiting / Call Waiting ID........................................................................................11
Redial ............................................................................................................................11
Muting the Handset Microphone ....................................................................................12
Headset Operation........................................................................................................112
Page ...............................................................................................................................12
Using the ‘Hands-Free’ Handset Speakerphone ..............................................................12
Pay-Per-Use (PPU) Keys1..............................................................................................12
LDS (Long Distance Service).........................................................................................13
Handset Menu and Programming ...................................................................................13
Call Log (Caller ID) .......................................................................................................14
Phone Book....................................................................................................................15
Volume...........................................................................................................................18
Ring Volume ..................................................................................................................18
Ring Pattern ...................................................................................................................19
Auto Answer ..................................................................................................................19
Key Click.......................................................................................................................19
Key Lock .......................................................................................................................20
Handset Naming ............................................................................................................20
Language .......................................................................................................................21
Message Waiting ............................................................................................................21
Base Unit Status Indication ............................................................................................21
Handset Status Indication ...............................................................................................22
Display Messages...........................................................................................................22
LED Indication – Handset Antenna ................................................................................23
Audible Alerts................................................................................................................23
Registering Your Handset...............................................................................................24
Consumer Information ...................................................................................................25
Limited Warranty ...........................................................................................................27
2
Important Safety Instructions
BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND INJURY TO PERSON, INCLUDING THE FOLLOWING
1.
Read and understand all instructions.
2.
Follow all warnings and instructions marked on the product.
3.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4.
Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
5.
Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
6.
Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect
it from overheating, these openings must not be blocked or covered. The openings should never be
blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed
in a built-in installation unless proper ventilation is provided.
7.
This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your dealer or local
power company.
8.
Do not allow anything to rest on the power cord. Do not locate this product where the cord will be
damaged by persons walking on it.
9.
Do not overload wall outlet extension cords, as this can result in the risk of fire or electric shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on this product.
11. To reduce the risk of electric shock, do not disassemble this product. Instead, when some repair
work is required, take the unit to a qualified technician. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the
appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions because improper adjustment of other
3
e.
f.
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to normal operation.
If the product has been dropped or cabinet has be damaged.
If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electrical shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
15. This power unit is intended to be correctly oriented in a vertical or floor mount position.
SAVE THESE INSTRUCTIONS
Safety Instructions for Handset Battery Pack
CAUTION:
Danger of explosion if battery is incorrectly replaced. Use only an approved battery pack in the handset of
your ATS4001C Cordless Telephone. To reduce the risk of fire or injury, always do the following when
replacing, discarding, or charging battery, when handling the batteries, be careful not to short the battery with
conducting materials such as rings, bracelets, and keys. The Battery or conducting material may overheat and
cause burns. Use only the following type and size of battery pack:
FOR HANDSET UNIT:
GP60AAAH3BMX 3.6V 600mAh GPI INTERNATIONAL LIMITED
CONTAINS NICKEL-METAL HYDRIDE BATTERY. BATTERY
MUST BE RECYCLED OR DISPOSED OF PROPERLY
1.
Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.
2.
Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
3.
Exercise care in handling batteries in order not to short the battery with conducting materials
such as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
4.
Charge the batteries provided with or identified for use with this product only in accordance with
the instructions and limitations specified in this manual.
5.
Observe proper polarity orientation between the battery(ies) and battery charger.
6.
Do not mix old and new batteries in this product.
7.
Do not mix batteries of different sizes or from different manufacturers in this product.
SAVE THESE INSTRUCTIONS
4
Handset and Base Layouts
9
8
10
7
6
5
11
12
4
3
13
2
1
14
15
16
1
Dialing Keys (0-9; *; #)
9
Message Waiting Indicator (LED)
2
Talk / End
10
Cancel
3
Clear/Delete
11
Volume ▼/ Scroll ▼
4
Flash/Speakerphone
12
Intercom
5
LDS (Long Distance Service)
13
Redial/Pause
6
Program
14
Repeat Dial (Pay-Per-Use)
7
Volume ▲ / Scroll ▲
15
411 Directory Info. (Pay-Per-Use)
8
Display (LCD)
16
*69 Last Call Return (Pay-Per-Use)
5
17
18
19
17
Message Waiting/In Use Indicator
18
Charge Indicator
19
Page
LCD Display
6
1. Caller ID Time
2. Caller ID Date
3. Ringer OFF icon (displayed when user turns the ringer off)
4. Low battery icon (on only if battery voltage is low)
5. Key lock icon (displayed when user locks the keypad)
6. In Service icon (displayed when Handset is ‘in range’ of the Base)
7. Off Hook icon (displayed when Handset is on an external or intercom call)
8. NEW icon (displayed when new Caller ID records have been received)
Getting Started
Install and Charge the Battery Pack
1
2
3
4
5
Open the battery compartment by sliding the cover down.
Plug the Battery Pack connector into the Handset socket, then place the battery pack and wires in the
compartment.
Slide the battery cover back into place.
(Optional) Attach the belt clip and change color face plate, if desired.
Choose the appropriate mounting bracket. One is for tabletop installations. The bracket with the round
hole is for wall mounting. You must use one of the brackets. Thread the telephone cord and DC
power cord through the large opening in the bracket. Plug the two cords into the corresponding jacks on
the bottom of the Base.
7
6
7
8
9
10
Snap the bracket into place on the back of the Base. If you are using the tabletop bracket, run the two
cords through the channel at the back of the bracket. If you are wall mounting the Base, carefully line
up the slots on the wall mount bracket with the studs on the telephone wall plate, and carefully mount
the telephone on the wall.
Connect the power supply to a live outlet. Make sure the outlet is not controlled by a switch. DO NOT
connect the telephone line cord to the phone jack until the Handset is fully charged.
Plug the adaptor in socket-outlet which is near equipment and easily accessible.
Place the Handset in the Base cradle. The Handset and Base communicate with each other
automatically. This is the Registration process, and it may take up to 60 seconds.
Allow the Handset to charge for a day for the first time charging. The CHARGE indicator on the
Base will glow
while the Handset is charging.
Basic Operation
With the Handset idle (on hook), and the battery pack having at least a minimum charge, it will display:
READY
When you name your Handset (see Handset Naming), it will replace ‘READY’.
Answering Calls
If auto answer is disabled, press Talk/End, or any numerical key (0 to 9), or * or # .
If auto answer is enabled, the incoming call is answered by removing the Handset from the charger. If the
Handset is not cradled, simply press Talk/End, 0 – 9, * or #.
You can end your call by pressing:
●Talk/End, or
●Place the Handset in the charger
Display presentation for incoming calls:
An incoming call without caller ID:
EXTERNAL CALL
If your local service provider sends the caller ID information, it is shown in the display instead of ‘external
8
call’. The caller ID either shows the calling number alone:
987-654-3210
or, in addition to that, caller’s name and time/date information.
The name, which will be shown in the second line, may either come from the service provider or from the
Phone Book. If the CID package sent by the service provider contains name information, this name will be
shown. However, if the calling number matches a number you have programmed in the Phone Book, the name
associated with this number is shown instead; i.e. the Phone Book name takes precedence.
Time/date information is shown, if it is contained within the information package sent out by the service
provider. The time/date information is shown in the first line.
10:20AM 6/01
SOMEBODY
987-654-3210
The Caller ID information may be blocked. The Handset will display calls with blocked name/numbers as
indicated below:
Private number:
SMITH
PRIVATE NUMBER
Out of area number:
SMITH
UNKNOWN NUMBER
Private name:
PRIVATE NAME
98-765-4321
Out of area name:
UNKNOWN NAME
98-765-4321
If both name and number are blocked:
Private name & number:
PRIVATE NAME
PRIVATE NUBMER
Out of area name & number:
UNKNOWN NAME
UNKNOWN NUMBER
Display presentation during an ongoing call:
When answer the call, the display changes depending on the type of call. The different presentations are:
Call without Caller ID:
TALK 1:32:56
EXTERNAL CALL
Call with caller ID (number only):
TALK 1:32:56
987-654-3210
If the Caller ID number is blocked (and no name), the incoming call is shows as:
TALK 1:32:56
9
PRIVATE NUMBER
or
TALK 1:32:56
UNKNOWN NUMBER
Call with Caller ID (number and name or an associated number in the Phone book):
TALK 1:32:56
SOMEBODY
Calls with blocked name in Caller ID is shown as:
TALK 1:32:56
PRIVATE NAME
or
TALK 1:32:56
UNKNOWN NAME
The number ‘1:32:56’ represents the elapsed time of your call, in hours, minutes and seconds.
Key entries during a call will replace the number/name in the second line, and the digits are left-truncated in
case the entered number exceeds 16 digits.
Display presentation after call is terminated
When the call is terminated, the current screen is maintained for 5 seconds before the phone returns to idle
presentation. This current display is interrupted in the event of a key press or an incoming call.
Making Calls
Making Calls – Pre-Dialing
You can enter the phone number before pressing Talk/End to get a dial tone:
1. Enter the number. It will be displayed on the second line. In case the number exceeds 16 digits, it
continues in the third line. You may enter a 3-second pause in the sequence by pressing REDIAL. It is
indicated by the character "P". The number can be a maximum of 24 digits, including pauses.
1234567890123P96
322300
2.
Check if the number is correct. You can backspace by pressing CLEAR. The entire number is cleared by
holding down CLEAR.
3.
Press Talk/End to dial the displayed number.
TALK 0:00:01
7890123P96322300
Making Calls – Post-Dialing
1. Press Talk/End, and listen for dial tone. The Call Timer starts running and ‘EXTERNAL CALL’ is
shown in the display:
TALK 0:00:01
EXTERNAL CALL
2.
Enter the phone number, which replaces the ‘EXTERNAL CALL’ in the display:
TALK 0:00:02
9876543210
The display shows the digits of the number as they are entered. The first digit is entered in the left-hand side of
the second line.
Ending your outgoing call
Your outgoing call is terminated by either pressing:
●Talk/End;
●or by placing the Handset in the charger.
After terminating your call, the Call Timer stops running, and ‘ENDED’ is shown in the first line of the
10
display. The Handset returns to the idle screen after 5 seconds. If the Handset is put in the cradle, it returns to
the idle screen immediately.
ENDED 0:01:15
9876543210
NOTE:
If the Handset connection is lost, (e.g. the Handset is out of range of the Base for at least 5 seconds), the Base
Unit automatically goes on-hook (terminates the call), and the Handset will emit an out of range tone as well
as display ‘OUT OF SERVICE’.
Call Waiting / Call Waiting ID
Call Waiting
When you receive a Call Waiting alert tone in the earpiece (or Handset Speakerphone), the ‘waiting’ call can
be answered by pressing the FLASH key. Pressing FLASH clears the second line in the display. If the
‘waiting’ call is not answered, the display will return to normal ongoing call presentation after 15 seconds.
Call Waiting ID
When the Handset is in conversation, and you receive Caller ID information, a special Call Waiting menu
becomes available. From this menu the user has several options, which will change depending on the state of
the current call. Contact ATS Customer Support for information on available services in your region.
Call Waiting state (when you are in conversation and receive Call Waiting ID information):
●Forward call (to voicemail, for example)
●Play an Announcement (that you are currently on another call)
●Drop the incoming call
●Answer call (terminating the first call)
●Put current call on hold while answering the ‘call waiting’ call
●Conference
Held Call state (conversation with call on hold):
●Return to the call on hold
●Drop the call on hold
●3-way conference with both callers
Conference Call state:
●Drop First call
●Drop Last call
When you receive Call Waiting ID, the Call Waiting options menu can be accessed by pressing PROG.
Here is an example of the display after pressing PROG during a Call Waiting ID event:
FORWARD CALL
ANNOUNCEMENT
Use the ▲ and ▼ scroll keys to highlight the desired action.
Confirm the action by pressing PROG.
The Handset then returns to the normal call display.
The Call Waiting options menu can be aborted by pressing CANCEL.
For more information on Call Waiting options, contact ATS Customer Support.
Redial
The last 5 called numbers are stored in redial memory.
With the Handset idle (on hook), press REDIAL to find the desired phone number. An error tone is emitted in
11
the event redial memory is empty. Press Talk/End to dial the displayed number.
-ORPress Talk/End and listen for dial tone. Now, press REDIAL to scroll through the list of recently dialed
numbers. Dial the displayed number by pressing PROG.
Muting the Handset Microphone
It is possible to mute the microphone during a conversation by pressing the CLEAR/DEL key. With the
microphone muted, you can hear the other party, but they can’t hear you. Return to the two-way conversation
by pressing CLEAR/DEL again.
The Mute function is automatically cancelled when you hang up (go on hook).
Periodic beeps in the earpiece and a text message in the display indicate that the microphone is muted:
TALK 1:35:06
MIC MUTE
Headset Operation
Your ATS cordless Handset is equipped with a 2.5 mm. headset jack for use with an optional accessory
headset (not included).
To purchase a compatible headset, contact your local ATS business office.
Once you have a compatible headset, locate the headset jack located on the side of the handset.
First, remove the protective rubber cover. Plug the headset cord into the jack. Do not force the connection
When a headset is connected, the microphone on the handset is muted to limit the effect of background noise.
Your ATS cordless handset is also equipped with a belt clip. Align the pins located in the inside edge of the
clip with the notches on the sides of the handset. The clip should snap securely into place.
Page
The page call function is used as an aid to locate the Handset.
Press PAGE on the Base Unit to page the Handset.
Using the ‘Hands-Free’ Handset Speakerphone
The hands-free operation can be switched on and off while in conversation. Using the Handset Speakerphone,
you can place the Handset on a table talk hands-free. It’s a portable speakerphone!
With the Handset either idle or active, enter hands-free operation by holding FLASH down for 2 seconds.
While in conversation, the hands-free function can be enabled or disabled by holding FLASH down for 2
seconds.
The hands-free mode is automatically deactivated when you terminate your call.
NOTE: The speakerphone is not accessible while the Handset is in the charger.
Pay-Per-Use (PPU) Keys
There are 3 Pay-Per-U7691(e)-5.46151( )6.00703(s)3.7483472(e)-5.46151(d)-0.827691(g)-0.61781(d)12.0141(l)-4.5178TJ -390.145 -
12
c) Information------ 411
To use any of these PPU features:
1) Press the desired PPU access key.
2) The phone automatically goes off-hook and the number is dialed.
-OR1) Press Talk/End.
2) Press the desired PPU access key
LDS(Long Distance Service) Key
LDS access from the Handset
To dial the LDS access number:
1) Press the LDS access key.
2) The phone automatically goes off-hook and you are connected to the Long Distance platform.
Handset Menu and Programming
1. Press PROG key to enter the menu.
2. Use the UP ▲ / DOWN ▼ keys to scroll through the menu items. By pressing ▼ at the last menu item,
you will scroll to the first menu item; and by pressing ▲ at the first menu item, you will scroll to the last
menu item.
3. Press CANCEL to step back one level in the menu
4. Press PROG to choose the menu item shown in the first line of the display.
5. Enter setting/level number. A key click is heard when you enter a valid setting/level number.
6. Confirm setting/level by pressing the PROG key. The Handset automatically returns to the previous
menu level.
In case the Handset is in the menu mode when a call arrives, the phone automatically aborts the menu and
receives the incoming call. The menu is not accessible during an ongoing call.
If there are no key presses for 30 seconds while in the menu mode, the Handset automatically returns to an
idle state.
The menu is accessed by pressing the PROG key. An overview of the menu structure is shown in Figure 1.1.
Idle
Call log
Recall
Phone book
Store
Handset Volume
Ring Volume
External
Ring pattern
Internal
Auto Answer
Key click
Key lock
Handset name
Language
Clear msg wait
Figure 1.1 Menu structure.
13
Call Log (Caller ID)
All incoming calls with a valid Caller ID provided phone number are stored in the call log. Name and
time/date information is also stored in the call log if your service provider sends it.
The number of entries stored in the call log is indicated when the Handset is in idle mode:
READY
1 CALL
The number of unanswered calls (NEW), if any, is indicated:
READY
2 CALLS/1 NEW
The new call indication is removed when the call log has been reviewed.
The call log is entered via the menu, as described below or by pressing ▼ in idle mode, whereby the Handset
jumps directly to the call log.
The call log is reviewed as follows:
1. PROG to enter the menu.
>CALL LOG
PHONE BOOK
2. PROG to enter the Call Log sub-menu.
3. The caller’s name is shown in the second line of the display, and the number in the third line. If time and
date information is contained in the CID and there are three lines in the display, it is shown in the top line.
NEW
7:48PM 4/07
SOMEBODY
987-654-3210
3
The name contained in the received CID is replaced by the name in the Phone Book, if the Phone Book
contains a matching number; i.e. the Phone Book name takes precedence.
4. Scroll through the call log entries using the ▼ and ▲ keys.
11:02AM 11/27
ANOTHERPERSON
012-345-6789
14
The following actions are possible from the call log:
●Dialing the caller displayed by pressing the Talk/End key.
●Deleting the caller displayed by pressing the CLEAR key.
If you press the DELETE key, you will be asked ‘DELETE?’; you can either accept deletion by pressing
PROG (=yes) or cancel it by pressing CANCEL (=no).
CALL LOG
DELETE?
The phone returns to call log review.
●You can delete all entries in the call log by pressing and holding CLEAR. You will then be asked ‘DELETE
ALL?’ Accept the deletion by pressing PROG (= yes) or cancel it by pressing CANCEL (= no).
CALL LOG
DELETE ALL?
Note: ‘DELETE ALL’ will only function when there are no NEW (unreviewed) records.
By selecting PROG, the phone displays “CALL LOG EMPTY” for 5 seconds and returns to main menu after
14
deleting. By selecting CANCEL, the phone returns to the Call Log.
●Storing the CID information displayed into the Phone Book by pressing the PROG key. Before the name
and number is transferred to the Phone Book, you can edit the number and name. The phone returns to Call
Log review.
Note: CID information without a valid phone number cannot be transferred to Phone Book memory.
●Exit the Call Log review by pressing the CANCEL key.
Two info messages are displayed together with the Caller ID data:
●‘NEW’ icon on the right hand side of the top line indicates that the call has not previously been reviewed.
The ‘NEW’ icon is cleared when scrolling to the next entry or when leaving the Call Log. The maximum
length of the name shown in the second line is 16 characters. If the name is longer, it is right truncated.
●A number in the right hand side of the third line shows the call log number - 1 is the first (oldest) received
call. The maximum length of the number shown in the third line is 16 characters. If the number is longer, it is
left truncated.
The incoming calls are sorted by the order of arrival; the latest is shown first. A number is only contained once
in the list. A new call from a caller that is already contained in the log removes the old entry and inserts the
new call. All calls with a blocked number are stored as individual calls. Your Handset stores 20 records.
If the call log is full, the oldest entry is deleted to make room for the new call. If the call log is empty when the
user tries to enter to Call Log review, a message ‘CALL LOG EMPTY’ is displayed and the phone returns to
the main menu after 5 sec.
CALL LOG EMPTY
It is possible to change the number format in the call log before storing the name/number in the Phone book or
dialing the caller. Pressing the REDIAL key toggles the number format. The available number formats
depend on the received number. The table below shows the possible selections and the order as a function of
the incoming number format. The number format is changed by truncating or by adding the digits as
described in the table 1.1.
Incoming format
11
Dialable/storable formats and selection sequence
1xxx-yyy-yyyy
xxx-yyy-yyyy 1-yyy-yyyy
10
xxx-yyy-yyyy
8
1-yyy-yyyy
7
yyy-yyyy
Table 1.1
1-yyy-yyyy
yyy-yyyy
yyy-yyyy
1xxx-yyy-yyyy
yyy-yyyy
1-yyy-yyyy
Number format selection.
yyy-yyyy: basic number
xxx: area code
Phone Book
●You can store up to 50 Phone book entries, which includes names and phone numbers.
●The Phone book entries are sorted and presented in alphabetical order.
●It is possible to abort an initiated Phone book operation by double-clicking the Talk/End key.
Characters
Names are entered using the numerical keys. Characters are generated by multiple key presses (see the table
below). The cursor moves to the next position if another numerical key is pressed or by pressing the ▲ key.
15
The last entered character is deleted by pressing CLEAR or ▼. The entire name is cleared with a long
CLEAR key press.
Key
1
2
space
1
1
A
B
2
D
E
3
G
H
4
J
K
5
M
N
6
P
Q
7
T
U
8
W
X
9
0
0
*
?
*
#
'
#
Table 1.2 Character guide.
3
Character versus key press numbers
4
5
6
7
C
F
I
L
O
R
V
Y
2
3
4
5
6
S
8
Z
a
d
g
j
m
7
t
9
b
e
h
k
n
p
u
w
!
,
/
-
(
.
)
&
c
f
i
l
o
q
v
x
8
9
r
s
y
z
Phone Book Operation
The Phone Book is entered via the menu, as described below.
The Phone book is accessed as follows:
1) PROG, to enter the menu.
>CALL LOG
PHONE BOOK
2) DOWN (▼)
>PHONE BOOK
HANDSET VOLUME
3) PROG, to enter the Phone Book sub-menu.
>RECALL
STORE
HINT: With Handset idle (on-hook), press ▲ to go directly to Phone Book mode.
From the Phone Book RECALL menu it is possible to:
● Search for an entry and dial the number. If no records match the search criteria, the closest alphabetic match
is displayed.
● Edit an entry.
● Delete an entry.
From the Phone Book STORE menu it is possible to:
● Enter a new entry in the Phone Book.
When attempting to search, edit or delete entries in an empty Phone Book, the Handset will display:
PHONEBOOK EMPTY
How to use your Phone Book:
Searching for and dialing from the Phone Book:
1) Press PROG to enter the menu; press ▼ to put PHONE BOOK on the top line of the display; press
PROG again; with "RECALL" in the first line, press PROG again.
ALICE
2278238989
2) Scroll through the Phone book entries using ▼ or ▲; OR enter the first character of the desired name and
continue searching using the UP/DOWN keys.
R
16
ROBERT
9898327822
17
STORE NAME
18
Ringing is switched off by adjusting the ring volume to zero. A "Ringer OFF" icon is shown in the display
during idle mode. The default ring volume is 3.
Ring Pattern
The ring pattern of an incoming call is changed by the following key sequence:
1) Press PROG.
>CALL LOG
PHONE BOOK
2) Press the ▼ key four times.
>RING PATTERN
AUTO ANSWER
3) Press PROG to enter the ring pattern sub-menu.
>EXTERNAL
INTERNAL
4) Press the PROG key to choose external ring pattern setting.
EXT RING PATTERN
0
5) Enter 0 to 9 , or adjust using ▼/▲ keys. The selected ring pattern is played for you.
EXT RING PATTERN
4
6) Press PROG to confirm the setting. The display will return to:
>EXTERNAL
INTERNAL
The default external ring pattern is 0.
Auto Answer
With Auto Answer ON, you can answer a call by simply removing the Handset from the Base Unit.
1) Press PROG.
>CALL LOG
PHONE BOOK
2) Press the ▼ key five times.
>AUTO ANSWER
KEY CLICK
3) Press PROG to enter the auto answer sub-menu.
AUTO ANSWER
OFF
4) Enable auto answer by pressing 1 or ▲, or disable auto answer by pressing 0 or ▼.
AUTO ANSWER
ON
5) Press PROG to confirm the setting. The display will return to:
>AUTO ANSWER
KEY CLICK
Auto answer is disabled by default.
Key Click
When the key click option is enabled, any key press generates a click sound, except when the keypad is locked.
To access the Key Click option:
1) Press PROG.
>CALL LOG
PHONE BOOK
2) Press the ▼ key six times.
>KEY CLICK
KEY LOCK
3) Press PROG to enter the key click sub-menu.
KEY CLICK
ON
19
4) Enable key click by pressing 1 or ▲, or disable key click by pressing 0 or DOWN.
KEY CLICK
OFF
5) Press PROG to confirm the setting. The display will return to:
>KEY CLICK
KEY LOCK
Note: 1) Key Click is On by default; and 2) Key Click is disabled when the key lock is ON.
Key Lock
It is possible to lock the Handset keypad. The key lock function is set/reset by:
1) Press PROG.
>CALL LOG
PHONE BOOK
2) Press the ▼ key seven times.
>KEY LOCK
HANDSET NAME
20
>CALL LOG
PHONE BOOK
2) Press the ▼ key eight times.
>HANDSET NAME
LANGUAGE
21
●T
 he second Base Unit indicator serves multiple purposes – specifically, Message Waiting and Line Status.
This LED is sometimes red and sometimes green, depending on what it is indicating:
SITUATION
WITHOUT MESSAGES ‘WAITING’ WITH MESSAGES ‘WAITING’
Phone line
Disconnected
Very slowly flashing Green
Very slowly flashing Green
Phone line is idleLED is off Flashing Red
Line is ringing
1/2 second Green; 1/2 second Off
1/2 second Green; 1/2 second Off
Handset in use
LED is steady Green
1 second Green; 1 second Off
Extension in use
LED is steady Green
1 second Green; 1 second Off
Handset Status Indication
Handset Status Indication – Display Icons and Antenna indicator (LED)
Service Indication (Antenna icon)
This icon is displayed when the Handset is within range of the Base. This icon is off when the Handset is out
of range of the Base.
Off Hook (Telephone icon)
This icon is on when the Handset is in use (off hook).
Low Battery
This icon is displayed when the battery voltage drops below the critical charge level. The icon is turned off
when the battery is charged above its critical level.
Key Lock
The key lock icon is displayed when the keypad has been locked.
New Call (NEW)
The New Call icon is displayed when there are one or more unreviewed calls in the CID call log.
Ringer Off
The icon is displayed when you program the ringer to OFF (ring volume = 0).
Display Messages
The Handset provides a number of on-screen status messages, both in the idle state and during conversation.
The following status messages are shown in the idle mode (in prioritized order):
When the Handset is out of range, an "out of service" message is shown in line one.
OUT OF SERVICE
When the Handset does not have a valid registration, the display shows:
NOT REGISTERED
PLACE IN BASE
If a new battery has been inserted (or the battery has been run down), and the battery voltage is too low to
guarantee reliable use, the display shows:
PLACE IN CHARGER
When the battery’s nominal charge level is reached, it will display "CHARGING":
22
CHARGING
When the battery is charged up to a level above its nominal charge level, it will display "READY":
READY
NOTE: Even though the display now displays ‘READY’, the battery pack may not be fully charged.
If the phone line is disconnected, a "no line" warning is shown on line two:
READY
NO LINE
When the keypad is locked, the status is displayed on line two:
READY
KEY LOCKED
If the phone line is in use (by another telephone connected the same line), the “ext in use” message is
presented on line two:
READY
EXT IN USE
If there are new, unreviewed voicemail messages, the status is displayed on line two:
READY
MESSAGE WAITING
When there are one or more new, unreviewed calls stored in the CID call log, the status is displayed on line
two:
READY
10 CALL/3 NEW
When the ringer is programmed to Off (volume = 0), the status is displayed on line two.
READY
RINGER OFF
The following messages may be displayed during conversation:
When the battery low level is reached, the "charge battery" recommendation is displayed on line two:
TALK 1:32:56
CHARGE BATTERY
When the microphone is muted, the status is displayed on line two:
TALK 1:32:56
MIC MUTE
LED Indication – Handset Antenna
A red indicator (LED) inside the antenna illuminates when there are new, unplayed Voice Messages in your
voicemail service.
Audible Alerts
The Handset provides a number of audible indications.
Out of Range:
●The Handset emits one triple-beep after being out of range of the Base for at least 1 minute.
Low Battery:
●The Handset emits a double-beep two times (separated by 1 minute) in the earpiece when your on a call.
23
●The Handset emits a double-beep two times (separated by 1 minute) when in idle (on-hook) mode.
Charging:
●The Handset beeps when correctly placed in the charger.
Registration:
●The Handset beeps when the registration procedure is successfully completed.
●The Handset emits one double-beep in the event of unsuccessful registration.
Registering Your Handsets
Your Handset will be registered to the Base Unit as you charge it initially. Registration will be indicated by
READY displayed on the screen.
After initially charging your second Handset in its charge cradle for at least 10 hours, remove your other
Handset from the Base and place the second Handset in the Base cradle to initiate registration. When READY
appears on the second Handset, registration is complete.
Allow at least 45 seconds for the second Handset to register with the Base.
24
Consumer Information
1.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On
the back of this equipment is a label that contains, among other information, a product identifier in the
format US:DDKW400BWWI244X. If requested, this number must be provided to the telephone
company.
2.
An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided
(i.e., RJ11C) in the packaging with each piece of approved terminal equipment.
3.
A plug and jack used to connect this equipment to the premises wiring and telephone network must
comply with the applicable FCC part 68 rules and requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. See installation instructions for details in section (2).
4.
The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming
call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as determined by the total RENs, contact the local
telephone company. The REN for this product is part of the product identifier that has the format
US:DDKW400BWWI244X. The digits represented by 00 are the REN without a decimal point (e.g., 03
is a REN of 0.3). The REN is separately shown on the label too.
5.
If this equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn’t practical,
the telephone company will notify the customer as soon as possible. Also, you will be advised of your
right to file a complaint with the FCC if you believe it is necessary.
6.
The telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this happens the telephone company will provide
advance notice in order for you to make necessary modifications to maintain uninterrupted service.
7.
Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not
alternate or repair any parts of device except specified.
8.
Connection to party line service is subject to state tariffs. Contact the state public utility commission,
public service commission or corporation commission for information.
9.
This equipment is hearing aid compatible.
NOTICE:
1) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation
of this phone does not disable your alarm equipment. If you have questions about what will disable alarm
equipment, consult your telephone company or a qualified installer.
25
2) According to telephone company reports, AC electrical surges, typically resulting from lightning strikes,
are very destructive to telephone equipment connected to AC power sources. To minimize damage from these
types of surges, a surge arrestor is recommended.
Should you experience trouble with this equipment, please contact ATS Customer Support for service
information. If the equipment is causing harm to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
CAUTION: To maintain compliance with the FCC's RF exposure guidelines place the base unit at least 20
cm from nearby persons.
CAUTION: For service or replacement, please contact the follows to choosing a suitable headset.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
•
Consult the dealer or an experienced radio TV technician for help.
ATS Customer Support:
1-800-845-4774
26
Limited Warranty
WHAT DOES OUR WARRANTY COVER?
*
Any defect in material and workmanship.
FOR HOW LONG AFTER THE ORIGINAL PURCHASE?
*
To the original purchaser only – ONE YEAR.
WHAT WILL ATS DO?
*
At our option, repair or replace your unit.
HOW DO I ARRANGE FOR SERVICE, WHETHER IN OR OUT OF WARRANTY?
*
Call Customer Support for Return Authorization at 1-800-845-4774.
*
Carefully pack your unit. Include all accessories provided with the product. We recommend using
the original carton and packing materials.
*
Include a copy of the sales receipt or other evidence of date of original purchase (if purchase was
within the last 12 months).
*
Print you name, address and phone number, along with a description of the defect, and include this
in the package.
*
Include payment for any service or repair not covered by warranty, as determined by ATS.
WHAT DOES OUR WARRANTY NOT COVER?
a) Batteries
b) Damage from misuse, neglect or acts of nature (lightning, floods, power surges, etc.)
c) Products which may be have been modified or incorporated into other products
d) Products purchased and/or operated outside of the US, its territories, or Canada
e) Products services by the owner or a service facility not expressly authorized by ATS
f) Products purchased more than 12 months from the current date
g) Units purchased in “AS IS” condition, or units purchased as “Distressed Merchandise”
HOW DOES STATE OR PROVINCIAL LAW RELATE TO THIS WARRANTY?
*
This warranty gives you specific rights. You may also have other rights which vary from state to
state or province to province.
For service information, in and out of warranty, call ATS Customer Support at:
1-800-845-4774
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
