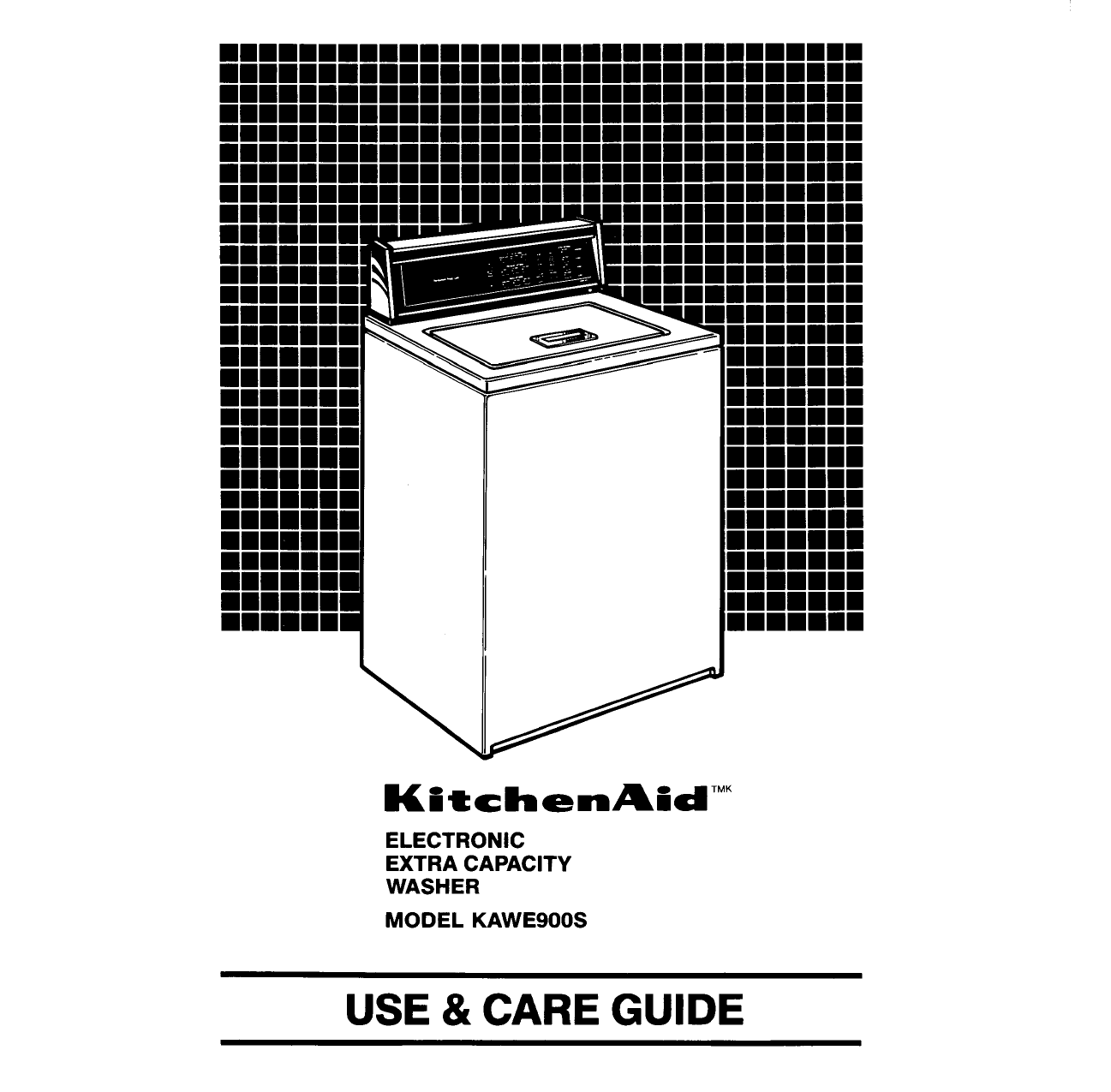

 Kitchen A
ELECTRONIC
EXTRA CAPACITY
WASHER
MODEL KAWE900S
USE 8: CARE GUIDE
CONTENTS Page Page
Before Using Your Washer ...... 2 Other Instructions ............. 15
Important Safety Instructions ... 2 Proper and Improper
Ownership Registration ........ 3 Selections ................ 15
Parts and Features ............ 4 Indicator Lights ............. 15
Starting Your Washer .......... 4 Liquid Bleach Dispenser ..... 16
What Happens in Each Liquid Fabric Softener
Pre-Wash Option ............ 9 Dispenser ................ 16
What Happens in Each SELF-CLEAN Lint Filter ...... 16
Cycle Selection ............. 11 Caring for Your Washer ........ 17
What Happens in Each Rinse If You Need Service or
Option ..................... 13 Assistance ................. 19
What Happens in Each Extra Warranty .............. Back Cover
Option ..................... 14
BEFORE USING YOUR WASHER
YOU ARE RESPONSIBLE FOR MAKING SURE THAT YOUR WASHER:
e |s installed by a qualified installer.
® |s properly maintained.
* |s properly installed and leveled on a floor that can support the weight*
* Is located in an area where the temperature will not fall below freezing.
* |s properly connected to the right water supply and drain*
e Is used only for its intended function.
® |5 not used where there may be explosive fumes.
* Is not used by children or anyone unable to operate it properly.
ALWAYS unplug the power supply cord or turn off electrical power before
attempting to service the washer.
DO NOT machine wash glass fiber materials. Small particles can stick to
fabrics washed in subsequent loads and cause skin irritation.
ALWAYS read and follow instructions on packages of detergent and laundry
aids — especially warnings and precautions.
"See the INSTALLATION INSTRUCTIONS for complete information.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to per-
sons when using your washer, follow basic precautions, including the
following:
1. Read all instructions carefully for important information before using your
appliance.
2. Your washer should be installed in an area protected from weather.
3. Your washer should be connected to the right kind of outlet, electrical supply
and grounding. See the INSTALLATION INSTRUCTIONS for complete
information.
4. NEVER wash articles in the washer that have been spotted, cleaned,
washed or soaked in gasoline, wax, paint, or other flammable fluids. The
fumes can create a FIRE HAZARD or EXPLOSION. NEVER add these
materials to your washer, and NEVER use them near your washer. ALWAYS
hand launder and air dry fabrics treated with flammable fluids.
5. NEVER allow children to play on or in the washer. Close supervision is
necessary when this or any appliance is used near children.
6. Before your washer is removed for service or is discarded, ALWAYS remove
the lid to prevent accidental entrapment.
7. DO NOT tamper with controls.
8. DO NOT reach into the washer if the agitator is moving or the basket is
spinning. If the lid is opened while the basket is spinning, the basket will
automatically stop in a few seconds.
9. WARNING: If hot water system has not been used for a period of
2 weeks or more, hydrogen gas may build up in water heater and
hot water pipes. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a time period, turn on all hot
water faucets and let the water flow from each for several minutes
before using the washer. This will allow gases to escape. DO NOT
smoke or use an open flame during this procedure.
10. DO NOT install or perform any servicing unless you are qualified. Improper
installation, repair, or servicing may result in personal INJURY or FIRE
HAZARD. |
SAVE THESE INSTRUCTIONS
OWNERSHIP REGISTRATION
Before using your washer, please fill out and mail your ownership registration
card packed with the Use á Care Guide. This card will enable us to contact you
in the unlikely event of a product safety notification and assist us in complying
with the provisions of the Consumer Product Safety Act. THIS CARD DOES
NOT VERIFY YOUR WARRANTY.
Keep a copy of the sale receipt showing the date of purchase. PROOF OF
PURCHASE WILL ASSURE YOU OF IN-WARRANTY SERVICE.
Write down the following information. You will need it if your washer ever
requires service.
Model Number* Serial Number*
Date Purchased Date Installed
Dealer's Name
Address
Phone
*Model and serial numbers are located on a label underneath the lid,
near the hinge.
Permanent Press care
PARTS AND
FEATURES
Dower. Console Light cod State Laundry
Controls oe Console Electronic Information Self-Clean
Touch Controls Center Lint Filter
(not shown) (not shown)
grrr —
—o Digital Model and Serial
_— ; Number Plate
- = Time Display
ë des (not shown)
Water Level
Controls
a
Liquid Bleach
Dispenser
Liquid Fabric
- Softener Dispenser
Agitator
Basket
~~ Tub
REMOVE the Energy Guide
label. It will be easier to remove
before the washer is used. If nec-
essary, mineral spirits may be
used to remove label adhesive.
Do not scrape adhesive from your
washer or finish may be damaged.
You should wipe out the basket
with a damp cloth before using to
remove dust from storing or
shipping.
STARTING YOUR WASHER
The automatic washer has Solid-State Electronic Controls. Read instructions
carefully before setting any cycles.
CYCLE SELECTIONS
GULAR HEÁYY PEAMT PRESS ACE
= =
PRE WASH OPTIONS
"RE WAS EXTRA wash
= =
RINSE OPTIONS
WARM RINSE LES HINGE SPIN
в = =
1. Touch ON
CYCLE
REGULAR HEAVY PEF
= =, =
|| y
(E
RESTART |
я | or | LE.
¢ The washer will power up and
the Cycle Selection lights will scan.
The controls are now ready for
selection.
NOTE: You have 15 minutes to
make a selection or the washer will
automatically shut off.
2. Select a PRE-WASH
Option |
PRE-WASH OPTIONS
SOAK RN EXTRA WASH
E
e If pre-washing is not needed,
skip to step 3.
e A PRE-WASH Option must be
selected before a CYCLE Selection
or within 8 seconds after a
selection.
e The washer will shut off after
completing a SOAK or PRE-WASH
option.
* The EXTRA WASH Option must be
combined with a CYCLE Selection.
See page 10.
* All options can be changed any
time before they have started.
plas
ETA
EXTRA OPTIONS
[E]
CONSOLE LIGHT
3. Select a CYCLE
Selection
CYCLE SELECTIONS
DELICATES
= |
REGULAR HEAVY PERM T PRESS
ET ! LC ы
PRE-WASH OPTIO,
SOAK PRE WASH 3
es a
e Touch a CYCLE Selection pad that
best matches the type of load being
washed. See pages 11 and 12.
NOTE: The lights will scan until a
selection has been made or until
the washer shuts off.
¢ The washer will begin filling shortly
after a CYCLE Selection is made.
For More Selection Time
REGULAR HEAVY PE
- | =
e Touch PAUSE/RESTART pad at
any step if you want more time to
decide on another selection.
e PAUSE/RESTART will stop the
washer for up to 15 minutes.
To restart the washer, touch the
blinking PAUSE / RESTART pad.
Changing a Selection
e CYCLE Selections may only be
changed up to the start of the first
FILL, about 9 seconds after a se-
lection has been made.
e If the washer has completed the
first FILL, touch OFF, then start
over with step 1.
* The indicator lights will stay on and
one beep will sound when a selec-
tion has been made.
4. Select a WATER LEVEL
— = HIGH
=
SH OPTIONS
3E-WASH EXTRA WASH
[
aw TIME DOWN
WATER LEVEL
PD сан
The washer will automatically fill to
the water level between MED and
HIGH. If more or less water is
needed, touch the WATER LEVEL
pad. The non-blinking light shows
the selected water level. The
blinking light shows the actual
water level.
e Select the setting that fits the size
of load you are washing.
‘See your WASHER GUIDE for
load size suggestions.
Permanent Press care
LOAD SIZE AND
WATER LEVELS
CAUTION: DO NOT OVERLOAD
WASHER.
For best cleaning results, the
load must be able to move freely in
the water. Too big a load or too little |
water can cause wear or tearing
of load items.
HIGH
— — (21.7 gals./82.1 Ly*
T= I (19.2 gals./72.7 L)*
: NN MED
: а (16.4 gals./62.1 L)*
(14.1 gals./53.4 L)*
LOW
(11.9 gals./45.0 L)*
*Approximate fill with load.
CYCLE SELECTIONS
REGULAR HEAVY PERM T PRESS TUS
= - ! a]
PRE-WASH OPTIONS
SOAK PRE WASH
=
Qi | EXTRA WASH
¡ PAUSE = palit
I ETI
RINSE OPTIONS
WARM RINSE RCT RINSE SPIN
= ; a Ma
f - iow
DO CER
5. To Change WASH or
RINSE Temperatures
The washer is programmed to
automatically provide a warm wash
with a cold rinse in every selection.
RINSE OPTIONS
EXTRA RINSE
EXTRA OPTIONS
RINSE SPIN HOT WASH
CLE ui 7
Ved ANY RINSE
= y (=
J L_
COLD WasH
e |f another Wash or Rinse
temperature is wanted, touch the
pad that corresponds to the
temperatures wanted.
* To protect some fabrics, the
washer will not accept certain
selections.
* HOT WASH Option cannot be
accepted with:
— DELICATES Cycle Selection.
— any PRE-WASH Option.
e WARM RINSE Option cannot be
accepted with:
— PERM'T PRESS Cycle Selection.
RINSE OPTIONS
ACTE SN EIT
LER DO
EXTRA OPTIONS
HOT WASH
If You Touch
DELICATES.
Option Would
Not Be Accepted.
e If a selection has not been
accepted, the indicator light will not
stay on and 3 beeps will sound.
* The indicator light will stay on and
one beep will sound when a selec-
tion has been accepted.
WATER LEVEL
EXTRA OPTIONS
HOT WASH
=
HME mm FRE WASH
Dr
| LURE
— je ) MEET
TIME UP
| Ta
| ыы
= RINSE
HLL
a] CYCLE SENTRY
e A cycle selection must be selected
before HOT WASH or COLD
WASH options can be accepted.
IMPORTANT:
To save energy and receive the
most wrinkle-free results, use a
cold rinse for all fabrics.
TIME
The TIME Display shows the
total amount of wash agitation time
selected. When the first fill begins,
the display changes to “AU”
indicating automatic operation.
se LOW
WATER LEVEL
e Any time during wash agitation the
TIME UP or TIME DOWN pad can
be touched. The display will show
the number of minutes left in wash
agitation.
e During the final rinse the display
changes to show the number
of minutes left until the cycle is
finished and the load can be
removed.
Changing the Amount
of Wash Time
ША
DN
ti
TIME UP
COLD WASH
CYCLE SENTI
When a CYCLE Selection is
touched, the amount of wash agita-
tion time will appear in the TIME Dis-
play. The wash agitation time which
appears is the recommended time
for that cycle (for normally soiled
items). If more or less time is desired,
touch the TIME UP or TIME DOWN
pad until the desired amount of time
is showing in the TIME Display,
before the end of the first fill.
See pages 11 and 12 for minimum
and maximum wash times.
Restarting the Washer
The washer is designed to
remember where it was in the cycle
when PAUSE/RESTART is touched.
It will not remember if there is a
power interruption, such as a blown
fuse.
If power is lost at the beginning
of a wash cycle:
1. Touch ON.
2. Touch CYCLE Selection and
Options.
The washer will finish filling, if
needed, and wash according to the
new selections.
If power is lost with water
remaining in the washer:
1. Touch ON.
2. Touch SPIN to drain and spin the
load.
3. After the washer stops, touch
ON again.
4. Touch CYCLE Selection and
Options.
The washer will wash according to
the new selections.
If power and memory are lost at
the beginning of a rinse cycle:
1. Touch ON.
2. Touch RINSE/SPIN to finish filling
and/or rinsing.
WHAT H APPEN S SOAK Cycle Option
Brief periods of agitation and soak
IN EACH times help remove heavy Soils and
PRE-WASH Treatment. Use recommended
OPTION amount of detergent.
SOAK 1. Touch ON.
PRE-WASH OPTIONS
SOAK PRE-WASH UTR "| 2. Check WATER
= =
Een 3. Touch SOAK
Use PRE-WASH Options to The washer will start to fill in |
provide extra cleaning to heavily 8 seconds. NOTE: The washer will
soiled or stained items. The HOT shut off after completing the SOAK
WASH Extra Option cannot be se- Cycle Option.
lected with any PRE-WASH Options.
Hot water can set stains.
NOTE: When combining the EXTRA
tion, itis necessary to select the
EXTRA WASH Option before the
washer starts to fill. SOAK 26 Minutes With
Occasional Agitation.
FILL WARM (or COLD Option) to
Selected Level.
|
|
|
| WASH 5 Minutes. |
|
| DRAIN No Agitation. |
|
| SPIN. |
e The washer will stop after spin.
¢ After the SOAK Cycle Option has
been completed, a CYCLE Selec-
tion can be chosen.
NOTE: The Soak Cycle Option auto-
matically fills with warm water to the
water level between HIGH and MED,
unless a different water level and/or
COLD WASH has been selected.
For best results, use warm water for
soaking stained items. Hot water
can set stains.
PRE-WASH Option
Use PRE-WASH on loads that
need some pretreating before a
CYCLE Selection. Use recom-
mended amount of detergent or
pre-soak additive.
1. Touch ON.
PRE-WASH 2. Check WATER
3. Touch
PRE-WASH.
The washer will start to fill in
8 seconds. NOTE: The washer will
shut off after completing the PRE-
WASH Option.
FILL WARM (or COLD Option) to
Selected Level.
Do WASH 4 Minutes. |
|
| DRAIN No Agitation. |
| SPIN ||
® The washer will stop after spin.
e After the PRE-WASH Option has
been completed, a CYCLE Selec-
tion can be chosen.
NOTE: The PRE-WASH Option auto-
matically fills with warm water to the
water level between HIGH and MED,
unless a different water level and/or
COLD WASH has been selected.
For best results, use warm water for
pre-washing stained items. Hot
water can set stains.
|
10
EXTRA WASH Option
Use for washing heavily soiled
loads that require maximum soil
removal. Double the recom-
mended amount of detergent
when using this option.
1. Touch ON.
EXTRA WASH 2. Check WATER
LEVEL. |
WASH.
4. Touch a
CYCLE
Selection.
The washer will start to fill in 8
seconds. NOTE: The washer will not
begin EXTRA WASH until a CYCLE
Selection has been made.
FILL WARM (or COLD Option) to
Selected Level.
—
| WASH 4 Minutes. |
| PARTIAL DRAIN 1
After the PARTIAL DRAIN the
washer refills and washes according
to the CYCLE Selection and Options
touched. Be sure to use enough
detergent for the double wash.
NOTE: The EXTRA WASH Option
automatically fills to the water leve!
between HIGH and MED, unless a
different water level has been
selected.
WHAT HAPPENS
IN EACH CYCLE
SELECTION
CYCLE SELECTIONS
REGULAR/HEAVY — PERM'T PRESS DELICATES
CE
Each CYCLE Selection has
pre-set agitation and spin speeds
designed for different kinds of
fabrics.
All CYCLE Selections are preset
to use warm wash water and cold
rinse water. These temperatures
can be changed by touching the pad
that corresponds to the temperature
you want. These temperature options
are discussed on later pages.
IMPORTANT: The washer will
pause briefly throughout each
cycle. These pauses are normal.
They allow for the reversing of
the motor, normal washer opera-
tions, and the cool down portion
of the PERM'T PRESS Cycle.
NOTE: ALL CYCLE SELECTIONS
CAN BE CHANGED UP TO THE
START OF THE FIRST FILL.
REGULAR/HEAVY Selection
A selection for sturdily constructed
fabrics that are heavily soiled.
1. Touch ON.
2. Check WATER
LEVEL.
3. Touch |
REGULAR/
HEAVY.
4. Select a Wash Time (if different
than 10 minutes). The minimum
time is 8 minutes and the max-
imum time is 14 minutes.
REGULAR/HEAVY
Cc]
The TIME Display will show the
total High and Low Speed Wash
agitation time. If a new wash time is
selected in step 4, the total time will
consist of 6 minutes Low Speed
Wash and the remaining time High
Speed Wash. See the cycle se-
quence below. The washer will start
to fill in 8 seconds. NOTE: When the
washer starts, the TIME Display will
show “AU” See page 7.
FILL WARM (or HOT or
COLD Wash Option)
|
| WASH 2-8 Minutes, High Speed.
|
| WASH 6 Minutes, Low Speed.
|
|
| DRAIN No Agitation.
|
| SPIN High Speed.
|
FILL for Deep Rinse COLD
(or WARM Option).
|
| RINSE High Speed.
|
| DRAIN No Agitation.
|
| SPIN High Speed, 1 Spray Rinse.
Options:
e More or Less Wash Time (8-14
Minutes
* HOT WASH or COLD WASH.
e WARM RINSE
e EXTRA RINSE
—
® А PRE-WASH Option can be used.
(See page 9.)
11
|
PERM’T PRESS Selection
A special selection with cool
down rinses which help keep
wrinkles from setting into
Permanent Press and some syn-
thetic fabrics.
PERM'T PRESS 1. Touch ОМ.
2. Check WATER
3. Touch PERM'T
PRESS.
4. Select a Wash Time (if different
than 8 minutes). The minimum
time is 6 minutes and maximum
time is 10 minutes.
The TIME Display will show the
total High and Low Speed Wash
agitation time. If a new wash time is
selected in step 4, the total time will
consist of 4 minutes Low Speed
Wash and the remaining time High
Speed Wash. See the cycle se-
quence below. The washer will start
to fill in 8 seconds. NOTE: When the
washer starts, the TIME Display will
show “AU”
FILL WARM (or HOT or
COLD Wash Option).
|
| WASH 2-6 Minutes, High Speed. |
|
|
| WASH 4 Minutes, Low Speed.
|
|
| DRAIN No Agitation.
|
|
| PARTIAL DRAIN (Pause).
|
|
|
|
|
| REFILLCOOLDOWN. |
|
| DRAIN No Agitation. |
|
| SPIN Low Speed, 1 Spray Rinse. |
|
12
| FILL for Deep Rinse COLD. |
|
| DRAIN No Agitation. |
|
| SPIN Low Speed, 1 Spray Rinse. |
|
| SPIN High Speed. |
Options:
* HOT WASH or COLD WASH.
* More or Less Time (6-10 Minutes).
e EXTRA RINSE.
e À PRE-WASH Option can be used.
(See page 9.)
DELICATES Selection
A selection that gently washes and
spins delicate items and washable
knits.
DELICATES 1. Touch ON.
2. Check WATER
3. Touch
DELICATES.
4. Select a Wash Time (if different
than 5 minutes). The maximum
time is 7 minutes.
The TIME Display shows the total
wash agitation time. The washer will
start to fill in 8 seconds.
| FILL WARM (or COLD Option). |
| WASH 5-7 Minutes, Low Speed. |
| DRAIN No Agitation. |
| SPIN Low Speed. |
FILL for Deep Rinse COLD
(or WARM Option).
|
| RINSE Low Speed. |
|
| DRAIN No Agitation. |
|
| SPIN Low Speed, 1 Spray Rinse. |
Options:
e More or Less Wash Time
(5-7 Minutes).
* COLD WASH.
* WARM RINSE,
eo EXTRA RINSE.
* A PRE-WASH Option can be used.
(See page 9.)
WHAT HAPPENS
IN EACH
RINSE OPTION
RINSE OPTIONS
WARM RINSE EXTRA RINSE RINSE SPIN
EE) CE
IMPORTANT: The washer will
pause briefly throughout each
cycle. These pauses are normal.
They allow for the reversing of
the motor and normal washer
operations.
WARM RINSE Option
CYCLE Selections are preset for
cold rinse water. To get warm rinse
water in REGULAR/HEAVY or
DELICATES:
WARM RINSE 1. Touch ON.
2. Select WATER
LEVEL.
3. Touch CYCLE
Selection.
4. Touch WARM
RINSE.
NOTE: The PERM'T PRESS
Selection will not accept the WARM
RINSE Option. This is to protect
Permanent Press fabrics.
CJ
EXTRA RINSE Option
Use EXTRA RINSE for towels,
jeans or heavily soiled items that
need extra detergent. The rinse
temperature, agitation speed and
spin speed will be the same as the
first rinse.
| FINAL RINSE. |
|
| EXTRA RINSE FILL. |
|
| +RINSE 2-4 Minutes. |
|
| DRAIN No Agitation. |
|
| +SPIN 1 Spray Rinse. |
RINSE SPIN Option
For loads needing rinse and spin
only. Also useful for finishing a cycle
that's been canceled by a power
interruption or by turning power off.
e Touch RINSE SPIN.
The washer will start to fill in
8 seconds.
FILL COLD (or WARM Option) to
Selected Level.
|
| RINSE 2-4 Minutes. |
|
| DRAIN No Agitation. |
|
| +SPIN 1 Spray Rinse. |
The RINSE SPIN Option is preset
for a High Speed rinse and spin. For
a Low Speed rinse and spin, touch
DELICATES before selecting
RINSE SPIN. This will also shorten
the spin time by 2 minutes.
13
WHAT HAPPENS
IN EACH
EXTRA OPTION
EXTRA OPTIONS
HOT WASH
C
COLD WASH
CYCLE SENTRY
e.
HOT WASH and COLD
WASH Options
COLD WASH
HOT WASH
These options adjust only the
wash temperature, not the rinse
temperature. CYCLE Selections are
preset for a cold water rinse.
® А НОТ WASH Option will not be
accepted with the DELICATES
Cycle Selection or with any PRE-
WASH Option.
e A CYCLE Selection must be
chosen before HOT WASH or
COLD WASH can be selected.
* The wash water temperature
can be changed any time during
the first fill.
SPIN Option
The SPIN Option spins and drains
loads or items'that only need the
water spun out of them. This option is
also useful for loads canceled by a
power interruption.
14
SPIN
| DRAIN No Agitation.
To
| +SPIN High Speed.
Spin cancels all other selections.
The washer starts draining and
spinning right away.
+The SPIN Option is preset for a
High Speed spin. For a Low Speed
spin, touch DELICATES before you
select SPIN. This will also shorten
the spin time by 2 minutes.
|
|
CYCLE SENTRY Option
CYCLE SENTRY
e
The CYCLE SENTRY allows you
to control the End of Wash Signal
and the Final Rinse Signal. Both
signals can be canceled by touching
the CYCLE SENTRY pad. The Cycle
Sentry Indicator Light will go off.
Touch CYCLE SENTRY again to
replace the signals and turn on the
indicator light.
End of Wash Signal
This End of Wash Signal will beep
5 times at the end of a WASH Cycle.
This tells you the wash is done and
the load can be removed.
Final Rinse Signal
The Final Rinse Signal will beep
once at the beginning of the last
rinse in a cycle. This tells you the
washer is filling for the final rinse.
OTHER INSTRUCTIONS
Proper and Improper
Selections
The washer is designed to help
you choose selections for the best
washing results.
1. For fabric protection, the
washer will not accept certain
selections. The indicator lights
will not stay on and 3 beeps will
sound when a selection is not
accepted.
FOR EXAMPLE:
WARM RINSE
then touch WARM
RINSE, the warm
rinse will not
be accepted.
2. When a selection is accepted,
the indicator light for that selection
comes on and stays on and one
beep will sound. The washer will
use the CYCLE Selection (and
Options) you selected.
3. When one indicator light
comes on but another goes off,
this tells you the second selection
has canceled the first.
If you touch
PERM'T PRESS,
FOR EXAMPLE:
REGULAR/HEAVY LP AA PRESS
EN
О
If you touch
Press Selection
will cancel
REGULAR/HEAVY.
NOTE: The REGULAR/HEAVY indi-
cator light goes off when the PERM'T
PRESS indicator light comes on.
then touch PERM'T
REGULAR/HEAVY, PRESS, the Perm't
4. For best fabric care and wash-
ability, maximum and minimum
wash times are programmed into
each cycle. The washer will not
accept less or more time than the
minimum or maximum wash
times. (See pages 11 and 12 for
detailed times.)
The Indicator Lights
DEN |
m WASH
ma RINSE
a SPIN
The indicator lights show what
portion of the cycle the washer is in:
PRE-WASH, WASH, RINSE, SPIN.
PRE-WASH indicates any pre-wash
option.
WASH indicates that the washer is
filling, agitating in any wash cycle or
in the cool down portion of PERM'T
PRESS.
RINSE indicates the washer is filling,
agitating or draining during the rinse
portion of the cycle.
SPIN indicates the washer is in its
final spin.
15
Liquid Bleach Dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 mL) for a full load. Use less
with lower water level settings.
Follow directions on bottle for safe
use. Use a cup with a pouring spout
to avoid spilling.
—
1. Load the washer first.
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket.
Undiluted bleach will damage
any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on
bleaching, see page 11 in your
WASHER GUIDE.
16
Liquid Fabric Softener
Dispenser
1. Add detergent and load to basket.
2. Add liquid fabric softener to the
dispenser using the amount rec-
ommended on the bottle. (Avoid
dripping or spilling any fabric
softener on the load.)
3. IMPORTANT: Add enough hot
water to fill the dispenser to
the FULL mark.
4. Diluted fabric softener will be
added to the load when the
washer stops spinning after the
wash cycle. NOTE: Do not stop
the washer during this spin. If you
do, the fabric softener will be
added to the remaining soapy
wash water. This can cause stains.
5. Clean dispenser after each use
with warm water. Do not put
detergent in dispenser, it could
cause dispenser to clog. To re-
move the dispenser, pull up on the
top portion of the agitator. Replace
after cleaning.
For more information on fabric
softener, see page 12 in your
WASHER GUIDE.
SELF-CLEAN Lint Filter
As load items are being washed,
lint particles from the wash water
automatically collect on the SELF-
CLEAN lint filter. This filter cleans
itself. As the washer drains, collected
lint is carried away with the wash
and rinse water.
If your washer drains into a tub,
remove any lint collected in the drain
or strainer.
CARING FOR
YOUR WASHER
The Console Light
The fluorescent console light is
under the console top. The Console
Light switch is on the bottom right
side of the console. To turn on the
light, push in the switch and hold it for
one or two seconds. Push the switch
again to turn the light off.
Replacing the Console Light
WARNING: To avoid possible
shock hazard, unplug the
washer or turn off electric
power at the main power supply.
N
1. Flip up the console top by grasp-
Ing it with both hands near each
end and lifting the front edge up.
2. Remove lamp socket safety cover
at each end of the fluorescent tube.
3. Grasp the fluorescent tube at both
ends. Turn the tube away from you
until both ends come out of the re-
ceptacles. Replace with a 15-watt
cool-white (#F15T8) fluorescent
tube.
4. Replace lamp socket safety cov-
ers, and close the console top.
5. Plug in washer or turn electric
power back on at main power
supply.
Washer Care
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
REMOVE SHARP OBJECTS such
as pins, buckles, etc., from clothes
before washing. Close metal zippers.
NEVER USE THE WASHER TO:
e Store wet or dry laundry.
¢ Soak for more than 2 hours.
® Soak with chlorine bleach.
e Soak with vinegar or other
acids.
e Soak or store urine soaked
clothes.
Any of the above uses may
result in damage to clothing or
the porcelain tub.
17
Ea
AFTER WASHING, use a soft dry
cloth to wipe the outside and inside
dry. Leave the lid up until the basket
is dry. Wipe up spills right away.
Spills can dull or damage the finish.
SHARP OR HEAVY OBJECTS
should never be put on or in the
washer. Check pockets for bolts,
nuts, tools, etc.
1
ИТ р, | Щ AZ
SOME PRETREATMENT
PRODUCTS can damage washer
and dryer buttons, consoles and
finishes. Do not use these products
on or near your washer or dryer.
Service or performance
problems caused by the use of
any product not manufactured
by KitchenAid, Inc. are the
responsibility of the manufac-
turer of that product.
18
Winterizing
Because some water stays in the
washer, freezing can cause a lot of
damage. If your washer is stored or
moved during the cold weather:
fed E = Zu
1. Shut off both water faucets.
Disconnect and drain water inlet
hoses.
2. Put a quart of automobile-type
antifreeze in the basket.
EXTRA OPTIONS
mM PRE- WASH
Mm RINSE
pe LA = SPIN
3. Touch the SPIN Option, (see page
14). Let the washer run about
30 seconds to mix the antifreeze
and water.
To Use the Washer Again:
1. Flush the water pipes and hoses.
2. Connect hoses to the washer.
3. Turn on the water faucets.
4. Run the washer through a
complete cycle with one cup of de-
tergent to clean out the antifreeze.
IF YOU NEED
SERVICE OR
ASSISTANCE
Follow These Steps
1. If your washer should fail to oper-
ate, review the following list before
calling your dealer. You could save
the cost of a service call.
If your washer does not fill:
* |s the power supply cord plugged
into a live circuit with the proper
voltage?
* Are both water faucets open?
* Have you checked your home's
main fuses or circuit breaker box?
* Are the water supply hoses kinked?
If your washer does not spin:
* |s the lid closed?
® |5 the power supply cord plugged
into a live circuit with the proper
voltage?
* Have you checked your home's
main fuses or circuit breaker box?
If your washer stops during
a cycle:
* Remember, the washer pauses
briefly at different times in each
cycle. These pauses are normal.
Make sure the drain hose is
higher than the water level in
the washer.
Ifitisn't:
* The washer may seem to be drain-
ing during wash and rinse cycles.
e Water can siphon out.
(See INSTALLATION
INSTRUCTIONS.)
If the Console Light does
not work:
* Did you push in and hold the light
switch? (see page 17.)
* |s the fluorescent tube burned out?
2. Ifthe problem is not due to one of
the above items, first call your
dealer or repair service he
recommends.
* All service should be handled
locally by the dealer from whom
you purchased the unit or an
authorized KitchenAid servicer.
. In the event you are unable to
obtain the name of a local author-
ized KitchenAid servicer, call
KitchenAid Customer Relations
TOLL-FREE: 800-422-1230.
* A Customer Relations repre-
sentative can recommend a
qualified service company in
your area.
If you must call or write, please
provide: Model Number, Serial
Number, Date of Purchase and
complete description of the
problem.
Write to:
Customer Relations Department
KitchenAid, Inc.
PO. Box 558
St. Joseph, MI 49085-0558
. If you are not satisfied with the
action taken, contact the Major
Appliance Consumer Action Panel
(MACAP). MACAP is a group of
independent consumer experts
that voices consumer views at the
highest levels of the major ap-
pliance industry. Contact them
only when the dealer, authorized
servicer or KitchenAid, Inc., have
failed to resolve your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, Illinois 60606
MACAP will in turn inform us of
your action.
19
KitchenAid"
WASHER WARRANTY
LENGTH KITCHENAID KITCHENAID
OF WARRANTY: WILL PAY FOR: WILL NOT PAY FOR:
ONE YEAR FULL Replacement parts and
WARRANTY FROM repair labor to correct defects | A. Service calls to:
DATE OF PURCHASE. | in materials or workmanship. 1. Correct the installa-
Service must be provided tion of the washer.
by an authorized KitchenAid 2. Instruct you how to
servicing outlet. use the washer.
FIVE YEAR LIMITED | Replacement parts for any 3. Replace house
WARRANTY part of the gearcase assembly fuses or correct
ONE YEAR FULL if defective in materials or house wiring.
PLUS SECOND workmanship. Rust-through 4 C th
THROUGH FIFTH | protection on cabinet plumbing. —
YEAR LIMITED FROM | assembly. ;
DATE OF PURCHASE. | Replacement parts (repair B. Repairs when washer is
labor not included) for the used in other than normal
solid-state controls if home use.
defective in materials or C. Damage resulting from
workmanship. accident, alteration,
TEN YEAR LIMITED | Replacement of the outer misuse. abuse, Improper
WARRANTY tub if it fails to contain water not in accordance with
ONE YEAR FULL due to defective materials local electrical or plumb-
PLUS SECOND or workmanship. ina codes
THROUGH TENTH 9
YEAR LIMITED FROM D. Any labor costs during
DATE OF PURCHASE. the limited warranties.
E. Replacement parts
or repair labor costs for
units operated outside
the United States.
F. Pick up and delivery. This
product is designed to be
repaired in the home.
KITCHENAID, INC. DOES NOT ASSUME ANY RESPONSIBILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so this exclusion or
limitation may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
Part No. 3347230 KitchenAid, Inc. (W587)
St. Joseph, Michigan, USA 49085

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
