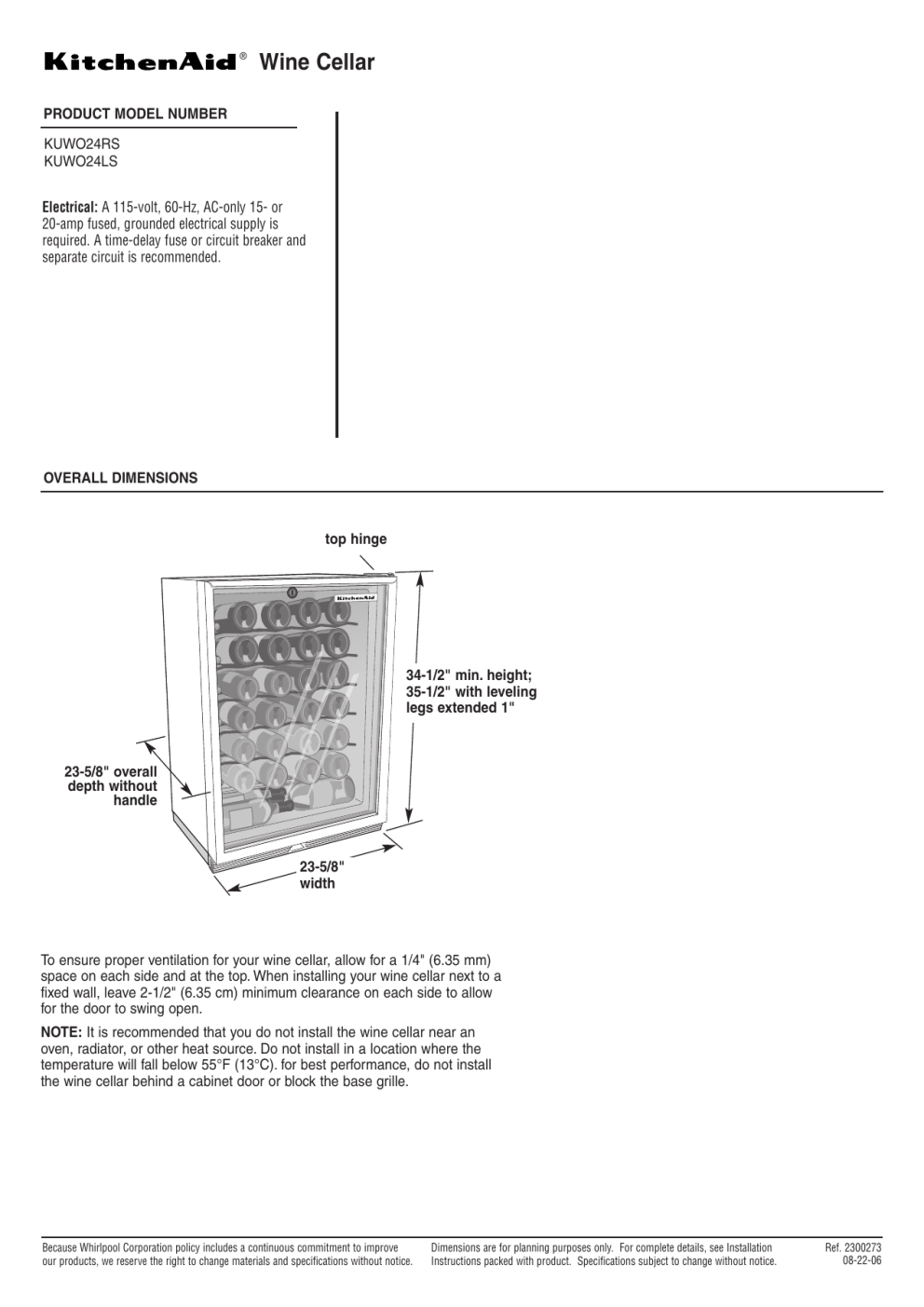

Wine Cellar
Electrical: A 115-volt, 60-Hz, AC-only 15- or
20-amp fused, grounded electrical supply is
required. A time-delay fuse or circuit breaker and
separate circuit is recommended.
top hinge
34-1/2" min. height;
35-1/2" with leveling
legs extended 1"
23-5/8" overall
depth without
To ensure proper ventilation for your wine cellar, allow for a 1/4" (6.35 mm)
space on each side and at the top. When installing your wine cellar next to a
fixed wall, leave 2-1/2" (6.35 cm) minimum clearance on each side to allow
for the door to swing open.
NOTE: It is recommended that you do not install the wine cellar near an
oven, radiator, or other heat source. Do not install in a location where the
temperature will fall below 55°F (13°C). for best performance, do not install
the wine cellar behind a cabinet door or block the base grille.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 2300273
