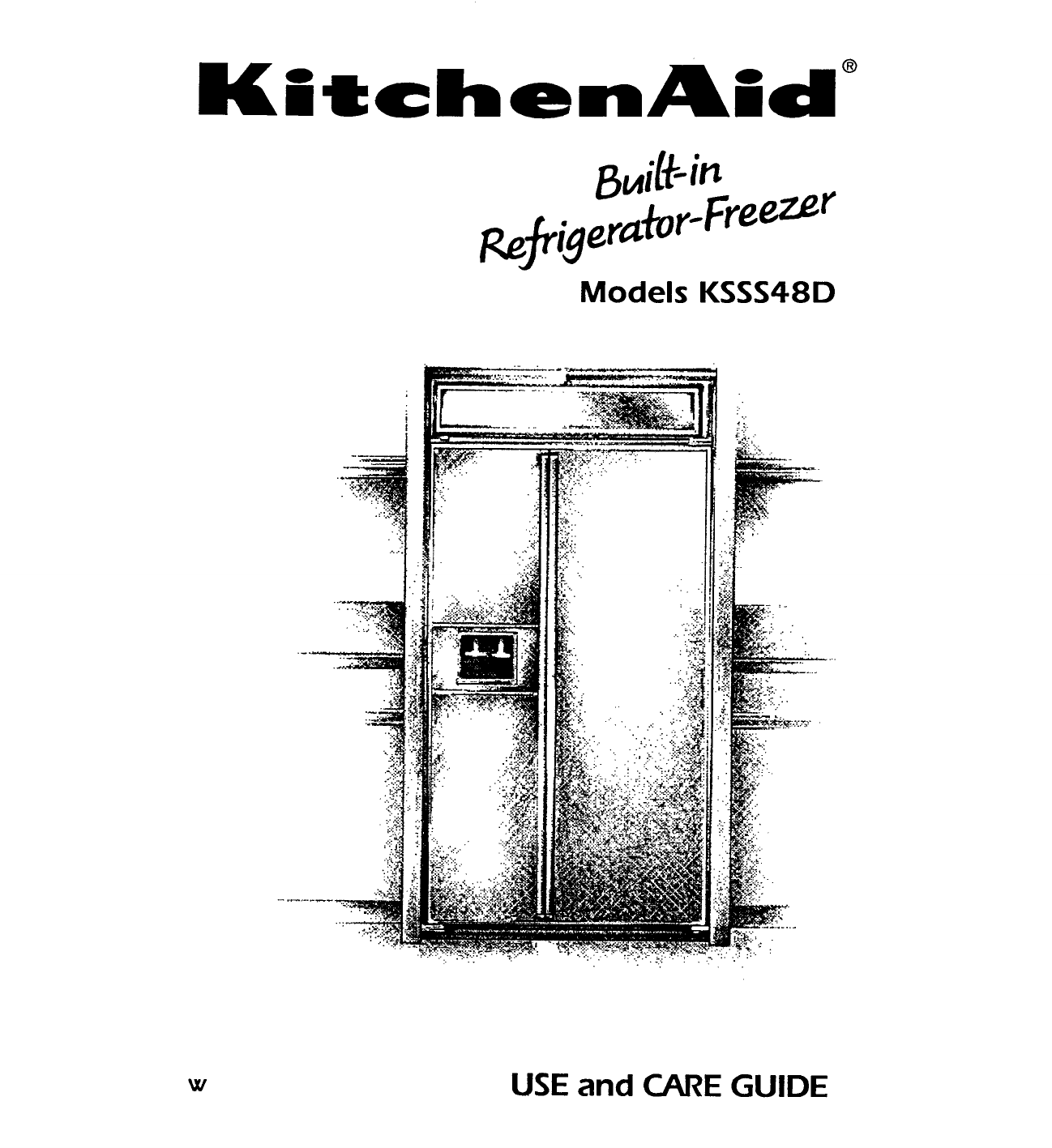

Models KSSS48D
< A nas „ни ‚ vdi же
сей оу лена;
= date E . = a
s \ Sa TA Ae To
tv A RE } A ' Lal a
\ > та E]
S vu, LR
x y
e . пы.
os E
E 7 Ta EE E ERA
© aap Ce gS A ign ee À
: ; TTT Re ta MANERA es des
; À ‚СЛ Ma EEE
o ; : eue De : OE EN Cua ;
qe = aN TOS
Ч: 8 - EA e
a ! E - а E
1 Г ии.
| ".
в ду пищу 1 #1 £8 41 Er
EN TT Va Е ares a EA
АЛИСА ато молей чт ри ча,
.. ". CA A
- TSE АРК:
. "a
us Te
Tot of
tchenAid
Bu
}
4
! }
|
!
USE and CARE GUIDE
Table of Contents
Page
Important Safety Instructions ....................... 3
Ownership Registration ............................... 4
Builtin RefrigeratorFreezer Features ........... 5
Using the Refrigerator-Freezer ................ 6-17
Upper Ventilation Panel........................... 6
Power On/Off Switch ................r.sesmarecaoo 6
Temperature Controls ........................e.... 7
WinterChill™ Meat Locker Temperature
Control........................eeecrrceooeecenneceone recen 7
Door Bins ................ee.esessccecenervaceocenaccecens 8
Wine/Egg Rack......................eeconrericcoonenes 8
Refrigerator Shelves .........................n..ccc0. 8
WinterChillM Meat Locker ....................... 9
Humidity-Controlled ClearVueTM Utility
Drawer/Crisper.….…….…..….….…….resssrrsseccss 10
Freezer Shelf ...…......…..............….rsrerrancrre 11
Freezer Baskets....................ce.eccccccocareres 11
Base Grille ......................eserecascaconcoonercon. 11
Defrost Pan ................e...ecseconecccacacoreecooe 12
Changing the Light Bulbs ...................... 13
Ice Maker ...................ecocornareccanoninecononaeo 14
Ice Maker Storage Bin .....................e...coo 14
Cold Water and Ice Dispenser ................ 15
Dispenser Operating Tips ..................... 16
Sounds You May Hear ........................... 17
To Save Energy ................e...enceereorerzccoos 17
Food Storage Guide. ............................. 18-19
Cleaning the Refrigerator-Freezer .............. 20
Vacation and Moving Care......................... 21
If You Need Service or Assistance ............... 22
KitchenAid Built-in Refrigerator
Warranty ......................eesrccoonoocens Back Cover
©1992 KitchenAid
Important Safety Instructions
To reduce the risk of fire, electrical shock, or
AWARNING injury when using the refrigerator, follow
basic precautions including the following:
* Read all instructions before using the refrigerator.
* Child entrapment and suffocations are not problems of the past. Junked
or abandoned refrigerators are still dangerous ... even if they will “just sit
in the garage a few days.”
If you are getting rid of your old refrigerator, do it safely. Please read
the enclosed safety booklet from the Association of Home Appliance
Manufacturers. Help prevent accidents.
* Never allow children to operate, play with, or crawl inside the
refrigerator.
* Never clean refrigerator parts with flammable fluids. The fumes can
create a fire hazard or explosion.
* Always turn the power on/off switch (located behind the upper
ventilation panel) to the OFF position before attempting to change light
bulbs, clean or service the refrigerator.
© FOR YOUR SAFETY e
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR EXPLOSION.
It is your responsibility to be sure your refrigerator:
* is installed and leveled on a floor that will hold the weight, and in an area
suitable for its size and use.
® is connected only to the proper kind of outlet, with the correct electrical supply
and grounding. (Refer to the Electrical Requirements and Grounding
Instructions Sheet.)
® 5 used only to do what home refrigerators are designed to do.
* is not near an oven, radiator or other heat source.
* ís properly maintained.
* is used in an area where the room temperature will not fall below 55°F (13°C).
* is not used by anyone unable to operate it property.
* is not loaded with food before it has time to get property cold.
SAVE THESE INSTRUCTIONS
Ownership Registration
Please fill out and mail your Ownership Registration Card packed with the Literature
Package. This card will enable us to contact you in the unlikely event of a product
safety notification and assist us in complying with the provisions of the Consumer
Product Safety Act. Retum of this card is not necessary to validate your warranty.
You must provide proof of purchase or installation date for in-warranty service.
Write down the following information. You will need it if your refrigerator ever
requires service.
Model Number*
Serial Number*
Date Purchased
Date Installed
Builder's or Dealer's Name
Address
Phone
*Model and serial numbers are located on a label on the right inside wall of the
freezer section beneath the ice bin.
Built-in Refrigerator-Freezer Features
reez Upper Power on/off
= ventilation switch
control
Refrigerator
lights (behind
control panel)
_—) aiilij(- U |
Refrigerator
Utility
panel {behind panel)
Freezer light
(behind control
panel)
Automatic и
son = | =
Stationa |
== JJ À
compartment
WinterChill™
meat locker
temperature
control
Model and serial
number label — |
Water andice _ -——
dispenser | ==
ice bin __ =>
error igh ri Il —
| г НН | ay —
T=
Roll-out
adjustable
WinterChill™
meat locker
front of freez
door] “ Adjustable
glass sheives
rene se Refrigerator
freezer shelf
— light (behind
Stationa utility drawer)
door shelf
Rollout
Stationa humidity-
freezer shelves controlled
ClearVue™
Wine/egg rack utility drawer
Roll-out
freezer humidity-
baskets controlled
ClearVue™
Water/electrical pan Water valve crisper
dispenser supply (behind base (behind base
tube grille) grille)
Using the Refrigerator-Fre ezer
Upper Ventilation Panel
Condenser Power on/off
coils switch
—
| es
ни я
|
То гетоме:
1. Grasp both ends of the panel.
2. Push straight up, then pull
straight out.
3. A cable on each side of the upper
ventilation panel attaches it to the
grille assembly. The upper
ventilation panel can be
suspended by these cables while
cleaning the condenser or
turning off the power on/off
switch.
To replace:
1. Insert screw heads on the back
side of the upper ventilation
panel into the large part of the
keyhole openings.
2. Pull panel down slightly to lock
into place.
Power On/Off Switch
(Power Interrupter
Switch)
TT
The power on/off switch is located
behind the upper ventilation panel.
It is used to tum the power to the
refrigerator-freezer off when
cleaning or changing light bulbs.
To turn power off:
1. Remove upper ventilation panel.
2. Press power on/off switch to OFF
position.
TO turn power on:
1. Press power on/off switch to ON
position.
2. Replace upper ventilation panel.
IMPORTANT: Be sure power on/off
switch is in the ON position after
cleaning or changing light bulbs.
Temperature Controls
Refrigerator Control
“Oo
\
Freezer Control
The Refrigerator and the Freezer
Controls have been preset at the
factory. These settings should be
correct for normal household
refrigerator use. Allow the
refrigerator to reach the preset
temperature (approximately 24
hours) before changing the setting.
To change the temperature
setting, follow the two steps below:
1. Adjust the Refrigerator and/or
Freezer Control. To make the
refrigerator or freezer colder,
tum the control(s) clockwise. To
make the refrigerator or freezer
less cold, tum the control(s]
counterciockwise.
2. Wait at least 24 hours before
making further adjustments. This
gives the refrigerator and/or
freezer time to reach the set
temperature.
To tum the refrigerator-freezer off,
tum the Freezer Control to the OFF
position.
WinterChill™ Meat Locker
Temperature Control
Meat Locker Control
D idest
The WinterChill Meat Locker
Temperature Control allows you to
adjust the WinterChill Meat Locker
storage temperature.
Cold air flows into the WinterChill
Meat Locker through an air duct
from the freezer to the refrigerator.
Setting the control lets more or less
cold air through the opening. See
page 9 for more information on the
WinterChill Meat Locker.
IMPORTANT: Freezing of items
may occur in the WinterChill Meat
Locker. If you do not want this to
occur, tum WinterChill Meat Locker
Temperature Control toward cold.
Door Bins
Door bins can hold two-liter bottles
and can be placed in any position
on the refrigerator door.
To remove:
Lift up and pull out.
To replace:
1. Insert bin hooks into ladder slots
on both sides.
2. Push down to lock in place.
Wine/Egg Rack
JL
1
=
The rack is shaped to hold either a
bottle of wine or a carton of eggs
securely.
Refrigerator Shelves
Shelves can be adjusted to match
the way you use your refrigerator.
To remove:
1. Tilt up at front.
2. Lift up at back.
3. Pull shelf straight out.
IMPORTANT: Glass shelves are
heavy. Handle with care.
To replace:
1. Guide the rear hooks into the
ladder slots.
2. Tilt up front of shelf until hooks
drop into slots. Lower front of
shelf to level position. Check the
stability of the shelf to be sure
hooks have been properly
inserted.
WinterChill “Meat Locker
The WinterChill Meat Locker is
designed to provide colder storage
temperatures than the average
refrigerator temperature. The Meat
Locker can be located in any set of
ladder slots. For temperature
controlied use, however, the Meat
Locker must be located in one of
the six sets of ladder slots starting
just below the WinterChill Meat
Locker Temperature Control.
The WinterChill Meat Locker can
be removed for cleaning.
To remove:
1. Roll Meat Locker out to the stop.
2. Lift front of Meat Locker slightly.
3. Pull Meat Locker out the rest of
the way.
To replace:
1. Position Meat Locker rollers
between front roller of track and
track.
2. Push up and onto track.
3. Slide back until it stops.
To relocate:
1. Adjust chilled air supply holes:
A. If the Meat Locker is placed in
one of the first three sets of
slots below the control, put
the plastic plug in the lower
air supply hole. Leave the
upper air supply hole open.
B. If the Meat Locker is placed in
the fourth, fifth or sixth set of
slots below the control, put
the plastic plug in the upper
air supply hole. Leave the
lower air supply hole open.
C. If the Meat Locker is placed in
any other set of slots, plug
both the upper and lower air
supply holes. A second plug
has been taped to the inside
bottom of the Meat Locker for
this purpose.
D. If the Meat Locker is placed in
the lowest set of slots, follow
instruction C above and
remove the Air Connector
(located on back of Meat
Locker). If Air Connector is not
removed, Meat Locker might
not close completely. If the
Meat Locker is placed in a
higher set of slots, replace the
Air Connector by pushing it
back into the square opening
on back of Meat Locker.
. The rubber Air Connector
(located on back of Meat Locker)
directs air from the air supply
holes into the Meat Locker. If the
Air Connector comes off, replace
it by pushing it into the square
opening on back of Meat Locker.
Humidity-Controlled
ClearVue” Utility
Drawer/Crisper
The humidity controis give you the
ability to change the amount of
moisture in the drawer and/or
crisper according to what food you
store in them. See the Food Storage
Guide on page 18 to determine
which humidity setting to use.
Move the lever to the right for
higher humidity or to the left for
lower humidity. The humidity-
controlled utility drawer and the
crisper are interchangeable. The
ClearVue section allows you to see
into the drawer/crisper without
opening it.
To remove drawer/crisper:
1. Roll out to the stop.
2. Lift front and pull out the rest of
the way.
To replace drawer/crisper:
Replace in reverse order.
10
Retainer
To remove glass covers:
1. Lift right side of glass cover to
free retainer and left side of
cover.
2. Carefully remove glass cover.
To replace glass covers:
1. Place retainer on right side of
glass cover.
2. Insert left side of glass cover into
groove.
3. Lower cover so that retainer pins
are in the guide holes.
To remove ClearVue section:
|. Remove glass cover. (See above.)
2. Slide ClearVue section down
track, away from retainer.
To replace ClearVue section:
Replace in reverse order.
Freezer Shelf
To remove:
1. Lift up shelf.
2. Pull shelf straight out.
To replace:
Replace in reverse order.
Freezer Baskets
To remove:
1. Pull basket out to the stop.
2. Lift basket slightly and move to
the left.
3. Pull basket forward the rest of
the way out.
To replace:
1. Place basket in shelf tracks, move
to the left.
2. Push basket in to stop on left
side.
3. Lift left side of basket slightly to
clear the stop.
4. Push basket in. Be sure both
sides of basket are in shelf tracks.
Base Grille
To remove:
1. Remove one screw at each end
of the grille.
2. Remove base grille.
To replace:
Replace in reverse order.
11
Defrost Pan
Defrost Retaining
pan clip (A)
The defrost pan is located behind
the base grille toward the left side
of the refrigerator-freezer.
AWARNING
Personal Injury and Floor
Damage Hazard
* Refrigeration system tubes
are located above the
defrost pan and can
become hot. Remove and
install defrost pan carefully.
Failure to do so could cause
personal injury.
* Replace defrost pan in
proper position after
cleaning so water does not
collect on floor. Failure to
do so could cause floor
damage.
12
To remove:
1.
5.
Press power on/off switch to OFF
position. (See page 6 for
instructions.)
. Remove base grille.
. Locate retaining clip (A) under
refrigerator.
. Push up on the clip and at the
same time slide the pan forward
and out.
Clean the pan. (See page 20 for
instructions.)
To replace:
1.
Position the edge of the pan
about 7 inches from left side of
the refrigerator.
. Lift pan into side guides and
push back into place. (You
should hear a “click” or “snap”.)
. Replace base grille.
. Return power on/off switch to
ON position.
Changing the Light Bulbs
AWARNING
Electrical Shock Hazard
Before removing a light bulb,
turn off the electricity leading
to the refrigerator at the
power on/off switch (located
behind the upper ventilation
panel). Failure to do so could
result in electrical shock or
personal injury.
Light bulbs behind the
Refrigerator and Freezer
Controls:
* Remove and replace bulb with a
25-watt incandescent, medium-
base, tubular bulb.
Light bulb below the ice bin:
1. Grasp plastic light cover with
both hands and squeeze (front to
back) to release tabs.
2. Pull down and away from ice
bin.
3. Remove and replace bulb with a
25-watt incandescent, medium-
base, tubular bulb.
4. Replace light cover.
Light bulb behind utility drawer/
crisper:
1. Remove utility drawer/crisper.
(See page 10.)
2. Remove glass cover of utility
drawer/crisper. (See page 10.)
3. Pull bottom of light cover away
from back wall of refrigerator.
Remove light cover.
4. Remove and replace bulb with a
25-watt incandescent, medium-
base, tubular bulb.
5. Replace light cover, utility
drawer/crisper and glass cover.
Dispenser light:
1. Remove the bulb from the top
inside of the dispensing area.
2. Replace with a heavy-duty
10-watt bulb.
IMPORTANT: Be sure power on/off
switch is retumed to the ON
position after changing a light bulb.
13
Ice Maker
IMPORTANT: The ice maker is
shipped from the factory with the
signal am up (in the OFF position).
It is recommended that the ice
maker be left in the OFF position for
24 hours after your Refrigerator-
Freezer is tumed on. This will allow
the ice maker to reach the proper
temperature before making ice.
To start ice maker:
Push the ice maker signal arm
down to the ON position.
FA ——
r
To stop ice maker:
Lift the ice maker signal arm until
you feel it click into the OFF
position.
Ice Maker Storage Bin
Js
Panel
The ice maker storage bin can hold
up to 17.6 pounds of ice. Remove
unused ice periodically to reduce
the potential for off-taste or odor
build-up in the ice.
14
IMPORTANT: The first few batches
of ice from the ice maker may have
an off-taste. This is from new
plumbing and parts, and the ice
should be thrown away.
To remove storage bin:
The storage bin can be removed to
dispense large quantities of ice or
for cleaning.
1. Pull the covering panel out from
the bottom and slide it to the
rear.
2. Lift the ice maker signal arm until
you feel it click into the OFF
position. ice can still be
dispensed when the freezer door
is closed, but no more can be
made.
3. Lift the front of the storage bin,
then pull it out.
4. Empty the bin. Use hot or warm
water to melt the ice if necessary.
Never use anything sharp to
break up ice in the bin. This can
damage the bin and dispenser
mechanism.
5. Wash with mild detergent. Rinse
well. Do not use harsh or
abrasive cleaners or solvents.
To replace storage bin:
1. Make sure bin is pushed in all the
way.
2. Push the ice maker signal arm
down to the ON position to
restart ice production.
3. Lower covering panel.
Cold Water and Ice
Dispenser
AWARNING
Personal Injury Hazard
Tumbling ice and pressure on
a fragile glass can break it.
Do not use a fragile glass
when dispensing ice or
water. Doing so could result
in personal injury or
breakage.
To dispense ice:
Press a sturdy glass against the ice
dispenser bar. Remove the glass to
stop dispensing.
Ice is dispensed from the ice
maker storage bin in the freezer.
When the dispenser bar is pressed,
a trap door opens in a chute
between the dispenser and the ice
bin. Ice is moved from the bin and
falls through the chute. When the
dispenser bar is released, a buzzing
sound may be heard for a few
seconds.
To dispense chilled water:
Press a sturdy glass against the
water dispenser bar. Remove the
glass to stop dispensing.
Chilled water comes from a
50 oz. tank behind the crisper/
utility drawer. Allow about 24 hours
to chill the first tankful.
When the refrigerator is first
hooked up, press the water
dispenser bar with a glass or jar
until you have drawn and
discarded 2-3 quarts of water. This
will remove the air in the system
and rinse the tank and pipes.
If the dispenser is not used
regularly, dispense enough water
every week to freshen the supply.
Allow 2-3 hours for the new supply
of water to chill.
IMPORTANT: The small tray under
the dispenser is designed to
evaporate small spills. There is no
drain in this tray. Do not pour
water into it.
Dispenser Operating Tips
PROBLEM CAUSE SOLUTION
Dispenser Freezer door open. * Close the freezer door.
wont work.
ice Dispenser Ice bin not properly * Make sure bin is pushed in all
won't work. installed. the way.
Wrong ice in bin. * Use only ice crescents from
ice maker. Shake the bin
occasionally to keep cubes
separated, and to obtain
increased storage capacity.
Dispenser not used for ® Dump oid ice and make new
extended periods, supply.
causing ice cubes to
melt together.
Ice Dispenser Ice dispenser bar held in * Wait about 3 minutes for the
stops working. too long. dispenser motor to reset.
* Large amounts of ice should
be taken from the bin, not
through the dispenser.
Off-taste or Ice attracts airbome * Dump old ice and make new
odor in ice. odors; old ice. supply; store excess ice in
covered container.
Water quality. * Water containing minerals
(such as sulfur) may require a
filter to remove.
* For best results, avoid
connecting ice maker to a
softened water supply. If
softened water must be used,
make sure the water softener
is well maintained and
operating properly.
Foods not properly * Wrap properly in air and
wrapped. moisture proof materials.
ice bin and freezer may ¢ Clean freezer and ice bin. See
need cleaning. “Cleaning chart” on page 20
Plumbing to ice maker.
New ice maker.
for instructions.
* Follow Installation Instructions
for proper ice maker water
supply hook-up.
* The first few loads of ice from
a new ice maker may have an
off-taste. Dump ice and make
new supply.
16
Sounds You May Hear
Your new refrigerator may make different sounds than your previous one. Hard
surfaces such as the ceiling, walls and cabinets around the refrigerator can make
sounds seem louder.
The following chart describes the kinds of sounds that might be new to you and
what causes them.
SOUNDS/OBSERVATIONS
CAUSES
Hum or hiss
The refrigerators fan motor and moving air.
Clicking or
snapping sounds
The thermostat makes a definite click when the
refrigerator stops running. It also makes a
sound when the refrigerator starts. The defrost
timer will click when the defrost cycle starts
and stops.
Ice Maker Sounds
¢ trickling water
® clatter of ice
You may hear buzzing (from the water valve),
trickling water and the clatter of ice falling into
the bin.
Running sounds
The high-efficiency compressor and motor will
run longer than older designs. On some
models, the internal fan motor may
occasionally run when the compressor is off.
Trickling water/
water sounds
During the defrost cycle, the refrigerator will
not be running. The trickling water is the frost
accumulation on the freezer coil melting and
running into the defrost pan. When the
refrigerator stops running, you may hear
gurgling in the tubing for a few minutes.
Warm air from
upper ventilation
panel/base grille
You may feel air blowing from behind the
upper ventilation panel and base grille when
the refrigerator is running. This is normal.
To Save Energy
* Open the doors as few times as
possible. Keep food organized so
you do not have to search for
what you want. Get everything
you need out at one time. Close
the door as soon as food is
removed.
* Fill the refrigerator, but do not
overcrowd it so air movement is
blocked.
* Set the refrigerator and freezer
compartment temperatures to
suit your needs-ice cream should
be firm and beverages should be
as cold as you like them. Avoid
setting the refrigerator and
freezer compartment
temperatures colder than is
necessary.
* Keep condenser coils clean.
See “Cleaning Chart" on
page 20.
17
Food Storage Guide
Fresh Food
Vegetables
® Leafy
Remove store wrapping. Tear off
bruised and discolored areas.
Wash in cool water, drain. Place in
plastic bag or container and store
in crisper.
e With skins
Place in plastic bags or containers
and store in crisper.
Fruit
* Berries
Sort to remove injured berries. Do
not wash berries until they are to
be served. Store in original
container in crisper.
* Other
Sort to remove injured fruit before
storing. Wash fruit, let dry, place
in perforated plastic bag or loosely
covered plastic container and
store in crisper.
Meat
* Cured or smoked meat and cold
cuts
Store in original packaging until
opened. When opened, tightly
rewrap using plastic wrap or
aluminum foil.
* Fresh, prepackaged meat &
pouitry
Store in original packaging.
* Fresh meat, not prepackaged
Remove market wrapping paper.
Rewrap in plastic wrap.
¢ Cooked meat & poultry
Wrap or cover with plastic wrap or
aluminum foil. Store immediately.
* Fresh fish & shellfish
Store in plastic bag or tightly
covered container.
18
Eggs
Store in original carton. For best
storage, place on interior shelf or in
wine/egg rack.
Dairy Products
e Milk
Store in original container on
refrigerator shelf.
* Butter or margarine
Store in the utility compartment or
on refrigerator shelf until opened.
When opened, store in covered
dish or on butter dish in the utility
compartment.
* Cheese
Store in original packaging until
opened. When opened, tightiy
rewrap in plastic wrap or
aluminum foil and store in utility
compartment or on refrigerator
shelf.
Leftovers
Cover with plastic wrap or
aluminum foil, or place in plastic
containers with tight fitting lids.
Condiments
Store small jars and bottles in door
bins.
Beverages
Wipe off bottles and cans. Store in
door bins or on refrigerator shelves.
REFRIGERATOR STORAGE CHART
FOR FRESH AND CURED MEAT*
Approximate Time
Type (Days)
Chicken 1to 2
Ground beef 1to2
Variety meat 1to2
Steaks and roasts 3105
Cold cuts 3to5
Bacon 5 to 7
Cured meat 7 to 10
* If meat is to be stored longer than the
times given, freezing is recommended.
IMPORTANT: Fresh fish and
shellfish should be used the same
day as purchased.
Frozen Food
Prepackaged frozen food
Store in original packaging on
freezer door shelf or on freezer
shelf.
Meat/poultry
Trim off excess fat and remove
bones when necessary. Meat/
poultry should not be salted. Wrap
tightly in heavy-duty aluminum foil,
plastic-coated wrapper, or
non-pemeable plastic wraps (made
from a saran film). Press out as
much air as possible. Label and date
the meat/poultry. Do not refreeze
thawed meat.
Ice cream
Store in original packaging. When
opened, place piece of aluminum
foil or waxed paper against ice
cream surface to prevent the
formation of ice crystals.
Frozen juices
Store in original container on
freezer door shelf or on freezer
shelf.
STORAGE CHART
FOR FROZEN FOOD*
Approximate
Type Time (Months)
Bread 2
Cooked dishes 2to3
Fish and seafood
fresh 6
* commercially frozen 1 to3
Fruit 6
Ice cream 1
Concentrated juice 4t06
Meat
* bacon less than 1
® pork roast, chops 3to4
* sausage 110 2
* beef, veal, lamb roasts 6
* ground meat 1to2
® poultry 3to4
Vegetables 6
*Storage times given in this chart are only a
guide. For best use of freeze space, keep
Zen food for short times. Use, then
replace as needed.
Courtesy of National Livestock & Meat Board
and U.S.D.A.
Cleaning the Refrigerator-Freezer
The refrigerator and freezer sections defrost automatically. However, both should be
cleaned once a month to help prevent odors from building up. Spills should be
wiped up immediately.
To clean, tum off the electricity at the power on/off switch (behind the upper
ventilation panel); take out all removable parts and clean the refrigerator according
to the directions given below. Be sure power on/off switch is in the ON position
when cleaning is finished.
Cleaning Chart
PART
Removable parts
{shelves, Meat Locker,
Meat Locker air
connector, crisper,
utility drawer, etc.)
interior walls
Door liners and gaskets
WHAT TO USE
® Sponge or cloth
* Mild detergent and
warm water
® Sponge, soft cloth or
paper towel
* Mild detergent
* Warm water
e Sponge, soft cloth or
paper towel
* Mild detergent
e Warm water
HOW TO CLEAN
e Wash, rinse and dry well.
* Wash, rinse and dry well.
* Wash, rinse and dry well.
Do not use cleaning waxes,
concentrated detergents,
bleaches, or cleaners
containing petroleum or
alcohol on plastic parts.
Base grille * Vacuum cleaner with e Vacuum grille.
brush attachment
Defrost pan * Sponge or cloth e Press power on/off switch to
AWARNING
Personal injury Hazard
Refrigeration system tubes are located above
the defrost pan and can become hot. Remove
and install defrost pan carefully. Failure to do so
could cause personal injury.
* Mild detergent
* Wam water
OFF. (See page 6.)
* Remove base grille. (see
page 11.)
e Remove defrost pan. [See
page 12.)
* Wash, rinse and dry well.
e Replace defrost pan.
* Replace base grille.
* Press on/off switch to ON.
Panels
Condenser coils
e Vacuum cieaner with
extended narrow
attachment
e Clean as you would your
kitchen cabinets.
* Should be cleaned periodically.
* Remove upper ventilation
panel to expose condenser
coils. {See page 6.)
e Vacuum coils.
* Replace upper ventilation
panel.
20
Vacation and Moving Care
Short Vacations
If you will be away for less than four
weeks, there is no need to shut off
the refrigerator. Use up
perishables and freeze other items.
Tum off the automatic ice maker,
then shut off the water supply to
the ice maker. Empty the ice bin.
Long Vacations
Remove all food if you will be gone
a month or more. Tum off the water
supply to the ice maker at least one
day before you leave. When the last
load of ice drops into the bin, tum
the ice maker off. Turn the
refrigerator-freezer off. {See
“Temperature Controls” on page 7.)
Press the power on/off switch
(located behind the upper
ventilation panel) to the OFF
position and clean the
refrigerator ... rinse well and dry.
Tape rubber or wood blocks to the
tops of both doors ... keeping them
open far enough for air to get in.
This will keep odor and mold from
building up.
AWARNING
Personal injury Hazard
Do not allow children to climb
on, play near or crawl inside
the refrigerator when the
doors are blocked open. They
may become injured or
trapped.
To restart the refrigerator, press the
power on/off switch {located
behind the upper ventilation panel)
to the ON position. Tum the
refrigerator-freezer on. (See
“Temperature Controls” on page 7.)
Moving
If the refrigerator-freezer must be
moved, contact the dealer from
whom you purchased the
refrigerator-freezer or your local
KitchenAid authorized servicer.
21
If You Need Service or Assistance
1. If the refrigerator should fail to
operate, review the following list
before calling your dealer. You
could save the cost of a service
call.
If the refrigerator will not
operate:
|s the power on/off switch (located
behind the upper ventilation
panel) in the OFF position? Press
Switch to ON.
¢|s a fuse blown or circuit breaker
tripped?
eis the Freezer Control in the OFF
position?
If the refrigerator makes
unfamiliar sounds:
* New features on your refrigerator
make new sounds, You may be
hearing air flowing from fans,
timer clicks for the defrosting cycle,
or defrost water draining into the
defrost pan. (See page 17.)
If your ice maker will not operate:
* Has the freezer had enough time
to get cold?
* |s the signal am ON, in the down
position?
e Is the water line valve tumed on
eis water getting to the ice maker?
If the lights are not working:
* |s the power orVoff switch (located
behind the upper ventilation
panel} in the OFF position? Press
switch to ON.
eis a fuse blown or a circuit breaker
tripped?
eis the light bulb bumed out? See
instructions for changing light
bulbs on page 13.
If the motor seems to run too long:
* The motor naturally runs longer on
hot days or if the room is warm, as
well as when a large amount of
food has been put into the
refrigerator or the doors have been
opened a lot.
2. If the problem is not due to one of
the above items: *
* Call KitchenAid Consumer
Assistance Center TOLL-FREE:
1-800-422-1230
22
and talk with one of our trained
consultants. The consultant can
instruct you in how to obtain
satisfactory operation from your
appliance or, if service is
necessary, recommend a
qualified service company in your
area.
* |f you prefer, write to:
Consumer Assistance Center
KitchenAid
P.O. Box 558
St. Joseph, MI 49085-0558
Please include a daytime phone
number in your correspondence.
3. If you need service:*
* Call your dealer or the repair
service he recommends.
* All service should be handled
locally by the dealer from whom
you purchased the unit or an
authorized KitchenAid servicer.
* |f you are unable to obtain the
name of a local authorized
KitchenAid servicer, call our
service assistance telephone
number (see step 2).
4. If you are not satisfied with the
action taken:*
* Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of consumer
experts that voices consumer
views at the highest levels of the
major appliance industry.
* Contact MACAP only when the
dealer, authorized servicer, and
KitchenAid have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
* MACAP will in tum inform us of
your action.
*When requesting assistance,
please provide: Model Number,
Serial Number, Date of Purchase
and a complete description of the
problem. This information is
needed to better respond to your
request.
KitchenAid
Built-in Refrigerator Warranty
LENGTH
OF WARRANTY:
KITCHENAID
WILL PAY FOR:
KITCHENAID WILL NOT
PAY FOR:
ONE YEAR FULL
Replacement parts and repair
WARRANTY labor costs to correct defects
FROM DATE OF in materials or workmanship.
INSTALLATION. Service must be provided by
an authorized KitchenAid
servicing outlet.
SECOND THROUGH Replacement parts and repair
FIFTH YEAR FULL labor costs to correct defects
WARRANTY in materials or workmanship
FROM DATE OF in automatic ice maker.
INSTALLATION. Service must be provided by
an authorized KitchenAid
servicing outlet.
Replacement parts and repair
labor costs to correct defects
in materials or workmanship
in the sealed refrigeration
system. These parts are:
1. Compressor; 2. Evaporator;
3. Condenser; 4. Drier:
5. Connecting Tubing.
Service must be provided by
an authorized KitchenAid
servicing outlet.
SIXTH THROUGH TENTH | Replacement parts to correct
YEAR LIMITED defects in materials or
WARRANTY workmanship in the sealed
FROM DATE OF refrigeration system. These
INSTALLATION. parts are:
1. Compressor; 2. Evaporator;
3. Condenser; 4. Drier;
5. Connecting Tubing.
A. Service calls to:
1. Correct the installation
of the refrigerator.
2. Instruct you how to
use the refrigerator.
3. Replace house fuses
or correct house
wiring.
4. Replace house
plumbing.
B. Repairs when refrigerator
is used in other than
normal home use.
C. Damage resulting from
accident, alteration,
misuse, abuse, improper
installation or installation
not in accordance with
local electrical codes or
plumbing codes.
D. Any food loss due to
product failure.
E. Any labor costs during
the limited warranty.
F. Replacement parts or
repair labor costs for
units operated outside
the United States.
G. Pickup and delivery. This
product is designed to be
repaired in the home.
H. Repairs to parts or
systems caused by
unauthorized
modifications made to
the appliance.
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so this exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
If you need service, first see the “Service and Assistance” section of this book. After checking
“Service and Assistance,” additional help can be found by calling our Consumer Assistance Center
telephone number, 1-800-422-1230, from anywhere in the U.S.
KitchenAid
St. Joseph, Michigan, U.S.A. 49085
® Registered Trademark of KitchenAid
Part No. 1112406 Rev. A
©1992 KitchenAid
Printed in U.S.A.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
