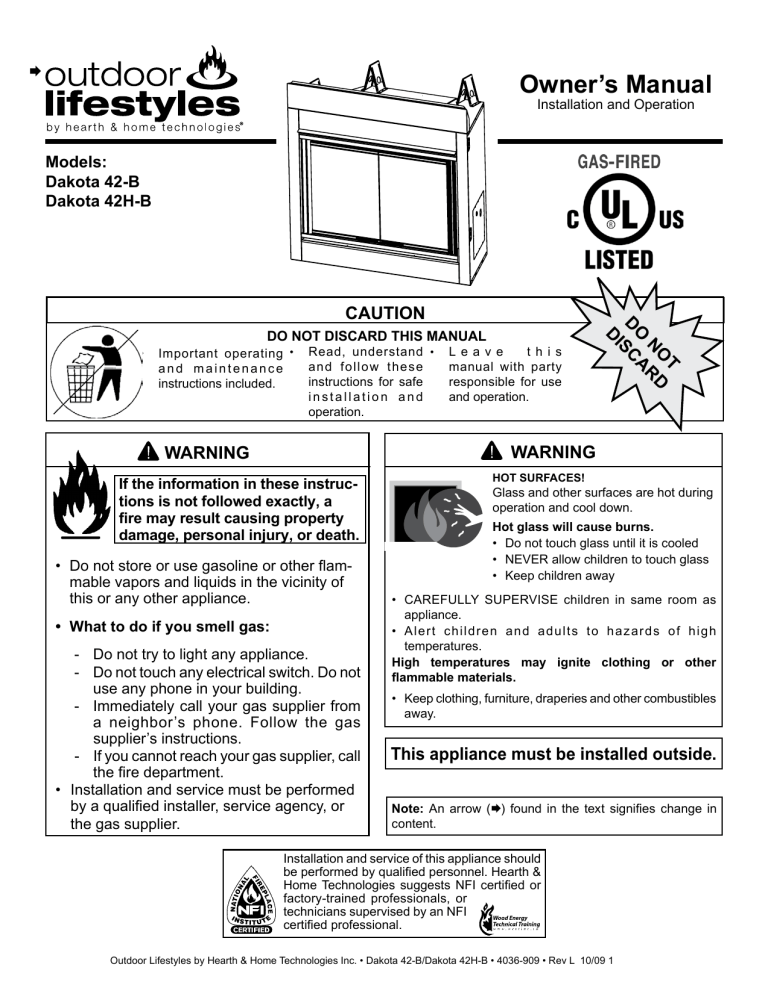

Owner’s Manual
Installation and Operation
Models:
Dakota 42-B
Dakota 42H-B
•
DO NOT DISCARD THIS MANUAL
Important operating •
and maintenance
instructions included.
Read, understand •
and follow these
instructions for safe
installation and
operation.
L e a v e
t h i s
manual with party
responsible for use
and operation.
T
O
N RD
O A
D SC
I
D
CAUTION
WARNING
WARNING
If the information in these instructions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
This appliance must be installed outside.
Note: An arrow () found in the text signifies change in
content.
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies suggests NFI certified or
factory-trained professionals, or
technicians supervised by an NFI
certified professional.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Congratulations
Congratulations on selecting a Heat & Glo LifeStyle Collection
gas appliance—an elegant and clean alternative to wood
burning appliances. The Heat & Glo LifeStyle Collection gas
appliance you have selected is designed to provide the utmost
in safety, reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo LifeStyle Collection gas appliance will
give you years of durable use and trouble-free enjoyment.
Welcome to the Heat & Glo LifeStyle Collection family of
appliance products!
We recommend that you record the following pertinent
information about your appliance:
Homeowner Reference Information
Model Name:
Date purchased/installed:
Serial Number:
Location on appliance:
Dealership purchased from:
Dealer phone:
Notes:
Listing Label Information/Location
The model information regarding your specific appliance can be found on the rating plate usually located in the control area
of the appliance.
Type of Gas
Serial Number
This appliance must be installed in accordance with local codes, if any; if not, follow ANSI Z223.1 in
the USA installation codes.
Outdoor Lifestyles by
Hearth & Home Technologies Inc.
7571 - 215th St. West., Lakeville, MN 55044
Vented gas fireplace - for outdoor installation
only. Not for use with solid fuel. (Foyer au
gaz à évacuation - pour installation à
l'extérieur seulement. Ne doit pas entre
utilise avec un combustible solide.)
ANSI Z21.50-2003 - CSA 2.22-M2003
Serial (Serie):
VENTED GAS
OD
FIREPLACE
Mfg. Date:
8R54
Minimum Permissible Gas Supply for Purposes
of Input Adjustment.
Natural Gas
Propane Gas
Approved Minimum (De Gaz) Acceptable . . 7.0 in. w.c. (Po. Col. d'eau) . . .11.0 in. w.c. (Po. Col. d'eau)
Maximum Pressure (Pression) . . . . . . . . . . 10.0 in. w.c. (Po. Col. d'eau) . .14.0 in. w.c. (Po. Col. d'eau)
Maximum Input BTUH: . . . . . . . . . . . . . . . . 60,000 . . . . . . . . . . . . . . . . . . .53,000
Orifice Size: . . . . . . . . . . . . . . . . . . . . . . . . #25DMS . . . . . . . . . . . . . . . . . .#44DMS
Model
(Modele):
DAKOTA42-B
DAKOTA42L-B
This product is covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevels suivants): (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322; 4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254; 5,191,877;
5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending (ou autres brevets americains et etrangers en attente).
Gas and Electric Information
Model Number
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
MADE
IN USA
4036-994A
Table of Contents
1 Listing and Code Approvals
A.
B.
C.
D.
Appliance Certification. . . . . . . . . . . . . . . . . . . . . . . . . 4
Glass Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4
BTU Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations. . . . . . . . . . . . 5
Moisture Resistance:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed. . . . . . . . . . . . . . . . . . . . . 6
C. Inspect Appliance and Components . . . . . . . . . . . . . . 6
3 Framing and Clearances
A. Select Appliance Location. . . . . . . . . . . . . . . . . . . . . . 7
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
C. Mantel Projections. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Termination Locations
A. Vent Termination Minimum Clearances. . . . . . . . . . . . 9
5 Appliance Preparation
A. Remove Logs and Shipping Cover. . . . . . . . . . . . . . 10
B. Securing and Leveling Appliance . . . . . . . . . . . . . . . 10
6 Gas Information
A.
B.
C.
D.
E.
Fuel Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Gas Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Gas Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
High Altitude Installations . . . . . . . . . . . . . . . . . . . . . 12
Valve Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
9 Appliance Setup
A.
B.
C.
D.
E.
F.
Clean the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grate Assembly Placement. . . . . . . . . . . . . . . . . . . . 17
Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glass Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Placing Lava Rock. . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Reinstall Door Lock. . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Operating Instructions
A.
B.
C.
D.
Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . 20
Lighting the Appliance. . . . . . . . . . . . . . . . . . . . . . . . 21
After the Appliance is Lit . . . . . . . . . . . . . . . . . . . . . . 22
Frequently Asked Questions. . . . . . . . . . . . . . . . . . . 22
11 Troubleshooting
A. Intellifire Ignition System. . . . . . . . . . . . . . . . . . . . . . 23
12 Maintaining and Servicing the Appliance
A. Valve Service and Replacement. . . . . . . . . . . . . . . . 25
B. Battery Replacement. . . . . . . . . . . . . . . . . . . . . . . . . 26
B. Maintenance and Service Tasks:. . . . . . . . . . . . . . . . 27
13 Reference Materials
A.
B.
C.
D.
Appliance Dimension Diagram . . . . . . . . . . . . . . . . . 28
Service Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . 36
7 Electrical Information
A. Intellifire Ignition System Wiring . . . . . . . . . . . . . . . . 14
8 Finishing
A. Mantel Projections. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 1
Listing and Code Approvals
A. Appliance Certification
MODELS: Dakota 42-B, Dakota 42H-B
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Appliance
STANDARD: ANSI Z21.50-2003—CSA2.22-M2003
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and applicable sections of “Gas Burning Heating
Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High Altitudes”.
B. Glass Specifications
Hearth & Home Technologies appliances manufactured with
tempered glass may be installed in hazardous locations such
as bathtub enclosures as defined by the Consumer Product
Safety Commission (CPSC). The tempered glass has been
tested and certified to the requirements of ANSI Z97.1 and
CPSC 16 CFR 1202 (Safety Glazing Certification Council
SGCC# 1595 and 1597. Architectural Testing, Inc. Reports
02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Section
1201.5 “Certification and labeling requirements” which refers
to 15 U.S. Code (USC) 2063 stating “…Such certificate shall
accompany the product or shall otherwise be furnished to
any distributor or retailer to whom the product is delivered.”
Some local building codes require the use of tempered glass
with permanent marking in such locations. Glass meeting
this requirement is available from the factory. Please contact
your dealer or distributor to order.
C. BTU Specifications
Maximum
Input BTUH
Orifice Size
(DMS)
Dakota 42-B (NG)
60,000
25
Dakota 42-B (LP)
53,000
44
Models
D. High Altitude Installations
U.L. Listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000 ft,
it may be necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input rate
should be reduced by 4% for each 1000 ft above a 2000 ft
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 ft in Canada. If the heating value of the gas has
been reduced, these rules do not apply. To identify the proper orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 ft (in
Canada), check with local authorities.
WARNING
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
Note: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
2
Getting Started
A. Design and Installation Considerations
These appliances must be installed outdoors.
The Dakota 42-B Series outdoor gas fireplace is designed
for outdoor use. It may also be installed in screened porches
and lanais that meet these minimum requirements:
• Minimum porch area - 96 square feet
• Minimum ceiling height - 84 in.
A minimum of two walls can be screened but must be open
to outside ventilation.
•
•
Minimum screen area - 64 square feet
Minimum screen top height - 80 in.
Refer to Section 3.B. for clearances.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult insurance carrier, local building, fire
officials or authorities having jurisdiction about
restrictions, installation inspection, and permits.
When planning an appliance installation, it’s necessary to
determine the following information before installing:
•
•
•
•
Where the appliance is to be installed.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Moisture Resistance:
This outdoor fireplace will shed moderate amounts of water,
but is not waterproof. Water and condensing water vapor
may enter the chase under certain conditions.
The fireplace will not perform as an exterior wall. Moisture
penetration must be considered for construction that places
the fireplace in structure walls or on moisture sensitive surfaces.
When installed on exterior walls: Hearth & Home Technologies recommends that the fireplace chase be constructed outside the structure’s weather envelope. Where
the platform meets the wall, use a flashing detail similar to
that required for attached decks. Chase platforms, including
hearths should slope away from the structure at 1/8 in. to
1/4 in. per foot. The fireplace can be shimmed level.
When installed on surfaces where water may collect or
cause damage: Hearth & Home Technologies recommends
that a drainage pan be placed under the unit. This can be
constructed of metal, adhesive polymer membrane (such as
ice and water shield) or other suitable materials. A means of
drainage out of the pan such as tubes or weep holes should
be provided. A slope of 1/8 in. to 1/4 in. per foot towards
the drain port is suggested. The fireplace can be shimmed
level.
Hearths should slope away from the front of the fireplace
and chase at 1/8 in. to 1/4 in. per foot. Spark strips must be
on top of any combustible hearth materials used for moisture
management.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw
Framing material
Pliers
Hi temp caulking material
Hammer
Gloves
Phillips screwdriver
Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line
Safety glasses
Manometer
Voltmeter
Tape measure
Level
Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
C. Inspect Appliance and Components
WARNING
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
•
•
•
Do NOT install damaged components.
Do NOT install incomplete components.
Do NOT install substitute components.
Report damaged parts to dealer.
•
Carefully remove the appliance and components from the
packaging. The gas logs may be packaged separately and must be
field installed.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety and
benefit.
•
•
•
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
•
•
•
•
•
Installation and use of any damaged appliance or
vent system component.
Modification of the appliance or vent system.
Installation other than as instructed by Hearth & Home
Technologies.
Improper positioning of the gas logs or the glass
door.
Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
3
Framing and Clearances
Note:
•
•
•
WARNING
Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
Illustrations/diagrams are not drawn to scale.
Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings.
• To combustibles.
• For service access.
Locate appliance away from traffic areas.
A. Select Appliance Location
When selecting a location for your appliance it is important to
consider the required clearances to walls (See Figure 3.1).
Note: If this surface is
inside the building’s
warm air envelope...
Note: For actual appliance
dimensions refer to Section 13.
57-3/4 in.
(1467 mm)
G
A
...then this surface
must be an exterior
wall system.
G
B
F
F
F
C
E
D
C
D
E
Figure 3.1
81-3/4 in.
(2076 mm)
A
B
C
D
E
F
G
in.
24-3/4
24-1/8
48
49
5/8
1/2
1-1/2
mm
629
613
1219
1245
16
13
38
Appliance Locations
WARNING
Fire Risk
Odor Risk
•
•
Install appliance on hard metal or wood
surfaces extending full width and depth
of appliance.
Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
Fire Risk
• Locate and install appliance to all
clearance specifications in manual.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 B. Clearances
Framing Dimensions
B
C
D
in.
24-1/8
mm
613
43-7/8
49
43-7/8
1114
1245
1114
D
Header height.
Use only noncombustible
material below the top of
the top standoffs.
B
C
A
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
A
0 in. to level
of standoffs
1-1/2 in. (38 mm)
84 in.
(2134 mm)
to ceiling
1-1/2 in.
(38 mm)
1/2 in. (13 mm)
Combustible Object
Drywall
Figure 3.2
0 in.
36 in.
(914 mm)
0 in.
Combustible flooring may be installed next
to the front of the appliance.
Framing Dimensions
C. Mantel Projections
WARNING
Fire Risk
• Comply with all minimum
clearances to combustibles
as specified.
• Framing or finishing
material used on the
front of, or in front of, the
appliance closer than the
minimums listed, must
be constructed entirely of
noncombustible materials
(i.e., steel studs, concrete
board, etc.).
Failure to comply may cause fire.
in.
mm
in.
mm
Fi
12 in. (305 mm)
max. combustible
mantel depth
re
re
ctu
tru l
S
l
al
na ew
itio Sid
d
Ad or
pl
ac
e
Ma
nte
l
St
ru
ct
84 in.
(2134 mm)
minimum
height
ur
e
B
Then B
must be at
least:
If A is:
6 - 36
26
152 - 914
660
36 or more
18
914 or more
457
Figure 3.3
Roof or
Overhang
A
Clearances to Mantels or Other Combustibles Above Appliance
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
4
Termination Locations
A. Vent Termination Minimum Clearances
O
P
G
FP
A
D
N
R
FP
H
Q
E
(See Note 2)
B
L
FP
F
B
FP
B
FP
FP
I
M
FP
A
FP = FIREPLACE OPENING
A
=
B
=
D** =
F
G*
=
=
H
=
I
=
*
**
***
J or K
X = AIR SUPP LY INLET
0 in. . . . . . . . . . clearances above grade,
veranda, porch, deck or
balcony.
12 in. . . . . . . . . . clearances to window or door
that may be opened, or to
permanently closed window.
36 in. . . . . . . . . . vinyl windows or siding.
47 in. . . . . . . . . . vertical clearance to unventilated soffit or to ventilated soffit
located above the terminal.
60 in. . . . . . . . . . vinyl clad soffits.
9 in. . . . . . . . . . clearance to outside corner.
6 in. . . . . . . . . . clearance to inside corner.
48 in. . . . . . . . . . vinyl windows or siding.
3 ft. (Canada) . not to be installed above a gas
meter/regulator assembly within
3 ft (914 mm) horizontally from
the center line of the regulator.
3 ft. (USA)
6 ft. (Canada) . clearance to service regulator
vent outlet and electric service.
48 in. minimum for vinyl windows or vinyl siding.
Not allowed for vinyl clad soffits.
a fireplace shall not open directly above a sidewalk or paved
driveway which is located between two single family dwellings
and services both dwellings.
**** only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
Note 1: Local codes or regulations may require different clearances.
Note 2: Termination in an alcove space (spaces open only on one
side and with an overhang) are permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1) There must
be a 3 ft minimum between terminations or between the
fireplace and termination. 2) All mechanical air intakes within 10
ft of a termination must be a minimum of 3 ft below the fireplace
hood. 3) All gravity air intakes within 3 ft of the fireplace hood
must be a minimum of 1 ft below the termination.
X
= AREA WHERE FIREPLACE IS NOT PERMITTED
J
=
9 in. (USA)
12 in. (Canada) . clearance to non-mechanical air
supply inlet to building or the
combustion air inlet to any other
appliance.
K
=
3 ft. (USA)
6 ft. (Canada) . clearance to a mechanical air
supply inlet.
L*** = 54 in. . . . . . . . . . clearance above paved sidewalk
(See note 1)
or a paved driveway located on
public property.
M****= 47 in. . . . . . . . . . clearance under veranda, porch,
deck, balcony or overhang.
Not allowed: . . . . . . vinyl
N
= 6 in. . . . . . . . . . non-vinyl siding.
P
= 84 in.
QMIN
RMAX
Dakota
10 feet
2 x Q ACTUAL
___________________________________________________________________________
1 additional termination cap
Q + 3 feet
1 x Q ACTUAL
___________________________________________________________________________
2 additional termination caps
Q + 6 feet
2/3 x Q
3 additional termination caps
Q + 9 feet
1/2 x Q ACTUAL
ACTUAL
___________________________________________________________________________
RMAX = (2 / # caps plus fireplace ) x Q ACTUAL
This fireplace is approved for installation onto screen porches with the
following guidelines:
Minimum porch area: 96 sq ft
Minimum ceiling height: 84 in.
Minimum of two walls must be screened
Minimum top of screen height, side walls: 6 ft 8 in.
Minimum screen area: 64 sq ft
Note 2: There may be some odor and small amounts of soot associated
with burning the Dakota on a screened porch. Ensuring good cross
draft ventilation and routine maintenance of the fireplace will maximize
comfort and cleanliness.
Figure 4.1 Minimum Clearances
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 5
Appliance Preparation
CAUTION
B. Securing and Leveling Appliance
WARNING
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
Fire Risk
•
•
A. Remove Logs and Shipping Cover
Remove locking screw at the top of the doors (shown in Figure 5.1).
Open the doors by sliding the handles toward the outside
edges of the doors. Remove the cartons of logs from their
shipping location in the appliance.
Set the logs and door lock bracket screw aside for later reinstallation.
Locking Screw
The diagram shows how to properly position, level, and secure the appliance (see Figure 5.2). Nailing tabs are provided to secure the appliance to the framing members.
•
•
•
•
•
•
Place the appliance into position on either a combustible
or non-combustible continuous flat surface.
Note: Remove the top standoffs before sliding appliance
into position if using an FPS prefab enclosure.
Level the appliance from side to side and front to back.
Shim the appliance with non-combustible material, such
as sheet metal, as necessary.
Bend out nailing tabs on each side.
Keep nailing tabs flush with the framing.
Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
Open Open
Figure 5.1
Prevent contact with sagging, loose
insulation.
Do NOT install against vapor barriers or
exposed insulation.
Door Operation
NAILING TABS
Figure 5.2
Proper Positioning, Leveling and Securing of an
Appliance
CAUTION
Do NOT notch into the framing around the appliance
spacers.
10
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
6
Gas Information
A. Fuel Conversion
C. Gas Connection
Before making gas connections ensure appliance being installed is compatible with the available gas type.
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.)
Any natural or propane gas conversions necessary to meet
the appliance and locality needs must be made by a qualified technician using Hearth & Home Technologies specified
and approved parts.
B. Gas Pressure
Proper input pressures are required for optimum appliance
performance. Gas line sizing requirements need to be made
following NFPA51.
Note: A listed (and Commonwealth of Massachusetts
approved) 1/2 in. (13 mm) T-handle manual shut-off valve
and flexible gas connector are connected to the 1/2 in.
(13 mm) control valve inlet.
•
WARNING
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
If substituting for these components, please consult
local codes for compliance.
Optional: A 5 ft flexible gas line is available to those regions
which do not require black pipe to be used. See Service
Parts List (Section 13).
Note: Gas line MUST be run from right side of appliance.
WARNING
WARNING
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause overfire
condition.
• Low pressure may cause explosion.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
Pressure requirements for appliance are shown in table
below.
Pressure
Natural Gas
Propane
Minimum Inlet Pressure
5.0 inches w.c.
11.0 inches w.c.
Maximum Inlet Pressure
7.0 inches w.c.
14.0 inches w.c.
Manifold Pressure
3.5 inches w.c.
10.5 inches w.c.
Note: The gap between supply piping and gas access hole
may be plugged with non-combustible unfaced insulation
to prevent cold air infiltration.
•
•
Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
Incoming gas line should be piped into the valve
compartment and connected to the 1/2 in. connection on
the manual shutoff valve.
These pressures can be verified through the internal valve
access panels as shown in Section E. Valve Access.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 11
WARNING
Fire Risk
Explosion Risk
• Gas build-up during line purge may
ignite.
• Purge should be performed by qualified
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such
as sparks or open flames.
•
A small amount of air will be in the gas supply lines. When
first lighting appliance it will take a short time for air to
purge from lines. When purging is complete, the appliance
will light and operate normally.
D. High Altitude Installations
U.L. listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 ft in the USA
and Canada.
When installing this appliance at an elevation above 2000 ft,
it may be necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input rate
should be reduced by 4% for each 1000 ft above a 2000 ft
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 ft in Canada. If the heating value of the gas has
been reduced, these rules do not apply. To identify the proper orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 ft (in
Canada), check with local authorities.
WARNING
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete,
all connections must be tightened and
checked for leaks with a commercially
available, non-corrosive leak check
solution. Be sure to rinse off all leak check
solution following testing.
Fittings and connections may have loosened
during shipping and handling.
WARNING
Fire Risk
Explosion Risk
Do NOT change the valve settings.
• This valve has been preset at the
factory.
• Changing valve settings may result in fire
hazard or bodily injury.
12
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
E. Valve Access
•
•
•
The gas valve can be accessed behind the cement
refractory panel on the right side of the fireplace.
Lift doors out and set aside. There is a washer under each
door. Be careful not to loose those washers.
Remove the inside valve access panel by lifting it up and
out.
Washer
Figure 6.4
•
Figure 6.1
•
•
•
Lift Out Doors
Use a phillips screwdriver to remove the exterior valve
access panel (remove four screws).
Remove logs if access is necessary after installation is
complete. See Section 9.C. Remove logs in reverse order
of set up.
Remove grate if access is necessary after installation is
complete. (Refer to Section 9.B.)
Remove two screws on side of pilot shield and remove
shield.
Figure 6.5
•
Figure 6.2
•
Remove Valve Access Panel
Remove Pilot Shield
Use a phillips screwdriver to remove the two screws
securing the refractory retaining strip. Remove the
refractory side panel and set aside.
Use a manometer on the lower out pressure tap. Start
up the fireplace to verify the pressure and adjust as
necessary. Reverse these steps to reassemble before log
positioning.
Figure 6.6
Figure 6.3
Remove Exterior Valve Access Panel
Connect Manometer
Loosen Refractory Retaining Strip
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 13
7
Electrical Information
A. Intellifire Ignition System Wiring
•
WARNING
This appliance is equipped with an Intellifire control valve
which operates on a 3 volt system.
This appliance is supplied with a battery pack which is
located in the ON/OFF switch terminal box. A wiring
diagram is shown in Figure 7.1.
The battery pack requires two D cell batteries (not
included). See Section 12.B. for battery replacement.
•
•
Shock Risk
• Replace damaged wire with type 105° C
rated wire.
• Wire must have high temperature
insulation.
CAUTION
CAUTION
Battery polarity must be correct or module damage will
occur.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
I
IGNITION MODULE
3 VAC
INTERMITTENT
PILOT
IGNITOR
S
BATTERY
PACK
ON/OFF
WALL
SWITCH
FLAME SPARKER/
SENSOR
BATTERY
PACK
ORG
BLACK
IGNITION
MODULE
(3V)
WHT
GROUND TO
FIREPLACE
CHASSIS
PIGGYBACK
ON/OFF SWITCH
VALVE
Figure 7.1
14
Intellefire Pilot Ignition (IPI) Wiring Diagram
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
GRN
ORG
LOW VOLTAGE
SEE NOTE 1
BRN
VALVE
BRN
RED
8
Finishing
A. Mantel Projections
Figure 8.1 shows the minimum vertical dimension of appliance mantels or other combustible projections above the top front
edge of the appliance.
Roof or
Overhang
Fi
12 in. (305 mm)
max. combustible
mantel depth
re
re
ctu
ru
t
l S all
na ew
o
i
d
dit Si
Ad or
pl
ac
e
Ma
nte
l
St
ru
ct
84 in.
(2134 mm)
minimum
height
ur
e
B
in.
mm
in.
mm
Figure 8.1
Then B
must be at
least:
If A is:
6 - 36
26
152 - 914
660
36 or more
18
914 or more
457
A
Clearances to Mantels or other Combustibles above Appliance.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 15
B. Facing Material
WARNING
Fire Risk
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fire hazard.
Finishing materials must not interfere with:
• Air flow through grilles or louvers.
• Operation of louvers or doors.
• Access for service.
Finish wall material
may be combustible,
top & sides.
Upper front can be covered
with non-combustible
material or removed and
replaced with noncombustible material.
0 in.
0 in.
Figure 8.2
Sealant Material
0 in.
Noncombustible Facing Diagram
WARNING
Fire Risk
Finish all edges and fronts to clearances and
specifications listed in manual.
•
•
•
•
16
Metal appliance front may be covered with noncombustible material only.
Do NOT overlap combustible materials onto appliance
front.
Install combustible materials up to specified clearances
on top front and side edges.
Seal joints between the finished wall and appliance
top and sides using only a 300° F minimum sealant.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
9
Appliance Setup
A. Clean the Appliance
C. Positioning the Logs
Clean/vacuum any sawdust that may have accumulated inside the firebox or underneath in the control cavity.
•
•
See Section 13.B. for log descriptions and illustrations.
Place right rear log on the grate against the appliance right
side wall.
WARNING
Shock Risk
Fire Risk
Use ONLY optional accessories approved
for this appliance.
• Using non-listed accessories voids
warranty.
• Using non-listed accessories may result
in a safety hazard.
• Only Hearth & Home Technologies
approved accessories may be used
safely.
Figure 9.2
•
Right Rear Log (SRV720)
Place the left rear log on the grate against the left wall and
rest it on log.
B. Grate Assembly Placement
•
Ensure grate assembly is over burner assembly, centered
from left to right, and back legs are in grate brackets (see
Figure 9.1)
Back Legs in Grate Brackets
Figure 9.3
•
Figure 9.1
Left Rear Log (SRV728)
Place the fork of log onto the left front bar and rest its back
on right rear log.
Back Legs in Grate Brackets
Figure 9.4
Left Side Log (SRV723)
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 17
•
Place front log in front of the main grate with its left end
resting on left rear log as shown.
Figure 9.5
•
•
Front Left Log (SRV722)
Place right log against the rightmost front grate bar and
rest its rear on right rear log, angled towards the corner
as shown.
Figure 9.8
Front Log (SRV727)
Place front left log between locating bars so it rests against
log left side log and on top of front log.
Figure 9.6
•
•
Right Side Log (SRV740)
Place right front corner log between the right hand side
wall and right hand side grate bar as shown.
Figure 9.9
Right Front Corner Log (SRV742)
Place right center log between the 4th and 5th vertical
bars on the log grate, resting the back on right rear log.
Figure 9.7
18
Front Right Log (SRV724)
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
D. Glass Assembly
E. Placing Lava Rock
•
WARNING
Handle glass with care.
• Inspect the glass for cracks, chips or
scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
door removed, cracked, broken or
scratched.
• Replace glass door assembly as a
complete assembly.
•
•
•
The glass doors are included with and pre-installed in the
appliance.
To adjust doors, open them and loosen screws on top
and bottom pivot pins. Slide each door as necessary and
tighten screws.
To adjust handle, loosen screws to move handles as
necessary and tighten screws.
Glass Specifications
Dakota42-B:
Dakota42L-B:
Dakota42H-B:
Dakota42HL-B:
Tempered
Tempered
Tempered
Tempered
After logs have been placed spread part of the lava
rock (included) between the rock pan and ashlip (see
Figure 9.10).
Rock Pan
Ashlip
Figure 9.10 Placement of Lava Rocks
F. Reinstall Door Lock
When logs and lava rock have been installed, or if the glass
assembly has been adjusted, reinstall the door lock by
inserting the screw at the top of the door. Tighten screw. You
may refer to Section 5.A. if needed.
Locking Screw
Open Open
Figure 9.11 Reinstall Door Lock
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 19
10
Operating Instructions
A. Before Lighting Appliance
Before operating this appliance, have a qualified
technician:
•
Remove all shipping materials from inside and/or
underneath the firebox.
Review proper placement of logs, rockwool, lava rock and
vermiculite.
Check the wiring.
Check the air shutter adjustment.
Ensure that there are no gas leaks.
Ensure that the flow of combustion and ventilation air is
not obstructed (front grilles).
•
•
•
•
•
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
appliance. For assistance or additional information consult
a qualified installer, service agency or the gas supplier.
WARNING
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
20
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
B. Lighting the Appliance
Intellifire Ignition
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance is equipped with • Do not touch any electric switch; do
an intermittent pilot ignition (IPI)
not use any phone in your building.
device which automatically lights • Immediately call your gas supplier
the burner. Do not try to light the
from a neighbor’s phone. Follow
burner by hand.
the gas supplier’s instructions.
B. BEFORE LIGHTING, smell all • If you cannot reach your gas suparound the appliance area for
plier, call the fire department.
gas. Be sure to smell next to
C. Do not use this appliance if any part
the floor because some gas is
has been under water. Immediately
heavier than air and will settle on
call a qualified service technician
the floor.
to inspect the appliance and to
replace any part of the control
WHAT TO DO IF YOU SMELL
system and any gas control which
GAS
has been under water.
• Do not try to light any appliance.
LIGHTING
INSTRUCTIONS
1. Turn off wall switch.
2. This appliance is equipped with an ignition device which automatically lights the
burner. Do not try to light the burner by
hand.
gas
valve
3. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B”
in the Safety Information located on the left
side of this label. If you don’t smell gas,
go to next step.
Warning:
Caution:
Do not connect 110 VAC
to the control valve.
Hot while in operation. Do not touch.
Keep children, clothing, furniture,
gasoline and other liquids having
flammable vapors away.
5. To light the burner, flip the ON/OFF
switch to the “ON” position. (The ON/OFF
switch may include a wall switch if so
equipped).
Do not operate the appliance with
panel(s) removed, cracked or broken. Replacement of the panel(s)
should be done by a licensed or
qualified service person.
6. If the appliance will not operate, check
battery then follow the instructions “To
Turn Off Gas to Appliance” and call your
service technician or gas supplier.
Not for use
with solid fuel
TO TURN OFF
GAS TO APPLIANCE
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information manual provided with this
appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and maintained in accordance with the manufacturer’s instructions, this product
could expose you to substances in
fuel or fuel combustion which are
known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
4. Turn on wall switch.
For use with natural gas and propane. A conversion kit, as supplied
by the manufacturer, shall be used
to convert this appliance to the alternate fuel.
1. Turn off all electric power to the appliance
if service is to be performed.
2. Flip ON/OFF switch to the “OFF” position.
Keep burner and control compartment clean. See installation and
operating instructions accompanying
appliance.
Final Inspection by _________________________________
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 21
C. After the Appliance is Lit
CAUTION
Initial Break-in Procedure
When you light the appliance, you may notice that it produces heat which does have an associated odor or smell. If
you feel this odor is excessive it may require the initial three
to four hour continuous burn on high followed by a second
burn up to 12 hours to fully drive off any odor from paint and
lubricants used in the manufacturing process. Condensation
of the glass is normal
Note: This appliance should be run three to four hours
on the initial start-up. Turn it off and let it cool completely.
Remove and clean the glass. Replace the glass and run
the appliance for an additional 12 hours. This will help cure
the products used in the paint and logs.
•
•
•
Prevent accidental appliance operation when not
attended.
Unplug or remove batteries from remote switch if
absent or if appliance will not be used for an extended
period of time.
Property damage possible from elevated
temperatures.
CAUTION
Smoke and odors are released during initial
operation.
Smoke and odors may be irritating to sensitive
individuals.
WARNING
Fire Risk
High Temperatures
Keep combustible household items away
from appliance.
Do NOT obstruct combustion and ventilation
air.
• Do NOT place combustible items on top
of or in front of appliance.
• Keep furniture, draperies away from
appliance.
WARNING
Fire Risk
Keep combustible materials, gasoline and
other flammable vapors and liquids clear of
appliance.
• Do NOT store flammable materials in the
vicinity of the appliance.
• Do NOT use gasoline, lantern fuel,
kerosene, charcoal lighter fluid or similar
liquids in this appliance.
Combustible materials may ignite.
D. Frequently Asked Questions
Issue
22
Solutions
Condensation on the glass
This is a result of gas combustion and temperature variations. As the appliance warms, this condensation will
disappear.
Blue flames
This is a result of normal operation and the flames will begin to yellow as the appliance is allowed to burn for 20 to
40 minutes.
Odor from appliance
When first operated, this appliance may release an odor for the first several hours. This is caused by the curing of
the paint and the burning off of any oils remaining from manufacturing.
Film on the glass
This is a normal result of the curing process of the paint and logs. Glass should be cleaned within 3 to 4 hours of
initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas
fireplace glass cleaner may be necessary. See your dealer.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced
by a furnace or heating duct. This noise does not affect the operation or longevity of the fireplace.
Is it normal to see the pilot
flame burn continually?
In an Intellifire ignition system it is normal to see the pilot flame, but it should turn off when ON/OFF is turned off.
In a standing pilot system the pilot will always stay on.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
11
Troubleshooting
With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the
corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician.
A. Intellifire Ignition System
Symptom
1.
2.
3.
4.
The ignitor/module makes
noise, but no spark.
Pilots won’t light, there is
no noise or spark.
Pilot lights but continues
to spark, and main burner
will not ignite. (If the pilot
continues to spark after
the pilot flame has been
lit, flame rectification has
not occurred.)
Pilot sparks, but pilot will
not light.
Possible Causes
Corrective Actions
A.
Incorrect wiring.
Verify “S” wire (white) for sensor and “I” wire (orange) for ignitor are connected to the
correct terminals on the module and the pilot assembly. Reversed wires at the module
may cause the system to make a sparking noise, but the spark may not be present at
pilot hood.
B.
Loose connections or
electrical shorts in the
wiring.
Verify there are no loose connections or electrical shorts in wiring from module to
pilot assembly. The rod closest to the pilot hood should be ignitor. Verify connections
underneath pilot assembly are tight; also verify the connections are not grounding out
to the metal chassis, pilot burner, pilot enclosure, mesh screen if present, or any other
metal object.
C.
Ignitor gap is too large.
Verify gap of ignitor to pilot hood. The gap should be approximately .17 in. or 1/8 in.
D.
Faulty module.
Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I”
from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground
wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I” terminal,
module must be replaced. If there is a spark at “I” terminal, module is fine. Inspect pilot
assembly for shorted sparker wire or cracked insulator around electrode.
A.
Transformer installed
incorrectly.
Verify that transformer is installed and plugged into module. Check voltage of
transformer under load at space connection on module with ON/OFF switch in ON
position. Acceptable readings of a good transformer are between 3.2 and 2.8 volts AC.
B.
A shorted or loose
connection in wiring
configuration or wiring
harness.
Remove and reinstall the wiring harness that plugs into module. Verify there is a tight
fit. Verify pilot assembly wiring to module. Remove and verify continuity of each wire in
wiring harness.
C.
Improper wall switch
wiring.
Verify wall switch is wired correctly.
D.
Module not grounded.
Verify black ground wire from module wire harness is grounded to metal chassis of
appliance.
E.
Faulty module.
Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I”
from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground
wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I” terminal
module must be replaced. If there is a spark at “I” terminal, module is fine. Inspect pilot
assembly for shorted sparker wire or cracked insulator around electrode.
A.
A shorted or loose
connection in sensor rod.
Verify all connections to wiring diagram in manual. Verify connections underneath pilot
assembly are tight. Verify connections are not grounding out to metal chassis, pilot
burner, pilot enclosure or screen if present, or any other metal object.
B.
Poor flame rectification or
contaminated sensor rod.
Verify flame is engulfing sensor rod. If the pilot assembly does not have a ground
strap, consider installing one to increase flame rectification. Verify correct pilot orifice
is installed and inlet gas specifications are met. Flame carries rectification current, not
the gas. If flame lifts from pilot hood, the circuit is broken. A wrong orifice or too high
an inlet pressure can cause pilot flame to lift. The sensor rod may be contaminated.
Clean sensor rod with emery cloth.
C.
Module is not grounded.
Verify that module is securely grounded to metal chassis of appliance. Verify that the
wire harness is firmly connected to module.
D.
Damaged pilot assembly
or dirty sensor rod.
Verify that ceramic insulator around the sensor rod is not cracked, damaged, or loose.
Verify connection from sensor rod to white sensor wire. Clean sensor rod with emery
cloth to remove any contaminants that may have accumulated on sensor rod. Verify
continuity with a multimeter with ohms set at lowest range.
E.
Faulty module.
Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I”
from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground
wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I”
terminal, module must be replaced. If there is a spark at “I” terminal, module is fine.
Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.
A.
Correct gas supply.
Verify that incoming gas line ball valve is “open”. Verify that inlet pressure reading is
within acceptable limits, inlet pressure must not exceed 14 in. w.c.
B.
Ignitor gap is too large.
Verify that spark gap from ignitor to pilot hood is .17 in. or 1/8 in.
C.
Module is not grounded.
Verify module is securely grounded to metal chassis of appliance.
D.
Module voltage output/
valve/pilot solenoid ohms
readings.
Replace module.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 23
12
Maintaining and Servicing the Appliance
Although the frequency of appliance servicing and maintenance will depend on use and the type of installation, a qualified
service technician should perform an appliance check-up at the beginning of each heating season.
WARNING
Risk of injury or property damage
Before servicing:
• Turn off gas.
• Turn off electricity to appliance.
• Disable remote control, if one is present.
• Ensure appliance is completely cooled.
After Servicing:
• Replace any screen or barrier that was removed.
• Reseal and reinstall any venting removed for
servicing.
WARNING
Annual inspection by qualified technician
recommended.
Check:
• Condition of doors, surrounds and fronts.
• Condition of glass, glass assembly and glass
seal.
• Obstructions of combustion and ventilation
air.
• Condition of logs.
• Condition of firebox.
• Burner ignition and operation.
• Burner air shutter adjustment.
• Gas connections and fittings.
• Obstructions of termination cap.
Clean:
• Glass.
• Air passageways, grilles, control
compartment.
• Burner, burner ports.
Risk of:
• Fire
• Delayed ignition or explosion
• Exposure to combustion fumes
• Odors
24
CAUTION
Handle glass assembly with care.
Note: Clean glass after initial 3-4 hours
operation. Longer operation without
cleaning glass may cause a permanent
white film on glass.
When cleaning glass door:
• Avoid striking, scratching or slamming
doors.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on
white film.
• Do NOT clean glass when it is hot.
• Turn off appliance after 3-4 hours of
operation and ALLOW TO COOL.
• Remove and clean glass assembly.
• Replace glass assembly and operate
appliance for an additional 12 hours.
Refer to maintenance instructions.
WARNING
Fire Risk
Explosion Risk
Inspect external vent cap regularly.
• Ensure no debris blocks cap.
• Combustible materials blocking cap may
ignite.
• Restricted air flow affects burner
operation.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
A. Valve Service and Replacement
•
Tools Required
Phillips screwdriver
7/16 in., 5/8 in., 13/16 in., 15/16 in. wrenches
Remove the inside valve access panel by lifting it up and
out.
Figure 12.4 Remove Valve Access Panel
Figure 12.1 Tools Required
•
•
•
The valve can be accessed through the valve access panel
on the right side of the fireplace.
Lift doors out and set aside.
Remove grate and pilot shield (see Figure 6.2).
•
Using a phillips screwdriver remove the exterior valve
access panel.
Figure 12.5 Remove Exterior Valve Access Panel
Figure 12.2 Lift Out Doors
•
Use a phillips screwdriver to remove the right refractory by
removing the two screws securing the refractory retaining
strip. Remove the refractory side panel and set aside.
•
Turn the gas ball valve off and disconnect the gas line after
the ball valve by loosening the flare nut using a 13/16 in.
and a 15/16 in. wrench.
Figure 12.6 Turn off Gas Valve
Figure 12.3 Loosen Refractory Retaining Strip
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 25
•
Using two 3/4 in. wrenches, disconnect the burner supply
tube.
B. Battery Replacement
•
Figure 12.9 Switch Cover Plate
Figure 12.7 Disconnect Burner Supply Tube
•
Remove the two screws securing the valve to the valve
bracket.
Remove switch cover plate from the wall.
•
Replace two D-cell battieres.
Ground
Wire
Figure 12.10 Batteries
Figure 12.8 Remove Valve from Valve Bracket
•
•
26
Disconnect the pilot and orifice tubes using a 7/16 in. and
a 5/8 in. wrench.
Reverse these steps to replace the gas valve. Make sure
the ground wire is reattached as shown in Figure 12.8.
•
Replace switch cover plate.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
B. Maintenance and Service Tasks:
Inspect
Maintenance Tasks
Doors, surrounds and fronts 1 Inspect for scratches and nicks that can lead to breakage when exposed to heat.
2 Verify no obstructions to airflow through the louvers.
3 Verify proper clearance to combustible household objects is maintained.
Glass assembly and glass
1 Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat.
2 Confirm there is no damage to glass or glass frame. Replace as necessary.
3 Verify that latches engage properly, clip studs are not stripped, and glass attachment components are
intact and operating properly. Replace as necessary.
4 Clean glass using a nonabrasive cleaner such as Brasso®. Replace glass assembly if severely
coated with silicate deposits that cannot be removed.
Valve compartment and
firebox top
1 Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas.
Screw tips that have penetrated the sheet metal are sharp and should be avoided.
2 Remove any foreign objects.
3 Verify unobstructed air circulation.
Logs
1 Inspect for broken, damaged or missing logs. Replace as necessary.
2 Verify correct log placement and no flame impingement causing sooting. Correct as necessary.
Firebox
1 Inspect for paint condition, warpage, corrosion or perforation. Sand and repaint as necessary.
2 Replace appliance is firebox has been perforated.
Burner ignition and
operation
1 Verify burner is properly secured and aligned with pilot or igniter.
2 Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if
necessary.
3 Replace rockwool with new dime-sized and shaped pieces. Do not block ports or obstruct lighting
paths.
4 Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay.
5 Inspect for lifting or other flame problems.
6 Verify air shutter is clear of dust and debris.
7 Inspect orifice for soot, dirt or corrosion.
8 Verify manifold and inlet pressures. Adjust regulator as required.
9 Inspect pilot flame strength. Clean or replace orifice as necessary.
10 Inspect thermocouple/thermopile or IPI sensor rod for soot, corrosion and deterioration. Clean with
emery cloth or replace as required.
11 Verify millivolt output. Replace as necessary.
Remote controls
1 Verify operation of remote.
2 Replace batteries in remote transmitters and battery-powered receivers.
3 If appliance will not be used for a long period of time, verify batteries have been removed from battery
back-up in IPI systems to prevent premature battery failure or leaking.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 27
13
Reference Materials
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
31 in.
(787 mm)
23-1/4 in.
(591 mm)
1 in.
(25 mm)
7/8 in.
(22 mm)
43-1/2 in.
(1105 mm)
37-1/8 in.
(943 mm)
23-1/8 in.
(587 mm)
42 in.
(1067 mm)
48 in.
(1219 mm)
6-3/4 in.
(171 mm)
12-5/8 in.
(321 mm)
15-5/8 in.
(397 mm)
Figure 13.1 Appliance Dimensions
28
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
8
7
6
10
5
13
11
14
4
9
12
13
16
15
Part number list on following page.
3
2
Service Parts Diagram
42 in. Outdoor Gas Fireplace
Service Parts
1
21
22
23
17
26
20
18
24
27
28
25
19
06/09
Beginning Manufacturing Date: Feb 2006
Ending Manufacturing Date: Active
DAKOTA42-B, DAKOTA42H-B
Door Grille Bar
Bottom Door Support Assembly
Left Glass Door Assembly
8
9
Left Top Pivot Pin
14
Right Top Pivot Pin
Door Locks
15
16
4021-296
4036-186
4025-007
LPK-DAKOTA-B
NGK-DAKOTA-B
Outer Shell Access Panel
Outer Shell Access Panel Fastener Pack
Conversion Kit NG to LP
Conversion Kit LP to NG
Additonal service parts on following page.
Y
Y
4036-909
28062
4036-067
Lava Rock
Qty 2 req
4036-730
Grate Retainer Clip
28
4036-740
4036-145
28394
4036-121
4036-133
4036-146
4036-152
4036-147
4010-015
4036-148
4036-226
4036-118
Installation Instructions & Owner's Manual
Grate
27
Qty 2 req
Qty 2 req
4036-020
4036-115
4021-350
4036-096
4036-119
4036-020
4036-116
4021-350
4036-177
4036-082
Hearth Fiber Coal Bed
Traditional Brick Hearth Refractory
26
Traditional Brick Right Side Refractory
25
Side Refractory Cover
22
Traditional Brick Back Refractory
Traditional Brick Left Side Refractory
21
24
Herringbone Hearth Refractory
20
Back Refractory Bracket
Herringbone Right Side Refractory
19
23
Herringbone Back Refractory
18
Herringbone Left Side Refractory
Glass Panel Assembly
17
Right Bottom Pivot Pin
13
Door Handle
12
10
Glass Panel Assembly
13
Right Glass Door Assembly
Left Bottom Pivot Pin
11
Qty 4 req
4036-195
4036-137
4036-139
31190
Y
Top Door Support Assembly
7
Door Handle
Gas Hood
6
10
Y
Y
4036-083
4036-097
Inner Shell Access Panel
5
Y
Intermediate Shell Access Panel
4
13433
Nailing Flange
Qty 4 req
Top Standoffs
Qty 4 req
PART NUMBER
4036-197
3
COMMENTS
2
DESCRIPTION
Upper Face
1
ITEM
06/09
Stocked
at Depot
Beginning Manufacturing Date: Feb 2006
Ending Manufacturing Date: Active
DAKOTA42-B, DAKOTA42H-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Service Parts List
42 in. Outdoor Gas Fireplace
Service Parts
B. Service Parts List
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 29
30
6
5
3
9
8
7
Post Serial #OD9288
4
2
17
16
15
8
22
7
6
Part number list on following page.
1
9
14
Service Parts Diagram
42 in. Outdoor Gas Fireplace
Service Parts
23
13
26
25
24
21
Pre Serial #OD9288
10
5
11
20
12
27
19
18
Post Serial #OD9287
(Kit is retro-fittable.)
28
29
30
06/09
Beginning Manufacturing Date: Feb 2006
Ending Manufacturing Date: Active
DAKOTA42-B, DAKOTA42H-B
Brass Elbow
3
9
Also available:
4021-030
1/2 in. Male NPT to 3/8 in. Fem. NPT Bush
30
Additonal service parts on following page.
4021-114
Coupler - 3/8 Male NPT / 7/8 SAE Flare
29
4021-133
60 in. Flex Line 5/8 in. dia.
28
4021-115
SRV4036-044
4036-040
ON/OFF Valve
60 in. Flex Line Assembly
Switch Box Assembly
4036-189
4036-188
1-1/4 in. Burner Tube LP
Burner Tube Bracket
4036-194
4036-187
1-1/4 in. Burner Tube NG
4036-190
27
26
25
24
4036-248
Air Shutter
Rock Retainer
23
4036-069
Burner Tube Assembly LP
Pilot Shield
4036-068
Burner Tube Assembly NG
Y
Y
4021-116
593-513A
Pilot Assembly LP
IPI Wiring Harness (w/5 ft. Leads)
Y
Y
593-592
593-512A
Pilot Assembly NG
22
21
20
4036-179
Control Module
Valve Assembly Bracket
19
Switch Box Screw Pack
18
060-511
4025-007
ON/OFF Rocker Switch
17
4036-157
Switch Cover Plate
16
Y
Y
593-594A
4021-153
Y
4021-117
4021-347
4021-348
4021-349
Electrical Box Gasket
Battery Pack
14
Pre SN #OD9288
Pre SN #OD9288
32563
15
Switch Box
3/8 NPT Street L
12
13
3/8 Male NPT x 4-1/2 in. Pipe
3/8 in. NPT Pipe Coupler
11
10
Pre SN #OD9288
Burner Orifice LP
Jam Nut (1/2-20)
Y
Y
4021-134
32562
Burner Orifice NG
8
32553
Compression Nut
7
SRV4036-260
Flex Burner Line Kit
Y
Y
Y
Brass Fitting (1/2-3/8)
19641
593-501
593-500
4021-098
4021-561
15697
06/09
Stocked
at Depot
6
Post SN #OD9287
COMMENTS
5
Valve LP
Valve NG
3/8 Swivel Nut Connector
4
ON/OFF Valve
2
DESCRIPTION
1
ITEM
PART NUMBER
Beginning Manufacturing Date: Feb 2006
Ending Manufacturing Date: Active
DAKOTA42-B, DAKOTA42H-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Service Parts List
42 in. Outdoor Gas Fireplace
Service Parts
B. Service Parts List (continued)
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
SRV724
SRV723
SRV740
SRV727
4036-713(Log Set Box #3)
4036-712(Log Set Box #2)
SRV720
SRV728
SRV722
SRV742
06/09
Beginning Manufacturing Date: Feb 2006
Ending Manufacturing Date: Active
DAKOTA42-B, DAKOTA42H-B
4036-711(Log Set Box #1)
Service Parts List
42 in. Outdoor Gas Fireplace
Service Parts
B. Service Parts List (continued)
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 31
This page intentionally left blank.
32
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
This page intentionally left blank.
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 33
 C. Warranty
Outdoor Lifestyles by Hearth & Home Technologies, Inc.™
Limited Warranty
Hearth & Home Technologies, Inc. (“HHT”) extends the following warranty for all Outdoor Lifestyles by
HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
• This warranty only covers Products that are purchased through an HHT authorized dealer or
distributor. A list of HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the Product remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees
may apply if you are seeking warranty service from a dealer other than the dealer from whom
you originally purchased the Product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 1
34
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09
C. Warranty (continued)
•
•
•
•
Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inadequate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
•
The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other
damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored
cast iron, bubbling, cracking and discoloration of steel or enamel finishes and cracking or spalling of
refractory or cementitious materials.
•
The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
•
There is any damage to the Product or other components due to water or weather damage which is the
result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive remedy for and
will constitute HHT’s sole obligation under this warranty, under any other warranty (express or implied), or in contract,
tort or otherwise; provided, however, that if HHT is unable to provide repair or replacement in an expedient and cost
effective manner, HHT may discharge all such obligations by refunding the purchase price of the Product. No
employee, agent, dealer, or other person is authorized to give any warranty on behalf of HHT. TO THE EXTENT
ALLOWED BY LAW, HHT MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary from state
to state. The duration of any implied warranty is limited to the duration of the warranty period specified herein.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 2
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09 35
D. Contact Information
 Please contact your Outdoor Lifestyles dealer with any questions or concerns.
For the number of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com.
- NOTES -
•
DO NOT DISCARD THIS MANUAL
Important operating •
and maintenance
instructions included.
Read, understand •
and follow these
instructions for safe
installation and
operation.
L e a v e
t h i s
manual with party
responsible for use
and operation.
T
O
N RD
O A
D SC
I
D
CAUTION
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876,
4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983,
5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237,
5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079,
6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940,
6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039,
6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403,
1418504 or other U.S. and foreign patents pending.
36
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev L 10/09

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
