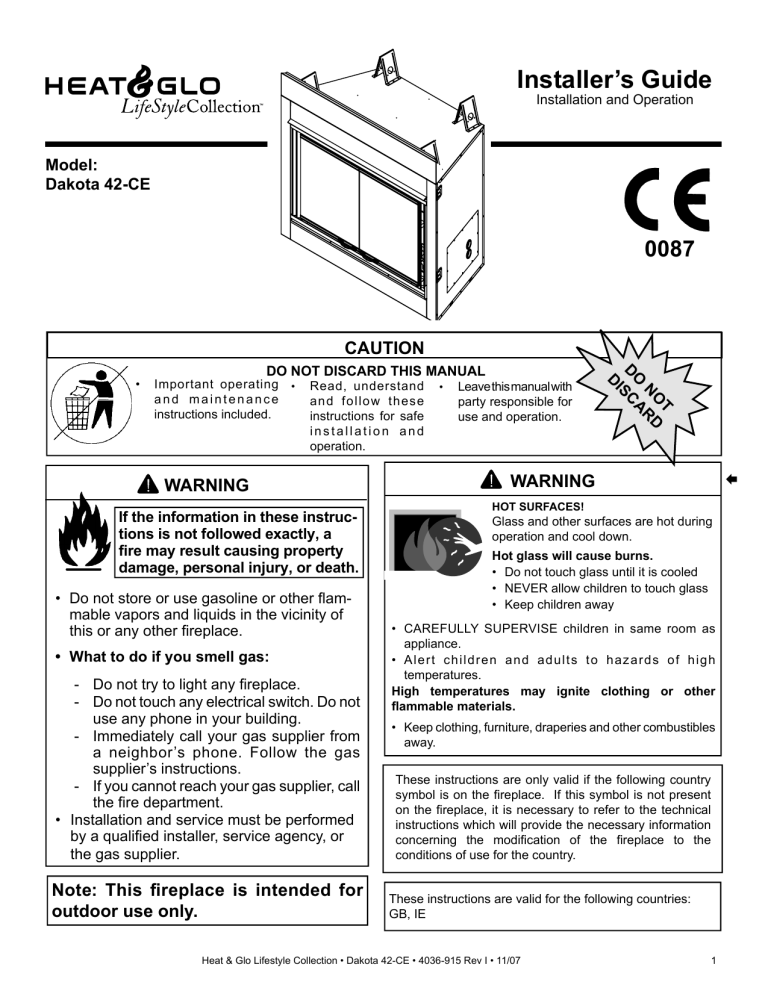

Installer’s Guide
Installation and Operation
Model:
Dakota 42-CE
0087
CAUTION
•
Read, understand
and follow these
instructions for safe
installation and
operation.
WARNING
If the information in these instructions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other fireplace.
• What to do if you smell gas:
- Do not try to light any fireplace.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
Note: This fireplace is intended for
outdoor use only.
•
Leave this manual with
party responsible for
use and operation.
T
O
N RD
O A
D SC
I
DO NOT DISCARD THIS MANUAL
Important operating
and maintenance
instructions included.
D
•
¨
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
These instructions are only valid if the following country
symbol is on the fireplace. If this symbol is not present
on the fireplace, it is necessary to refer to the technical
instructions which will provide the necessary information
concerning the modification of the fireplace to the
conditions of use for the country.
These instructions are valid for the following countries:
GB, IE
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
1
Read this manual before installing or operating this fireplace.
Please retain this owner’s manual for future reference.
Congratulations
Congratulations on selecting a Heat & Glo LifeStyle Collection gas fireplace—an elegant and clean alternative to wood
burning fireplaces. The Heat & Glo LifeStyle Collection gas
fireplace you have selected is designed to provide the utmost in safety, reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This appliance must be installed in accordance with the Gas
Safety (installation and use) Regulations. For Ireland,
IS. 8.1.3 Domestic Gas Installation.
Homeowner Reference Information
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control systems.
Your new Heat & Glo LifeStyle Collection gas fireplace will
give you years of durable use and trouble-free enjoyment.
Welcome to the Heat & Glo LifeStyle Collection family of
fireplace products!
We recommend that you record the following pertinent
information about your fireplace:
Model Name:
Date purchased/installed:
Serial Number:
Location on fireplace:
Dealership purchased from:
Dealer phone:
Notes:
2
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
Table of Contents
1
Listing and Code Approvals
4
A. Fireplace Certification . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Getting Started
4
A. Design and Installation Considerations . . . . . . . . . . . . 4
B. Inspect Fireplace and Components . . . . . . . . . . . . . . . 4
3
Framing and Clearances
5
A. Select Fireplace Location . . . . . . . . . . . . . . . . . . . . . . 5
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4
Fireplace Locations
A.
5
7
Fireplace Minimum Clearances . . . . . . . . . . . . . . . . . 7
Fireplace Preparation
8
A. Remove Logs and Shipping Cover . . . . . . . . . . . . . . . 8
B. Securing and Leveling Fireplace . . . . . . . . . . . . . . . . . 8
6
Gas Information
9
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . 9
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7
Electrical Information
10
A. Ignition System Wiring . . . . . . . . . . . . . . . . . . . . . . . 10
B. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8
Finishing
11
9
Fireplace Setup
A.
B.
C.
D.
E.
10 Operating Instructions
A.
B.
C.
D.
13
Clean the Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Grate Assembly Placement . . . . . . . . . . . . . . . . . . . . 13
Positioning the Logs
. . . . . . . . . . . . . . . . . . . . . . . 13
Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Placing Lava Rock . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17
Before Lighting Fireplace. . . . . . . . . . . . . . . . . . . . . . 17
Lighting the Fireplace . . . . . . . . . . . . . . . . . . . . . . . . 18
After the Fireplace is Lit . . . . . . . . . . . . . . . . . . . . . . . 19
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 19
11 Maintaining and Servicing the Fireplace 20
A. Valve Access and Service . . . . . . . . . . . . . . . . . . . . . 21
B. Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . 22
C. Maintenance and Service Tasks: . . . . . . . . . . . . . . . . 23
12 Troubleshooting
24
A. Electronic Ignition System . . . . . . . . . . . . . . . . . . . . . 24
13 Reference Materials
A.
B.
C.
D.
25
Fireplace Dimension Diagram . . . . . . . . . . . . . . . . . . 25
Service Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 36
A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Note: An arrow (¨ ) found in the text signifies change in content.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
3
1
Listing and Code Approvals
A. Fireplace Certification
MODEL:
Dakota 42-CE
LABORATORY:
TYPE:
WARNING
Advantica
Do NOT use this fireplace if any part has been under
water. Immediately call a qualified service technician
to inspect the fireplace and to replace any part of the
control system and any gas control which has been
under water.
Outdoor Gas Fireplace
STANDARD: BS EN 509•2000 & EN 14543 Sept. 2002
DIRECTIVE: GAD 90/1396/EEC
2
Getting Started
A. Design and Installation Considerations
Before installation check that local distribution conditions,
nature of gas and pressure, and adjustment of the fireplace
are compatible.
This fireplace must be installed with the rules in force, and
used only in a sufficiently ventilated space. Consult instructions before installation and use of this fireplace.
•
Carefully remove the fireplace and components from the
packaging.
The gas logs are be packaged separately and must be
field installed.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
Read all of the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benefit.
•
•
•
B. Inspect Fireplace and Components
WARNING
WARNING
Inspect fireplace and components for
damage. Damaged parts may impair safe
operation.
•
•
•
Do NOT install damaged components.
Do NOT install incomplete components.
Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
•
•
•
•
•
Installation and use of any damaged fireplace or
component.
Modification of the fireplace.
Installation other than as instructed by Hearth & Home
Technologies.
Improper positioning of the gas logs or the glass
door.
Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
4
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
3
Framing and Clearances
Note:
•
•
•
WARNING
Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
Illustrations/diagrams are not drawn to scale.
Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings.
• To combustibles.
• For service access.
Locate fireplace away from traffic areas.
A. Select Fireplace Location
When selecting a location for your fireplace it is important to
consider the required clearances to walls (See Figure 3.1).
Note: If this surface is
inside the building’s
warm air envelope...
Not e: For ac tual f ireplac e
dimensions refer to Section 13.
...then this surface
must be an exterior
wall system.
G
1.47 M
B
A
G
F
F
F
C
E
D
2.08 M
C
D
E
cm
Figure 3.1
A
B
C
D
E
F
G
62.9
61.3
121.9
124.5
1.6
1.3
3.8
Fireplace Locations
WARNING
Fire Risk
Odor Risk
•
•
Install fireplace on hard metal or wood
surfaces extending full width and depth
of fireplace.
Do NOT install fireplace directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
Fire Risk
• Locate and install fireplace to all clearance
specifications in manual.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
5
B. Clearances
• Appliance must be installed in
amply insulated area.
• Area must have minimum of 25%
of surface area open.
• Surface area = sum of walls
surface.
111.4 cm
124.5 cm
111.4 cm
Header height.
Use only non-combustible
material below the top of
the top standoffs.
61.3 cm
Upper front can be covered
with non-combustible material
or removed and replaced with
non-combustible material.
3.8 cm
0 cm to level
of standoffs
213.4 cm
to ceiling
3.8 cm
1.3 cm
Combustible Object
Drywall
Figure 3.2
Combustible flooring may be installed
next to the front of the appliance.
91.4 cm
0 cm
0 cm
Framing Dimensions
C. Mantel Projections
Overhang
Then B
must be at
least:
If A is:
cm
15.2 - 91.4
66
cm
91.4 or more
45.7
30.5 cm
max. combustible
mantel depth
Ma
nte
l
2.13 m
minimum
ceiling height
B
A
Figure 3.3
6
Clearances to Combustible Mantels or Other Combustibles Above Fireplace
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
4
Fireplace Locations
A. Fireplace Minimum Clearances
O
P
G
N
R
FP
A
D
FP
H
Q
E
(See Note 2)
B
L
FP
F
B
B
FP
FP
FP
M
I
FP
A
FP = FIREPLACE OPENING
A
=
B
=
D** =
F
G*
=
=
H
=
I
=
*
**
J or K
X = AIR SUPPLY INLET
0 cm . . . . . . . . . clearances above grade,
(See note 1)
veranda, porch, deck or
balcony.
30.5 cm . . . . . . . clearances to window or door
that may be opened, or to
permanently closed window.
91.4 cm . . . . . . . vinyl windows or siding.
119.3 cm . . . . . . . vertical clearance to unventilated soffit or to ventilated soffit
located above the terminal.
152.4 cm . . . . . . . vinyl clad soffits.
22.8 cm . . . . . . . clearance to outside corner.
15.2 cm . . . . . . . clearance to inside corner.
121.9 cm . . . . . . . vinyl windows or siding.
91.5 cm . . . . . . . not to be installed above a gas
meter/regulator assembly within
91.5 cm horizontally from the
center line of the regulator.
91.4 cm . . . . . . . clearance to service regulator
vent outlet and electric service.
122 cm minimum for vinyl windows or vinyl siding.
Not allowed for vinyl clad soffits.
***
a fireplace shall not open directly above a sidewalk or paved
driveway which is located between two single family dwellings
and services both dwellings.
****
only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
X
= AREA WHERE FIREPLACE IS NOT PERMITTED
J
=
22.8 cm . . . . . clearance to non-mechanical air
supply inlet to building or the
combustion air inlet to any other
appliance.
K
=
91.4 cm . . . . . clearance to a mechanical air
supply inlet.
L*** =
2.1 M . . . . . . clearance above paved sidewalk
(See note 1)
M****=
or a paved driveway located on
public property.
119.3 cm . . . . . clearance under veranda, porch,
deck, balcony or overhang.
Not allowed: . . . . . . vinyl
N
=
P
=
15.2 cm . . . . . non-vinyl siding.
213.3 cm
fireplace and termination. 2) All mechanical air intakes within 3.0
M of a termination must be a minimum of 0.91 M below the
fireplace hood. 3) All gravity air intakes within 0.91 M of the
fireplace hood must be a minimum of 2.54 cm below the termination.
Dakota
QMIN
RMAX
3.0 M
2xQ
ACTUAL
___________________________________________________________________________
Note 1: Local codes or regulations may require different clearances.
1 additional termination cap
Q + 0.91 M 1 x Q ACTUAL
___________________________________________________________________________
Note 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1) There must
be a 0.91 M minimum between terminations or between the
ACTUAL
___________________________________________________________________________
2 additional termination caps
Q + 1.83 M 2/3 x Q
3 additional termination caps
Q + 2.74 M 1/2 x Q ACTUAL
RMAX = (2 / # caps plus fireplace ) x Q ACTUAL
Figure 4.1 Minimum Clearances
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
7
5
Fireplace Preparation
CAUTION
B. Securing and Leveling Fireplace
WARNING
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
Fire Risk
•
•
A. Remove Logs and Shipping Cover
Open the doors by sliding the handles toward the outside
edges of the doors (see Figure 5.1) Remove the cartons of
logs from their shipping location in the fireplace.
Prevent contact with sagging, loose
insulation.
Do NOT install against vapor barriers or
exposed insulation.
The diagram shows how to properly position, level, and secure the fireplace (see Figure 5.2). Nailing tabs are provided
to secure the fireplace to the framing members.
•
Place the fireplace into position on either a combustible
or non-combustible continuous flat surface.
Note: Remove the top standoffs before sliding fireplace into
position if using a non-combustible prefab enclosure.
Open
Figure 5.1
Open
•
•
•
•
•
Level the fireplace from side to side and front to back.
Shim the fireplace as necessary.
Bend out nailing tabs on each side.
Keep nailing tabs flush with the framing.
Secure the fireplace to the framing by using nails or screws
through the nailing tabs.
Upper front can be
covered with
non-combustible
material or removed
and replaced with
non-combustible
material.
Door Operation
CAUTION
Do NOT notch into the framing around the fireplace
spacers.
NAILING TABS
Figure 5.2
place
8
Proper Positioning, Leveling and Securing of a Fire-
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
6
Gas Information
A. Gas Pressure Requirements
B. Gas Connection
Pressure requirements for Heat & Glo gas fireplaces are
shown in Table 1 below.
Note: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
Two taps are provided on the outlet side of the gas control
for a test gauge connection to measure the inlet and outlet
pressures. These inlet and outlet pressure taps can be accessed through the internal valve access panels as shown
in Section 11: Maintaining and Servicing the Fireplace.
Note: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
The fireplace and its individual shut-off valve must be disconnected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 60 mbar.
Note: Consult local building regulations to properly
size the gas supply line leading to the (Rp 1/2 in.)
hook-up at the unit.
If the fireplace must be isolated from the gas supply piping
system by closing an individual shut-off valve, it must be of
the handle-less type.
Incoming gas line should be piped into the valve compartment and connected to the ISO 7-Rp 1/2 (BSP Rp 1/2)
threaded gas inlet connection on the manual shutoff valve.
Note: Gas line MUST be run from right side of fireplace.
WARNING
WARNING
Fire Risk
Explosion Risk
CHECK FOR GAS LEAKS
Fire Risk
Explosion Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete,
all connections must be tightened and
checked for leaks with a commercially
available, non-corrosive leak check
solution. Be sure to rinse off all leak check
solution following testing.
Fittings and connections may have loosened
during shipping and handling.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 60 mbar.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 60 mbar.
Table 1
Natural Gas
(G20)
Propane
(G31)
Butane
(G30)
Natural Gas
(G25)
20mbar
37 or 50mbar
30 or 50mbar
25mbar
4-8.7 mbar
24mbar
24mbar
8.7mbar
Gas Rate
1.68 m3/h
.62 m3/h
.42 m3/h
1.68 m3/h
Max.Input (NETCV)
16.5 kW
15.0 kW
13.7kW
14.0 kW
Burner Injector
DMS 25
DMS 44
DMS 46
DMS 25
51
30
30
51
Inlet Pressure
Manifold Pressure
Pilot Injector
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
9
7
Electrical Information
A. Ignition System Wiring
•
This fireplace is equipped with an electronic ignition
system which operates on a 6 volt system.
The batteries are located within the ignition module which
is located within the external control box. A wiring diagram
is shown in Figure 7.1.
The battery pack requires four AA batteries (not included).
See Section 11.B for battery replacement.
•
•
WARNING
Shock Risk
• Replace damaged wire with type 105° C rated wire.
• Wire must have high temperature insulation.
CAUTION
CAUTION
Battery polarity must be correct or module damage will
occur.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
B. Remote Control
•
This fireplace is equipped with a remote control to
operate the ignition system.
9 volt battery required.
Follow operating instructions included with remote
control.
•
•
FLAME SPARKER/
SENSOR
VALVE
PILOT
REMOTE
CONTROL
ANT.
IGNITION MODULE
6VDC
ON/OFF
WALL SWITCH
IGNITION
MODULE
(6V)
BATTERY PORT
(4 AA BATTERIES)
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
ON/OFF
SWITCH
VALVE
PILOT GAS LINE
CONNECTED TO
BACK OF VALVE
Figure 7.1
10
Electronic Ignition Wiring Diagram
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
8
Finishing
A. Mantel Projections
Figure 8.1 shows the minimum vertical dimension of fireplace mantels or other combustible projections above the top front
edge of the fireplace.
Overhang
30.5 cm
max. combustible
mantel depth
Ma
nte
l
2.13 m
minimum
ceiling height
B
A
If A is:
Then B
must be at
least:
cm
15.2 - 91.4
66
cm
91.4 or more
45.7
Figure 8.1
Clearances to Combustible Mantels or other Combustibles above Fireplace.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
11
B. Facing Material
WARNING
WARNING
Fire Risk
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fire hazard.
Finishing materials must not interfere with:
• Air flow through grilles or louvers.
• Operation of louvers or doors.
• Access for service.
Fire Risk
Finish all edges and fronts to clearances and
specifications listed in manual.
•
Metal fireplace front may be covered with noncombustible material only.
•
Do NOT overlap combustible materials onto fireplace
front.
•
Install combustible materials up to specified clearances
on top front and side edges.
•
Seal joints between the finished wall and fireplace top
and sides using only a 150° C minimum sealant.
Upper front can be covered
Finish wall material
with non-combustible material
may be combustible, or removed and replaced with
top & sides.
non-combustible material.
0 cm.
0 cm.
Figure 8.2
12
Sealant Material
0 cm.
Non-combustible Facing Diagram
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
9
Fireplace Setup
A. Clean the Fireplace
Clean/vacuum any sawdust that may have accumulated inside the firebox or underneath in the control cavity.
Note: Use only manufacturer’s supplied media for fuel
bed layout.
B. Grate Assembly Placement
Back Legs in Grate Brackets
Figure 9.1
Back Legs in Grate Brackets (front view)
Figure 9.2
Top view
Ensure grate assembly is over burner assembly, centered from left to right, and back legs are in grate brackets.
C. Positioning the Logs
Figure 9.3
See Section 13.B. for log descriptions and illustrations.
Right Rear Log (SRV720) (front view)
Figure 9.4
Top view
Place right rear log on the grate against the fireplace right side wall, so that its right end sits in the bracket opening.
Figure 9.5
Left Rear Log (SRV728) (front view)
Figure 9.6
Top view
Place the left rear log on the grate against the left wall and rest it on log.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
13
Figure 9.7
Left Side Log (SRV723) (front view)
Figure 9.8
Top view
Place the fork of log onto the left front bar and rest its back on right rear log.
Figure 9.9
Front Log (SRV727) (front view)
Figure 9.10 Top view
Place front log in front of the main grate with its left end resting on left rear log as shown.
Figure 9.11 Front Left Log (SRV722) (front view)
Figure 9.12 Top view
Place front left log between locating bars so it rests against left side log and on top of front log.
14
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
Figure 9.13 Front Right Log (SRV724) (front view)
Figure 9.14 Top view
Place right center log between the 4th and 5th vertical bars on the log grate, resting the back on right rear log.
Figure 9.15 Right Side Log (SRV740) (front view)
Figure 9.16 Top view
Place right log against the rightmost front grate bar and rest its rear on right rear log, angled towards the corner as
shown.
Figure 9.17 Right Front Corner Log (SRV742) (front view)
Figure 9.18 Top view
Place right front corner log between the right side wall and right side grate bar as shown.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
15
D. Glass Assembly
E. Placing Lava Rock
•
WARNING
Handle glass with care.
• Inspect the glass for cracks, chips or
scratches.
• Do NOT strike, slam or scratch glass.
• Do NOT operate fireplace with glass door
removed, cracked, broken or scratched.
• Replace glass door assembly as a
complete assembly.
•
•
•
16
The glass doors are included with and pre-installed in the
fireplace.
To adjust doors, open them and loosen screws on top
and bottom pivot pins. Slide each door as necessary and
tighten screws.
To adjust handle, loosen screws to move handles as
necessary and tighten screws.
After logs have been placed spread part of the lava
rock (included) between the rock pan and ashlip (see
Figure 9.19).
Rock Pan
Ashlip
Figure 9.19 Placement of Lava Rocks
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
10
Operating Instructions
A. Before Lighting Fireplace
Before operating this fireplace, have a qualified
technician:
•
Remove all shipping materials from inside the firebox.
•
Review proper placement of logs and lava rock.
•
Check the wiring and batteries.
•
Check the air shutter adjustment.
•
Ensure that there are no gas leaks.
•
Ensure that the flow of combustion and ventilation air is
not obstructed (front grilles).
•
A guard is recommended for the protection of young
children, the elderly or infirm.
•
Parts sealed by the manufacturer or agent must not be
altered by the user.
•
The fuel bed must not be disturbed, do not burn
rubbish.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
fireplace. For assistance or additional information consult
a qualified installer, service agency or the gas supplier.
WARNING
Do NOT use this fireplace if any part has been under
water. Immediately call a qualified service technician
to inspect the fireplace and to replace any part of the
control system and any gas control which has been
under water.
¨
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
SWITCH IS SHOWN
IN "ON" POSITION
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other combustibles
away.
Figure 10.1 Valve Switch Position
•
Switch must be in position shown in Figure 10.1 in order
for remote control to operate properly.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
17
B. Lighting the Fireplace
Electronic Ignition
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This fireplace is equipped with • Do not touch any electric switch; do
an electronic pilot ignition device
not use any phone in your building.
which automatically lights the • Immediately call your gas supplier
burner. Do not try to light the
from a neighbor’s phone. Follow
burner by hand.
the gas supplier’s instructions.
B. BEFORE LIGHTING, smell all • If you cannot reach your gas suparound the fireplace area for gas.
plier, call the fire department.
Be sure to smell next to the floor
C. Do not use this fireplace if any part
because some gas is heavier than
has been under water. Immediately
air and will settle on the floor.
call a qualified service technician to
inspect the fireplace and to replace
WHAT TO DO IF YOU SMELL
any part of the control system and
GAS
any gas control which has been
• Do not try to light any appliance.
under water.
WARNING:
CAUTION:
DO NOT CONNECT 240 VAC
TO THE CONTROL VALVE.
Hot while in operation. Do not touch.
Keep children, clothing, furniture,
gasoline and other liquids having
flammable vapors away.
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information
manual provided with this fireplace.
This fireplace needs fresh air for safe
operation and must be installed so
there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and maintained in accordance with the manufacturer’s instructions, this product
could expose you to substances in
fuel or fuel combustion.
LIGHTING
INSTRUCTIONS
1. This fireplace is equipped with an
ignition device which automatically
lights the burner. Do not try to light
the burner by hand.
2. Wait five (5) minutes to clear out any
gas. Then smell for gas, including
near the floor. If you smell gas, STOP!
Follow “B” in the Safety Information
located on the left side of this label. If
you don’t smell gas, go to next step.
3. To light the burner, simultaneously
press the star
and up
arrow
buttons on the remote control until a
short acoustic signal confirms the start
sequence has begun.
Do not operate the fireplace with
panel(s) removed, cracked or broken. Replacement of the panel (s)
should be done by a licensed or
qualified service person.
4. If the fireplace will not operate, check
the batteries then follow the instructions “To Turn Off Gas to Fireplace”
and call your service technician or gas
supplier.
NOT FOR USE
WITH SOLID FUEL
TO TURN OFF
GAS TO FIREPLACE
For use with natural, propane and
butane gases.
1. Push the ‘OFF’ button on remote.
2. Remove batteries from receiver.
Keep burner and control compartment clean. See installation and
operating instructions accompanying
fireplace.
18
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
C. After the Fireplace is Lit
CAUTION
Initial Break-in Procedure
When you light the fireplace, you may notice that it produces
heat which does have an associated odor or smell. If you
feel this odor is excessive it may require the initial three to
four hour continuous burn on high followed by a second burn
up to 12 hours to fully drive off any odor from paint and lubricants used in the manufacturing process. Condensation of
the glass is normal
Note: This fireplace should be run three to four hours on the
initial start-up. Turn it off and let it cool completely. Clean
the glass. Replace the glass and run the fireplace for an
additional 12 hours. This will help cure the products used
in the paint and logs.
•
•
•
Prevent accidental fireplace operation when not
attended.
Unplug or remove batteries from remote switch if
absent or if fireplace will not be used for an extended
period of time.
Property damage possible from elevated
temperatures.
CAUTION
Smoke and odors are released during initial
operation.
Smoke and odors may be irritating to sensitive
individuals.
WARNING
Fire Risk
High Temperatures
Keep combustible household items away
from fireplace.
Do NOT obstruct combustion and ventilation
air.
• Do NOT place combustible items on top
of or in front of fireplace.
• Keep furniture, draperies away from
fireplace.
WARNING
Fire Risk
Keep combustible materials, gasoline and
other flammable vapors and liquids clear of
fireplace.
• Do NOT store flammable materials in the
vicinity of the fireplace.
• Do NOT use gasoline, lantern fuel,
kerosene, charcoal lighter fluid or similar
liquids in this fireplace.
Combustible materials may ignite.
D. Frequently Asked Questions
Issue
Solutions
Condensation on the glass
This is a result of gas combustion and temperature variations. As the fireplace warms, this condensation will
disappear.
Blue flames
This is a result of normal operation and the flames will begin to yellow as the fireplace is allowed to burn for 20 to
40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is caused by the curing of
the paint and the burning off of any oils remaining from manufacturing.
Film on the glass
This is a normal result of the curing process of the paint and logs. Glass should be cleaned within 3 to 4 hours of
initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas
fireplace glass cleaner may be necessary. See your dealer.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced
by a furnace or heating duct. This noise does not affect the operation or longevity of the fireplace.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
19
11
Maintaining and Servicing the Fireplace
Although the frequency of fireplace servicing and maintenance will depend on use and the type of installation, a qualified
service technician should perform an fireplace check-up at the beginning of each heating season.
Debris from any outside source and/or soot must be removed from the fieplace. Allow logs to cool, remove if necessary,
vacuum and replace in accordance with instructions on pages 13-15.
WARNING
Risk of injury or property damage
Before servicing:
• Turn off gas.
• Disable remote control, if one is present.
• Ensure fireplace is completely cooled.
After Servicing:
• Replace any screen or barrier that was removed.
• Reseal and reinstall any venting removed for
servicing.
WARNING
Annual inspection by qualified technician
recommended.
Check:
• Condition of doors, surrounds and fronts.
• Condition of glass, glass assembly.
• Obstructions of combustion and ventilation
air.
• Condition of logs.
• Condition of firebox.
• Burner ignition and operation.
• Burner air shutter adjustment.
• Gas connections and fittings.
Clean:
• Glass.
• Air passageways, grilles, control
compartment.
• Burner, burner ports.
Risk of:
• Fire
• Delayed ignition or explosion
• Exposure to combustion fumes
• Odors
20
CAUTION
Handle glass assembly with care.
Note: Clean glass after initial 3-4 hours
operation. Longer operation without
cleaning glass may cause a permanent
white film on glass.
When cleaning glass door:
• Avoid striking, scratching or slamming
doors.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on
white film.
• Do NOT clean glass when it is hot.
• Turn off fireplace after 3-4 hours of operation
and ALLOW TO COOL.
• Remove and clean glass assembly.
• Replace glass assembly and operate
fireplace for an additional 12 hours.
Refer to maintenance instructions.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
A. Valve Access and Service
•
•
•
The gas valve can be accessed behind the cement
refractory panel on the right side of the fireplace.
Lift doors out and set aside. There is a washer under each
door. Be careful not to lose the washers.
Remove the inside valve access panel by lifting it up and
out.
WASHER
Figure 11.4 Remove Valve Access Panel
•
Figure 11.1 Lift Out Doors
•
•
•
Use a phillips screwdriver to remove the exterior valve
access panel (remove four screws).
Remove logs if access is necessary after installation is
complete. See Section 9.C. Remove logs in reverse order
of set up.
Remove grate if access is necessary after installation is
complete. (Refer to Section 9.B.)
Remove two screws on side of pilot shield and remove
shield.
Figure 11.5 Remove Exterior Valve Access Panel
•
Figure 11.2 Remove Pilot Shield
•
Use a phillips screwdriver to remove the two screws
securing the refractory retaining strip. Remove the
refractory side panel and set aside.
Figure 11.3 Loosen Refractory Retaining Strip
Loosen lower pressure tap screw before attaching
manometer. Start up the fireplace to verify the pressure
and adjust as necessary. Reverse these steps to
reassemble before log positioning.
Note: Pressure tap screws must be re-tightened.
Figure 11.6 Connect Manometer
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
21
B. Battery Replacement
•
•
Remove switch cover plate from the control box.
Slide access panel.
Ensure ground wire is attached to
valve or metal fireplace chassis.
Ground
Wire
Control
Box
Access
Panel
Batteries
Switch
Cover
Plate
Figure 11.7
•
•
22
Replace four AA batteries.
Replace access panel and switch cover plate.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
C. Maintenance and Service Tasks:
Inspect
Maintenance Tasks
1. Inspect for scratches and nicks that can lead to breakage when exposed to heat.
Doors, surrounds and
fronts
2. Verify no obstructions to airflow through the louvers.
3. Verify proper clearance to combustible household objects is maintained.
1. Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat.
2. Confirm there is no damage to glass or glass frame. Replace as necessary.
Glass assembly and
glass
Valve compartment and
firebox top
3.
Verify that latches engage properly, clip studs are not stripped, and glass attachment components are intact and
operating properly. Replace as necessary.
4.
Clean glass using a nonabrasive cleaner such as Brasso®. Replace glass assembly if severely coated with
silicate deposits that cannot be removed.
1.
Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should be avoided.
2. Remove any foreign objects.
3. Verify unobstructed air circulation.
1. Inspect for broken, damaged or missing logs. Replace as necessary.
Logs
2. Verify correct log placement and no flame impingement causing sooting. Correct as necessary.
1. Inspect for paint condition, warpage, corrosion or perforation. Sand and repaint as necessary.
Firebox
2. Replace fireplace is firebox has been perforated.
1. Verify burner is properly secured and aligned with pilot or igniter.
2. Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary.
3. Replace rockwool with new dime-sized and shaped pieces. Do not block ports or obstruct lighting paths.
4. Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay.
Burner ignition and
operation
5. Inspect for lifting or other flame problems.
6. Verify air shutter is clear of dust and debris.
7. Inspect orifice for soot, dirt or corrosion.
8. Verify manifold and inlet pressures. Adjust regulator as required.
9. Inspect pilot flame strength. Clean or replace orifice as necessary.
10. Verify millivolt output. Replace as necessary.
1. Verify operation of remote.
Remote controls
2. Replace battery in remote transmitters and batteries powering receivers.
3. If fireplace will not be used for a long period of time, verify batteries have been removed.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
23
12
Troubleshooting
With proper installation, operation and maintenance your gas fireplace will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the
corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician.
A. Electronic Ignition System
Symptom
Corrective Actions
1.
No transmission, motor does
not turn.
A.
Receiver must learn new
code.
Press and hold the receiver’s reset button until you hear 2 acoustic signals.
After the second longer acoustic signal, release the reset button and within the
subsequent 20 seconds, press the down arrow on the remote handset until you
hear an additional long acoustic signal confirming the new code is set.
2.
No ignition. No tone.
A.
Receiver
Replace receiver and reprogram code.
3.
No ignition; one 5 seconds
continuous tone (7 shorts
beeps might be heard prior to
the 5 seconds tone).
A.
ON/OFF switch is in OFF
position.
Push switch to ON position.
B.
Loose wire.
Secure wire.
C.
Receiver.
Replace receiver and reprogram.
D.
Bent pins on 8 wire
connector.
Straighten pins on 8 wire connector.
E.
Valve.
Replace valve.
A.
Air in the pilot supply line.
Purge the line or start ignition several times.
B.
Thermocouple circuit
wired incorrectly.
Check polarity of the thermocouple wires.
C.
No spark at pilot burner.
Check spark gap, check wiring connection. Check for spark in location along
cable.
D.
Valve.
Replace valve. Do not over tighten.
E.
Over tightened
thermocouple interrupter.
Replace valve and thermocouple interrupter.
F.
Receiver.
Replace receiver and reprogram code.
4.
No pilot flame and control
continues to spark.
5.
Pilot is lit and control
continues to spark. Valve
shuts off after 10...30
seconds. Valve operates
manually.
A.
Receiver.
Replace receiver and reprogram code.
6.
Pilot is lit, sparking stops if a
flame is present. Valve shuts
off after 10...60 seconds.
Valve does not work manually.
A.
Thermocouple.
Replace thermocouple.
B.
Low inlet pressure to
valve.
Confirm sufficient inlet pressure to the valve. Adjust or replace inlet regulator if
necessary.
C.
Valve.
Replace valve. Do not overtighten the thermocouple interrupter.
7.
3 short beeps while the motor
turns.
A.
Batteries are low.
Replace batteries - quality alkaline recommended. WARNING: Creating an
electrical short between the batteries/battery box and metal parts of the appliance
may render the receiver inoperable.
8.
Pilot flame lights but there is
no main gas flow.
A.
Manual override knob
(if equipped) is in MAN
position.
Turn Manual override knob to ON position.
B.
Valve turned down to pilot
flow.
Turn flame to high fire by pressing up button on remote handset.
C.
Low inlet pressure to
valve.
Confirm sufficient inlet pressure to the valve. Adjust or replace inlet regulator if
necessary.
D.
Valve.
Replace valve.
A.
Correct gas supply.
Verify that incoming gas line ball valve is “open”. Verify that inlet pressure reading
is within acceptable limits, inlet pressure must not exceed 50 mbar.
B.
Ignitor gap is too large.
Verify that spark gap from ignitor to pilot hood is .43 cm.
C.
Module is not grounded.
Verify control box is securely grounded to metal chassis of fireplace.
9.
24
Possible Causes
Pilot sparks, but pilot will not
light.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
13
Reference Materials
A. Fireplace Dimension Diagram
Dimensions are actual fireplace dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
78.7 cm
59.1 cm
2.5 cm
2.2 cm
110.5 cm
94.3 cm
58.7 cm
32.1 cm
106.7 cm
17.1 cm
39.7 cm
121.9 cm
Figure 13.1 Fireplace Dimensions
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
25
B. Service Parts List
Service Parts
DAKOTA42-CE SERIES
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
Exploded Parts Diagram
42 in. Outdoor Gas Fireplace
25
28
18
17
16
3
2
19
14
20
21
24
15
1
10
1
8
13
22
10
9
9
8
12
23
11
27
11
7
8
8
4
26
5
Right Door Assembly
6
Left Door Assembly
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
26
24
Service Parts
DAKOTA42-CE SERIES
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
Service Parts List
42 in. Outdoor Gas Fireplace
#
Description of Part
DAK-B-CE
DAK-N-CE
DAK-P-CE
Qty.
req.
1
Door Grille Bar
4036-177
4036-177
4036-177
4
2
Top Door Support Assembly
4036-082
4036-082
4036-082
1
3
Gas Hood
4036-195
4036-195
4036-195
1
4
Bottom Door Support Assembly
4036-083
4036-083
4036-083
1
5
Right Glass Door Assembly
4036-065
4036-065
4036-065
1
6
Left Glass Door Assembly
4036-066
4036-066
4036-066
1
4021-350
4021-350
4021-350
1
34362
34362
34362
2
7
Door Handle
8
Nylon Washer
9
#8 32x3/8 PH Flat Counter Sink
4021-345
4021-345
4021-345
2
10
Glass Panel Assembly
4036-020
4036-020
4036-020
1
11
Handle Bracket
4036-178
4036-178
4036-178
1
12
Right Bottom Pivot Pin
4036-115
4036-115
4036-115
1
13
Left Bottom Pivot Pin
4036-116
4036-116
4036-116
1
14
Right Top Pivot Pin
4036-118
4036-118
4036-118
1
15
Left Top Pivot Pin
4036-119
4036-119
4036-119
1
31190
31190
31190
4
16
Nailing Flange
17
Inner Shell Access Panel
4036-137
4036-137
4036-137
1
18
Intermediate Shell Access Panel
2097-139
2097-139
2097-139
1
19
Back Refractory Bracket
4036-121
4036-121
4036-121
1
20
Back Refractory
28394
28394
28394
1
21
Right Side Refractory
4036-145
4036-145
4036-145
1
22
Left Side Refractory
4036-146
4036-146
4036-146
1
23
Hearth Refractory
4036-740
4036-740
4036-740
1
24
Side Refractory Cover
4036-133
4036-133
4036-133
2
25
Top Standoffs
11864i
11864i
11864i
4
4021-296
4021-296
4021-296
1
28062
28062
28062
2
Lava Rock
26
Grate Retainer Clip
27
Grate
4036-067
4036-067
4036-067
1
28
Upper Front
4036-197
4036-197
4036-197
1
Installation Instructions/Owner’s Manual (English)
4036-915
4036-915
4036-915
1
Installation Instructions/Owner’s Manual (Norwegian)
4036-916
4036-916
4036-916
1
Installation Instructions/Owner’s Manual (Spanish)
4036-917
4036-917
4036-917
1
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
27
DAKOTA42-CE SERIES
Service Parts
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
Exploded Parts Diagram
42 in. Outdoor Gas Fireplace
23
22
19
1
24
20
2
11
13
14
3
12
21
3
9
6
10
4
8
15
5
7
17
16
28
25
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
18
Service Parts
DAKOTA42-CE SERIES
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
Service Parts List
42 in. Outdoor Gas Fireplace
#
Description of Part
DAK-B-CE
DAK-N-CE
DAK-P-CE
Qty.
req.
1
ON/OFF Gas Valve
15697
15697
15697
1
2
Flex Assembly
2098-022
2098-022
2098-022
1
3
BSP Male Connector
2098-315
2098-315
2098-315
2
4
Pilot Assembly
2098-053
2098-052
2098-053
1
5
Pilot Bracket
2097-119
2097-119
2097-119
1
6
Valve
2098-133
2098-132
2098-133
1
7
Valve Cover Plate
2097-137
2097-137
2097-137
1
8
Valve Bracket
2097-138
2097-138
2097-138
1
9
Screw
4021-394
4021-394
4021-394
2
10
Thermocouple Block
2098-146
2098-146
2098-146
1
11
Switch Assembly
2097-145
2097-145
2097-145
1
12
Compression Nut
32553
32553
32553
1
13
Jam Nut
32563
32563
32563
1
14
#46 B-Style Orifice
4021-412
14
#25 B-Style Orifice
14
Orifice
15
Clamping Bracket
2097-132
16
Control Box Cover Plate
17
Control Box Gasket
18
Ground Wire
4021-399
4021-399
4021-399
1
19
Burner Tube
4036-188
4036-187
4036-188
1
20
Burner Tube Bracket
4036-189
4036-189
4036-189
1
21
Burner Supply Flex Line
4021-418
4021-418
4021-418
1
22
Rock Retainer
4036-190
4036-190
4036-190
1
23
Pilot Shield
4036-191
4036-191
4036-191
1
24
Air Shutter
4036-194
4036-194
4036-194
1
25
Module
2097-142
2097-142
2097-142
1
REM-OUT-CE
REM-OUT-CE
1
PB2N-DAK-CE
1
1
4021-134
1
32562
1
2097-132
2097-132
1
2097-133
2097-133
2097-133
1
4021-387
4021-387
4021-387
1
Also available:
Remote Control
REM-OUT-CE
Conversion Kits
Propane or Butane to Natural Gas
Natural Gas to Propane or Butane
PB2N-DAK-CE
N2PB-DAK-CE
Propane to Butane or Butane to Propane
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
1
P2B / B2P-DAK-CE
1
29
Service Parts
DAKOTA42-CE SERIES
Service Parts List
42 in. Outdoor Gas Fireplace
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
SRV727
SRV720
SRV723
SRV722
SRV724
SRV728
SRV742
SRV740
30
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
Service Parts
DAKOTA42-CE SERIES
Beginning Manufacturing Date: 2/01/06
Ending Manufacturing Date: Active
Service Parts List
42 in. Outdoor Gas Fireplace
#
Description of Part
DAK-B-CE
DAK-N-CE
DAK-P-CE
Qty.
req.
Log Set - Box 1 of 3
4036-711
4036-711
4036-711
1
SRV720
SRV720
SRV720
1
4036-712
4036-712
4036-712
1
Log
SRV727
SRV727
SRV727
1
Log
SRV722
SRV722
SRV722
1
Log
SRV740
SRV740
SRV740
1
Log
SRV742
SRV742
SRV742
1
4036-713
4036-713
4036-713
1
Log
SRV723
SRV723
SRV723
1
Log
SRV724
SRV724
SRV724
1
Log
SRV728
SRV728
SRV728
1
Log
Log Set - Box 2 of 3
Log Set - Box 3 of 3
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
31
This page intentionally left blank.
32
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
This page intentionally left blank.
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
33
This page intentionally left blank.
34
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
C. Warranty
HEAT & GLO LIFESTYLE COLLECTION
LIMITED 10 YEAR WARRANTY
In order to presumptively establish the dates to which your HEAT & GLO Limited Warranty runs, you must mail the completed
warranty card to HEAT & GLO, 20802 Kensington Boulevard, Lakeville, MN 55044, USA, within 60 days of the date of the
fireplace installation. If you fail to do so, you may be required to prove the date of installation before warranty work can be
performed.
The warranty exclusions and limitations of liability are effective upon installation of the fireplace.
Subject to the conditions set forth herein, HEAT & GLO, a brand of Hearth & Home Technologies, Inc. (“HEAT & GLO”)
extends the following warranty with respect to HEAT & GLO.
If HEAT & GLO is reasonably satisfied that any part or portion of the fireplace covered by this Limited Warranty is defective
in material or workmanship under normal use and service as described in the User’s Manual, HEAT & GLO will take the
following actions:
1. If the defect is reported during the first year from the date of installation (stainless steel burners and fiber logs are
covered for 3 years), HEAT & GLO will replace or repair the defective components at its sole expense. The decision
whether to replace a component shall be made at HEAT & GLO’s sole discretion. This Limited Warranty does not cover
components broken during shipping, misuse or careless handling. HEAT & GLO shall not be responsible for any indirect,
incidental, or consequential damages or for any costs other than those incurred by HEAT & GLO to repair or replace the
defective component. If components (including venting) other than factory approved components are used, all warranty
and liability on the fireplace is voided. Defects reported after the first year will not be covered by warranty unless
they fall within the purview of paragraph 2 or 3 below.
2. If the following defects are reported during the second year after the date of installation, HEAT & GLO will supply
replacement parts at the current wholesale price: defective electrical or manual components, optional components or
accessories, and glass panels (not including glass panels broken during misuse or careless handling). HEAT & GLO
shall not be responsible for any labor, transportation or other costs. Furthermore, it shall not be liable for any indirect,
incidental or consequential damages.
3. HEAT & GLO will replace or repair a defective firebox or heat exchanger, at any time during the 10 years from the date
of installation. The decision whether to replace the defective component shall be made at HEAT & GLO’s sole discretion.
HEAT & GLO shall not be responsible for any indirect, incidental or consequential damages or for any costs other than
those incurred by HEAT & GLO to repair or replace the defective component.
This Limited Warranty is the exclusive remedy available to you. If HEAT & GLO cannot effectively resolve a warranty
problem in an expedient and cost-effective manner, it can discharge its entire warranty liability by refunding the price of
the product to you.
Products made by other manufacturers, whether sold with the fireplace or added thereafter, are NOT covered by this Limited
Warranty. The use of other unauthorized components will make this warranty null and void. This Limited Warranty will also
be void if the appliance is not installed by a qualified installer in accordance with the Installation Instructions. Furthermore,
the Limited Warranty will be void if the fireplace is not operated, at all times, according to the User’s Manual furnished with
the fireplace. Any service work must be performed by authorized service representatives.
EXCEPT TO THE EXTENT PROVIDED BY LAW, NO OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THE FIREPLACE
PRODUCT. In States that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of
indirect damages, those limitations or exclusions may not apply to you. You may also have additional rights not covered
in this Limited Warranty.
HEAT & GLO reserves the right to make changes at any time, without notice, in design, material, specifications and prices.
It also reserves the right to discontinue styles and products.
Please complete this information and retain this warranty in a safe place for future reference:
Installation Date:_______ Model #_________ Serial #__________ Installing Contractor:__________________
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 11/07
35
D. Contact Information
Please contact your Heat & Glo LifeStyle Collection
dealer with any questions or concerns.
For the number of your nearest Heat & Glo LifeStyle Collection dealer,
please visit www.heatnglo-lifestyle.com
- NOTES -
CAUTION
Important operating •
and maintenance
instructions included.
Read, understand •
and follow these
instructions for safe
installation and
operation.
Leave this manual with
party responsible for
use and operation.
D
•
T
O
N RD
O A
D SC
I
DO NOT DISCARD THIS MANUAL
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322,
4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112,
5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226,
6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942,
6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884,
D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or
other U.S. and foreign patents pending.
36
Heat & Glo Lifestyle Collection • Dakota 42-CE • 4036-915 Rev I • 1/07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
