Indesit Cooktop KD3C11/G User manual

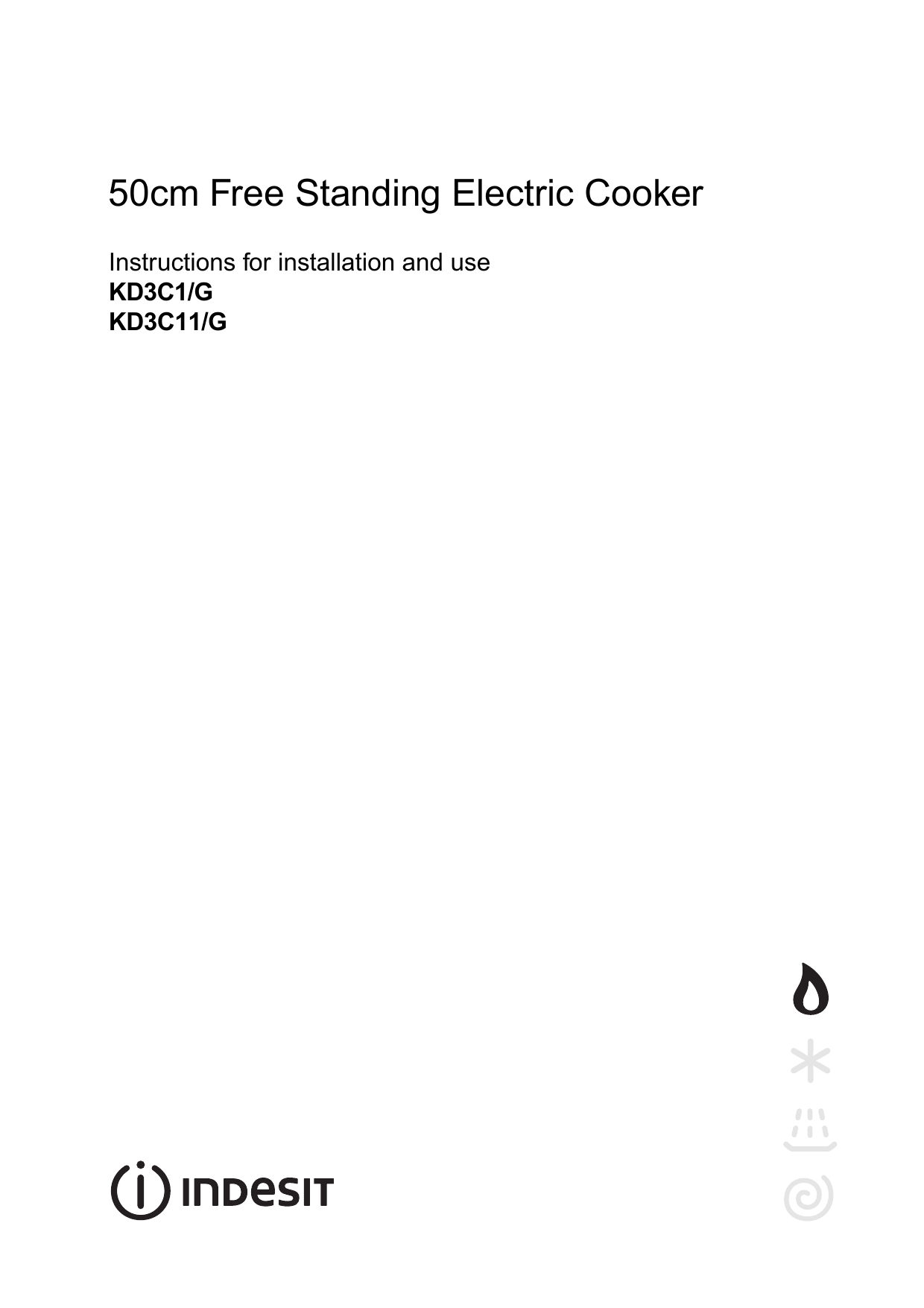

50cm Free Standing Electric Cooker
Instructions for installation and use
KD3C1/G
KD3C11/G
Contents
Introduction
3
Installation
4
Safety Information
Features
6
8
Control Panel
9
Ceramic Hob
10
Use of hotplates
10
Hotplates General Information Notes
11
Choosing Your Utensils
Grilling
14
15
Grill Chart
16
Conventional Oven
17
Conventional Oven cooking charts - Meat
18
Conventional Oven cooking charts - Baking
19
Using the Main Oven for Other Functions
Care and Cleaning
20
21
Cooking Results Not Satisfactory?
22
Something Wrong With Your Cooker?
23
If it Still Won’t Work...
24
Technical Characteristics
25
Key Contacts
Back Cover
You must read these instructions prior to using your appliance and retain them
for future use.
2
Introduction
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance
has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other
installation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use.
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and
that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the
room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any
moisture absorbed by the insulation.
* The guarantee is subject to the provisions that the appliance:
(a)
Has been used solely in accordance with the Users Instruction Book.
(b)
Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c)
Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d)
Has been correctly installed.
3
Installation
WARNING – THIS APPLIANCE MUST BE EARTHED.
Fig. A
2 L
4 N
Electrical connection
Electric cookers come without a power supply cable. The cooker is designed to operate
on an electricity supply which conforms to the electrical data shown on the Rating
Plate. The cooker can be connected to the mains only after removing the back panel
of the cooker itself with a screwdriver.
N.B.: the following installation procedure must be carried out by a qualified electrician.
The electrical installation must comply with the IEE Regulations, Building & local ByLays.
For the installation of the feeding cable carry out the following operations:
l
Using a screwdriver, prise on the side tabs of the terminal board cover
(see fig. A);
l
Pull and open the junction blok lid
Important: the wires in the mains lead are coloured in accordance with the following
code:
Green & Yellow
Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
or coloured Green or Green &
Green & Yellow wire to terminal marked “E” or
Yellow.
Brown wire to terminal marked “L” or coloured Red.
Blue wire to terminal marked “N” or coloured Black (see fig. B).
l
fix the feeding cable in the special cable stop and close the cover.
N.B.: the power supply cable must have these minimum requirements:
Type: H05RR-F
Section: 3x4 mm2
Fig. B
Ensure that the mains cable is routed away from any brackets affixed to the rear
panel and is not trapped to the rear wall when pushing the cooker into position
between cabinets.
4
Installation
650 mm
Siting the Cooker
150 mm
Moving the Cooker
150 mm
The height of the cooker can be adjusted by means of adjustable feet in the plinth
(900mm - 915mm). Adjust the feet by tilting the cooker from the side. Then install the
product into position.
NOTE: This appliance must not be fitted on a platform.
The cooker is designed to fit between kitchen cabinets spaced 500mm apart. The
space either side need only be sufficient to allow withdrawal of the cooker for servicing.
It can be used with cabinets one side or both as well as in a corner setting. It can also
be used free-standing.
Adjacent side walls which project above hob level, must not be nearer to the cooker
than 150mm and should be protected by heat resistant material. Any overhanging
surface or cooker hood should not be nearer than 650mm.
Before moving your cooker check that it is cool, and switch off at the cooker
control unit.
Movement of your cooker is most easily achieved by lifting the front as follows:
Open the grill door sufficiently to allow a comfortable grip on the underside front
edge of the oven roof, avoiding any grill elements.
Note: Take care in moving the cooker as it is heavy.
Take care to ensure that any floor covering is not damaged.
Splashplate optional, apply to Parts Department (see Back Cover for contact
number.)
Splash Panel
Kit (Wall Mounted)
5
Safety Information
When used properly your appliance is completely safe but as with any electrical product there are certain
precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
Always
l Remove all packing from inside the oven and grill compartments before switching on for the first time.
l Understand the controls prior to using the appliance.
l Keep children away from the appliance when grilling as the surfaces will get extremely hot during and after use.
l Turn controls off when you have finished cooking and when not in use.
l Stand back when opening an oven door to allow any build up of steam or heat to disperse.
l Use dry good quality oven gloves when removing items from the oven/grill.
l Place pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot
become heated by other hotplate/pans.
l Take care to avoid heat/steam burns when operating the controls.
l Turn off the electricity supply at the wall switch before cleaning and allow the appliance to cool.
l Make sure the shelves are in the correct position before switching on the oven.
l Keep the oven and grill doors closed when the appliance is not in use.
l Take care when removing items from the grill when the lower oven is on as the contents will be hot.
l Keep the appliance clean, as a build up of grease or fat from cooking can cause a fire.
l Follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.
l Keep ventilation slots clear of obstructions.
l Refer servicing to a qualified appliance service engineer.
l Take care to avoid touching heating elements inside the oven, as during use the oven becomes hot.
6
Safety Information
Never
l Never line the interior of the oven with foil as this may cause the appliance to overheat.
l Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during and
after its use.
l Never allow anyone to sit or stand on any part of the appliance.
l Never store items above the appliance that children may attempt to reach.
l Never leave anything on the hob surface when unattended and not in use.
l Never remove the oven shelves whilst the oven is hot.
l Never heat up unopened food containers as pressure can build up causing the container to burst.
l Never store chemicals/food stuffs, pressurised container in or on the appliance, or in cabinets immediately
above or next to the appliance.
l Never place flammable or plastic items on or near the hob.
l Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
l Never operate the grill with the grill door closed as this will cause the appliance to overheat.
l Never use the appliance as a room heater.
l Never use the grill to warm plates.
l Never dry any items on either the hob or oven doors.
l Never install the appliance next to curtains or other soft furnishings.
l Never use steam cleaners.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the
fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by
picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force
of the extinguisher is likely to tip the pan over.
Never use water to extinguish oil or fat fires.
7
Features
HOB VENTILATION SLOTS
1700W
1200W
1200W
1700W
CONTROL
PANEL
GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
GRILL DOOR SWITCH
GRILL
GRILL DOOR
REMOVABLE
INNER GLASS
DOOR
MAIN OVEN
WIREWORK
SHELF
SUPPORTS
MODEL SERIAL
NUMBER
OVEN ROD
SHELVES
8
Control Panel
MAIN OVEN
GRILL
INDICATOR INDICATOR
LIGHT
LIGHT
PLATE
INDICATOR
LIGHT
S
TIMER*
Control Knobs
GRILL
MAIN
OVEN
LEFT
FRONT
PLATE
LEFT
REAR
PLATE
RIGHT
REAR
PLATE
RIGHT
FRONT
PLATE
The knobs for the hotplates can be rotated in either direction to provide variable heat control, the
Main Oven knob can only be rotated clockwise from the Off position.
Note: Always ensure that all controls are in the OFF position, when the appliance is not
in use.
Operating the
control when
the grill is in use
In common with all cookers having controls sited above the grill compartment, care must be taken
when setting the controls, due to hot air being emitted from the grill compartment.
Slow cooking ‘S’
The main oven has a ‘S’ setting specially designed to reduce energy usage. Full details of this can
be found in the Slow cooking section of this book.
Timer *
To use the timer, the buzzer must be wound up by turning the knob one full turn clockwise; then
turn it back to the desired time so that the number of minutes on the knob matches the reference
mark on the panel.
* (only available on certain models)
9
Ceramic Hob
CAUTION: IF AT ANY TIME A CRACK IN THE SURFACE BECOMES VISIBLE, DISCONNECT THE APPLIANCE
IMMEDIATELY FROM THE SUPPLY.
Under no circumstances should the hob be used with aluminium foil in contact with the hob surface as damage can
occur.
The following boiling plates are located beneath the decorative circular patterned cooking areas:Front left 6 heat: 1200W
Rear left 6 heat: 1700W
Rear right 6 heat: 1200W
Front right 6 heat: 1700W
The cooking areas change colour when heated (become red) indicating which heating element is switched on. The
cooking area returns to its original colour when the heating element is switched Off.
Warning: Even though the cooking area has returned to its original colour it may still be hot.
The controls for the hotplates can be turned in either direction.
Turn the control to 6 for fast cooking. To reduce the heat to cook more slowly or simmer, turn the control to a lower
setting according to the size of the saucepan and the amount of liquid.
Pans can be placed on the unheated areas of the panel when cooking is finished and before serving food. It is
inadvisable at any time to leave a heating element switched on without a pan in position as this wastes energy, and
could make soil or rub-off from aluminium pans more difficult to remove. To protect elements against over-heating,
safety cut-outs have been incorporated with each element. After several minutes with the control at setting 6 the
safety cut-out switches the element Off and On continuously, thus preventing any adverse effects that may be
caused by an excessive build-up of heat in the cooking area.
Use of Hotplates
Note:
Under no circumstances should the hob be used with aluminium foil in contact with the hob
surface.
Turn the control to 6 for fast cooking. To cook more slowly or simmer, turn the control to a lower setting according to
the size of the saucepan and the amount of liquid. The two small Hotplates are specially for smaller pans, low
temperature cooking and simmering.
Do Not leave a hotplate switched on without a pan as this wastes energy and may shorten the life of the hotplate.
10
Hotplates General Information Notes
CONTROL SETTINGS GUIDE
This is provided only as a guide – settings also depend on the type of pan used and the quality of food.
Knob Position Type of food
1
1 or 2
3
To
To
To
To
heat food gently.
keep small amounts of water simmering.
heat sauces, containing egg yolks and butter.
simmer: stews, meat, fish, vegetables, fruit.
To heat solid and liquid foods.
Keep water boiling.
Thaw frozen vegetables.
Make 2-3 egg omelettes.
4 or 5
To cook foods, just above simmering.
To maintain 'rolling' boil for preserve making.
5 or 6
To seal meat and fry fish.
6
Safety
requirements
for deep fat frying
To melt butter, chocolate, etc.
Frying potatoes.
Bringing water to the boil.
Deep fat frying.
Dissolve sugar for preserve making.
1.
2.
3.
4.
Use a deep pan, large enough to completely cover the appropriate heating area.
Never fill the pan more than one-third full of oil.
Never leave oil or fat unattended during the heating or cooking period.
Never try to fry too much food at a time, especially frozen food. This only lowers the
temperature of the oil or fat too much, resulting in greasy food.
5. Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods,
in particular, will cause frothing and spitting, if added to quickly.
6. Never heat fat, or fry, with a lid on the pan.
7. Keep the outside of the pan clean and free from streaks of oil or fat.
11
Hotplates General Information Notes
PANS SHOULD
Not be concave (bowed in)
Not be convex (bowed out)
Not be rimmed
Not be deeply ridged
But essentially Flat
Always ✓
Use good quality flat-based
cookware on all electric heat
sources.
Always ensure pans have
clean, dry bases bifore
use.
Ensure pans match size of
heating area.
Remember good quality pans
retain heat well, so generally
only a low or medium heat is
necessary.
Ensure pan handles are
positioned safely and away
from heat sources.
Always lift pans, do not drag.
Never ✗
Use gauze, metal pan
diffusers, asbestos mats and
stands e.g. Wok stands - they
can use overheating.
Use utensils with skirts or
rims e.g. buckets and some
kettles.
Use badly dented or distorted
pans.
Leave an element switched
on when not cooking.
Cook food directly on the
ceramic glass.
Drag or slide utensils, along
the hob surface.
Always use pan lids except
when frying.
Deal with spillages
immediately but with care.
THE BEST COMBINATIONS
This table is a general guide to the types of pan suitable for different types of hobs and
cookers. Remember pans should be good quality, with smooth, flat bases. For any further
information refer to manufacturers’ instructions.
Ceramic*
Aluminium
3suitable 7unsuitable
*care should be taken
when using any pans
on these surfaces not to
drag and cause
scratching.
Stainless steel with single layer copper
base
Stainless steel with sandwich bases of
aluminium and stainless or aluminium
and copper
Enamelled steel
Enamelled aluminium
Enamelled based cast iron
With Extra Care
Copper
Toughened glass or ceramic / glass /
pottery
Mild steel, Ferro-magnetic or stainless
with a magnetic sandwich base
12
Not Recommended
Hotplates General Information Notes
Do Not
Do not
cook directly on the hob surface without a cooking utensil, as this will result in damage to the surface of the
hob.
Do not
use the hob as a worktop surface as damage may occur to the smooth surface of the hob.
Do not
drag or slide utensils on the hob surface, as this will cause scratches in the surface of the hob.
Do not
allow a cooking utensil to come into contact with the hob surround.
Do not
place anything between the base of the utensil and the ceramic hob, e.g. do not use asbestos mats, aluminium
or wok stand.
Do not
leave any utensils, food or combustible items on the hob when it is not in use.
Do not
place aluminium or plastic foil, or plastic containers on the hob.
Do not
leave the hotplates or cooking areas switched On unless they are being used. We recommend not to place
large preserving pans or fish kettles across two heating areas.
Do not
leave utensils partly covering the heated areas. Always ensure that they are placet centrally over the heated
areas and have the same diameter as the heating area used.
We recommend not to use a utensil with a base diameter greater than 25cm (l0ins).
Pressure cookers or other large pans should be used on the front cooking areas.
Always ensure that saucepan handles are positioned safely.
13
Choosing Your Utensils
Do not
use utensils with rough bases.
Do not
use lightweight utensils with thin, distorted or uneven bases.
Do not
use lightweight enamelled steel utensils.
Do not
use cast iron utensils.
Do not
use utensils with recessed, scrolled or ridged bases.
Do not
use a utensil which has a base concavity greater than l mm as this will reduce the performance of the hob.
Do not
use a utensil with a convex base.
Do not
use glass ceramic utensils.
Do not
use use lightweight saucepans with plain thin copper bases on ceramic or halogen hot plates.
Note: All copper pans are excellent conductors of heat, and are hard wearing and strong, but need quite a lot of
care. They can be very heavy and do not usually have completely flat bases. The interiors are usually lined with a
different material such as tin.
A stainless steel pan with a sandwich base of aluminium and stainless steel is an excellent conductor of heat and is
suitable for use on ceramic and halogen hobs, providing they are used in accordance with the saucepans
manufacturers’ recommendations.
Stainless steel pans with a sandwich base of aluminium and copper are excellent conductors of heat. If using
stainless steel saucepans with aluminium and copper sandwich bases on ceramic and halogen hobs, the use of
these pans must be in accordance with the saucepan manufacturers’ recommendations.
Extra care should be taken to ensure the base of the pan and the hob is cleaned, and the hob conditioned, after
each and every use, when using this type of saucepan.
If these recommendations are not followed, the result will be a build up of small copper deposits on the surface of
your hob which, if not cleaned after each use, will result in permanent marking of your hob.
Always lift the pan from the hob, do not drag or slide across the hob surface as damage may occur.
14
Grilling
GRILLING MUST BE DONE WITH THE GRILL DOOR OPEN.
CONTROL KNOBS MAY BECOME HOT DURING GRILLING.
CAUTION: ACCESSIBLE PARTS WILL BECOME HOT WHEN THE GRILL
IS USED - CHILDREN SHOULD BE KEPT AWAY.
To operate the grill proceed as follows:
Grill Pan Handle
l
l
l
l
Open the grill door.
Pre-heat the grill on setting 6 for approximately 5 minutes (see chart on guide to grilling).
Fix the grill pan handle securely in position. See below.
Food which only requires browning should be placed directly on/in the grill pan in the grill pan
runner, or on the floor of the grill compartment. (the grill pan grid may be removed.)
l Leave the control on setting 6 for toast, sealing and fast cooking of foods. For thicker foods
requiring longer cooking turn the control to a lower setting after the initial sealing, on both sides,
on setting 6. The thicker the food the lower the control should be set.
Warning: Take care as the grill will be hot – always wear oven gloves. Always ensure
that the grill pan is clean BEFORE use. Excess fat build up in the bottom of the pan
could cause a fire hazard. Never line grill pan with foil.
Fixing the Grill Pan The grill pan handle is detachable from the pan, to facilitate cleaning and storage. Fix the grill pan
handle securely in position before use.
Handle
The handle fits onto the grill pan edge with the small recess, Fig.1.
Tilt the handle over the recess and slide it towards the centre, Fig.2.
Ensure the handle is fully located. Insert the washer and fixing screw and tighten fully to ensure
handle is secured, Fig.3.
Always hold the dripping pan handle in the highlighted zone marked "OK" in figure 4.
OK
Recess
Fig. 1
Fig. 2
Fig. 3
Fig. 4
NO
Always fit the screw prior to use.
The food to be cooked should be placed on the grill pan/grill pan food support.
Place the grill pan on the runners and push back to the stop position when the grill pan is
correctly positioned beneath the grill element.
Plates and dishes placed on the floor of the grill compartment will be heated when the oven is
in use.
Grill Compartment Do not operate the grill control when using the compartment as a hotcupboard.
as a ‘Hotcupboard’
Do take care when removing plates, dishes and utensils from the grill compartment when the oven
is in use as they may become quite hot.
You may need to use oven gloves when removing warmed items.
15
Grill Chart
Pre - heat the grill for 5 minutes on maximum control setting before grillino
GRILL CHART
Food
Grill Setting
Approximate Cooking time
Toasting of Bread
products
6
3 - 10 mins.
Small cuts of meat,
sausages, bacon, etc.
5-6
15 - 20 mins.
Chops etc. Gammon
steaks Chicken
pieces
5
20 - 25 mins. Wire food support used in
upturned position for chicken.
Fish: fingers Whole
Fillets
5
10 - 20 mins. Whole fish and fillets placed in the
base of the grill pan.
Fish in breadcrumbs
5
15 - 20 mins.
Pre - Cooked potato
products
5
15 - 20 mins.
Pizzas
5
12 - 15 mins. in the base of the grill pan.
Browning of food
6
8 - 10 mins. Dish placed directly on base of the
grill pan and pan placed on the base of the grill
compartment.
The settings in the above guide have been developed to cook food successfully without excessive fat spitting and
splashing.
16
Conventional Oven
Oven Control
Heating of the oven is achieved by turning control clockwise to the required oven temperature
scale on the control panel, as recommended in the temperature charts. The pilot light will
immediately come on and will then automatically go off and on during cooking as the oven
thermostat maintains the correct temperature.
The cooking charts provided in this book are a guide only, giving approximate cooking
temperatures and times. To suit personal taste and requirements, it may be necessary to increase
or decrease temperatures by 10°C.
The oven is fitted with two rod shelves. The oven is heated by two tubular sheathed elements
located under the floor of the oven and on the oven roof, inside the cavity. It should be noted that at
the end of a cooking period there may be a momentary puff of steam when the oven door is
opened. This will disperse in a few seconds and is a perfectly normal characteristic of an oven with
a good door seal.
Oven Positions
The correct positioning of food is indicated in the temperature charts.
To prepare meat and poultry for roasting in your conventional oven.
(a) Wipe the joint, dry well with a clean cloth, kitchen tissue etc. and weigh it. Meat which has been
stored in a refrigerator should be allowed to come to room temperature for approximately 30
minutes before cook ing, and frozen meat or poultry must be completely defrosted before placing
in the oven.
(b) The weight of any stuffing used should be added to the oven ready weight of the meat / poultry
before calculating the cooking time.
(c) Place the joint in the meat pan supplied with your cooker. Small joints weighing less than 1.75kg
(31/2 lbs) should be roasted in a smaller meat pan/tin - or they may be ‘pot roasted’ - a small joint
in a large meat pan causes unnecessary oven splashing and evaporation of meat juices.
(d) Additional fat should not be added, except for veal, very lean meat or poultry which can either be
‘larded’ with fat bacon or brushed very sparingly with cooking oil or melted fat.
(e) Beef, lamb, mutton and poultry may be dusted lightly with seasoned flour to give a crisp outer
surface. The skin of duck and goose should be pricked to release excess fat during cooking, and
the rind of pork should be scored, brushed lightly with oil, and rubbed with salt, to give crisp
crackling.
(f) Potatoes for roasting only require to be brushed with cooking oil or melted fat.
(g) It is not necessary to baste when roasting in an electric oven and stock or liquid should not be
added to the meat pan since this only causes unnecessary soiling, steam and condensation.
For optimum cooking performance, there must be clearance between meat pan and oven
sides. The meat pan must be placed lengthways in the oven to allow for air circulation.
Times and
Temperatures
for Roasting
The secret of succulent, tender meat, is not to roast it too quickly, at too high a temperature. Best
results are obtained when roasting is carried out at a low temperature. When a lower temperature
is used, the joint loses less weight, is more tender (too high a temperature causes meat to be
tough and dry) and the splashing of fat onto the oven interior is reduced to a minimum. When a
complete meal is being cooked in the oven, cooking time may need to be increased and
temperature may need to be raised for approximately the last 30 minutes of the cooking period (for
instance when cooking Yorkshire pudding to serve with roast beef). The suggested times and
temperatures should be used as a guide, but may vary according to:1. Whether you prefer meat rare, medium or well done.
2. The size and shape of your joint.
(a) A short thick joint requires a longer cooking period than a long thin joint.
(b) A small joint under 1.5kg (3 lbs) takes longer per 450g (1 lb) cook in the time given for
‘minutes’ per 450g (1 lb) without the ‘minutes’ over added.
(c) Boned/rolled and stuffed joints take longer to cook through than those with a bone.
N.B.
Remember to switch off the oven control after cooking is finished. If the door of the oven is left
open for long periods of time with the control switch ON, then the grill element will become hot. The
correct positioning of food is indicated in the temperature charts.
17
Conventional Oven - Cooking Chart MEAT
Note: Where times are stated, they are approximate only.
Conventional Oven
Meat
Preheat
Temperature
°C
Time (approx.)
Beef
Yes
190/200
25-30 mins per 450g
(1lb) + 25 mins over.
Lamb
Yes
190/200
25-30 mins per 450g
(1lb) + 25 mins over.
Pork
Yes
190/200
30-35 mins per 450g
(1lb) + 30 mins over.
Veal
Yes
190/200
25-35 mins per 450g
(1lb) + 30 mins over.
Poultry/Game
up to 4kg (8lb)
Yes
180/190
18-20 mins per 450g
(1lb) + 20 mins over.
Turkey up to
5.5kg (12lb)
Yes
190
22 mins per 450g (1lb) eg.
5.5 kg (11lb) = 242 mins
Turkey over
5.5kg (12lb)
Yes
180
18 mins per 450g (1lb) eg.
10 kg (22lb) = 352 mins
Casserole
Cooking
Yes
140/160
2-2 ½ hrs
Position in
Oven
In meat pan
on runner 2
Runner 3
from bottom
of oven
Runner 3
If using aluminium foil, never:
1. Allow foil to touch sides of oven.
2. Cover oven interior with foil.
3. Cover shelves with foil.
The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer
into the thickest part of a joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer
will indicate when the required internal temp has been reached.
Beef:
18
Rare:
Medium:
Well Done:
60°C
70°C
75°C
Lamb:
Pork:
Veal:
80°C
90°C
75°C
Poultry:
90°C
Conventional Oven - Cooking Chart BAKING
Conventional Oven Cooking
Food
Preheat
Temperature and Time
Position in Oven
from bottom
Scones
Yes
220/230°C approx. 10-15 mins.
Runners 1 & 4
Small Cakes
Yes
190/200°C approx. 20-25 mins.
Runners 1 & 4
Victoria Sandwich
Yes
180/190°C 6½"-7" tins approx. 20 mins.
8"-8½" tins approx. 30 mins.
Runners 1 & 4
Sponge Sandwich
(Fatless)
Yes
190/200°C 7" tins 15-20 mins.
Runners 1 & 4
Swiss Roll
Yes
200/210°C approx. 10-15 mins.
Runner 4
Semi-rich Cakes
Yes
160/170°C 61½-7" tins 1¼" -1½" hours 8"-9"
tins 2"-2½" hours
Runner 3
Shortcrust Pastry
Yes
200/210°C depending on use
Runners 2 & 5
Puff Pastry
Yes
200/210°C approx. depending on use
Runners 2 & 5
Yorkshire Pudding
Yes
210/220°C 45-50 mins.
Runner 5
Individual Yorkshire
Puddings
Yes
210/220°C approx. 20-25 mins.
Runner 5
Milk Pudding
Yes
150/160°C approx. 2"-2½" hours
Runner 2
Baked Custard
Yes
150/160°C approx. 45-55 mins.
Runner 2
Bread
Yes
230°C 50-60 mins reducing to 210/220°C
230°C 45-50 mins after first 10 minutes
Runners 1 & 4
Meringues
Yes
100/110°C Large3½"-4½" hours
Small 2½"-3" hours
Runner 2
Note:
If soft margarine is used for cake making, temperatures recommended by the manufacturers should be followed.
Temperatures recommended in this chart refer to cakes made with block margarine or butter only.
19
Using the Main Oven for Other Functions
‘S’
SLOW Setting
This is used for slow cooking, keeping food warm and warming plates for short periods. Extra care
should be taken when warming bone china, as it may be damaged in a hot oven.
DO NOT place food or plates directly on the oven floor as this could damage both the oven
lining and the plates which are being warmed.
Advantages of “SLOW” cooking are:
The oven stays cleaner because there is less splashing.
Timing of food is not as critical, so there is less fear of overcooking.
Inexpensive joints of meat are tenderised.
Fully loading the oven can be economical.
Cooking times can be extended in some cases by up to 2 hours.
Operation:
1. Place the prepared food in the main oven and ensure the door is fully closed.
2. Select ‘S’ (Slow Cooking Temperature) by turning the Main Oven Control clockwise ensuring the
oven door is fully closed.
Storage and re-heating of food:
1. If food is to be frozen or not used immediately, place it in a clean container and cool as soon as
possible.
2. Always thaw frozen food completely in the refrigerator before re-heating.
3. Always reheat food thoroughly and ensure it is piping hot before serving.
4. Only re-heat food once.
Points to consider when preparing food for “SLOW” cooking:
1. Make sure that the dishes to be used will fit into the oven ensuring enough room for air to
circulate.
2. All dishes cooked on the slow setting will require a minimum of 6 hours, however, if they are
cooked for 1 -2 hours longer then deterioration in their appearance may be noticed.
3. Never cook joints of meat over 2.7kg (6 Ib) or poultry over 2.0kg (4lb 8oz).
We do not recommend that joints of meat or poultry are stuffed before cooking on the slow setting.
4. To seal in the meat juices, always cook meat or poultry at 170°C for 30 minutes before wrapping
in foil and placing on a rack over a tin (to allow good air circulation) before turning the control to the
slow setting and cooking immediately.
5. Always ensure that joints of pork and poultry are thoroughly cooked by checking with a meat
thermometer before serving.
6. Always thaw frozen foods completely before cooking. We do not recommend placing frozen food
in the oven to cook.
7. Always bring soups, liquids and casseroles to the boil before placing in the oven.
8. Ensure that casserole dishes have a good seal (not airtight) and cover to the top with foil to
prevent loss of moisture.
9. Ensure that fruit and vegetables are cut into even sized small pieces to cook properly.
10. Always adjust seasoning before serving.
11. If using dried red kidney beans it is important that the beans are soaked and then boiled fora
minimum of 10 minutes before using in any dish to destroy any toxins.
12. When cooking fish or egg dishes it may be necessary to check during cooking to avoid
overcooking.
20
Care and Cleaning
Ceramic hob
To reduce the amount of cleaning always ensure that the hob and cooking utensils are clean and
dry before use. Regular use of cleaner conditioner is recommended for proper care and protection
of the hob surface. Apply conditioner before using the hob for the first time. It contains a mild
cleaning agent, so that subsequent applications may clean off soil and apply a protective film at the
same time. For stubborn stains or heavy soiling use any of the following materials, and finish off
with conditioner.
1. Cif, non-scratch scouring cream.
2. Liquid Gumption Kitchen Cleanser.
3. Special Powder Cleanser.
Powder Cleanser – Mineral deposits that are present in hard water, and some foods, may cause
‘discolourations’ that appear in the form of grey or brown stains. The stains sometimes appear to
be in or under the glass surface. If there are some persistent stains after using any of the other
recommended cleaning materials, powder cleanser may be applied, following the manufacturers
instructions. Do not use abrasive cleaners or the powder cleanser on the painted metal framework.
Cleaner Conditioner – Regular use of the conditioner will make the surface easier to clean thus
ensuring that years of heavy abrasive cleaning do not progressively dull the surface.
Grill
Remove the grill pan and the wire grid food support, it is best to wash these items immediately
after use to prevent stains from being burnt on when used again. Wipe out the Grill compartment,
use a fine steel wool soap pad to remove stubborn stains from the grill runners and the floor of the
compartment. Wipe over the control panel with a damp cloth and polish with a dry cloth.
Control Panel
Do not use cream cleaners, oven cleaners or aerosols, scouring pads or abrasive powder for
cleaning the plastic knobs as damage will occur.
Decorative Trims
It is advisable to clean the decorative trims regularly to prevent any build up of soiling. The
recommended method of cleaning is to wipe over the trims with a soft cloth wrung out in warm
water or mild non-abrasive cleaner. (If in doubt try the cleaner on a small area of trim which is not
noticeable in normal use). Then, after wiping with a cloth wrung out in clear water, dry with a soft
clean cloth.
Doors
Wipe over the outer door glass panels with a cloth wrung out in warm soapy water, then after
wiping with a cloth wrung out in clear water, dry with a soft clean cloth. Ensure that glass doors
are not subjected to any sharp mechanical blows.
Glass Inner Door Panel (where fitted) – open the door fully and unscrew the two screws securing
the glass panel, taking care not to allow the glass to fall. The glass panel may now be washed at
the sink. Stubborn stains can be removed by using a fine steel wool soap pad. Ensure the glass
panel is not subjected to any sharp mechanical blows. Take particular care not to damage the
inner surface which is coated with a heat reflective layer. After cleaning, rinse and dry with a soft
cloth. For slight soiling the inner glass panel may be cleaned, while still warm, without removing it
from the door.
Warning: Oven must not be operated with inner door glass removed.
Take care during cleaning not to damage or distort the door seals. Do not lift the door seal from
the oven chassis, if necessary remove the seal by carefully unhooking the corner clips.
Take care that the rating label edges are not lifted during cleaning, and furthermore that the
lettering is not blurred or removed.
Ovens
Remove the rod shelves and grill pan. Use a fine steel wool soap pad to remove stubborn stains
from the rod shelves, grill pan and the floor of the oven.
Oven Shelf
Supports
The shelf supports are removable and dishwasher safe.
To remove hold the support at the front and pull away from the oven side, this can then be cleaned
in a sink or a dishwasher. When removed it allows access to the oven side, which can be cleaned
with warm soapy water.
To refit the support, insert the longer leg into the rear fixing hole and push in the front leg.
Oven Lamp
Replacement
Open the oven door and remove the rod shelves. Using a suitable cloth to protect the fingers grip
the light glass dome, unscrew anti-clockwise and lift. Reach into the aperture with fingers, and
unscrew the lamp anticlockwise. Fit replacement lamp (25W 300°C rated SES), refit dome.
WARNING: To avoid electric shocks - please ensure that the electricity supply to the
appliance is switched off and the appliance is fully cold, before removing the lamp lens.
21
Cooking Results Not Satisfactory?
22
Problem
Check
Grilling
Uneven cooking front to
back
Ensure that the grill pan is positioned centrally below the grill
element.
Fat splattering
Ensure that the grill is not set to too high a temperature.
Oven Baking
Uneven rising of cake
Ensure that the oven shelves are level by using a spirit level on
the rod shelf and adjusting, using suitable packing e.g. wood,
under the feet of the appliance. This should be checked both
left to right and front to back. Ensure that the food is
positioned centrally in the oven.
Sinking of cakes
The following may cause cakes to sink:
1. Cooking at too high a temperature.
2. Using normal creaming method with soft margarine.
Over/Under cooking
Fast/Slow cooking
Refer to the cooking times and temperatures given in the oven
temperature charts, however, it may be necessary to increase
or decrease temperatures by 10°C to suit personal taste.
Do not use utensils greater than 2¼ ins in height.
Uneven cooking of cakes
1. Too large baking sheet used. (See 'Cookery Notes')
2. Over loading of oven and always ensure even air gaps
around baking tins.
Uneven rising of cake
Ensure that the shelf is level (see above) and that the food is
positioned centrally in the oven.
Food is taking too long to
cook
Only cook one item at a time to avoid overloading the oven.
Something Wrong with your Cooker?
Before contacting your nearest Service Centre/Installer, check the problem guide below; there may be nothing wrong
with your cooker.
Problem
Slight odour or small amount of
smoke when using the cooker for
the first time.
This is normal and should cease after a short period.
Nothing Works
Is the main cooker wall switch turned on?
There may be no electricity supply.
Oven temperature seems too high or
too low.
Check that the temperature has been set in accordance with the temperature charts. It may
be necessary to increase or decrease the recommended temperature by up to 10°C to suit
your taste.
Oven does not cook evenly.
Check that the temperature and shelf position are as recommended in the temperature
charts.
Check that the containers being used in the oven allow sufficient air flow around them.
Check that the cooker is level.
Hotplates are slow to boil or will not
simmer
Check that your pans conform to the recommendations in these instructions.
Marks appearing on hotplates.
Can not clean hob / hotplates.
The hob surround can be cleaned with warm soapy water and a cream cleaner, such as
Cif. The sealed hotplates should be cleaned regularly, (please refer to the Care and
Cleaning section for further information. Please note that replacement hob cleaning kits are
available from our parts department, see Key Contacts, back page.
Grill not working.
The grill door MUST be open.
Grill keeps turning on and off.
When the grill control is operated at a setting less than maximum, this is normal regulator
operation, not a fault.
Condensation on the wall at the rear
of the cooker.
Steam and/or condensation may appear from the vent at the rear of the appliance when
using an oven particularly for foods with a high water content e.g. frozen chips, roast
chicken etc. This is normal and any excess should be wiped off.
Steam / Condensation in the oven
after use.
Steam is a by-product of cooking any food with a high water content. To help minimise
always:
a) Try to avoid leaving food in the oven to cool after being cooked.
b) Use a covered container, wherever possible
23
If It Still Won’t Work...
Contact the Service Office (0870 6070805)
If something is still wrong with your appliance after you have been through the ‘Something Wrong’ list:
1. Switch off and unplug the appliance from the mains.
2. Call your nearest Service Office or local importer.
When you contact us we will want to know the following:
1. Your name, address and postcode.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The Model number and the Serial number of your appliance.
5. The date of purchase (please keep the receipt as evidence will be required when an engineer calls)
enter the date here:
.............................................................................
Please make sure you have all these details ready when you call.
Spare Parts
Please remember your new appliance is a complex piece of equipment.
‘DIY’ repairs or unqualified and untrained service people may put you in danger, could damage the appliance
and might mean you lose cover under the Parts Guarantee.
If you do experience a problem with the appliance don’t take risks, call in our Service Engineer. Our Parts are
designed exclusively to fit your appliance. Do not use them for any other purpose as you may create a safety
hazard.
Disposal of your product
To minimise the risk of injury to children please dispose of your product carefully and safely. Remove all doors
and lids. Remove the mains cable (where fitted) by cutting off flush with the appliance and always ensure that
no plug is left in a condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of your product.
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC
Low Voltage Equipment
73/23/EEC
93/68/EEC
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that
old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
Old appliances must be collected separately in order to optimise the recovery and recycling of the materials
they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin”
symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be
separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of
their old appliance.
24
Technical Characteristics
Main Oven
Dimensions (HxWxD): 34x39x44 cm
Volume: 58 Litres
Max. Oven Power Absorption: 1950 W
Voltage and Frequency
240V~ 50/60Hz
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for Natural convection Class
heating mode: Convectional
25
26
27
Key Contacts
Repair Service and Information Desk
UK: 0870 6070805
(Open 8am to 5.30pm Mon - Fri
9am to 5pm Sat
and 10am to 4pm Sun
Closed Bank Holidays)
Note: Our operators will require the following information:Model Number:
Serial Number:
Extended Warranty
To join: UK 0870 442 7661
(Open 8 to 8 Mon-Sun)
Genuine Parts & Accessories
Mail Order Hotline
To join: UK 0870 558 5850
(Open 8.30 to 5 Mon-Fri and 8.30 to 12 Sat).
All Services are offered as an extra benefit and do not affect your statutory rights.
Indesit Company UK Ltd, Morley Way, Peterborough, PE2 9JB
03/2005 - 195048067.01
">
