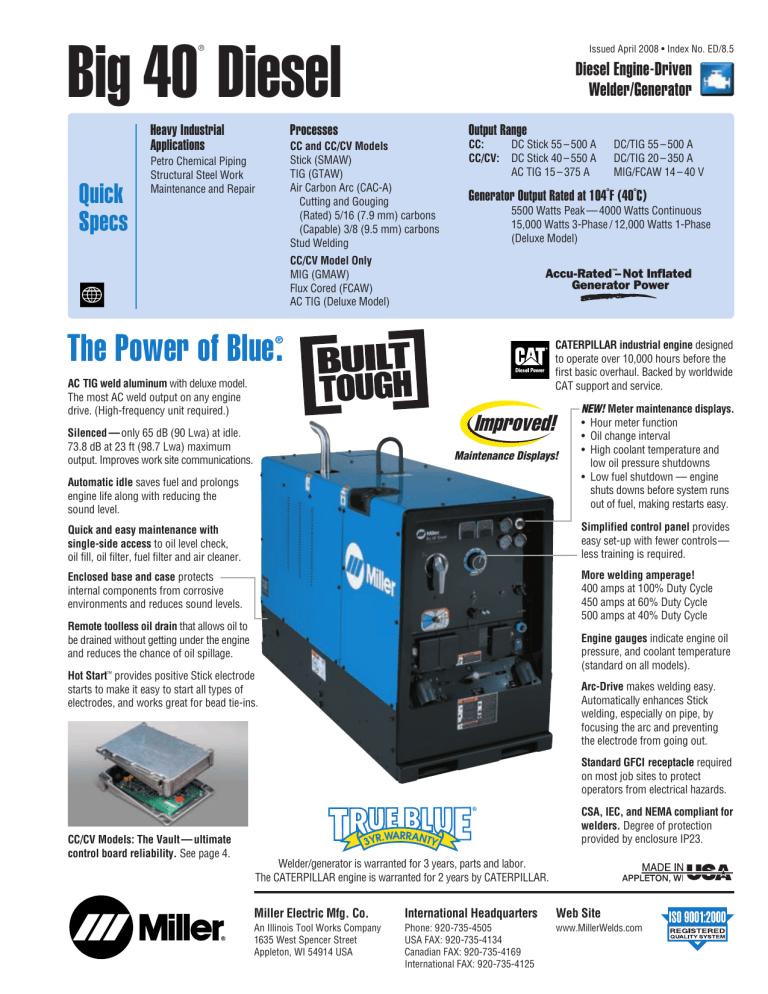

Big 40 Diesel
Issued April 2008 • Index No. ED/8.5
®
Heavy Industrial
Applications
Quick
Specs
Petro Chemical Piping
Structural Steel Work
Maintenance and Repair
Diesel Engine-Driven
Welder/Generator
Processes
Output Range
CC and CC/CV Models
Stick (SMAW)
TIG (GTAW)
Air Carbon Arc (CAC-A)
Cutting and Gouging
(Rated) 5/16 (7.9 mm) carbons
(Capable) 3/8 (9.5 mm) carbons
Stud Welding
CC:
CC/CV:
DC Stick 55 – 500 A
DC Stick 40 – 550 A
AC TIG 15 – 375 A
Generator Output Rated at 104˚F (40˚C)
5500 Watts Peak — 4000 Watts Continuous
15,000 Watts 3-Phase / 12,000 Watts 1-Phase
(Deluxe Model)
CC/CV Model Only
MIG (GMAW)
Flux Cored (FCAW)
AC TIG (Deluxe Model)
Accu-Rated™– Not Inflated
Generator Power
The Power of Blue .
®
AC TIG weld aluminum with deluxe model.
The most AC weld output on any engine
drive. (High-frequency unit required.)
CATERPILLAR industrial engine designed
to operate over 10,000 hours before the
first basic overhaul. Backed by worldwide
CAT support and service.
Improved!
Silenced — only 65 dB (90 Lwa) at idle.
73.8 dB at 23 ft (98.7 Lwa) maximum
output. Improves work site communications.
DC/TIG 55 – 500 A
DC/TIG 20 – 350 A
MIG/FCAW 14 – 40 V
Maintenance Displays!
Automatic idle saves fuel and prolongs
engine life along with reducing the
sound level.
NEW! Meter maintenance displays.
• Hour meter function
• Oil change interval
• High coolant temperature and
low oil pressure shutdowns
• Low fuel shutdown — engine
shuts downs before system runs
out of fuel, making restarts easy.
Quick and easy maintenance with
single-side access to oil level check,
oil fill, oil filter, fuel filter and air cleaner.
Simplified control panel provides
easy set-up with fewer controls—
less training is required.
Enclosed base and case protects
internal components from corrosive
environments and reduces sound levels.
More welding amperage!
400 amps at 100% Duty Cycle
450 amps at 60% Duty Cycle
500 amps at 40% Duty Cycle
Remote toolless oil drain that allows oil to
be drained without getting under the engine
and reduces the chance of oil spillage.
Engine gauges indicate engine oil
pressure, and coolant temperature
(standard on all models).
Hot Start™ provides positive Stick electrode
starts to make it easy to start all types of
electrodes, and works great for bead tie-ins.
Arc-Drive makes welding easy.
Automatically enhances Stick
welding, especially on pipe, by
focusing the arc and preventing
the electrode from going out.
Standard GFCI receptacle required
on most job sites to protect
operators from electrical hazards.
CSA, IEC, and NEMA compliant for
welders. Degree of protection
provided by enclosure IP23.
CC/CV Models: The Vault — ultimate
control board reliability. See page 4.
Welder/generator is warranted for 3 years, parts and labor.
The CATERPILLAR engine is warranted for 2 years by CATERPILLAR.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
®
Big 40 Diesel CC Specifications
(Subject to change without notice.)
Welding
Mode
Weld Output
Range
Weld Output Rated
at 104˚F (40˚C)
Max. OpenCircuit Voltage
Generator Output Rated
at 104˚F (40˚C)
CC/DC
55 – 500 A
400 A at 36 VDC (14.4 kW),
100% Duty Cycle
450 A at 38 VDC (17.1 kW),
60% Duty Cycle
500 A at 30 VDC (15 kW),
40% Duty Cycle
95
Peak: 5500 watts
Continuous: 4000 watts,
34/17 A, 120/ 240 VAC, 60 Hz
while welding
Net Weight
(without fuel)**
Dimensions*
H: 43 in (1092 mm)
W: 28-1/2 in (724 mm)
D: 64-7/16 in (1637 mm)
1540 lb (697 kg)
NEMA EWI (ANSI C87.1) Class (1) output ratings. *Additional 7 in (178 mm) to top of exhaust. **Additional 190 lb (86 kg) when fuel tank is full.
Engine Specifications
Engine
Brand
CATERPILLAR
Tier III,
C2.2 Diesel
(Subject to change without notice.)
Features
HP
Type
Tier III, EPA-certified, indirect-injected,
liquid-cooled diesel engine. Right-side
service access with service intervals of
500 hours for oil and filters.
32.6
Four-cylinder,
industrial,
liquid-cooled
diesel
Engine
Speeds
Fuel
Capacity
Oil
Capacity
Coolant
Capacity
Automatic Engine
Shutdown
Run: 1850 RPM
Idle: 1250 RPM
25 gal
(95 L)
9 qt
(8.5 L)
9 qt
(8.5 L)
Oil Pressure
Coolant Temperature
®
Big 40 Diesel CC Control Panel
1
Additional Features
Proven, rugged rheostat control technology
that has been in Miller engine drives for
over 60 years. Contains no printed control
boards.
Provisions are provided to plug a
RHC3GD34A remote control that will allow
precise adjustment of amperage without
walking back to the machine.
2
3
4
9
10
11
12
5
6
13
14
7
8
15
1. DC Ammeter*
2. DC Voltmeter*
3. Amperage Adjust Control
4. Amperage Range Switch
5. Amperage Adjust Switch and
Remote Amperage Adjust Receptacle
6. Stick/TIG Selector Switch
7. 120 VAC, 20 A GFCI Duplex Receptacle
8. 240 VAC, 30 A TwistLock Receptacle
(NEMA L6-30)
9. Fuel Gauge/Hour Meter/Oil Change Interval/
Engine Shutdown Indicator
10. Engine Oil Pressure Gauge
11. Battery Voltmeter*
12. Engine Coolant Temperature Gauge
13. Engine Control Switch
14. Starting Aid Switch
15. Polarity Switch*
*Optional on select models.
®
Big 40 Diesel CC Performance Data
CC/DC VOLT/AMP CURVES
GENERATOR POWER CURVE
150 300
7.57 2.00
Ranges
40
20
0
0
100 200 300 400 500 600 700 800 900 1000
4 kW
5.68 1.50
100 200
4.73 1.25
75 150
3.79 1.00
50 100
2.84 0.75
25 50
1.89 0.50
0
0
0.95 0.25
0
5
0
10
10
15
20
25
30
AC AMPERES IN 240 V MODE
DC AMPERES
20
30
40
50
AC AMPERES IN 120 V MODE
2
6.62 1.75
5.5 kW
60
IDLE
0.00 0.00
US Gal./Hr.
DC VOLTS
60
125 250
AC VOLTS
230 – Max
170 – 365
110 – 225
70 – 130
55 – 85
80
US Liters/Hr.
100
FUEL CONSUMPTION CURVE
0
50 100 150 200 250 300 350 400
DC WELD AMPERES
AT 100% DUTY CYCLE
®
Big 40 Diesel CC/CV Specifications
(Subject to change without notice.)
Welding
Mode
Weld Output
Range
Weld Output Rated
at 104˚F (40˚C)
Max. OpenCircuit Voltage
CC/DC
20 – 550 A
400 A at 36 VDC (14.4 kW),
100% Duty Cycle
95
CV/DC
14 – 40 V
450 A at 38 VDC (17.1 kW),
60% Duty Cycle
56
CC/AC
(Deluxe
Model)
15 – 375 A
300 A at 32 VAC (9.6 kW),
100% Duty Cycle
Dimensions*
Peak: 5000 watts
Continuous: 4000 watts, 34/17 A,
120/240 VAC, 60 Hz while welding
H: 43 in
(1092 mm)
W: 28-1/2 in
(724 mm)
D: 64-7/16 in
(1637 mm)
Deluxe Model Additional Power Plant:
1-phase, 12 kW, 50 A, 120/240 VAC, 60 Hz; or
3-phase, 15 kW, 36 A, 240 VAC, 60 Hz while
not welding
500 A at 34 VDC (17 kw),
40% Duty Cycle
65
Net Weight
(without fuel)**
Generator Power Output Rated
1545 lb
(701 kg)
335 A at 33 V (11.1 kW),
60% Duty Cycle
375 A at 35 V (13.1 kW),
40% Duty Cycle
NEMA EWI (ANSI C87.1) Class (1) output ratings. *Additional 7 in (178 mm) to top of exhaust. **Additional 190 lb (86 kg) when fuel tank is full.
®
Big 40 Diesel CC/CV Control Panel
1
Additional Features
9
10
11
12
2
3
4
A multi-colored process selector control
allows quick and easy process changes
without having to use multiple switches.
Heavy-Duty Design — The Vault design
provides enhanced arc characteristics that
include more dig in the Stick mode with
smoother and lower amperage in the TIG
mode. Along with the superior welding
performance, the Vault provides the ultimate
reliability in the harshest of environments.
13
14
5
6
Process/Contactor Selector Switch
5
15
16
17
18
7
8
A hermetically-sealed vault protects Miller
control boards from dust, moisture, and
tough environmental elements. Extreme
conditions will not cause the output to
change, eliminating the need to periodically
turn up the heat.
19
1.
2.
3.
4.
5.
DC Ammeter*
DC Voltmeter*
Amperage/Voltage Adjust Control
Ampere Range Switch
Amperage/Voltage Adjust Switch and Remote
Amperage/Voltage Adjust Receptacle
6. Process/Contactor Selector Switch
7. 120 VAC, 20 A GFCI Duplex Receptacle
8. 240 VAC, 30A TwistLock Receptacle
(NEMA L6-30)
9. Fuel Gauge/Hour Meter/Oil Change Interval/
Engine Shutdown Indicator
15,000 watt generator option for stand-by
power generation adds 15 kW, three-phase,
240 volt power to CC/CV units. 12 kW,
120/240 volt, single-phase power from a
50 amp receptacle while not welding.
10. Engine Oil Pressure Gauge
11. Battery Voltmeter*
12. Engine Coolant Temperature Gauge
13. Engine Control Switch
14. Starting Aid Switch
15. 3-Phase Power Generator Option*
16. Strain Relief*
17. 50 A, 3-Phase Circuit Breaker
18. 50 A, 120/240 V Receptacle
(NEMA 14-50)*
19. AC/DC Polarity Switch*
*Optional on select models.
®
Big 40 Diesel CC/CV Performance Data
CC/CV VOLT/AMP CURVES
STICK MODE
100
100
80
80
100
Ranges
60
40
20
60
MAX
40
20
100 200 300 400 500 600 700 800 900 1000
DC AMPERES
80
60 – 365
35 – 250
25 – 155
15 – 75
60
40
0
100 200 300 400 500 600 700 800 900 1000
DC AMPERES
60
40
0
0
0
55 – 350
35 – 205
25 – 105
15 – 45
20
20
MIN
0
0
Ranges
Ranges
DC VOLTS
Max
155 – 450
115 – 320
75 – 195
40 – 90
DC VOLTS
DC VOLTS
80
CC/CV VOLT/AMP CURVES
AC TIG MODE
AC VOLTS
100
CC/CV VOLT/AMP CURVES
TIG MODE
CC/CV VOLT/AMP CURVES
MIG MODE
0
100
200
300
DC AMPERES
400
500
0 50 100 150 200 250 300 350 400 450 500
AC AMPERES
3
®
Big 40 Diesel CC Options
Weld Ammeter and Voltmeter Kit
#195 131 Field
Panel-mounted analog meters monitor
welding output.
Battery Voltage Gauge
#195 454 Field
Monitors battery charging circuit.
Installation time: 35 minutes
DC Polarity Reversing Switch Kit
#043 942 Field
Changes DC polarity without the use of tools.
Cold Weather Starting Aid Kit
#195 056 Field
Includes 120 V block heater.
Installation time: 35 minutes
Note: All models come standard with glow plugs.
®
Big 40 Diesel CC/CV Options
Weld Ammeter and Voltmeter Kit
#195 131 Field
Panel-mounted analog meters monitor
welding output. Deluxe model comes
standard with weld meters.
Battery Voltmeter
#195 454 Field
Monitors battery charging circuit.
Cold Weather Starting Aid Kit
#195 056 Field
Includes 120 V block heater.
Installation time: 35 minutes
Note: All models come standard with glow plugs.
AC/DC Polarity Reversing Switch Kit
#195 095 Field
Changes DC+/AC/DC- without the use
of tools. Deluxe model comes standard
with AC/DC polarity switch.
5
Installation time: 35 minutes
15,000 Watt Generator Plant
12,000 Watts, 1-phase, 120/240 V
15,000 Watts, 3-phase, 240 V
The panel is protected by a 50 amp
on/off circuit breaker. It includes a 50 A,
1-phase receptacle and strain relief for
direct hard-wiring. This power is only
available while NOT welding. Comes
standard with deluxe model.
Note: Available as factory option.
See Ordering Information on back page.
The Vault
Superior Circuit Board Design
Miller’s critical circuit boards are engineered
to carry low power and low heat to reduce
thermal stress and minimize expansion and
contraction. In contrast, our competitor’s
boards carry high power and high heat, making
them more vulnerable to failure.
“The Vault” Makes Upgrading to Miller CC/CV
Units Worry-Free
Concerns with circuit board reliability have
resulted in some operators steering clear of
CC/CV welder/generators — even though they
4
offer a superior arc and multiple welding
processes. Miller’s circuit board reliability isn’t
a concern since all PRO 300 and Big Blue
multiprocess industrial engine drives feature
the Vault.
Created out of two aluminum halves sealed
with silicone, as well as watertight harness
connections, the Vault provides a clean circuit
board environment, protecting the electronics
— and controlling output — in heavy industrial
applications. No other competitor protects their
electronics with a sealed vault, leaving critical
circuit boards exposed to harsh elements that
can disrupt the machine’s electronics, and
therefore, its operation.
Genuine Miller Accessories
FA-1D Lockable Flame Arrestor
Fuel Cap #043 947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in
flame arrestor prevents flames or
sparks from entering the fuel tank.
Spark Arrestor
Muffler Kit
#195 012 Field
Prevents particles
from leaving the muffler that could
potentially start a fire. Mandatory when
operating on California grasslands, brush,
or forest-covered land, and in all National
Forests. For other areas, check your state
and local laws. Meets US Forest Service
standard 5100-1B.
Vandalism Lockout Kit
#195 118 Field
Lockable hinged steel
panels cover and protect
name plate gauges and
ignition switch (padlock
included). Also includes
engine compartment door
lock and key.
Cable Holder #043 946
Saddle-bag-style cable
holder. Convenient wraparound storage of coiled
cable for transportation.
Stores 100 ft of 2/0 cable
on each side.
Note: For best results do not weld when cable is coiled!
Canvas cover cannot be used with cable holder.
Roll Cage/Drip Pan
#194 918 Field
Heavy-duty galvanized
steel structure
designed to protect the
machine. The roll cage
meets offshore oil
platform requirements with a drip pan and
drain plug along with a heavy-duty lift eye.
Canvas Cover (Blue)
#194 683 Field
Attractive, waterproof
canvas cover resists
stains and mildew,
and protects the
finish of your welder.
(Continued)
Stick (SMAW) Welding
Weld Leads
#173 851 2/0, 350 A, 100% duty cycle,
50 ft stinger, 50 ft work cable
#043 952 2/0, 300 A, 100% duty cycle,
100 ft stinger, 50 ft work cable
Plasma Cutting
SuitCase™ 8RC Wire Feeder #194 938
SuitCase™ 12RC Wire Feeder #194 940
Lightweight and flexible enough to run a
variety of wires up to .062 in diameter.
Comes standard with remote voltage
control. See Lit. Index No. M/6.5.
MIG (GMAW)/Flux Cored (FCAW) Guns
Miller produces a complete line of
dependable MIG guns. See Lit. Index Nos.
AY/15.0, AY/16.0 and AY/17.0.
Spectrum® 375 X-TREME™ #907 303
Spectrum® 375 X-TREME™ with X-CASE™
#907 339 (not shown)
See Lit. Index No. PC/9.2.
Spectrum® 625 #907 058
See Lit. Index No. PC/9.5.
Spectrum 2050 #903 777-01-2
See Lit. Index No. PC/7.0.
Spoolmatic® 30A
Spool Gun
#130 831
Air-cooled, 200-amp,
1-lb spool gun for
aluminum MIG. See Lit. Index No. M/1.73.
MIG (GMAW) or Flux Cored (FCAW)
WC-24 Control #137 549
Use with Spoolmatic 30A.
Millermatic®
Passport® Plus
#907 401
Portable, all-in-one
MIG package
features ultimate
arc performance,
self-contained gas
bottle, and flexibility to plug into 115 or 230
V power with Miller exclusive Multi-Voltage
Plug. See Lit. Index No. DC/12.53.
SuitCase™ X-TREME™ 8VS Wire Feeder
#300 093
SuitCase™ X-TREME™ 12VS Wire Feeder
#195 500
Lightweight, voltage-sensing wire feeders
include secondary contactor and gas valve.
Require drive roll kit. See Lit. Index No.
M/6.41.
XR™ Wire Feeders and Guns
Push-pull system designed to handle
difficult-to-feed soft alloy wires such as
aluminum. See Lit. Index No. M/1.7,
M/1.71, and M/1.73.
TIG (GTAW) Welding
Dynasty® 200 Series
For premium portable
AC/DC TIG arc quality.
See Lit. Index No.
AD/4.8.
HF-251 Series
#042 388
HF-251D-1, 115 VAC
#042 387
HF-251D-2, 230 VAC
High-frequency arc
starter and stabilizer.
See Accessory Lit. Index No. AY/5.0.
Note: Canvas cover cannot be used with cable holder.
5
Genuine Miller Accessories
(Continued)
Remote Controls (CC models only)
RFCS-14 HD Foot
Control #194 744
Foot current and
contactor control.
20 ft (6 m) cord and
14-pin plug.
RHC-3GD34A Remote
Hand Control #041 122
Allows for precise
adjustment of amperage.
Includes 20 ft (6 m) cord.
Remote Controls (CC/CV models)
RHC-14 Hand Control
#129 340
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 82 mm). Includes 20 ft
(6 m) cord and 14-pin plug.
Trailers and Hitches
RMLS-14
#129 337
Fingertip
momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and back for
momentary contact. Includes 20 ft (6 m)
cord and 14-pin plug.
RCC-14 Remote
Contactor and
Current Control
#151 086
14-pin plug. Rotary-motion fingertip control
fastens to TIG torch using two Velcro® straps.
Includes 28 ft (8.5 m) control cord.
RCCS-14 Remote
Contactor and
Current Control
#043 688
Up-and-down rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 28 ft (8.5 m) control cord.
Extension Cords for 14-Pin Remote Controls
#122 973 25 ft (7.6 m)
#122 974 50 ft (15.2 m)
#122 975 75 ft (22.9 m)
(For both models.)
4 West Four-Wheel Steerable
Off-Road Trailer #042 801
A heavy-duty 2570 lb (1166 kg) capacity trailer
designed for use in mines, quarries, and other
rough terrain. Has narrow 22 ft (6.7 m) turning
radius. Includes 3 in lunette eye, universal hitch
and safety chains.
HWY-224 Trailer #043 805 For highway use.
OFR-224 Trailer #043 802 For off-road use.
A 2650 lb (1202 kg) capacity trailer. Welded
steel tubing frame, heavy-duty axle with roller
bearing hubs and leaf-spring suspension.
Includes jack stand, 2 in (50 mm) ball hitch.
HWY-224 also includes fenders and lights.
HWY-430 Tandem Axle Trailer #043 806
Smooth riding with 3750 lb (1701 kg) capacity.
Includes hand-operated parking brake, hydraulic
brake system, and a break-away device to lock
brakes if the trailer comes loose. Includes jack
stand, fenders and lights. (Hitch must be
ordered separately.)
Note: Trailer is shipped unassembled.
Note: Trailer is shipped unassembled.
Note: Some assembly required.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
Lunette Eye 2-1/2 in (64 mm) #043 824
Ball Hitch 2 in (50 mm) #043 864
Lunette Eye 3 in (76 mm) #043 863
Trailer Specifications
(Subject to change without notice.)
Gross Axle
Gross Vehicle
Weight Rating Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
4 West
2000 lb/axle
(907 kg/axle)
3000 lb
(1361 kg)
2570 lb
(1166 kg)
21-1/4 in
(540 mm)
8 in
(203 mm)
55-1/4 in
(1403 mm)
HWY-224
OFR-224
3500 lb
(1588 kg)
2960 lb
(1343 kg)
2650 lb
(1202 kg)
18-1/2 in
(470 mm)
7-1/2 in
(191 mm)
HWY-430
2200 lb/axle
(998 kg/axle)
4280 lb
(1941 kg)
3750 lb
(1701 kg)
19-1/4 in
(489 mm)
8-1/2 in
(216 mm)
Model
*Width at outside of fenders. **Does not include tongue.
6
Dimensions
Net
Weight
B78-13
Length: 91 in (2311 mm)**
Width: 61-1/4 in (1556 mm)
430 lb
(195 kg)
52 in
(1321 mm)
B78-13B
Length: 122-1/2 in (3112 mm)
Width: HWY– 61 in (1549 mm)*
OFR–58-1/2 in (1486 mm)
355 lb
(161 kg)
52 in
(1321 mm)
B78-13B
Length: 156-1/2 in (3975 mm)
Width: 61 in (1549 mm)*
530 lb
(240 kg)
Typical Installations
Stick Electrode
Stick (SMAW) Basic Equipment
Work
Flux-Cored (FCAW) Basic Equipment
SuitCase™ X-TREME™ 8VS
SuitCase™ X-TREME™ 12VS
Flux Cored Gun
#300 093
#195 500
X-TREME 8VS/
X-TREME 12VS
Feeder
Work
MIG (GMAW) Basic Equipment
SuitCase™ 8RC
SuitCase™ 12RC
#194 938
#194 940
14-Pin
MIG Gun
SuitCase
8RC/12RC
Work
Aluminum MIG with
Spoolmatic 30A Gun
Aluminum MIG (GMAW) Basic Equipment
Spoolmatic® 30A
WC-24
#130 831
#137 549
14-Pin
WC-24
Work
TIG (GTAW) Basic Equipment
Dynasty® 200 Series
HF-251D-1
#042 388*
*TIG power cable adapter required
TIG
Torch
14-Pin
HF-251D-1
Work
Cutting Torch
Plasma Basic Equipment
Spectrum® 375 X-TREME™ #907 303
Spectrum® 375 X-TREME™ with X-CASE ™
#907 339
Spectrum® 625
#907 058
Spectrum® 2050
#903 777-01-2
Spectrum
Work
7
Ordering Information
Power Source and Factory Options
Stock No.
Description
Big 40® Diesel CC
Big 40® Diesel CC/CV
#907 171
#907 170
#907 170-03-1
CSA model with engine gauges and automatic idle
CSA model with engine gauges and automatic idle
CSA Deluxe model w/ automatic idle, engine gauges, welding meters,
AC/DC polarity switch and high kW option
#195 131
#195 454
#043 942
#195 095
#195 056
#043 947
#195 012
#195 118
#043 946
#194 918
#194 683
Standard on deluxe model
#173 851
#043 952
2/0, 350 A, 100% duty cycle, 50 ft (15 m) stinger, 50 ft (15 m) work clamp
2/0, 300 A, 100% duty cycle, 100 ft (30.5 m) stinger, 50 ft (15 m) work clamp
#907 401
#300 093
#195 500
#194 938
#194 940
Includes gas bottle and MVP. See Lit. Index No. DC/12.53
See Lit Index No. M/6.41
See Lit Index No. M/6.41
See Lit Index No. M/6.5
See Lit Index No. M/6.5
See Lit Index Nos. AY/15.0, AY/16.0 and AY/17.0
Requires WC-24 Control. See Lit. Index No. M/1.73
See Lit. Index No. M/1.5
See Lit. Index No. M/1.7, M/1.71, and M/1.73
Field Kit Accessories
Weld Ammeter and Voltmeter Kit
Battery Voltmeter
DC Polarity Switch Kit
AC/DC Polarity Switch Kit
Cold Weather Starting Aid Kit
Lockable Fuel Cap Flame Arrestor Kit
Spark Arrestor Muffler Kit
Vandalism Lockout Kit
Cable Holder
Roll Cage/Drip Pan
Canvas Cover
Stick Accessories
Accessory Kits
MIG/Flux Cored Accessories
Millermatic® Passport® Plus
SuitCase™ X-TREME™ 8VS
SuitCase™ X-TREME™ 12VS
SuitCase™ 8RC
SuitCase™ 12RC
MIG (GMAW)/Flux Cored (FCAW) Guns
Spoolmatic® 30A Spool Gun
WC-24 Control
XR™ Wire Feeder Control and Guns
#130 831
#137 549
TIG Accessories
Dynasty® 200 Series
High Frequency Arc Starters
Remote Controls
RHC-3GD34A
RHC-14
RFCS-14 HD
RMLS-14
RCC-14
RCCS-14
Remote Control Extension Cords
Trailers and Hitches
4-West Trailer
HWY-224 Trailer
OFR-224 Trailer
Lunette Eye, 2-1/2 in
Cable Tree
HWY-430 Trailer
Ball Hitch, 2 in
Lunette Eye, 3 in
Changes DC polarity positive to negative
For CC/CV models. Standard on deluxe model
120 V block heater
Padlock not included
Horizontal externally mounted
Lockable front control panel and engine compartment
Saddle-bag-style. Fastens to machine
Field. Cannot be used with cable holder
See Lit Index No. AY/4.8
See Lit. Index No. AY/5.0
#041 122
#129 340
#194 744
#129 337
#151 086
#043 688
CC models only, hand control
CC/CV models only, amperage or voltage control
CC/CV models only, foot control
CC/CV models only, momentary and maintained contact switch
CC/CV models only, fingertip control
CC/CV models only, fingertip control
See page 6
#042 801
#043 805
#043 802
#043 824
#043 826
#043 806
#043 864
#043 863
4-wheel steerable implement trailer
Trailer with lights, fenders and 2 in ball hitch
Trailer with 2 in ball hitch
Replaces the 2 in ball hitch on the HWY-224 or OFR-224
Trailer mounted cable holder for HWY-224, OFR-224 or HWY-430
Hitch required
For HWY-430 only
For HWY-430 only
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Qty.
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
