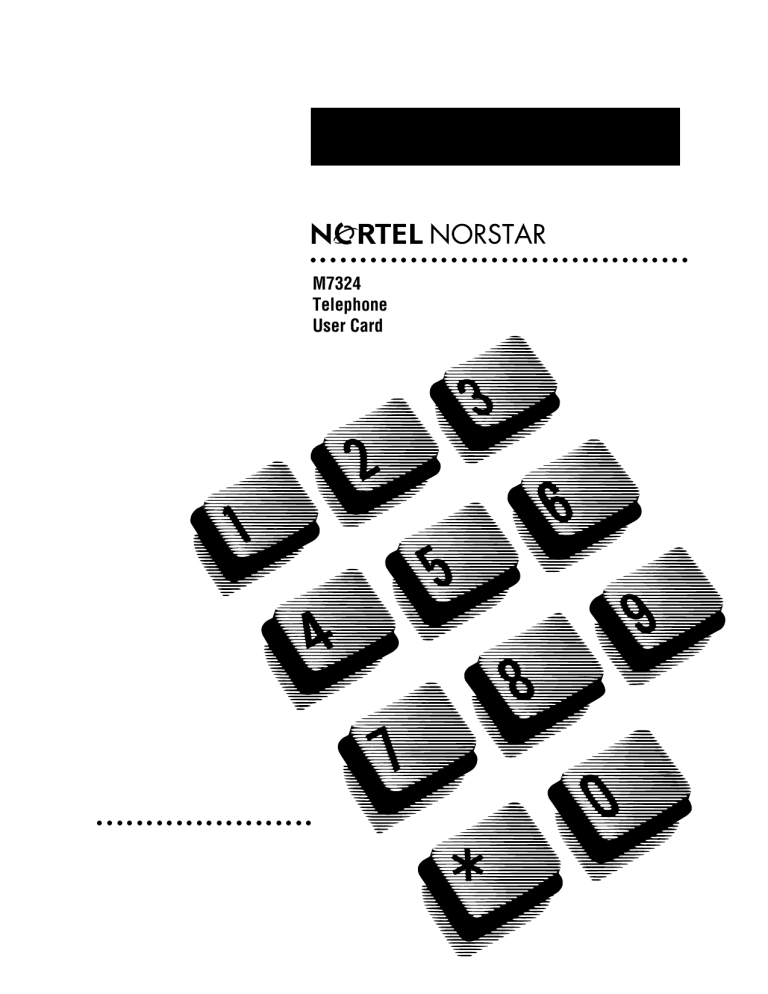

M7324
Telephone
User Card
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Your Norstar M7324 telephone
Memory and line buttons
are buttons with indicators for one touch dialing, feature operation or line access.
Display
shows the time, date, call information and guides
you while using Norstar* features. The lower line
of the display is reserved for display button
instructions.
Display buttons
Dial pad
Volume control
Feature button
starts or ends a feature.
Hold button
Release button
cancels active calls.
Indicators
appear beside active lines and features.
Using display
buttons
Display buttons change with each feature you
use. The labels for display buttons appear in
capital letters directly above them on the
second line of the display. A display button
with an “OK” label above it is represented as
OK in this card.
Button inquiry
Confirm that your memory and line buttons have the correct snap-on caps by
checking their programming.
1. Release all calls or open lines with dial tone.
2. Press
.
3. Press the button(s) you want to check and read the display.
4. Press
when finished.
Contrast level 2
DOWN
UP
OK
ƒ•‚
ƒ
ƒ•‡
UP DOWN
Adjusting display
contrast
1. Press
.
2. Press
or
for the level you want.
3. Press OK when finished.
Selecting a ring type
and volume level
1.
2.
3.
4.
ĥfl
⁄¤‹ ›
Press
.
Press
,
,
or
to hear the different types of rings.
While the telephone is ringing, press
to adjust the volume.
softer
louder
Press OK to store the ring.
√
Important: All M7324 telephones Release 10 (REL 10) and higher comply with the Americans with Disabilities Act
(ADA). See the label on the bottom of the telephone for the Release marking.
* Meridian and Norstar are trademarks of Northern Telecom.
2
Making calls
About line buttons
∆
∫
Line 1
∫
Norstar systems can have different types of line buttons. Match the line
buttons on your telephone with the ones below for instructions on how to use
them.
º
º
Internal calls using Intercom buttons
1. Pick up the receiver.
2. If appears beside an Intercom
button, then dial.
OR
Press an Intercom button without
, then dial.
External calls using numbered Line
buttons
1. Pick up the receiver.
2. When appears beside a
numbered Line button, then dial.
OR
Press a numbered Line button
without , then dial.
º
º
Note: Internal numbers are supplied by your system coordinator.
4321
˙
©
Internal calls using extension
buttons
1. Pick up the receiver.
2. When appears beside an
extension button, then dial.
º
˙ º
External calls using extension
buttons
1. Pick up the receiver.
2. When appears beside the
extension button, then dial
(or
your system's external line access
code) and the number.
º
·
º
Holding Calls
1. Press
. The flashes beside the line on hold.
2. Press the line button with the flashing to return to the call.
Check the display for confirmation or additional information.
Automatic hold
Calls are put on hold automatically when you switch from one line to another.
This button operates the telephone's built-in microphone and speaker in place
of the receiver. Your System Coordinator can program Handsfree to your
telephone.
©
©
©
©
Making calls
1. Press
instead of picking up the receiver.
Switching between Handsfree and handset
1. Press
and replace the handset to switch to Handsfree.
2. Pick up the receiver to switch back.
Using Mute
1. Press
2. Press
Dialing without
lifting the handset
to turn the microphone OFF.
again to turn the microphone ON.
º
©
®
1. Press a line button without , then dial your call.
2. When answered, pick up the receiver, or press
3. If the call is not answered, or the line is busy, press
.
.
3
Programming memory buttons
About memory
buttons
Memory buttons are the buttons
with indicators other than line or
Handsfree buttons. Memory
buttons store telephone numbers
or feature codes to give you one
touch dialing or feature activation.
You can change what a memory
button does by just programming
it with a new number or feature.
If you have programmed a
memory button with an internal
number the indicator comes on
when the number is busy.
Remember: Press
Programming
memory buttons
ƒ•‚
to check a memory or line button.
External autodial
1. If on a call or an open line with dial tone, press
2. Press
.
3. Press a memory button.
4. Dial the external number.
5. Press OK to store the number.
6. Label your new button.
ƒ•⁄
Internal autodial
1. If on a call or an open line with dial tone, press
2. Press
.
3. Press a memory button.
4. Dial the internal number.
5. Label your new button.
ƒ•¤
Features
1. If on a call or an open line with dial tone, press
2. Press
.
3. Press a memory button.
4. Press
and the feature code.
5. Label your new button.
ƒ•‹
ƒ
Erasing memory buttons
1. If on a call or an open line with dial tone, press
2. Press
.
3. Press the memory button you want to erase.
4. Press OK to erase the button.
ƒ•⁄
˙ ®
or
.
˙ ®
␣ or
.
˙ ®
␣ or
.
˙ ®
or
.
P0749852 Issue 02 Printed in Canada
4
