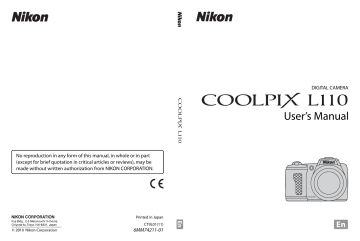

Nortel Networks Digital Camera L110 User's Manual

DIGITAL CAMERA
User’s Manual
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
Printed in Japan
En
CT9L01(11)
6MM74211-01
En
Trademark Information
• Microsoft, Windows and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
• Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc.
• Adobe and Acrobat are registered trademarks of Adobe Systems Inc.
• SD and SDHC Logos are trademarks of SD-3C, LLC.
• PictBridge is a trademark.
) logo and High-Definition Multimedia Interface are trademarks or
• HDMI, (
registered trademarks of HDMI Licensing LLC.
• All other trade names mentioned in this manual or the other documentation
provided with your Nikon product are trademarks or registered trademarks of their
respective holders.
AVC Patent Portfolio License
This product is licensed under the AVC Patent Portfolio License for the personal and
non-commercial use of a consumer to (i) encode video in compliance with the AVC
standard (“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was obtained from a video
provider licensed to provide AVC video. No license is granted or shall be implied for any
other use. Additional information may be obtained from MPEG LA, L.L.C.
See http://www.mpegla.com.
Introduction
First Steps
Basic Photography and Playback: G Easy Auto Mode
More on Shooting
More on Playback
Editing Image
Movie Recording and Playback
Connecting to Televisions, Computers and Printers
Basic Camera Setup
Notes on Camera Care and General Usage
Technical Notes
i
For Your Safety
To prevent damage to your Nikon product or injury to yourself or to others, read
the following safety precautions in their entirety before using this equipment.
Keep these safety instructions where all those who use the product will read them.
The consequences that could result from failure to observe the precautions listed
in this section are indicated by the following symbol:
This icon marks warnings, information that should be read before using this Nikon
product, to prevent possible injury.
WARNINGS
Turn off in the event of
malfunction
Should you notice smoke or an unusual
smell coming from the camera or AC
adapter, unplug the AC adapter and
remove the battery immediately, taking
care to avoid burns. Continued
operation could result in injury. After
removing or disconnecting the power
source, take the equipment to a Nikonauthorized service representative for
inspection.
Do not disassemble
Touching the internal parts of the
camera or AC adapter could result in
injury. Repairs should be performed
only by qualified technicians. Should
the camera or AC adapter break open
as the result of a fall or other accident,
take the product to a Nikon-authorized
service representative for inspection,
after unplugging the product and/or
removing the battery.
ii
Do not use the camera or AC
adapter in the presence of
flammable gas
Do not use electronic equipment in the
presence of flammable gas, as this
could result in explosion or fire.
Handle the camera strap with
care
Never place the strap around the neck
of an infant or child.
Keep out of reach of children
Particular care should be taken to
prevent infants from putting the
battery or other small parts into their
mouths.
For Your Safety
Observe caution when
handling the battery
The battery may leak or explode if
improperly handled. Observe the
following precautions when handling
the battery for use in this product:
• Before replacing the battery, turn the
product off. If you are using the AC
adapter, be sure it is unplugged.
• Use only the batteries approved for
use in this product (A 14). Do not
combine old and new batteries or
batteries of different makes or types.
• When charging Nikon EN-MH2
rechargeable Ni-MH batteries, use
only the specified charger and
charge the batteries four at a time.
When replacing the batteries with
EN-MH2-B2 batteries (available
separately), purchase two sets (total
of four batteries).
• The EN-MH2 rechargeable batteries
are for use with Nikon digital cameras
only, and are compatible with
COOLPIX L110.
• Insert batteries in the correct
orientation.
• Do not short or disassemble the
battery or attempt to remove or
break the battery insulation or casing.
• Do not expose the battery to flame
or to excessive heat.
• Do not immerse in or expose to
water.
• Do not transport or store with metal
objects such as necklaces or hairpins.
• Batteries are prone to leakage when
fully discharged. To avoid damage to
the product, be sure to remove the
battery when no charge remains.
• Discontinue use immediately should
you notice any change in the battery,
such as discoloration or deformation.
• If liquid from the damaged battery
comes in contact with clothing or skin,
rinse immediately with plenty of water.
•
•
•
•
•
•
Observe the following
precautions when handling the
Battery Chargers (available
separately)
Keep Dry. Failure to observe this
precaution could result in fire or
electric shock.
Dust on or near the metal parts of the
plug should be removed with a dry
cloth. Continued use could result in
fire.
Do not handle the power cable or go
near the battery charger during
lightning storms. Failure to observe
this precaution could result in
electric shock.
Do not damage, modify, forcibly tug or
bend the power cable, place it under
heavy objects, or expose it to heat or
flame. Should the insulation be
damaged and the wires become
exposed, take it to a Nikon-authorized
service representative for inspection.
Failure to observe these precautions
could result in fire or electric shock.
Do not handle the plug or battery
charger with wet hands. Failure to
observe this precaution could result
in electric shock.
Do not use with travel converters or
adapters designed to convert from one
voltage to another or with DC-to-AC
inverters. Failure to observe this
precaution could damage the product
or result in overheating or fire.
iii
For Your Safety
Use appropriate cables
When connecting cables to the input
and output jacks, use only the cables
provided or sold by Nikon for the
purpose, to maintain compliance with
product regulations.
Handle moving parts with care
Be careful that your fingers or other
objects are not pinched by the lens
cover or other moving parts.
CD-ROMs
The CD-ROMs supplied with this device
should not be played back on audio CD
equipment. Playing CD-ROMs on an
audio CD player could cause hearing
loss or damage the equipment.
Observe caution when using
the flash
Using the flash close to your subject’s
eyes could cause temporary visual
impairment. Particular care should be
observed if photographing infants,
when the flash should be no less than 1
m (3 ft. 4 in.) from the subject.
Do not operate the flash with
the flash window touching a
person or object
Failure to observe this precaution could
result in burns or fire.
iv
Avoid contact with liquid
crystal
Should the monitor break, care should
be taken to avoid injury caused by
broken glass and to prevent liquid
crystal from the monitor touching the
skin or entering the eyes or mouth.
Turn the power off when using
inside an airplane or the
hospital
Turn the power off while inside the
airplane during take off or landing.
Follow the instructions of the hospital
when using while in a hospital. The
electromagnetic waves given out by
this camera may disrupt the electronic
systems of the airplane or the
instruments of the hospital.
Notices
Notice for Customers in the U.S.A.
Federal Communications
Commission (FCC) Radio Frequency
Interference Statement
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced
radio/television technician for help.
CAUTIONS
Modifications
The FCC requires the user to be notified
that any changes or modifications
made to this device that are not
expressly approved by Nikon
Corporation may void the user’s
authority to operate the equipment.
Interface Cables
Use the interface cables sold or
provided by Nikon for your equipment.
Using other interface cables may
exceed the limits of Class B Part 15 of
the FCC rules.
Notice for customers in the State of
California
WARNING
Handling the cord on this product will
expose you to lead, a chemical known
to the State of California to cause birth
defects or other reproductive harm.
Wash hands after handling.
Nikon Inc.,
1300 Walt Whitman Road
Melville, New York 11747-3064
USA
Tel: 631-547-4200
v
Notices
Notice for customers in Canada
CAUTION
This Class B digital apparatus complies
with Canadian ICES-003.
ATTENTION
Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du
Canada.
Symbol for Separate Collection in
European Countries
This symbol indicates that this
product is to be collected
separately.
The following apply only to
users in European countries:
• This product is designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.
This symbol on the battery
indicates that the battery is to
be collected separately.
The following apply only to
users in European countries:
• All batteries, whether marked with
this symbol or not, are designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the
retailer or the local authorities in
charge of waste management.
vi
Table of Contents
For Your Safety........................................................................................................................................ ii
WARNINGS.................................................................................................................................................................. ii
Notices ....................................................................................................................................................... v
Introduction ...........................................................................................................................................1
About This Manual ................................................................................................................................ 1
Information and Precautions............................................................................................................. 2
Parts of the Camera............................................................................................................................... 4
The Camera Body ...................................................................................................................................................4
Raising and Lowering the Built-in Flash ...................................................................................................6
Attaching the Camera Strap and Lens Cap............................................................................................7
The Monitor................................................................................................................................................................8
Basic Operations...................................................................................................................................10
A (shooting mode) button .........................................................................................................................10
c (playback) button........................................................................................................................................10
b (movie-record) button ..............................................................................................................................10
The Multi Selector................................................................................................................................................11
d button .............................................................................................................................................................12
Switching Between Tabs.................................................................................................................................12
Help Displays..........................................................................................................................................................13
About the Shutter-release Button.............................................................................................................13
First Steps ............................................................................................................................................. 14
Inserting the Batteries ........................................................................................................................14
Applicable Batteries ...........................................................................................................................................14
Turning On and Off the Camera.................................................................................................................14
Setting Display Language, Date and Time .................................................................................16
Inserting Memory Cards ....................................................................................................................18
Removing Memory Cards...............................................................................................................................19
vii
Table of Contents
Basic Photography and Playback: G Easy Auto Mode ....................................................... 20
Step 1 Turn the Camera On and Select G (Easy Auto) Mode .............................................20
Indicators Displayed in G (Easy auto) Mode.....................................................................................21
Step 2 Frame a Picture .......................................................................................................................22
Using the Zoom....................................................................................................................................................23
Step 3 Focus and Shoot .....................................................................................................................24
Step 4 Viewing and Deleting Images............................................................................................26
Viewing Images (Playback Mode) .............................................................................................................26
Deleting Images ...................................................................................................................................................26
Easy Auto Mode....................................................................................................................................28
Using the Flash......................................................................................................................................29
Taking Pictures with the Self-timer ...............................................................................................32
Adjusting the Brightness: Exposure Compensation ...............................................................33
More on Shooting ............................................................................................................................. 34
Selecting Shooting Mode .................................................................................................................34
Shooting Suited for the Scene (Scene Mode)............................................................................35
Selecting a Scene Mode..................................................................................................................................35
Features .....................................................................................................................................................................36
Taking Pictures for a Panorama ..................................................................................................................42
Capturing Smiling Faces Automatically (Smart Portrait Mode) ..........................................44
Shooting Continuously at High Speed (Sport Continuous) .................................................46
Sport Continuous Menu .................................................................................................................................47
Auto Mode..............................................................................................................................................48
Macro Mode............................................................................................................................................................49
Shooting Menu (Auto Mode).......................................................................................................................50
Displaying the Shooting Menu...................................................................................................................50
A Image Mode (Image Quality/Image Size) .....................................................................................51
B White Balance (Adjusting hue) ...........................................................................................................53
C Continuous ......................................................................................................................................................55
E ISO Sensitivity.................................................................................................................................................56
F Color Options..................................................................................................................................................57
Camera Settings that Cannot Be Set at the Same Time..............................................................58
viii
Table of Contents
More on Playback.............................................................................................................................. 59
Full-frame Operation ..........................................................................................................................59
Viewing Multiple Images: Thumbnail Playback........................................................................60
Calendar Display...................................................................................................................................................61
Taking a Closer Look: Playback Zoom ..........................................................................................62
Playback Menu......................................................................................................................................63
a Print Set ..............................................................................................................................................................64
b Slide Show........................................................................................................................................................66
c Delete ...................................................................................................................................................................67
Editing Image...................................................................................................................................... 69
Image Editing Function .....................................................................................................................69
Editing Images ......................................................................................................................................70
I D-Lighting: Enhancing Brightness and Contrast ......................................................................70
g Small Picture: Resizing Images.............................................................................................................71
o Crop: Creating a Cropped Copy...........................................................................................................72
Movie Recording and Playback.................................................................................................... 73
Recording Movies ................................................................................................................................73
Movie Menu............................................................................................................................................................75
D Movie Options................................................................................................................................................77
I Autofocus Mode ...........................................................................................................................................78
Y Wind Noise Reduction ............................................................................................................................78
Movie Playback .....................................................................................................................................79
Deleting Movies....................................................................................................................................................79
Connecting to Televisions, Computers and Printers ............................................................ 80
Connecting to a TV..............................................................................................................................80
Connecting to a Computer...............................................................................................................82
Before Connecting the Camera..................................................................................................................82
Transferring Pictures from a Camera to a Computer ....................................................................83
Connecting to a Printer......................................................................................................................87
Connecting the Camera and Printer........................................................................................................88
Printing Images One at a Time....................................................................................................................89
Printing Multiple Images.................................................................................................................................90
ix
Table of Contents
Basic Camera Setup .......................................................................................................................... 93
Setup Menu............................................................................................................................................93
a Menus..................................................................................................................................................................96
c Welcome Screen...........................................................................................................................................97
d Date.......................................................................................................................................................................98
e Monitor Settings ....................................................................................................................................... 101
f Date Imprint.................................................................................................................................................. 103
g Vibration Reduction................................................................................................................................ 104
U Motion Detection ...................................................................................................................................... 105
h AF Assist ......................................................................................................................................................... 106
i Sound Settings ........................................................................................................................................... 107
k Auto Off ........................................................................................................................................................... 108
l Format Memory/m Format Card.................................................................................................... 109
n Language ........................................................................................................................................................ 110
H TV Settings .................................................................................................................................................... 110
d Blink Warning............................................................................................................................................... 111
p Reset All ........................................................................................................................................................... 112
s Battery Type.................................................................................................................................................. 114
d Protect ........................................................................................................................................................... 114
f Rotate Image................................................................................................................................................ 115
h Copy: Copying Between Memory Card and Internal Memory..................................... 116
r Firmware Version ..................................................................................................................................... 117
Notes on Camera Care and General Usage............................................................................118
Caring for the Camera ..................................................................................................................... 118
Cleaning ................................................................................................................................................................. 120
Storage .................................................................................................................................................................... 121
Technical Notes................................................................................................................................122
Optional Accessories ....................................................................................................................... 122
Approved Memory Cards ............................................................................................................................ 122
Image File and Folder Names....................................................................................................... 123
Error Messages................................................................................................................................... 124
Troubleshooting................................................................................................................................ 128
Specifications ..................................................................................................................................... 133
Supported Standards ..................................................................................................................................... 136
Index ...................................................................................................................................................... 137
x
Introduction
About This Manual
Symbols and Conventions
To make it easier to find the information you need, the following symbols and
conventions are used:
B
This icon marks cautions,
information that should be read
before use, to prevent damage to
the camera.
D
This icon marks tips, additional
information that may be helpful
when using the camera.
C
This icon marks notes, information
that should be read before using
the camera.
A
This icon indicates that more
information is available elsewhere
in this manual or in the Quick Start
Guide.
Introduction
Thank you for purchasing a Nikon COOLPIX L110 digital camera. This manual was
written to help you enjoy taking pictures with your Nikon digital camera. Read this
manual thoroughly before use, and keep it where all those who use the product
will read it.
Notations
• A Secure Digital (SD) memory card is referred to as a “memory card”.
• The setting at the time of purchase is referred to as the “default setting”.
• The names of menu items displayed in the camera monitor, and the names of
buttons or messages displayed in the computer monitor appear in bold.
Screen Samples
In this manual, images are sometimes omitted from monitor display samples so
that monitor indicators can be more clearly shown.
Illustrations and Screen Display
Illustrations and text displays shown in this manual may differ from actual display.
C
Memory Cards
Images taken with this camera can be saved in the camera’s internal memory or on removable
memory cards. If a memory card is inserted, all new images will be saved on the memory card and
delete, playback and format operations will apply only to the images on the memory card. The
memory card must be removed before the internal memory can be formatted or used to save,
delete or view images.
1
Information and Precautions
Life-Long Learning
Introduction
As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and education,
continually updated information is available online at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support/
• For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently
asked questions (FAQs), and general advice on digital imaging and photography. Additional
information may be available from the Nikon representative in your area. See the URL below for
contact information:
http://imaging.nikon.com/
Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include complex electronic
circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries and AC
adapters) certified by Nikon specifically for use with this Nikon digital camera are engineered and
proven to operate within the operational and safety requirements of this electronic circuitry.
THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY
VOID YOUR NIKON WARRANTY.
For more information about Nikon brand accessories, contact a local authorized Nikon dealer.
Before Taking Important Pictures
Before taking pictures on important occasions (such as at weddings or before taking the camera on
a trip), take a test shot to ensure that the camera is functioning correctly. Nikon will not be held liable
for damages or lost profits that may result from product malfunction.
About the Manuals
• No part of the manuals included with this product may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form, by any means, without
Nikon’s prior written permission.
• Nikon reserves the right to change the specifications of the hardware and software described in
these manuals at any time and without prior notice.
• Nikon will not be held liable for any damages resulting from the use of this product.
• While every effort was made to ensure that the information in these manuals is accurate and
complete, we would appreciate it were you to bring any errors or omissions to the attention of the
Nikon representative in your area (address provided separately).
2
Information and Precautions
Notice Concerning Prohibition of Copying or Reproduction
Introduction
Note that simply being in possession of material that was digitally copied or reproduced by means
of a scanner, digital camera or other device may be punishable by law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds or local government
bonds, even if such copies or reproductions are stamped “Sample”. The copying or reproduction
of paper money, coins, or securities that are circulated in a foreign country is prohibited. Unless the
prior permission of the government was obtained, the copying or reproduction of unused
postage stamps or post cards issued by the government is prohibited. The copying or
reproduction of stamps issued by the government and of certified documents stipulated by law is
prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions of securities issued by private
companies (shares, bills, checks, gift certificates, etc.), commuter passes or coupon tickets, except
when a minimum of necessary copies are to be provided for business use by a company. Also, do
not copy or reproduce passports issued by the government, licenses issued by public agencies
and private groups, ID cards and tickets, such as passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of copyrighted creative works such as books, music, paintings,
woodcut prints, maps, drawings, movies and photographs is governed by national and
international copyright laws. Do not use this product for the purpose of making illegal copies or to
infringe copyright laws.
Disposing of Data Storage Devices
Please note that deleting images or formatting data storage devices such as memory cards or builtin camera memory does not completely erase the original image data. Deleted files can sometimes
be recovered from discarded storage devices using commercially available software, potentially
resulting in the malicious use of personal image data. Ensuring the privacy of such data is the user’s
responsibility.
Before discarding a data storage device or transferring ownership to another person, erase all data
using commercial deletion software, or format the device and then completely refill it with images
containing no private information (for example, pictures of empty sky). Be sure to also replace any
pictures selected for the welcome screen (A 97). Care should be taken to avoid injury or damage to
property when physically destroying data storage devices.
3
Parts of the Camera
The Camera Body
1 2 3 4
5
6
8
7
Introduction
9
14
13
10
11
12
1
4
Zoom control ................................................. 23
f : wide .................................................. 23
g : tele ..................................................... 23
h : thumbnail playback ................ 60
i : playback zoom ........................... 62
j : help ...................................................13
2
Shutter-release button ............................ 24
3
Self-timer lamp .............................................32
AF-assist illuminator ....................... 25, 106
4
Power switch/Power-on lamp
...................................................................... 20, 108
5
Speaker ..............................................................79
6
Built-in microphone (stereo) ................73
7
Eyelet for camera strap ...............................7
8
Built-in flash ...............................................6, 29
9
HDMI mini connector ...............................80
10
USB connector and audio/video
output ................................................ 80, 83, 88
11 Pin cover ........................................... 80, 83, 88
12 Lens ........................................................ 120, 133
13
DC input connector (for AC adapter
available separately from Nikon) .... 15, 122
14 DC input connector cover .....................15
Parts of the Camera
2 3 45
1
6 7 8
Introduction
11 10 9
12
1
Monitor .................................................................8
2
Multi selector ................................................. 11
3
A (shooting mode) button ................. 10
4
b (movie-record) button ......................10
5
Flash lamp .......................................................29
6
k (apply selection) button ..................11
7
c (playback) button ....................... 10, 26
8
Eyelet for camera strap ................................7
13 14
9
Battery-chamber/
memory card slot cover ..................14, 18
10 l (delete) button ...............................26, 79
11 d button ..................... 12, 50, 63, 75, 94
12 Tripod socket
13 Battery-chamber ..........................................14
14 Memory card slot ........................................18
5
Parts of the Camera
Raising and Lowering the Built-in Flash
Raising the built-in flash
Introduction
See “Using the Flash” (A 29) for more information
about flash settings.
Lowering the Built-in Flash.
Push the built-in flash down gently to lower the builtin flash when not in use.
6
Parts of the Camera
Attaching the Camera Strap and Lens Cap
B
Introduction
Attach the lens cap to the camera strap, and then
attach the strap to the camera (at two places).
Lens Cap
• Remove the lens cap before you shoot a picture.
• At times when you will not be shooting pictures such as when the power is off or while you are
carrying the camera, attach the lens cap to the camera to protect the lens.
7
Parts of the Camera
The Monitor
Introduction
The following indicators may be displayed in the monitor during shooting and
playback (actual display varies with current camera settings).
The indicators and photo info displayed during shooting and playback will turn off
after a few seconds (A 101).
Shooting
28
4
5
10
1
27
6
2 3
7
26
8
9
10 11 12
25
24
13
14
+1.0
23
3200
1/125 F3.5
21
22
999
18 17
15
16
999 a
9999
1m00s b
1m00s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
8
20
Shooting mode* ........... 20, 34, 44, 46, 48, 73
Macro mode .................................................. 49
Zoom indicator .....................................23, 49
AE/AF-L indicator ........................................ 43
Focus indicator ............................................. 24
Flash mode ..................................................... 29
Battery level indicator .............................. 20
Vibration reduction icon (still images)...21, 104
Motion detection icon ...................21, 105
Wind noise reduction ............................... 78
“Date not set” indicator .........................124
Travel destination indicator .................. 98
Date imprint .................................................103
Movie options ............................................... 77
Image mode .................................................. 51
19
16
17
18
19
20
21
22
23
24
25
26
27
28
a Number of exposures remaining
(still images) ............................................. 20
b Movie length ........................................... 73
Internal memory indicator .................... 21
Aperture ........................................................... 24
Focus area ................................................22, 24
Focus area (Face Detection) .........22, 24
Shutter speed................................................. 24
ISO sensitivity .........................................30, 56
Exposure compensation value ........... 33
Color options ................................................. 57
White balance mode ................................ 53
Continuous shooting mode ................ 55
Type of sport continuous mode ....... 47
Self-timer indicator .................................... 32
* Differs according to the current shooting mode. Refer to the sections on each mode for details.
Parts of the Camera
1
11
14
13
2
3
Introduction
Playback
4
15/05/2010 12:00
12
10
999 999
999/
9
8
5
6
7
999 999 a
999/
9999/9999
999
1m00s b
1m00s
1 Date of recording ....................................... 16
8 Internal memory indicator .................... 26
2 Time of recording ....................................... 16
9 Movie playback indicator ...................... 79
3 Volume .............................................................. 79
10 Print-order icon ............................................ 64
4 Battery level indicator .............................. 20
11 Small picture .................................................. 71
5 Movie options* ............................................. 77
12 D-Lighting icon ............................................ 70
6 Image mode* ................................................. 51
13 Protect icon ..................................................114
a Current frame number/
7
total number of frames ..................... 26
b Movie length ........................................... 79
14 File number and type .............................123
* The displayed icons vary with the settings in shooting mode.
9
Basic Operations
A (shooting mode) button
Introduction
• Press A in playback mode to enter shooting
mode.
• Press A in shooting mode to display the
shooting-mode selection menu and change the
shooting mode (A 34).
c (playback) button
• During shooting mode, the camera enters the
playback mode when c is pressed.
• If the camera is turned off, hold down c to turn
the camera on in playback mode.
b (movie-record) button
• Press the b (movie-record) button in shooting
mode to start recording a movie. Press the b
(movie-record) button again to stop recording.
• Press the b (movie-record) button in playback
mode to enter shooting mode.
10
Basic Operations
The Multi Selector
For Shooting
Display m (flash mode) menu (A 29)/select the item above.
Display n (selftimer) menu
(A 32).
Display o (exposure
compensation)
menu (A 33).
Introduction
This section describes standard uses of the multi selector to select modes, select
menu options and to apply selection. Operate the multi selector by pressing it up,
down, left, right, or by pressing k.
Self-timer
Apply selection.
Display p (macro mode) menu (A 49)/select the item below.
For Playback
1 5 / 0 5 / 2 0 1 0 1 5 : 3300
0 0 0 4 . J PPG
G
Display the
previous image.
Display the next
image.
4
4
For the Menu Screen
Select the item
above.
Select the item
to the left/return
to the previous
screen.
Select the item
below.
C
Shooting menu
Apply selection (Go
to the next screen).
Select the item to
the right/
go to the next screen
(apply selection).
Image mode
White balance
Continuous
ISO sensitivity
Color options
Exit
Notes on the Multi Selector
In this manual, H, I, J and K are used in some cases for indicating the up, down, left and right
operating parts of the multi selector.
11
Basic Operations
d button
Introduction
Press d to display the menu for the selected mode.
• Use the multi selector to apply settings (A 11).
• Select a tab on the left side of the monitor to display the corresponding menu.
• To exit the menu display, press d again.
Menus available for the
current mode are displayed.
Display the movie menu
(during shooting).
Display the setup menu.
Shooting menu
Image mode
White balance
Continuous
ISO sensitivity
Color options
Exit
Displayed when the menu
contains two or more pages.
Displayed when
there are more
previous menu
items.
Set up
AF assist
Motion detection
Auto
AF assist
Off
Sound settings
Displayed when
there are one or
more menu items
to follow.
Auto off
Format memory
Language
Exit
Exit
Select an item and press k or
the multi selector K to proceed
to the next set of options.
Press k or the multi selector
K to apply selection.
Switching Between Tabs
Shooting menu
Image mode
White balance
Continuous
Continuous
ISO sensitivity
ISO sensitivity
Color options
Color options
Exit
Press the multi selector
J to highlight the tab.
12
Shooting menu
Image mode
White balance
Exit
Press the multi selector
HI to select a tab and
press k or K.
Movie
Movie options
Autofocus mode
Wind noise reduction
Exit
The selected menu will
be displayed.
To display the tabs, press the multi selector J while the menu is displayed in the
following modes.
• Easy auto mode, scene mode and smart portrait mode
Basic Operations
Help Displays
Continuous
Choose single frame, continuous mode,
Introduction
Rotate the zoom control to g (j) when M/j is displayed at the lower right of
the menu screen to view a description of the currently selected menu option.
To return to the original menu, rotate the zoom control to g (j) again.
BSS (camera chooses sharpest shot in
series), or multi-shot 16.
Exit
Back
About the Shutter-release Button
The camera features a two-stage shutter-release button. To set focus and
exposure, press the shutter-release button halfway, stopping when you feel
resistance. Focus and exposure lock while the shutter-release button is held in this
position. To release the shutter and take a picture, press the shutter-release button
the rest of the way down. Do not use force when pressing the shutter-release
button, as this may result in camera shake and blurred images.
Press the shutterrelease button
halfway to set focus
and exposure.
Press the shutterrelease button the rest
of the way down to
take picture.
13
First Steps
Inserting the Batteries
1
Open the battery-chamber/memory card slot
cover.
• Before opening the battery-chamber/memory card slot
cover, hold the camera upside down to prevent the
batteries from falling out.
First Steps
2
3
1
2
Insert the Batteries
• Confirm that the positive (+) and negative (-) terminals are
oriented correctly as described on the label at the entrance
of the battery chamber, and insert the batteries.
3
Close the battery-chamber/memory card slot
cover.
1
2
Applicable Batteries
• Four FR6/L91 (AA-size) lithium batteries (batteries supplied)
• Four LR6/L40 (AA-size) alkaline batteries
• Four EN-MH2 rechargeable Ni-MH (nickel metal hydride) batteries
Turning On and Off the Camera
14
After removing the lens cap, press the power switch to
turn on the camera. The power-on lamp (green) lights for
a moment, then the monitor turns on. Press the power
switch again to turn the camera off. When the camera
turns off, both the power-on lamp and monitor turn off.
If the camera is turned off, hold down c to turn the
camera on in playback mode (A 26).
Inserting the Batteries
B
Removing the Batteries
Before opening the battery-chamber/memory card slot cover, turn the camera off and confirm that
the power-on lamp and the monitor are off.
B
Additional Precautions Regarding Batteries
Batteries with peeling
B
Batteries with insulation that
does not cover the area
around the negative terminal.
First Steps
• Read and follow the warnings and cautions (A iii, 119).
• Be sure to read and follow the warnings for the battery on page iii and the section, “The Battery”
(A 119), before using the battery.
• Do not combine old and new batteries or batteries of different makes or types.
• Batteries with the following defects cannot be used:
Batteries with a flat
negative terminal
Notes on the EN-MH2 rechargeable Ni-MH batteries
When using EN-MH2 batteries with the COOLPIX L110, charge the batteries four at a time using
Battery Charger MH-73 (A 114, 122).
B
Battery Type
To improve battery performance, set the Battery type setting (A 114) in the setup menu (A 93) to
match the type of batteries inserted into the camera.
The default setting is the type of battery supplied with purchase. When any other type of battery is
used, turn the camera on and change the setting.
C
Alkaline Batteries
Performance of alkaline batteries may vary greatly depending on the manufacturer. Choose a reliable brand.
C
Alternative Power Sources
To power the camera continuously for extended periods, use an AC Adapter EH-67 (available
separately) (A 122). Do not, under any circumstances, use another make or model of AC adapter.
Failure to observe this precaution could result in overheating or in damage to the camera.
C
Auto Off (Standby Mode)
If no operations are performed for a specified amount of time, the monitor turns off, the power-on
lamp flashes, and the camera enters standby mode. After an additional three minutes, the auto power
off feature turns the camera off.
• During shooting or playback, the camera enters standby mode if no operations are performed for
30 seconds (default setting).
• During standby mode, the monitor is off and the power-on lamp flashes; you can turn the monitor
on by pressing any of the following buttons: power switch, shutter-release button, A button, c
button, or the b (movie-record) button
• The amount of time that passes before the camera enters standby mode is determined by the
Auto off setting (A 108) in the setup menu (A 93).
C
Lens Error
If Lens Error is displayed, make sure that the lens cap has been removed, then turn the camera on again.
15
Setting Display Language, Date and Time
A language-selection and date setting screen for the internal clock is displayed the
first time the camera is turned on.
1
Press the power switch to turn on the
camera.
First Steps
The power-on lamp (green) lights for a moment and
the monitor turns on.
Remove the lens cap.
2
Use the multi selector to choose
the desired language and press
k.
For information on using the multi selector,
see “The Multi Selector” (A 11).
3
Choose Yes and press k.
Date
If No is selected, the date and time are not set.
Set time and date?
Yes
No
Cancel
4
Press J or K to select your home time zone
(city name) (A 100) and press k.
London
Casablanca
Back
D
Daylight Saving Time
To use the camera in an area where daylight saving time is in effect,
press H on the home time zone in Step 4 to set the daylight saving
time to on.
When the daylight saving time setting is selected, the W mark
appears at the top of the monitor. To release the daylight saving
time setting, press I.
16
London
Casablanca
Back
Setting Display Language, Date and Time
5
Change the date and time.
• Press H or I to edit the highlighted item.
• Press K to move the cursor in the following order.
D -> M -> Y -> Hour -> Minute -> D M Y
• Press J to return to the previous item.
Date
D
M
Y
01
01
2010
00
00
6
Choose the order in which the day, month
and year are displayed and press k or K.
• The settings are applied.
Date
D
M
Y
15
05
2010
15
First Steps
Edit
10
Edit
7
Make sure that the lens cap has been
removed, then press A.
• The shooting-mode selection menu is displayed.
8
When Easy auto mode is displayed, press k.
• The camera enters shooting mode and you can take
pictures in Easy auto mode (A 20).
• Press the multi selector H or I before k, to switch to
another shooting mode (A 34).
D
Press this button
in shooting mode
for shootingmode selection
menu.
Easy auto mode
Changing the Date and Time, Date Imprint
• To change the date and time, select Date from Date (A 98) in the setup menu (A 93) and
follow the instructions starting from the above step 5.
• To change the time zone and the daylight saving settings, select Time zone from Date in the
setup menu (A 98, 99).
• To imprint the shooting date into images when taking pictures, make sure the date and time are
set, then set Date imprint (A 103) in the setup menu.
17
Inserting Memory Cards
First Steps
Images are saved in the camera’s internal memory (approximately 43 MB) or on
removable Secure Digital (SD) memory cards (available separately) (A 122).
If a memory card is inserted into the camera, images are automatically saved on
the memory card and images saved to the memory card can be played back,
deleted or transferred. Remove the memory card to save images in the internal
memory, or play back, delete or transfer images from the internal memory.
1
Confirm the power-on lamp and the monitor
are off and open the battery-chamber/
memory card slot cover.
Be sure to turn off the camera before opening the
battery-chamber/memory card slot cover.
Before opening the battery-chamber/memory card slot
cover, hold the camera upside down to prevent the
batteries from falling out.
2
Insert the memory card.
Slide the memory card in correctly until it clicks into
place.
Close the battery-chamber/memory card slot cover.
B
Inserting Memory Cards
Inserting the memory card upside down or backwards could
damage the camera or the memory card. Make sure that the
memory card is correctly oriented.
18
3
1
2
Inserting Memory Cards
Removing Memory Cards
B
1 2
Formatting Memory Cards
First Steps
Before opening the battery-chamber/memory card slot
cover, turn the camera off and confirm that the
power-on lamp and the monitor are off. Open the
battery-chamber/memory card slot cover and press the
card in (1) to partially eject the card. Remove the card
(2), being careful not to bend it.
Card is not formatted.
If the message at right is displayed, the memory card must be
Format card?
formatted before use (A 109). Note that formatting permanently
deletes all images and other data on the memory card. Be sure to
make copies of any images you wish to keep before formatting the
Yes
No
memory card.
To format the memory card, use the multi selector to select Yes and
press k. To start formatting, choose Format and press k.
• Do not turn the camera off or open the battery-chamber/memory card slot cover until formatting is complete.
• The first time you insert the memory cards used in other devices into the camera, be sure to
format them using this camera (A 109).
B
The Write Protect Switch
SD memory cards are equipped with a write protect switch.
Images cannot be saved or deleted and the memory card
cannot be formatted when this switch is in the “lock” position.
Unlock by sliding the switch to the “write” position.
B
Write protect switch
Memory Cards
• Use only Secure Digital memory cards.
• Do not perform the following during formatting, while data
is being written to or deleted from the memory card, or during data transfer to a computer. Failure
to observe this precaution could result in the loss of data or in damage to the camera or memory
card:
- Insert or remove the card
- Remove the batteries
- Turn off the camera
- Disconnect the AC adapter
• Do not format the memory card using a computer.
• Do not disassemble or modify.
• Do not drop, bend, or expose to water or strong physical shocks.
• Do not touch the metal terminals with your fingers or metal objects.
• Do not affix labels or stickers to the memory card.
• Do not leave in direct sunlight, closed vehicles or areas exposed to high temperatures.
• Do not expose to humidity, dust, or to corrosive gases.
19
Basic Photography and Playback: G Easy Auto Mode
Step 1 Turn the Camera On and Select G (Easy Auto) Mode
In G (easy auto) mode, the camera automatically determines an appropriate
shooting mode when you frame a picture, allowing you to easily take pictures
using a shooting mode that suits the scene (A 28).
1
Remove the lens cap and press the power
switch to turn on the camera.
Basic Photography and Playback: G Easy Auto Mode
• The power-on lamp (green) lights for a moment and
the monitor turns on. The lens extends at this time.
• Raise the built-in flash (A 6).
2
3
Press A to display the shootingmode selection menu.
Press the multi selector HI to choose G
and press k.
Easy auto mode
• The camera enters G (easy auto) mode.
4
Check the battery level and number of
exposures remaining.
Battery level indicator
Battery level indicator
Monitor
Description
NO INDICATOR
The battery level is high.
B
Batteries low.
Prepare to replace batteries.
N
Battery
exhausted.
Cannot take pictures. Replace
with new batteries.
14
Number of exposures
remaining
Number of Exposures Remaining
20
The number of images that can be saved depends on the capacity of the internal
memory or memory card and image mode setting (A 52).
Step 1 Turn the Camera On and Select G (Easy Auto) Mode
Indicators Displayed in G (Easy auto) Mode
Shooting mode
In easy auto mode, the camera
automatically selects U, e, f, g,
h, i, or j mode according to the
current subject and framing.
Motion detection icon
Reduce the blurring caused by subject
movement or camera shake.
Vibration reduction icon
Reduce the effects of
camera shake.
14
Movie options
Displays the movie setting
used when recording
movies (A 77).
Press the b (movierecord) button to record
movies (A 73).
Image mode
Display image size and quality (compression) set in the
image mode menu. The default setting is L 4000×3000.
The indicators and photo info displayed during shooting and playback will turn off
after a few seconds (A 101). While the monitor is off during standby mode, you
can turn the monitor on by pressing any of the following buttons (A 108): power
switch, shutter-release button, A button, or b (movie-record) button
C
Basic Photography and Playback: G Easy Auto Mode
Internal memory indicator
Images will be saved to
internal memory
(approximately 43 MB).
When a memory card is
inserted, C is not displayed
and images will be saved to
memory card.
Functions Available in Easy Auto Mode
• When the camera is pointed at a person’s face, the camera automatically detects the face and
focuses on it (A 24, 28).
• The self-timer (A 32) and exposure compensation (A 33) are available.
• The macro mode button (A 11, 49) on the multi selector is not available. Changes to macro
mode when the camera selects close-up scene mode.
• Image mode (A 51) can be changed by pressing d.
C
Note on the Flash
When the built-in flash is lowered, the flash setting is fixed at off and W is displayed at the top of the
monitor. In situations where flash is needed, such as in dark locations or when the subject is backlit,
be sure to raise the built-in flash by hand (A 6, 29).
D
Notes on Vibration Reduction and Motion Detection
• See Vibration reduction (A 104) or Motion detection (A 105) in the setup menu (A 93)
for more information.
• Set Vibration reduction to Off when using a tripod.
21
Step 2 Frame a Picture
1
Ready the camera.
• Hold the camera steadily in both hands, keeping your
fingers and other objects away from the lens, flash,
AF-assist illuminator and microphone.
Basic Photography and Playback: G Easy Auto Mode
22
2
Frame the picture.
B
Easy auto mode
Shooting mode icon
• When the camera determines a scene mode, the
shooting mode icon changes (A 28).
• When the camera detects a human face, that face is
framed by a yellow double border. Up to 12 faces can
be detected. When the camera detects more than one
face, the face closest to the camera is framed by a
double border and the others by single borders.
14
• When shooting non-human subjects or when no faces
are detected, the camera will focus on the center of the monitor. Position the main
subject near the center of the focus area.
• The desired scene mode may not be selected in certain conditions. In this case, select another
shooting mode.
• When digital zoom is in effect, the shooting mode is U.
Step 2 Frame a Picture
Using the Zoom
Use the zoom control to activate optical zoom.
Rotate the zoom control toward g to zoom in,
increasing the size of the subject.
Rotate the zoom control toward f to zoom out,
increasing the area visible in the frame.
A zoom indicator is displayed at the top of the
monitor when the zoom control is rotated.
Zoom out
Zoom in
Digital Zoom
When the camera is zoomed in to the maximum optical zoom magnification,
rotating and holding the zoom control at g triggers digital zoom. Digital zoom can
magnify the subject up to about 4× beyond the magnification of the optical
zoom.
When digital zoom is used, the focus area is not displayed and the camera focuses
at the center of the frame.
Maximum optical zoom
C
Basic Photography and Playback: G Easy Auto Mode
Optical zoom Digital zoom
Digital zoom is in effect.
Digital Zoom and Interpolation
Unlike optical zoom, digital zoom uses a digital imaging process known as interpolation to magnify
images, resulting in slight deterioration of image quality.
Interpolation is applied when shooting still images at zoom positions beyond V.
When zoom is increased beyond the V position, interpolation is initiated and the zoom indicator
turns yellow to indicate that interpolation is being applied.
The position of V moves to the right as image size decreases, allowing you to confirm the zoom
positions at which still images can be captured without interpolation using the current image mode
setting.
When the image size is small.
23
Step 3 Focus and Shoot
1
Press the shutter-release button halfway.
• Press halfway (A 13) to focus. When the subject is in
focus, the focus area glows green.
When a face is detected:
When shooting nonhuman subjects or when
no faces are detected:
Basic Photography and Playback: G Easy Auto Mode
1/125 F3.5
1/125 F3.5
Shutter Aperture
Speed
• When digital zoom is used, the focus
area is not displayed and the camera
focuses at the center of the frame.
When the subject is in focus, the focus
indicator glows green.
Focus indicator
1/125 F5.4
• The shutter speed and aperture are
displayed when the shutter-release button is pressed halfway.
• Focus and exposure remain locked while the shutter release button is pressed
halfway.
• When the camera is unable to focus, the focus area, or focus indicator, blinks red.
Change the composition and press the shutter-release button halfway again.
2
Press the shutter-release button the rest of
the way down.
• The image is saved to the memory card or internal
memory.
24
Step 3 Focus and Shoot
B
During Saving
While images are being saved, the number of exposures remaining display will blink. Do not open
the battery-chamber/memory card slot cover.
Removing the memory card or the battery during saving may result in loss of data or in damage to
the saved data, camera or card.
B
Autofocus
C
Notes on Face Detection
See “Notes on Face Detection” (A 28) for more information.
C
The Did someone blink? Screen
When d Blink warning is set to On, the Did someone blink? screen (A 111) is displayed after
taking a picture if the camera detects a face with closed eyes.
D
Basic Photography and Playback: G Easy Auto Mode
Autofocus may not perform as expected in the following situations. In some rare cases, the subject
may not be in focus despite the fact that the focus area or the focus indicator glows green:
• Subject is very dark
• Objects of sharply differing brightness are included in the scene (e.g. the sun is behind the subject
and the subject is in deep shadow)
• No contrast between the subject and surroundings (e.g. when the subject is wearing a white shirt
and is standing in front of a white wall)
• Several objects are at different distances from the camera (e.g. the subject is inside a cage)
• Subject is moving rapidly
In these situations, try pressing the shutter-release button halfway again to refocus, several times if
necessary. If the subject is still not in focus, select auto mode and use focus lock (A 48) to take the
picture by first focusing on an object that is the same distance from the camera as the desired
subject.
AF-assist Illuminator and Flash
If the subject is poorly lit, the AF-assist illuminator (A 106) may light by pressing the shutter-release
button halfway, or the flash (A 29) may fire by pressing the shutter-release button all the way
down.
25
Step 4 Viewing and Deleting Images
Viewing Images (Playback Mode)
Press c.
Basic Photography and Playback: G Easy Auto Mode
• The last image taken is displayed in full-frame playback
mode.
• Use the multi selector H, I, J or K to view additional
images.Hold down the multi selector H, I, J or K to
quickly scan through images.
• Pictures may be displayed briefly at low resolution while
being read from the memory card or internal memory.
• Press A or the b (movie-record) button to switch to
shooting mode. You can also press the shutter-release
button.
• When C is displayed, images saved in the internal memory
are displayed. When a memory card is inserted, C is not
displayed and images saved on the memory card are
displayed.
The Multi Selector
15/05/2010 15:30
4/
4
Internal memory
indicator
Deleting Images
1
2
Press l to delete the image currently
displayed in the monitor.
Use the multi selector to select Yes and press
k.
• Deleted pictures cannot be recovered.
• To exit without deleting the image, choose No and
press k.
26
A (shooting mode)
c (playback)
Erase 1 image?
Yes
No
Step 4 Viewing and Deleting Images
C
Playback Mode
See “More on Playback” (A 59) and “Editing Image” (A 69) for more information.
C
Power ON by Pressing c
When the camera is off, hold down c to turn on the camera in playback mode. The lens will not
extend.
C
Viewing Image
C
Deleting the Last Image Taken While in Shooting Mode
In shooting mode, press l to delete the last images taken.
Erase 1 image?
Yes
No
D
Selecting Multiple Pictures for Deletion
When Delete (A 67) is selected from the playback menu (A 63), multiple images can be deleted.
Basic Photography and Playback: G Easy Auto Mode
• Pictures taken using face detection (A 24) are automatically rotated when viewing them fullframe.
• While the monitor is off during standby mode, it will turn on again when the power switch,
shutter-release button, or c button is pressed (A 108).
27
Easy Auto Mode
Automatic Scene Selection
Basic Photography and Playback: G Easy Auto Mode
28
The camera automatically selects one of the following scenes when you point the
camera at a subject.
• U Auto mode (general use)
• e Portrait (A 36)
• f Landscape (A 36)
• h Night portrait (A 37)
• g Night landscape (A 39)
• i Close-up (A 39)
• j Backlight (A 41)
Notes on Face Detection
• The camera’s ability to detect faces depends on a variety of factors, including
whether or not the subject is facing the camera. The camera may be unable to
detect faces in the following situations:
- When faces are partially hidden by sunglasses or other obstructions
- When faces take up too much or too little of the frame
• When there are multiple people in the frame, the face on which the camera
focuses depends on a variety of shooting conditions, such as whether or not the
subject is facing the camera.
• In some cases, including those noted in “Autofocus” (A 25), autofocus may not
perform as expected, and the subject may not be in focus despite the fact that
the double border glows green. When the camera is unable to focus, use
another mode, such as A (auto) mode, focus on another subject positioned at
the same distance from the camera as the actual portrait subject, and use focus
lock (A 48).
Using the Flash
In dark locations or when the subject is backlit, you can shoot pictures with flash
by raising the built-in flash.
• The flash has a range of about 0.5 to 5.5 m (1 ft. 8 in. to 18 ft.) when the camera is
zoomed out all the way, and about 1.5 to 3.5 m (5 ft. to 11 ft.) when the camera
is zoomed in all the way.
• If the built-in flash is raised when using easy auto mode (A 20), the camera
automatically sets a flash mode according to the determined scene mode.
When the built-in flash is lowered, the flash setting changes to off and W is
displayed at the top of the monitor.
When using Auto mode (A 48), certain scene modes (A 35), or smart portrait
mode (A 44), the following flash modes are available.
U
Auto
Flash fires automatically when lighting is poor.
V
Auto with red-eye reduction
Reduces “red-eye” in portraits (A 31).
W
Off
Flash will not fire even when lighting is poor.
X
Fill flash
Flash fires when a picture is taken. Use to “fill-in” (illuminate) shadows and back-lit
subjects.
Y
Basic Photography and Playback: G Easy Auto Mode
Selecting a Flash Mode
Slow sync
Auto flash mode is combined with slow shutter speed.
Flash illuminates main subject; Slow shutter speeds are used to capture background
at night or under dim light.
1
Raise the built-in flash (A 6).
• When the built-in flash is lowered, it is fixed to W
(off).
29
Using the Flash
2
Press m (flash mode) on the multi selector.
• The flash menu is displayed.
3
Press the multi selector H or I to select a
mode, and press k.
Basic Photography and Playback: G Easy Auto Mode
• The icon for the selected flash mode is displayed at the
top of the monitor.
• When U (auto) is applied, D disappears after a
few seconds regardless of the monitor settings
(A 101).
• If a setting is not applied by pressing k within a few
seconds, the selection is cancelled.
Flash mode
14
B
Lowering the Built-in Flash
Push the built-in flash down gently to lower the built-in flash when not in use (A 6).
B
Shooting When Lighting Is Poor and the Flash Is Disabled (W)
• Use of a tripod is recommended to stabilize the camera during shooting and avoid the effects of
camera shake. Set Vibration reduction (A 104) to Off when using a tripod.
• The E is displayed when the camera automatically increases sensitivity to minimize blur caused
by slow shutter speed. Images taken when E is displayed may be slightly mottled.
B
Note on Using the Flash
When using the flash, reflections from dust particles in the air may appear as bright spots in images.
To reduce these reflections, set the flash to W (off).
C
30
The Flash Lamp
The flash lamp indicates flash status when the shutter-release
button is pressed halfway.
• On:
Flash will fire when picture is taken.
• Blinks: Flash charging. Wait a few seconds and try again.
• Off:
Flash will not fire when picture is taken.
If the remaining battery level is low, the monitor will turn off
until the flash has finished charging.
Using the Flash
C
The Flash Mode Setting
C
Red-eye Reduction
This camera is equipped with an advanced red-eye reduction system.
Pre-flashes are fired several times at low intensity before the main flash to reduce the effects of redeye.
If the camera detects “red-eye” when a picture is taken, Nikon’s own In-Camera Red-Eye Fix
processes the image before it is saved.
Note the following when using red-eye reduction:
• Because pre-flashes are fired before the picture is taken, there is a slight lag between when the
shutter-release button is pressed and when the picture is shot.
• The time required to save images increases slightly.
• Red-eye reduction may not always produce the desired results.
• In some rare cases, other portions of images may be affected. Use flash modes other than auto
Basic Photography and Playback: G Easy Auto Mode
The default setting of flash mode depends on the shooting mode.
• G (easy auto) mode: U Auto
• Scene mode: The default setting depends on the scene menu (A 35).
• F (smart portrait) mode: U Auto
• d (sport continuous) mode: W Off (locked)
• A (auto) mode: U Auto
Flash cannot be used simultaneously with certain features. ➝ Camera Settings that Cannot Be Set at
the Same Time (A 58)
When the shooting mode is A (auto) mode (A 48), the changed flash setting is saved even if the
camera is turned off.
31
Taking Pictures with the Self-timer
When using the self-timer, pictures are taken 10 seconds after the shutter-release
button is pressed. When using the self-timer, use of a tripod is recommended. Set
Vibration reduction (A 104) in the setup menu (A 93) to Off when using a
tripod.
1
Press n (self-timer) on the multi selector.
The self-timer menu is displayed.
Basic Photography and Playback: G Easy Auto Mode
2
Press the multi selector H or I to select ON,
and press k.
The self-timer icon (n 10) is displayed.
If a setting is not applied by pressing k within a few
seconds, the selection is cancelled.
3
Frame the picture and press the
shutter-release button halfway.
10
Focus and exposure are set.
1/125 F3.5
4
Press the shutter-release button the
rest of the way down.
The self-timer starts and the number of seconds
remaining until the shutter is released is
displayed in the monitor. The self-timer lamp
blinks. The lamp stops blinking one second
before the picture is taken and remains lit until
the shutter is released.
When the shutter is released, the self-timer is set
to OFF.
To stop the timer before a picture is taken, press
the shutter-release button again.
32
Self-timer
9
Adjusting the Brightness: Exposure Compensation
Exposure compensation is used to alter exposure from the value suggested by the
camera to make images brighter or darker.
1
Press o (exposure compensation) on the
multi selector.
• The exposure compensation guide is displayed.
Press the multi selector H or I to adjust the
exposure, and press k.
• To make the subject brighter, adjust the exposure
compensation to the “+” side.
• To make the subject darker, adjust the exposure
Exposure compensation
compensation to the “-” side.
• Exposure compensation can be set to values between
-2.0 and +2.0 EV.
• If a setting is not applied by pressing k within a few seconds, the selection is
cancelled.
• When set to any value other than 0.0, the value is displayed with the H icon in the
monitor.
3
Press the shutter-release button to shoot.
• To turn off exposure compensation, repeat from step 1
and set the value to 0.0, then press k.
Basic Photography and Playback: G Easy Auto Mode
2
14
C
Exposure Compensation Value
When shooting mode is A (auto) mode (A 48), the exposure compensation setting is saved even
if the camera is turned off.
D
Using Exposure Compensation
• The camera tends to reduce exposure when the frame is dominated by brightly lit objects and to
increase exposure when the frame is mostly dark. Positive compensation may therefore be
required to capture the brilliancy of very bright objects that fill the frame (for example, sunlit
expanses of water, sand, or snow) or when the background is much brighter than the main
subject.
• Negative compensation may be called for when large areas of the frame contain very dark objects
(for example, a swath of dark green leaves) or when the background is much darker than the main
subject.
33
More on Shooting
Selecting Shooting Mode
Select the shooting mode from G easy auto mode, b scene mode, F smart
portrait, d sport continuous mode, or A auto mode.
1
Press A in shooting mode.
• The shooting-mode selection menu is
displayed.
2
Use the multi selector H or I to select a
shooting mode and press k.
1
Easy auto mode
2
More on Shooting
• The camera enters the selected shooting mode.
3
• When scene mode is selected (the second icon from
4
the top), the scene type can be changed before
pressing k. Press K, press H, I, J, or K to select
5
the desired scene type, then press k.
• To return to the current shooting mode without switching shooting modes, press A
or the shutter-release button.
1
G Easy auto mode
A 20
By simply framing a picture, the camera automatically selects the optimum scene
mode for simpler shooting.
2
b Scene
A 35
Camera settings are automatically optimized for the selected scene type.
3
F Smart portrait
A 44
The camera detects a smiling face to shoot the face automatically.
4
d Sport continuous
A 46
Allows rapid, continuous shooting while you press and hold the shutter-release
button fully.
5
A Auto mode
A 48
You can change the flash mode, use macro mode (for close-ups), etc., and take
pictures. You can also select to shoot bursts of pictures continuously.
34
Shooting Suited for the Scene (Scene Mode)
Camera settings are automatically optimized for the selected scene type. The
following scene modes are available.
b Portrait
g Beach/snow
k Close-up
o Backlight
c Landscape
h Sunset
u Food
p Panorama assist
e Night portrait
i Dusk/dawn
l Museum
f Party/indoor
j Night landscape
n Copy
Selecting a Scene Mode
Press A in shooting mode to
display the shooting-mode
selection menu and use the multi
selector H and I to select scene
mode.
More on Shooting
1
Portrait
• The icon of the last scene mode used is
displayed. b (Portrait) is the default
setting.
2
Press K, press the multi selector H, I, J, or
K to select a scene, and press k.
• The shooting mode screen for the selected scene is
displayed.
• Features ➝ (A 36)
3
Beach/snow
Frame the subject and shoot.
• For scene modes that use the flash, be
sure to raise the built-in flash before
shooting.
14
D
Image Mode
When using scene mode, you can set Image mode (A 51) by pressing d. If the image mode
setting is changed, the new image mode setting is also applied to other shooting modes (except
sport continuous).
35
Shooting Suited for the Scene (Scene Mode)
Features
The following icons are used for descriptions in this section: X: flash mode when
the built-in flash is raised (A 29); n: self-timer (A 32); p: macro mode (A 49);
o: exposure compensation (A 33).
b Portrait
More on Shooting
Use this mode for taking portraits in which the main subject
stands out clearly.
• If the camera detects a face, it focuses on the face. See “Face
Detection” (A 24) for more information.
• If more than one face is detected, the camera focuses on
the face closest to the camera.
• If no faces are detected, the camera will focus on the center of the screen.
• Digital zoom is not available.
m
V*
n
Off*
p
Off
o
0.0*
o
0.0*
* Other settings can be selected.
c Landscape
Use this mode for vivid landscapes and cityscapes.
• Camera focuses at infinity. The focus area or focus indicator
(A 8) always glows green when the shutter-release button
is pressed halfway. Note, however, that objects in the
foreground may not always be in focus.
• The AF-assist illuminator (A 106) does not light.
m
W
n
* Other settings can be selected.
36
Off*
p
Off
Shooting Suited for the Scene (Scene Mode)
QO
e Night portrait
Use this mode to achieve a natural balance between the main
subject and background lighting in portraits taken at night.
• Shoot pictures with the built-in flash raised.
• If the camera detects a face, it focuses on the face. See “Face
Detection” (A 24) for more information.
• If more than one face is detected, the camera focuses on
the face closest to the camera.
• If no faces are detected, the camera will focus on the center of the screen.
• Digital zoom is not available.
m
*1
n
Off*2
p
Off
o
0.0*2
Flash mode is set to fill flash with slow sync and red-eye reduction, and cannot be changed.
Other settings can be selected.
f Party/indoor
Captures the effects of candlelight and other indoor
background lighting.
• The camera focuses on the subject in the center of the
frame.
• As pictures are easily affected by camera shake, hold the
camera steadily. In a dark place, the use of a tripod is
recommended. Set Vibration reduction (A 104) to Off when using a tripod.
m
V*1
n
Off*2
p
Off
o
More on Shooting
*2
V*1
0.0*2
*1 The flash may change to slow sync with red-eye reduction. Other settings can be selected.
*2
Other settings can be selected.
O: For those scene modes with O, use of a tripod is recommended. Set Vibration reduction
(A 104) to Off when using a tripod.
Q: Indicates images shot in this scene mode are processed automatically to reduce noise, and
therefore may take more time to save.
37
Shooting Suited for the Scene (Scene Mode)
g Beach/snow
Captures the brightness of such subjects as snowfields,
beaches, or sunlit expanses of water.
• The camera focuses on the subject in the center of the
frame.
m
U*
n
Off*
p
Off
o
0.0*
o
0.0*
o
0.0*
* Other settings can be selected.
O
h Sunset
More on Shooting
Preserves the deep hues seen in sunsets and sunrises.
• The camera focuses on the subject in the center of the
frame.
m
W*
n
Off*
p
Off
* Other settings can be selected.
QO
i Dusk/dawn
Preserves the colors seen in the weak natural light before
sunrise or after sunset.
• Camera focuses at infinity. The focus area or focus indicator
(A 8) always glows green when the shutter-release button
is pressed halfway. Note, however, that objects in the
foreground may not always be in focus.
• The AF-assist illuminator (A 106) does not light.
m
W
n
Off*
p
Off
* Other settings can be selected.
38
O: For those scene modes with O, use of a tripod is recommended. Set Vibration reduction
(A 104) to Off when using a tripod.
Q: Indicates images shot in this scene mode are processed automatically to reduce noise, and
therefore may take more time to save.
Shooting Suited for the Scene (Scene Mode)
QO
j Night landscape
Slow shutter speeds are used to produce stunning night
landscapes.
• Camera focuses at infinity. The focus area or focus indicator
(A 8) always glows green when the shutter-release button
is pressed halfway. Note, however, that objects in the
foreground may not always be in focus.
• The AF-assist illuminator (A 106) does not light.
W
m
n
Off*
p
Off
o
0.0*
* Other settings can be selected.
k Close-up
m
U*
n
Off*
p
On
o
More on Shooting
Photograph flowers, insects and other small objects at close
range.
• Macro mode (A 49) will turn ON and the zoom will
automatically move to the closest possible shooting
position.
• The closest distance at which the camera can focus varies
depending on the zoom position. The camera can focus at distances as close as 1 cm
(0.4 in.) from the lens when F and the zoom indicator glow green (zoom indicator is
positioned near K).
• The camera focuses on the subject in the center of the frame. Use focus lock to frame the
picture on an object not in the center of the frame (A 48).
• The camera focuses continuously until the shutter-release button is pressed halfway to
lock the focus.
• As pictures are easily affected by camera shake, check the Vibration reduction
(A 104) setting and hold the camera steadily.
0.0*
* Other settings can be selected. Note that the flash may be unable to light the entire subject at
distances of less than 50 cm (1 ft. 8 in.).
O: For those scene modes with O, use of a tripod is recommended. Set Vibration reduction
(A 104) to Off when using a tripod.
Q: Indicates images shot in this scene mode are processed automatically to reduce noise, and
therefore may take more time to save.
39
Shooting Suited for the Scene (Scene Mode)
u Food
More on Shooting
Use this mode when taking pictures of food.
• Macro mode (A 49) will turn ON and the zoom will
automatically move to the closest possible shooting
position.
The closest distance at which the camera can focus varies
depending on the zoom position. The camera can focus at
distances as close as 1 cm (0.4 in.) from the lens when F and the zoom indicator glow
green (zoom indicator is positioned near K).
• You can adjust the hue using the slider displayed on the left
side of the monitor. Press the multi selector H to increase
the amount of red, or I to increase the amount of blue. The
hue setting is saved even when the camera is turned off.
• The camera focuses on the subject in the center of the
frame. Use focus lock to frame the picture on an object not
in the center of the frame (A 48).
14
• The camera focuses continuously until the shutter-release
button is pressed halfway to lock the focus.
• As pictures are easily affected by camera shake, check the Vibration reduction (A 104)
setting and hold the camera steadily.
m
W
n
Off*
p
On
o
0.0*
* Other settings can be selected.
l Museum
Use indoors where flash photography is prohibited (for
example, in museums and art galleries) or in other settings in
which you do not want to use the flash.
• The camera focuses on the subject in the center of the
frame.
• BSS (best shot selector) can be used to shoot (A 55).
• As pictures are easily affected by camera shake, check the Vibration reduction
(A 104) setting and hold the camera steadily.
• The AF-assist illuminator (A 106) does not light.
m
W
n
* Other settings can be selected.
40
Off*
p
Off*
o
0.0*
Shooting Suited for the Scene (Scene Mode)
n Copy
Provides clear pictures of text or drawings on a white board or
in print.
• The camera focuses on the subject in the center of the
frame.
• Use macro mode (A 49) to focus at short ranges.
• Colored text and drawings may not show up well.
m
W*
n
Off*
p
Off*
o
0.0*
o
0.0*
* Other settings can be selected.
o Backlight
m
m
n
Off*
p
Off
More on Shooting
Use when light is coming from behind your subject, throwing
features or details into shadow. The flash fires automatically to
“fill in” (illuminate) shadows.
• Shoot pictures with the built-in flash raised.
• The camera focuses on the subject in the center of the
frame.
* Other settings can be selected.
p Panorama assist
Use when taking a series of pictures that will later be joined to form a single panorama
image using the supplied Panorama Maker software. See Taking Pictures for a Panorama
(A 42) for details.
m
W*
n
Off*
p
Off*
o
0.0*
* Other settings can be selected.
41
Shooting Suited for the Scene (Scene Mode)
Taking Pictures for a Panorama
The camera focuses on the subject in the center of the frame. Use a tripod for best
results. Set Vibration reduction (A 104) to Off when using a tripod.
1
Press A in shooting mode to
display the shooting-mode
selection menu and use the multi
selector to select p Panorama
assist (A 35).
Panorama assist
More on Shooting
The panorama direction icon (I) is
displayed to show the direction in which
pictures are joined.
2
Use the multi selector to choose the direction
and press k.
Select how pictures are joined together in the completed
panorama; right (I), left (J), up (K) or down (L).
The yellow panorama direction icon (II) is displayed to
the direction pressed and the direction is fixed when k
is pressed. The white fixed direction I is displayed.
14
Apply flash mode (A 29), self-timer (A 32), macro mode (A 49) and exposure
compensation (A 33) settings with this step, if necessary. Press k to reselect the
direction.
3
Shoot the first picture.
The first picture is superimposed in the first
third of the monitor.
14
4
Shoot the second picture.
Frame the next picture so that one third of the
frame overlaps the first picture, and press the
shutter-release button.
Repeat until you have taken the necessary
number of pictures to complete the
panorama.
42
End
13
Shooting Suited for the Scene (Scene Mode)
5
Press k when shooting is completed.
• The camera returns to step 2.
End
11
More on Shooting
B
Panorama Assist
• Set flash mode, self-timer, macro mode and exposure compensation before taking the first picture.
They cannot be changed after the first picture is taken. Images cannot be deleted, nor can zoom or
Image mode setting (A 51) be adjusted after the first picture is taken.
• The panorama series is terminated if the camera enters standby mode with the auto off function
(A 108) during shooting. Setting the time allowed to elapse before the auto off function is
enabled to a longer setting is recommended.
D
Note on R
All pictures taken in a panorama series have the same white
balance, exposure, and focus settings.
When the first picture is shot, R is displayed to indicate that
exposure, white balance, and focus are locked.
End
D
13
Panorama Maker
Install Panorama Maker from the supplied Software Suite CD.
Transfer images to a computer (A 82) and use Panorama Maker (A 86) to join them in a single
panorama.
D
More Information
See “Image File and Folder Names” (A 123) for more information.
43
Capturing Smiling Faces Automatically (Smart Portrait Mode)
The camera detects a smiling face to shoot the face automatically.
1
Press A in shooting mode to
display the shooting-mode
selection menu and use the multi
selector H or I to select F and
press k.
Smart portrait
The camera enters smart portrait mode.
2
Frame the picture.
More on Shooting
• Raise the built-in flash when using the flash.
• Point the camera at the subject.
• If the camera detects a person’s face, the face is framed
by a double yellow border in the focus area, and when
the face comes into focus, the double border turns
1/125 F3.5
green for a moment and the focus is locked.
• Up to three faces can be detected. When the camera detects more than one face, the
face nearest the center of the screen is framed by a double border in the focus area
and the other faces are framed by a single border.
3
The shutter is automatically released.
• If the camera detects the smiling face of the person framed by a double border, the
shutter is automatically released.
• The self-timer lamp (A 4) blinks when the camera detects a face, and it flickers
immediately after the shutter is released. Each time the shutter is released, the camera
again begins face detection and smile detection operations for continuous automatic
shooting.
• Pictures can also be taken by pressing the shutter-release button. If the camera does
not detect any faces, the camera focuses on the subject in the center of the frame.
4
Exit smart portrait mode by pressing A.
Change to another shooting mode.
44
Capturing Smiling Faces Automatically (Smart Portrait Mode)
B
Face Detection and Smiling Face Detection features
• In some shooting conditions, face detection does not work and faces cannot be detected.
• Notes on Face Detection ➝ A 28
C
Auto Off (Standby Mode) When Using Smart Portrait Mode
When using smart portrait mode, Auto off (A 108) will turn the camera off if no operations are
performed in the following situations:
• The camera does not detect any faces.
• The camera detected the face but cannot detect a smiling face.
C
Functions Available in Smart Portrait Mode
Digital zoom is not available.
Flash mode (A 29) changes automatically to U (auto), but can be changed.
The exposure compensation (A 33) is available.
The self-timer and macro mode are not available.
Image mode (A 51) can be changed by pressing d. If the image mode setting is changed, the
new image mode setting is also applied to other shooting modes (except sport continuous).
D
More on Shooting
•
•
•
•
•
More Information
See, “Autofocus” (A 25) for more information.
45
Shooting Continuously at High Speed (Sport Continuous)
Sport continuous mode allows rapid, continuous shooting while you press and
hold the shutter-release button fully. With continuous shooting, instantaneous
movements in moving subjects can be captured.
• With the default setting of Continuous H, the camera shoots up to 20 pictures
at a rate of up to about 11.1 frames per second (fps).
• ISO sensitivity is set high.
• Image mode can be set to M 2048×1536 or smaller.
• The focus, exposure, and white balance settings are fixed at the values for the
first picture in each series.
1
More on Shooting
Press A in shooting mode to
display the shooting-mode
selection menu and use the multi
selector H or I to select d and
press k.
Sport continuous
The camera enters sport continuous mode.
2
Press d, then confirm or set the items in
the sport continuous menu.
• sport continuous menu ➝ A 47
• Press d after setting the items to return to shooting
mode.
Sport continuous
Sport continuous
Image mode
Exit
3
Frame the subject and shoot.
• The camera focuses on the subject in the center of the
frame. Pressing the shutter-release button halfway sets
the focus and exposure.
• Continuous shooting continues as long while the
shutter-release button is held all the way down, and
stops when the number of shot frames reaches the
maximum available number (A 47).
C
46
Functions Available with Sport Continuous
• The exposure compensation (A 33) is available.
• The flash is disabled.
• The self-timer and macro mode are not available.
52
Shooting Continuously at High Speed (Sport Continuous)
B
Notes on Sport Continuous Shooting
D
More Information
See, “Autofocus” (A 25) for more information.
More on Shooting
• It may take some time to save the images after shooting. The time it takes to save the images
depends on the number of shots taken, the image mode, the memory card’s write speed, etc.
• Because the ISO sensitivity is set to 640 or higher, images may appear rough as a result. Proper
exposure may not be obtained in clear weather (images may be overexposed).
• Smear (A 121) visible in the monitor when shooting with sport continuous will be visible in the
saved image data. To reduce smear effects, avoid bright objects such as the sun, reflections of the
sun, and electric lights when shooting.
• When shooting under lights that have a high flicker rate, such as fluorescent or mercury lights,
exposure and white balance may differ from image to image.
• The shutter speed is set automatically within the range of 1/8000 s to 1/15 s.
• The speed of continuous shooting may be slower depending on shutter speed settings and the
write speed of the memory card.
• When using sport continuous mode, the camera focuses continuously until the shutter-release
button is pressed halfway to lock the focus. A sound will be heard while the camera focuses.
Sport Continuous Menu
The following items can be set in the sport continuous menu. In sport continuous
mode, press d (A 12) to display the sport continuous menu, then use the
multi-selector (A 11) to modify and apply settings.
Sport continuous
Select the sport continuous mode type to determine the maximum continuous
shooting speed and maximum number of frames to be shot.
• k Continuous H (default setting): Approx. 11.1 frames per second (20 frames max.)
• l Continuous M: Approx. 7.3 frames per second (20 frames max.)
• m Continuous L: Approx. 4.4 frames per second (20 frames max.)
Image mode
Image mode (A 51) can be set.
• In sport continuous mode, the following image mode settings are available:
M 2048×1536 (default setting), N 1024×768, O 640×480, m 1920×1080.
• The image mode setting in the sport continuous menu is saved separately from
the image mode setting in other shooting modes and is not applied to the other
modes.
47
Auto Mode
In A (auto) mode, macro mode (A 49) and exposure compensation (A 33) can be
applied and pictures can be taken using flash mode (A 29) and self-timer (A 32).
Pressing d in A (auto) mode allows you to specify settings for all shooting
menu items (A 50) depending upon the shooting situations.
1
Press A to display the shootingmode selection menu.
• The shooting-mode selection menu is
displayed.
More on Shooting
2
Press the multi selector H or I to choose A
and press k.
• The camera enters A (auto) mode.
• Raise the built-in flash when using the flash.
• Set the flash mode (A 29), self-timer (A 32),
Auto mode
exposure compensation (A 33), and macro mode
(A 49) to match the shooting conditions.
• Press d to display the shooting menu, and set the
items in the shooting menu to match the shooting conditions (A 50).
3
Frame the subject and shoot.
• The camera focuses on the subject in the
center of the frame.
14
D
Focus Lock
When the camera focuses on an object in the center of the frame, you can use focus lock to focus on
an off-center subject.
• Be sure that the distance between the camera and the subject does not change while focus is locked.
• When the shutter-release button is pressed halfway, exposure is locked.
14
1/125 F3.5
Position the subject Press the Confirm that the
in the center of the shutter focus area is
frame.
release
green.
button
halfway.
48
1/125 F3.5
Continue holding
down the shutterrelease button
halfway and
recompose the
picture.
Press the
shutterrelease
button the
rest of the
way down.
Auto Mode
Macro Mode
Macro mode is used for taking pictures of objects as close as 1 cm (0.4 in.). Note
that the flash may be unable to light the entire subject at distances of less than
50 cm (1 ft. 8 in.).
When using A (auto) mode, follow the procedure below. Macro mode can also
be used with some scene modes (A 39, 40, 41).
1
Press p (macro mode) on the multi selector.
• The macro menu is displayed.
More on Shooting
2
Press the multi selector H or I to select ON,
and press k.
The macro mode icon (F) is displayed.
If a setting is not applied by pressing k within a few
seconds, the selection is cancelled.
Macro mode
3
Use the zoom control and frame the picture.
The camera can focus at distances as close as 1 cm
(0.4 in.) from the lens when F and the zoom indicator
glow green (zoom indicator is positioned near K).
C
Autofocus
When shooting still images using macro mode, the camera focuses continuously until the shutterrelease button is pressed halfway to lock the focus. A sound will be heard while the camera focuses.
C
The Macro Mode Setting
• G (easy auto) mode: Changes to macro mode when the camera selects i. The macro mode
button on the multi selector cannot be used.
• Scene mode: The default setting depends on the scene menu (A 35). Macro mode is turned on
when k Close-up or u Food are selected in scene mode.
• F (smart portrait) mode, d (sport continuous) mode: Macro mode cannot be used.
• When shooting mode is A (auto) mode, the macro mode setting is saved even if the camera is
turned off.
49
Auto Mode
Shooting Menu (Auto Mode)
While shooting in A (auto) mode (A 48), the shooting menu contains the
following options.
A
A 51
Image mode
Choose image size and quality (compression).
Also available when using other shooting modes.
B
White balance
C
Continuous
A 53
Match white balance to the light source.
A 55
More on Shooting
Change settings to Continuous or BSS (best shot selector).
E
A 56
ISO sensitivity
Control the camera’s sensitivity to light.
F
A 57
Color options
Make colors more vivid or save images in monochrome.
Displaying the Shooting Menu
Press A in shooting mode to display the shooting-mode selection menu and set
the shooting mode to A (auto) mode (A 48).
Press d to display the shooting menu.
Shooting menu
Image mode
White balance
Continuous
ISO sensitivity
Color options
14
Exit
• Use the multi selector to choose and apply settings (A 11).
• To exit the shooting menu, press d.
B
50
Camera settings that cannot be applied at the same time
Some functions may not be set at the same time (A 58).
Auto Mode
A Image Mode (Image Quality/Image Size)
Set to A (auto) mode (A 48) M d (Shooting menu) M A Image mode
Choose image size and quality (compression). The size of the files, and with it the
number of images that can be saved, depends on the size and quality
(compression) of the images. Before shooting, choose an image mode according
to how you plan to use the image.
Setting
H 4000×3000P
4000×3000
(default setting)
4000×3000
Description
Highest quality, suitable for enlargements or
high-quality prints. The compression ratio is
approximately 1:4.
4000×3000
Best choice in most situations. The compression
ratio is approximately 1:8.
R 3264×2448
3264×2448
L 2592×1944
2592×1944
M 2048×1536
2048×1536
Smaller size allows more images to be saved. The
compression ratio is approximately 1:8.
N 1024×768
1024×768
Suited to display on a computer monitor. The
compression ratio is approximately 1:8.
O 640×480
640×480
Suited to distribution by e-mail or full-screen
display on a television with a 4:3 aspect ratio.
o 3968×2232
3968×2232
More on Shooting
I
Size (pixels)
Images with an aspect ratio of 16:9 can be taken.
The compression ratio is approximately 1:8.
The icon for the current setting is displayed in the monitor in shooting and
playback modes (A 8, 9).
C
Note on Image Mode
• If the image mode setting is changed, the new image mode setting is also applied to other
shooting modes (except sport continuous).
• This feature cannot be used simultaneously with certain features. ➝ “Camera Settings that Cannot
Be Set at the Same Time” (A 58)
C
Image Mode for Sport Continuous Mode
• In sport continuous mode (A 46), the following image mode settings are available: M
2048×1536, N 1024×768, O 640×480, m 1920×1080 (image size 1920 × 1080, compression
ratio 1/8).
• The image mode setting in the sport continuous menu (A 46) is saved separately from the
image mode setting in other shooting modes and is not applied to the other modes.
51
Auto Mode
C
Number of Exposures Remaining
The following table lists the approximate number of images that can be saved in internal memory
and on a 4 GB memory card. Note that the number of images that can be saved will differ
depending on the composition of the image (due to JPEG compression). In addition, this number
may differ depending on the make of memory card, even if the capacity for the memory card is the
same.
Image mode
Internal memory
(Approx. 43 MB)
Memory card *1
(4 GB)
Print size (printed at
300 dpi; cm/in.)*2
More on Shooting
H
4000×3000P
7
650
34×25/13.4×9.8
I
4000×3000
14
1280
34×25/13.4×9.8
R
3264×2448
21
1910
28×21/11×8.3
L
2592×1944
33
2940
22×16/8.7×6.2
M
2048×1536
52
4640
17×13/6.7×5.1
N
1024×768
171
15000
9×7/3.5×2.8
O 640×480
305
24000
5×4/2×1.6
o
3968×2232
19
1720
34×19/13.4×7.5
m
1920×1080
76
6700
16×9/6.5×3.5
*1
If the number of exposures remaining is 10,000 or more, the number of exposures remaining
display shows 9999.
*2 Print sizes are calculated by dividing the number of pixels by printer resolution (dpi) and
multiplying by 2.54 cm (1 in.). However, at the same image size, images printed at higher
resolutions will print smaller than the size indicated, and those printed at lower resolutions will
print larger than the size indicated.
52
Auto Mode
B White Balance (Adjusting hue)
Set to A (auto) mode (A 48) M d (Shooting menu) M B White balance
a Auto (default setting)
White balance automatically adjusted to suit lighting conditions. Best choice in
most situations.
b
More on Shooting
The color of light reflected from an object varies with the color of the light source.
The human brain is able to adapt to changes in the color of the light source, with
the result that white objects appear white whether seen in the shade, direct
sunlight, or under incandescent lighting. Digital cameras can mimic this
adjustment by processing images according to the color of the light source. This is
known as “white balance”.
Although the default setting, Auto can be used under most types of lighting, you
can apply the white balance setting suited to a particular light source to achieve
more accurate results.
Preset manual
Neutral-colored object used as reference to set white balance under unusual
lighting conditions. Please refer to “Preset Manual” for more information(A 54).
c
Daylight
White balance adjusted for direct sunlight.
d
Incandescent
Use under incandescent lighting.
e
Fluorescent
Use under most types of fluorescent lighting.
f
Cloudy
Use when taking pictures under overcast skies.
g
Flash
Use with flash mode.
The icon for the current setting is displayed in the monitor (A 8). However, when
Auto is selected, no icon is displayed.
B
White Balance
• This feature cannot be used simultaneously with certain features. ➝ “Camera Settings that Cannot
Be Set at the Same Time” (A 58)
• At white-balance settings other than Auto or Flash, turn the flash off (W) (A 29).
53
Auto Mode
Preset Manual
Preset manual is used with mixed lighting or to compensate for light sources with
a strong color cast (for example, to make pictures taken under a lamp with a red
shade look as though they had been taken under white light).
1
2
Place a white or gray reference object under the lighting that is used
during shooting.
Display the shooting menu (A 34), use the
multi selector to select b Preset manual in
the White balance menu, and press k.
More on Shooting
The camera zooms in.
White balance
Auto
Preset manual
Daylight
Incandescent
Fluorescent
Cloudy
Exit
3
Select Measure.
Preset manual
To apply the most recently measured value for preset
manual, choose Cancel and press k. The most recently
measured value is applied for white balance.
Cancel
Measure
Exit
4
Frame the reference object.
Preset manual
Cancel
Measure
Exit
Reference object frame
5
Press k.
The shutter is released (no image is captured) and the new white-balance value is set.
B
54
Note on Preset Manual
The camera cannot measure a white balance value for when the flash fires. When shooting with the
flash, set White balance to Auto or Flash.
Auto Mode
C Continuous
Set to A (auto) mode (A 48) M d (Shooting menu) M C Continuous
Change settings to Continuous or BSS (best shot selector).
Flash will be switched off for Continuous, BSS or Multi-shot 16, and focus, exposure
and white balance are fixed at the values for the first picture in each series.
U
Single (default setting)
One shot is taken each time shutter-release button is pressed.
V
Continuous
D
BSS (Best Shot Selector)
The “best shot selector” is recommended when shooting with the flash off or the
camera zoomed in, or in other situations in which inadvertent motion can result in
blurred images.
When BSS is on, the camera takes up to 10 pictures while the shutter-release button
is held all the way down. The sharpest image in the series is automatically selected
and saved.
W
More on Shooting
While the shutter-release button is held all the way down, up to 4 pictures are taken at
a rate of about 1.0 frames per second (fps) when image mode is set to I 4000×3000.
Multi-shot 16
Each time the shutter-release button is pressed all the way down,
the camera takes 16 shots at a rate of about 7.4 frames per
second (fps), then arranges them in a single image. Images are
captured with the image mode locked at L 2560×1920.
• Digital zoom cannot be used.
The icon for the current setting is displayed in the monitor during shooting (A 8).
When set to Single, no icon is displayed.
B
Note on Continuous Shooting
• The frame rate with continuous shooting may vary, depending upon the current image mode
setting, the memory card used, and the shooting environment.
• This feature cannot be used simultaneously with certain features. ➝ “Camera Settings that Cannot
Be Set at the Same Time” (A 58)
B
Note on BSS
BSS is best suited to shooting subjects that are not moving. When shooting moving subjects or when
the composition of the picture changes while shooting, the desired results may not be achieved.
B
Note on Multi-shot 16
Smear (A 121) visible in the monitor when shooting with Multi-shot 16 will be visible in the saved
image data. To reduce smear effects, avoid bright objects such as the sun, reflections of the sun, and
electric lights when shooting.
55
Auto Mode
E ISO Sensitivity
Set to A (auto) mode (A 48) M d (Shooting menu) M E ISO sensitivity
Sensitivity is a measure of how quickly the camera reacts to light. The higher the
sensitivity, the less light needed to make an exposure. Although a high ISO rating
is suited for taking pictures of subjects in action or in poor lighting, high sensitivity
is often associated with “noise” - randomly spaced, brightly colored pixels
concentrated in dark parts of the image.
Auto (default setting)
More on Shooting
Sensitivity is ISO 80 under normal conditions; when lighting is poor and the flash is
off, the camera compensates by raising sensitivity to a maximum of ISO 800.
80, 100, 200, 400, 800, 1600, 3200, 6400
Sensitivity will be locked at the specified value.
• When ISO sensitivity is locked, Motion detection (A 105) does not function.
The icon for the current setting is displayed in the monitor (A 8). When Auto is
selected, the E icon is not displayed at ISO 80, but is displayed if the ISO
sensitivity automatically increases to more than 80 (A 30).
B
Notes on ISO Sensitivity
This feature cannot be used simultaneously with certain features. ➝ “Camera Settings that Cannot
Be Set at the Same Time“ (A 58)
B
56
ISO 3200 and ISO 6400
When ISO sensitivity is set to 3200 or 6400, the available Image
mode settings are limited to M 2048×1536, N 1024×768, and
O 640×480. The image mode of the shooting mode is shown in
red and X is displayed next to the ISO sensitivity in the lower left of
the monitor.
3200
Auto Mode
F Color Options
Set to A (auto) mode (A 48) M d (Shooting menu) M F Color options
Make colors more vivid or save images in monochrome.
n
Standard color (default setting)
Use for images exhibiting natural color.
o
Vivid color
Use to achieve a vivid, “photoprint” effect.
p
Black-and-white
Sepia
Save images in sepia tones.
r
Cyanotype
Save images in cyan-blue monochrome.
More on Shooting
Save images in black-and-white.
q
The effects of the selected option can be previewed in the monitor (A 8). At
settings other than Standard color, the icon for the current setting is displayed in
the monitor.
B
Notes on Color Options
This feature cannot be used simultaneously with certain features. ➝ “Camera Settings that Cannot
Be Set at the Same Time” (A 58)
57
Auto Mode
Camera Settings that Cannot Be Set at the Same Time
Certain settings in the shooting menu cannot be used with other functions.
Restricted Functions
Setting
Flash mode
Continuous (A 55)
Digital zoom
Continuous (A 55)
Continuous (A 55)
More on Shooting
Image mode
ISO sensitivity (A 56)
White balance
Color options (A 57)
Continuous
Self-timer (A 32)
ISO sensitivity
Continuous (A 55)
Date imprint
Continuous (A 55)
Continuous (A 55)
Motion detection
ISO sensitivity (A 56)
58
Description
If set to Continuous, BSS, or Multi-shot
16, the flash cannot be used.
Digital zoom cannot be used when
shooting with Multi-shot 16.
When using Multi-shot 16, Image mode
is fixed at L 2560×1920.
When the ISO sensitivity is set to 3200
or 6400, the available Image modes are
restricted to M 2048×1536,
N 1024×768, and O 640×480.
For all other image mode settings, if ISO
sensitivity is set to 3200 or 6400, the
image mode setting changes to
M 2048×1536.
When using Black-and-white, Sepia, or
Cyanotype, the White balance setting is
fixed at Auto.
When using the self-timer, the setting is
fixed at Single.
When using Multi-shot 16, ISO
sensitivity is set automatically according
to the brightness.
The shooting date and time cannot be
imprinted in images captured when using
Continuous or BSS.
Motion detection does not function
when shooting with Multi-shot 16.
Motion detection does not function
when ISO sensitivity is set to any setting
other than Auto.
More on Playback
Full-frame Operation
Press c button during shooting to switch to playback
mode and view images (A 26).
The following operations can be performed while
viewing images in full-frame.
15/05/2010 12:00
4
To
Use
Description
4
A
View thumbnails/
calendar
Display 4, 9, or 16 image thumbnails.
While displaying 16 image thumbnails,
60, 61
rotate the zoom control to f (h) to
display the calendar.
f (h)
The image can be enlarged up to
about 10×. Press k to return to fullframe playback.
62
k
Play the selected movie.
79
l
Delete the selected image.
26
d
Display the playback menu.
63
Playback zoom
g (i)
Movie Playback
Deleting Images
Menu Display
More on Playback
Choose images
Press HIJ K to view the previous
or next image. Hold down the multi
26
selector H, I, J or K to quickly scan
through images.
A
Switch to shooting
mode
C
b
Press A or the b (movie-record)
button. You can also press the shutter10
release button to return to shooting
mode.
Viewing Images
Images taken using face detection (A 24) will be automatically rotated when viewing them fullframe.
59
Viewing Multiple Images: Thumbnail Playback
Rotate the zoom control to f (h) in full-frame
playback mode (A 26) to display images in “contact
sheets” of thumbnail images. The following operations
can be performed while thumbnails are displayed.
To
Use
More on Playback
Increase the number
of images displayed/
apply the calendar
display
f (h)
Reduce the number
of frames displayed
g (i)
Switch to full-frame
playback
k
C
A
b
11
Rotate the zoom control to f (h) to
increase the number of picture thumbnails
displayed: 4 ➝ 9 ➝ 16. Rotate the zoom
control to f (h) in the 16-picture thumbnail
display to apply the calendar display (A 61),
and images can be found by the date on
which they were captured.
Rotate the zoom control to g (i) to return to –
thumbnail display mode.
Rotate the zoom control to g (i) to reduce
the number of frames displayed from 16 ➝ 9
➝ 4. While 4 frames are displayed, rotate the
zoom control to g (i) again to return to fullframe display mode.
Press k.
26
Press A or the b (movie-record) button. You
can also press the shutter-release button to
return to shooting mode.
10
Thumbnail Playback Mode Display
While images selected for Print Set (A 64) and
Protect (A 114) are chosen, the icons shown on
the right are displayed with them. Movies are
displayed as film frames.
60
A
Description
Press the multi selector H, I, J or K.
Choose images
Switch to shooting
mode
1/ 10
Protect icon
Print-order icon
1/ 10
Film frames
Viewing Multiple Images: Thumbnail Playback
Calendar Display
When displaying 16 thumbnail frames in playback
mode (A 60), switch to calendar display by rotating
the zoom control to f (h).
You can select images to view based on the day they
were taken. Days containing images have a yellow line
under them.
To
Use
6
Description
A
Press the multi selector H, I, J or K. 11
Choose date
k
The first image for that date will be
displayed full-frame.
26
Switch to thumbnail
display
g (i)
Rotate the zoom control to g (i).
–
B
More on Playback
Switch to full-frame
playback
Calendar display
• Images taken when the camera’s date is not set are treated as images taken on January 1, 2010.
• l and d are not available during calendar display.
61
Taking a Closer Look: Playback Zoom
Rotating the zoom control to g (i) during full-frame
playback mode (A 26) zooms the current image, with
the center of the image displayed in the monitor.
• The guide displayed in the right bottom in the
monitor will show which part of the image is
currently displayed.
×
3.0
The following operations can be performed while images are zoomed in.
To
Zoom in
Zoom out
Use
g (i)
f (h)
More on Playback
Press the multi selector H, I, J or K to scroll
to areas of the image not visible in the
11
monitor.
View other areas of
Switch to full-frame
playback
Crop image
Switch to shooting
mode
Description
A
Zoom increases each time the zoom control is
–
rotated to g (i), up to about 10×.
Zoom decreases each time the zoom control is
rotated to f (h). When the magnification
–
ratio reaches 1×, the display returns to full-frame
playback mode.
k
d
A
b
Press k.
26
Press d to crop current image to contain
only the portion visible in the monitor.
72
Press A or the b (movie-record) button. You
can also press the shutter-release button to
return to shooting mode.
10
Images taken using Face Detection
When the zoom control is rotated to g (i) during fullframe playback mode for images taken using Face
Detection (A 24), the image will be enlarged with the
face detected with shooting at the center of the
monitor.
2.0
2.0
• If several faces are detected, the image will be
enlarged using the face that was focused on during
shooting time as the centralized point, and pressing the multi selector H, I, J
or K will enable you to switch between the people’s faces.
• Rotate the zoom control toward g (i) again or toward f (h) to zoom in or
out as normal.
×
62
Playback Menu
The following options are available in playback mode.
I
A 70
D-Lighting
Enhances brightness and contrast in dark portions of images.
a
A 64
Print set
Select images to print and the number of copies for each.
b
A 66
Slide show
View images saved in the internal memory or on a memory card in an automatic
slide show.
c
A 67
Delete
Delete selected images or all images. Multiple images can be deleted with one
operation.
g
A 71
Small picture
More on Playback
Create a small copy of the current image.
Displaying the Playback Menu
Press c to enter playback mode.
Display the playback menu by pressing d.
Playback menu
D-Lighting
Print set
Slide show
Delete
Small picture
Exit
• Use the multi selector to choose and apply settings (A 11).
• To exit the playback menu, press d.
C
Protecting Images From Accidental Deletion, Rotating Images
• You can prevent images from accidental deletion by using Protect (A 114) in the setup menu
(A 93).
• You can rotate images by using Rotate image (A 115) in the setup menu (A 93).
C
Copying Files Between the Internal Memory and Memory Card
You can copy files between the internal memory and memory card by using Copy (A 116) in the
setup menu (A 93).
63
Playback Menu
a Print Set
Press the c button (Playback mode) M d (Playback menu) M a Print set
When printing images using one of the following methods, you can select which
images will be printed and the number of copies of each image will be printed,
and save this electronic “print order” information on the memory card.
• Printing by inserting the camera’s memory card into the card slot of a DPOF-compatible printer (A 136)
• Printing by taking the camera’s memory card to a photo lab
• Printing by connecting the camera (A 87) to a PictBridge-compatible printer
(A 136) (by removing the memory card from the camera, you can also use this
method to print images saved in the internal memory)
1
Press d in playback mode.
The playback menu is displayed.
More on Playback
2
Use the multi selector to choose Print set and
press k.
Playback menu
D-Lighting
Print set
Slide show
Delete
Small picture
Exit
3
Choose Select images and press k.
Print set
Select images
Delete print set
Exit
4
64
Choose the images (up to 99) and number of
copies (up to nine) of each.
Print selection
Press the multi selector J or K to choose the desired
images. Press H or I to set the number of copies for each.
Images selected for printing can be identified by the check
mark (y) and the numeral indicating the number of
Back
copies to be printed. Images for which no copies have been
specified will not be printed.
Rotate the zoom control to g (i) to display full-frame playback, and f (h) to switch back to 12 thumbnails.
Press k when setting is complete.
Playback Menu
5
Choose whether or not to also print shooting
date and photo information.
Print set
Done
Choose Date and press k to print date of recording on
all images in the print order.
Choose Info and press k to print photo information
(shutter speed and aperture) on all images in the print
order.
Choose Done and press k to complete the print order and exit.
Images selected for printing are indicated by the w
icon displayed during playback.
Date
Info
Exit
15/05/2010 12:00
4
Notes on Printing Shooting Date and Photo Information
When the Date and Info options are enabled in the print set menu, shooting date and photo
information are printed on images when a DPOF-compatible printer (A 136) which supports
printing of shooting date and photo information is used.
• Photo information cannot be printed when the camera is connected directly to a printer, via the
supplied USB cable, for DPOF printing (A 91).
• Date and Info are reset each time the Print set menu is displayed.
• The date and time printed on images with DPOF printing when
Date in the Print set menu is enabled, are those saved with the
image when it was taken. Date and time printed using this option
are not affected when the camera’s date and time setting are
changed from the setup menu after images are saved.
More on Playback
B
4
15.05.2010
C
Deleting All Print Orders
Select Delete print set in step 3 of the print set procedure (A 64) and press k to delete print
orders for all images.
D
Date Imprint
The shooting date and time can be imprinted in images at the time of shooting by using Date
imprint (A 103) in the setup menu. Dates can be printed from printers that do not support date
imprinting (A 65). Only the Date imprint date and time on images will be printed, even if Print set
is enabled with date selected in the print set screen.
65
Playback Menu
b Slide Show
Press the c button (Playback mode) M d (Playback menu) M b Slide show
View images saved in the internal memory or on a memory card in an automatic
slide show.
1
Use the multi selector to choose Start and
press k.
To repeat the slide show automatically, enable Loop and
press k before selecting Start. The check mark (w) is
added to the loop option when enabled.
Slide show
Pause
Start
Loop
Exit
More on Playback
2
The slide show begins.
While the slide show is in progress, the following
operations can be performed:
• Use the multi selector to switch images. Hold K or J
down to fast forward or rewind.
• Press k to pause the slide show.
3
Choose End or Restart.
When the slide show ends or is paused, select End and
press k to return to the playback menu, or choose
Restart to play the slide show again.
Pause
Restart
End
B
66
Notes on Slide Show
• Only the first frame of movies (A 79) included in slide shows is displayed.
• Even if Loop is selected, the monitor can continuously display the Slide Show for up to 30 minutes
(A 108).
Playback Menu
c Delete
Press the c button (Playback mode) M d (Playback menu) M c Delete
Delete selected images or all images.
Erase selected images
Delete selected images. ➝ Selecting Multiple Images (A 68)
Erase all images
Delete all images.
More on Playback
B
Notes on Deletion
• Once deleted, images cannot be recovered. Transfer important images to a computer before deletion.
• Images marked with the s icon are protected and cannot be deleted (A 114).
67
Playback Menu
Selecting Multiple Images
The screen shown on the right will be displayed in the
Erase selected images
menus (shown below) when choosing images.
Playback menu: Print set: Select images (A 64),
Delete: Erase selected images (A 67)
Setup menu:
Welcome screen: Select an image (A 97),
Back
Protect (A 114),
Rotate image (A 115),
Copy: Selected images (A 116)
Follow the procedure described below to choose the images.
1
Press the multi selector J or K to choose the
desired image.
Erase selected images
More on Playback
Only one image can be selected for Welcome screen
and Rotate image. Proceed to step 3.
Rotate the zoom control to g (i) to display full-frame
playback, and f (h) to switch back to 12 thumbnails.
2
Press H or I to select ON or OFF (or the
number of copies).
Back
Erase selected images
When ON is selected, a check mark (y) is displayed in
the top left corner of the current image. Repeat steps 1
and 2 to select additional images.
Back
3
To fix the selection of images, press k.
A confirmation dialog is displayed for certain screens, such as Erase selected images.
In this case follow the on-screen directions.
68
Editing Image
Image Editing Function
Use the camera to edit images in-camera and save them as separate files. The
editing features described below are available (A 123).
Editing function
Description
D-Lighting (A 70)
Create a copy of the current image with enhanced brightness and
contrast, brightening dark portions of the image.
Small picture (A 71)
Create a small copy of images suitable for use on web pages or as
e-mail attachments.
Crop (A 72)
Enlarge the image or refine the composition and create a copy
containing only the portion visible in the monitor.
C
Notes on Image Editing
C
Editing Image
• Images taken at an Image mode setting (A 51) of o 3968×2232 or m 1920×1080 cannot be
edited.
• Only images taken with the COOLPIX L110 can be edited with this camera.
• When using a different model of digital camera, images edited with this camera may not be
displayed properly and may not be able to be transferred to a computer.
• Editing functions are not available when there is not enough free space in the internal memory or
on the memory card.
Restrictions on Image Editing
The following limitations apply when editing images that were created by editing.
Copies Created By:
Can Be Edited By:
D-Lighting
Small picture and crop can be used.
Small picture
Crop
Additional editing is not possible.
• Images cannot be edited twice with the same editing function.
• To use D-Lighting together with small picture or crop, use D-Lighting first, and use small picture or
crop as the last edit function performed on that image.
D
Original Images and Edited Copies
• Copies created with editing functions are not deleted if the original images are deleted. The
original images are not deleted if copies created with editing functions are deleted.
• Edited copies are saved with the same shooting date and time as the original.
• Edited copies do not retain the Print set (A 64) and Protect (A 114) settings of the original.
69
Editing Images
I D-Lighting: Enhancing Brightness and Contrast
Create a copy of the current image with enhanced brightness and contrast,
brightening dark portions of the image. Enhanced copies are saved as separate
files.
1
Select the desired image from full-frame
(A 26) or thumbnail (A 60) playback mode
and press d.
• The playback menu is displayed.
2
Use the multi selector to choose I
D-Lighting and press k.
• The original version is displayed on the left and the
edited version is displayed on the right.
Playback menu
D-Lighting
Print set
Slide show
Delete
Small picture
Exit
Editing Image
3
Choose OK and press k.
D-Lighting
• A new image with enhanced brightness and contrast is
created.
• To cancel, select Cancel and press k.
OK
Cancel
• Images created with D-Lighting can be identified by
the c icon displayed during playback.
15/05/2010 15:30
4/
D
70
More Information
See “Image File and Folder Names” (A 123) for more information.
4
Editing Images
g Small Picture: Resizing Images
Create a small copy of the current image. Suitable for uploading to web sites or
sending by e-mail. The following sizes are available: l 640×480, m 320×240,
and n 160×120. Small copies are saved as JPEG files with a compression ratio of
1:16.
1
Select the desired image from full-frame
(A 26) or thumbnail (A 60) playback mode
and press d.
• The playback menu is displayed.
2
Use the multi selector to choose g Small
picture and press k.
Playback menu
D-Lighting
Print set
Slide show
Delete
Small picture
3
Choose the desired copy size and press k.
Editing Image
Exit
Small picture
640×480
320×240
160×120
Exit
4
Choose Yes and press k.
• A new, smaller copy is created.
• To cancel, select No and press k.
• The copy is displayed with a gray frame.
Create small picture file?
Yes
No
D
More Information
See “Image File and Folder Names” (A 123) for more information.
71
Editing Images
o Crop: Creating a Cropped Copy
Create a copy containing only the portion visible in the monitor when u is
displayed with playback zoom (A 62) enabled. Cropped copies are saved as separate files.
1
Rotate the zoom control to g (i) in full-frame
playback mode to zoom in on the image.
• To crop an image displayed in “tall” (portrait)
orientation, zoom in on picture until the black bars
displayed on the both sides of the monitor disappear.
The cropped image is displayed in landscape
orientation. To crop the image in its current “tall”
(portrait) orientation, first, use the Rotate image
option (A 115) to rotate the image so that it is displayed in landscape orientation.
Next, enlarge the image for cropping, crop the image, and then rotate the cropped
image back to “tall” (portrait) orientation.
2
Refine copy composition.
Rotate the zoom control to g (i) or f (h) to adjust the
zoom ratio.
Editing Image
Press the multi selector H, I, J or K to scroll the
image until only the portion you want to copy is visible in
the monitor.
3
4
4.0
4.0
Press d.
Use the multi selector to select Yes and press
k.
A new image, containing only the portion visible in the
monitor, is created.
To exit without cropping the image, choose No and press
k.
C
×
Save this image as
displayed?
Yes
No
About the size of the original image
The smaller the cropped area of the image, the smaller of the cropped image size (number of pixels).
When the image is cropped and the size of the cropped copy is 320 × 240 or 160 × 120, the image is
displayed with a gray border on the playback screen, and the small picture icon B or C is displayed
on the left of the playback screen.
D
72
More Information
See “Image File and Folder Names” (A 123) for more information.
Movie Recording and Playback
Recording Movies
You can use the camera to record high-definition movies with sound.
The maximum movie length for each movie is 29 minutes, regardless of memory
card capacity (A 77).
1
Turn the camera on and display the shooting
mode screen.
• Movies can be recorded in any shooting mode
(A 34).
• The current movie options setting is displayed. The
default setting is HD720p (1280×720) (A 77).
14
Movie options
2
Lower the built-in flash (A 6)
Recording movies while the built-in flash is raised may cause the audio to be muffled.
3
Press the b (movie-record) button
to start recording.
• When Movie options is set to x HD720p
(1280×720), the aspect ratio is 16:9 and the movie is
recorded as shown on the right.
• Digital zoom cannot be used while recording movies. If
digital zoom is used before recording, it will be
canceled when recording starts.
26s
• The progress bar displayed at the bottom of the
monitor during recording indicates the amount of
recording time remaining. If recording time runs out, recording stops automatically.
4
Movie Recording and Playback
• Recording begins after the monitor turns
off briefly.
• The camera focuses on the subject in the
center of the frame. The focus area is not
displayed while recording movies.
Press the b (movie-record) button to stop
recording.
73
Recording Movies
B
Recording Movies
• When recording movies, we recommend using a memory card with a Class 6 or higher speed class
rating (A 122). When using a memory card with a low speed class, recording may stop unexpectedly.
• When recording movies, the angle of view (field of view) is smaller than when shooting still images.
• Digital zoom cannot be used while recording movies.
• Operation sounds from the time of recording (the zoom control being rotated, the lens zooming,
the autofocus, etc.) may be heard when playing back movies.
• Smear (A 121) visible in the monitor when recording will be visible in the saved image data. To
reduce smear effects, avoid bright objects such as the sun, reflections of the sun, and electric lights
when recording movie.
B
Autofocus
• When Autofocus mode in the movie menu is set to A Single AF (default setting), focus is
locked when the b (movie-record) button is pressed and recording starts (A 78).
• Autofocus may not perform as expected in certain situations (A 25). Try using the following
methods in these situations.
1. Before recording, set Autofocus mode to A Single AF (default setting) in the movie menu.
2. Aim the camera at another subject that is positioned the same distance from the camera as the
desired subject, press the b (movie-record) button to start recording, then aim the camera at
the desired subject.
B
Movie Recording and Playback
74
While the Camera Is Saving Movies
When movie recording stops, the movie is not completely saved until the shooting screen is
displayed. Do not open the battery-chamber / memory card slot cover if the movie has not yet been
completely saved. Removing the memory card or the battery while a movie is being saved may
result in loss of the movie data or damage to the camera or the memory card.
C
Functions Available in Movie Mode
• When the shooting mode is set to A (auto) mode (A 48), the current settings for white balance
(A 53) and color options (A 57) are used when recording movies.
• When the shooting mode is set to any mode other than A (auto) mode, White balance is set to
Auto and Color options is set to Standard color when recording movies. Movies are recorded
in color even when scene mode is set to Copy.
• The current exposure compensation setting is used when recording movies. If macro mode is
enabled before the b (movie-record) button is pressed, the camera can record movies of subjects
that are close to the camera.
• When using the self-timer, the camera waits for 10 seconds after the b (movie-record) button is
pressed, then focuses and begins recording.
• Flash will not fire even when lighting is poor.
• When recording movies, electronic vibration reduction is used automatically to reduce the effects
of camera shake.
• To change the settings for Movie options, Autofocus mode, or Wind noise reduction, press
d before recording to display the D (movie) tab (A 75).
Recording Movies
Movie Menu
The movie menu contains the following options.
D
A 77
Movie options
The movie menu offers the options shown below.
I
A 78
Autofocus mode
Select how the camera focuses in movie mode.
Y
A 78
Wind noise reduction
Reduces the effects of wind noise when recording movies.
Displaying the Movie Menu
1
Display the shooting mode screen
and press d.
• The menu is displayed.
14
Image mode
Image mode
Exit
2
Press the multi selector J.
You can now select a tab.
Easy auto mode
Image mode
Movie Recording and Playback
• When using easy auto mode, scene mode, or smart
portrait mode, press the multi selector (A 11) J to
display the tabs.
Exit
3
Press H or I to select the D tab.
Movie
Movie options
Autofocus mode
Wind noise reduction
Exit
75
Recording Movies
4
Press K or k.
You can now select an item from the movie menu.
Use the multi selector to choose and apply settings
(A 11).
To exit the movie menu, press d or press J and select
another tab.
Movie Recording and Playback
76
Movie
Movie options
Autofocus mode
Wind noise reduction
Exit
Recording Movies
D Movie Options
Display the shooting mode screen M Press the d button M D (Movie menu) (A 75)
M D Movie options
The movie menu offers the options shown below. As resolution and bit rate
increase, image quality and file size also increase.
Option
Description
x HD 720p (1280 × 720) Movies with an aspect ratio of 16:9 are recorded in high
definition. This option is suited to playback on a wide screen TV.
(default setting)
• Image size: 1280 × 720 pixels
• Movie bitrate: 9.0 Mbps
y VGA (640 × 480)
Movies with an aspect ratio of 4:3 are recorded.
• Image size: 640 × 480 pixels
• Movie bitrate: 3.0 Mbps
z QVGA (320 × 240)
Movies with an aspect ratio of 4:3 are recorded.
• Image size: 320 × 240 pixels
• Movie bitrate: 640 kbps
C
Movie Options and Maximum Movie Length
Option
x HD 720p (1280×720)
(default setting)
Internal memory
(Approx. 43 MB)
Memory card (4 GB)*
34 s
50 min
y VGA (640×480)
1 min 34 s
2 h 30 min
z QVGA (320×240)
4 min 26 s
10 h
Movie Recording and Playback
• The movie bitrate is the volume of movie data recorded per second. As a variable bitrate
(VBR) system has been adopted, the movie recording rate varies automatically according to
the subject so that more data is recorded per second for movies containing frequently
moving subjects, thus increasing movie file size.
• The frame rate is approximately 30 frames per second in any options.
All figures are approximate. The maximum recording time varies depending on the type of memory
card used, the bit rate of recorded movies, etc.
* The maximum recording time for each movie is 29 minutes. Even if the memory card has capacity
to record for more than 29 minutes, the camera displays no more than 29 minutes as the available
recording time.
D
More Information
See “Image File and Folder Names” (A 123) for more information.
77
Recording Movies
I Autofocus Mode
Display the shooting mode screen M Press the d button M D (Movie menu) (A 75)
M I Autofocus mode
Choose how the camera focuses in movie mode.
Setting
A Single AF
(default setting)
B Full-time AF
Description
Focus is locked when the b (movie-record) button is pressed.
The camera focuses continuously while recording.
To prevent sound of camera focusing from interfering with
recording, use of Single AF is recommended.
Y Wind Noise Reduction
Display the shooting mode screen M Press the d button M D (Movie menu) (A 75)
M Y Wind noise reduction
Movie Recording and Playback
78
Reduces the effects of wind noise when recording movies.
The icon for the current setting is displayed in the monitor during shooting (A 8).
When set to Off, no icon is displayed.
Setting
Description
On
The sound of the camera focusing may be heard in recorded
movies. Select this setting when recording in places with strong
wind. Using this setting may make other sounds difficult to hear
during playback.
Off (default setting)
Turns Wind noise reduction off.
Movie Playback
In full-frame playback mode (A 26), movies can be
identified by the Movie options icon (A 77). To play a
movie, display it in full-frame playback mode and press
k.
2010/05/15 15:30
0010.MOV
10s
Use the zoom control g (i)/f (h) during playback
to adjust the volume.
Playback controls are displayed at the top of the
monitor. Press the multi selector J or K to choose a
control, then press k to perform the selected
operation. The following operations are available.
Pausing
4s
During
playback
Volume
indicator
To
Use
Rewind
K
Rewind movie. Playback resumes when k is released.
Advance
L
Advance movie. Playback resumes when k is released.
O
Pause playback. The following operations can be performed
while playback is paused.
Rewind movie by one frame. Rewind continues while k
M
is pressed.
Advance movie by one frame. Advance continues while
N
k is pressed.
P
End
Q
Resume playback.
End playback and return to full-frame playback.
Deleting Movies
Press l when displayed in full-frame playback mode
(A 26), or when selected in thumbnail (A 60)
playback mode. A confirmation dialog is displayed.
Choose Yes and press k to delete the movie, or
choose No and press k to return to the normal
playback display without deleting the movie.
B
Movie Recording and Playback
Pause
Description
Erase 1 image?
Yes
No
Note on Movie Playback
Only movies recorded with COOLPIX L110 can be played back.
79
Connecting to Televisions, Computers and Printers
Connecting to a TV
Connect the camera to a television to play back images on the television.
If you have an HDMI compatible TV, you can enjoy playing back images at high
definition image quality by connecting the camera to the television using an HDMI
cable (available separately from third-party suppliers).
Connecting to Televisions, Computers and Printers
1
Turn off the camera.
2
Connect the camera to the TV using the supplied audio video cable.
When using the supplied audio/video cable (AV cable)
Connect the yellow plug to the video-in jack on the TV, and the white plug to the audioin jack.
Yellow
White
When using an HDMI cable (available separately from third-party suppliers)
Connect the HDMI cable to the HDMI input on the TV.
HDMI mini connector (Type C)
80
To HDMI input
Connecting to a TV
3
Tune the television to the video channel.
• See the documentation provided with your television for details.
4
Hold down c to turn on the camera.
B
Connecting to Televisions, Computers and Printers
• The camera enters playback mode, and the images
taken are displayed on the television.
• While connected to the TV, the camera monitor
remains off.
Notes on HDMI Connection
• An HDMI cable is not included. Please purchase an HDMI cable. The camera’s HDMI output uses an
HDMI mini connector (Type C). When purchasing an HDMI cable, confirm that one end of the
cable has an HDMI mini-pin connector.
• To play back images and movies in high definition on an HDMI-compatible TV, we recommend
capturing still images with Image mode (A 51) set to M 2048×1536 or higher, and recording
movies with Movie options (A 77) set to HD720p (1280×720) or higher.
B
Connecting the Audio/Video Cable
• When connecting the AV cable, be sure that the camera connector is oriented correctly. Do not
use force when connecting the AV cable to the camera. When disconnecting the AV cable, do not
pull the connector at an angle.
• Do not connect an audio/video cable and an HDMI cable to the camera at the same time.
• Do not connect a USB cable and an HDMI cable to the camera at the same time.
B
Video Mode
Be sure that the camera’s video mode setting conforms to the standard used by your television. The
video mode setting is an option set in the Set up menu (A 93) ➝ TV settings (A 110).
81
Connecting to a Computer
Use the supplied USB cable to connect the camera to a computer, and copy
(transfer) pictures to a computer with the supplied Nikon Transfer software.
Before Connecting the Camera
Install the Software
Connecting to Televisions, Computers and Printers
Before connecting the camera to a computer, software, including Nikon Transfer,
ViewNX for displaying transferred pictures, and Panorama Maker for creating
panorama photos, must be installed using the supplied Software Suite CD. For
more information on installing the software, refer to the Quick Start Guide.
Compatible Operating Systems
Windows
• Windows 7 (Home Basic/Home Premium/Professional/Enterprise/Ultimate
editions)
• Windows Vista Service Pack 2 (Home Basic/Home Premium/Business/
Enterprise/Ultimate editions)
• 32-bit versions of Windows XP Service Pack 3 (Home Edition/Professional)
Macintosh
Mac OS X (version 10.4.11, 10.5.8, 10.6)
For information on the requirements for playing back high-definition and full-HD
movies, refer to the ViewNX help information (System Requirements>H.264 HighDefinition (HD) movie playback) (A 86).
Refer to the Nikon website for the latest information on operating system
compatibility.
B
82
Note on Power Source
When connecting the camera to a computer, use fully charged batteries to prevent the camera from
turning off unexpectedly.
If the AC Adapter EH-67 (A 122) (available separately) is used, COOLPIX L110 can be powered from
an electrical outlet. Do not use any other make or model of AC adapter as they may cause the
camera to overheat or malfunction.
Connecting to a Computer
Transferring Pictures from a Camera to a Computer
4
Start the computer to which Nikon Transfer was installed.
Be sure that the camera is off.
Connect the camera to the computer using the supplied USB cable.
Turn on the camera.
The power-on lamp will light. The camera monitor will
remain off.
B
Connecting to Televisions, Computers and Printers
1
2
3
Connecting the USB Cable
• Be sure that connectors are properly oriented. Do not attempt to insert connectors at an angle,
and do not use force when connecting or disconnecting the USB cable.
• The connection may not be recognized if the camera is connected to the computer via a USB hub.
83
Connecting to a Computer
5
Start Nikon Transfer installed on the computer.
Connecting to Televisions, Computers and Printers
• Windows 7
When the Devices and Printers K L110 screen is displayed, click Change program
under Import pictures and videos. Select Copy pictures to a folder on my
computer in the Change program dialog and click OK.
Double-click Copy pictures to a folder on my computer on the Devices and
Printers K L110 screen.
• Windows Vista
When the AutoPlay dialog is displayed, click Copy pictures to a folder on my
computer using Nikon Transfer.
• Windows XP
When the action selection dialog is displayed, select Nikon Transfer Copy pictures
to a folder on my computer, and click OK.
• Mac OS X
Nikon Transfer will start automatically when the camera is connected to the computer
if Yes was selected in the Auto-Launch setting dialog when Nikon Transfer was first
installed.
• If there are a large number of images on the memory card, it may take some time for
Nikon Transfer to start.
6
Confirm that the source device is displayed in the transfer options
Source panel and click Start Transfer.
Source device
Start Transfer
button
At the Nikon Transfer default settings, all pictures are transferred to the computer.
84
Connecting to a Computer
At the Nikon Transfer default settings, ViewNX starts automatically when transfer is
complete and transferred pictures can be viewed.
Disconnecting the camera
Do not turn off the camera or disconnect the camera from the computer during
transfer.
When transfer is complete, turn off the camera and disconnect the USB cable.
C
Connecting to Televisions, Computers and Printers
For more information on using Nikon Transfer or ViewNX, refer to help information
contained in Nikon Transfer or ViewNX (A 86).
Using a Card Reader
The pictures stored on the memory card inserted into a card reader or similar device can also be
transferred to the computer using Nikon Transfer.
• If the memory card capacity is 2 GB or more, or if the memory card is SDHC-compliant, the card
reader or similar device must support these memory card specifications.
• Insert a memory card into the card reader or similar device, and refer to the steps 5 and 6 (A 84)
to transfer pictures.
• To transfer pictures stored in the camera’s internal memory to the computer, the pictures must
first be copied to a memory card using the camera (A 116).
D
Starting Nikon Transfer or ViewNX Manually
Windows
Choose Start menu>All Programs>Nikon Transfer>Nikon Transfer (or All
Programs>ViewNX>ViewNX).
Double-clicking the Nikon Transfer or ViewNX shortcut icon on the desktop will also start Nikon
Transfer or ViewNX.
Macintosh
Open Applications and double-click Nikon Software>Nikon Transfer>Nikon Transfer (or
Nikon Software>ViewNX>ViewNX).
Clicking the Nikon Transfer or ViewNX icon on the Dock will also start Nikon Transfer or ViewNX.
85
Connecting to a Computer
D
Viewing Nikon Transfer and
ViewNX Help Information
For more information on Nikon Transfer or
ViewNX, start Nikon Transfer or ViewNX and
select Nikon Transfer Help or ViewNX
Help from the Help menu.
Connecting to Televisions, Computers and Printers
D
Panorama Creation with Panorama Maker
• Use a series of pictures taken in Panorama assist scene mode (A 41) to create a single
panorama photo with Panorama Maker.
• Panorama Maker can be installed on a computer using the supplied Software Suite CD.
• After installation is complete, follow the procedure described below to start Panorama Maker.
Windows
Choose Start menu>All Programs>ArcSoft Panorama Maker 5>Panorama Maker 5.
Macintosh
Open Applications and double-click the Panorama Maker 5 icon.
• For more information on using Panorama Maker, refer to the on-screen instructions and help
information contained in Panorama Maker.
D
Image File Names and Folder Names
See “Image File and Folder Names” (A 123) for more information.
86
Connecting to a Printer
Users of PictBridge-compatible (A 136) printers can connect the camera directly
to the printer and print images without using a computer.
Take pictures
Connect to printer (A 88)
Print images one at a
time(A 89)
Print multiple images (A 90)
Turn camera off and disconnect USB cable
B
Connecting to Televisions, Computers and Printers
Select images for printing
using Print set option
(A 64)
Note on Power Source
• When connecting the camera to a printer, use batteries with adequate charge remaining to power
the camera to prevent the camera from turning off unexpectedly.
• To power the camera continuously for extended periods, use an AC Adapter EH-67 (available
separately) (A 122). Do not, under any circumstances, use another make or model of AC adapter.
Failure to observe this precaution could result in overheating or in damage to the camera.
D
Printing Images
In addition to printing images transferred to a computer from your personal printer and printing
over a direct camera-to-printer connection, the following options are also available for printing
images:
• Insert a memory card into a DPOF-compatible printer’s card slot
• Take a memory card to a digital photo lab
For printing using these methods, you can specify the images and the number of prints each using
Print set in the playback menu (A 64).
87
Connecting to a Printer
Connecting the Camera and Printer
Connecting to Televisions, Computers and Printers
1
Turn off the camera.
2
Turn on the printer.
Check printer settings.
3
Connect the camera to the printer using the supplied USB cable.
4
Turn on the camera.
• When connected correctly, the PictBridge startup
screen (1) is displayed in the camera monitor. Then
the Print selection screen is displayed (2).
1
2
Print selection
15/05
2010
NO. 12
[ 12]
B
88
Connecting the USB Cable
When connecting the USB cable, be sure that the connectors are oriented correctly. Do not use force
when connecting the USB cable. When disconnecting the USB cable, do not pull the connector at an
angle.
Connecting to a Printer
Printing Images One at a Time
After connecting the camera to the printer correctly (A 88), print images by
following the procedure below.
Use the multi selector to choose the desired
image and press k.
Print selection
15/05
2010
• Rotate the zoom control to f (h) to display 12
thumbnails, and g (i) to switch back to full-frame
playback.
2
Choose Copies and press k.
NO. 12
[ 12]
PictBridge
Start print
Copies
Paper size
Exit
3
Choose the number of copies (up to nine) and
press k.
Copies
Connecting to Televisions, Computers and Printers
1
4
Exit
4
Choose Paper size and press k.
PictBridge
Start print
Copies
Paper size
Exit
5
Choose the desired paper size and press k.
• To specify paper size using printer settings, choose
Default in the paper size menu.
Paper size
Default
3.5×5 in.
5×7 in.
Postcard
100×150 mm
4×6 in.
Exit
89
Connecting to a Printer
6
Choose Start print and press k.
PictBridge
Start print
Copies
Paper size
Connecting to Televisions, Computers and Printers
Exit
7
Printing starts.
Monitor display returns to that shown in step 1 when
printing is complete.
Printing
002 / 004
To cancel before all copies have been printed, press k.
Cancel
Current print/ total
number of prints
Printing Multiple Images
After connecting the camera to the printer correctly (A 88), print images by
following the procedure below.
1
When the Print selection screen is displayed,
press d.
The Print menu is displayed.
2
Use the multi selector to choose Paper size
and press k.
Press d to exit the print menu.
Print menu
Print selection
Print all images
DPOF printing
Paper size
Exit
3
Choose the desired paper size and press k.
To specify paper size using printer settings, choose
Default in the paper size menu.
90
Paper size
Default
3.5×5 in.
5×7 in.
Postcard
100×150 mm
4×6 in.
Exit
Connecting to a Printer
4
Choose Print selection, Print all images or
DPOF printing and press k.
Print menu
Print selection
Print all images
DPOF printing
Paper size
Print selection
Choose the images (up to 99) and number of
copies (up to nine) of each.
• Press the multi selector J or K to select
images, and press H or I to set the number
of copies for each.
• Images selected for printing can be identified
by the check mark (y) and the numeral
indicating the number of copies to be printed.
Images for which no copies have been
specified will not be printed.
• Rotate the zoom control to g (i) to display
full-frame playback, and f (h) to switch
back to 12 thumbnails.
Print selection
Back
10
Connecting to Televisions, Computers and Printers
Exit
• Press k when setting is complete.
• The menu shown on the right is displayed. To
print, select Start print and press k. Choose
Cancel and press k to return to the print
menu.
Print selection
010 prints
Start print
Cancel
Exit
Print all images
All images saved in the internal memory, or on the memory card, are printed
one at a time.
• The menu shown on the right is displayed. To
Print all images
print, select Start print and press k. Choose
Cancel and press k to return to the print
012 prints
menu.
Start print
Cancel
Exit
91
Connecting to a Printer
DPOF printing
Connecting to Televisions, Computers and Printers
Print images for which a print order was created
in Print set (A 64).
• The menu shown on the right is displayed. To
print, select Start print and press k. Choose
Cancel and press k to return to the print
menu.
DPOF printing
010 prints
Start print
View images
Cancel
Exit
• To view the current print order, choose View
images and press k. To print images, press
k again.
10
View images
Back
5
Printing starts.
• Monitor display returns to the print menu (step 2)
when printing is complete.
• To cancel before all copies have been printed, press k.
Printing
002 / 010
Cancel
Current print/ total
number of prints
C
92
Paper Size
The camera supports the following paper sizes: Default (the default paper size for the current
printer), 3.5 × 5 in., 5 × 7 in., 100 × 150 mm, 4 × 6 in., 8 × 10 in., Letter, A3, and A4. Only sizes
supported by the current printer will be displayed. To specify paper size using printer settings,
choose Default in the paper size menu.
Basic Camera Setup
Setup Menu
The setup menu contains the following options.
a
Menus
A 96
Select how menus are displayed.
c
Welcome screen
A 97
Specify the welcome screen displayed when the camera is turned on.
d
Date
A 98
Set camera clock and choose home and destination time zones.
e
Monitor settings
A 101
Adjust photo info, image review, and brightness settings.
f
Date imprint
A 103
Imprint date on images.
g
Vibration reduction
A 104
Specify the vibration reduction setting for shooting still images.
U
Motion detection
A 105
h
AF assist
A 106
Enable or disable AF-assist illuminator.
i
Sound settings
A 107
Specify sound settings.
k
Auto off
A 108
Basic Camera Setup
Specify whether or not motion detection is used to reduce the effects of
subject movement and camera shake when taking still images.
Set time before camera enters standby mode to save power.
l/m
Format memory/Format card
A 109
Format internal memory or memory card.
n
Language
A 110
Choose the language used for camera monitor display.
H
TV settings
A 110
Adjust settings for connection to a television.
d
Blink warning
A 111
Set whether or not to detect human subjects with eyes closed when shooting
pictures using face detection.
p
Reset all
A 112
Restore camera settings to default values.
s
Battery type
A 114
Select the type of batteries used.
93
Setup Menu
d
A 114
Protect
Protect selected images from accidental deletion.
f
A 115
Rotate image
Change the orientation of an image.
h
A 116
Copy
Copy files between memory card and internal memory.
r
A 117
Firmware version
Display camera firmware version.
Displaying the Setup Menu
1
Press d.
The menu is displayed.
Basic Camera Setup
• When using easy auto mode, scene mode, or smart
portrait mode, press the multi selector (A 11) J to
display the tabs.
Image mode
Image mode
Exit
2
Press the multi selector J.
• You can now select a tab.
Easy auto mode
Image mode
Exit
3
Press H or I to select the z tab.
Set up
Menus
Welcome screen
Date
Monitor settings
Date imprint
Vibration reduction
Exit
94
Setup Menu
4
Press K or k.
• You can now select an item from the setup menu.
• Use the multi selector to choose and apply settings
(A 11).
• To exit the setup menu, press d or press J and select
another tab.
Set up
Menus
Welcome screen
Date
Monitor settings
Date imprint
Vibration reduction
Exit
Basic Camera Setup
95
Setup Menu
a Menus
Press the d button M z (Setup menu) (A 94) M a Menus
Select how menus are displayed.
w
Text (default setting)
Menus are displayed in list format.
Set up
Menus
Welcome screen
Date
Monitor settings
Date imprint
Vibration reduction
Exit
x
Icons
All menu items can be displayed in a single page.
Menu names
Menus
Basic Camera Setup
96
Exit
Setup Menu
c Welcome Screen
Press the d button M z (Setup menu) (A 94) M c Welcome screen
Specify the welcome screen displayed when the camera is turned on.
None (default setting)
The welcome screen is not displayed when the camera is turned on; the shooting
mode or playback mode screen is displayed.
COOLPIX
The welcome screen is displayed when the camera is turned on, then the shooting
mode or playback mode screen is displayed.
Select an image
Basic Camera Setup
An image captured with this camera is used as the welcome screen. When the
image selection screen is displayed (A 68), select the desired image and press k
to register the image as the welcome screen.
• As the selected image is saved in the camera, the image is displayed in the
welcome screen even if the original image is deleted.
• Images captured with an Image mode (A 51) setting of o 3968×2232 or
m 1920×1080, and image copies created using small picture (A 71) or crop
(A 72) that are 320×240 or smaller, cannot be selected.
97
Setup Menu
d Date
Press the d button M z (Setup menu) (A 94) M d Date
Set the camera clock.
Date
Set camera clock to current date and time.
Use the multi selector to set the date and time.
• Highlight an item (day, month, year, hour, minute, and the order in which day,
month, and year are displayed): Press J or K.
• Edit the highlighted item: Press H or I.
• Finish setting: After selecting the order in which the day, month, and year are
displayed, press k (A 11).
Time zone
Basic Camera Setup
Set the home (w) time zone (district) or daylight saving time. When the destination
(x) time zone is selected, the time difference (A 100) is automatically calculated
and the date and time in the selected region are saved. This can be useful when
travelling.
Setting Travel Destination Time Zone
1
Use the multi selector to choose Time zone
and press k.
The Time zone menu is displayed.
Date
15/05/2010
15:30
Date
Time zone
Exit
2
Choose x Travel destination and press k.
Time zone
The date and time displayed in the monitor changes
according to the region currently selected.
London, Casablanca
15/05/2010 15:30
Home time zone
Travel destination
Exit
98
Setup Menu
3
Press K.
Time zone
The new city time zone menu is displayed.
15/05/2010 15:30
London, Casablanca
Home time zone
Travel destination
Exit
4
Press J or K to select the travel destination
time zone (city name).
To use the camera in an area where daylight saving time
is in effect, press H to display the W mark at the top of
the monitor and set the daylight saving time. When the
daylight saving time goes into effect, the clock is
automatically advanced one hour. To turn off the daylight
saving time setting, press I.
10:30
-05:00
EDT:
New York
Toronto
Lima
Back
Press k to enter the travel destination.
B
Basic Camera Setup
While the travel destination time zone is selected, the Z icon will be displayed in the
monitor when the camera is in shooting mode.
The Clock Battery
The camera’s clock is powered by a clock battery that is independent of the batteries that powers
the camera. The clock battery charges when the main batteries are installed or an AC adapter is
connected, and can provide several days of backup power after about 10 hours of charging.
C
w (Home Time Zone)
• To switch to the home time zone, choose w Home in step 2 and press k.
• To change the home time zone, choose w Home in step 2 and perform steps 3 and 4, to set the
home time zone.
C
Daylight Saving Time
When the summer saving time begins or ends, turn the daylight saving time option on or off using
the home time zone display in Step 4.
D
Imprinting the date on pictures
After setting the date and time, set the Date imprint setting (A 103) in the setup menu. Once
Date imprint is set, the shooting date and time can be imprinted on the image data when taking
pictures.
99
Setup Menu
D
Time Zones
The camera supports the time zones listed below.
For time zones not listed below, set the camera's clock manually to local time using Date in the
setup menu.
UTC
+/-
Basic Camera Setup
100
Time zone
UTC
+/-
Time zone
-11
Midway, Samoa
+1
Madrid, Paris, Berlin
-10
Hawaii, Tahiti
+2
Athens, Helsinki, Ankara
-9
Alaska, Anchorage
+3
Moscow, Nairobi, Riyadh, Kuwait,
Manama
-8
PST (PDT): Los Angeles, Seattle,
Vancouver
+4
Abu Dhabi, Dubai
-7
MST (MDT): Denver, Phoenix, La Paz
+5
Islamabad, Karachi
-6
CST (CDT): Chicago, Houston, Mexico
City
+5.5
-5
EST (EDT): New York, Toronto, Lima
+6
Colombo, Dhaka
-4.5
Caracas
+7
Bangkok, Jakarta
-4
Manaus
+8
Beijing, Hong Kong, Singapore
-3
Buenos Aires, Sao Paulo
+9
Tokyo, Seoul
-2
Fernando de Noronha
+10
Sydney, Guam
New Delhi
-1
Azores
+11
New Caledonia
±0
London, Casablanca
+12
Auckland, Fiji
Setup Menu
e Monitor Settings
Press the d button M z (Setup menu) (A 94) M e Monitor settings
The following settings are available.
Photo info
Choose information displayed in the monitor during shooting and playback
mode. (A 102)
Image review
• On (default setting): Images are automatically displayed briefly immediately
after shooting.
• Off: Images are not displayed after shooting.
Brightness
Choose from five settings for monitor brightness. The default setting is 3.
Basic Camera Setup
101
Setup Menu
Photo Info
Select whether or not photo info is displayed.
See “The Monitor” (A 8, 9) for information on indicators in the monitor.
Shooting mode
Playback mode
15/05/2010 12:00
Show info
14
4
4
The same information as in Show info is displayed. If no operations are
Auto info
performed after a few seconds, the display will be the same as Hide
(default setting) info. The information is displayed again when an operation is
performed.
Basic Camera Setup
Hide info
15/05/2010 12:00
14
Framing grid
102
In the following shooting modes,
a framing grid is displayed to help
frame pictures, in addition to the
information displayed in Auto
info.
• G (Easy auto)
• A (Auto)
In other shooting modes, the
same information as in Auto info
is displayed.
4
4
The same information as in Auto
info is displayed.
Setup Menu
f Date Imprint
Press the d button M z (Setup menu) (A 94) M f Date imprint
The shooting date and time can be imprinted in
images at the time of shooting. This information can be
printed even from printers that do not support printing
of date and time (A 65).
15.05.2010
Off (default setting)
Date and time are not imprinted on images.
f
Date
The shooting date is imprinted in images.
S
Date and time
At settings other than Off, the icon for the current setting is displayed in the
monitor (A 8).
B
Basic Camera Setup
The shooting date and time is imprinted in images.
Date imprint
• Imprinted dates form a permanent part of image data and cannot be deleted.
• Date imprint is disabled in the following situations.
- When using the Museum or Panorama assist scene modes.
- When using sport continuous mode.
- When Continuous (A 55) is set to Continuous or BSS.
- When recording movies.
• Dates imprinted at an Image mode setting (A 51) of O 640×480 may be difficult to read.
Select N 1024×768 or larger when using date imprint.
• The date is saved using the format selected in the setup menu’s Date item (A 16, 98).
C
Date Imprint and Print Set
When images are printed from DPOF-compatible printers that can print date and photo information,
you can use Print Set (A 64) and print the shooting date and photo information on the images. In
such a case, it is unnecessary to imprint date and time on images beforehand using Date Imprint.
103
Setup Menu
g Vibration Reduction
Press the d button M z (Setup menu) (A 94) M g Vibration reduction
Specify the vibration reduction setting for shooting still images. Vibration
reduction effectively corrects blur that commonly occurs when shooting with
zooming or at slow shutter speeds. Set vibration reduction to Off when using a
tripod to stabilize the camera during shooting.
V
On (hybrid)
Image-sensor shift vibration reduction reduces the effects of camera shake.
Additionally, electronic vibration reduction is used to process images and remove
the effects of camera shake in the following situations.
• When the flash does not fire
• When a shutter speed slower than 1/60 seconds is used
• When Self-timer is disabled
• When Continuous is set to Single
• When ISO sensitivity is set to 200 or less
Basic Camera Setup
g
On (default setting)
Image-sensor shift vibration reduction reduces the effects of camera shake.
Off
Vibration reduction is not used.
The vibration reduction setting can be confirmed in the monitor during shooting
(A 8, 21) (When it is set to Off, no icon is displayed).
B
Notes on Vibration reduction
• Vibration reduction may take a few seconds to activate after the power is turned on, or the camera
enters shooting mode from playback mode. Wait until the display stabilizes before shooting.
• Due to characteristics of the vibration reduction function, images displayed on the camera’s
monitor immediately after shooting may appear blurry.
• Vibration reduction may be unable to completely eliminate the effects of camera shaking in some situations.
• When set to On (hybrid), electronic vibration reduction may not reduce the effects of camera
shake if the amount of vibration is very small or very large.
• When set to On (hybrid), electronic vibration reduction does not function if shutter speed is fast
or very slow.
• When set to On (hybrid), the camera automatically releases the shutter two times for each shot
and processes the image, therefore it takes more time to save captured images. The Shutter
sound (A 107) will be heard only once. Only one image is saved.
D
104
Using Vibration Reduction with Movies
When recording movies, electronic vibration reduction is used automatically to reduce the effects of
camera shake.
Setup Menu
U Motion Detection
Press the d button M z (Setup menu) (A 94) M U Motion detection
Specify whether or not motion detection is used to reduce the effects of subject
movement and camera shake when taking still pictures.
U
Auto (default setting)
When the camera detects subject movement or camera shake, the ISO sensitivity
and shutter speed are automatically increased to reduce blurring.
Note that motion detection is not active in the following situations:
• When the flash is set to X (fill flash)
• When the ISO sensitivity option (A 56) is set fixed at a particular value in
A (auto) mode
• When using Multi-shot 16 (A 55)
• In the following scene modes: Night portrait (A 37), Dusk/dawn (A 38),
Night landscape (A 39), Museum (A 40), Backlight (A 41)
• When using Sport Continuous mode (A 46)
Motion detection is not enabled.
The motion detection setting can be confirmed in the monitor during shooting
(A 21).
When the camera detects shaking and increases shutter speed, the motion
detection indicator turns green. When set to Off, no icon is displayed.
B
Basic Camera Setup
Off
Notes on Motion detection
• Blurring caused by camera shake or subject movement may not be eliminated depending on
shooting conditions.
• Motion detection may not function if the subject exhibits significant movement or is too dark.
• The images taken may become somewhat grainy.
105
Setup Menu
h AF Assist
Press the d button M z (Setup menu) (A 94) M h AF assist
Specify whether or not the AF-assist illuminator is used to help the camera focus
when the subject is poorly lit.
Auto (default setting)
AF-assist illuminator will be used to assist the focus operation when the subject is
poorly lit. The illuminator has a range of about 4.0 m (13 ft.) at the maximum wideangle position and 3.0 m (9 ft. 10 in.) at the maximum telephoto position.
However, the AF-assist illumination will not turn on in some scene modes even if
Auto is selected (A 36-40).
Off
Disable this function. The camera may be unable to focus if lighting is poor.
Basic Camera Setup
106
Setup Menu
i Sound Settings
Press the d button M z (Setup menu) (A 94) M i Sound settings
Specify sound settings.
Button sound
Turn the button sound On or Off. When On (default setting) is selected, a beep
will sound once when operations are completed successfully, twice when the
focus has been locked, and three times when an error is detected, and Start-up
sound will also play when the camera is turned on.
Shutter sound
Choose shutter sound from On (default setting) or Off.
Note that even when set to On, the shutter sound will not be heard in the
following situations.
• When Continuous is set to Continuous, BSS, or Multi-shot 16
• When scene mode is set to Museum
• When using sport continuous
Basic Camera Setup
107
Setup Menu
k Auto Off
Press the d button M z (Setup menu) (A 94) M k Auto off
When the camera is on and a period of time passes without any operations, the
camera will enter standby mode (A 15) to save power.
Once the camera has entered standby mode, the power-on lamp will blink. If no
operations are performed for another three minutes, the camera will turn off.
Use this option to set time before camera enters standby mode.
Auto off
Choose the time allowed to elapse before the camera enters standby mode if no
operations are performed from 30 s (default setting), 1 min, 5 min, and 30 min.
Sleep mode
Basic Camera Setup
If On (default setting) is selected, the camera will enter standby mode when there
is no change in the brightness of the subject, even before the time selected in the
auto off menu has elapsed. The camera will enter sleep mode after 30 seconds
when Auto off is set to 1 min or less, or after 1 minute when Auto off is set to
5 min or more.
B
Notes on Auto Off
The time allowed to elapse before the camera enters standby mode is fixed in the following cases:
• While menus are displayed: 3 minutes
• While slide show is in progress: Up to 30 minutes
C
108
Exiting Standby Mode
Press one of the following buttons to exit standby mode.
• Power switch
• Shutter-release button
• A button
• c button
• b (movie-record) button
Setup Menu
l Format Memory/m Format Card
Press the d button M z (Setup menu) (A 94) M l Format memory/m Format card
Use this option to format the internal memory or a memory card.
Formatting internal memory
Format memory
To format the internal memory, remove the memory
card from the camera.
The Format memory option is displayed in the setup
menu.
All images will
be deleted! OK?
Format
No
Exit
Formatting a Memory Card
Format card
When the memory card is inserted into the camera, the
Format card option is displayed in the setup menu.
All images will
be deleted! OK?
Exit
B
Basic Camera Setup
Format
No
Formatting Internal Memory and Memory Cards
• Formatting the internal memory or memory cards permanently deletes all data. Be sure to
transfer important images to a computer before formatting.
• Do not turn the camera off or open the battery-chamber/memory card slot cover during
formatting.
• The first time you insert the memory cards used in other devices into this camera, be sure to
format them using this camera.
109
Setup Menu
n Language
Press the d button M z (Setup menu) (A 94) M n Language
Select one of 24 languages for display of camera menus and messages.
Basic Camera Setup
Czech
Polish
Danish
Portuguese
German
Russian
(default setting)
Finnish
Spanish
Swedish
Greek
Turkish
French
Arabic
Indonesian
Simplified Chinese
Italian
Traditional Chinese
Hungarian
Japanese
Dutch
Korean
Norwegian
Thai
H TV Settings
Press the d button M z (Setup menu) (A 94) M H TV settings
Adjust settings for connection to a television.
Video mode
Choose from NTSC and PAL.
HDMI
Select the HDMI output image resolution from Auto (default setting), 480p, 720p,
and 1080i. When set to Auto, the resolution is automatically set to 480p, 720p, or
1080i according to high-definition television that is connected to the camera.
110
Setup Menu
d Blink Warning
Press the d button M z (Setup menu) (A 94) M d Blink warning
Set whether or not to detect human subjects with eyes closed when shooting
pictures using face detection (A 24) in the following situations.
• G (Easy auto) mode
• Portrait (A 36) or Night portrait (A 37) scene modes
On
When the camera detects that one or more human subjects have closed their eyes
shortly after detecting the faces and shooting them, the Did someone blink?
screen will be displayed in the monitor. The face of the human subject that may
have closed his/her eyes is framed by a yellow border. In such a case, you can
check the shot picture and determine if you take the picture again.
➝ “Operating the Did someone blink? Screen”
Off (default setting)
Blink warning does not take effect.
The following operations are available when the Did
someone blink? screen is displayed.
If no operations are performed for a few seconds, the
screen automatically returns to the shooting mode
screen.
Did someone blink?
Basic Camera Setup
Operating the Did someone blink? Screen
Exit
To
Enlarge and display
the face of the person
who blinked
Switch to full-frame
playback
Use
g (i)
f (h)
Select the face to be
displayed
Delete the shot image
Return to shooting
mode
l
k
Description
Rotate the zoom control to g (i).
Rotate the zoom control to f (h).
If the camera detects more than one human
subjects with their eyes closed, press HIJ
K during the enlarged display to switch over
the face displayed.
Press l.
Press k or the shutter-release button.
111
Setup Menu
p Reset All
Press the d button M z (Setup menu) (A 94) M p Reset all
When Reset is selected, the camera’s settings will be restored to their default
values.
Pop-up Menu
Option
Default value
Flash mode (A 29)
Auto
Self-timer (A 32)
Off
Macro mode (A 49)
Off
Exposure compensation (A 33)
0.0
Scene Mode
Option
Default value
Basic Camera Setup
Scene mode (A 35)
Portrait
Hue adjustment in food mode (A 40)
Center
Sport Continuous Menu
Option
Default value
Sport continuous (A 46)
Continuous H
Image mode (A 51)
M 2048×1536
Shooting Menu
Option
Default value
Image mode (A 51)
I 4000×3000
White balance (A 53)
Auto
Continuous (A 55)
Single
ISO sensitivity (A 56)
Auto
Color options (A 57)
Standard color
Movie Menu
Option
112
Default value
Movie options (A 77)
HD 720p (1280×720)
Autofocus mode (A 78)
Single AF
Wind noise reduction (A 78)
Off
Setup Menu
Setup Menu
Option
Default value
Text
Welcome screen (A 97)
None
Photo info (A 101)
Auto info
Image review (A 101)
On
Brightness (A 101)
3
Date imprint (A 103)
Off
Vibration reduction (A 104)
On
Motion detection (A 105)
Auto
AF assist (A 106)
Auto
Button sound (A 107)
On
Shutter sound (A 107)
On
Auto off (A 108)
30 s
Sleep mode (A 108)
On
HDMI (A 110)
Auto
Blink warning (A 111)
Off
Others
Option
Paper size (A 89, 90)
Default value
Basic Camera Setup
Menus (A 96)
Default
• Choosing Reset all also clears the current file number (A 123) from the
memory. Numbering will continue from the lowest number available. To reset
file numbering to “0001”, delete all images (A 67) before selecting Reset all.
• The following settings in the menus will remain unaffected even if Reset all is
performed.
Shooting menu:
Preset manual in the White balance menu (A 54)
Setup menu:
Settings for image registered for Welcome screen (A 97), Date (A 98),
Language (A 110), Video mode (A 110), and Battery type (A 114)
113
Setup Menu
s Battery Type
Press the d button M z (Setup menu) (A 94) M s Battery type
To ensure that the camera shows the correct battery level (A 20), choose the
type that matches the batteries currently in use.
Alkaline
LR6/L40 (AA-size) alkaline batteries
COOLPIX (Ni-MH)
Nikon EN-MH2 rechargeable Ni-MH (nickel metal
hydride) batteries
Lithium (default setting)
FR6/L91 (AA-size) lithium batteries
d Protect
Press the d button M z (Setup menu) (A 94) M d Protect
Basic Camera Setup
114
Protect selected images from accidental deletion. Use the image selection screen
to turn protection on and off for selected images (see “Selecting Multiple Images”
(A 68) for more information).
Note, however, that formatting the camera’s internal memory or the memory card
will permanently erase protected files (A 109).
Protected images can be identified by the s icon (A 9, 60) in playback mode.
Setup Menu
f Rotate Image
Press the d button M z (Setup menu) (A 94) M f Rotate image
Set the image orientation (vertical or horizontal frame) displayed on the camera
monitor after the pictures are taken.
Images can be rotated 90° clockwise or counterclockwise.
Images that were saved in the portrait (vertical) orientation can be rotated up to
180° in either direction.
Select images on the image selection screen (A 68) to display the image rotation
screen. Press the multi selector J or K to rotate the image 90°.
Rotate image
Rotate
Rotate 90°
counterclockwise
Back
Rotate
Back
Rotate
Rotate 90°
clockwise
Press k to select the displayed direction and the vertical / horizontal position data
will be saved on the image.
Basic Camera Setup
Back
Rotate image
Rotate image
115
Setup Menu
h Copy: Copying Between Memory Card and Internal Memory
Press the d button M z (Setup menu) (A 94) M h Copy
Copy images between the internal memory and a memory card.
1
Select an option from the copy screen using
the multi selector and press k.
Copy
q: Copy images from internal memory to memory
card.
r: Copy images from memory card to internal
memory.
2
Choose the copy option and press k.
Selected images: Copy images selected from the image
selection screen (A 68).
Basic Camera Setup
All images:
Exit
Camera to card
Selected images
All images
Copy all images.
Exit
B
Notes on Copy
• JPEG- and MOV-format files can be copied. Files saved in any other format cannot be copied.
• Images taken with another make of camera or that have been modified on a computer cannot be
copied.
• When copying images for which Print set (A 114) options are enabled, the print set settings are
not copied. However, when copying pictures for which Protect (A 64) is enabled, the protect
setting is copied.
D
116
More Information
See “Image File and Folder Names” (A 123) for more information.
Setup Menu
r Firmware Version
Press the d button M z (Setup menu) (A 94) M r Firmware version
View the current camera firmware version.
COOLPIX L110 Ver. X.X
Back
Basic Camera Setup
117
Notes on Camera Care and General Usage
Caring for the Camera
To ensure continued enjoyment of this Nikon product, observe the following
precautions when using or storing the device:
B
Keep dry
The device will be damaged if immersed in water or subjected to high humidity.
B
Do not drop
The product may malfunction if subjected to strong shock or vibration.
B
Handle the lens and all moving parts with care
Do not apply force to the lens, monitor, memory card slot or battery chamber. These parts are easily
damaged. Applying force to the lens cover could result in camera malfunction or damage to the
lens. Should the monitor break, care should be taken to avoid injury caused by broken glass and to
prevent the liquid crystal from the display touching the skin or entering the eyes or mouth.
Notes on Camera Care and General Usage
B
Do not point the lens at strong light sources for extended periods
Avoid pointing the lens at the sun or other strong light sources for extended periods when using or
storing the camera. Intense light may cause deterioration of the image sensor, producing a white
blur effect in photographs.
B
Keep away from strong magnetic fields
Do not use or save this device in the vicinity of equipment that generates strong electromagnetic
radiation or magnetic fields. Strong static charges or the magnetic fields produced by equipment
such as radio transmitters could interfere with the monitor, damage data saved on the memory card,
or affect the product’s internal circuitry.
B
Avoid sudden changes in temperature
Sudden changes in temperature, such as when entering or leaving a heated building on a cold day,
can cause condensation to form inside the device. To prevent condensation, place the device in a
carrying case or a plastic bag before exposing it to sudden changes in temperature.
B
Turn the product off before removing or disconnecting the power source
Do not remove the battery while the product is on, or while images are being saved or deleted.
Forcibly cutting power in these circumstances could result in loss of data or in damage to product
memory or internal circuitry.
118
Caring for the Camera
C
The Battery
• After purchasing replacement rechargeable batteries, charge them before use. They are not fully
charged at the time of purchase.
Be sure to read and follow the information found in “Optional Accessories” (A 122) and in the
documentation included with the Battery Charger MH-73 (available separately).
• Check the battery level when taking the camera out, and replace the batteries if necessary (A 20).
If possible, carry spare batteries when taking pictures on important occasions.
• Battery capacity tends to decrease on cold days. Be sure that the batteries are fresh before heading
outside to take pictures in cold weather. Keep spare batteries in a warm place and exchange as
necessary. Once warmed, a cold battery may recover some of its charge.
• Dirt on the battery terminals can prevent the camera from functioning.
• Used batteries are a valuable resource. Please recycle used batteries in accordance with local
regulations.
Notes on Camera Care and General Usage
119
Caring for the Camera
Cleaning
Notes on Camera Care and General Usage
120
Lens
Avoid touching glass parts with your fingers. Remove dust or lint with a blower
(typically a small device with a rubber bulb attached to one end that is
pumped to produce a stream of air out the other end). To remove fingerprints
or other stains that cannot be removed with a blower, wipe the lens with a soft
cloth, using a spiral motion that starts at the center of the lens and working
toward the edges. If this fails, clean the lens using a cloth lightly dampened
with commercial lens cleaner.
Monitor
Remove dust or lint with a blower. To remove fingerprints and other stains,
clean the monitor with a soft, dry cloth, being careful not to apply pressure.
Body
Use a blower to remove dust, dirt or sand, then wipe gently with a soft, dry
cloth. After using the camera at the beach or seaside, wipe off any sand or salt
with a dry cloth lightly dampened with fresh water, then dry thoroughly. Note
that foreign matter inside the camera could cause damage not covered by the
warranty.
Do not use alcohol, thinner, or other volatile chemicals.
Caring for the Camera
Storage
Turn the camera off when not in use. Check that the power-on lamp is off before
putting the camera away. Remove the battery if the camera will not be used for an
extended period. Do not store the camera with naphtha or camphor moth balls, or
in any of the following locations:
• Next to equipment that produces strong electromagnetic fields, such as
televisions or radios
• Exposed to temperatures below –10 °C (14 °F) or above 50 °C (122 °F)
• Poorly ventilated or subject to humidities of over 60%
To prevent mold or mildew, take the camera out of storage at least once a month.
Turn the camera on and release the shutter a few times before putting the camera
away again.
Notes on the Monitor
• The monitor may contain a few pixels that are always lit or that do not light. This is a characteristic
common to all TFT LCD displays, and does not indicate a malfunction. Images saved using the
product will not be affected.
• When framing bright subjects, vertical comet-like streaks that whiten toward either end may
appear in the display. This phenomenon, known as “smear”, does not indicate a malfunction.
In shooting modes other than Sport continuous mode, Multi-shot 16 and movie mode, smear has
no effect on the images that are saved.
• Images in the monitor may be difficult to see under bright lighting.
• The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your
Nikon-authorized service representative.
C
Notes on Camera Care and General Usage
C
Notes on Smear
White or colored streaks may be visible when bright subjects are framed in the monitor. This
phenomenon, known as “smear,” occurs when extremely bright light strikes the image sensor; it is
characteristic of image sensors and does not indicate a malfunction. Smear may also take the form of
partial discoloration in the monitor during shooting. It does not appear in images recorded with the
camera except in the cases of movies and of images recorded with Multi-shot 16 selected for
Continuous. When shooting in these modes, we recommend that you avoid bright subjects such
as the sun, reflected sunlight, and electric lights.
121
Technical Notes
Optional Accessories
Battery charger/
Rechargeable batteries*
• Battery Charger MH-73 (includes four EN-MH2 rechargeable
Ni-MH batteries)
• Replacement rechargeable batteries: Rechargeable Ni-MH
batteries EN-MH2-B4 (set of four EN-MH2 batteries)
AC adapter
AC Adapter EH-67
USB cable
USB Cable UC-E6
AV cable
Audio Video Cable EG-CP14
Lens cap
Lens Cap LC-CP20
* When using with the COOLPIX L110, charge the four EN-MH2 rechargeable Ni-MH batteries
at a time using Battery Charger MH-73. Also, do not mix batteries that have a different
amount of charge remaining (A 119). EN-MH1 rechargeable Ni-MH batteries cannot be
used.
Approved Memory Cards
The following Secure Digital (SD) memory cards have been tested and approved
for use in this camera.
Memory cards with an SD Speed Class (*1) rating of class 6 or faster are
recommended for recording movies. Movie recording may stop unexpectedly
when memory cards with a lower Speed Class rating are used.
Technical Notes
SanDisk
2 GB*2, 4 GB*3, 8 GB*3, 16 GB*3, 32 GB*3
TOSHIBA
2 GB*2, 4 GB*3, 8 GB*3, 16 GB*3, 32 GB*3
Panasonic
2 GB*2, 4 GB*3, 8 GB*3, 12 GB*3, 16 GB*3, 32 GB*3
Lexar
2 GB*2, 4 GB*3, 8 GB*3
*1
*2
*3
A standard for defining the read/write speed of SD and SDHC memory cards.
If the memory card will be used with a card reader or similar device, check that device
supports 2 GB cards.
SDHC-compliant. If the memory card will be used with a card reader or similar
device, check that device supports SDHC.
Contact the manufacturer for details on the above cards.
122
Image File and Folder Names
Images and movies are assigned file names as follows.
D SC N 00 0 1 . J P G
Identifier (not shown on camera monitor)
Extension (signifies the file type)
Original still images, movies
DSCN
Still images
.JPG
Small copies
SSCN
Movies
.MOV
Cropped copies
RSCN
D-Lighting copies
FSCN
File number (assigned automatically in
ascending order, starting with “0001”)
Technical Notes
• Files are saved in folders named with a folder number followed by a fivecharacter identifier: “P_” plus a three-digit sequence number for images taken
using panorama assist (e.g. “101P_001”; A 42) and “NIKON” for all other images
(e.g. “100NIKON”). When the number of files within a folder reaches 9999, a new
folder will be created. File numbers will be assigned automatically starting with
“0001”.
• Files copied using Copy > Selected images are copied to the current folder,
where they are assigned new file numbers in ascending order starting from the
largest file number in memory. Copy > All images copies all folders from the
source medium; file names do not change but new folder numbers are
assigned in ascending order, starting from the largest folder number on the
destination medium (A 116).
• Folders can hold up to 200 images; if an image is taken when the current folder
contains 200 images, a new folder will be created by adding one to the current
folder number. If an image is taken when the current folder is numbered 999
and contains 200 images or an image numbered 9999, no further images can be
taken until the medium is formatted (A 109) or a new memory card inserted.
123
Error Messages
The following table lists the error messages and other warnings displayed in the
monitor, as well as the solutions for dealing with them.
Display
O (blinks)
Solution
Set clock.
A
98
Technical Notes
B
Battery running low.
Prepare to replace batteries. 14, 114
N
Battery exhausted.
Battery exhausted.
Replace batteries.
P
Battery temperature
high
Battery temperature is high. Turn off camera, and allow 14
battery to cool down before
resuming use. After 5
seconds, this message will
disappear, the monitor will
turn off, and the power-on
lamp and flash lamp will
blink rapidly. After the
lamps blink for three
minutes, the camera will
turn off automatically.
Pressing the power switch
also turns off the camera.
Q (blinks red)
Camera cannot focus.
• Refocus.
• Use focus lock.
24, 25,
48
P
Please wait for the
camera to finish
recording.
Camera cannot perform
other operations until
saving is complete.
Wait until message clears
from display automatically
when saving is complete.
25
N
Memory card is write
protected.
Write-protect switch is in
“lock” position.
Slide write-protect switch to 19
“write” position.
P
This card cannot be
used.
Error accessing memory
card.
• Use approved card.
122
• Check that connectors
18
are clean.
• Confirm that memory
18
card is correctly inserted.
P
This card cannot be
read.
124
Problem
Clock not set.
Error Messages
Display
P
Card is not formatted.
Format card?
Yes
No
N
Out of memory.
Problem
Solution
A
Memory card has not been All data saved on the
19
formatted for use in
memory card will be
COOLPIX L110.
deleted. If there is any data
on the card that you want
to keep, select No, and
backup the data to a
computer before
formatting the memory
card. To format the memory
card, select Yes and press
k.
Memory card is full.
• Choose smaller image
mode.
• Delete images.
51
26, 67,
79
• Insert new memory card. 18
• Remove memory card
19
and use internal memory.
P
Image cannot be
saved.
Error occurred while saving Format internal memory or 109
image.
memory card.
• Insert new memory card. 18
• Format internal memory 109
or memory card.
Image cannot be used for
welcome screen.
The following cannot be
51, 71,
registered as the welcome 72
screen.
• Images reduced to 320 ×
240 or smaller when
edited using crop or
small picture
• Images captured at an
Image mode setting of
o 3968×2232 or
m 1920×1080.
There is not enough
Delete images from
memory to copy the image. destination.
Technical Notes
Camera has run out of file
numbers.
67
N
Image cannot be
modified.
You are trying to edit an
image that cannot be
edited.
• Confirm the editing
69
features that can be used.
• These options cannot be –
used with movies.
N
Cannot record movie.
Time out error while
recording movie.
Choose memory card with
faster write speed.
18
125
Error Messages
Display
N
Memory contains no
images.
Problem
No images in the internal
memory or memory card.
N
File not created with
File contains no image COOLPIX L110.
data.
N
This file cannot be
played back.
N
All images are hidden.
The image cannot be
played back in a slide show.
N
This image cannot be
deleted.
Image is protected.
N
Destination in same time
Travel destination is in zone as home.
the current time zone.
Technical Notes
126
A
Solution
Remove memory card to
play back images from
internal memory.
116
File cannot be viewed on
this camera. View file using
the computer or any other
devices which was used to
create or edit this file.
–
–
Disable protection.
66
114
98
–
N
Raise the flash.
6, 29
The built-in flash is lowered. • Raise the built-in flash
when changing the flash
mode.
• Raise the built-in flash
37, 41
when shooting using the
Night portrait and
Backlight scene modes.
N
Lower the flash.
The flash is raised when
recording a movie.
May hamper sound
73
recording. Quietly lower the
flash. The sound of the flash
being lowered may be
recorded.
Q
Lens error.
Lens error.
(If the lens cap is
attached, turn the
camera off, remove the
lens cap, and turn the
camera on.)
Remove the lens cap if still 20
attached, and turn camera
off and then on again. If
error persists, contact
retailer or Nikon-authorized
service representative.
P
USB cable disconnected
Communications error during printing.
Turn camera off, reconnect 88
USB cable.
Error Messages
Display
Problem
A
Solution
Error has occurred in
camera’s internal circuitry.
Turn camera off, remove
and reinsert battery, and
turn camera on. If error
persists, contact retailer or
Nikon-authorized service
representative.
14, 20
PR
Printer error: check
printer status.
Running out of ink or
printer error.
Check printer. After solving –
the problem, select
Resume and press k to
resume printing.*
PR
Printer error:
check paper
Specified size of paper is
not loaded in printer.
Load the specified paper,
select Resume and press
k to resume printing.*
–
PR
Printer error:
paper jam
Paper has jammed in the
printer.
Eject the jammed paper,
select Resume and press
k to resume printing.*
–
PR
Printer error:
out of paper
No paper is loaded in
printer.
Load the specified paper,
select Resume and press
k to resume printing.*
–
PR
Printer error:
check ink
Ink error.
Check ink, select Resume
and press k to resume
printing.*
–
PR
Printer error:
out of ink
Ink cartridge is empty.
Replace ink, select Resume –
and press k to resume
printing.*
PR
Printer error:
file corrupt
An error caused by the
image file has occurred.
Select Cancel and press k –
to cancel printing.
* See the documentation provided with your printer for further guidance and
information.
Technical Notes
System error
Q
127
Troubleshooting
If the camera fails to function as expected, check the list of common problems
below before consulting your retailer or Nikon-authorized service representative.
Refer to the page numbers in the right-most column for more information.
Display, Settings and Power Supply
Problem
Monitor is blank
Technical Notes
128
Cause/Solution
• Camera is off.
• Battery exhausted.
• Standby mode for saving power: press the
shutter-release button halfway.
• When flash lamp blinks red, wait until flash has
charged.
• Camera and computer are connected via USB
cable.
• Camera and TV are connected via AV cable or
HDMI cable.
Monitor is hard to read
• Adjust monitor brightness.
• Monitor is dirty. Clean monitor.
Camera turns off without
• Battery exhausted.
warning
• Camera has turned off automatically to save
power.
• Battery is cold.
Date and time of recording are • Images taken while the clock is not set will
not correct
have a time stamp of “00/00/0000 00:00”;
movies will be dated “01/ 01/2010 00:00”. Set
the correct date and time using Date in the
setup menu.
• Check camera clock regularly against more
accurate timepieces and reset as required.
No indicators displayed in
Hide info is selected for Photo info.
monitor
Select Show info.
Date imprint not available
Camera clock has not been set.
Date not being displayed on
• Date imprint cannot be used with the current
images even when Date
shooting mode.
imprint is enabled
• A feature that cannot be used with date
imprint is selected.
• Date imprint cannot be used when recording
movies.
Camera settings reset
The clock battery is exhausted; all settings were
restored to their default values.
A
20
20
15, 24
30
83
80
101
120
20
108
119
16
98
101
16, 98
103
99
Troubleshooting
Problem
Monitor turns off, and the
power-on lamp blinks rapidly.
Cause/Solution
A
Battery temperature is high. Turn off camera and 14
allow battery to cool down before resuming use.
After the lamps blink for three minutes, the
camera will turn off automatically. Pressing the
power switch also turns off the camera.
Electronically Controlled Cameras
In extremely rare instances, unusual characters may appear in the monitor and the
camera may stop functioning. In most cases, this phenomenon is caused by a
strong external static charge. Turn the camera off, remove and replace the battery,
then turn the camera on again. In the event of continued malfunction, contact
your retailer or Nikon-authorized service representative. Note that disconnecting
the power source as described above may result in the loss of any data not saved
to internal memory or the memory card at the time the problem occurred. Data
already saved will not be affected.
Shooting
Problem
Cause/Solution
No picture taken when shutter- • When camera is in playback mode, press A.
release button is pressed.
• When menus are displayed, press d.
• Battery exhausted.
• When flash lamp blinks, flash is charging.
Cannot use shooting mode.
Disconnect the HDMI cable or USB cable.
• The intended subject is one with which
autofocus does not perform well.
• Set AF assist in the setup menu to Auto.
• Focus error. Turn camera off and then on
again.
Images are blurred.
• Use flash.
• Raise the ISO sensitivity.
• Use vibration reduction and motion detection.
• Use D (Best Shot Selector).
• Use tripod and self-timer.
Comet-like streaks that whiten Smear may occur when the camera is aimed at a
toward either end appear in the bright subject. When using multi-16, sport
monitor.
continuous, or when recording movies, avoid
bright objects such as the sun, reflections of the
sun, and electric lights.
106
20
Technical Notes
Camera cannot focus.
A
10
12
20
30
80, 83,
88
25
29
56
104, 105
55
5, 32
55, 121
129
Troubleshooting
Technical Notes
130
Problem
Cause/Solution
Bright specks appear in images Flash is reflecting off particles in air. Lower the
taken with flash.
built-in flash or set flash mode to W (Off).
Flash does not fire.
• The built-in flash is lowered, or flash mode is
set to W (Off).
• Some scene modes that cannot turn on flash
are selected.
• Sport continuous mode is selected.
• A feature that cannot be used with the flash is
selected.
Digital zoom cannot be used.
Digital zoom cannot be used in the following
situations.
• When Portrait or Night portrait is selected
for Scene mode.
• When smart portrait mode is selected.
• When Multi-shot 16 is selected for
Continuous.
• When recording movies
Image mode not available.
• A feature that cannot be used with image
mode is selected.
• Available image modes differ according to the
current shooting mode.
No sound when shutter is
• Off is selected for Sound settings > Shutter
released.
sound in setup menu.
• Do not block the speaker.
AF-assist illuminator does not
• Off is selected for AF assist option in camera
light.
setup menu.
• AF-assist illuminator turns off automatically in
some scene modes.
Images appear smeared.
Lens is dirty. Clean lens.
Hues are unnatural.
White balance does not match light source.
Randomly spaced bright pixels The subject is dark, so shutter speed is too slow
(“noise”) appear in image.
or ISO sensitivity is too high.
• Noise can be reduced by using flash.
• Select a lower ISO sensitivity.
Images are too dark
• The built-in flash is lowered, or flash mode is
(underexposed).
set to W (Off).
• Flash window is blocked.
• Subject is beyond flash range.
• Adjust exposure compensation.
• Raise the ISO sensitivity.
• Subject is backlit. Select the Backlight scene
mode, or set the flash mode to X (fill flash).
A
6, 29
6, 29
35
46
58
36, 37
44
55
73
58
51
107
4
106
36-41
120
53
29
56
6, 29
22
29
33
56
29, 41
Troubleshooting
Problem
Images are too bright
(overexposed).
Cause/Solution
Adjust exposure compensation.
A
33
When taking pictures with V (auto with red28, 29,
eye reduction), or when taking pictures with
37
Night portrait (either in easy auto mode or the
Night portrait scene mode) and the fill flash with
Unexpected results when flash slow sync and red-eye reduction is used, red-eye
set to V (auto with red-eye
reduction may be applied, in rare cases, to areas
reduction).
not affected by red-eye. Use auto mode or any
scene mode other than Night portrait, and
change the flash mode to any setting other than
V (auto with red-eye reduction) and try
shooting again.
Playback
Problem
File cannot be played back.
A
–
79
–
79
51
69
69
Technical Notes
Cause/Solution
• File was overwritten or renamed by computer
or other make of camera.
• Only movies recorded with COOLPIX L110 can
be played back.
Cannot zoom in on images.
Playback zoom cannot be used with movies,
small pictures, or images that have been
cropped to 320 × 240 or smaller.
Cannot use D-Lighting, crop, or • These options cannot be used with movies.
small picture options.
• Images taken at an Image mode setting of
o 3968×2232 or m 1920×1080 cannot be
edited.
• Select image that supports D-Lighting, crop, or
small picture.
• Camera is unable to edit images taken with
other cameras.
Images not displayed on
• Select the correct Video mode or HDMI TV
television.
settings (Setup menu > TV settings).
• Memory card contains no images. Replace
memory card. Remove memory card to play
back images from internal memory.
• An AV cable or a USB cable is connected to the
camera while an HDMI cable is also connected.
110
18
81
131
Troubleshooting
Problem
Nikon Transfer does not start
when camera is connected.
Images to be printed are not
displayed.
Cannot select paper size with
camera.
Technical Notes
132
Cause/Solution
Camera is off.
Battery exhausted.
USB cable is not correctly connected.
Camera is not recognized by the computer.
Confirm system requirements.
Computer is not set to launch Nikon Transfer
automatically. For more information about
Nikon Transfer, refer to help information
contained in Nikon Transfer.
Memory card contains no images. Replace
memory card. Remove memory card to print
images from internal memory.
Even when using a PictBridge compatible
printer, paper size cannot be selected from the
camera in the following situations. Use the
printer to select paper size.
• The printer does not support the paper sizes
used by the camera.
• The printer automatically selects the paper
size.
•
•
•
•
•
•
A
20
20
83
–
82
–
18
89, 90
Specifications
Nikon COOLPIX L110 Digital Camera
Type
Effective pixels
Image sensor
Lens
Focal length
f/-number
Construction
Digital zoom
Vibration reduction
Autofocus (AF)
Focus range (from
lens)
Focus-area selection
Monitor
Media
File system
File formats
Image size
(pixels)
ISO sensitivity (Standard
output sensitivity)
Internal memory (Approx. 43 MB), Secure Digital (SD) memory
cards
DCF, Exif 2.2, and DPOF compliant
Still pictures: JPEG
Movies: MOV (Video: MPEG-4 AVC/H.264, Audio: AAC, stereo)
• 12M (High) [4000×3000P]
• 12M [4000×3000]
• 8M [3264×2448]
• 5M [2592×1944]
• 3M [2048×1536]
• PC [1024×768]
• VGA [640×480]
• 16:9 [3968×2232]
• 16:9 [1920×1080]
ISO 80, 100, 200, 400, 800, 1600, 3200, 6400, Auto (ISO 80-800),
Sport continuous mode (ISO 640-3200)
Technical Notes
Frame coverage
(shooting mode)
Frame coverage
(playback mode)
Storage
Compact digital camera
12.1 million
1/2.3-in. CCD; total pixels: 12.39 million
15× optical zoom, NIKKOR lens
5.0-75.0mm
Angle of view equivalent to that of 28-420mm lens in 35mm
[135] format
f/3.5-5.4
12 elements in 8 groups
Up to 4×
Angle of view equivalent to that of approx. 1680mm lens in
35mm [135] format
Combination of image-sensor shift and electronic VR (for still images)
Electronic VR (movies)
Contrast-detect AF
• Approx. 50 cm (1 ft. 8 in.) to ∞ (W); approx. 1.5 m (5 ft.) to ∞ (T)
• Macro mode: 1 cm (0.4 in.) (middle zoom position) to ∞
Center, face detection
7.5 cm/3-in., approx. 460k-dot, TFT LCD with anti-reflection
coating and 5-level brightness adjustment
Approx. 97% horizontal and 97% vertical (Compared to actual
picture)
Approx. 100% horizontal and 100% vertical (Compared to
actual picture)
133
Specifications
Exposure
Metering
Exposure control
Range
(A (auto) mode)
Shutter
Speed
Aperture
Range
Self-timer
Built-in flash
Range (approx.)
(ISO sensitivity: Auto)
Flash control
Interface
Data transfer protocol
Video output
I/O terminal
Technical Notes
Supported languages
Power sources
Number of Exposures
Possible (Battery life)*
Dimensions (W × H × D)
Weight
Operating environment
Operating
temperature
Humidity
134
256-segment matrix, center-weighted (when using up to 2×
digital zoom), spot (digital zoom 2× or more)
Programmed auto exposure with motion detection and
exposure compensation (-2.0 to +2.0 EV in steps of 1/3 EV)
[W]: 0.7 to 15.9 EV
[T]: 1.9 to 17.1 EV
(exposure values achieved with automatic ISO sensitivity
adjustment converted to ISO 100 values)
Mechanical and charge-coupled electronic shutter
1/1000 - 2 s, 1/8000 - 1/15 s (Sport continuous mode)
Electronically-controlled ND filter (-2 AV) selection
2 steps (f/3.5 and f/7 [W])
Approx. 10 seconds
[W]: 0.5 to 5.5 m (1 ft. 8 in. to 18 ft.)
[T]: 1.5 to 3.5 m (5 ft. to 11 ft.)
TTL auto flash with monitor preflashes
Hi-Speed USB
MTP, PTP
Can be selected from NTSC and PAL
Audio video output/digital I/O (USB), HDMI mini connector
(HDMI output), DC input connector
Arabic, Chinese (Simplified and Traditional), Czech, Danish,
Dutch, English, Finnish, French, Greek, German, Hungarian,
Indonesian, Italian, Japanese, Korean, Polish, Portuguese,
Norwegian, Russian, Spanish, Swedish, Thai, Turkish
• Four FR6/L91 (AA-size) lithium batteries
• Four LR6/L40 (AA-size) alkaline batteries
• Four EN-MH2 rechargeable Ni-MH batteries (available separately)
• AC Adapter EH-67 (available separately)
Approx. 840 shots with lithium, 270 shots with alkaline, or
500 shots with EN-MH2 batteries
Approx. 108.9 × 74.3 × 78.1 mm (Approx. 4.3 × 3.0 × 3.1 in.)
(excluding projections)
Approx. 406 g (14.4 oz)
(including batteries and SD memory card)
0 to 40°C (32 to 104°F)
Less than 85% (no condensation)
Specifications
• Unless otherwise stated, all figures are for a camera with fully-charged lithium batteries
operated at an ambient temperature of 25°C (77°F).
* Based on Camera and Imaging Products Association (CIPA) standards for measuring the life
of camera batteries. Measured at 23 (±2) °C (69 to 77°F); zoom adjusted with each shot,
flash fired with every other shot, image mode set to I 4000×3000. Battery life may vary
depending on shooting interval and length of time menus and images are displayed.
Supplied batteries are for trial use only.
Technical Notes
B
Specifications
Nikon will not be held liable for any errors this manual may contain.
The appearance of this product and its specifications are subject to change without notice.
135
Specifications
Supported Standards
• DCF: Design Rule for Camera File System is a standard widely used in the digital
camera industry to ensure compatibility among different makes of camera.
• DPOF: Digital Print Order Format is an industry-wide standard that allows
images to be printed from print orders saved on the memory card.
• Exif version 2.2: This camera supports Exif (Exchangeable Image File Format
for Digital Still Cameras) version 2.2, a standard that allows information saved
with photographs to be used for optimal color reproduction when images are
output from Exif-compliant printers.
• PictBridge: A standard developed cooperatively by the digital camera and
printer industries, allowing photographs to be output directly to a printer
without connecting the camera to a computer.
Technical Notes
136
Index
Symbols
k (apply selection) button 5, 11
b (movie-record) button 5, 10
c (Playback) button 5, 10
A (shooting mode) button 5, 10
A Auto mode 48
l Delete button 5, 26, 27, 79
c D-Lighting 70
G Easy auto mode 28, 20
o Exposure compensation 33
m Flash mode 30
p Macro mode 49
c Playback mode 26
C Scene mode 35
n Self-timer 32
F Smart portrait mode 44
d Sport continuous mode 46
R 43
f button 4, 23, 59, 60, 61, 62
h button 4, 23, 59, 60, 61, 62
g button 4, 13, 23, 59, 60, 61, 62
i button 4, 23, 59, 60, 61, 62
j button 4, 13
d button 5, 12
AC adapter 15, 122
AF-assist illuminator 4, 25, 106
Alkaline batteries 14, 15
Aperture 24
Audio-in/Video-in jack 80
Auto flash 29
Auto off 15, 108
Autofocus 24, 49, 78
Autofocus mode 78
B
Backlight o 41
Batteries 14, 99
Battery level 20
Battery type 15, 114
C
Calendar display 61
Close-up k 39
Cloudy 53
Color options 57
Compression ratio 51
Computer 82
Continuous 55
Copy 116
Copy n 41
Crop 72
Cyanotype 57
D
Date 16, 98
Date imprint 103
Daylight 53
Daylight saving time 16, 99
DC input connector 4
DC input connector cover 4
Delete 26, 27, 67, 79
Digital zoom 23
Direct print 87
D-Lighting 69, 70
DPOF 136
DPOF printing 92
DSCN 123
Dusk/dawn i 38
Technical Notes
A
Battery-chamber 5
Battery-chamber/memory card slot cover
5, 14, 18
Beach/snow g 38
Best Shot Selector 55
Black-and-white 57
Blink warning 111
Brightness 101
BSS 55
Built-in flash 4, 29
Built-in microphone 4
Button sound 107
137
Index
E
Easy auto mode 20, 28
EH-67 15, 122
EN-MH2 14, 114, 119, 122
Exposure compensation 33
Extension 123
Eyelet for camera strap 4
F
File names 123
Fill flash 29
Firmware version 117
Flash 29, 30
Flash lamp 5, 30
Fluorescent 53
Focus 13, 24, 78
Focus lock 25, 48
Folder names 123
Food u 40
Format 19, 109
Format memory card 19, 109
Formatting internal memory 109
FSCN 123
Full-frame playback mode 27
Full-time AF 78
Technical Notes
H
Halfway 13
HDMI 110
HDMI cable 80
HDMI input 80
HDMI mini connector 4
Help 13
I
138
Identifier 123
Image mode 21, 35, 51
Image review 101
Image size 51
Incandescent 53
Indicator lamp 5
Internal memory 18
ISO sensitivity 30, 46, 56
J
JPG 123
L
Landscape c 36
Language 110
Lens 4, 133
Lithium batteries 14
M
Macro mode 49
Memory capacity 20
Memory card 18, 122
Memory card slot 5, 18
Menus 96
Monitor 5, 8, 120
Monitor settings 101
Motion detection 105
MOV 123
Movie menu 73, 75
Movie playback 79
Movie settings 77
Multi selector 5, 11
Multi-shot 16 55
Museum l 40
N
Nickel metal hydride batteries 14
Night landscape j 39
Night Portrait e 37
Nikon Transfer 83
Number of Exposures Remaining 20, 52
O
Off 29
Optical zoom 23
Optional Accessories 122
Index
P
Panorama assist p 41, 42
Paper size 89, 90
Party/indoor f 37
Photo info 101
PictBridge 87, 136
Playback 26, 27, 59, 60, 62, 79
Playback button 5, 10
Playback menu 63
Playback zoom 62
Portrait b 36
Power 14, 16, 20
Power switch 4, 14, 20
Power-on lamp 4, 14, 20
Preset manual 54
Print 64, 89, 90
Print set 64
Print Set (Date) 65
Printer 87
Protect 114
R
S
Scene mode 35, 36
Self-timer 32
Self-timer lamp 4, 32
Sepia 57
Setup menu 93
Shooting 20, 22, 24
Shooting mode button 5, 10
Shutter sound 107
Shutter speed 24
Shutter-release button 4, 24
Single 55
T
Tabs 12
Thumbnail playback 60
Time zone 16, 98, 100
Tripod socket 5
TV 80
TV settings 110
U
USB Cable 82, 83
USB connector and audio/video output 4,
80, 82, 88
V
Vibration reduction 104
Video mode 110
ViewNX 85
Vivid color 57
Volume 79
Technical Notes
Recording movies button 5, 10
Red-eye reduction 29, 31
Replay mode 26
Reset all 112
Rotate image 115
RSCN 123
Single AF 78
Sleep Mode 108
Slide show 66
Slow Sync 29
Small picture 71
Smart portrait 44
Sound settings 107
Speaker 4
Sport continuous mode 46
SSCN 123
Standard color 57
Strap 7
Sunset h 38
W
Welcome screen 97
White balance 53
Wind noise reduction 78
Z
Zoom control 4, 23, 79
139
140
141
142
DIGITAL CAMERA
User’s Manual
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
Printed in Japan
En
CT0A03(11)
6MM74211-03
En
