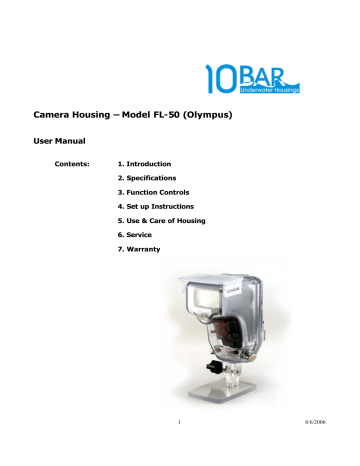

Camera Housing – Model FL-50 (Olympus)
User Manual
1. Introduction
2. Specifications
3. Function Controls
4. Set up Instructions
5. Use & Care of Housing
6. Service
7. Warranty
1. Introduction
10 BAR Underwater Housings are small, light and rugged enough to be used on every
dive. Use of a clear polycarbonate allows for visual inspection of camera condition and the Oring seal. 10 BAR Housings are designed for the ever -increasing variety of models of digital
still and video cameras. Advanced computer aided design and CNC manufacturing
technologies ensure precise dimensions. Each housing body is first injection molded, and then
machined to configure to individual camera model. A range of lens ports and controls are
fitted, to tailor the housing to your camera model.
2. Specifications FL-50
Test Pressure
Closure Design
Body Material
Overall Size
Total Weight
Buoyancy (with flashlight)
Optional accessories
10 Bar (300 ft.) Housings are individually tested
Air Lock
170 x 110 x 205 mm (DxWxH)
Approximately 0.86 Kg (Housing only)
Approximately neutral in salt water
• Full Function Control with TTL Function
• Diffuser
• Visible main O-ring for final pre-dive check
• Double O-ring design on all controls
• Bulkhead and hot shoe plug
• Universal key
• Silicone O-ring grease
• Spare main O-ring
• Sync cord
• Flex Arm
• Ball Join Arm
• Compatible Sync cord
3. Function Controls FL-50
1. Mode
2. Zoom
3. Test
4. Power
5. Aperture
6. ISO
7. Illumination
4. Set up Instructions
4.1 Air Lock:
The body and lid are designed with the Air Lock system “no clip” closure arrangement.
Testing has shown that this arrangement allow the water to exert an even pressure on the Oring, increasing the reliability of the watertight seal.
4.2 Pressure release plug
To open the housing, the pressure release plug must be first unscrewed and then
pulled out all the way (Fig 1). This provides a passage for the air to pass though and
eliminate the pressure different between the inside of the housing and the ambient.
(Fig. 1)
The plug consists of an internal double O-ring seal on the stainless steel slide shaft. These
internal O-rings form the watertight seal. There is also a large outer O-ring under the knob.
This O-ring serves to prevent contamination of the slide shaft, with dirt, salt etc., and is not
required for watertight integrity. If this O-ring should become detached, it can simply be
pushed back in place.
4.3 Opening levers:
After unscrewing and pulling out the pressure release plug, the lid can be opened. To
overcome the friction of opening, use lever (Fig. 2) to push against the lid with a cam action.
Be sure they are inserted all the way flat to the housing before turning to avoid damaging the
protrusions on the lid. The body has four holes on each corner edges for opening. Gently
lever off the lid with the supplied lever (Fig. 3) taking care not to twist the lid excessively.
The lid should be opened keeping it approximately paralleled to the body at all times, turn
first one corner a little, then the other a little, and repeat again until the lid is opened.
Remember to unscrew and pull out the pressure release plug all the way first, otherwise the
air pressure will resist attempts at opening. Lay the lid on a flat stable surface after opening.
(Fig. 2)
(Fig. 3)
4.4 Special note on responsibility for watertight integrity:
Each housing is individually inspected and hydrostatically tested in the factory. The
design of the main piston O-ring seal is among the most reliable in the industry and the
watertight integrity is excellent. This special O-ring design provides a perfect seal even if
there is any movement between the body and lid due to change of ambient pressure.
However please note that responsibility for ensuring the integrity of the watertight seal lies
entirely with the user. 10 BAR accepts no liability for damage to, or loss of any equipment
used with, or placed inside the housing. Users are highly recommended to carry out in-water
test of the housings without installing of the camera for their first dive after change of new
ports or alternation of any new configuration. The test can be carried out by lowering the
housing with ballast to the working depth or dive down to the safe diving range.
The O-ring seal is the only barrier between the water outside and the air
space within the camera. It is an effective barrier only if the seal is properly
maintained. The O-ring seal should be inspected before every dive. The following
information is provided for your guidance in using and maintaining the O-ring seal.
4.5 Maintaining the O-ring Seal:
If the main body to lid O-ring is not installed, install the O-ring before diving. This is
the only user serviceable O-ring. Its care and maintenance is critical to the watertight
integrity of the housing. The O-ring should be replaced at the service interval (see section on
service). If the O-ring is contaminated, or not already installed, inspect grease and install the
O-ring according to the following guidelines.
4.6 Inspection, cleaning and re-instillation of the O-ring
A soft cotton bud or sponge applicator, make sure these are free of all chemicals or
contamination such as loose fibers, and the tube of silicone grease supplied with the housing
are required. Note other types of silicone grease specifically for use with underwater camera
equipment can usually also be used. It is advised to carry out the following procedure on a
firm clean level surface, (e.g. at a table), to prevent skidding especially useful to have when
diving from a boat.
When to maintain the O-ring seal:
Remove the O-ring periodically for inspection. It is not necessary to remove, clean and
re-install the O-ring after every dive provided the O-ring did not become contaminated. As a
rule of thumb set up the camera and housing before a day’s diving. If the housing is required
to be opened between dives for changing memory card or re-charging batteries, make sure
the outside of the housing is thoroughly toweled dry before opening up. After removing the
lid and servicing the camera, replace the lid straight away, rather than leaving it lying around.
Before replacing the lid, make sure that no contamination such as dust, hair, salt, sand etc.
has fallen onto the O-ring or O-ring recess, as a precaution we recommend to inspect the Oring every time the lid is opened and to carry out the maintenance if necessary.
Place the lid on a firm non-slip level surface.
The O-ring can be extracted using an O-ring extractor tool (make sure the tool as no
sharp edges). Alternatively use the flats of the thumbs to gently stretch the O-ring on
two faces (Fig. 4) thus making a small loop protruding a few mm. The loop can then
be grasped between finger and thumb, to pull the O-ring over the lip.
Clean the O-ring recess (the square groove where the O-ring sits) with a cotton bud.
Inspect the O-ring all the way round its surface for damage such as cuts tears or
contamination. This should be done visually and also by feeling the surface texture
between finger and thumb.
IT IMMEDIATELY. A spare O -ring is supplied with your housing, or a replacement O5
ring can be obtained from 10 BAR. If the O-ring is contaminated or suspected of being
contaminated, clean it with a cotton cloth that is free of all chemicals or contamination.
After cleaning inspect the O-ring again.
Once the O-ring has been inspected and verified fit for use, apply a SMALL amount of
silicone grease to the O-ring. The silicone grease must be evenly distributed round the
Replace the O-ring into the groove; run a finger round the O-ring, to make sure it is
snugly seated in the groove.
(Fig. 4) Stretch the O-ring
4.7 Mounting the flashlight in the housing:
Set the flashlight in normal position. Slide the flashlight all the way into the hot shoe of
the housing until it is stop (Fig. 5), Turn the lock ring follow the direction “LOCK”. Take care
not to excessively tighten the screw (Fig. 6). Note: If you find that control levers do not
locate properly with the buttons, please check again that the flashlight is properly seated to
the limit of the guide rail.
(Fig. 5)
(Fig. 6)
Replace the lid, remember to ensure the pressure release plug is pulled all the way out
while closing, otherwise the air cannot escape. Squeeze the lid closed all the way, you will
hear the hiss of air being expelled.
(Fig. 7)
Screw home the pressure release plug (Fig. 7). There is no need to excessively tighten
this plug. The seal is made by internal O-rings. The O-ring on the underside of the plug is just
to keep out dirt.
After replacing the lid, make a final visual inspection of the main O-ring for
contamination (Fig. 8)
(Fig. 8)
Note: If the O-ring is in good contact, a thin black line, about 0.5-1mm in width
should be visible, where the O-ring is in contact with the lid. Follow this line all
the way round the edge of the seal, as a final check that the seal is good.
The housing is now ready for the dive.
Important !!! Before diving, make sure the pressure release plug is
pushed back inside and then screwed home, do not over tighten this
plug (finger tight only).
5. Use & Care of Housing:
5.1 Pre Dive Function Check.
Just before entering the water, make a habit of reviewing that you have carried out the
proper steps to close the housing. and the pressure release plug screwed home. Make a
visual check of the O-ring seal. It is also useful to switch on the camera, and check that
controls e.g. on/off, zoom, shutter functions operate normally. In case of misalignm ent of the
camera, simply open the case and correct the problem.
Check housing is closed.
Close pressure release plug
Check battery is full
Check sync cord is connected to the camera housing
Shot the camera at Auto mode
If there is a large change of temperature and the housing is not opened for
maintenance between dives, it is recommended to equalize the possible
pressure difference between the inside of the housing and the ambient by
opening the pressure release plug and close it firmly subsequently.
Always avoid submerging the housing in hot water for a prolonged time or a
cleansing tank where the water may be heated up by the sun.
5.2 General Operation.
The control levers and push buttons consist of internal double O-ring seals on a
stainless steel shaft. This arrangement is very reliable, however as a precaution, when
operating the controls, avoid excessively rapid movements, as this may distort the O-ring.
Also please allow for the fact that the camera takes a few seconds to power on. If the camera
dose not appear to respond to a control action, make sure that no other controls are pressing
on the camera, i.e. locking out further actions. Wear the wrist strap; it is easy to
inadvertently let go of the housing, especially if you are distracted.
5.3 Cleaning & Storage.
The body & lid of the housing are made of polycarbonate. Polycarbonate was selected
for its outstanding strength stiffness, hardness and toughness. As well as its crystal clear
transparency and high gloss surface. It has good resistance to weathering, although longterm exposure to sunlight should be avoided. Normal operating temperature range is 3°C to
36°C (Storage temperature: -10°C to 50°C)
It is good practice to rinse off your housing with fresh water after every dive. Avoid
exposure to fine sand. After a series of 10 or more dives, e.g. after a dive holiday, it is
recommended to immerse the housing for 2-3 hours in warm water to dissolve any salt
deposits that may have built up. No chemical cleaners should be used. Mild detergents e.g.
shampoo and soap based cleaners are permitted.
Important !!!
Some household chemicals may harm Polycarbonate; the
housing should never be exposed to the following classes of chemicals:
benzene, toluene, xylene, chlorinated hydrocarbons, methanol, any other solvents,
strong acids and bases.
For long term storage please remove the main o-ring from body.
5.4 Transportation.
When transporting by air, please ensure the housing is not sealed, to allow the air
pressure to equalize. Either remove the O -ring (recommended), or open the pressure release
port (a spacer is provided to keep the pressure plug in the open position, please make sure
there is no bending of the plug while open).
Please protect the housing during transportation. It is recommended to remove the
sync cord, and wrap the housing in foam or bubble wrap.
5.5 Accidents.
The impact resistance of the housing is excellent. However after an accident the
alignment of the housing may have been damaged. Therefore in the event of your housing
suffering an impact force, e.g. being dropped, it is essential you do not use the housing for
diving. Please return the housing immediately for service. Please put a note inside to indicate
the nature of the accident, so that we can assess the severity.
6. Service
To ensure the continued performance of your housing, it should be serviced every year,
or after every 200 dives. Please note the terms for servicing the housing posted at our
website. A full service will include:
• Inspection of all components for wears or damage (report if repair
• Cleaning of all sealing surfaces, and replacement of all O-ring seals.
• Hydrostatic pressure test to 10 Bar.
Note: the replacement of damaged components (except replacement O-rings) may
require additional cost.
7. Warranty
The warranty is valid within two years from the date of first purchase. The
warranty applies only to the housing itself. 10 BAR does not accept any
liability either implicit or otherwise for any equipment housed inside,
or used together with the housing. In the event of the housing flooding
within the period of warranty, 10 BAR will repair or replace the housing. Please
note that disassembly of the housing will invalidate warranty. Please fill in the
information below, and return a copy to 10 Bar Underwater Housing at the
address below, to validate the warranty.
(Copy to be retained by user)
Housing Type :
Date of Purchase
Serial Number :
(Labelled inside
Dealer :
Owner’s Name :
e-mail :
Tel :
Fax :
Office & Showroom:
Unit C, 2/F., Wing Hin Factory Building, 31-33 Ng Fong St.,
San Po Kong, Hong Kong.
Tel: (852) 2573 3228 Fax: (852) 2811 9180.
Email: [email protected] Web site: http//www. 10bar.com
Please keep this document for future reference
(Note: due to continuous improvement the latest model housing may differ slightly form those described in this
(Copy to be returned to 10 Bar Underwater Housings)
The warranty is valid within two years from the date of first purchase. The
warranty applies only to the housing itself. 10 BAR does not accept any
liability either implicit or otherwise for any equipment housed inside,
or used together with the housing. In the event of the housing flooding
within the period of warranty, 10 BAR will repair or replace the housing. Please
note that disassembly of the housing will invalidate warranty. Please fill in the
information below, and return to us at the address below, to validate the warranty.
Housing Type:
Date of Purchase:
Serial Number:
(Labelled inside
Owner’s Name:
Please return the Warranty to the following address:
Office & Showroom:
Unit C, 2/F., Wing Hin Factory Building, 31-33 Ng Fong St.,
San Po Kong, Hong Kong.
Tel: (852) 2573 3228 Fax: (852) 2811 9180
Email: [email protected] Web site: http//www. 10bar.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
