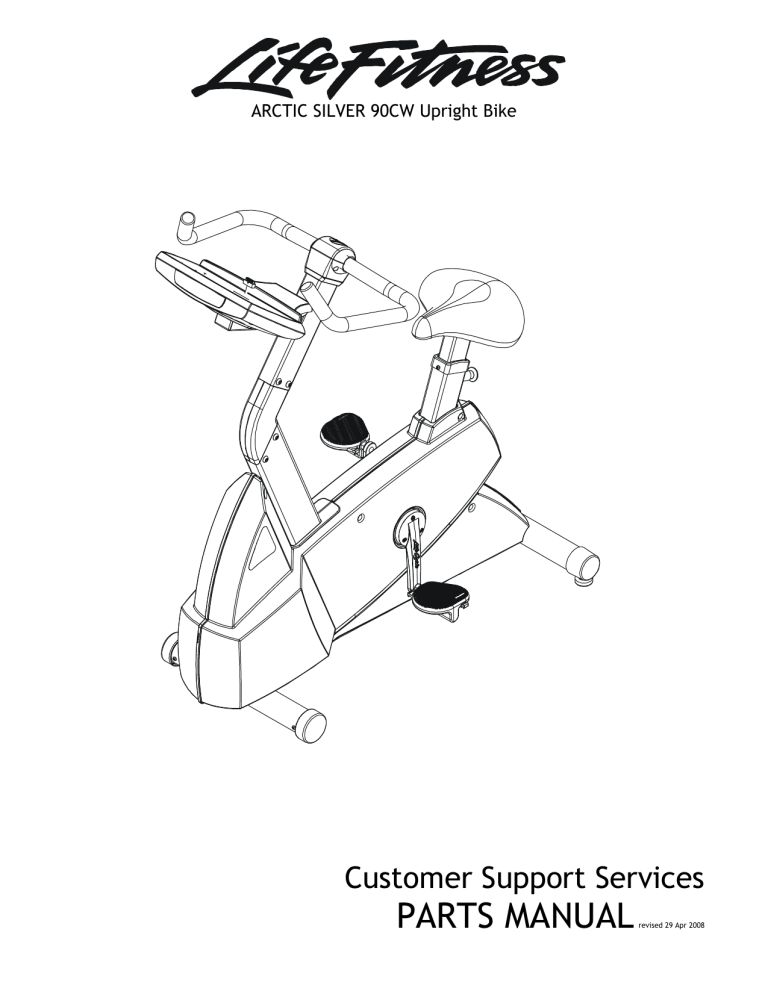

ARCTIC SILVER 90CW Upright Bike
Customer Support Services
PARTS MANUAL
revised 29 Apr 2008
ARCTIC SILVER 90CW
90CW-0XXX-02
REFERENCES
S/N CCI100000 and UP
OPERATION MANUAL
M051-00K63-A068
ACCESSORY TRAY
GK63-00002-0004
HARDWARE BAG
GK63-00002-0044
POLAR UPGRADE KIT
GK63-00002-0002
TOUCH UP PAINT:
SPRAY CAN
.5 OZ BOTTLE
.33 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
COAX CABLE
AK32-00020-0002
ER READY BRACKET ASSEMBLY
ASSEMBLY CONSISTS OF:
1) POWER CABLE
2) ER READY BRACKET
3) F TYPE CONNECTOR
AK63-00215-0000
SERVICE MANUAL
M051-00K63-A009
AK32-00078-0001
0K63-01329-0000
0017-00021-2846
NOTE: ADDING THE BOLT ON LCD SCREEN TO THE
90CW-0XXX-02 MAKES THE UNIT A 90CER-0XXX-02.
2
ARCTIC SILVER 90CW
90CW-0XXX-02
CONTENTS
S/N CCI100000 and UP
Page
CONSOLE COMPONENTS ..............................................................................................4
CONSOLE MOUNTING SCREWS AND POLAR COVERS..………………………………..5
ALTERNATOR W/PULLEY ..............................................................................................6
CRANKSHAFT AND BEARING ASSEMBLY...................................................................7
INTERMEDIATE SHAFT AND BEARING ASSEMBLY....................................................8
SEAT LATCH ASSEMBLY ...............................................................................................9
SEAT POST ASSEMBLY .................................................................................................10
SEAT POST SHROUDS………………………………………………………………………….11
IDLER BRACKET ASSEMBLY.........................................................................................12
CONSOLE SUPPORT ASSEMBLY..................................................................................13
LEFT SIDE SHROUD AND CRANKARM .........................................................................14
RIGHT SIDE SHROUD AND CRANKARM…………………………………………………….15
PCB MOUNTING BRACKET ASSEMBLY…………….………………………………………16
FRONT WHEELS………………………………………………………………………………….17
RESISTOR ASSEMBLY…….……………………………………………………………………18
HANDLEBAR ASSEMBLY………………..……………………………………………………..19
BELTS…………………….………………………………………………………………………...20
CABLES…………………………………………………………………………………………….21
3
ARCTIC SILVER 90CW
90CW-0XXX-02
Console Components
Overlay Bezel
S/N CCI100000 and UP
Console Board - Upper
A084-92220-A006
Phillips Pan Screws(13)
0017-00101-1650
Console Case Assembly
AK63-00121-0001
Case
0K63-01028-0001
Decal
0K63-01277-0000
Phillips Pan Screws(13)
0017-00101-1650
9V Battery
0017-00003-0757
Console Assembly
AK63-00162-0001 Eng Met
AK63-00162-0003 Ger Met
AK63-00162-0004 Spn Met
AK63-00162-0006 Jap Met
AK63-00162-0007 Frn Met
AK63-00162-0008 Itl Met
AK63-00162-0009 Dut Met
AK63-00162-0010 Por Met
Battery Door
0K63-01029-0001
Bezel W/Overlay Assy.
AK63-00167-0001 Eng Met
AK63-00167-0003 Ger Met
AK63-00167-0004 Spn Met
AK63-00167-0006 Jap Met
AK63-00167-0007 Frn Met
AK63-00167-0008 Itl Met
AK63-00167-0009 Dut Met
AK63-00167-0010 Por Met
4
ARCTIC SILVER 90CW
90CW-0XXX-02
Console Screws & Polar Covers
Console Assembly
S/N CCI100000 and UP
Upper Cover
0K63-01145-0001
Lower Cover
0K63-01146-0001
Cover Screws(4)
0017-00101-1744
Console
Mounting Screws(4)
0017-00101-1744
Rear Stabilizer
0K63-01219-0001
Leg Leveler
AK61-00035-0000
4-inch Gasket
0K63-01007-0004
5
ARCTIC SILVER 90CW
90CW-0XXX-02
Alternator w/Pulley - AK63-00093-0000
S/N CCI100000 and UP
Alternator
0017-00009-0841
Alternator Pulley
0K61-02500-0001
Brushes
0017-00009-0895
Locking Nut
0017-00103-0117
Bolt
0017-00101-0956
Washer
0017-00104-0044
6
ARCTIC SILVER 90CW
90CW-0XXX-02
Crankshaft and Bearing Assembly
Crank Arm Hub
0K63-01095-0001
S/N CCI100000 and UP
Pulley Assemlby
AK63-00051-0000
Pully
0K63-01018-0000
Flywheel Screws(3)
0017-00101-1715
Washers(3)
0017-00104-0458
*Crank Shaft & Bearing Kit
GK63-00002-0077
*Crank Shaft
0K63-01012-0000
*Small Thrust Washer(2)
0K63-01129-0000
*Large Thrust Washer(2)
0K63-01129-0001
*Bowed Retainer Ring(2)
0017-00100-0243
*Needle Bearing(2)
0K63-01128-0000
Washer(2)
0017-00104-0409
*Small Snap Ring(2)
0017-00100-0241
Crank Arm Hub(2)
0K63-01095-0001
7
Bolt(2)
0017-00101-1705
ARCTIC SILVER 90CW
90CW-0XXX-02
Intermediate Shaft & Bearing Assembly
Magnet
118E-00001-0124
(not included in kit)
Clutch Assembly
AK63-00026-0000
(not included in kit)
Delrin Washers (2)
0017-00104-0455
Retaining Ring
0017-00100-0242
S/N CCI100000 and UP
Spacer (not Intermediate
Bearings (2, not
available
separately) available
separately)
Intermediate Pulley
(not available separately)
Intermediate Shaft and
Bearing Assembly Kit
GK63-00002-0007
8
ARCTIC SILVER 90CW
90CW-0XXX-02
Seat Latch Assembly - AK63-00043-0001
S/N CCI100000 and UP
Latch Spring
0K63-01117-0000
Latch Bracket
0K63-01064-0000
NYLINER
0017-00042-1129
E-Ring
0017-00100-0050
Set Screws (2)
0017-00101-0333
Link Shaft Assy.
AK63-00113-0001
Latch Rack
0K63-01061-0000
NYLINER
0017-00042-1129
9
ARCTIC SILVER 90CW
90CW-0XXX-02
Seat Post Assembly. – AK63-00232-0003
S/N CCI100000 and UP
Standard Seat Assy.
AK63-00229-0004
Screw
0017-00101-1750
Lock Washer(4)
0017-00104-0064
Hex Bolt(4)
0017-00101-1121
Seat Post Decal
0K63-01310-0000
Extrusion
Guide Cap
0K63-01044-0000
Seat Post Assembly
AK63-00099-0001
Seat Adjustment Rack
0K63-01049-0001
Spring Support Bracket
0K63-01210-0000
Guide Base
0K63-01045-0000
Pan Screws(3)
0017-00101-1614
10
Polylastomer Bumper
0017-00042-1131
ARCTIC SILVER 90CW
90CW-0XXX-02
Seat Post Shrouds
S/N CCI100000 and UP
Left Seat Post Shroud
0K63-01092-0010
Screw
0017-00101-1741
Right Seat Post Shroud
0K63-01092-0009
11
ARCTIC SILVER 90CW
90CW-0XXX-02
Idler Bracket Assembly.- AK63-00021-0000
S/N CCI100000 and UP
Idler Bracket
0K63-01050-0000
Lock Nut
0017-00103-0218
Idler w/Bearing
AK63-00008-0000
12
ARCTIC SILVER 90CW
90CW-0XXX-02
Console Support Assembly
End Cap
0K63-01320-0000
S/N CCI100000 and UP
Console Support
Weldment Assy
AK63-00089-0002
Support Screws(4)
0017-00101-1755
Pan Screws(4)
0017-00101-1753
Handlebar Cover-RT
0k63-01191-0003
I-Beam Joint
0K63-01178-0001
Handlebar Cover-LT
0k63-01191-0004
13
ARCTIC SILVER 90CW
90CW-0XXX-02
Left Side Shroud and Crankarm
S/N CCI100000 and UP
Shroud Screws(3)
0017-00101-1741
Left Side Shroud
AK63-00178-0002
Crank Arm Screws(3)
0017-00101-1855
Crank Arm, LT
0K39-01042-0008
Left Pedal
AK63-00123-0004
Left Pedal Strap
0K63-01237-0004
Shroud Plug
0K63-01084-0001
Decal
0K63-01316-0000
14
ARCTIC SILVER 90CW
90CW-0XXX-02
Right Side Shroud and Crankarm
Right Pedal
AK63-00123-0003
Right Pedal Strap
0K63-01237-0003
S/N CCI100000 and UP
Right Side Shroud
AK63-00178-0001
Decal
0K63-01316-0000
Crank Arm Screws(3)
0017-00101-1855
Crank Arm, RT
0K39-01042-0007
Right Side
Shroud Screws(8)
0017-00101-1741
15
ARCTIC SILVER 90CW
90CW-0XXX-02
PCB Mounting Bracket Assembly
S/N CCI100000 and UP
Mounting Bracket
0K63-01211-0001
Plastic Grommet(4)
0017-00042-0821
Power Control Board
B084-92064-A000
Phillips Screw(4)
0017-00101-0832
16
ARCTIC SILVER 90CW
90CW-0XXX-02
Front Wheels – AK63-00017-0001
S/N CCI100000 and UP
Pan Screw(2)
0017-00101-1747
Wheel Screw
0017-00101-1747
Wheel Insert
0K63-01039-0000
Flat Washer
0K63-01041-0000
Wheel/Bearing Assembly
AK63-00016-0001
17
ARCTIC SILVER 90CW
90CW-0XXX-02
Resistor Assembly – AK63-00114-0000
Resistor
.5 OHM 240 Watt
100E-00002-0084
Nut(3)
0017-00103-0081
S/N CCI100000 and UP
Resistor Mounting Rod
0K63-01166-0000
Retainer
0K63-01215-0000
Pan Screw (2)
0017-00101-1282
Resistor Bracket(2)
0K63-01165-0000
18
ARCTIC SILVER 90CW
90CW-0XXX-02
Handlebar Assembly – AK63-00101-0001
S/N CCI100000 and UP
Handlebar
AK63-00084-0000
Dipped Grip
0K63-01177-0002
19
ARCTIC SILVER 90CW
90CW-0XXX-02
Belts
S/N CCI100000 and UP
Alternator Belt
0K63-01065-0000
Intermediate Belt
0K63-01066-0001
20
ARCTIC SILVER 90CW
90CW-0XXX-02
Cables
S/N CCI100000 and UP
Power Cable
AK63-00098-0000
Console Cable
AK63-00097-0000
21
