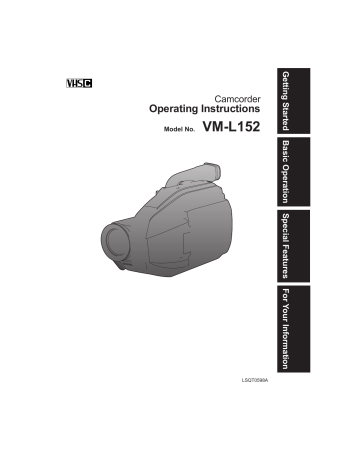

Operating Instructions
Model No.
VM-L152
Basic Operation
Special Features
For Your Information
LSQT0598A
Getting Started
Camcorder
Things You Should Know
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you years of enjoyment. Please take time
to fill in the information to the right.
The serial number is on the tag located on
the rear side of your Camcorder. Be sure
to retain this manual as your convenient
Camcorder information source.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
Unpack your Camcorder
These accessories are provided in order to set up or use your Camcorder.
1 pc. AC Adaptor (PV-A20)
1 pc. Audio/Video Cable
1 pc. Battery Pack
with DC Power Cable
(LSJA0390) (pages 20, 21)
(PV-BP15) (pages 8, 9)
(page 9)
1 pc. CR2025 Clock
Battery (VSBW0004)
(installed in Camcorder)
(page 32)
1 pc. Shoulder Strap
(LSFC0012) (page 11)
1 pc. Lens Cap (LSYK0818)
with Lens Cap Strap
(LSGQ0049) (page 11)
2
Battery Charging
Confirmation
Marker
Use this marker as a
reminder to yourself when
the battery is fully charged
or in need of a charge.
This marker performs no
function and is for your
reference only.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L152 Getting p01-07
2
02.2.18, 1:38 PM
Things You Should Know
WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP)
and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder
recording on your VHS VCR using the supplied VHS PlayPak.
This Camcorder is equipped with the HQ System to provide excellent video pictures, and
is compatible with standard VHS equipment.
It is recommended that only cassette tapes that have been tested and inspected for use in
VCR machines with the
and/or
mark be used.
This symbol warns the user that
uninsulated voltage within the unit may
have sufficient magnitude to cause
electric shock. Therefore, it is
dangerous to make any kind of contact
with any inside part of this unit.
This symbol alerts the user that
important literature concerning the
operation and maintenance of this unit
has been included. Therefore, it should
be read carefully in order to avoid any
problems.
The above markings are located on the appliance’s bottom cover.
3
Getting Started
Safety Precautions
Important Safeguards
1. Read Instructions – All the safety and
operating instructions should be read before
the unit is operated.
2. Retain Instructions – The safety and
operating instructions should be retained for
future reference.
3. Heed Warnings – All warnings on the unit
and in the operating instructions should be
adhered to.
4. Follow Instructions – All operating and
maintenance instructions should be followed.
5. Cleaning – Unplug this video unit from the
wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a dry cloth for
cleaning.
6. Attachments – Do not use attachments not
recommended by the video product
manufacturer as they may be hazardous.
7. Water and Moisture – Do not use this video
unit near water – for example near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, and
the like.
8. Accessories – Do not place this video unit
on an unstable cart, stand, tripod, bracket, or
table. The video unit may fall, causing serious
injury to a child or adult, and serious damage
to the unit. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the video unit. Any
mounting of the unit should follow the
manufacturer’s instructions and should use a
mounting accessory recommended by the
manufacturer. An appliance and cart
combination should be moved
with care. Quick stops,
excessive force, and uneven
surfaces may cause the
appliance and cart combination
to overturn.
9. Ventilation – Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the video unit
and to protect it from overheating. These
openings must not be blocked or covered.
Never place the video unit on a bed, sofa,
rug, or other similar surface, or near or over a
radiator or heat register. This video unit
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.
10. Power Sources – This video unit should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your
home, consult your appliance dealer or local
power company. For video units intended to
be operated from battery power, or other
sources, refer to the operating instructions.
4
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Important Safeguards
b. If any liquid has been spilled into, or
objects have fallen onto, the video unit.
c. If the video unit has been exposed to rain
or water.
d. If the video unit does not operate normally
by following the operating instructions.
Adjust only those controls that are covered
by the operating instructions, as an improper
adjustment of other controls may result in
damage and will often require extensive
work by a qualified technician to restore the
video unit to its normal operation.
e. If the video unit has been dropped or the
cabinet has been damaged.
f. When the video unit exhibits a distinct
change in performance – this indicates a
need for service.
20. Replacement Parts – When replacement
parts are required, be sure the service
technician has used replacement parts
specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
21. Safety Check – Upon completion of any
service or repairs to this video unit, ask the
service technician to perform safety checks
to determine that the video unit is in safe
operating order.
Precautions
USE & LOCATION
• TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture.
Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for
outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct
splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your
Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your
Camcorder from the power supply before cleaning.
• DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS.
• DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE
DAMAGE TO THE INTERNAL PARTS OF THE EVF.
• DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight,
inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your
Camcorder.
• AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm
place, moisture may form on the tape and inside the unit.
• DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
• STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to
unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which
could be damaged by improper handling or storage.
CARE
• TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder
body.
• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder
lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.
• TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands
and face are free from any chemical products, such as suntan lotion, as it may damage the finish.
5
01.L152 Getting p01-07
5
02.2.18, 1:38 PM
Getting Started
15. Power Lines – An outside antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such power
lines or circuits. When installing an outside
antenna system, extreme care should be taken
to keep from touching such power lines or
circuits as contact with them might be fatal.
16. Overloading – Do not overload wall outlets
and extension cords as this can result in a
risk of fire or electric shock.
17. Objects and Liquids – Never push objects
of any kind into this video unit through
openings as they may touch dangerous
voltage points or short out parts that could
result in a fire or electric shock. Never spill
liquid of any kind onto the video unit.
18. Servicing – Do not attempt to service this
video unit yourself as opening or removing
covers may expose you to dangerous voltage
or other hazards. Refer all servicing to
qualified service personnel.
19. Damage Requiring Service – Unplug this
video unit from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is
damaged.
Table of Contents
Getting Started
Things You Should Know ............................................................................. 2~3
Important Safeguards ................................................................................... 4~5
Precautions ........................................................................................................ 5
Quick Operation Guide ..................................................................................... 7
Supplying Power (Battery Charge/Use/Refresh/Care, AC Adaptor, Car Battery Cord) ...... 8~9
Cassette Information ...................................................................................... 10
Before Using (Remove the Sensor tag, Using the Shoulder and Hand Straps, Lens Cap) .... 11
Using MENU Mode .......................................................................................... 12
Setting the Clock (Time Zone, Auto Daylight Saving Time) ....................................... 13~14
Built-in Auto Light (Using the Light, Replacing the Bulb) ............................................... 15
Basic Operation
Camera Recording (Basic, Stand-by, Programmed Recording)
Playing Back Recordings
Special Features
Four-Speed Power Zoom................................................................................ 22
Backlight .......................................................................................................... 22
Focus (Auto/Manual Focus) ............................................................................................. 23
High Speed Shutter (Auto/Manual Shutter) .................................................................. 24
Auto Fade ......................................................................................................... 25
Color Digital Fade ........................................................................................... 26
Digital Zoom .................................................................................................... 27
Digital Electronic Image Stabilization (E.I.S.) ............................................... 27
MotionSensor .................................................................................................. 28
For Your Information
Viewfinder/LCD Monitor Indications ....................................................... 29~30
Operation Notes (Cleaning EVF) ......................................................................... 31
Notice ............................................................................................................... 31
Replacing Clock Battery ................................................................................. 32
Palmcorder Accessory System ..................................................................... 33
Palmcorder Accessory Order Form .............................................................. 34
Specifications .................................................................................................. 35
Request for Service Notice ............................................................................ 35
Before Requesting Service (Video Head Cleaning) .............................................. 36
Limited Warranty ............................................................................................. 37
Customer Services Directory ......................................................................... 38
Spanish Quick Use Guide/Guía Para Uso Rápido ........................................ 39
Index ................................................................................................................. 40
.................................... 16~18
(Basic Playback, Visual Search, Still Picture, Tracking, TV/VCR Playback) ................... 19~20
Copying your Tapes (dubbing) ...................................................................... 21
6
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
01.L152 Getting p01-07
6
02.2.18, 1:38 PM
Quick Operation Guide
Insert Cassette
Charge Battery Pack fully before
operation (page 8).
1
2
2
Plug in AC
Adaptor.
Insert Battery. CHARGE Lamp
flashes, then stays lit when
charging is complete.
1
3
4
Attach fully
charged Battery
(page 8).
Slide TAPE
EJECT to open
door.
Insert cassette
(page 10).
Press here to
Protection Film
close door.
Note:
• Remove the Protection Film before use.
Camera Recording
See page 16.
1
Press LCD-OPEN to unlock the LCD monitor.
Swing it fully open and adjust the angle.
2
3
Set POWER to CAMERA.
Press RECORD/PAUSE
to start recording.
Press RECORD/PAUSE
again to pause recording.
Playback using the LCD Monitor
See page 19.
1
2
Press LCD-OPEN to unlock the LCD monitor.
Swing it fully open and adjust the angle (see above).
Set POWER
to VCR.
3
4
5
Press REWIND/SEARCH
to rewind tape.
Press PLAY to start
playback.
Press STOP to stop
playback.
7
Getting Started
Charging the Battery Pack
Supplying Power
Charging the Battery Pack
Charge Battery Pack fully before use.
2
3
POWER
Lamp
1
2
1
3
Plug in AC Adaptor.
POWER Lamp lights.
Insert Battery.
A Align left side of Battery with left edge of
AC Adaptor.
B Press Battery down and slide in direction
of arrow.
The CHARGE Lamp flashes, then stays lit
when charging is complete.
Remove Battery.
Slide Battery to the left and lift off.
Note:
CHARGE
Lamp
• Charging takes about 1 hour.
• While the DC Power Cable (supplied) is connected
to the AC Adaptor, the Battery cannot be charged.
• After charging 5 times, use Battery Refresh feature
as explained below.
• Battery life gradually decreases after repeated use
and recharging. If operation time becomes very
short even after a sufficient charge, discard Battery
properly (pages 9, 31).
A
B
(Top View)
Using the Battery Pack
A fully charged Battery provides a maximum of about 1 hour 10 minutes of continuous use
(LCD monitor off) or about 55 minutes (LCD monitor on). Actual time may vary due to
operating conditions. Using the Built-in Light decreases operating time.
A
a
A
B
B
b
Battery Refresh
This feature completely discharges
Battery before recharging begins.
Use after every 5 charges for optimum
Battery performance.
Remove Battery.
Slide BATTERY RELEASE and remove
Battery.
To use battery refresh, insert Battery on AC
Adaptor (see steps 1~2 above), then press
BATTERY REFRESH.
The REFRESH Lamp lights, then goes out when
discharge is complete. Battery charging will then
start automatically.
If BATTERY REFRESH is pressed by mistake,
remove Battery from AC Adaptor and reinsert it
for normal charging.
Note:
• Charging takes about 5 hours when Battery
Refresh is used.
• Battery will not operate in extremely high
temperatures.
REFRESH
Lamp
BATTERY
REFRESH
8
Attach Battery.
a Insert top of Battery into top of mounting
surface.
b Press and snap into place.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L152 Getting p08-15
8
02.2.18, 1:38 PM
Supplying Power
To avoid Battery damage:
• Charge only with specified charger.
• Battery can be charged within a temperature range of
10 °C (50 °F) and 35 °C (95 °F).
• Battery is normally warm after charging or just after use.
• Do not use an insufficiently charged or worn-out Battery.
• Do not drop or jar Battery.
• Use Battery with specified units only.
• If Battery is used in extremely high
temperatures, a safety device will
automatically prevent operation.
Safety precautions:
To prolong Battery life:
• Do not get Battery near, or dispose of in, fire.
• Do not directly connect (short circuit) the positive (+)
and negative (–) terminals.
• Never attempt to disassemble or reassemble Battery.
• While not in use, remove Battery from
the Camcorder and AC Adaptor, and
store in a cool, dark, dry place.
• Keep Battery terminals clean.
9
Getting Started
Caution:
Cassette Information
Cassette Insertion/Removal
1
1
3
2
3
4
5
2
4
5
Turn Tape Wheel in direction of arrow
until there is no slack.
Attach Battery (page 8).
Slide TAPE EJECT to open door.
Insert cassette as shown.
Press here to close door.
• To remove the cassette, slide the TAPE
EJECT switch.
Record/Playback Time
Use tapes with the
Tape Speed
Selector Position
SP
(Standard Play)
SLP
(Super Long Play)
mark in this unit.
Cassette type
TC-20
TC-30
TC-40
20 minutes 30 minutes 40 minutes
1 hour
1 hour
30 minutes
2 hours
• SLP playback may contain more picture noise.
Erase Protection Tab
Protects tapes from being accidentally
erased.
1
2
2
Slide tab type
10
1
To prevent accidental erasing,
break off tab with screwdriver.
(Or, slide tab open.)
To record again,
cover hole with adhesive tape.
(Or, slide tab closed.)
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L152 Getting p08-15
10
02.2.18, 1:38 PM
Before Using
Hand Strap
1
Open the Hand Strap as illustrated
at left.
2
Remove the Sensor tag.
Then, replace the Hand Strap.
Sensor tag
Attaching Shoulder Strap
Remove Battery Pack before completing
the following steps:
1
2
Adjust the Length of the
Shoulder Strap
Undo strap ends
from buckles.
Thread strap ends through Strap
Rings on Camcorder.
Pull a loop of strap from buckle, then pull
strap tight to shorten or lengthen.
Hand Strap
3
Re-insert the strap
ends into buckles.
3
2
1
min. 25.4 mm (1 inch)
Adjust Hand Strap length to fit your hand as
shown.
Lens Cap
Attaching the Lens Cap
Strap:
Thread the Strap through
the Lens Cap attachment
ring as illustrated at left.
Attaching the Lens Cap Cord to the Hand Strap:
Remove the Hand Strap from the front clasp and thread
the Strap through the loop in the Lens Cap Cord.
Reattach the Hand Strap.
11
Getting Started
How to remove the Sensor tag
Using MENU Mode
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.
1
2
3
4
1, 2, 3, 4
Press MENU for MENU mode.
The CAMERA or VCR MENU screen (see below
left) appears when Menu mode is entered.
Press UP or DOWN to highlight the
desired menu item.
Press DISPLAY to set selection.
Press MENU to exit.
Note:
• The Menu mode is canceled if UP/DOWN,
DISPLAY, or MENU are not pressed within
5 minutes when Self Demo mode is off.
• The Menu mode is canceled if UP/DOWN,
DISPLAY, or MENU are not pressed within
30 seconds when Self Demo mode is on.
MENU Mode (CAMERA) Screen
1
2
3
4
5
6
1 PROGRAMMED REC (page 18).
Camcorder starts and stops recording at a
preset time.
2 DISPLAY (page 29).
ON : On-screen Display (OSD) screens are
displayed.
3 SHUTTER (page 24).
7
8
Select desired shutter speed.
4 STAND-BY RELEASE (page 17).
ON : Enables quick resumption of recording
from Stand-by mode.
5 CLOCK SET (pages 13, 14).
Select to set clock.
6 LIGHT MODE (page 15).
MENU Mode (VCR) Screen
5
2
ON/OFF
: Light can be set ON or OFF.
ON/OFF/AUTO : Light can be set ON, OFF, or AUTO.
7 MOTIONSENSOR (page 28).
ON : Enables MotionSensor recording.
8 VIDEO EFFECTS (pages 25~26).
AUTO FADE
DIGITAL FADE
12
: BLACK or WHITE
: TYPE
7 types
8 colors
COLOR
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Setting the Clock
Before you begin...
Getting Started
Set the following items in order: Time
Zone, Daylight Saving Time, Date,
and Time.
• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.
13
Setting the Clock
3a
Setting the Time Zone
The Camcorder is preset to Eastern time.
[ Time Zone chart ]
Press UP or DOWN to
select local time zone.
Press DISPLAY to
confirm entry.
• When traveling, repeat this operation and
select one of the 8 listed time zones to
set the clock to local time.
Note :
• Clock may lose or gain up to 2 minutes
per month.
• When traveling outside the listed time
zones, set clock to local time manually.
• To adjust or set clock, see “Setting Date
and Time” bottom of page.
3b Auto Daylight Saving Time
Clock will auto-adjust to daylight saving time (DST).
DST: AUTO
Spring (First Sunday in April) :
ahead one hour.
Autumn (Last Sunday in October) :
back one hour.
The Camcorder is preset to DST: AUTO .
If DST is not observed in your area, set
to OFF by doing the following.
Press UP or DOWN to
select OFF or AUTO.
Press DISPLAY to
confirm entry.
Note:
• Auto DST does not function if time zone
is set to Hawaii or Samoa (see “Setting
the Time Zone” above).
3c
Setting Date and Time
Date and time including leap year are
calculated up to DEC 31, 2099.
EXAMPLE :
Press or hold down UP or
DOWN to select hour, then
press DISPLAY to fix.
Repeat for minute, month, day,
and year.
Clock starts when year is
entered and DISPLAY is
pressed.
14
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
02.L152 Getting p08-15
14
02.2.18, 1:38 PM
Built-in Auto Light
For recording in dim lighting.
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
LIGHT
1, 2, 3
CAUTION:
Light becomes hot.
Never cover Light while on.
Note:
• Using Light reduces battery operating time.
• Provide proper ventilation when using
Light extensively in a hot environment.
• Using Light when the Camcorder is
powered by a car battery may shorten
bulb life.
• Set Light to OFF when not in use.
Replacing the Bulb
B
2
3
Press LIGHT repeatedly for Light ON,
OFF, or AUTO.
• In AUTO, light turns itself on/off
according to lighting conditions.
A
: Light is on.
A
: Light mode is auto.
Before you begin...
• Order Part No. VLLW0015 for replacement
bulb.
• Set POWER to OFF.
2
3
4
3
Press DISPLAY to set OFF/ON or
OFF/ON/AUTO. Press MENU to exit.
A
A
2
Press MENU for
MENU mode. Press
UP or DOWN to
select LIGHT MODE .
EVF or LCD Monitor
1
1
Getting Started
Before you begin...
Using the Light
Slightly raise portion A of lens cover
to unhook, and slide portion B
forward to remove.
Using Tweezers or needle-nose pliers,
carefully remove bulb.
• Take unit to service center if you need
assistance.
Replace bulb using a clean cloth or
tissue. (Do not touch with fingers.)
Replace lens cover.
Note:
• Handle bulb gently. Excessive force may
cause bulb to crack.
DANGER:
Use only replacement bulb (PART NO. VLLW0015) supplied by Panasonic to reduce risk
of fire.
Handle new bulb with cloth or tissue as skin oils will decrease bulb life.
Remove lens cover and allow bulb to cool before replacing to avoid possible burn hazard.
15
02.L152 Getting p08-15
15
02.2.18, 1:38 PM
16
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Camera Recording
Before you begin...
• Connect Camcorder to power source.
• Insert cassette with record tab (page 10).
If left in RECORD/PAUSE mode for 5
minutes, Camcorder switches to Stand-by
mode to conserve battery. When set to ON,
Stand-by Quick Release lets you resume
recording by pressing RECORD/PAUSE two
times. Stand-by Quick Release is set to OFF
at the factory.
2, 3, 4
3
1 , b, c ,
A, C
4
Manual Easy Editing
Set POWER to
CAMERA.
Basic Operation
1
2
b
B
Stand-by Quick Release
Press MENU for
MENU mode.
Press UP or DOWN
to select STAND-BY RELEASE .
Press DISPLAY to select ON/OFF.
ON : From Stand-by mode, press
RECORD/PAUSE two times to
resume recording.
OFF : From Stand-by mode, set
POWER to OFF, then to
CAMERA. Press RECORD/
PAUSE to record.
Press MENU to exit.
Easy Edit Stand-by
For proper continuity when taping from
Stop mode or after attaching a new
Battery.
For a smooth transition between scenes if
recording is stopped, and then started within
24 hours.
A
B
a
b
c
d
C
D
Set POWER to VCR.
a Press REWIND/SEARCH to rewind
a few seconds of tape.
b Press PLAY to review recording.
c Press STILL where you want to
continue recording.
Set POWER to CAMERA.
Press RECORD/PAUSE to resume
recording.
Press RECORD/PAUSE to stop
recording.
Set POWER to OFF and leave cassette
in Camcorder.
To resume recording, set POWER to
CAMERA.
Press RECORD/PAUSE to resume
recording.
Note:
• Use Manual Easy Edit (left) if more than 24
hours before recording is resumed.
17
Camera Recording
Before you begin...
Set a recording start and stop time. Or,
set a 5 or 10 second interval recording
to be done each minute.
• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.
• Insert cassette with record tab (page 10).
• Set POWER to CAMERA.
1
2
3
Press MENU for MENU
mode. Press UP or
DOWN to select
PROGRAMMED REC .
Press DISPLAY.
(Current time is
displayed.)
Each additional press
of DISPLAY increases
start time by 30 minutes.
Press DOWN to select
REC TIME .
Press DISPLAY
repeatedly to select one
of the options shown at
left.
To cancel the setup, press MENU twice.
4
Press RECORD/PAUSE
to place Camcorder in
stand-by mode.
Recording will be done as scheduled.
*1 Record 5 seconds each minute.
*2 Record 10 seconds each minute.
18
Note:
• Start time may not be set over 24 hours from
current time.
• Camcorder shuts off at tape end, or 12 hours
after Interval Recording starts.
• To cancel, set POWER to OFF.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Playing Back Recordings
Before you begin...
• Connect Camcorder to power source.
• Insert recorded tape.
Basic Operation
Tracking Control
19
Playing Back Recordings
TV Playback or Viewing
Connect Camcorder to a TV to view
playback or recordings in progress.
Connections
Audio/
Video Out
20
Before you begin...
• Connect Camcorder to power source.
• Make all TV-Camcorder connections.
1
2
3
Set POWER to:
VCR
➞ view playback.
CAMERA ➞ view picture as it is
recorded.
Turn TV ON and set to LINE INPUT.
See TV owner’s manual.
Begin playback or recording.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Copying your Tapes (dubbing)
Before you begin...
Connections
STOP
Source
(Playing)
Camcorder
• Make Camcorder-VCR connections (see left).
• Turn both units on.
• Set VCR input signal to LINE.
Please see VCR owner’s manual.
• Set Camcorder POWER to VCR.
PLAY
STILL
1
Audio/
Video Out
Press PLAY on Camcorder, then press
STILL at starting point.
Press REC, then STILL/PAUSE on
VCR.
Press STILL on Camcorder and STILL/
PAUSE on VCR to start copying.
Press STOP on both units to stop
copying.
Note:
• Camcorder will only playback tapes
recorded in SP or SLP mode.
• Dubbing may reduce picture quality.
CAUTION:
Unauthorized exchanging and/or copying
of copyrighted recordings may be
copyright infringement.
Monitor with your TV
• Turn TV on and tune to VCR channel
(CH3 or CH4).
• Set TV/VCR Selector on VCR to VCR.
21
04.L152 Basic p19-21
21
02.2.18, 1:38 PM
Basic Operation
2
3
4
5
Insert a pre-recorded tape
into Camcorder and a blank tape with
record tab into VCR.
Four-Speed Power Zoom
Zoom in (close up) and out (wide angle) in
one of four speeds ranging from slow (16
seconds) to fast (2 seconds).
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Zoom In (“T”)
WT
Zoom Out (“W”)
• Zoom slowly:
Lightly press “T” (telephoto) or “W” (wide
angle) POWER ZOOM button.
• Zoom quickly:
Apply more pressure to the button.
Use when subject is darker than
surroundings, in shadowed area, or in front
of the light source.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Press B.LIGHT while recording to select
the level of backlight compensation.
In normal lighting, press B.LIGHT
repeatedly until no indicator is displayed.
B.LIGHT
EVF Indications
22
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Focus
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
Auto Focus
Camcorder automatically focuses on subject even during zooming.
Auto Focus is on when “MF” is not displayed in EVF or LCD monitor.
Press M.FOCUS to remove “MF” in EVF or LCD monitor if necessary.
Manual Focus
Use Manual Focus (MF) when :
• recording through glass.
• lighting is poor.
• subject is far away with objects in foreground.
• subject has distinct horizontal lines.
• subject is not centered in EVF or LCD monitor.
• subject has a shiny surface.
• subject is slanted.
• subject is bright and flat, like a white wall.
• subject has fast motion, like a golf swing.
4
1
2
3
4
Press M.FOCUS so “MF” (Manual Focus)
appears in EVF or LCD monitor.
Hold down “T” (telephoto) on POWER
ZOOM to maximum zoom in.
Press UP (FAR) or DOWN (NEAR) until
subject is in focus.
• Back away from subject if necessary.
Hold down “W” (wide angle) on POWER
ZOOM as desired.
• Refocus as needed when aiming at new
scenes.
Macro Focus (close-ups)
Auto Focus functions up to 12.7 mm (1/2 inch) from subject.
Hold down “W” on POWER ZOOM to maximum wide angle.
Bring Camcorder up close to the subject.
23
Special Features
2
EVF or LCD Monitor
High Speed Shutter
Improves Still or Slow Motion playback
picture of high speed subjects (e.g. a tennis
stroke), when viewed on Camcorder or 3 or
4 head VCR.
Before you begin...
• Connect Camcorder to power source.
• Insert cassette with record tab (page 10).
• Set POWER to CAMERA.
Auto Shutter
In AUTO mode (no indication in EVF or LCD Monitor), shutter speed is auto-adjusted from
1/60 to 1/350 according to subject brightness.
• AUTO mode is selected each time POWER is set to CAMERA.
Manual Selection
The faster the shutter speed, the more light is needed for proper picture and color quality.
High Speed Shutter indication flashes if light is inadequate. Provide additional light.
1
2
1, 2, 3
3
Press MENU for MENU mode.
Press UP or DOWN to select SHUTTER .
Press DISPLAY repeatedly to select
shutter speed.
Press MENU to exit.
Note:
• Shutter speed cannot be set to 1/60 if Digital
E.I.S. feature is set to ON.
• Provide additional halogen or tungsten light
for use indoors or in poor light. Fluorescent
light degrades picture.
• Auto Focus may not function properly if high
speed shutter is used in inadequate light.
• Setting reverts to AUTO each time POWER is
set to CAMERA.
24
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L152 Special p22-28
24
02.2.18, 1:38 PM
Auto Fade
An interesting way to open and close
scenes.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
3
Fade In
Press DISPLAY for
VIDEO EFFECTS
menu. Press UP or
DOWN to select
AUTO FADE .
Press DISPLAY for
AUTO FADE ;
COLOR menu.
Press UP or DOWN
to select BLACK or
WHITE.
Press DISPLAY to confirm entry.
Press MENU to exit.
Fade In:
In RECORD/PAUSE mode, press FADE
so “FADE” flashes in EVF or LCD monitor.
Press RECORD/PAUSE.
Recording starts as picture and sound
gradually fade in.
Fade Out:
While recording, press FADE so “FADE”
flashes in EVF or LCD monitor.
Press RECORD/PAUSE.
Picture and sound gradually fade out, and
recording is paused.
WHITE
BLACK
Fade Out
If FADE is pressed accidentally, press again
so “FADE” disappears in EVF or LCD
monitor.
25
Special Features
4
Press MENU for
MENU mode.
Press UP or DOWN
to select
VIDEO EFFECTS .
Color Digital Fade
Choose from 7 fade effects in 8
different colors.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
6
1, 2, 3,
4, 5
3
EVF or LCD monitor
4
■ For more effects, stop fade in or fade
out at any time (except RANDOM
mode) by pressing FADE.
Then, press FADE to resume fade.
Note:
• Audio is not affected by fade.
• To cancel Digital Fade, do steps 1, 2,
and 5. In step 2, select AUTO FADE.
26
5
6
Press MENU for MENU
mode.
Press UP or DOWN to
select VIDEO EFFECTS .
Press DISPLAY for
VIDEO EFFECTS menu.
Press DOWN to select
DIGITAL FADE .
Press DISPLAY for DIGITAL FADE menu.
Press UP or DOWN to select TYPE .
Press DISPLAY for TYPE menu.
Press UP or DOWN to select from 7
different types of fades.
• A preview of each fade type is displayed
as it is selected.
Press DISPLAY for DIGITAL FADE menu.
Press DOWN to select COLOR .
Press DISPLAY for COLOR menu.
Press UP or DOWN to select from 8 colors.
• A preview of each color is displayed as it
is selected.
Press DISPLAY to confirm entry.
Press MENU twice to exit.
Press FADE for about 2 seconds to fade
out during recording (selected fade type
flashes). Press FADE again to fade in.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
05.L152 Special p22-28
26
02.2.18, 1:38 PM
Digital Zoom
Power Zoom magnification is digitally
increased.
2
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
1, 3
2
3
Press D. ZOOM.
once ➞D.ZOOM 1 (150× maximum)
twice ➞D.ZOOM 2 (700x maximum)
The Higher digital magnification levels
may cause picture distortion.
Hold down “T” on POWER ZOOM.
Digital Zoom starts when normal zoom
reaches maximum (20×).
• Zoom level appears in EVF.
• POWER ZOOM switch controls digital
zoom level.
• Normal zoom resumes when level falls
to 20×.
Press D. ZOOM to turn off Digital Zoom
so no indication appears.
Helps stabilize picture when recording in
unstable situations.
Before you begin...
• Connect Camcorder to power source.
• Set POWER to CAMERA.
1
2
1, 2
NORMAL
Digital EIS ON
Press EIS to display “EIS” in the EVF.
• Image becomes slightly enlarged and
shutter speed auto-adjusts from 1/80 to
1/350 according to brightness.
• Use High Speed Shutter (page 24) if
needed. Shutter speed setting remains
after EIS is canceled.
Press EIS again to cancel when not in
use.
E.I.S. may not function during...
• extreme Camcorder movement.
• recording of subjects with distinct horizontal
or vertical stripes.
• low light situations (EIS indicator flashes).
• intense fluorescent lighting situations.
• recording of very fast motion.
27
05.L152 Special p22-28
27
02.2.18, 1:38 PM
Special Features
Digital Electronic Image Stabilization (E.I.S.)
MotionSensor
Recording starts automatically if motion
is detected.
Before you begin...
• Connect Camcorder to power source.
Use AC Adaptor for longer recordings.
• Insert cassette with record tab (page 10).
• Set POWER to CAMERA.
• Securely position and aim Camcorder.
1
2
3
MotionSensor may mistakenly start
when:
• background is plain, like a white wall,
or has distinct vertical, horizontal, or
slanted stripes, like a venetian blind.
• brightness suddenly changes.
MotionSensor may not start when:
• motion is very slow or fast.
• moving object is very small.
• motion occurs only in 1 corner of
viewing area.
• in poor lighting (in this case,
MOTIONSENSOR flashes).
• background is plain, like a white wall,
or has distinct horizontal or vertical
stripes.
28
Press MENU for
MENU mode. Press
UP or DOWN to select
MOTIONSENSOR .
Press DISPLAY to select ON.
Press MENU for MotionSensor stand-by
mode. (If cassette is not inserted, “
”
will flash.)
• Recording will start about 3 seconds
after motion is detected.
• Date and time are recorded if displayed
in EVF or LCD monitor (page 14).
• Recording stops about 30 seconds after
motion ceases.
To cancel MotionSensor Mode, set POWER
to OFF.
Note:
• MotionSensor recording starts if Camcorder
is bumped or repositioned.
• This feature is not available during normal
recording.
• While in MotionSensor stand-by, the
following functions are not available: Record/
Pause, Stand-by mode, Digital E.I.S., Video
Effects (Auto/Digital Fade).
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Viewfinder/LCD Monitor Indications
Tape remaining and battery charge level
can be displayed.
Before you begin...
• Connect Camcorder to power source.
1
2
Set POWER to CAMERA.
Press DISPLAY
repeatedly to select
the following displays.
2, B,
C, D
1, A
Battery Remaining: Tape Remaining:
FULL
FULL
EMPTY
EMPTY
• Tape remaining indicator operates a few
seconds after tape starts moving.
Recording the Date and Time
a
b
Do steps 1 and 2 above to select time/date,
date only, or no display.
Start a recording (page 16).
• Only the Date and/or Time are recorded.
A
B
C
D
Set POWER to CAMERA or VCR.
Press MENU for MENU mode.
Press UP or DOWN to select DISPLAY .
[CAMERA MODE]
[VCR MODE]
Press DISPLAY to select OFF.
Press MENU to exit.
Press DISPLAY repeatedly to remove time/date.
Indications are restored the next time Camcorder is
turned on.
29
06.L152 Infor p29-34
29
02.2.18, 1:39 PM
For Your Information
Display-Off Mode
Viewfinder/LCD Monitor Indications
CAMERA/VCR mode
1
2
3
4
12
13
14
15
16
6
7
8, 9, 10
17
18
11
1 Zoom Magnification level (pages 22, 27).
2 Battery Remaining
(page 29).
“WARNING LOW BATTERY” appears
and Camcorder shuts off after 15
seconds.
3 Tape Remaining (page 29).
“ ” flashes and “TAPE END”
appears for 5 seconds when:
• End of tape is reached.
“ ” flashes for 1 minute and “CHECK
TAPE” appears for 5 seconds when:
• RECORD/PAUSE is pressed with no
cassette, or cassette has no record tab
in Camera (RECORD) mode.
• PLAY, FF or REW is pressed with no
cassette inserted in VCR mode.
4 10-Second Reminder
Each time a recording is started, a 10
second incremental display (up to 59:50)
lets you monitor how long one scene is
recorded.
0:00 0:10 0:20 . . . . . 59:50
(return to 0:00 and continue)
5 TAPE SPEED (pages 10, 16).
(SP=standard play,
SLP=super long play).
30
5
6 Digital E.I.S. (page 27).
7 Digital Zoom (page 27).
8 VCR-MODE
9
10
11
12
13
14
15
16
17
18
“VCR-MODE” appears for 1 minute
when POWER is set to VCR or if
RECORD/PAUSE is pressed in VCR
mode.
DEW
If moisture condensation occurs in
unit, “WARNING DEW DETECTED”
appears, and Camcorder will shut off in
15 seconds. Wait until “WARNING” no
longer indicates when Camcorder is
turned on to use.
MotionSensor (page 28).
Date and Time (pages 13, 14).
Operating Mode
• REC (record)
• PAUSE
• FF (fast forward) • PLAY
• REW (rewind)
Backlight (page 22).
Manual Focus (page 23).
Light ON/OFF/AUTO (page 15).
High Speed Shutter (page 24).
Fade (page 25).
Color Digital Fade (page 26).
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L152 Infor p29-34
30
02.2.18, 1:39 PM
Operation Notes
Cleaning EVF (Electronic Viewer Finder)
To Remove
1
C
A
B
2
3
A Remove the screw with a Phillips
screwdriver.
Turn counterclockwise.
B Turn the EVF Eyepiece.
C Pull the EVF Eyepiece.
Remove any lint or dust particles
with a soft clean cloth being careful
not to scratch the glass surfaces.
Replace the EVF Eyepiece and the
screw.
Notice
This product utilizes both a Cathode Ray Tube (CRT) and other components that
contain lead. It also has a fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated in your community due to environmental
considerations. For disposal or recycling information please contact your local
authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>
ATTENTION :
31
06.L152 Infor p29-34
31
02.2.18, 1:39 PM
For Your Information
A nickel cadmium battery that is recyclable powers the product you have
purchased. At the end of its useful life, under various state and local laws, it
is illegal to dispose of this battery into your municipal waste stream. Please
call 1-800-8-BATTERY for information on how to recycle this battery.
Replacing Clock Battery
The clock battery is pre-installed. Follow the steps below if replacement becomes
necessary.
WARNING:
Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another
battery may present a risk of fire or explosion.
Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep
away from children. Do not recharge, disassemble or dispose of in fire.
Clock Battery
Tripod Mounting Hole
1
1
2
3
Underside View
4
4
2
Bend middle tab out and remove
Battery.
Snap new Battery (⊕ mark down) into
Battery Tray.
• Do not reverse the polarity.
Insert Battery Tray so the triangle
marks meet.
Note:
• Keep Battery out of children’s reach.
Swallowing it may be harmful.
• Improper installation, discharge, or
missing battery causes “CLOCK
BATTERY” to appear when DISPLAY is
pressed.
• Battery life is approximately 5 years.
3
32
While pinching the 2 tabs, pull
Battery Tray out.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L152 Infor p29-34
32
02.2.18, 1:39 PM
Palmcorder Accessory System
To order instructions, see the Accessory Order Form page.
• The listed standard battery use times are based on continuous recording using this Palmcorder.
Accessory #
Figure
Description
AC Adaptor with
DC Power Cable
PV-A19
(Charging of the Nickel
Cadmium Battery or Nickel
Metal Hydride Battery)
AC Adaptor with
DC Power Cable
PV-A20
(Charging of the Nickel
Cadmium Battery or Nickel
Metal Hydride Battery)
Price
Call For
Pricing
Call For
Pricing
Up to 6 hr Battery Pack
HHR-V60A/1B
(Rechargeable Nickel
Metal Hydride Battery)
$119.95
Up to 4 hr Battery Pack
HHR-V40A/1B
(Rechargeable Nickel
Metal Hydride Battery)
$69.95
Up to 2 hr Battery Pack
(Rechargeable Nickel
Metal Hydride Battery)
$59.95
PV-AA6
"AA" Battery Case
$20.00
PV-C16
Car Battery Cord
$70.00
PV-P1
VHS PlayPak
$39.95
PV-H18A
Soft Sided
$49.95
For Your Information
HHR-V20A/1B
Note:
• Prices subject to change without notice.
33
06.L152 Infor p29-34
33
02.2.18, 1:39 PM
Palmcorder Accessory Order Form
Please photocopy this form when placing an order.
1. Palmcorder Model #
2. Items Ordered
Accessory #
Description
Price Each
Quantity
Total Price
Subtotal
Your State & Local Sales Tax
Shipping & Handling
6.95
Total Enclosed
3. Method of payment (check one)
Check or Money Order enclosed (NO C.O.D.SHIPMENTS)
VISA
Credit Card #
MasterCard
Expiration Date
Discover
Customer Signature
Make Check or Money Order to: PANASONIC ACCESSORIES
(Please do not send cash)
4. Shipping information (UPS delivery requires complete street address)
Ship To:
Mr.
Mrs.
Ms.
First
Phone #:
Last
Day
(
)
Night
(
)
Street Address
City
State
Zip
TO OBTAIN ANY OF OUR PALMCORDER ACCESSORIES YOU CAN DO ANY OF THE
FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY
ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
34
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
06.L152 Infor p29-34
34
02.2.18, 1:39 PM
Specifications
Power Source:
Compact VHS Camcorder: DC 6 V
AC Adaptor: 110/120/220/240 V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6 V
Power Consumption:
Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)
AC Adaptor: 19 W
1.2 W (when not in use.)
Video Signal:
EIA Standard (525 lines, 60 fields) NTSC color signal
Video Recording System:
2 rotary heads plus flying erase head. Helical scanning system
Audio:
1 track
Pick-Up System:
Sequential color difference field reverse system
Pick-Up Device:
One integral color filter Charge Coupled Device (CCD)
Lens:
20:1 zoom lens, F1:1.6 with auto iris control
Focal length: 3.6 mm - 72 mm
4 speed power zoom function
Viewfinder:
10.2 mm (0.4 inch)Electronic Viewfinder
LCD Monitor:
63.5 mm (2.5 inch) Liquid Crystal Display
Minimum Illumination Required: 0.8 lx (F1:1.6) 0.08 footcandles
7 lx (F1:1.6) 0.7 footcandles (EIA Standard)
Operating Temperature:
0 °C~40 °C (32 °F~104 °F)
Operating Humidity:
10 %~75 %
Weight:
Compact VHS Camcorder: 1.00 kg
2.20 Ibs.
AC Adaptor:
0.3 kg
0.66 Ibs.
Dimensions:
Compact VHS Camcorder:
106 (W) ×
125 (H) × 190.5 (D) mm
4-3/16 (W) × 4-15/16 (H) × 7-1/2 (D) inch
AC Adaptor: 68 (W) ×
41 (H) × 140 (D) mm
2-11/16 (W) × 1-5/8 (H) × 5-1/2 (D) inch
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
Request for Service Notice
Please photocopy this form when making a request for service notice.
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Services Company
1705 N. Randall Road
Elgin, IL. 60123-7847
Attn: Camcorder Repair
07.L152 Infor p35-40
35
02.2.19, 2:46 PM
35
For Your Information
Request for Service Notice:
In the unlikely event this product needs service.
• Please include your proof of purchase.
(Failure to due so will delay your repair.)
• To further speed your repair please provide
an explanation of what is wrong with the unit
and any symptom it is exhibiting.
Before Requesting Service
If a problem arises, you may be able to correct it yourself.
See Symptom and Correction list below.
Symptom
Correction
No picture in EVF or LCD monitor ...
•
•
•
•
•
Video cassette cannot be inserted ...
• Connect Power Source. (pp. 8, 9)
• Insert cassette, window side facing out. (p. 10)
Video cassette cannot be removed ...
• Connect Power Source. (pp. 8, 9)
Operation buttons do not work ...
• Check for Dew Indication. (p. 30)
Recording cannot be done ...
• Make sure record tab is intact. (p. 10)
• Check Battery Indicator. (p. 29)
• Check for Dew Indication. (p. 30)
Auto Focus does not operate ...
• Set FOCUS to AUTO. (p. 23)
• Set POWER to CAMERA. (p. 16)
Connect Power Source. (pp. 8, 9)
Set POWER to VCR or CAMERA. (pp. 16, 19)
Check for Dew Indication. (p. 30)
Use fully charged Battery. (p. 8)
Firmly connect all needed cables. (p. 9)
Sound from microphone can’t be monitored ... • Set unit to REC or Record/Pause mode.
Camera picture is too dark ...
• Set HIGH SPEED SHUTTER to AUTO. (p. 24)
No playback picture, or the playback picture
is noisy or contains streaks ...
• Press UP/DOWN button during playback
(Tracking Control). (p. 19)
Top of playback picture waves back and forth • A playback signal is not as stable as an off the air
TV signal, so the top of your TV screen may
excessively ...
appear bent or unstable during playback. This is
called, “Horizontal AFC time constant change.” To
correct, slowly turn the TV horizontal hold control.
If your TV does not have this control, or adjusting it
does not help, contact your TV service center.
(Some nominal service charges may be required.)
Video Head Cleaning
While head cleaning is normally not needed, playing old or
damaged tapes may clog the heads. When playback picture
resembles example at the left, head cleaning is required.
Clogged Video Head
36
Ideally, head cleaning should be performed by a qualified
service technician. When this is not possible, purchase a
head cleaning cassette. Be sure to follow cleaning cassette
instructions exactly and only use when symptoms occur.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L152 Infor p35-40
36
02.2.18, 1:39 PM
Limited Warranty
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF MATSUSHITA ELECTRIC
CORPORATION OF AMERICA
One Panasonic Way Secaucus, New Jersey 07094
Limited Warranty Coverage
PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Panasonic/Quasar Video Products
Limited Warranty
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company
or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.
Product
Camcorder
DVD/VCR Deck,
A/V Mixer
TV/VCR, TV/DVD,
TV/DVD/VCR
Combination
TV/HDR
Combination
Rechargeable
Batteries
(in exchange for
defective item)
Tape
(in exchange for
defective item)
Memory Cards
(in exchange for
defective item)
Parts
Labor
Service
Contact Number
One (1) Year (except CCD
Ninety (90) Days
Carry-In or Mail-In
Image Sensor)
CCD Image Sensor - 6 (Six) Months Ninety (90) Days
1-800-211-PANA(7262)
One (1) Year
Ninety (90) Days Carry-In or Mail-In
1-800-211-PANA(7262)
One (1) Year (except CRT)
CRT - Two (2) Years
One (1) Year (except CRT)
CRT - Two (2) Years
Ninety (90) Days Carry-In: 21” CRT and Smaller
1-800-211-PANA(7262)
In-Home or Carry-In: 22”
Ninety (90) Days CRT and Larger
Ninety (90) Days In-Home or Carry-In
1-888-843-9788
Ninety (90) Days
Ten (10) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
Five (5) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
Ninety (90) Days
Not Applicable
Carry-In or Mail-In
1-800-211-PANA(7262)
For Your Information
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no
charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty
period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product
which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.
Carry-In, Mail-in or In-Home Service
For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not
include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed inhome, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing
fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3
pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service
by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for
lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of
media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED
TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a
problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the
problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses
listed for the warrantor.
PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE
NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
37
07.L152 Infor p35-40
37
02.2.18, 1:39 PM
Customer Services Directory
For Product Information, Operating Assistance, Literature Request, Dealer Locations,
and all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm, EST.
or send e-mail : [email protected]
Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your
nearest servicenter by visiting our Web Site.
Accessory Purchases:
1-800-332-5368 (Customer Orders Only )
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Product Repairs
Centralized Factory Servicenter
Panasonic Services Company
1705 N. Randall Road,
Elgin, IL 60123-7847
Attention: Camcorder Repair
Please carefully pack and ship, prepaid and insured, to the Elgin Centralized Factory Servicenter.
Customer’s in Puerto Rico, please ship or carry in to location below (“Service in Puerto Rico”).
MAIL TO :
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter:
Ave. 65 de Infanteria. Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
As of February 2002
38
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L152 Infor p35-40
38
02.2.18, 1:39 PM
Spanish Quick Use Guide/Guía Para Uso Rápido
Antes de comenzar...
• Inserte un casete con lengüeta para prevención del grabado.
Cargue la batería
Inserte el casete
Cargue completamente la batería antes
de usarla.
1
2
1
2
Enchufe el
adaptador de CA.
3
4
Instale la batería. El indicador de
carga (CHARGE) parpadea, luego
queda encendido si ha terminado la
carga. Desmonte la batería.
Coloque la batería
cargada.
Deslice TAPE
EJECT para abrir la
compuerta.
Inserte el casete.
Presione aquí para
cerrar la compuerta.
Grabación con la videocámara
1
Presione LCD-OPEN para abrir el monitor LCD.
Abralo completamente y ajuste el ángulo.
2
3
Ajuste POWER a CAMERA.
Presione RECORD/PAUSE para
comenzar la grabación.
Presione RECORD/PAUSE otra
vez para hacer una pausa en la
grabación.
Reproduzca usando el monitor LCD
Presione LCD-OPEN para abrir el monitor LCD.
Abralo completamente y ajuste el ángulo (vea arriba).
Ajuste POWER a VCR.
3
4
5
Presione REWIND/SEARCH para
rebobinar la cinta.
Presione PLAY para comenzar la
reproducción.
Presione STOP para finalizar la
reproducción.
Reproduccion con efectos especiales
Para localizar rapidamente una escena especifica
• Oprimir el botón de localización (SEARCH).
Para congelar una imagen
• Oprimir el botón de pausa/imagen fija (PAUSE/STILL).
• Oprimir nuevamente el botón cuando se desea continuar reproduciendo.
39
For Your Information
1
2
Index
A
AC Adaptor ....................... 9
Accessories (Optional) ... 33
Accessories (Supplied) .... 2
Audio/Video Cable ... 20, 21
Audio/Video Out ....... 20, 21
Auto Daylight Saving Time
.................................... 14
B
Backlight ......................... 22
Battery Pack ................. 8, 9
BATTERY RELEASE
Button ........................... 8
Before Requesting Service
.................................... 36
B.LIGHT Button .............. 22
BRIGHT ADJUSTMENT
.............................. 16, 19
Built-in Microphone ........ 16
C
Camera Recording ... 16~18
Car Battery Cord .............. 9
Cassette Information ...... 10
Charging Battery .............. 8
Cleaning EVF ................. 31
Clock Battery .................. 32
Clock Set .................. 13, 14
Copying your Tapes ....... 21
D
DC IN ............................... 9
DC Power Cable .............. 9
Digital E.I.S. ................... 27
Digital Zoom ................... 27
DISPLAY Button . 12, 19, 29
Display-off Mode ............ 29
D.ZOOM Button ............. 27
E
EIS Button ...................... 27
F
Fade ......................... 25, 26
FADE Button ............ 25, 26
FAST FORWARD/SEARCH
Button ......................... 19
Focus ............................. 23
H
Hand Strap ...................... 11
High Speed Shutter ........ 24
L
LCD Monitor ............. 16, 19
LCD-OPEN Button ... 16, 19
Lens Cap ......................... 11
Light ............................... 15
LIGHT Switch ................. 15
Limited Warranty ............ 37
M
MENU Button .................
MENU Mode ...................
M.FOCUS Button ...........
MotionSensor .................
12
12
23
28
P
PLAY Button ................... 19
Playback ................... 19, 20
PlayPak (Optional) ......... 20
Power Supply ............... 8, 9
POWER Switch ........ 16, 19
POWER ZOOM Button
........................ 22, 23, 27
Programmed Recording . 18
Q
Quick Operation Guide .... 7
R
RECORD/PAUSE Button 16
Record/Playback Time ... 10
Replacing Clock Battery . 32
Request for Service Notice
.................................... 35
REWIND/SEARCH
Button ......................... 19
S
Safety Precautions ........... 3
Servicenter List .............. 38
Shoulder Strap ................ 11
Speaker .......................... 19
Special Effects ............... 19
Specifications ................. 35
STILL Button .................. 19
Still Picture ..................... 19
STOP Button .................. 19
T
Tab ................................. 10
TAPE EJECT Switch 10, 16
TAPE SPEED Button ..... 16
Tracking Control ............. 19
Tripod Mounting Hole ..... 32
U
UP (FAR) / DOWN (NEAR)
Button ............. 12, 19, 23
V
VHF Connecting Cable .. 21
Video Cassettes (tapes) . 10
Video Head Cleaning ..... 36
Viewfinder/LCD Monitor
Indications ............ 29~30
Viewing (TV/VCR) .......... 20
VISION ADJUSTMENT .. 16
VOLUME ........................ 19
Z
Zoom ........................ 22, 27
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
40
Q
Printed in Indonesia
LSQT0598A
S0202Y0
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
07.L152 Infor p35-40
40
02.2.18, 1:39 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
