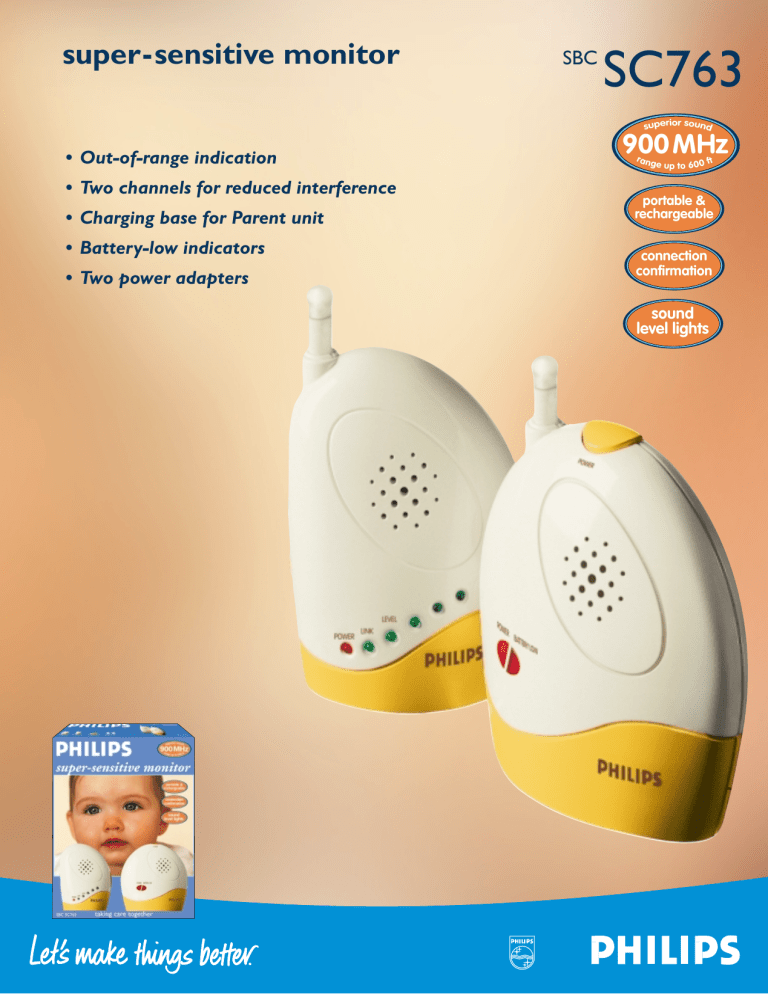

super-sensitive monitor
SBC
SC763
r
superio sound
• Out-of-range indication
• Two channels for reduced interference
• Charging base for Parent unit
• Battery-low indicators
• Two power adapters
900 MHz
ran
g e u p to 6 0 0 ft
portable &
rechargeable
connection
confirmation
sound
level lights
super-sensitive monitor
SBC
SC763
Standard product information
Power Supply
Batteries Parent unit
Batteries Baby unit
Battery operating time
4x 1.2V AA NiCd rechargeable batteries (included)
4x 1.5V AA batteries (optional)
Baby unit: up to 30 hrs
Parent unit: up to 12 hrs
External 120V AC to 9V DC (2 adapters included)
Transmission frequency
Channel A: 906.3 MHz
Channel B: 907.1 MHz
Up to 600 feet (open air)
Packaging content
1 x Baby unit
1 x Parent unit
1 x charging base (for parent unit)
2 x 9V AC/DC power adapter
4 x 1.2 V AA NiCd rechargeable batteries
Instructions for use
UPC product: 037849895269
UPC master pack: 137849895266
Portable and rechargable
Portable Parent unit gives you freedom to move around the
house.
Connection confirmation
The Link light indicates that the communication link
between the two units is reliable.
Operating range
Single pack dimensions
Single pack weight
Master pack dimensions
Master pack weight
Quantity / master carton
Superior sound (900 MHz) range up to 600 feet
Advanced signaling technology gives a clear and natural
sound reproduction. It also gives you the freedom to place
the Parent unit up to 600 feet away from the Baby unit.
12" W x 9.4" H x 3.2" D
2.4 lbs
13" W x 10.7" H x 10.5" D
8.4 lbs
3
Sound level lights
A series of lights on the Parent unit give you a visual indication of the sound level from baby’s room.
Out-of-range indication
A visual and audio warning lets you know when the Parent
unit has lost connection.
Charging base for Parent unit
Parent unit fits snugly into this stylish charging base for
quick charging of the batteries.
Two channels for reduced interference
Selecting one of the two transmission channels helps avoid
interference.
Battery-low indicators
Tell you immediately when your batteries are low.
Two power adapters
Are included for immidiate operation.
taking care together
Data subject to change without notice
www.philips.com
