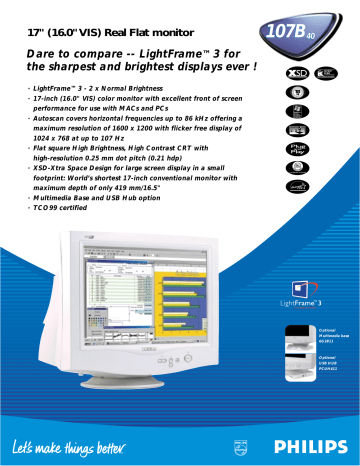

17" (16.0" VIS) Real Flat monitor
107B40
Dare to compare -- LightFrame ™3 for
the sharpest and brightest displays ever !
Ultra Slim Frame
. LightFrame™3 - 2 x Normal Brightness
. 17-inch (16.0" VIS) color monitor with excellent front of screen
performance for use with MACs and PCs
. Autoscan covers horizontal frequencies up to 86 kHz offering a
maximum resolution of 1600 x 1200 with flicker free display of
1024 x 768 at up to 107 Hz
. Flat square High Brightness, High Contrast CRT with
high-resolution 0.25 mm dot pitch (0.21 hdp)
. XSD-Xtra Space Design for large screen display in a small
footprint: World’s shortest 17-inch conventional monitor with
maximum depth of only 419 mm/16.5"
. Multimedia Base and USB Hub option
. TCO99 certified
Optional
Multimedia base
6G3B11
Optional
USB HUB
PCUH411
107B40
17" (16.0" VIS) Real Flat monitor
Technical Specifications
•
•
•
•
Size (inch/cm)
Deflection angle (degrees)
Dot pitch
Horizontal pitch
-Tube type
•
•
•
•
•
Phosphor
Recom. display area(mm)
Recom. display area(inch)
Max. display area(mm)
Max. display area(inch)
17"/ 41 cm
90°
0.25 mm
0.21 mm
Shadow mask, Real Flat, High Brightness,
High Contrast, Anti Glare, Anti Static,
Anti reflection, Light Transmission 55%
P22
306 x 230 mm
12.0" x 9.0"
325 x 244 mm
12.8" x 9.6"
• Display Data Channel DDC 2B (VESA)
• Microsoft® Windows® 95/98/ME & 2000/NT/XP compatible
• sRGB
Power management
Complies with EPA Energy Star and NUTEK specifications
• Operation
68 W (typical)
• Suspend/Stand By mode
< 2W
• Off mode/Deep Sleep
< 2W
Low-emission characteristics
• Complies with MPR-II and TCO ‘99 specifications
Scanning
• Horizontal scanning
• Vertical scanning
Plug and play compatibility
30 - 86 kHz
50 - 160 Hz
Monitor controls and functions
176 MHz
• On Screen Display
• Main
Video
• Video dot rate
• Input impedance
-Video
-Sync
• Input signal levels
• Sync input signal
• Sync polarities
75 Ohm
2.2k Ohm
0.7 Vpp
Separate sync
Composite sync
Positive and negative
• LightFrameTM3
White color temperature
Chromaticity CIE coordinates:
• at 9300 K:
• at 6500 K:
• at 5500 K:
x=0.283, y=0.297
x=0.313, y=0.329
x=0.332, y=0.347
Resolution and preset modes
•
•
•
•
Max. resolution
Recom. resolution
16 user definable modes
29 factory preset modes:
640 x 350
640 x 350
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
720 x 400
720 x 400
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 864
1152 x 870
1152 x 900
1280 x 960
1280 x 960
1280 x 1024
1280 x 1024
1600 x 1200
1600 x 1200
1600 x 1200
1024 x 768
H.freq (kHz)/ V.freq (Hz)
31.5K/70
37.9K/85
31.5K/60
37.9K/72
37.5K/75
43.3K/85
50.6K/100
31.5K/70
37.9K/85
37.9K/60
48.1K/72
46.9K/75
53.7K/85
63.9K/100
49.7K/75
48.4K/60
56.5K/70
60.0K/75
68.7K/85
67.5K/75
77K/85
68.7K/75
71.8K/76
60.0K/60
85.9K/85
64.0K/60
80.0K/75
75.0K/60
81.3K/65
As an Energy Star partner, Philips has determined that this product meets the Energy Star
guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
MacOS is a registered trademark of Apple Computer, Inc.
All trademark acknowledged. Copyright 2001 Koninklijke Philips Electronics N.V.
5-button OSD
Brightness +/- direct access
Contrast+/- direct access
Language (English, Spanish, French, German,
Italian, Chinese, Portuguese, Korean), zoom,
horizontal, vertical, pincushion,
balanced, trapezoid, parallelogram, color,
reset, degauss, moire, serial number,
resolution, frequency, sRGB
For improving the picture display of multi
media content such as photos, videos and
games. Will boost brightness and sharpness
performance on user selected areas/
windows on the screen. With automatic
detection of graphical content in Internet
Explorer for the web browsing. Can process
up to 16 area simultaneously. One-button
full screen mode. Advanced user
adjustments via Windows control panel.
Easy to use control software for Windows
98,Me. XP and 2000. Software in English,
French, German, Spanish, Italian, Portuguese,
Dutch, Chinese and Korean (for Windows
version) and English, French, German,
Spanish (for MacOS). Functionality for the
MacOS version differs from the Windows
version.
Connections and Cables
• Connections
-Video
• Cables
15-pin D-sub
D-Sub Video cable(fixed), power cord
Regulatory approvals
•
•
•
•
•
•
•
TCO ‘99
MPR-II Low Emission
TÜV/GS,TÜV/Ergo,TÜV/9241-3
FCC-B, UL, CSA, DHHS
SEMKO, Poland-B sign, C-Tick
CE, BCIQ, PSB
NUTEK, Energy Star
Physical specifications
•
•
•
•
•
•
•
•
•
•
Dim. incl. base (WxHxD)(mm)
Dim. incl. base (WxHxD)(inch)
Dim. excl. base (WxHxD)(mm)
Dim. excl. base (WxHxD)(inch)
Weight (kg)
Power supply
Temperature (operational)
Temperature (storage)
Relative humidity
MTBF
399 x 410 x 419
15.7" x 16.1" x 16.5"
399 x 373 x 419
15.7" x 14.7" x 16.5"
16.5 kg
90 - 264 VAC, 50/60Hz
0°C to 40°C/ 32°F to 104°F
-25°C to 65°C/ -13°F to 149°F
5% to 95%
> 75,000 H
Other
• USB Hub option type: PCUH411
• Multimedia Base option type: 6G3B11
All data subject to change without notice
Release date: May 2001
www.philips.com
