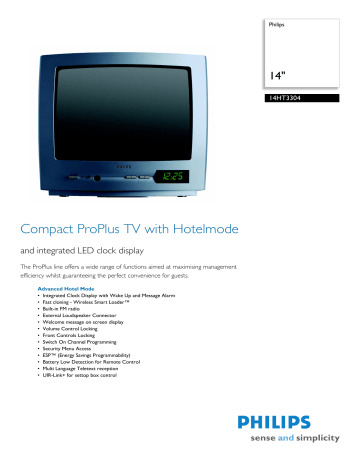

Philips
14"
14HT3304
Compact ProPlus TV with Hotelmode
and integrated LED clock display
The ProPlus line offers a wide range of functions aimed at maximising management
efficiency whilst guaranteeing the perfect convenience for guests.
Advanced Hotel Mode
• Integrated Clock Display with Wake Up and Message Alarm
• Fast cloning - Wireless Smart Loader™
• Built-in FM radio
• External Loudspeaker Connector
• Welcome message on screen display
• Volume Control Locking
• Front Controls Locking
• Switch On Channel Programming
• Security Menu Access
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• Multi Language Teletext reception
• UIR-Link+ for settop box control
14HT3304/01
14"
Specifications
Product highlights
Picture / Display
•
•
•
•
•
•
Aspect ratio: 4:3
Diagonal screen size: 14 inch / 37 cm
Visible diagonal screen size: 34 cm
Display screen type: Black Hibri picture tube
Picture enhancement: Smart Picture
Picture processing: 50 Hz
Sound
• Sound system: Mono
Loudspeakers
•
•
•
•
Connectivity
•
•
•
•
•
• Built-in speakers: 1
Convenience
•
•
•
•
•
•
•
Ease of installation: PLL digital tuning
Ease of Use: Smart picture control
Remote control type: RC2886
Teletext: 1 page Teletext
Clock: Sleep timer, Smart clock
Screen format adjustments: 4:3
Remote control: TV
Tuner / Reception / Transmission
• Tuner bands: Hyper band, S channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
Video playback: NTSC
Aerial input: 75 ohm coaxial (IEC75)
Number of preset channels: 125
Antenna: FM antenna
Number of scarts: 1
Ext 1 Scart: CVBS in/out, RGB
Front / Side connections: Headphone out
Headphone: 3.5 mm
Connectivity enhancements: External
Loudspeaker connector, RJ12 UIR-Link/
Smartloader
Power
Integrated Clock Display
The built-in clock display, which is also a wake-up alarm,
eliminates the need for an additional clock with cables
and connections in the room. Automatic time
synchronisation via teletext, selectable display
brightness and wake-up alarm level to enhance guest
comfort.
Wireless Smart Loader™
Provides the ability to copy easily and wirelessly all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.
• Power consumption: 37 W
• Standby power consumption: < 7.5 w
• Mains power: AC 220 - 240 V +/- 10%
Built-in FM radio
The integrated FM radio offers guests additional
comfort without the extra investment in radio receivers.
Dimensions
External Loudspeaker Connector
Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating the
need for investments in external equipment
•
•
•
•
Product weight: 9 kg
Weight incl. packaging: 11 kg
Colour cabinet: Blue silver
Box dimensions (W x H x D):
460 x 480 x 460 mm
• Set dimensions (W x H x D):
380 x 350 x 380 mm
Welcome Message
Welcome greeting displayed on screen each time the
TV set is switched on
•
Volume Control Locking
This feature predefines the volume range in which the
TV set can operate, preventing excessive volume
adjustments avoiding disturbance of next door
neighbours.
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
It forces the TV set to a specified channel when turned
on. Perfect for in-house advertising or information
channels.
Security Menu Access
Provides conditional access to installation and
configuration settings via a special code or master
remote control
ESP™
Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and providing extended product life
time. The selectable range is from 0 to 99 hours.
Battery Low Detection
This feature informs of the need to replace the remote
control batteries preventing unneccessary replacement
of batteries.
Multi Language Teletext
Allows users to select their preferred language
supported by the teletext characters
UIR-Link+
Makes it possible to connect a Set-top box to the tv and
let the STB control the TV. Tamperproof, allows
PREVIEW function, no tuner required in the STB, one
remote control for STB and TV
Date of issue 2007-01-03
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 14453
EAN: 87 10895 71456 3
