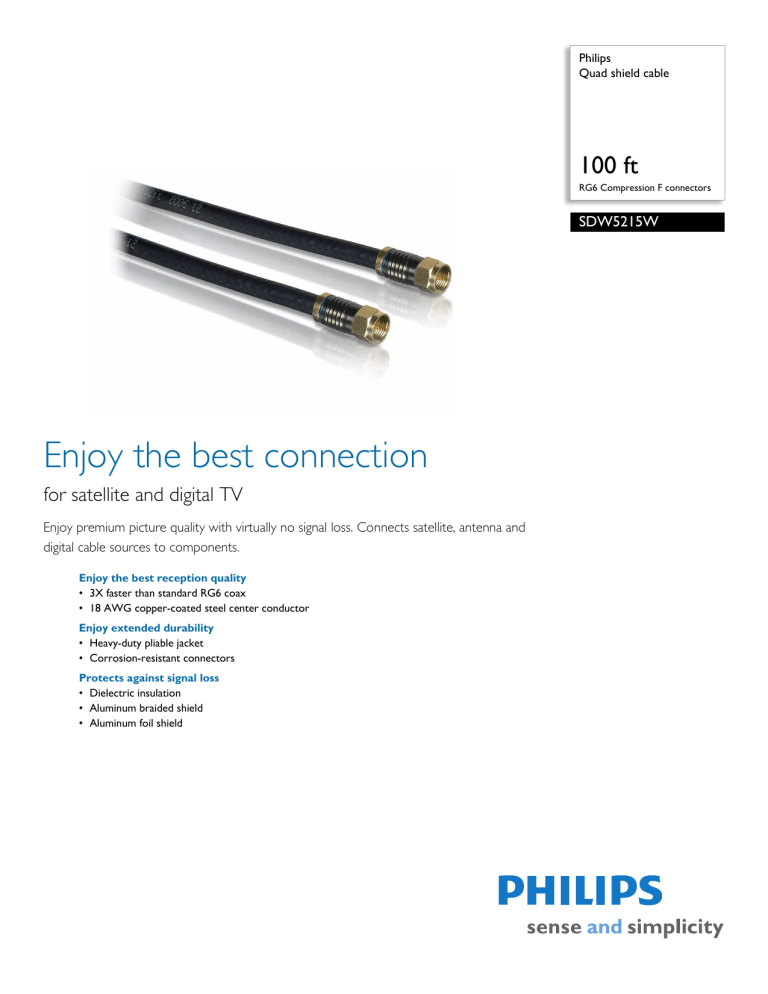

Philips
Quad shield cable
100 ft
RG6 Compression F connectors
SDW5215W
Enjoy the best connection
for satellite and digital TV
Enjoy premium picture quality with virtually no signal loss. Connects satellite, antenna and
digital cable sources to components.
Enjoy the best reception quality
• 3X faster than standard RG6 coax
• 18 AWG copper-coated steel center conductor
Enjoy extended durability
• Heavy-duty pliable jacket
• Corrosion-resistant connectors
Protects against signal loss
• Dielectric insulation
• Aluminum braided shield
• Aluminum foil shield
SDW5215W/27
Quad shield cable
100 ft RG6 Compression F connectors
Specifications
Product highlights
Inner Carton
•
•
•
•
Gross weight: 6.349 lb
Inner carton (L x W x H): 11.4 x 5.6 x 9.6 inch
Nett weight: 5.82 lb
Tare weight: .529 lb
Outer Carton
• Gross weight: 27.161 lb
• Outer carton (L x W x H): 23.8 x 10 x 11.8 inch
• Nett weight: 23.281 lb
• Tare weight: 3.88 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
8.7 x 10.2 x 2.6 inch
• Gross weight: 2.998 lb
• Nett weight: 2.91 lb
• Tare weight: .088 lb
3X faster than RG6 coax
Transferring the signal at a far greater speed than
standard coaxial cable minimizes signal loss, so you enjoy
optimum picture quality and data transfer.
18 AWG copper-coated conductor
The highly conductive composition of this signal conduit
maximizes signal transfer for optimum picture quality and
data transfer.
•
Heavy-duty pliable jacket
Pliable PVC sheathing surrounds the cable, protecting it
from wear and tear and ensuring lond-term durability.
Dielectric insulation
Superior insulation material separates the center conductor
from the braided shield. By isolating the conductors, it
maintains signal integrity, ensuring the best picture quality
and optimum data transfer.
Aluminum braided shield
In concert with the aluminum foil shield, this shield works
as a barrier to keep the signal inside the conductors and
keep interference out.
Aluminum foil shield
In concert with the aluminum braided shield, this shield
works as a barrier to keep the signal inside the conductors
and keep interference out.
Issue date 2008-08-19
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 37365
UPC: 6 09585 14965 6
